TROTTINETTE EN ALUMINIUM

GB Instructions for use

Contents 16

Technical Data 16

Intended Use 16

Safety Information 16

Assembly 17

To put the product back into its transport condition 17

Use 17

Maintenance 17-18

Care, Storage 18

Disposal Information 18

3 Years Warranty 18

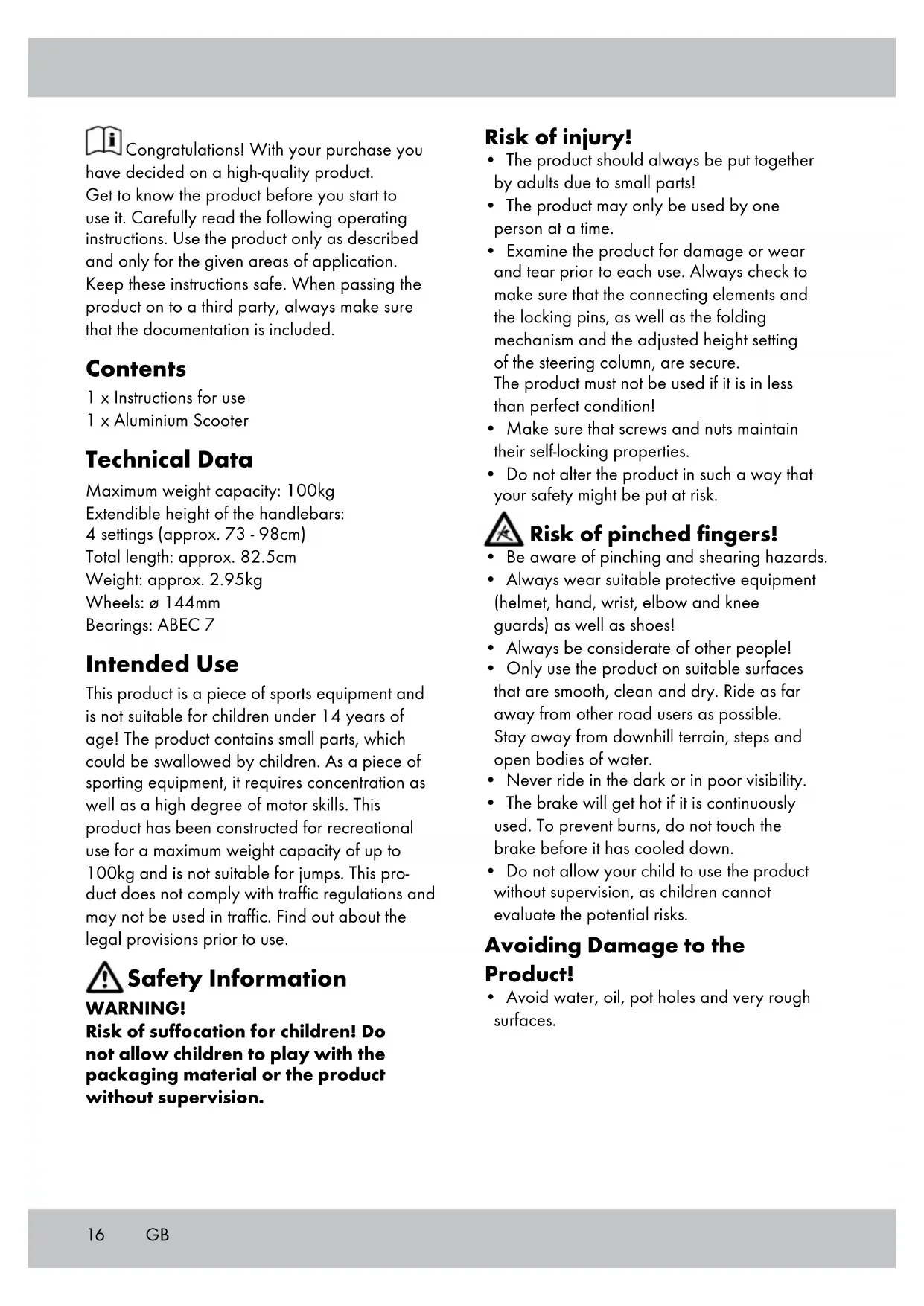

i Congratulations! With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Contents

1 x Instructions for use
1 x Aluminium Scooter

Technical Data

Maximum weight capacity: 100kg
Extendible height of the handlebars:
4 settings (approx. 73 - 98cm)
Total length: approx. 82.5cm
Weight: approx. 2.95kg
Wheels: 144mm
Bearings: ABEC 7

Intended Use

This product is a piece of sports equipment and is not suitable for children under 14 years of age! The product contains small parts, which could be swallowed by children. As a piece of sporting equipment, it requires concentration as well as a high degree of motor skills. This product has been constructed for recreational use for a maximum weight capacity of up to 100kg and is not suitable for jumps. This product does not comply with traffic regulations and may not be used in traffic. Find out about the legal provisions prior to use.

Safety Information

WARNING!

Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.

Risk of injury!

The product should always be put together by adults due to small parts!
The product may only be used by one person at a time.
- Examine the product for damage or wear and tear prior to each use. Always check to make sure that the connecting elements and the locking pins, as well as the folding mechanism and the adjusted height setting of the steering column, are secure. The product must not be used if it is in less than perfect condition!
- Make sure that screws and nuts maintain their self-locking properties.
- Do not alter the product in such a way that your safety might be put at risk.

Risk of pinched fingers!

• Be aware of pinching and shearing hazards.
  Always wear suitable protective equipment (helmet, hand, wrist, elbow and knee guards) as well as shoes!
  Always be considerate of other people!
• Only use the product on suitable surfaces that are smooth, clean and dry. Ride as far away from other road users as possible. Stay away from downhill terrain, steps and open bodies of water.
• Never ride in the dark or in poor visibility.
• The brake will get hot if it is continuously used. To prevent burns, do not touch the brake before it has cooled down.
• Do not allow your child to use the product without supervision, as children cannot evaluate the potential risks.

Avoiding Damage to the Product!

• Avoid water, oil, pot holes and very rough surfaces.

Assembly

(Images are examples for all product variations)

The product is delivered folded up in its transport condition. To make it ready to ride, proceed as follows:

Unfold (Fig. A)

1. Loosen the lower quick-release fastener (1).
2. Pull the lever (2) upward and fold the steering post (3) forward until it locks in.
3. Secure the folding mechanism by fastening the lower quick-release fastener.

Attach handlebars (Fig. B)

1. Release the handlebars (4) from the holders (5).
2. Press down on the locking buttons (6) on the handlebars and push the handlebars into the T-pipe (7) on both sides of the steering column. The locking buttons must audiably click into the designated holes (8).

Adjusting the steering post height (Fig. C)

The steering post can be adjusted to four different heights. Only use the product after clicking the locking button into one of the four holes and securing the steering post with the quick-release fastener!

1. Loosen the quick-release fastener (9) on the steering post.
2. Pull the steering post (10) upward until the locking button (11) locks into one of the four holes (12).
3. Secure the steering post by tightening the quick-release fastener.

Steering head bearing (Fig. D)

The steering head bearing is preset at the time of delivery. In the event the handlebar has too much play after some time or become too stiff, have the steering head bearing adjusted by a speciality retailer or a bicycle shop.

To put the product back into its transport condition

1. Loosen the quick-release fastener on the steering post, press the locking button, push the steering post all the way in, then tighten the quick-release fastener.
2. Press the locking buttons on the handles, pull the handles out of the T-bar and secure to the holders.
3. Loosen the lower quick-release fastener (Fig. E) and pull the lever (2) upward, push the steering post toward the deck until it locks in (Fig. F). Tighten the lower quick-release fastener (Fig. G).

Use

Riding, braking, parking (Fig. H)

• Place one leg on the deck (13) and regularly push off with the other leg for momentum.
• Step on the brake plate to brake (14).
• Unfold the kickstand (15) to park.

The product may only be parked on a smooth surface.

Maintenance

Replacing the wheels (Fig. I) Important!

Please observe the technical data. Wheels that have a different diameter can change the riding properties and, in some cases, possibly endanger the user. Do not use wheels that cannot be perfectly mounted. Never mount wheels that are larger than the product's original wheels.

Wheels wear out. This wear and tear results from many factors, for example the ground, the user's size and weight, the weather conditions, the material of the wheels and their durability. It is thus necessary to replace them from time to time.

• Remove the axle bolts (16) using two setscrew wrenches size 5.
• Remove the axle bolts and remove the wheel.
• Attach the new wheel (17) and secure with the axle bolts.

After replacing:

Do not use if the wheel slides sideways after replacing! Make sure that all screws are still secure and have not loosened after the first few minutes of riding. Tighten the wheel again to make sure that it rides smoothly and that no noises are coming from the bearings.

Exchanging the ball bearings (Fig. J)

• Remove wheels (17) as described (page 17-18).
• Remove one bearing by pressing on the spacer (18) with a setscrew wrench and remove the spacer.
• Remove the other bearing (19), pushing it out with a setscrew wrench.
• Insert a new bearing. Flip the wheel, insert the spacer, and then push in a second new bearing.
• Reattach the wheels.

Care, Storage

It is recommended that the product be thoroughly cleaned and dried after being used. Remove small stones or other objects that may have remained on your wheels. Dry off wet or damp ball bearings with a clean cloth. Oil the bearings from the outside with a suitable bearing oil to prevent rusting. Always store the product in a dry place.

Disposal Information

Dispose of the product and all corresponding components through an approved waste disposal company or through your municipal waste disposal provider. Please observe the currently valid regulations. In case of doubt, ask your waste disposal provider about environmentally sound disposal.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.
