USER MANUAL Huddle Osann

Simple line drawing of an open book with a circular icon containing an information symbol (no text or labels)

DE

EN

FR

IT

NL

Line drawing of a car seat assembly (no text or symbols)

Diagram showing car seatbelt with red X and green checkmark indicating absence or compliance

?₁ ?₂

Illustration of a child wearing a car seatbelt and seatbelt, with no text or symbols present.

Illustration of a stylized human face with open mouth and raised arms (no text or symbols)

Illustration showing three identical scenarios of a person's head with different body positions and correct/incorrect labeling, marked with red X and green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Medical procedure diagram showing steps to adjust a device's internal structure, including insertion and disassembly.

Diagram illustrating a car seatbelting process with red belt and valve mechanism, showing before-and-after states of the seatbelt.

INSTALLATION DES KINDERAUTOSITZES

Diagram illustrating car seatbelting process with labeled parts and a blue 'R' tag

2

CLICK

Close-up of a blue and white object with a green checkmark icon (no text or symbols)

Illustration of a blue belt buckle securing a white seatbelt, with a red prohibition symbol (no text or labels)

3

Line drawing of a car seatbelt device with blue and red buttons (no text or symbols)

Hinweis:

Illustration of a person's seatbelt being lifted by a blue belt, showing the grip and seat (no text or symbols)

Illustration of a hand holding a blue object with a red arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a blue object with red and black markings (no text or symbols)

DE

Close-up of a red belt buckle being adjusted to a white seatbelt, with a green checkmark icon nearby (no text or symbols)

Illustration of a hand using a tool to tighten a surface with a red prohibition symbol (no text or labels)

2

Illustration of a person seated in a car seat with a red belt, showing seatbelt and seat area (no text or symbols)

Illustration of a hand pressing down on a red object with a white foam bubble (no text or symbols)

Click 1 2

REINIGUNG

Thank you for choosing our Huddle child car seat. If you need help with this product, please contact our customer service.

USE

• This product is suitable for children in the ECE group 0+/1/2/3. Weight range: 0-36 kg. Age range: 0-12 years.
• Group 0+ is suitable for children weighing from 0 to 13 kg. The child car seat is installed in the car with the three-point belt. The child is fastened in using the five-point belt of the child car seat.
• Group 1 is suitable for children weighing between 9 and 18 kg. The child car seat faces forwards or backwards and is secured in the car using a three-point belt. The child is fastened in using the five-point belt of the child car seat.
• Groups 2 and 3 are suitable for children weighing between 15 and 36kg . The five-point belt system on the child car seat is removed. The child car seat faces forwards and the child is fastened in with the car's three-point seat belt.
• We recommend installing the child car seat on the rear seat of the vehicle. Do NOT attach the child car seat for rear-facing use in ECE group 0+ to the front seat. It may be used on the front seat if the airbag there can be deactivated. Please refer to the operating manual of the vehicle.
• This child car seat is only suitable for vehicles that feature three-point safety belts in accordance with ECE R16 or other equivalent standards.

WARNING

• This child car seat is a universal child restraining system. It has been tested according to the most stringent approval criteria and has been approved under Regulation No. 44/04.
• It is therefore suitable for general use in vehicles and is compatible with the majority of vehicle seats.
• It is more likely that the seat is compatible if the vehicle manufacturer states that its vehicles are suitable for use with universal child restraining systems.
• The child car seat may only be used in vehicles fitted with three-point safety belts which are either permanently installed or have a roller mechanism and are additionally approved according to UN/ECE No. 16 or other equivalent standards.

If you have any doubts, please contact the child car seat manufacturer or the retailer.

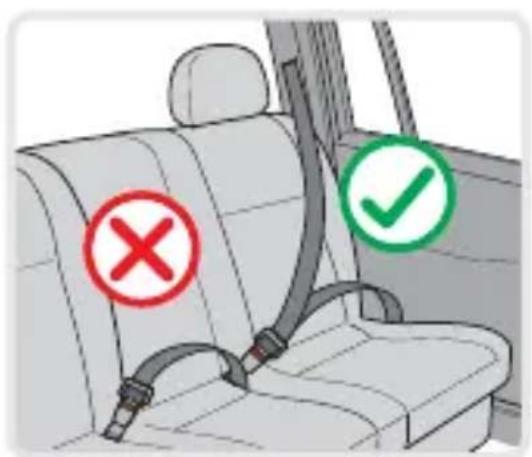

Diagram showing car seatbelt with red X and green checkmark indicating absence or compliance

Diagram of a car with numbered positions and checkmarks indicating status or options, including question marks for questions 1 and 2.

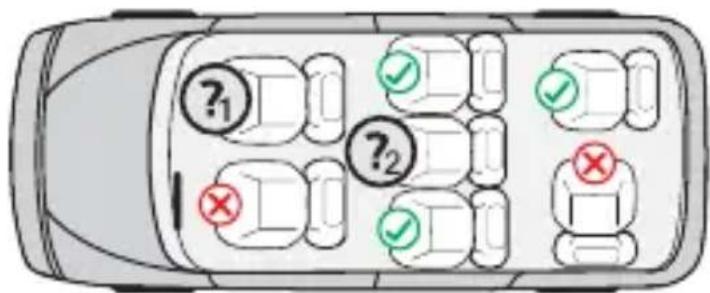

(?) Only if the airbag can be deactivated (?) Only with three-point belt

WARNING

• Please read through the instructions carefully before use and retain them for subsequent reference in order to guarantee the safety of your child. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child seat can only be used with its own five-point belt system for children who weigh under 18 kg (group 0+ and group 1).
• The child seat MUST NOT be used with its own five-point belt system for children who weigh over 18 kg (group 2/3).
• Do not install the seat in a forward-facing direction if the child weighs less than 9 kg.
• Do not use any supporting contact points other than those that are described in the instructions and are marked on the child restraining system.
• Do not use this child seat at home. It has not been designed for use at home and should therefore only be used in your car.
• Do not leave your child unsupervised in the seat at any time.
• Do not place the rear-facing child seat on front seats with an airbag. This could result in death or serious injury.
• The child seat should be replaced if it is exposed to heavy impact during an accident.
• For safety reasons, the child seat must be secured in the vehicle even when your child is not sitting in it.
• Always make sure that all belts that hold the seat holder to the vehicle are secure and that all belts that restrain the child are adjusted to the child's body. Please also ensure that the belts are not twisted.
• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.
• The rigid items and plastic parts of a child restraining system must be placed and installed so that they cannot get caught by a movable seat or a vehicle door during everyday use.
• It is important that low-lying belts hold the pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraining system is also associated with risks.
• This child seat has been designed for newborns and children weighing up to 36 kg. Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraining system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer as it is an important component of the restraint performance.

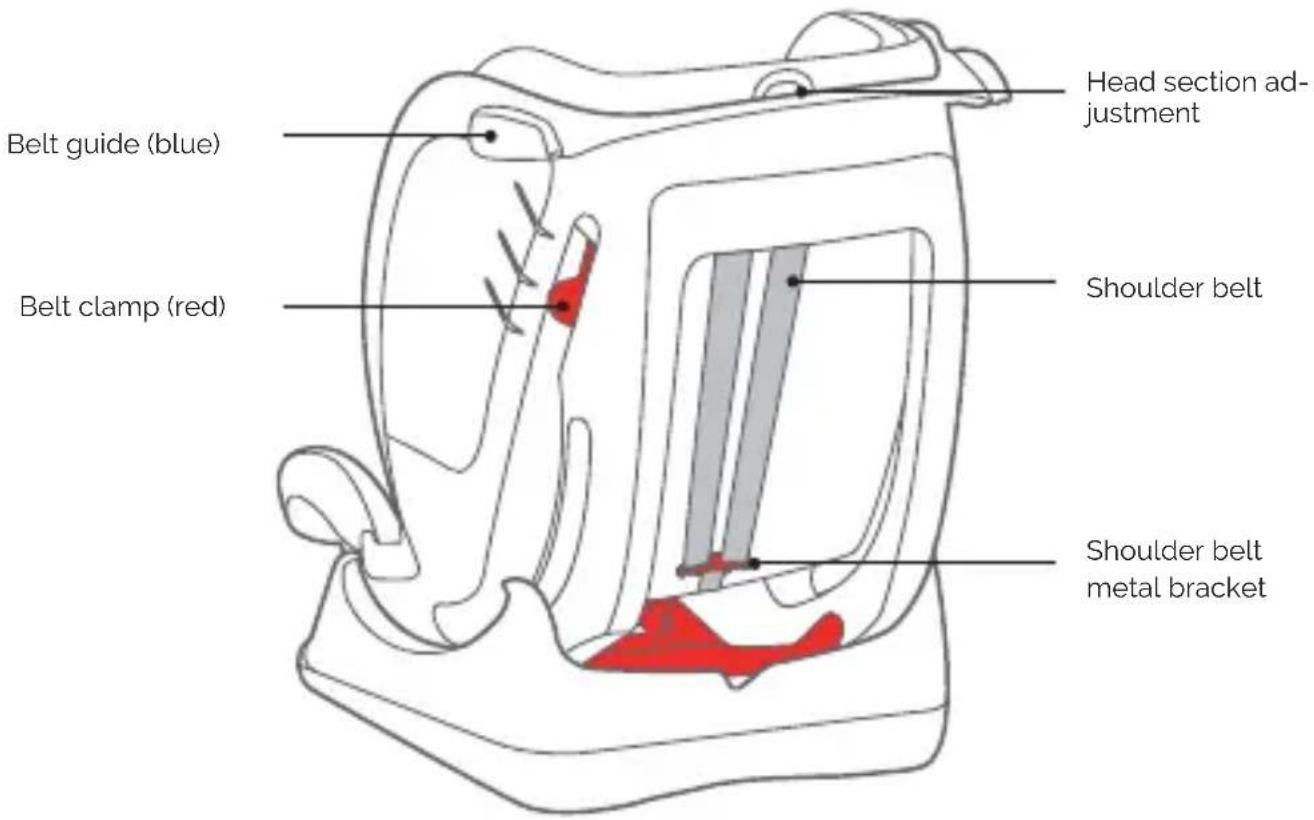

COMPONENTS OF THE CHILD CAR SEAT

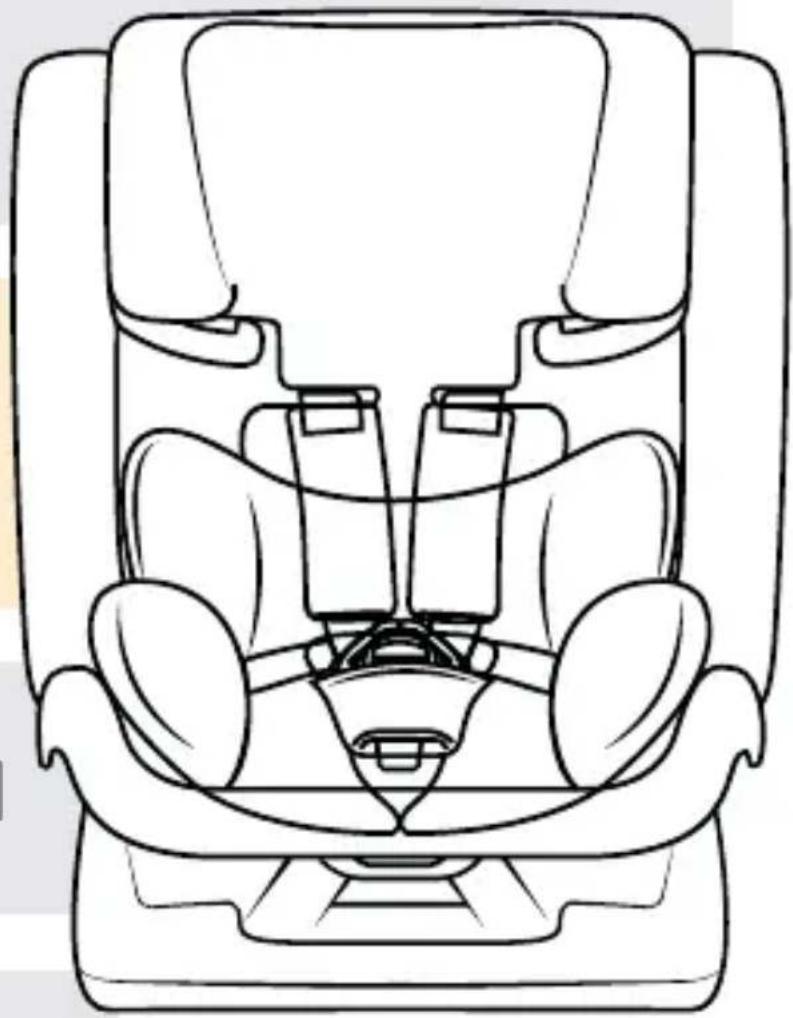

Front view

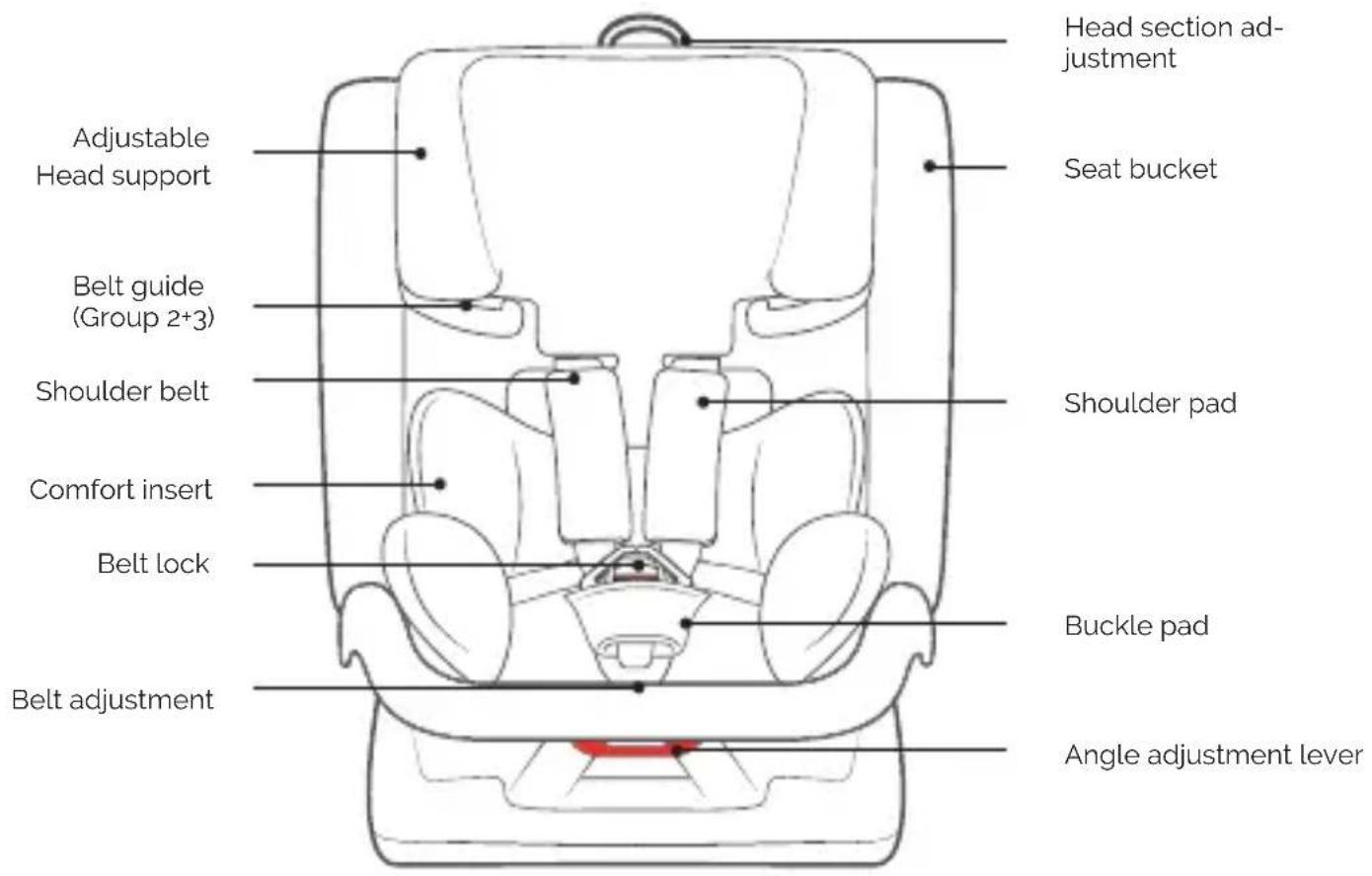

Head section adjustment Seat bucket Adjustable Head support Belt guide (Group 2+3) Shoulder belt Comfort insert Belt lock Belt adjustment Shoulder pad Buckle pad Angle adjustment lever

Rear view

Belt guide (blue) Belt clamp (red) Head section adjustment Shoulder belt Shoulder belt metal bracket

USE OF THE CHILD CAR SEAT

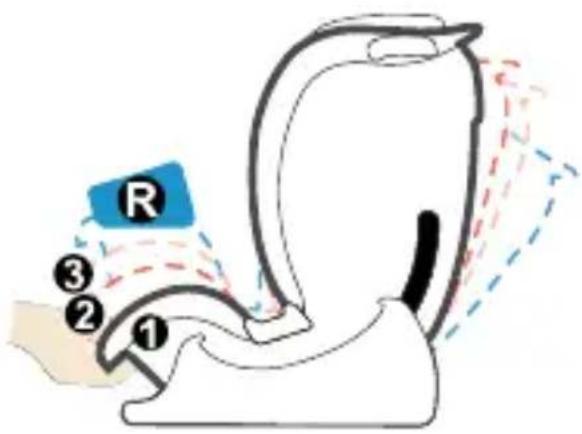

Setting the child car seat tilt angle

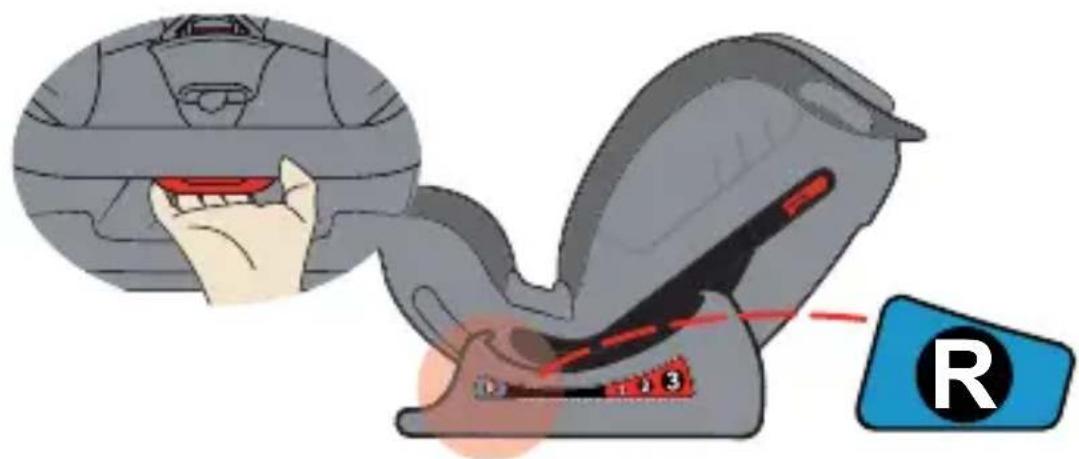

• Use one hand to operate the angle adjustment lever on the lower front side of the seat bucket.
• Use your other hand to hold the reverse side of the seat bucket and adjust the angle.
• The maximum angle (R, blue) only applies to the rear-facing position and the three angles marked in red only apply to the forward-facing position.

R ③ ② ①

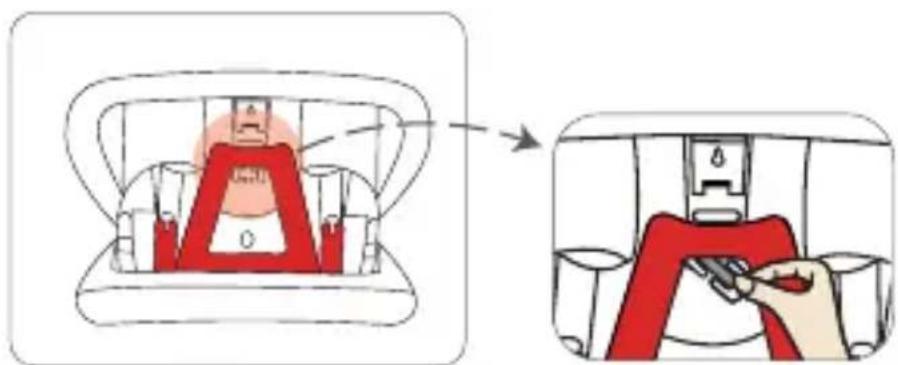

Adjusting the belt

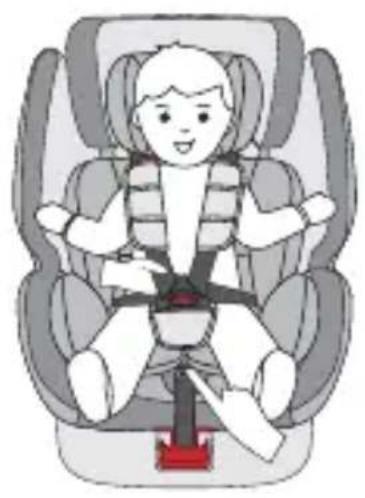

• To loosen the belt, press the belt adjustment button at the front of the seat with one hand.
• Use your other hand to hold the buckle in place with the attached belts and then release it.
  • To tighten the belt, pull on the front adjusting strap.

Illustration of a child wearing a car seatbelt and seatbelt, with no text or symbols present.

Opening/closing the belt

• To release the belt, press the red button on the belt lock and separate the two belt tongues.
• To close the belt, first pull together the two belt tongues and slide these into the belt lock together.

Illustration of a stylized human face with open mouth and raised arms (no text or symbols)

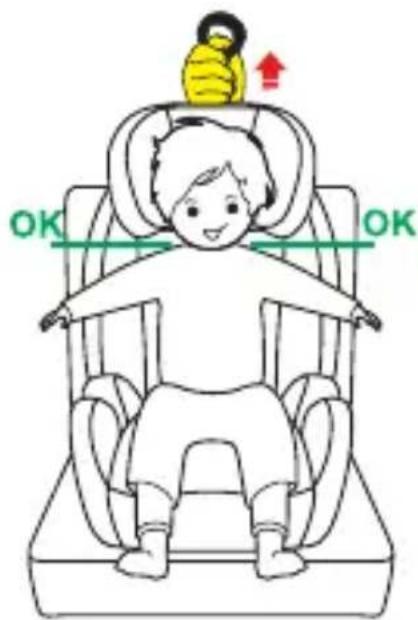

Adjusting the head support

- Loosen the belt and pull the lever on the head support until it is set to the desired height.

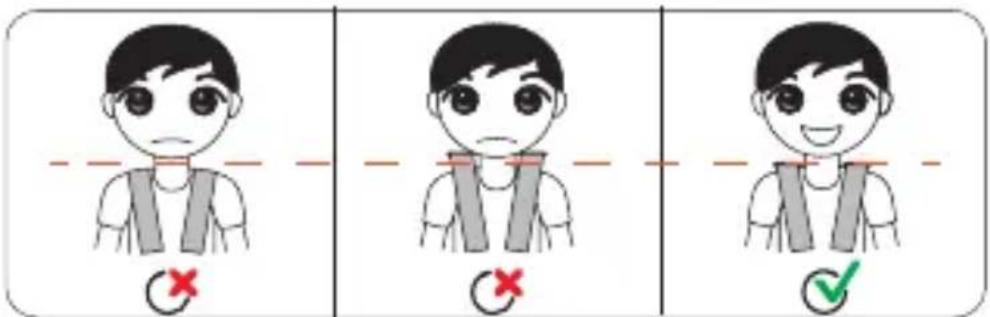

- Pay attention to the correct height of the shoulder belts. These should come out of the seat at the height of the child's shoulders.

- Release the lever and make sure that the headrest is locked.

OK OK

Illustration showing three identical scenarios of a person's head with different body positions and correct/incorrect labeling, marked with red X and green checkmark.

Comfort insert & baby insert

Simple line drawing of a symmetrical abstract shape resembling a stylized animal head or mask (no text or symbols)

Comfort insert up to max. 13 kg

Baby insert (under comfort insert) up to max. 9 kg

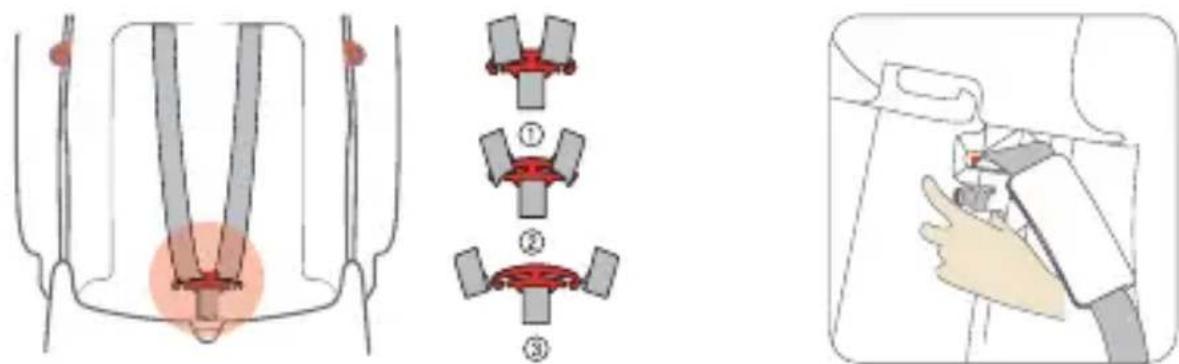

Removal of the belt system

• Loosen the belt system and thread the shoulder straps at the back of the child car seat out from the metal bracket.
• Open the belt buckle and pull the shoulder straps forward. Store them neatly folded under the seat cover.
• Put the child car seat into maximum reclining position.
• Thread the metal plate of the belt buckle from the underside of the seat through the openings to the top, removing the belt buckle completely from the child car seat.
• Press the button for adjusting the belt length and pull the adjusting strap as far as possible under the cover of the child car seat.
• Please keep all removed parts in a safe place so that they can be reassembled for later use.

Medical procedure diagram showing steps to adjust a device's internal structure, including insertion, positioning, and cleaning.

Diagram illustrating a car seatbelting process with red belt and valve mechanism, showing before-and-after states of the seatbelt.

INSTALLATION OF THE CHILD CAR SEAT

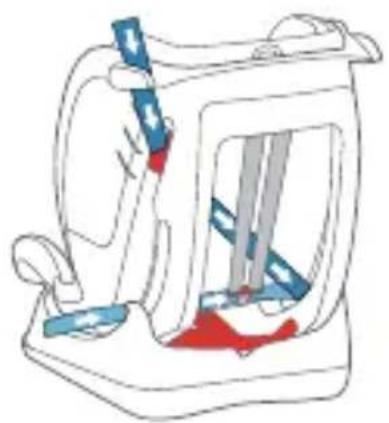

Group 0+/1 (rear-facing)

(For children from 0 to 18 kg)

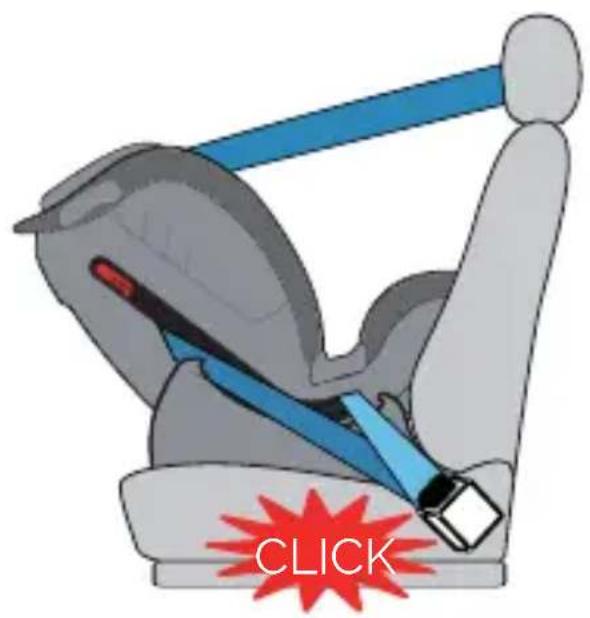

• Place the child car seat in the rear-facing position on the car seat and adjust it to the maximum angle (R, blue position) (1) and loosen the belt system from the child car seat.
  • Take the car's three-point belt and extend it to the maximum length.
• Pass the three-point belt between the seat shell and the base below the child car seat's belt system and insert the buckle of the three-point belt into the car belt lock until you hear it engage. (2)
• Then take the diagonal belt and thread it through the blue-marked belt guide on the seat shell, then through the red belt clamp on the same side of the child car seat (3). Before letting go of the red belt clamp, pull the three-point belt as tight as possible and make sure that the child car seat is pressed firmly against the backrest of the car seat and there is no gap.
• Open the belt system on the child car seat.
• Put the child in the child car seat.
  • Make sure that the belt system and head support are correctly adjusted, as described above.
• Close the belt buckle again until you hear a click.
  • Pull the front adjusting strap, to tighten the belts. Ensure that the straps are not twisted.
• Every time you place the child in the child car seat, make sure that the car's three-point belt is tensioned and that the child car seat is properly secured.

WARNING

We recommend installing the child car seat on the rear seat of the vehicle. Do NOT attach it to the front seat for rear-facing use in ECE group 0+/1. It may be used on the front seat if the airbag there can be deactivated. Please refer to the operating manual of the vehicle.

Diagram illustrating car seatbelting process with labeled parts and a blue 'R' tag

• 21 •

EN

Note:

The car's three-point bell must be placed below the bell system of the child car seat.

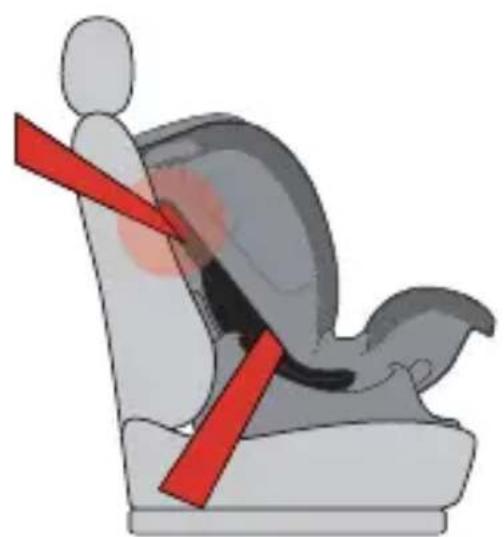

Group 1 (forward-facing)

(For children weighing 9-18 kg)

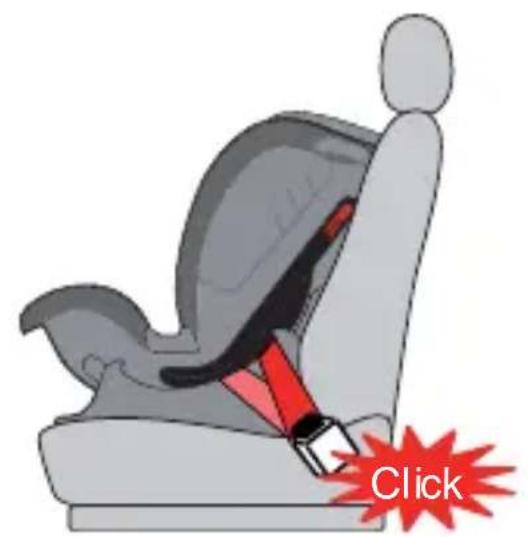

• Place the child car seat in the forward-facing position on the car seat.
  • Take the car's three-point belt and extend it to the maximum length.
  • Pass the three-point belt between the seat shell and the base and insert the buckle of the three-point belt into the car belt lock until you hear it engage. (1)
• Then thread the diagonal strap through the red belt clamp. (2)
• Now pull the three-point belt as tight as possible and make sure that the child car seat is pressed firmly against the backrest of the car seat and there is no gap. (2)
• First, open the belt system on the child car seat.
• Put the child in the child car seat.
  • Make sure that the belt system and head support are correctly adjusted as described above.
• Close the belt buckle again until you hear a click.
• Pull the front adjusting strap in order to tighten the belts. Please ensure that the straps are not twisted.
• Every time you place the child in the child car seat, make sure that the car's three-point belt is tensioned and that the child car seat is properly secured.

1

Click

Close-up of a red belt buckle being held, with a green checkmark icon nearby (no text or symbols)

Illustration of a hand using a red tool to tighten a white object, with a prohibition symbol (no text or labels)

2

Illustration of a person sitting in a seat with a red belt, showing seatbelt and seat area (no text or symbols)

Illustration of a hand pressing down on a red object with a white foam bubble (no text or symbols)

Group 2/3 (forward-facing)

(For children weighing 15-36 kg)

- Remove the belt system as described above.

- Place the child car seat in the forward-facing position on the car seat.

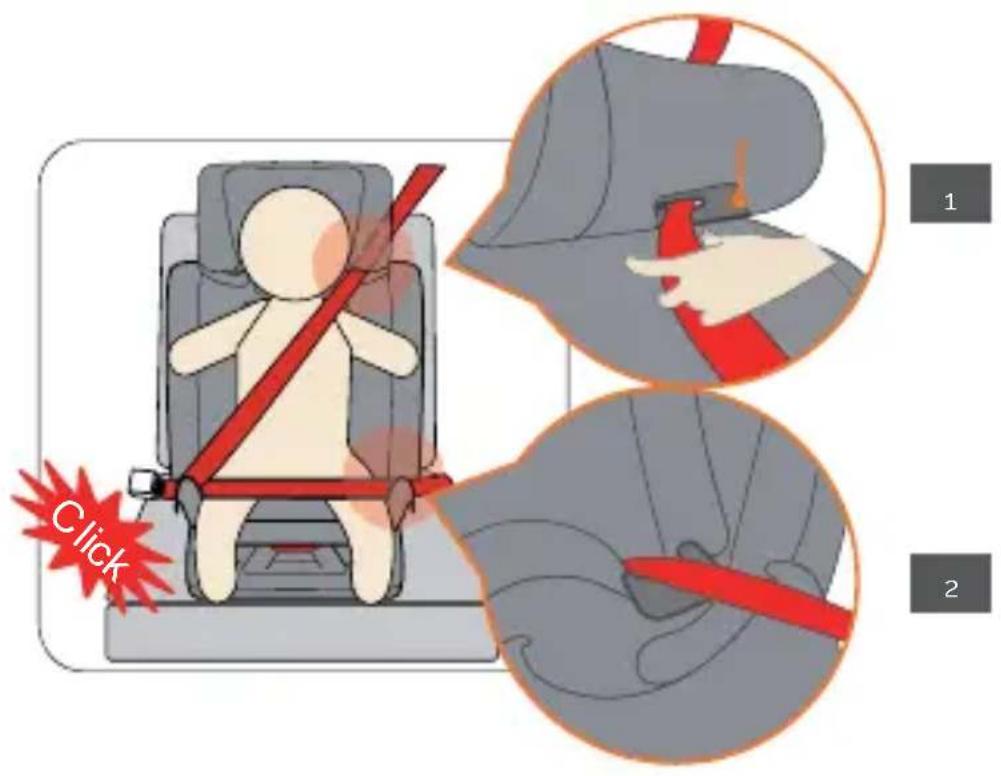

- Now thread the diagonal belt through the belt guide on the head support. (1)

- Put the child in the child car seat.

• Make sure that the head support is correctly adjusted as described above.

- Close the buckle on the three-point belt.

• Make sure that the pelvic restraint runs along the corresponding red belt guide. (2)

- Now pull the three-point belt as tight as possible so that it fits snugly against your child's body.

- Every time you fasten your child into the seat, please make sure that the car's three-point belt is not twisted and is correctly positioned in its belt guide on the head support and in the pelvic area.

Click 1 2

CLEANING

This product has been developed taking into account safety, comfort and functionality. Please take the time to read these instructions carefully before using the product and store them in a safe place for future reference.

In order to guarantee long-term usage of your child car seat, do not use any solvents, abrasives or aggressive cleaning agents. Check that the fabric and seams are not damaged after each wash. When washing the cover, carefully follow the instructions on the label (see below).

Wash at 30 °C, delicate cycle

Do NOT iron

Do NOT bleach

Do NOT dry clean

Tumble dry at a low temperature

MAINTENANCE

Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of the reach of children.

If you have any problems, please contact the Osann customer service team on +49 (0)7731/970077.

FR

Diagram showing car seatbelt with red X and green checkmark indicating absence or compliance

?₁ ?₂

Illustration of a child wearing a car seatbelt, no text or symbols present

Simple line drawing of a human head with abstract shapes and a red eye (no text or symbols)

Illustration showing three identical scenarios of a person's head with different body positions and correct/incorrect labeling, marked with red X and green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Medical procedure diagram showing steps to adjust a device's internal structure, including insertion, positioning, and cleaning.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating assembly steps.

INSTALLATION DU SIÈGE AUTO POUR ENFANT

Diagram illustrating car seatbelting process with labeled parts and a blue 'R' tag

2

CLICK

Close-up of a blue and white object with a green checkmark icon (no text or symbols)

Safety warning symbol showing a blue belt buckle securing a white seatbelt, with a red prohibition sign below.

3

Line drawing of a car seatbelt device with blue and red buttons (no text or symbols)

Remarque :

Illustration of a person's seatbelt being lifted by a blue belt, showing the grip and seat (no text or symbols)

Illustration of a hand holding a blue object with a red arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a blue object with red and black markings (no text or symbols)

Close-up of a red and black object with a white square, possibly a tool or component, being cut (no text or symbols visible)

Safety warning symbol showing a red bandage with a stop sign, indicating no hazard or absence of safety.

2

Illustration of a person seated in a car seat with a red belt, showing seatbelt and seat area (no text or symbols)

Illustration of a hand pressing down on a red object with a white foam bubble (no text or symbols)

Click 1 2

NETTOYAGE

Diagram showing car seatbelt with red X and green checkmark indicating absence or compliance

Diagram of a car with numbered positions and checkmarks indicating status or options, including question marks for questions 1 and 2.

Illustration of a child wearing a car seatbelt and seatbelt, no text or symbols present

Simple line drawing of a hand holding a red object, with no text or symbols present.

Illustration showing three identical scenarios of a person's head with different body positions and correct/incorrect labeling, marked with red X and green checkmark.

Simple line drawing of a symmetrical abstract shape resembling a stylized face or mask (no text or symbols)

Inserto comfort max. 13 kg

Medical procedure diagram showing steps to adjust a device's internal structure, including insertion, positioning, and cleaning.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating assembly steps.

INSTALLAZIONE DEL SEGGIOLINO AUTO PER BAMBINI

Diagram illustrating car seatbelting process with labeled parts and a blue 'R' tag

2

CLICK

Diagram illustrating two safety rules: one with a checkmark and another without a prohibition sign.

3

Line drawing of a car seatbelt device with blue and red components (no text or symbols)

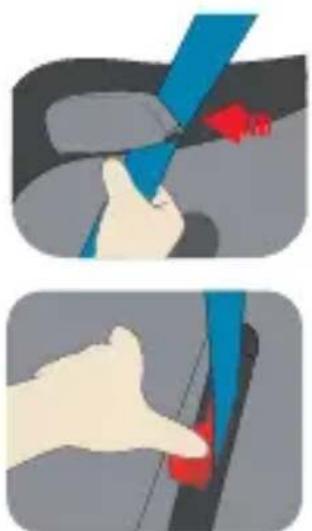

Nota:

Illustration of a person's seatbelt being lifted by a blue belt, showing the grip and seat (no text or symbols)

Two-step illustration showing a hand using a blue tool to lift a car's seatbelt, with red arrows indicating the action (no text or symbols present)

IT

Illustration of a red and white object being lifted by a tool, with a green checkmark indicating inspection (no text or symbols present)

Safety warning symbol with red prohibition sign and magnified circle, indicating no hazard or caution

2

Illustration of a person seated in a car seat with a red belt, showing seatbelt and seat area (no text or symbols)

Illustration of a hand pressing down on a red object (no text or symbols visible)

Click 1 2

PULIZIA

Diagram showing car seatbelt with red X and green checkmark indicating absence or compliance

?₁ ?₂

Illustration of a child wearing a car seatbelt and seatbelt, with no text or symbols present.

Illustration of a stylized human head with open mouth and red eye (no text or symbols)

Illustration showing three identical scenarios of a person's head with different body positions and correct/incorrect labeling, marked with red X and green checkmark.

Comfort-inlegstuk & baby-inlegstuk

Simple line drawing of a symmetrical abstract shape resembling a stylized animal head or mask (no text or symbols)

Comfort-inlegstuk tot max. 13 kg

Diagram illustrating a car seatbelting process with red belt and seatbelt, showing before-and-after states of the seatbelt.

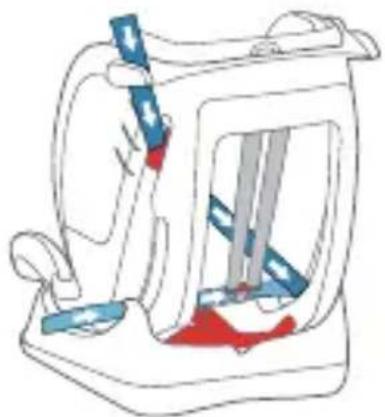

INSTALLATIE VAN HET AUTOSTOELTJE

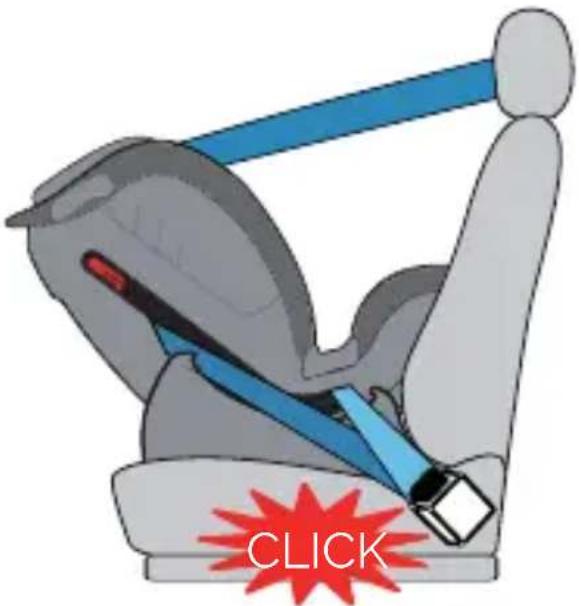

Diagram illustrating car seatbelting process with labeled parts and a blue 'R' tag

2

Illustration of a car seatbelt with blue belt and red starburst symbol (no text or symbols)

Illustration of a blue ribbon cable being inserted into a car seat (no text or symbols visible)

Illustration of a blue and white object being inserted into a surface, with a red prohibition symbol below (no text or labels)

3

Line drawing of a car interior with blue and red components, no text or symbols present

Aanwijzing:

Illustration of a person's seatbelt being lifted by a blue belt, showing the grip and seat (no text or symbols)

Close-up of a hand holding a blue object with a red arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a tool with red and blue components (no text or symbols)

Illustration of a person seated in a car seat with a red belt, no text or symbols present

Illustration of a hand pressing down on a red object with a white foam bubble (no text or symbols)

Click 1 2

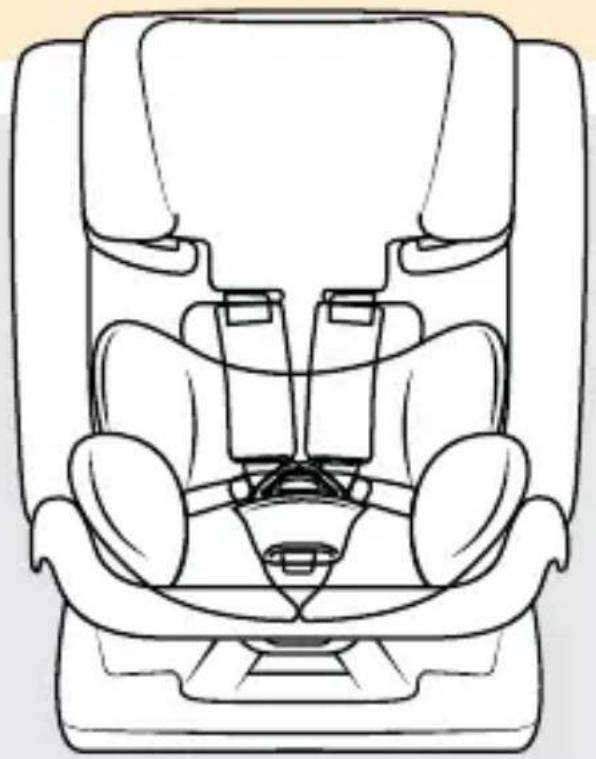

REINIGING

Fax: [phone]

E-Mail: [e-mail]

Line drawing of a car seat assembly (no text or symbols)
