USER MANUAL MyGate 46760 Reer

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows indicating rotation or movement.

Abbildungsverzeichnis // Illustration directory // Table des illustrations // Elenco delle illustrazioni // Tabla de ilustraciones // Overzicht van de afbeeldingen // Afbildningsliste // Katáloyoc εικονογραφημάτων // Spis ilustracji // Seznam obrázků

DE Absperrgitter-Baukasten MyGate
EN Safety gate construction kit MyGate
FR Barrière de sécurité en kit MyGate
IT Set di montaggio barriera MyGate
ES Barrera de protección con sistema modular MyGate
NL Hek-montageset MyGate
DA Afspærringsgitter-byggesæt MyGate
GR Σετ κατασκευής διαχωριστικού πλήθους MyGate
PL Bramka - modułowa MyGate
cz Sestava mříží MyGate // Art.Nr. 46701, 46720, 46760

Close-up of a mechanical component with a cylindrical protrusion and mounting bracket (no visible text or symbols)

Close-up of two gray cylindrical objects with curved surfaces, mounted on a stand (no text or symbols visible)

Gebrauchsanleitung // Instructions // Mode d'emploi // Istruzioni per l'uso // Manual de instrucciones // Gebruiksaanwijzing // Brugsvejledning // Oδηγίες χρήσης // Instrukcja obsługi // Návod k použití

Pure vertical line pattern without any text, numbers, or symbols

Pure architectural or structural diagram of a vertical fence or bench frame (no text or symbols)

Pure vertical line diagram without any text, numbers, or symbols

Simple line drawing of a safety cage with a letter 'a' on the top (no text or symbols on the cage itself)

1x Tür-Element

Abstract geometric pattern with vertical lines and a horizontal bar, no text or symbols present

1x Night-Safe

1x Inbusschlüssel

Architectural elevation drawings of a multi-story building interior, showing structural details from top to bottom (no text or symbols)

Simple line drawing of a safety cage with a letter 'a' on the top (no text or symbols on the cage itself)

b

2x Connecting bar

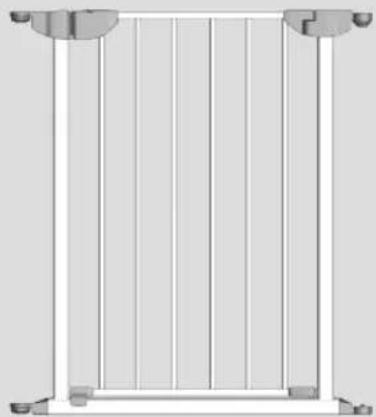

2x Wall hinge left (small)1x Door element 2x Wall hinge right (large)

2x Wall hinge right (large)

4x Wall mount

1x Lower hinge cap with screw

1x Lower hinge cap

2x Upper hinge cap

8x Wooden mounting screw

Abstract geometric pattern with vertical lines and a horizontal bar, no text or symbols present

1x Night-Safe

1x Allen key

Art. No46760

1x Extension 60 cm

1x Connecting bar

Art. No46720

1x Extension 20 cm

1x Connecting bar

Necessary tools

Product information Art.No. 46701 door element

(according to angle position)

Product information Art.No. 46720 extension 20 cm

Product information Art.No. 46760 extension 60 cm

When assembled according to the user manual the safety gate complies with EN 1930:2011

WARNING! Incorrect assembly can be dangerous!

WARNING! The safety gate may not be used if it is damaged or if individual parts are lost!

WARNING! The child safety gate may not be used on windows!

child development), the gate should no longer be used

mounted properly

indications in the instructions subsequently

The safety gate is not a toy. It does not replace the proper supervision of an adult!

Cleaning: Do not use any harsh cleaning agents or abrasive materials. Clean the safety gate on a regular basis with a damp cloth and a little dishwashing liquid.

Assembly options

English (EN)

personalise your individual safety gate

3D rendering of a metal fence structure with vertical bars, no text or symbols visible

3D rendering of a white metal cage structure with vertical supports and a shaded base (no text or symbols)

Exterior view of a modern office building (no signage)

3D rendering of a small rectangular structure with a vertical railing and a screen, no visible text or symbols

3D architectural rendering of a staircase with metal railings and railing (no text or symbols)

Interior view of a modern building with vertical metal grilles and a central white fence (no text or symbols visible)

3D wireframe illustration of a spiral staircase with metal framing (no text or symbols)

3D wireframe model of a geometric structure with no visible text or symbols

1x

1x

1x

1x

1x

1x

2x

1x

Blank white image with no visible content, text, or symbols

1x

Solid dark gray circle on a light gray background with no text or symbols

2x

6x

Blank white image with no visible content, text, or symbols

5x

2x

●

The image contains no text or characters. Therefore, the correct OCR output is an empty string.

2x

10x

Assembly

Preparation

Determine the width, in which the gate should be installed.

-

too small the child can use this as a climbing aid.

CAUTION! Pay attention to keep the gate a sufficient distance away from sources of danger!

Be aware in doing so that your child may be able to reach through the gate bars!

CAUTION! Please keep the gate at least 80cm away from heat source!

Step 1

Connect elements

Put together door element (a) + extension (l) or (n), fig. 1 to fig. 4.

The joints grip together like gears, fig. 8 and 9.

Insert connecting bar (b), upper metal cap though the connected hinges, gently screw in a clockwise direction,

fig. 5, 6 and 7.

Set angle

Hinge connections of the individual elements allow 9 angle positions.

Gently lift bar section with the above lying hinge part. Choose the desired angle setting, lock the upper hinge part into the lower, fig. 8 and 9.

Turn the connecting bar clockwise until both bar sections are securely connected to each other and can not move any more, fig. 10.

Warning!

The rails can only be tightened using the accompanying Allen key once the safety gate is completely assembled!

other elements

To add additional bar elements, repeat step 1.

Step 2

Wall mount

CAUTION: the external bar elements must be securely connected to the wall in order to ensure that the safety gate is safe.

left side / locking side

The locking side of the door element is labelled as left side for easier understanding. The bars can also be constructed the other way round.

upper wall bracket

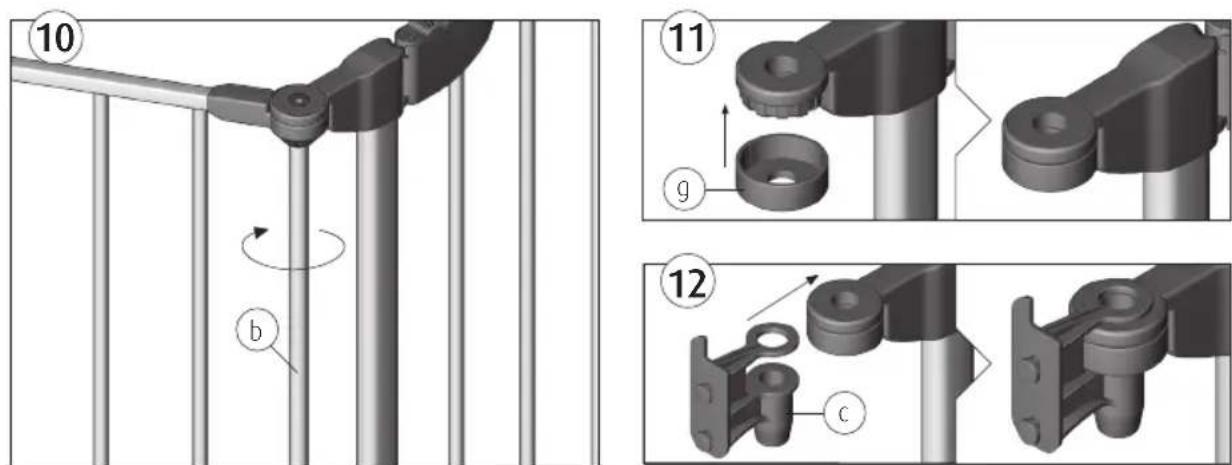

Attach hinge cap (g) to the upper left hinge from below, fig. 11.

Slide the wall hinge (c) on the hinge so that it surrounds the hinge above and below, fig. 12.

Attach the lower hinge cap with the screw (f) to the other hinge from below, fig. 13.

Insert connecting bar (b), upper metal cap through the connected hinges, fig. 14 to 16, tighten in a clockwise direction, fig. 14

CAUTION: when constructing in a straight line without angle, the lower wall brackets must also be mounted in order to guarantee stability!

When constructing with angles the upper wall brackets are sufficient.

Lower Put the wall hinge (c) on the connecting bar (b) before this is screwed together with the lower hinge, fig. 17. wall bracket Always mount the wall hinge from below, fig. 18 and 19.

Insert the wall bracket (e) with the flat side on the back of the wall hinge until it clicks into place, fig. 20.

Mark the position of the wall bracket on the wall, fig. 21.

Remove the wall bracket (e) from the wall hinge again. To do so press the small button on the top of the wall bracket, push the wall bracket downwards, Abb. 22.

Put the wall bracket (e) on the position marked on the wall, draw in drill holes, fig. 23.

Secure the wall bracket (e) to the wall using the accompanying wooden screw (i), fig. 24. (use suitable screws, 4mm, and wall plugs on other mounting surfaces)

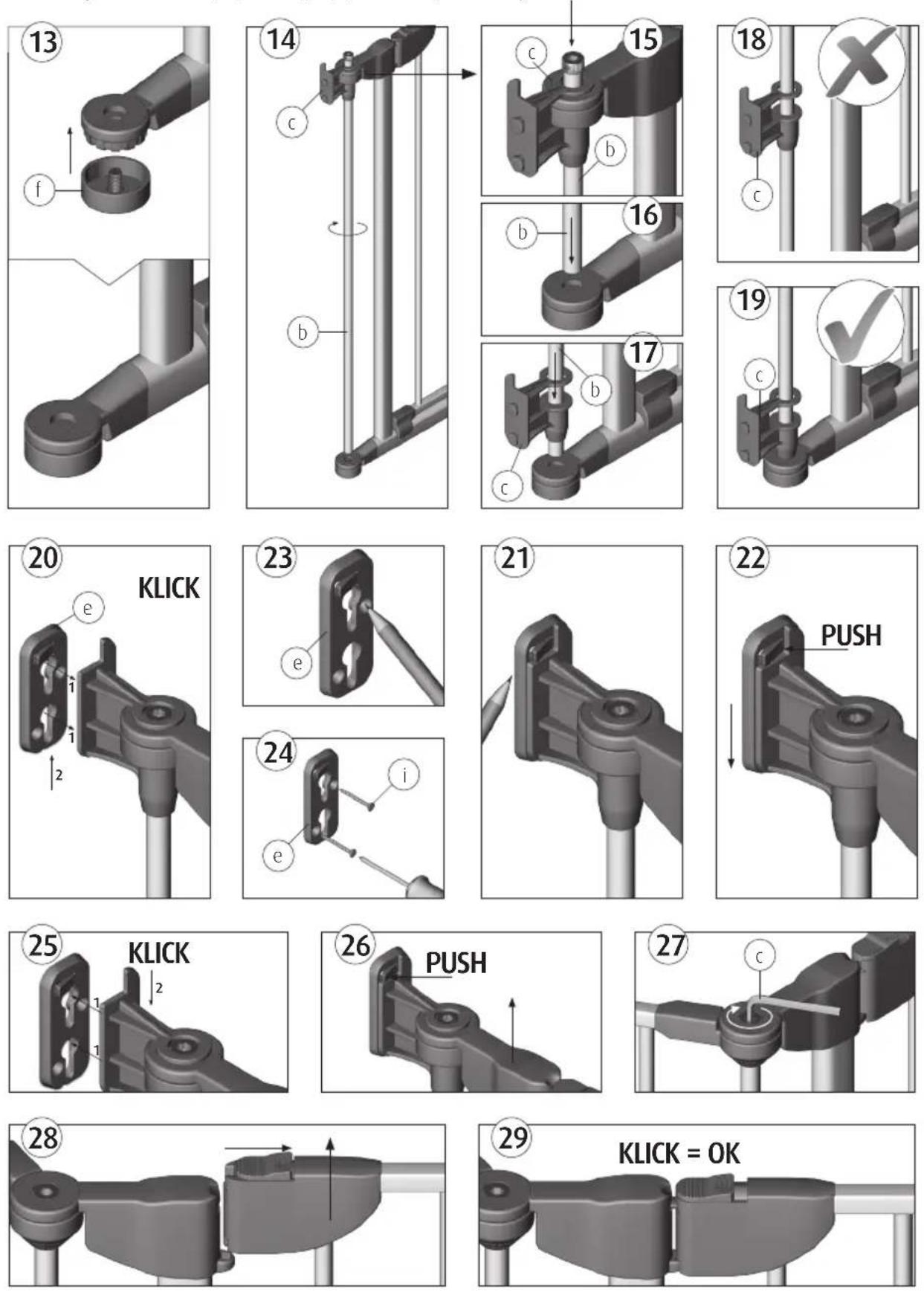

Wall click system Hook the wall hinge (c) in the wall bracket (e). CAUTION: ensure that the wall hinge is correctly locked into the wall bracket, fig. 25.

Click out

fig. 26.

right side / Repeat stage 2 on the right side.

Using the accompanying Allen key (k), tighten all inserted connecting bars (b) in a clockwise direction, fig. 27.

To open door Gently push the button on the handle backwards, simultaneously lift the gate and swing to the side, fig. 28.

To shut door

Swing the door back, lift, position and push down. The door latches automatically, fig. 29.

Make sure that the door is correctly latched in place and locked!

Note

Regularly check the safety gate for secure mounting, stability and locking function. If necessary, amend the positions according to the instructions listed in the user manual.

Please keep the sales receipt, operating manual and article number in a safe place.

All claims based on warranty or guarantee are to be directed solely towards the retailer.
