Product type	Double digital stopwatch (timer and stopwatch)
Brand	TFA
Model	38.2025
Case dimensions	91 × 21 × 76 mm
Weight	86 g (device only)
Power supply	2 AAA 1.5 V batteries (not included)
Recommended battery type	Alkaline
Display	Dual LCD screen for Timer 1 and Timer 2
Measuring range	Up to 99 hours 59 minutes 59 seconds
Main functions	Independent dual timer, stopwatch, memory function
Alarm	Audible alarm with green/red LED indicator
Alarm volume	3 levels: High, Low, Mute (selector on the side)
Mounting	Integrated magnets, foldable stand, wall mount loop
Care and cleaning	Clean with a soft damp cloth; do not use solvents or abrasives; protect from moisture
Safety	Do not expose to extreme temperatures, vibrations or shocks; do not open or repair yourself; keep batteries out of reach of children
Battery replacement	Open the compartment, insert 2 new AAA batteries observing polarity
Package contents	Timer, instruction manual
Country of manufacture	Germany (TFA Dostmann GmbH & Co. KG)
Compliance	Compliant with EU WEEE directive

Frequently Asked Questions - 38.2025 TFA

How to set the timer on the TFA 38.2025?

Press the T1 or T2 button to select the desired timer. Use HR, MIN and SEC to set hours, minutes and seconds. Press S/S to start the countdown. For quick adjustment, hold the button down.

How to use the stopwatch?

Select the timer with T1 or T2, then simultaneously press HR and MIN to reset. Press S/S to start timing. The ▲ symbol appears. Press S/S again to stop or resume.

How to set the alarm volume?

Use the switch on the right side of the device to choose between High, Low or Mute levels. The mark in the middle of the switch indicates the selected volume.

How to use the memory function?

Press T1 or T2 to select the timer. Hold M button for 2 seconds until '0.000' flashes. Set the time with HR, MIN, SEC and confirm with M. You can then recall this preset by pressing M.

How to mount the stopwatch?

The device can be placed on a flat surface using the foldable stand. Use the hanger loop to attach it to the wall with a nail. The integrated magnets allow attachment to metal surfaces.

What to do if the display is dim or blank?

Check the battery polarity and replace them with new AAA 1.5 V batteries. If the problem persists, contact your dealer.

How to replace the batteries?

Slide the battery compartment cover downward, remove used batteries and insert two new AAA batteries observing polarity (+/-). Close the cover by sliding it upward.

Can I use rechargeable batteries?

The manual recommends alkaline batteries. Rechargeable batteries (Ni-MH) can be used, but their lower voltage (1.2 V) may reduce battery life or cause malfunctions. Use at your own risk.

What to do if a battery is swallowed?

Batteries contain harmful acids. If swallowed, contact emergency medical help immediately. Internal burns can occur within 2 hours. Keep batteries out of reach of children.

How to clean the stopwatch?

Use a soft damp cloth to clean the device. Do not use solvents, abrasive products, and avoid excessive moisture. Remove batteries before thorough cleaning.

USER MANUAL 38.2025 TFA

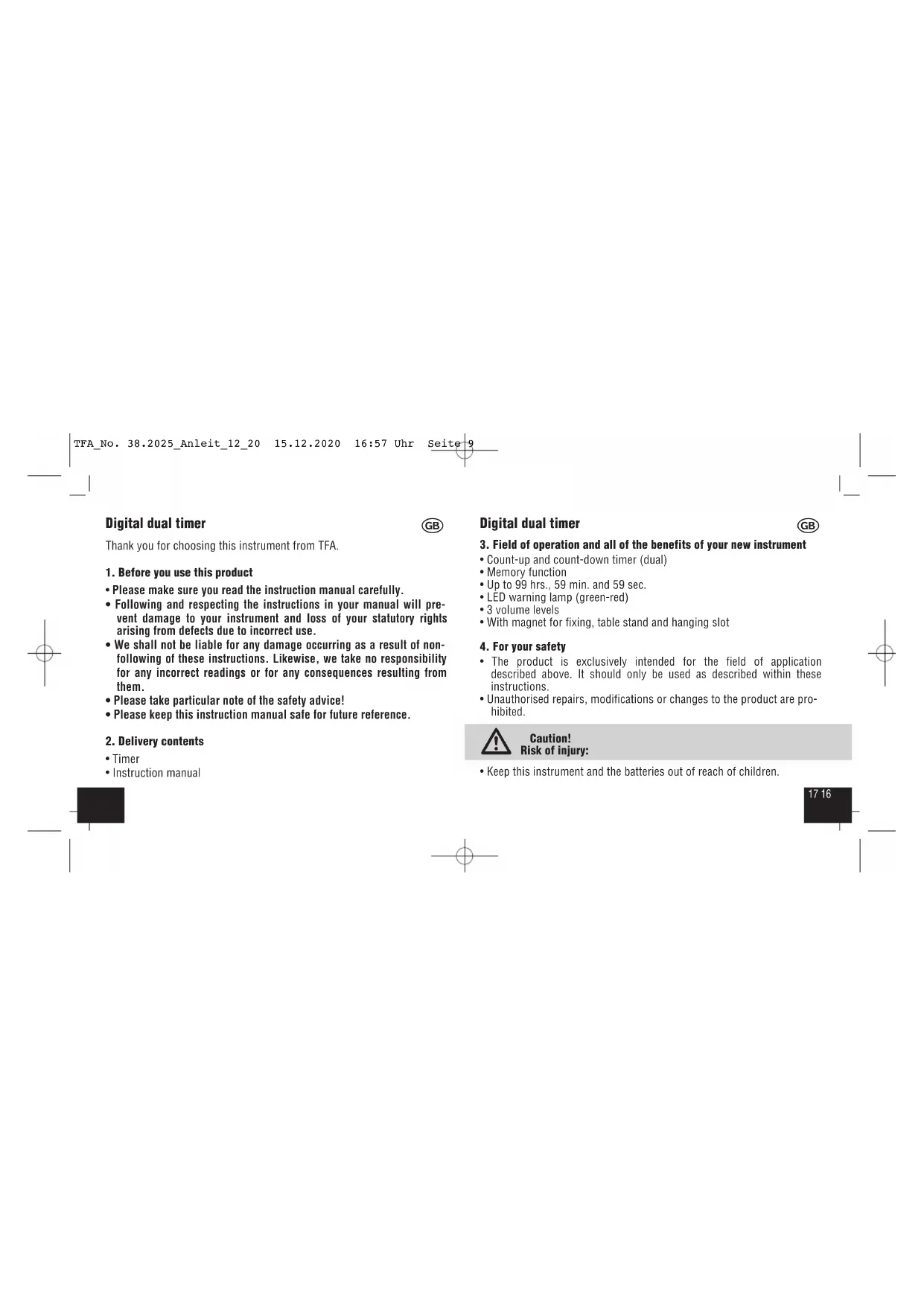

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Timer
• Instruction manual

Digital dual timer

3. Field of operation and all of the benefits of your new instrument

• Count-up and count-down timer (dual)
  Memory function
• Up to 99 hrs., 59 min. and 59 sec.
  LED warning lamp (green-red)
  3 volume levels
• With magnet for fixing, table stand and hanging slot

4. For your safety

• The product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
• Unauthorised repairs, modifications or changes to the product are prohibited.

Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.

Digital dual timer

1. Elements
   A:Display (Fig 1):
   A1: Upper display: Timer 1 (T1)
   A 2: Lower display: Timer 2 (T2)
   A 3: Indication hours, minutes and seconds
   A4: ▲ Symbol for count up
   A5: Symbol for count down

B: Buttons (Fig 2):

B1:M button B2:HR button
B3:MIN button B4:SEC button
B5:S/S button B6:T2 button
B7:T1button

C: Housing (Fig 3):

C1: Alarm volume switch
C 2: Magnets

C 3: Wall mounting bracket (fold out)
C4: Battery compartment
C5: Stand (fold out)

6. Getting started

• Pull off the protective foil on the display.
• Slide the lid of the battery compartment downwards and insert two new batteries (2 x 1,5 V AAA), making sure the polarity is correct.
• Place the battery compartment lid on the housing and slide it upwards.
• All LCD segments will light up for about a few seconds
  The unit is ready for use.
  Take out the batteries to shut down the instrument.

7. Operation

7.1 Timer

• Set the time for timer 1.
• Press T1 button.
  T1 appears on the upper display.

Digital dual timer

• Push the HR button to set the hours, the MIN button to set the minutes and the SEC button to set the seconds of the desired time. Press and hold the buttons in setting mode for fast running.
  -▼ appears on the display.
• Push the S/S button to start the countdown process.
• During the countdown, the symbol is flashing and the T1 button flashes in green.
• Use the S/S button to stop and restart the counting.
• After the countdown the symbol appears in the display, the alarm (60 seconds) will sound and the T 1 button flashes in red. Now the timer will start to count up the elapsed time.
• Press the S/S button to stop the counting and to deactivate the alarm sound.
  The timer will recall the last selected time automatically
• Push the HR and MIN button at the same time to reset the timer.
• Set the time for the timer 2 in the same way.

7.2 Memory function

• Press T1 or T2 to select a timer.

• Press and hold M button for 2 seconds.
  0:00 flashes on the display.
• Push the HR button to set the hours, the MIN button to set the minutes and the SEC button to set the seconds of the desired time.
• Confirm the setting with the M button.
• Press M button to recall the preset time.
• Push the HR and MIN button at the same time to reset the timer.

7.3 Stopwatch

• Press T1 or T2 to select a timer.
• Push the HR and MIN button at the same time to reset the timer.
• Push the S/S button to start the count up-process. appears in the display.
• Use the S/S button to stop and restart the counting.

7.4 Setting of alarm sound

• With the switch at the right side set the volume for the alarm.

Hi:high

Digital dual timer

Lo:low
Mute

The marking in the middle of the switch shows the selected volume.

7.5 Fixing

• With the foldable leg the instrument can be placed onto flat surfaces.
• With the foldable suspension device you can fix the instrument with a nail at the wall.
• Use the two magnets at the back of the instrument for placement on metal surfaces.

8. Care and maintenance

• Clean it with a soft damp cloth. Do not use solvents or scouring agents. Protect from moisture.
• Remove the batteries if you do not use the product for a long period of time.
• Keep the instrument in a dry place.

TFA No. 38.2025_Anleit_12_20

15.12.2020

16:57 Uhr

Seite 13

Digital dual timer

8.1 Battery replacement

• Replace the batteries when the display starts to fade.
• Open the battery compartment and insert two new batteries 2 × 1.5 V AAA. Make sure they have the correct polarity. Close the battery compartment again.

9. Troubleshooting

Problems Solution

No indication Ensure that the battery polarity is

correct

Change the batteries

Incorrect indication Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Digital dual timer

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to appropriate collection sites depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Measuring range: 99 hours, 59 minutes and 59 seconds

Power consumption: Batteries 2 x 1.5 V AAA (not included) Use alkaline batteries

Housing dimension: 91 × 21 (30) × 76 mm

Weight: 86 g (instrument only)

TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D-97877 Wertheim, Germany

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de 12/20
