Product type	Radio-controlled thermo-hygrometer (KLIMA-MONITOR)
Base station dimensions	116 x 24 (64) x 116 mm (L x W x H)
Base station weight	143 g (device only)
Transmitter dimensions	45 x 20 x 110 mm
Transmitter weight	52 g (device only)
Base station power supply	4 x 1.5 V AAA batteries (not included)
Transmitter power supply	2 x 1.5 V AAA batteries (not included)
Radio range	Up to 100 m in open field
Reception frequency	433 MHz
Indoor temperature range	0 °C to +60 °C
Outdoor temperature range	-40 °C to +60 °C
Indoor humidity range	20% to 99%
Outdoor humidity range	10% to 99%
Temperature accuracy	±1 °C
Humidity accuracy	±5% (20-90%)
Number of transmitters	3 included, expandable to 8
Main functions	Temperature/humidity display, high/low alarms, min/max values, trend, comfort zone, calibration
Maintenance	Clean with a soft, damp cloth, without solvents or abrasives
Safety	Keep out of reach of children, avoid extreme temperatures, moisture and shocks
Spare parts	Additional transmitters (ref. 30.3208.02)
Repairability	Do not disassemble or repair yourself; contact after-sales service

Frequently Asked Questions - 30.3054.10 TFA

How to install batteries in the transmitter?

Open the battery compartment at the back of the transmitter. Insert two 1.5 V AAA batteries respecting polarity. Close the compartment. The screen displays the temperature, humidity and channel number.

How to synchronize the transmitter with the base station?

Place the transmitter about 1.5 m from the base station. Insert batteries in the transmitter, then in the base station. Values display automatically. Otherwise, press CHANNEL / + for 3 seconds to start a manual search.

How to set the temperature alarm?

Select the desired channel with CHANNEL / +. Hold ALARM / SET for 3 seconds. Use CHANNEL / + or MIN/MAX / - to set the high limit (HI AL), then confirm with ALARM / SET. Repeat for the low limit (LO AL).

How to set the humidity alarm?

After setting the temperature alarm, the screen displays HI AL for humidity. Use the +/- buttons to set the high limit (default 90%), confirm with ALARM / SET. Then set the low limit (LO AL, default 30%) in the same way.

How to display min/max values?

Press MIN/MAX / - to display MAX (recorded maximum values). Press again for MIN (minimum). Hold the button to clear the values of the selected channel. Press once more to return to current values.

What to do if the display shows '---'?

This means no signal is received. Check the transmitter batteries, move away from sources of interference (electronic devices). Perform a manual search by holding CHANNEL / + for 3 seconds. If the problem persists, move the transmitter closer to the station.

How to calibrate humidity?

Select the channel with CHANNEL / +. Press ALARM / SET and MIN/MAX / - simultaneously for 5 seconds. The humidity display flashes. Use +/- to correct the value. Briefly press ALARM / SET to return to the measured value, or hold for 3 seconds to confirm.

How to calibrate temperature?

Select the channel with CHANNEL / +. Press ALARM / SET and CHANNEL / + simultaneously for 5 seconds. The temperature display flashes. Use +/- to adjust. Briefly press ALARM / SET to restore the measured value, or hold for 3 seconds to confirm.

What is the maximum transmission range?

The range is about 100 meters in open field. Thick walls, especially with metal parts, can significantly reduce the range. Choose an unobstructed location for the transmitter and station.

How to clean the device?

Use a soft, damp cloth to clean the housing. Never use solvents or abrasive products. Remove the batteries if the device is not used for a long period and store it in a dry place.

USER MANUAL 30.3054.10 TFA

www.lfa-dostmann.de/en/service/downloads/Instruction-manuals

Kat. Nr. 30.3054

C 2 SIZE AA SIZE AA SIZE AA C 1B 2 B 3

B 2: ALARM / SET Taste

B 3: CHANNEL / + Taste

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it, and to get advice in the event of faults.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Wireless thermo-hygrometer
• 3 transmitters (cat.-no. 30.3208.02)
- Instruction manual

3. Field of operation and all the benefits of your new instrument at a glance

• For the control of indoor and outdoor climate.
• With internal sensor and 3 wireless radio-controlled transmitters for monitoring up to 4 rooms, expandable to 8 transmitters
  • Maximum/minimum/alarm values
  • Tendency indicators
• Comfort zones

4. For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

KLIMA-MONITOR – Wireless Thermo-Hygrometer

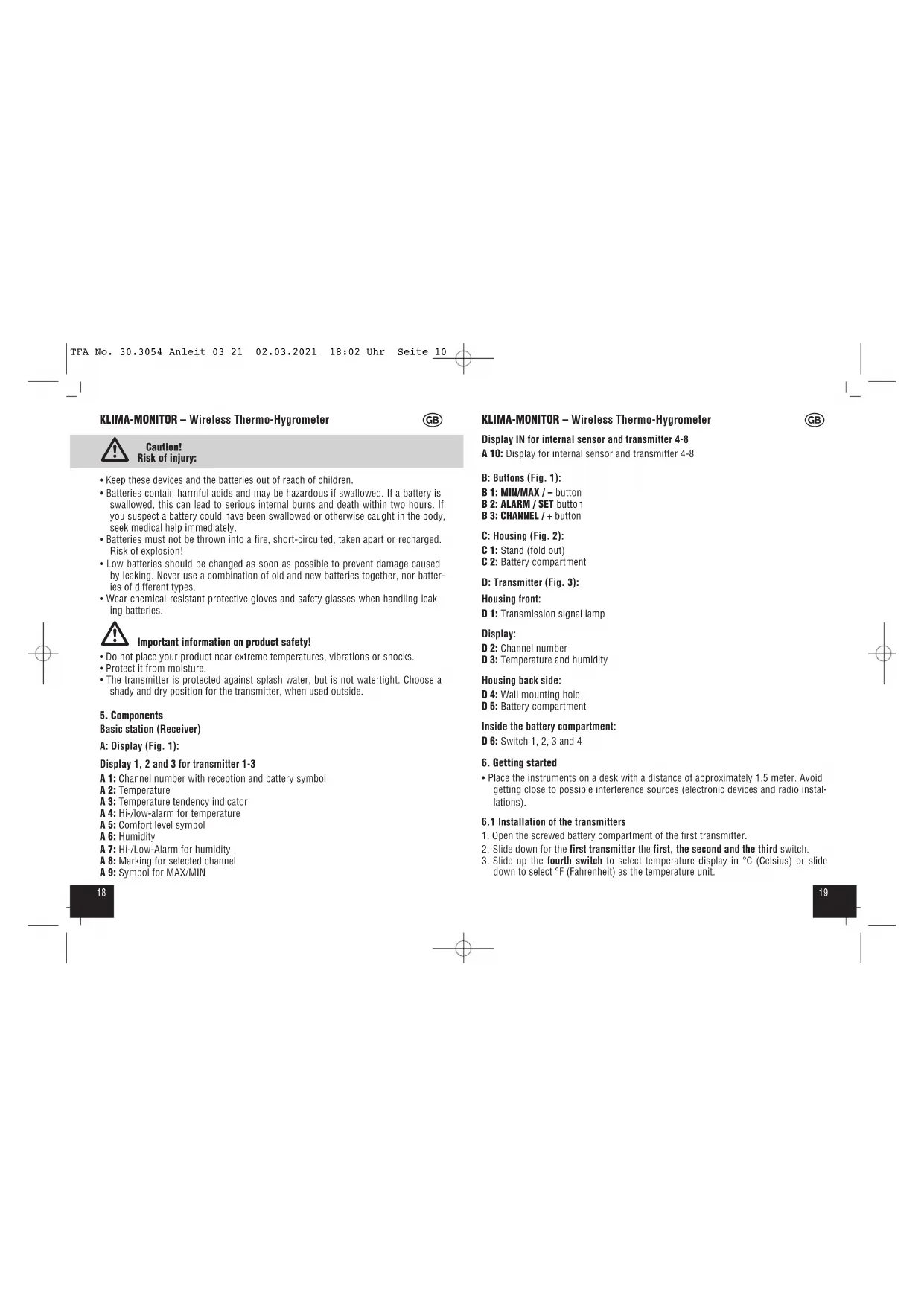

Caution! Risk of injury:

• Keep these devices and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place your product near extreme temperatures, vibrations or shocks.
• Protect it from moisture.
• The transmitter is protected against splash water, but is not watertight. Choose a shady and dry position for the transmitter, when used outside.

5. Components

Basic station (Receiver)

A: Display (Fig. 1):

Display 1, 2 and 3 for transmitter 1-3

A 1: Channel number with reception and battery symbol
A 2: Temperature
A 3: Temperature tendency indicator
A 4: Hi-/low-alarm for temperature
A 5: Comfort level symbol
A 6: Humidity
A 7: Hi-/Low-Alarm for humidity
A 8: Marking for selected channel
A 9: Symbol for MAX/MIN

KLIMA-MONITOR – Wireless Thermo-Hygrometer

Display IN for internal sensor and transmitter 4-8

A 10: Display for internal sensor and transmitter 4-8

B: Buttons (Fig. 1):

B 1: MIN/MAX / - button

B 2: ALARM / SET button

B 3: CHANNEL / + button

C: Housing (Fig. 2):

C 1: Stand (fold out)

C 2: Battery compartment

D: Transmitter (Fig. 3):

Housing front:

D 1: Transmission signal lamp

Display:

D 2: Channel number

D 3: Temperature and humidity

Housing back side:

D 4: Wall mounting hole

D 5: Battery compartment

Inside the battery compartment:

D 6: Switch 1, 2, 3 and 4

1. Getting started

- Place the instruments on a desk with a distance of approximately 1.5 meter. Avoid getting close to possible interference sources (electronic devices and radio installations).

6.1 Installation of the transmitters

1. Open the screwed battery compartment of the first transmitter.
2. Slide down for the first transmitter the first, the second and the third switch.
3. Slide up the fourth switch to select temperature display in °C (Celsius) or slide down to select °F (Fahrenheit) as the temperature unit.

1. Insert two new batteries 1,5 V AAA. On the display appear the temperature and humidity and the channel number 1.
2. Close the battery compartment again.
3. To connect more transmitters, repeat steps 1 to 5. The correct switch position for the transmitters 1-8 can be found in the table. 3 transmitters are included, the basic station is expandable to a total of 8 transmitters (optional).

Switch (D 6)				Function
1	2	3	4
down down down — channel 1
down down up — channel 2
down up down — channel 3
down up up — channel 4
updown down — channel 5
updown up — channel 6
upup down — channel 7
upup up — channel 8
— — — down ^aF
—	—	—	u	p

6.2 Installation of the basic station

• Open the battery compartment of the basic station and insert four new batteries 1.5 V AAA, polarity as illustrated.
• All LCD segments will be displayed for about a few seconds.
• Close the battery compartment again.
• The measurements of the installed transmitters will be transmitted to the basic station. The radio-controlled reception symbol appears.
• If the reception is successful, on the display appear the temperature and humidity of the respective transmitter, the temperature trend symbol and the symbol of the comfort level.
  • The radio-controlled reception symbol disappears.
• In the display section 4 appears automatically the measured values of the internal sensor.

KLIMA-MONITOR – Wireless Thermo-Hygrometer

• If the values are not received from a channel or if no transmitter is installed, “- -” appears on the display. Check the batteries and try it again. Check if there is any source of interference.
• You can start the initialization manually.
• Press the CHANNEL / + button until the arrow appears on the desired channel. If you want to search for all installed transmitters, select the internal sensor (IN).
• Press and hold the CHANNEL / + button for three seconds.
  • The radio-controlled reception symbol appears.
  • The basic station will scan the measurements.

6.3 Additional transmitters

• If you have installed more than three transmitters, the measurements for transmitter 4-8 appear on the display section 4.
• Press the CHANNEL / + button to select the display section 4. The arrow appears on the corresponding display section.
• Press the CHANNEL / + button to change between the installed transmitters.
• Press the button again after showing the last installed transmitter, on the display appears the circle symbol. On the display section 4 appear in sequence, the values of the internal sensor and the fourth to eighth transmitter. Press the button again to deactivate the function.
• On the display appear again the measured internal values.

6.4 Temperature display

- Press and hold the MIN/MAX / - button in normal mode to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

6.5 Display of the temperature tendency

- The trend pointer on the display indicates if the temperature values are increasing, steady or decreasing.

6.6 Comfort level

- On the display appears a friendly face (RH 45...65%), a neutral face (RH < 45%) or sad face (RH > 65%) to indicate the comfort level of the climate.

RH < 45% RH	45...65% RH > 65%
dry comfortable wet

KLIMA-MONITOR – Wireless Thermo-Hygrometer

6.7 Maximum and minimum values

• Press the MIN/MAX / - button.
  • MAX appears on the display.
• On the display appear the maximum values since the last reset.
• Press and hold the MIN/MAX / - button to delete the maximum values of the currently selected channel.
• Press the MIN/MAX / - button again.
  • MIN appears on the display.
• On the display appear the minimum values since the last reset.
• Press and hold the MIN/MAX / - button to delete the minimum values of the currently selected channel.
• Press the MIN/MAX / - button again to go back to the display of the present values.

7. Settings

• The device will automatically quit the setting mode if no button is pressed for a long period of time.
• Press and hold the MIN/MAX / - or the CHANNEL / + button for a fast running.

7.1 Setting of the alarm for the temperature and humidity

7.1.1 Temperature alarm

• Press the CHANNEL / + button until the arrow appears on the desired channel (channel 1-3 and internal sensor).
• Press and hold ALARM / SET button for 3 seconds.
• HI AL and 60 °C (default IN: 35°C) or the last adjusted upper temperature limit appears on the display.
• Press the CHANNEL / + or MIN/MAX / - button to adjust the desired upper temperature limit.
• Press and hold the ALARM / SET button after setting the value when still flashing to activate the alarm function.
  • The alarm symbol appears on the display.
• Confirm the setting with the ALARM / SET button.
• LO AL and -20°C (default IN: 10°C) or the last adjusted lower temperature limit appear on the display.
• Press the CHANNEL / + or MIN/MAX / - button to adjust the desired lower temperature limit.

KLIMA-MONITOR – Wireless Thermo-Hygrometer

• Press and hold the ALARM / SET button after setting the value when still flashing to activate the alarm function.
  • The alarm symbol appears on the display.
• Confirm the setting with the ALARM / SET button.

7.1.2 Humidity alarm

• HI AL and 90% (default IN: 80% ) or the last adjusted upper humidity limit appear on the display (channel 1-3 and internal sensor).
• Press the CHANNEL / + or MIN/MAX / - button to adjust the desired upper humidity limit.
• Press and hold the ALARM / SET SET button after setting the value when still flashing to activate the alarm function.
  • The alarm symbol appears on the display.
• Confirm the setting with the ALARM / SET button.
• LO AL and 30% (default IN: 40% ) or the last adjusted lower humidity limit appear on the display.
• Press the CHANNEL / + or MIN/MAX / - button to adjust the desired lower humidity limit.
• Press and hold the ALARM / SET bSET button after setting the value when still flashing to activate the alarm function.
  • The alarm symbol appears on the display.
• Set the alarm for the additional transmitters and for the internal sensor in the same way.
• Repeat the above steps until you have set and activate the desired alarms.

7.2 Display of the adjusted alarm values

• Press the ALARM / SET button in normal mode to show the adjusted upper alarm limits (channel 1-3 and internal sensor).
• Press again the ALARM / SET button in normal mode to show the adjusted lower alarm limits (channel 1-3 and internal sensor).
• Press again the ALARM / SET button to return to normal display.

7.3 Case of alarm

- In the case of an alarm the corresponding symbol will be flashing and an alarm sound is activated. Stop the alarm tone with any button.

KLIMA-MONITOR – Wireless Thermo-Hygrometer

7.3 Delete the alarm

• Press the CHANNEL / + button until the arrow appears on the desired channel.
• Press and hold ALARM / SET button for 3 seconds.
• HI AL and the last adjusted upper temperature limit is indicated.
• Press and hold the ALARM / SET button to deactivate the alarm function.
  • The alarm symbol disappears on the display.
• Confirm the setting with the ALARM / SET button.
• Repeat the above steps until all alarms are deactivated.

8. Positioning and fixing of the basic station and the transmitter

• With the foldable leg at the back of the basic station it can be placed onto any flat surface or wall mounted at the respective location by the hanging hole at the back of the unit. Avoid the vicinity of any interfering field like computer monitors or TV sets and solid metal objects.
• With the hanging hole at the back, the transmitter can be wall mounted at the respective location. Choose a shady and dry position for the transmitter when used outside. (Direct sunshine falsifies the measurement and continuous humidity strains the electronic components needlessly).
• Check the transmission of the signal from the transmitter to the basic station (transmission range of up to 100m free field). Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened.
• If necessary choose another position for the transmitter and/or basic station.

9. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the device for a long period of time.
• Keep the device in a dry place.

9.1 Battery replacement

• When the battery symbol appears in the display line of a channel, please change the batteries in the respective transmitter.
• When the battery symbol appears in the display line of the indoor values, please change the batteries in the basic station.
• Please note: When the batteries are changed, the contact between transmitter and basic station must be restored – so always insert new batteries into both units or start a manual transmitter search.

KLIMA-MONITOR – Wireless Thermo-Hygrometer

10. Troubleshooting

Problems Solution

No indication on the Ensure that the batteries polarity are correct basic station/transmitter Change the batteries

No transmitter reception → No transmitter installed

Display “---” → Check batteries of transmitter

(do not use rechargeable batteries!)
→ Restart the transmitter and the basic station according to the manual
→ Manual search for the transmitter according to the manual
→ Choose another place for the transmitter and/or the basic station
→ Reduce the distance between the transmitter and the basic station
→ Check if there is any source of interference

Incorrect indication → Change the batteries

→ Use the calibration function

11. Calibration function

- The wireless thermo-hygrometer allows the user to calibrate the display of temperature and humidity measurements on the basic station with an external, better reference source. The user can make adjustments to the temperature and humidity displays within the measuring range.

11.1 Calibration of the display of the humidity

• Press the CHANNEL / + button until the arrow appears on the desired channel.
• Press the ALARM / SET and the MIN/MAX / - button at the same time for 5 seconds.
  • The display of the humidity will be flashing.
• Press the CHANNEL / + or the MIN/MAX / - button to correct the humidity value.
• Press the ALARM / SET button briefly, on the display appears the normal measurement or press and hold the ALARM / SET button for 3 seconds to confirm the set value.

KLIMA-MONITOR – Wireless Thermo-Hygrometer

11.2 Calibration of the display of the temperature

• Press the CHANNEL / + button until the arrow appears on the desired channel.
• Press the ALARM / SET and the CHANNEL / + button at the same time for 5 seconds.
  • The temperature display will be flashing.
• Press the CHANNEL / + or the MIN/MAX / - button to correct the temperature value.
• Press the ALARM / SET button briefly, on the display appears the normal measurement or press and hold the ALARM / SET button for 3 seconds to confirm the set value.

12. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

1. Specifications

Measuring range
Indoor temperature	0 °C... +60°C (+32 °F ...+140 °F)
Outdoor temperature	-40 °C... +60 °C (-40 °F ...+140 °F)
Indoor humidity	20 ... 99%
Outdoor humidity	10 ... 99%
Accuracy temperature	±1°C
Resolution temperature	0,1°C

KLIMA-MONITOR – Wireless Thermo-Hygrometer

Accuracy humidity ±5 % @ 20 ... 90%

Resolution humidity 1 %

Indication LL.L / HH.H Temperature is outside measuring range

Range max. 100 m (free field)

Transmission frequency 433 MHz

Maximum radio-frequency power < 10mW

Transmission time Transmitter transmitted every 60 seconds

Power consumption

Basic station 4 x 1,5 V AAA (batteries not included)

Transmitter 2 x 1.5 V AAA (batteries not included)

Use alkaline batteries

Basic station:

Dimensions 116 x 24 (64) x 116 mm

Weight 143 g (instrument only)

Transmitter:

Dimensions 45 x 20 x 110 mm

Weight 52 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 30.3054.10 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce

www.tia-dostmann.de

RH < 45% RH	45...65% RH > 65%
[027D]
sec	confortable	humide

Cd = cadmium, Hg = mercure, Pb = plomb

Station de base 4 x 1,5 V AAA (non incluses)

2. La consegna include:

B 2: Tasto ALARM / SET

B 3: Tasto CHANNEL / +

RH < 45% RH	45...65% RH > 65%
(HCWH)	(6747)	(2613)
droog comfort	vochtig
