60.4518.08 - Clock TFA - Free user manual and instructions

Product Type	Radio-controlled clock with outdoor and indoor temperature
Brand	TFA
Model	60.4518.08
Power supply (base station)	4 x AA 1.5V batteries (not included)
Power supply (outdoor transmitter)	2 x AAA 1.5V batteries (not included)
Dimensions (base station)	248 x 25 (73) x 206 mm
Weight (base station)	481 g (device only)
Dimensions (transmitter)	62 x 24 (35) x 102 mm
Weight (transmitter)	63 g (device only)
Indoor temperature measurement range	-10°C to 50°C
Outdoor temperature measurement range	-20°C to 50°C
Transmission frequency	433 MHz
Maximum range	70 m (open field)
Display	Time, date, day of week (10 languages), indoor/outdoor temperature, alarm, temperature alarm
Main functions	DCF reception, alarm with snooze, temperature alarm, time zone, day language selection
Mounting	On flat surface or wall mounting
Maintenance and cleaning	Use a soft damp cloth, no solvents or abrasives
Safety	Keep out of reach of children, do not open or modify, observe battery polarity
Repairability	Do not repair yourself, contact the seller
General information	EU declaration of conformity available at www.tfa-dostmann.de

Frequently Asked Questions - 60.4518.08 TFA

How to set the time manually if the DCF signal is not received?

Press and hold the MODE/SET button for 3 seconds to enter setting mode. Use ▲ or ▼ to set hours and minutes, then confirm with MODE/SET. First disable DCF reception (rcc off) if necessary.

How to change the language of the days of the week?

In setting mode, after setting the time zone, you will see the language setting. Use ▲ or ▼ to choose from 10 languages (German, French, Italian, etc.) and confirm with MODE/SET.

How to set the alarm?

Press MODE/SET to switch to alarm mode, then hold it for 3 seconds. Set the hour with ▲ or ▼, confirm, then set the minutes. To enable/disable, use ALARM ON/OFF.

How to enable or disable the outdoor temperature alarm?

Press ALERT for 3 seconds. Set the upper and lower limits with ▲ or ▼, confirm with ALERT. Briefly press ALERT to enable/disable the alarm.

What to do if the outdoor temperature does not display ('--,-')?

Check the batteries of the outdoor transmitter and the base station. Press RF SEARCH on the base station for 3 seconds, then press RESET in the battery compartment of the transmitter.

How to switch the display from Celsius to Fahrenheit?

On the outdoor transmitter, press the °C/°F button in the battery compartment to switch. On the base station, you can also set it in setting mode (temperature unit).

How to use the snooze function?

When the alarm sounds, press the SNOOZE button (located at the bottom of the base station). The alarm stops for 5 minutes, then sounds again.

How to replace the batteries?

Open the battery compartment of the base station (4 x AA) or transmitter (2 x AAA), insert new batteries observing polarity. After replacement, re-establish the connection by pressing RF SEARCH and RESET.

What to do in case of abnormal display?

Change the batteries. If the problem persists, use a pointed object to press RESET on the base station or transmitter. If nothing works, contact the seller.

How to mount the device on the wall?

Use the suspension eyelet on the back of the device (Fig.2-K). Insert a suitable screw into the wall, then hang the device. Ensure the location is shaded and protected from moisture for the outdoor transmitter.

USER MANUAL 60.4518.08 TFA

Thank you for choosing this instrument from TFA.

Before you use this product: Please make sure you read the instruction manual carefully.

The operating instructions are enclosed with the device or can be downloaded at

www.tfa-dostmann.de/en/service/downloads/instruction-manuals

This product should only be used as described within these instructions.

Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

Please take particular note of the safety advice!

Please keep this instruction manual safe for future reference.

GB

Fig. 1 N A E L M K H G I TFA INDOOR 27.5 26/AUG DATE 20.5 WEJNESDAY AM PM 10:26 30 WEDDOR OUTDOOR (b) (w) AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS AIRS B C D

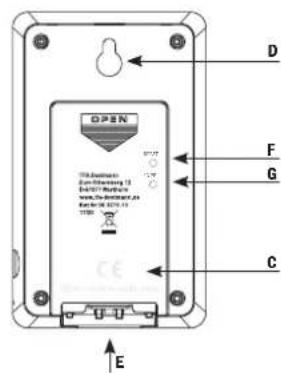

Fig. 3

A B 433 MHz

°C

205 °C

DPSN DPSN CE CE E F G C

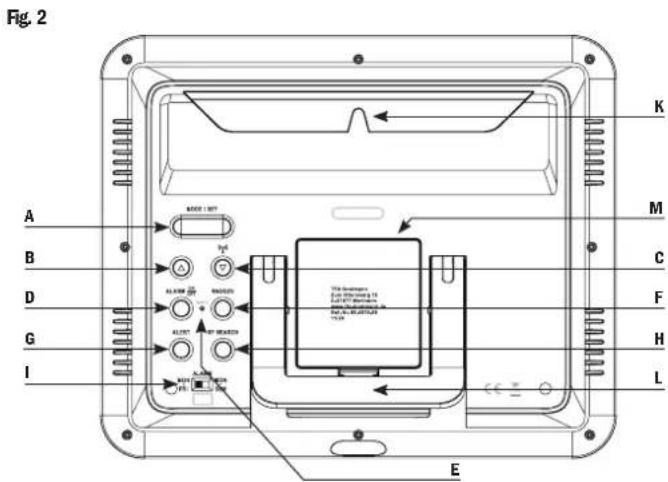

Fig. 2 A B D G I K M C F H L E M100 / 100% ALUMIN RANUCER ALUT IF METER USBductors 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%) 4.5V (100%)

X-III X-IV

Deutsch

● ● Temperaturealarm

Radio controlled clock with outdoor and indoor temperature - Item no. 60.4518.08

Delivery contents:

● ● Radio-controlled clock
● ● Outdoor transmitter (Cat.-No. 30.3210.10)
- Instruction manual

Range of application and all the benefits of your new Instrument at a glance

● ● Highest precision radio-controlled clock
● Outdoor temperature wireless (433 MHz), distance range up to 70 m (open field)
- - Indoor temperature
● ● Alarm with adjustable interval and snooze function
● Weekday written in full letters in 10 languages and date
● ● Manual setting option and time zone
● ● Temperature alarm
● Ideal for home, office, waiting room, lobby or entrance hall and as a gift
● ● Wall mounting or table stand

Safety advices

● This product is exclusively intended for the range of application described above.
● This product should only be used as described within these instructions

WARNING

• Keep the devices and the batteries out of reach of children.
  • Small parts can be swallowed by children (under three years old).
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types. Remove the batteries if the device will not be used for an extended period of time. Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor.

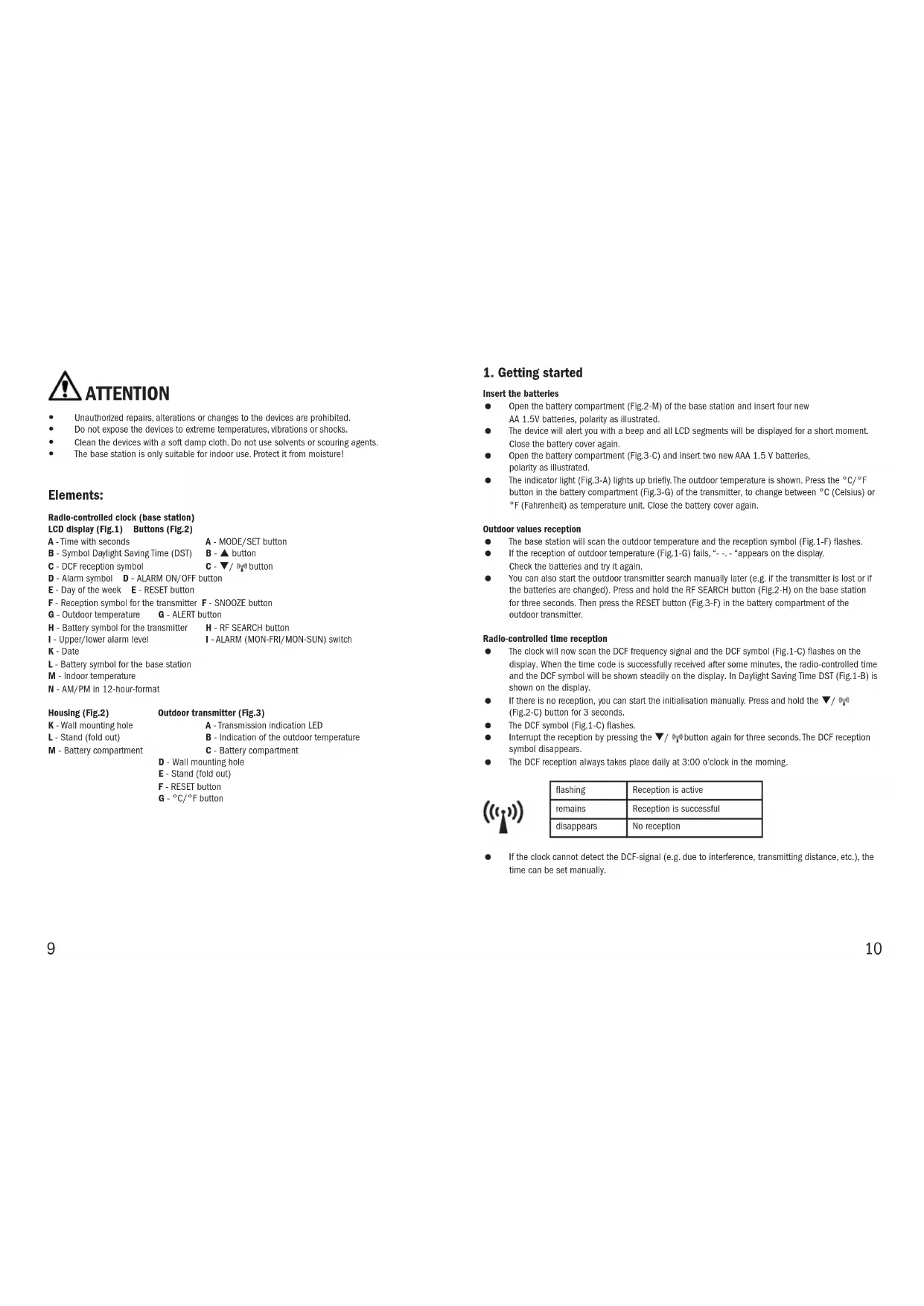

ATTENTION

• Unauthorized repairs, alterations or changes to the devices are prohibited.
• Do not expose the devices to extreme temperatures, vibrations or shocks.
- Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.
• The base station is only suitable for indoor use. Protect it from moisture!

Elements:

Radio-controlled clock (base station)

LCD display (Fig.1) Buttons (Fig.2)

A - Time with seconds A - MODE/SET button
B - Symbol Daylight Saving Time (DST) B - ▲ button
C - DCF reception symbol C - ▼/ (0) button
D - Alarm symbol D - ALARM ON/OFF button
E - Day of the week E - RESET button
F - Reception symbol for the transmitter F - SNOOZE button
G - Outdoor temperature G - ALERT button
H - Battery symbol for the transmitter H - RF SEARCH button
K - Date
L - Battery symbol for the base station
M - Indoor temperature
N - AM/PM in 12-hour-format

I - Upper/lower alarm level I - ALARM (MON-FRI/MON-SUN) switch

Housing (Fig.2)

K - Wall mounting hole A - Transmission indication LED
L - Stand (fold out)
M - Battery compartment
B - Indication of the outdoor temperature
C - Battery compartment

D - Wall mounting hole

E - Stand (fold out)

F - RESET button

G - °C/°F button

1. Getting started

Insert the batteries

• Open the battery compartment (Fig.2-M) of the base station and insert four new AA 1.5V batteries, polarity as illustrated.
• The device will alert you with a beep and all LCD segments will be displayed for a short moment. Close the battery cover again.
• Open the battery compartment (Fig.3-C) and insert two new AAA 1.5 V batteries, polarity as illustrated.
• The indicator light (Fig.3-A) lights up briefly. The outdoor temperature is shown. Press the °C/°F button in the battery compartment (Fig.3-G) of the transmitter, to change between °C (Celsius) or °F (Fahrenheit) as temperature unit. Close the battery cover again.

Outdoor values reception

● The base station will scan the outdoor temperature and the reception symbol (Fig.1-F) flashes.
- If the reception of outdoor temperature (Fig.1-G) fails, “- - . -” appears on the display. Check the batteries and try it again.
- You can also start the outdoor transmitter search manually later (e.g. if the transmitter is lost or if the batteries are changed). Press and hold the RF SEARCH button (Fig.2-H) on the base station for three seconds. Then press the RESET button (Fig.3-F) in the battery compartment of the outdoor transmitter.

Radio-controlled time reception

• The clock will now scan the DCF frequency signal and the DCF symbol (Fig.1-C) flashes on the display. When the time code is successfully received after some minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display. In Daylight Saving Time DST (Fig.1-B) is shown on the display.
• If there is no reception, you can start the initialisation manually. Press and hold the ▼/ (Fig.2-C) button for 3 seconds.
  ● The DCF symbol (Fig.1-C) flashes.
• Interrupt the reception by pressing the ▼/ ◎ button again for three seconds. The DCF reception symbol disappears.
  ● The DCF reception always takes place daily at 3:00 o'clock in the morning.

flashing	Reception is active
remains	Reception is successful
dlappears	No reception

- If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.

Note on radio-controlled time

• The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjustment to Daylight Saving Time (summer/winter time) is automatic.
• During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second. In extreme cases, please place the unit close to a window to improve reception.

2. Operation

Manual settings

● Press and hold the MODE/SET button (Fig.2-A) for three seconds to enter the setting mode.
● ● The first adjustable value flashes on the display.
- Use the ▲ or ▼/ (□) button to make the desired setting.
- Confirm with the MODE/SET button and go to the next setting.
● ● The sequence is shown as follow:

• 24/12-hour format (default: 24Hr)
• DCF reception on/off (default: rcc on)
• Time zone -23/+23 (default: TIME ZONE 00)
• Day-of-week language: (default: German)
• Hours, minutes, seconds (setting only 00)
• Year, month, day
• Temperature unit °C/°F (default: °C)
• Alarm duration 1 or 2 minutes (default: 2)

- Press and hold the ▲ or ▼/ (button in the respective setting mode for quick setting. The device will automatically quit the setting mode if no button is pressed for 15 seconds.

DCF reception

• By default, the DCF reception is activated (RCC on) and after successful reception of the DCF signal no manual adjustment is necessary.
• Once the DCF time reception is deactivated (rcc of), the clock and date must be manually set. No time zone will appear.
• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received successfully.

Time zone setting

● In the setting mode you can make the time zone correction
● The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

Day-of-the week language

- In the setting mode you can set the day-of-the-week language: GERMAN, FRENCH, ITALIAN, SPANISH, DANISH, DUTCH, CZECH, POLISH, SWEDISH and ENGLISH

Alarm time setting

• Press the MODE/SET button (Fig.2-A) in normal mode to enter the alarm mode. ALARMTIME and 7:00 (default) or the last adjusted alarm time appear on the display.
• Press and hold the MODE/SET button for three seconds to enter the setting mode.
  ● ● The hour digits flash.
• Press the ▲ or ▼/ (1) button to set the hours.
• Confirm the setting with the MODE/SET button and set minutes in the same way.
• Press the MODE/SET button again to return to the current time.
  ● To activate/turn off the alarm function, press ALARM ON/OFF button (Fig.2-D).
  ● The alarm symbol (Fig.1-D) appears/disappears on the display.
• The switch at the back (Fig.2-I) allows you to choose between two different alarm functions (Monday to Friday or Monday to Sunday).
• When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The alarm symbol flashes.
• Press any button (except SNOOZE (Fig.2-F)) and the alarm will stop.
• Press the SNOOZE button (Fig.2-F) to activate the snooze function.
  ● ● The alarm will be interrupted for about 5 minutes.

Outdoor temperature alarm

● Press and hold the ALERT button (Fig.2-G) for 3 seconds.
- and 50 °C (default) or the last adjusted upper temperature limit appear on the display.
- Press the ▲ or ▼/ (□) button to adjust the desired upper temperature limit.
- Confirm with the ALERT button.
- and -20°C (default) or the last adjusted lower temperature limit appear on the display.
Press the ▲ or ▼/ 📋 button to adjust the desired lower temperature limit.
- Confirm with the ALERT button.
● ● To activate/turn off the alarm function, press ALERT button.
● The respective symbol will appear or disappear on the display (Fig.1-I).
- In the event of an alarm, the corresponding symbol will be flashing and an alarm tone will sound. Stop the alarm sound with any button.

3. Installation

• When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measurement and continuous humidity damages the electronic components needlessly.
• Before the final installation, make sure that the measured values are transmitted from the transmitter at the desired installation site to the base station in the living area.
  ● Do not use the base station in the vicinity of radiators, other sources of heat or in direct sunlight.
  ● Make sure to avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects. Within solid walls, especially ones with metal parts, the transmission range (max. 70 m) can be reduced considerably.

4. Battery replacement

• As soon as the corresponding battery symbol appears in the display, please change the batteries of the base station (Fig.1-L) or transmitter (Fig.1-H).

• Please note: When the batteries are changed, the contact between the outdoor transmitter and the base station must be restored – so always restart both devices or start a manual transmitter search.

• Troubleshooting

Problem Solution
No indication on the base station or the outdoor transmitter	Ensure the batteries' polarities are correctChange the batteries
No DCF reception Start the initialization manuallyWait for an attempt reception during the nightChoose another place for your deviceSet the clock manually
No reception of the outdoor transmitterDisplay _n - - . "	No outdoor transmitter is installedCheck the outdoor transmitter's batteries(do not use rechargeable batteries!)Start manual search for the outdoor transmitterChoose another place for the transmitter and/or the base station/reduce the distance
Incorrect display on the base station or the outdoor transmitter	Change the batteriesBase station: Use a pin to press the RESET button.Outdoor transmitter: Press the RESET button

If your device fails to work despite these measures, contact the retailer where you purchased the product.

Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Disposal of the electrical device

Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure

environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place!

Disposal of the batteries

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect

the environment. The return service is free of charge.

The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Specifications

Base station

Power consumption: 4 x 1,5 V AA batteries (not included)

Measuring range - temperature: -10^ ... 50^ / 14^ ... 122^

Display LL.L /HH.H: Temperature is outside measuring range

Housing dimension: 248 x 25 (73) x 206 mm

Weight: 481 g (device only)

Outdoor transmitter

Power consumption: 2 x 1,5 V AAA batteries (not included)

Measuring range - temperature: -20^ ... 50^ / -4^ ... 122^

Range: max. 70 m (open field)

Transmission frequency: 433 Mhz

Maximum radio-frequency power: < 10 mW

Housing dimension: 62 x 24 (35) x 102 mm

Weight: 63 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU Declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 60.4518 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce

www.tfa-dostmann.de | E-Mail: [e-mail] 06/2023

TFA Dostmann GmbH & Co. KG | Zum Ottersberg 12 | D-97877 Wertheim | Germany

Français

Affichage LCD (Fig.1) Touches (Fig.2)

La consegna include:

[Non-Text]
[Non-Text]

[Non-Text]

[Non-Text]

E - Weekdag E - RESET knop
