20x60 S - Binoculars ZEISS - Free user manual and instructions

Product type	Binoculars
Brand	Zeiss
Model	20x60 S
Magnification	20x
Objective lens diameter	60 mm
Field of view at 1000 m	52 m
Exit pupil	3 mm
Minimum focusing distance	14 m
Diopter adjustment range	≥ +/- 7 dpt
Interpupillary distance	57 - 73 mm
Height (eyecups folded down)	265 mm
Maximum width	161 mm
Weight	1 660 g
Splash water resistance	Yes
Image stabilization	Yes, via dedicated button
Pupillary distance adjustment	By spreading the eyepiece tubes
Focusing	Central wheel and diopter correction
Retractable eyecups for eyeglass wearers	Yes
Lens care	Blow or brush off dust, clean with an optical cloth
Usage precautions	Do not look at the sun, avoid shocks, transport in the supplied case

Frequently Asked Questions - 20x60 S ZEISS

How to adjust the pupillary distance on the Zeiss 20x60 S binoculars?

Spread or bring together the two eyepiece tubes until you see a single clear circular image. The distance is then adapted to your eye spacing.

How to focus with these binoculars?

Use the central wheel for general focusing. If your eyes have different corrections, use the diopter adjustment ring after setting the central wheel on the left eye.

Can I use the binoculars with my glasses?

Yes, fold down the retractable rubber eyecups to place the eyepieces close to your glasses. Your glasses' correction applies automatically.

How to activate image stabilization?

Press the stabilization button (4) to reduce blur from shaking. For prolonged observations, use a photographic tripod.

How to clean the binocular lenses?

Do not rub large dirt. Blow or gently brush with a fine brush. For fingerprints, breathe on the lens then wipe with a clean optical cloth.

How to store the binoculars for extended non-use?

Store them in the supplied case or a suitable bag. Make sure the stabilization button is not pressed. Keep the original packaging for long journeys.

Why should you not look at the sun with binoculars?

Looking at the sun or laser sources can cause serious irreversible eye damage. Never point the binoculars at the sun.

What to do if the image is not sharp despite adjustment?

First check the diopter adjustment (correction ring). If the problem persists, clean the lenses and ensure the eyecups are correctly positioned.

Are the binoculars waterproof?

They are splash waterproof, but not designed for submersion. Protect them from heavy rain.

What is the weight of the Zeiss 20x60 S binoculars?

The binoculars weigh 1 660 g, which is relatively heavy. Plan for a stable support for long observations.

USER MANUAL 20x60 S ZEISS

Carl Zeiss Sports Optics

20 × 60 ~S

Gebrauchshinweise

Instructions for use

Mode d'emploi

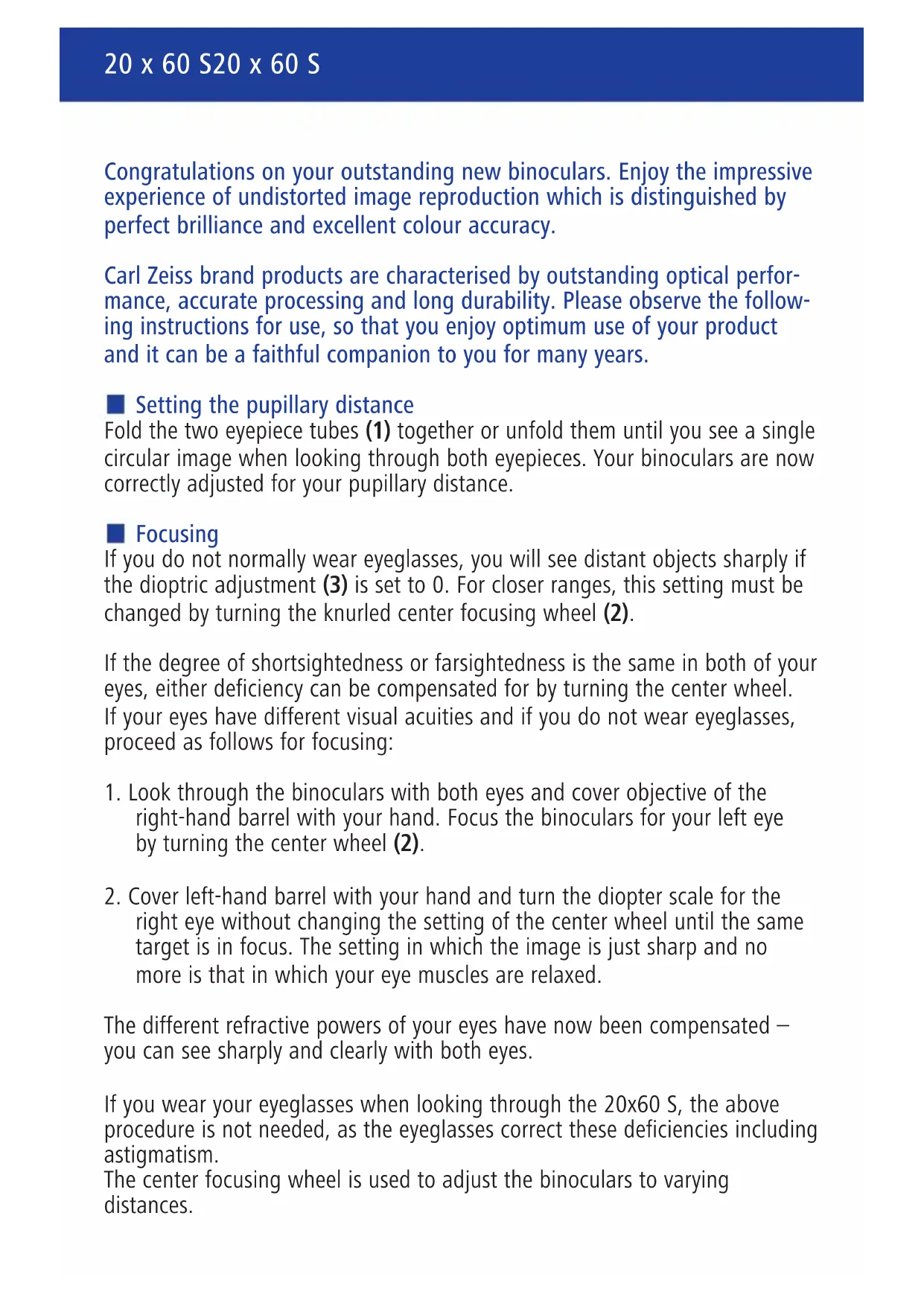

Congratulations on your outstanding new binoculars. Enjoy the impressive experience of undistorted image reproduction which is distinguished by perfect brilliance and excellent colour accuracy.

Carl Zeiss brand products are characterised by outstanding optical performance, accurate processing and long durability. Please observe the following instructions for use, so that you enjoy optimum use of your product and it can be a faithful companion to you for many years.

Setting the pupillary distance

Fold the two eyepiece tubes (1) together or unfold them until you see a single circular image when looking through both eyepieces. Your binoculars are now correctly adjusted for your pupillary distance.

Focusing

If you do not normally wear eyeglasses, you will see distant objects sharply if the dioptic adjustment (3) is set to 0. For closer ranges, this setting must be changed by turning the knurled center focusing wheel (2).

If the degree of shortsightedness or farsightedness is the same in both of your eyes, either deficiency can be compensated for by turning the center wheel. If your eyes have different visual acuities and if you do not wear eyeglasses, proceed as follows for focusing:

1. Look through the binoculars with both eyes and cover objective of the right-hand barrel with your hand. Focus the binoculars for your left eye by turning the center wheel (2).
2. Cover left-hand barrel with your hand and turn the diopter scale for the right eye without changing the setting of the center wheel until the same target is in focus. The setting in which the image is just sharp and no more is that in which your eye muscles are relaxed.

The different refractive powers of your eyes have now been compensated -- you can see sharply and clearly with both eyes.

If you wear your eyeglasses when looking through the 20 × 60 ~S , the above procedure is not needed, as the eyeglasses correct these deficiencies including astigmatism.

The center focusing wheel is used to adjust the binoculars to varying distances.

Eyeglass-wearers should fold down the rims of the soft rubber eyecups over the top eyepiece mounts, see B. Users without eyeglasses should use the binoculars with extended eyecups, see A. Only two adjustments are required for this conversion.

Correct viewing using the stabilization system

When you press key (4), the optical system of your 20x60 S is stabilized — shaking of the hands is largely compensated. For prolonged observation from one location, it is advisable to use a camera tripod. Position the eyecups firmly against your eyebrows or the distance portions of your glasses and focus the target using the center wheel.

Care and maintenance

Carl Zeiss binoculars need no special care or maintenance. Do not wipe off coarse dirt particles (e.g. sand) from the lenses, but blow them off or remove them with a soft brush.

Fingerprints on the lens surfaces may affect them in the course of time. The easiest way to keep the lenses clean is by breathing on them and wiping with a soft optical cleaning cloth or optical cleaning paper.

To avoid a possible fungal coating which is common in the tropics, store the optics in a dry place and always ensure good aeration of the lens surface.

Please note in particular:

If possible, please only transport your 20x60 S Binocular in the case provided or in the bag which is available as an accessory - this is the best protection for your instrument. When transporting the instrument, please make sure that the stabilization key is not accidentally pressed by any objects lying on the binoculars.

Please keep the original packing in a safe place. It is advisable to use the original packing when transporting the instrument over long distances.

Caution

• Rapid turning of the instrument about its optical axis may slightly impair its functioning.
  Pronounced shocks or jolting movements should be avoided, in particular when key (4) is pressed. Otherwise, this may result in damage to the stabilization system which is not covered by the guarantee.
• Do not under any circumstances look through the binoculars at the sun or laser light sources - serious eye injury may otherwise result.

Technical data	20x60 S
Magnification	20x
Objective lens diameter (mm) 60
Field of view at 1000 m (m) Ww 52
Exit pupil (mm) 3
Shortest focusing distance (m) 14
Dioptre adjustment range ≥ +/- 7 dpt
PD from/to (mm) 57 – 73
Height with folded eyecup (mm) 265
Width (mm) 161
Weight (g) 1,660
Splash-proof •

Subject to changes in design and scope of delivery as a result of ongoing technical development.
