Product Type	20 V Cordless Drain Cleaner
Model Number	HG08611
Rated Voltage	20 V ===
No-load Speed	0–620 min⁻¹
Usable Cable Length	7.1 m
Total Cable Length	75 m
Cable Diameter	7 mm
Cutting Element Diameter	15 mm
Compatible Pipe Diameter	19–51 mm
Feed Speed	95 mm/s
Battery Type (not included)	Lithium-ion 20 V, 2.0 Ah or 4.0 Ah
Charging Time	45 min (2 Ah), 60 min (4 Ah)
Charger (not included)	230–240 V~, 50 Hz, 120 W
Sound Pressure Level	71.0 dB(A)
Sound Power Level	82.0 dB(A)
Hand-Arm Vibration	0.816 m/s²
Warranty	3 years
LED Lighting	Automatic on work area
Rotation Direction	Reversible (R/L) with center lock
Intended Use	Sinks, pipes, toilets, bathtubs
Package Contents	Cleaner, instruction manual (battery and charger not included)
Protection Class (charger)	II (double insulation)

Frequently Asked Questions - PRWA 20 A1 PARKSIDE

How to use the cleaner to unclog a sink?

Set the rotation direction switch to R (right) and the front handle to F (deploy). Press the trigger to rotate the cable and insert it into the pipe opening. Maintain a maximum distance of 15 cm between the product and the opening. Adjust speed by trigger pressure.

What is the battery runtime?

The runtime depends on the capacity of the battery used. With a 2.0 Ah battery, the runtime is not specified; it varies depending on use. Recharge the battery when it is low. The charging time is 45 min for 2 Ah and 60 min for 4 Ah.

How to clean the cable after use?

Remove the battery and set the front handle to C (constant). Slowly pull the cable out of the drum and clean it with a clean cloth and warm soapy water. Retract the cable while drying it with a dry cloth. Do not let water enter the product.

Can I use the appliance on toilets?

Yes, the cleaner is suitable for toilets, as well as sinks, pipes, and bathtubs, for pipe diameters from 19 to 51 mm. Follow the safety instructions and wear protective equipment.

What to do if the cable gets stuck in the pipe?

Set the rotation direction switch to L (left) and gently press the trigger at low speed. If the cable stops turning, release the trigger and alternate the front handle positions between F and C while pressing gently. Retract the cable gradually.

How to drain the water from the drum?

Remove the battery. Turn the drum to access the drain cover. Unscrew the cover with a H5 screwdriver (not supplied) counterclockwise. Empty the liquid into a suitable container, then screw the cover back on.

What accessories are necessary for use?

The appliance requires a compatible Parkside X 20 V Team battery and a suitable charger (not included). Wear protective equipment: latex gloves, goggles, dust mask, and protective clothing. A H5 screwdriver is useful for draining.

Is there a warranty on this product?

Yes, the product comes with a 3-year warranty from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear and tear or damage due to misuse.

How to change the rotation direction of the cable?

Use the rotation direction switch (2). Position R for right rotation (normal use), L for left rotation (only to retract a stuck cable), and center position to lock. Only change direction when the product is off.

What safety precautions should I take?

Always wear latex gloves, safety goggles, a dust mask, and suitable clothing. Avoid loose clothing and jewelry. Do not let the rotating cable touch your hand. Use a residual current device with the extension cord. Read all safety instructions in the manual.

USER MANUAL PRWA 20 A1 PARKSIDE

PDF ONLINE www.lidl-service.com

AKKU-ROHRREINIGUNGSGERÄT 20 V / CORDLESS DRAIN CLEANER 20V / NETTOYEUR DE CANALISATION SANS FIL 20 V PRWA 20 A1

DE AT CH

Operation and safety notes Translation of the original instructions

FR BE

NETTOYEUR DE CANALISATION SANS FIL 20 V

ACCU- BUISREINIGINGSAPPARAAT 20 V

F 2 R L 2

G L R 2 2

H F C R 1 8 10 F R

8 8 2 2 F C R R 10

J F C R 2 2 L 10

K 1 10

L 6 7 18 7

X PARKSIDE X20V TEAM

20V max. 18V

Benjamin Steeb Managing Director

Authorised Signatory

DE

Warnings and symbols used Page 27

Introduction Page 28

Intended use.... Page 28

Scope of delivery.... Page 28

Parts description.... Page 28

Technical data Page 29

Safety instructions.... Page 30

General power tool safety warnings Page 30

Safety instructions for drain cleaners....Page 34

Vibration and noise reduction Page 35

Behaviour in emergency situations. Page 35

Residual risks Page 35

Battery charger safety warnings Page 36

Before use Page 37

Accessories Page 37

Unpacking Page 37

Attaching/removing the battery pack Page 37

Checking the battery pack charging level ...... Page 37

Charging the battery pack.... Page 38

Basic controls Page 38

Operation Page 40

Dredging a pipe.... Page 40

Stubborn pipe blockages. Page 41

After dredging a pipe ...... Page 41

LED work light Page 41

Cleaning and care Page 42

Cleaning. Page 42

Draining the drum Page 42

Maintenance Page 43

Repair.... Page 43

Storage Page 43

Transportation Page 43

Disposal Page 44

Warranty Page 45

Warranty claim procedure.... Page 45

Service Page 45

EC Declaration of conformity.... Page 46

Warnings and symbols usedThe following warnings are used in this instruction manual, on the packaging and on the rating label:
	Read the instruction manual.		Wear eye protection!
			Wear personal protective equipment
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.	[2ZBT]	Wear a dust mask!
			Wear protective gloves!
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Switch the product off and remove the battery pack before replacing attachments, cleaning and when not in use.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Protect the battery pack against heat and continuous intense sunlight.
			Protect the battery pack from fire.
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.		Protect the battery pack against water and moisture.
	Protection class II (double insulation) Fuse
n_0	No-load speed Alternating current/voltage
V	Voltage Direct current/voltage (battery)
	Use in dry indoor rooms only.		CE mark indicates conformity with relevant EU directives applicable for this product.

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This Cordless Drain Cleaner (hereinafter "product" or "power tool") is designed for clearing or removing obstructions from following sanitary objects:

Sinks
Drainages
Toilets
Bathtubs

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use.

The product is exclusively intended for domestic use. It is not intended for commercial use, industrial operations or similar purposes.

The LED work light 9 on this product is intended to illuminate the immediate work area.

Observe all applicable local safety regulations, standards and ordinances.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1x Cordless drain cleaner

1x Instruction manual

Parts description

Figure A, B, C:

1 Front handle
2 Rotation direction switch/safety lock
3 Switch trigger
4 Main handle
5 Battery pack *
6 Drain port cover
7 Drum
8 Viewing window
9 LED work light
10 Cable
10a Cutter
11 Release button for battery pack
12 button (charging level)
13 Charging level LEDs (red/orange/green)
14 Battery charger (rapid battery charger) *
15 Charging control LED - Red
16 Charging control LED - Green
17 Power cord with power plug

Figure L:

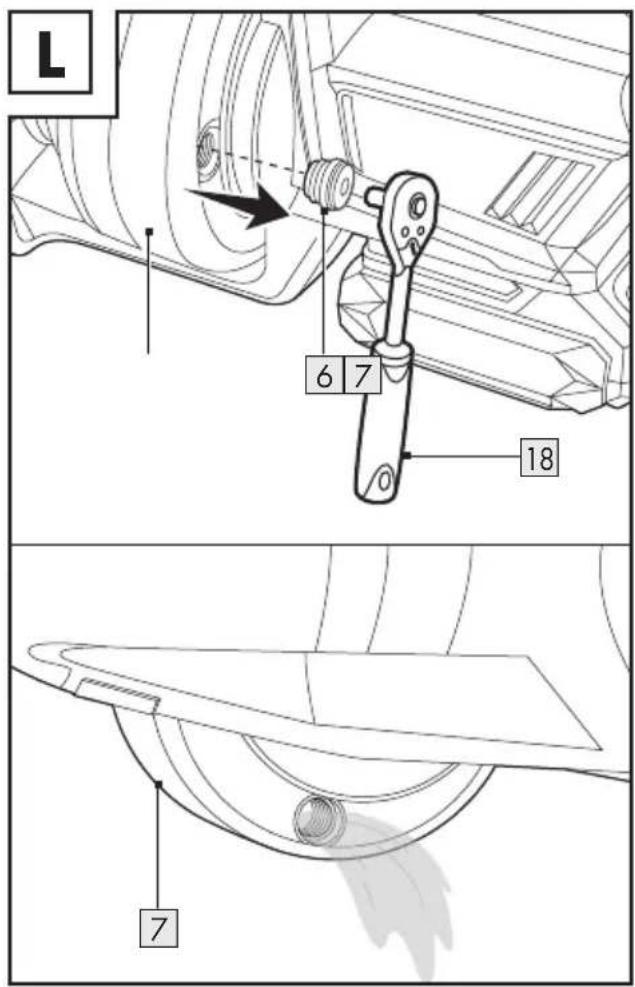

18 Screwdriver (H5) (not included)

* Battery pack and battery charger (rapid battery charger) are not included

- Technical data

Cordless drain

cleaner:

Model number: HG08611

Rated voltage: 20 V ---

No-load speed n_0 : 0–620 min ^-1

Permissible cable size:

Cutter: ∅ 15 mm

Cable: ∅ 7 mm

Permissible cable length:

Total: 7.5 m

Usable: 7.1 m

Feed speed: 95 mm/s

Suitable for drain pipe size: 19–51 mm

Battery pack PAP 20 B1 *

Type:	Lithium-Ion
Rated voltage:	20 V —— max.
Capacity:	2.0 Ah
Energy value:	37 Wh
Number of cells:	5

Battery pack PAP 20 B3 *

Type:	Lithium-Ion
Rated voltage:	20 V \_ max.
Capacity:	4.0 Ah
Energy value:	74 Wh
Number of cells:	10

Rapid battery charger PLG 20 A3 * Input:

Rated voltage:	230-240 V~
Rated frequency:	50 Hz
Rated power:	120 W
Fuse (internal):	3.15 A / [T3.15A]

Output:

Rated voltage:	21.5 V=
Charging current:	4.5 A
Protection class:	II / ☐

* Battery pack and battery charger (rapid battery charger) are not included.

Charging time:

Battery type PAP 20 B1, 2.0 Ah (available separately): 45 minutes
Battery type PAP 20 B3, 4.0 Ah (available separately): 60 minutes

Recommended ambient temperature:

While charging:	+4 to +40 °C
During operation:	+4 to +40 °C
During storage:	+20 to +26 °C

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level	L_pA	71.0 dB(A)
Uncertainty	K_pA	3 dB(A)
Sound power level	L_WA	82.0 dB(A)
Uncertainty	K_WA	3 dB(A)

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Hand/arm vibration	a_h	0.816 m/s ^2
Uncertainty	K	1.5 m/s ^2

WARNING!

Wear ear protection!

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
3) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
4) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
5) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
5) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

6) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
7) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

● Safety instructions for drain cleaners

1) Before using the power tool, test the residual current device (RCD) provided with the supply cord to ensure it is operating correctly. A properly operating RCD reduces the risk of electrical shock.
2) Only use extension cords that are protected by an RCD. The RCD on the product's power cord will not prevent electrical shock from the extension cord.
3) Only grasp the rotating cable with gloves recommended by the manufacturer. Latex or loose-fitting gloves or rags can become wrapped around the cable and may result in serious personal injury.
4) Do not allow the cutter to stop turning while the cable is turning. This can overstress the cable and may cause twisting, kinking or breaking of the able and may result in serious personal injury.

5) Use latex or rubber gloves inside the gloves recommended by the manufacturer, goggles, face shields, protective clothing, and respirator when chemicals, bacteria or other toxic or infectious substances are suspected to be in a drain line. Drains may contain chemicals, bacteria and other substances that may cause burns, be toxic or infectious or may result in other serious personal injury.
6) Practice good hygiene. Do not eat or smoke while handling or operating the product. After handling or operating drain cleaning equipment, use hot, soapy water to wash hands and other body parts exposed to drain contents. This will help reduce the risk of health hazards due to exposure to toxic or infectious material.
7) Only use the product for the recommended drain sizes. Using the wrong size product can lead to twisting, kinking or breaking of the cable and may result in personal injury.

- Vibration and noise reduction - Residual risks

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles / grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge non-rechargeable batteries.

Disregarding this instruction is hazardous.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

■ The appliance is suitable for indoor use only.

⚠️ATTENTION! This charger is only designed for charging the battery pack types:

Parkside 20 V battery pack

PAP 20 B1 2 Ah 5 cells

PAP 20 B3 4 Ah 10 cells

An up-to-date list of battery compatibility can be found at www.lidl.de/akku.

Suitable battery packs and chargers

Battery pack:

Parkside X 20 V Team

Charger:

Parkside X 20 V Team

Before use

Accessories

To operate this product safely and correctly, the following accessories, i.e. tools and accessory tools, are necessary:

■ Suitable personal protective equipment
Screwdriver (H5)

Accessories and accessory tools are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

WARNING

Do not use accessories not recommended by Parkside. This may result in electric shock or fire.

Unpacking

• Open the packaging and remove the product carefully.
  ■ Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the product and accessory parts for transport damage.

WARNING!

The product and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

- Attaching/removing the battery pack

CAUTION! RISK OF INJURY!

Before attaching/removing the battery pack 5: Always move the rotation direction switch 2 into the centre position (lock). Doing so prevents switching the product on accidentally.

Removing the battery pack: Press the battery pack release button 11. Remove the battery pack 5 (Fig. D).
- Attaching the battery pack: Align the battery pack 5 to the handle and slide it into it. Ensure it clicks noticeably in place.

The battery pack can only be inserted into the product in one direction.

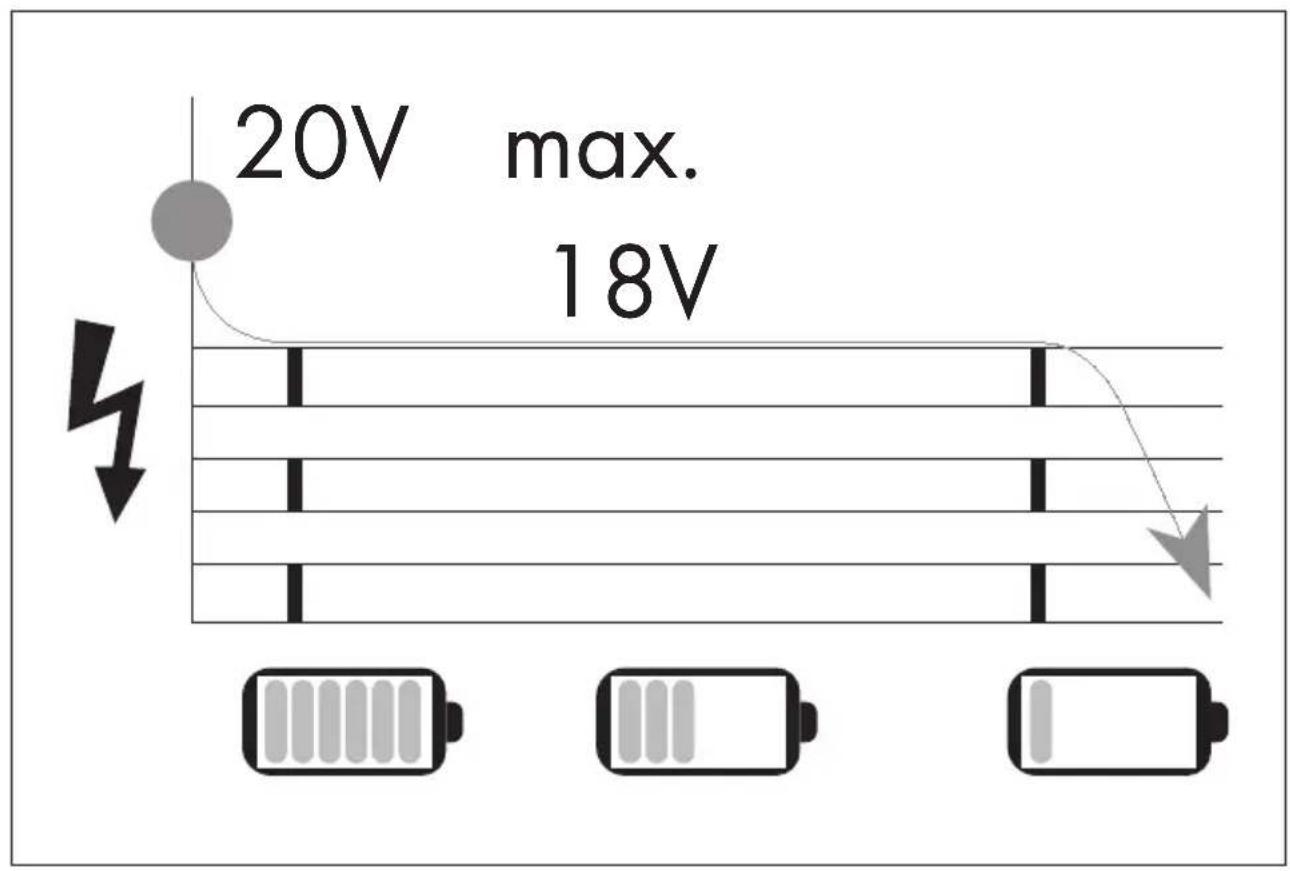

- Checking the battery pack charging level

(Fig. B)

Press 12. The charging level LEDs 13 light up:

Charging level LEDs 13 Charging level

Red/orange/green Maximum

Red/orange Medium

Red Low

● Charging the battery pack

(Fig. C)

NOTE

The battery pack 5 may be charged at any time without reducing its life.
Interrupting the charging process does not damage the battery pack 5.

- Charge the battery pack 5 before operation when it is at medium or low charging level.

The charging control LEDs (red 15 and green 16) indicate the status of the charger 14 and the battery pack 5:

LED Status

Red LED lights up Battery pack charges
Green LED lights up	Battery pack fully charged
Green and red LED flashing	Battery pack defective
Red LED flashing	Battery pack too cold or too warm
Green LED lights up (without battery pack)	Charger ready

- Insert the battery pack 5 into the charger 14.

■ Connect the power cord with power plug 17 of the charger 14 to a socket-outlet.

- When the battery pack 5 is fully charged: Remove the battery pack from the charger 14. Disconnect the power plug 17 of the charger from the socket-outlet.

Basic controls

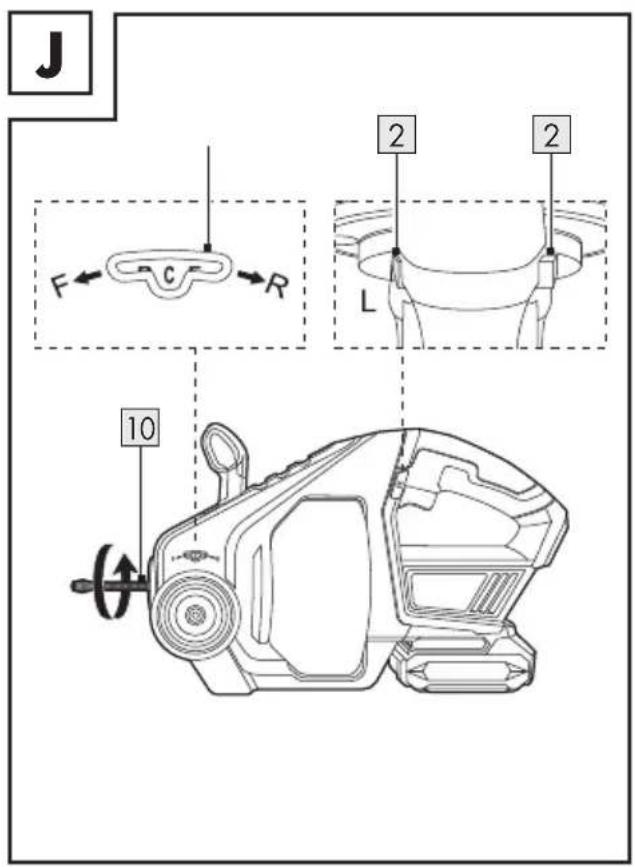

Setting the rotating direction

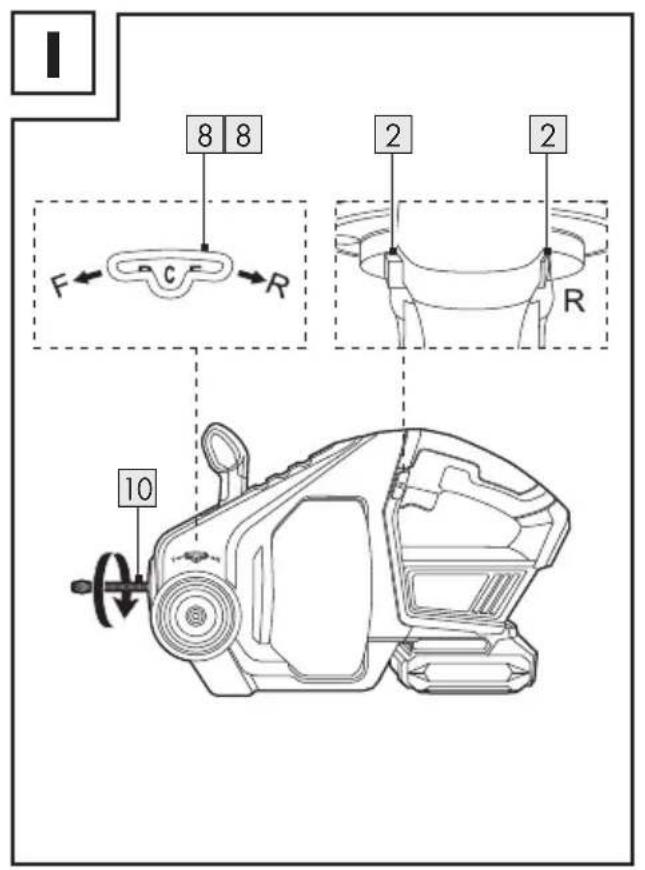

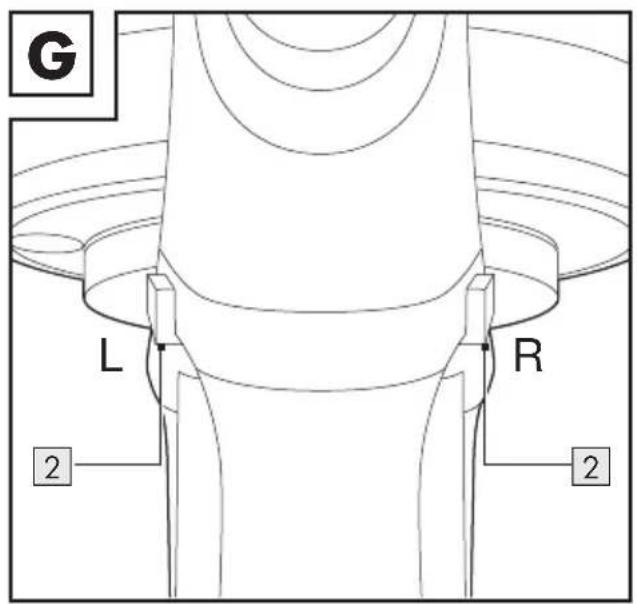

(Fig. E, F, G, I and J)

ATTENTION! RISK OF PRODUCT DAMAGE!

Do not operate the rotation direction switch 2 until the product has come to a standstill.

NOTE

The drum 7 serves as the storage compartment for the cable 10.
Cable 10 and drum 7 always rotate in the same direction.

The rotation direction switch 2 can be set to the following 3 positions:

Position Direction Function

R	Clockwise(right)	Normal operation
L	Anti-clockwise(left)	ONLY for retractingthe cable 10when the cable is blocked.

Centre None Lock

Switching the product on and off

(Fig. E)

■ Switching on: Press down and hold the switch trigger 3.

■ Switching off: Release the switch trigger 3.

Adjusting the rotation speed

(Fig. E)

■ Modify the pressure on the switch trigger 3:

Pressure Speed

Gentle pressure Lower speed

Greater pressure Higher speed

Advancing and retracting the cable

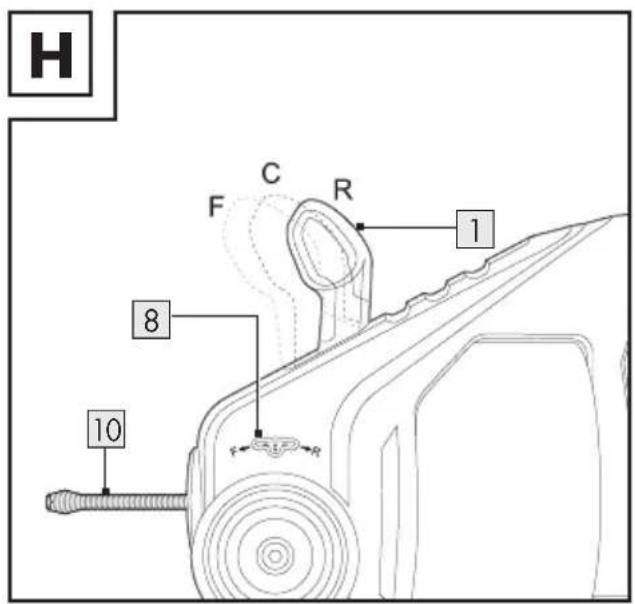

(Fig. H)

WARNING!

The cable 10 may wrap or break the fingers and palms during operations. The cable may also cause injury to other parts of the body.
Do not operate the product with long exposed hair or while wearing loose clothing or jewellery. Long hair, loose closing, jewellery and the like may get caught in the rotating cable 10 or drum 7, leading to serious injury.
Always wear latex or rubber gloves. Do not use any soft gloves or cloth to hold the rotating cable 10. Soft gloves, rags and the like may get caught in the rotating cable, leading to serious injury.

■ Set the rotation direction switch 2 to R.

NOTE

Do not set the rotation direction switch 2 to L - except if the cable 10 is blocked or trapped in a pipe (see "Stubborn pipe blockages").

- Adjust the front handle 1 to control advancing or retracting the cable 10:

Front handle position	Function
R	Cable 10 retracts.
F	Cable 10 moves forward.
C	Length of cable 10 remains constant.

The position of the front handle 1 (R, F, C) is visible in the viewing window 8.

Operation

WARNING!

Always wear adequate personal protective equipment. This includes:

- Latex or rubber gloves - soft or loose fitting gloves can get caught in the rotating cable 10 - Dust mask

Do not wear jewellery or loose clothing, when operating the product.

▶ Never place your hand near the drum 7 or rotating cable 10.

When using detergent or cleaning agent: Avoid direct contact with skin or eyes. Some cleaning agent cause severe burns.

Use warm, soapy water to clean hands and other body parts that may have been exposed to potentially harmful substances. Rinse with plenty of water. Seek medical attention if necessary.

NOTE

Before operation, familiarise yourself with advancing, retracting and controlling the speed and rotational direction of the cable 10 (see "Basic controls").

Check if the pipe size is suitable for the size of the cable 10 and cutter 10a (see "Technical data").

▶ Check if the drain port cover 6 is closed and securely tightened.

Dredging a pipe

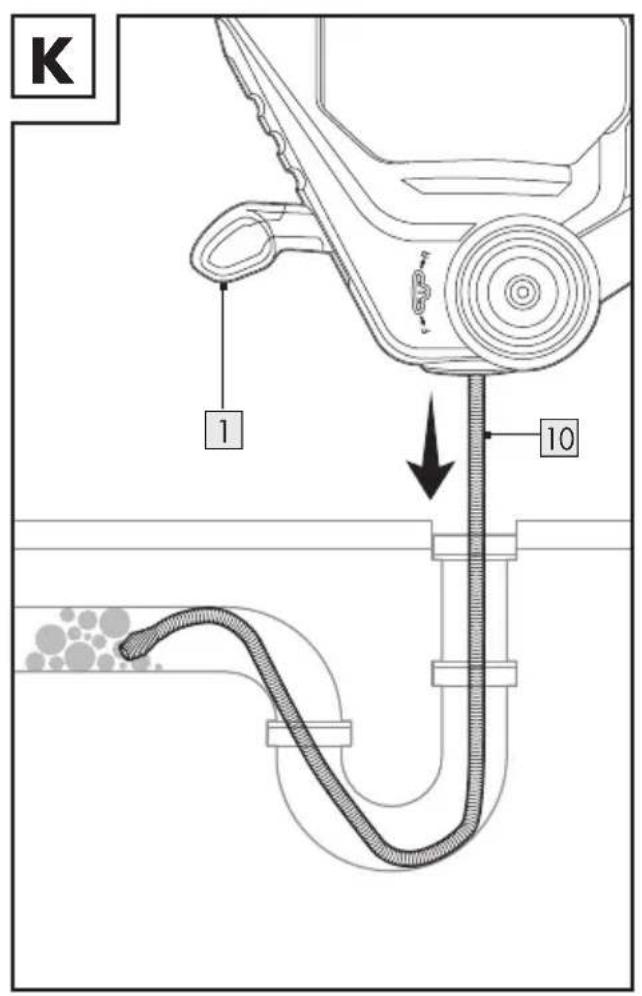

(Fig. K)

WARNING!

Do not over-extend the cable 10 into a blocked pipe. If the distance to the blockage is too great, the cable may twist or break and cause serious injury.

- Proper distance from the pipe opening: - Keep the product far enough from the pipe opening so that you can observe the cable 10 during operation. - Maximum distance: 15 cm At longer distances, the cable 10 may shake or knot.

■ Set the rotation direction switch 2 to R.

■ Set the front handle 1 to F.

Press the switch trigger 3. Advance the cable 10 far enough to insert the cable into the pipe opening.

■ Release the switch trigger 3. Insert the cable 10 into the pipe opening.

■ Advancing the cable 10 into the pipe: Press the switch trigger 3.

Control the feeding speed of the cable 10 by adjusting the pressure on the switch trigger 3.

- Stubborn pipe blockages

WARNING!

Do not force feed the cable 10 into a blocked pipe. Otherwise the cable may twist or break and cause serious injury.

If a stubborn blockage keeps the cable 10 from advancing:

- Retract the cable 10 a short distance. Then advance the cable again. Doing so enables the cable to move through a pipe trap or bending corner.

If the blockage persists:
- Set rotation direction switch 2 to L.
- Press the switch trigger 3 gently (low speed).
If the cable 10 is unable to rotate or shows signs of twisting and knotting: Release the switch trigger.
- With the rotation direction switch 2 still set to L: Set the front handle 1 to F and C alternately and gently press the switch trigger 3 (low speed).
Check periodically if the cable 10 can be extracted from the pipe.

● After dredging a pipe

NOTE

Avoiding splash-back from drain pipes: Retract the cable 10 slowly.

■ Make sure that the rotation direction switch 2 is set to R.

Retracting the cable 10:

- Set the front handle 1 to R ("retract"). - Control the feeding speed of the cable 10 by adjusting the pressure on the switch trigger 3.

LED work light

This product is equipped with a LED work light 9 to illuminate the immediate working area.

The LED work light 9 lights up automatically as soon as the product is switched on.

NOTE

The LED work light 9 stays on for an additional approx. 5 seconds after switching off the product.

● Cleaning and care

WARNING!

Always switch the product off, remove the battery pack 5 and let the product cool down before performing inspection, maintenance or cleaning works and before storage and transportation.

Cleaning

NOTE

Clean the product after each use.

If the cable 10 cannot be retracted into the drum 7: The cable is damaged and needs to be replaced.

■ Never allow fluids to get into the product.

- Regular and proper cleaning will help ensure safe use and prolong the life of the product.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

■ Clean the product with a dry cloth.

Cleaning the cable

■ Remove the battery pack 5 from the product.
■ Set the front handle 1 to C.
■ Slowly pull the cable 10 out of the drum 7.

Use clean cloth and warm soapy water to clean the cable 10 as the cable is advancing.

■ Continue till the cable 10 is fully extended.
■ Slowly push the cable 10 back into the drum 7.
Dry the cable 10 with a clean, dry cloth while pushing the cable back into the drum 7.
- Do not let any water enter the product.

Draining the drum

(Fig. L)

■ Remove the battery pack 5 from the product.
■ Turn the drum 7 until the drain port cover 6 is exposed.
- Loosen the drain port cover 6: Use a screwdriver (type: H5, not included). Turn in an anti-clockwise direction.
■ Remove the drain port cover 6 from the drum 7.
Pour the liquid from the drum 7 into a container suitable for liquid waste.
- Closing the drain port cover 6: Place the drain port cover into the thread in the drum 7. Turn in a clockwise direction.

Maintenance

• Check the product and accessories (e.g. tools) for wear and damage before and after each use. Replace them with new ones if necessary. Observe the technical requirements (see "Technical data").
  Before and after each use: Check the cable for damage, such as rust or deformation.

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

■ Push the rotation control switch 2 to the centre position to lock the switch trigger 3.
- Clean the product (see "Cleaning").
■ Ensure cable 10 is completely retracted back to the drum 7.
■ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
■ Always store the product in a place that is inaccessible to children. The ideal long term storage (longer than 3 months) temperature is between +20 and +26 °C.

Battery pack advice

Only store the battery pack 5 partially charged. The battery pack should be charged to 40 to 60 % (red and orange LED in the charging level LEDs 13 light up) before storing for extended periods.
- Check the battery pack 5 charge about every 3 months when storing for extended periods. Recharge as necessary.

Transportation

■ Push the rotation control switch 2 to the centre position to lock the switch trigger 3.

• Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
• Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Remove the batteries / battery pack from the product before disposal.

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 376269_2104) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

EC Declaration of conformity

EC DECLARATION OF CONFORMITY

IAN: 376269_2104

Product identification: PARKSIDE Cordless Drain Cleaner

Model Number: HG08611

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2005/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-21:2019

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:2015

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Signed for and on behalf:

This declaration of conformity is issued under the sole responsibility of the manufacture.

Original declaration of conformity

Neckarsulm

Place

24.11.2021

Date

Benjamin Steeb

Managing Director

ppa. Jedes/Buchheim

Authorised Signatory

DÉCLARATION DE CONFORMITÉ CE

IAN: 376269_2104

Authorised Signatory

BUISREINIGINGSAPPARAAT 20 V

Inleiding

Nominale spanning: 20 V ---

Toerental onbelast n_0 : 0–620 min ^-1

Benjamin Steel Managing Director

Authorised Signatory

NL

Akumulator PAP 20 B1 \*

Akumulator: Parkside X 20 V Team

Ładowarka: Parkside X 20 V Team

DEKLARACJA ZGODNOŚCI WE

IAN: 376269_2104

Authorised Signatory

PL

(Obr. E, F, G, I a J)

⚠️ VÝSTRAHA! RIZIKO POŠKOZENÍ VÝROBKU!

(Obr. E, F, G, I a J)

⚠ OPATRNE! RIZIKO POŠKODENIA PRODUKTU!

Authorised Signatory

Benjamin Steeb Managing Director

Authorised Signatory

OBS! RISIKO FOR PRODUKTSKADER!

Benjamin Steeb Managing Director

ppa. Jens Buchheim Authorised Signatory

DK

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG08611

Version: 01/2022

IAN 376269_2104

8=
