WS 9069 - Temperature Controller TECHNOLINE - Free user manual and instructions

Product type	Temperature controller with base station and wireless sensors
Brand	TECHNOLINE
Model	WS 9069
Base station power supply	2 AAA batteries (not included)
Sensor power supply	2 AAA batteries each (not included)
Recommended battery type	Non-rechargeable alkaline
Display	LCD with time, indoor/outdoor/pool temperature, humidity, icons
Main functions	Display indoor, outdoor and pool temperature, humidity, DCF radio-controlled clock, manual setting, min/max values, dew point
Included sensors	1 outdoor temperature sensor, 1 pool sensor (wireless 868 MHz)
Transmission range	Up to 100 m in open field (estimated)
Transmission frequency	868 MHz
Adjustable time zone	From -2 to +5 hours (relative to DCF time)
Temperature units	°C or °F
Time format	12h or 24h
Reset	Factory reset function
Intended use	Base station indoors, sensors outdoors (for pool and outdoor temperature)
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products. Remove batteries if not used for extended periods.
Safety	Do not open the housing, do not expose to water or fire, respect battery polarities, keep out of reach of children
Spare parts and repairability	Not specified by the manufacturer. Contact customer service for spare parts.
Base station dimensions	Approximately 150 x 80 x 30 mm (estimated)
Base station weight	Approximately 200 g (with batteries, estimated)
Warranty	Not specified

Frequently Asked Questions - WS 9069 TECHNOLINE

How to install batteries in the base station and sensors?

Open the battery compartment cover of each device. Insert 2 AAA alkaline batteries respecting polarities (+/-). Close the cover. The station will automatically search for sensor signals for about 3 minutes.

How to set the time manually if the DCF signal is not received?

Press and hold the SET button. Use the + button to set the time offset, then press SET to go to the next settings: RCC activation, 12/24h format, hours, minutes, temperature unit. Press SET to confirm and exit.

Why does the reception icon blink continuously?

The blinking icon indicates that the DCF signal (radio-controlled clock) is being searched. If it disappears after several attempts, check that the station is placed away from interference (TVs, computers) and near a window. You can disable radio reception by setting RCC to OFF.

How to display minimum and maximum temperatures?

Press the MAX/MIN/RESET button. Once for minimum values, twice for maximum values, three times for dew point, and four times to return to normal display. Press and hold the button to clear memories.

What to do if outdoor or pool temperature is not displayed?

Check that the sensor batteries are correctly installed and in good condition. Press the + button once to search for the outdoor sensor, or twice for the pool sensor. The screen will display blinking 'LEARN' during the search.

What is the range of the sensors?

The range can reach 100 meters in open field, but it is reduced by obstacles (walls, buildings). Place the sensors outdoors, sheltered from bad weather, and the station near a window.

How to clean the base station and sensors?

Use a soft dry cloth. Do not use chemical or abrasive products. Never immerse the devices in water. Remove batteries if not used for extended periods.

Do the batteries need to be a specific type?

Use only non-rechargeable alkaline AAA batteries. Always replace all batteries at the same time and respect polarities. Remove used batteries promptly.

How to restore factory settings?

In setting mode (hold SET), navigate until 'FAC' blinks, then press and hold the + button. The station will return to its default settings.

Where to place the sensors for best reception?

Place the outdoor sensor sheltered from direct sunlight and rain, at about 1.5 m from the ground. For the pool, fix the sensor immersed or on the surface according to instructions. Avoid large metal masses and electrical devices nearby.

USER MANUAL WS 9069 TECHNOLINE

WS 9069 – Instruction Manual

Overview

EN1

C1 C2 C3 C4

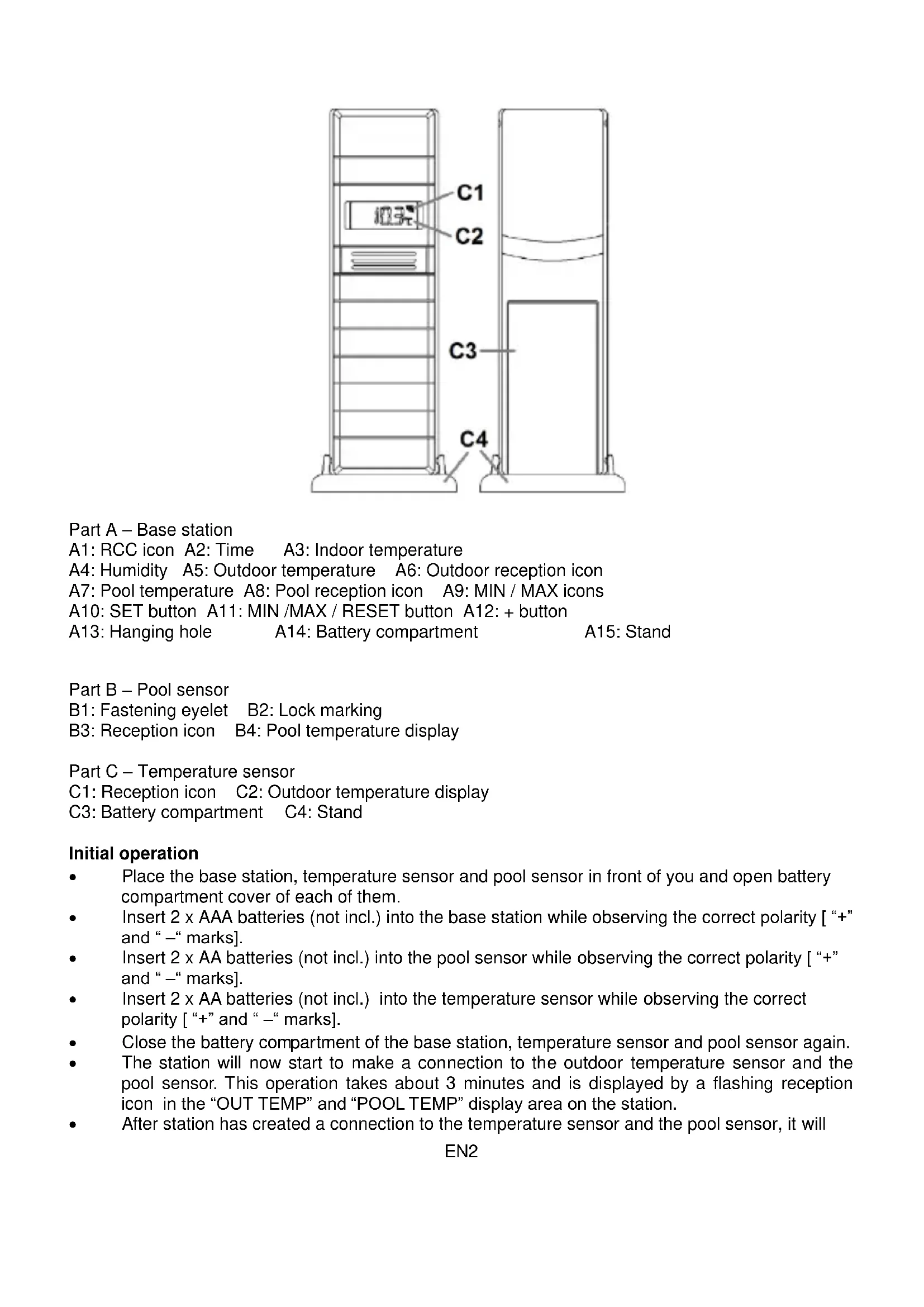

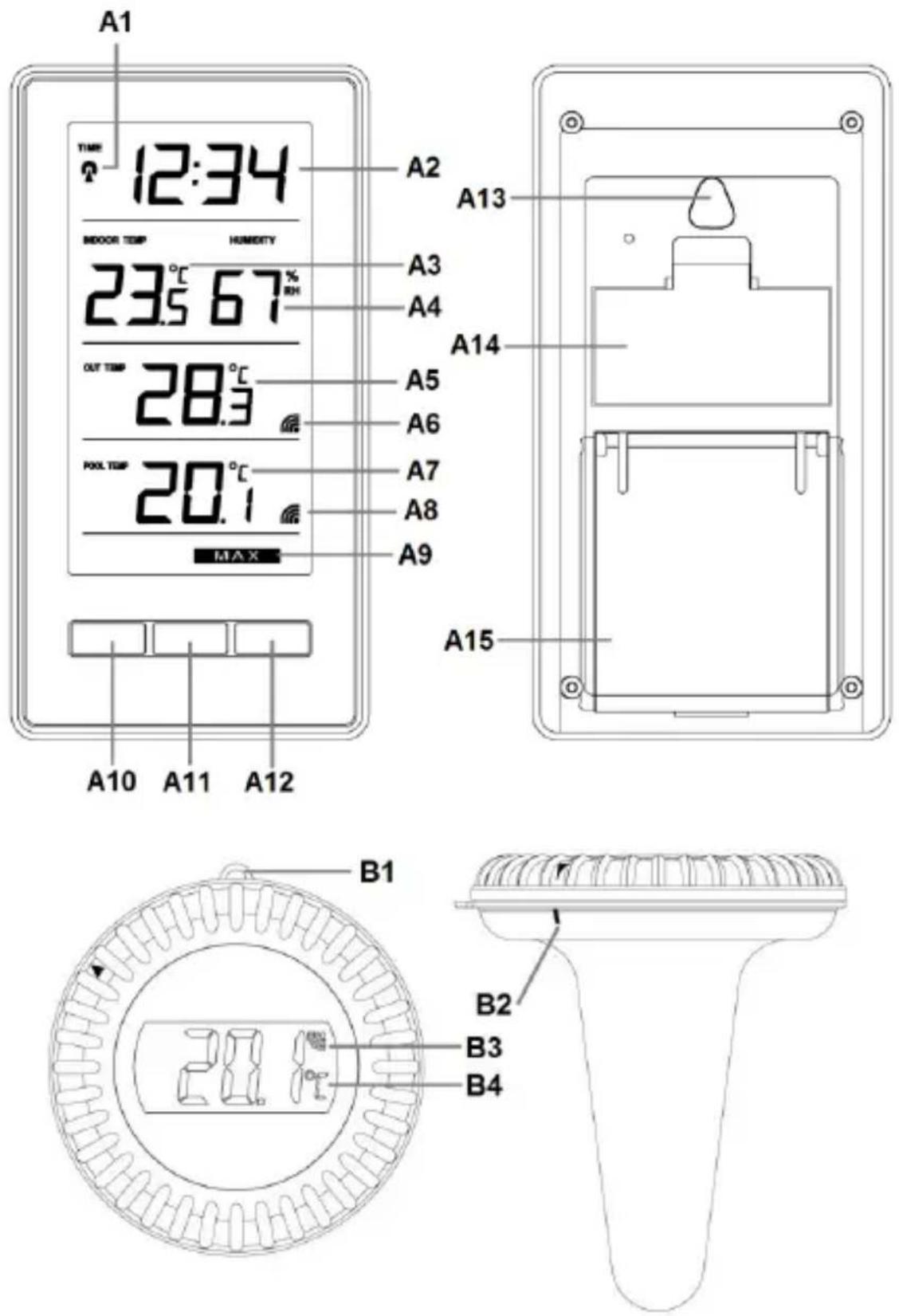

Part A – Base station

A1: RCC icon A2: Time A3: Indoor temperature

A4: Humidity A5: Outdoor temperature A6: Outdoor reception icon

A7: Pool temperature A8: Pool reception icon A9: MIN / MAX icons

A10: SET button A11: MIN /MAX / RESET button A12: + button

A13: Hanging hole

A14: Battery compartment

A15: Stand

Part B – Pool sensor

B1: Fastening eyelet B2: Lock marking

B3: Reception icon B4: Pool temperature display

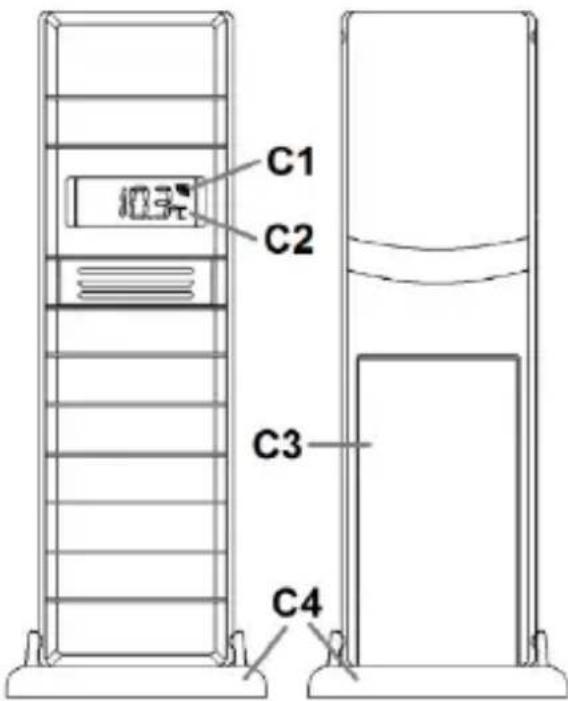

Part C – Temperature sensor

C1: Reception icon C2: Outdoor temperature display

C3: Battery compartment C4: Stand

Initial operation

• Place the base station, temperature sensor and pool sensor in front of you and open battery compartment cover of each of them.
• Insert 2 x AAA batteries (not incl.) into the base station while observing the correct polarity [ “+” and “−” marks].
• Insert 2 x AA batteries (not incl.) into the pool sensor while observing the correct polarity [ “+” and “−” marks].
• Insert 2 x AA batteries (not incl.) into the temperature sensor while observing the correct polarity [ “+” and “−” marks].
• Close the battery compartment of the base station, temperature sensor and pool sensor again.
• The station will now start to make a connection to the outdoor temperature sensor and the pool sensor. This operation takes about 3 minutes and is displayed by a flashing reception icon in the "OUT TEMP" and "POOL TEMP" display area on the station.
  • After station has created a connection to the temperature sensor and the pool sensor, it will

then enter the radio control time reception mode.

Note:

• If bars are displayed at the outdoor or pool temperature, because the connection is broken check the batteries in the transmitter.
• To manually start to find outdoor sensor signals, press the + button in normal display mode once to find the outdoor temperature sensor or twice to find the pool transmitter. "LEARN" will flash in the corresponding area of temperature sensor or pool sensor on display

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  • among tall buildings
  • inside concrete buildings
  • near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Reception of the radio-controlled time signal:

• The clock automatically starts the DCF signal search after 7 minutes of any restart or changing of new fresh batteries. The radio mast (RCC) icon starts to flash.
• At 1:00 / 2:00 / 3:00 / 4:00 / 5:00 the clock automatically starts the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full one hour. This procedure is repeated automatically up to total 5 times.

Notes:

• A flashing radio mast icon indicates that the DCF signal reception has started
• A continuously displayed radio mast icon indicates that the DCF signal was received successfully
• We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors
- Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such circumstances, place the system close to the window.

Manual time setting

• Press and hold the SET button to enter setting mode and "0h" is flashing. Press the + button to adjust the value within the range of -2 to +5. (0 for Germany, -1 for UK) The fitting time difference will be added when displaying time, allowing the clock to use radio-controlled time in different time zones.
• Press the SET button again, RCC is displayed and "ON" is flashing. Press the + button to enable radio-controlled time with "ON" or disable it with "OFF". When set to OFF, the clock will only use quartz clock.
• Press the SET button again, "24h" is flashing. Press the + button to set 12 hour display mode (12h) or 24 hour display mode (24h).
• Press the SET button again, the hour digits are flashing. Press the + button to set the hour.
• Press the SET button again, the minute digits are flashing. Press the + button to set the

minutes.

• Press the SET button again, the “°C” is flashing. Press the + button to set temperature measuring unit to °C or °F.
• Press the SET button again, the “°C” is flashing. Press the + button to set temperature measuring unit to °C or °F.
• Press the SET button again, the "FAC" is flashing. Press and hold the + button if you want to reset the station to factory settings.
• Press the SET button to confirm and exit the setting. You will return to the normal display mode.

Notes:

• If no buttons are pressed within 15 seconds, set mode will time out and return to normal display mode, reflecting whatever adjustments were made by user before the set mode timed out.
• Press the + button once to adjust setting value by 1 unit, hold the button to speed up the setting.

DEW Point, MAX and MIN values

• In normal display mode, press the MAX/MIN/RESET button to view the MIN values of indoor temperature, outdoor temperature and pool temperature.
• Press the MAX/MIN/RESET button again to view the MAX values of indoor temperature, outdoor temperature and pool temperature.
• Press the MAX/MIN/RESET button again view the dew point value instead of indoor temperature. "DEW POINT" will be displayed at the display.
• Press the MAX/MIN/RESET button again to return to normal display mode.

Notes:

• Press and hold the -/MAX/MIN button to clear MAX and MIN values from memory.
• After 30 seconds without pressing a button the display will return back to the normal display mode.

Hereby, Technotrade declares that this product WS 9069 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665090696

Specifications

Transmission frequency: 868 MHz

Maximum transmission power TX33-IT: -0.82 dBm

Maximum transmission power TX52D-IT: 9.03 dBm

Precautions

• This main unit is intended to be used only indoors, the outdoor sensors are to be used outdoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).

• Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.
- Do not recharge and do not dispose of batteries in fire as the batteries may explode.
- Ensure batteries are stored away from metal objects as contact may cause a short circuit.
- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
