Product type	Indoor weather station with display
Brand	TECHNOLINE
Model	WS 6445
Main power supply	230 V AC mains adapter (included)
Backup power supply	3 AAA alkaline batteries (not included)
Outdoor sensor	1 wireless transmitter included, compatible with up to 3 sensors (channels 1-3)
Outdoor sensor power supply	2 AAA alkaline batteries (not included)
Indoor temperature	0 °C to +50 °C
Outdoor temperature	-50 °C to +70 °C
Indoor/outdoor humidity	20 % to 95 %
Atmospheric pressure	850 hPa to 1050 hPa
Time reception	DCF 77.5 kHz signal (radio-controlled)
Time zones	GMT, GMT+1, GMT+2 adjustable
Time format	12 h / 24 h
Alarms	2 separate alarms with snooze function
Weather forecast	6 symbols: sunny, partly cloudy, cloudy, rainy, stormy, frost alert
Display	Backlit LCD with adjustable color change
Dimensions (approx.)	15 x 10 x 5 cm
Weight (approx.)	400 g (without batteries)
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to water, shocks, or extreme temperatures. Use only alkaline batteries.
Repairability	In case of malfunction, contact customer service. Do not open the housing.

Frequently Asked Questions - WS 6445 TECHNOLINE

How to set the time manually if DCF reception fails?

Hold the SET button for a few seconds. The hour digits flash. Use the ▲ and ▼ buttons to adjust the hour, then press SET to move to minutes. Repeat to set year, month, day. To set the time zone, hold SET until -1/00/01 is displayed.

What to do if the screen remains blank after plugging in?

First check that the mains adapter is properly plugged in and the outlet works. If the screen remains blank, use a pointed object to press the RESET button on the back of the unit. You can also insert the backup batteries (3 AAA) and try again.

How to add an additional outdoor sensor (channel 2 or 3)?

Make sure the additional sensor is set to the desired channel (position 2 or 3 of the selector). On the station, press ▲/CHANNEL to select the channel (2 or 3), then hold the button until the search icon flashes. Insert batteries into the sensor; the data should appear within seconds.

What does the frost alert icon mean?

The frost alert icon (a snowflake) appears when the outdoor temperature is below +3 °C. This indicates a risk of frost.

How to change the backlight color?

When the mains adapter is plugged in, the backlight changes color automatically. Press the Zz button once to freeze the current color. Press again to resume color change. Hold Zz to dim or increase brightness.

Why is the outdoor temperature not displayed (dashes)?

This means the wireless link with the sensor is lost. Check that the sensor is powered and the channel selector is in the correct position (default 1). Hold the ▲/CHANNEL button to restart the search. Move sources of interference (screens, metal) away from between the station and the sensor.

How to activate or deactivate the alarms?

Press the AL1·2 ON·OFF button to cycle through modes: alarm 1 only, alarm 2 only, both alarms, or none. The corresponding icons (A1, A2) appear on the screen. To set the alarm time, press SET in normal mode to display the alarm, then hold SET to change hours/minutes.

What is the range of the wireless outdoor sensor?

The range is approximately 50 meters in open air without obstacles. Walls, ceilings, trees, and other obstructions reduce the range by half per obstacle.

What to do if DCF reception constantly fails?

Place the station near a window, away from any metal objects and electrical devices (televisions, computers). Automatic reception occurs every night between 1 am and 5 am. You can start manual reception by holding the ▼/WAVE button. If failure persists, set the time manually.

How to reset the weather station to factory settings?

Use a pointed object (e.g., a paperclip) to press the RESET button located on the back of the unit. All settings (time, alarm, etc.) will be erased. You will need to reprogram everything.

USER MANUAL WS 6445 TECHNOLINE

Take out the back stand and insert it horizontally to the back case as indicated, then rotate it by 90 degree to secure It to the back case.

Schritt 2

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Techno Trade Import Export GmbH hereby declares that the appliance WS 6445 is in compliance with the essential requirements and other relevant regulations of directive R&TTE 1999/5/EC.

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

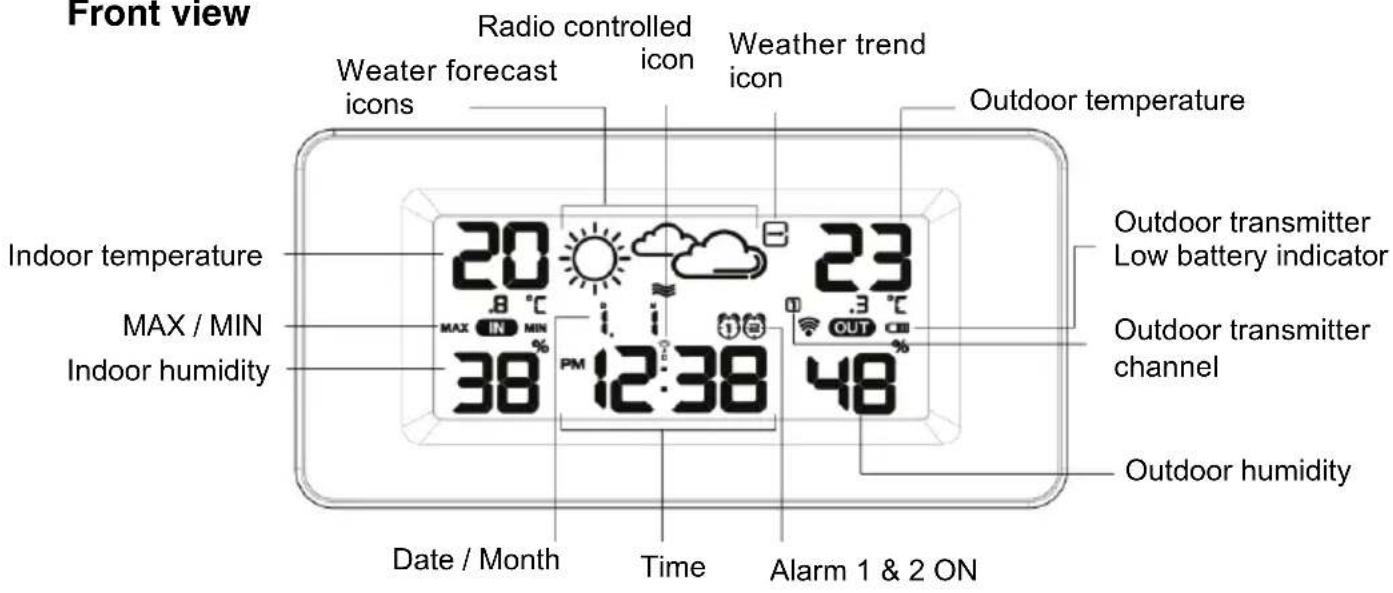

Front view

Front view Radio controlled icon Weather trend icon Weather forecast icons Outdoor temperature Indoor temperature MAX / MIN Indoor humidity 20 .8 °C MAX IN MIN 38 PM 12:38 23 OUT Outdoor transmitter Low battery indicator Outdoor transmitter channel Outdoor humidity Date / Month Time Alarm 1 & 2 ON

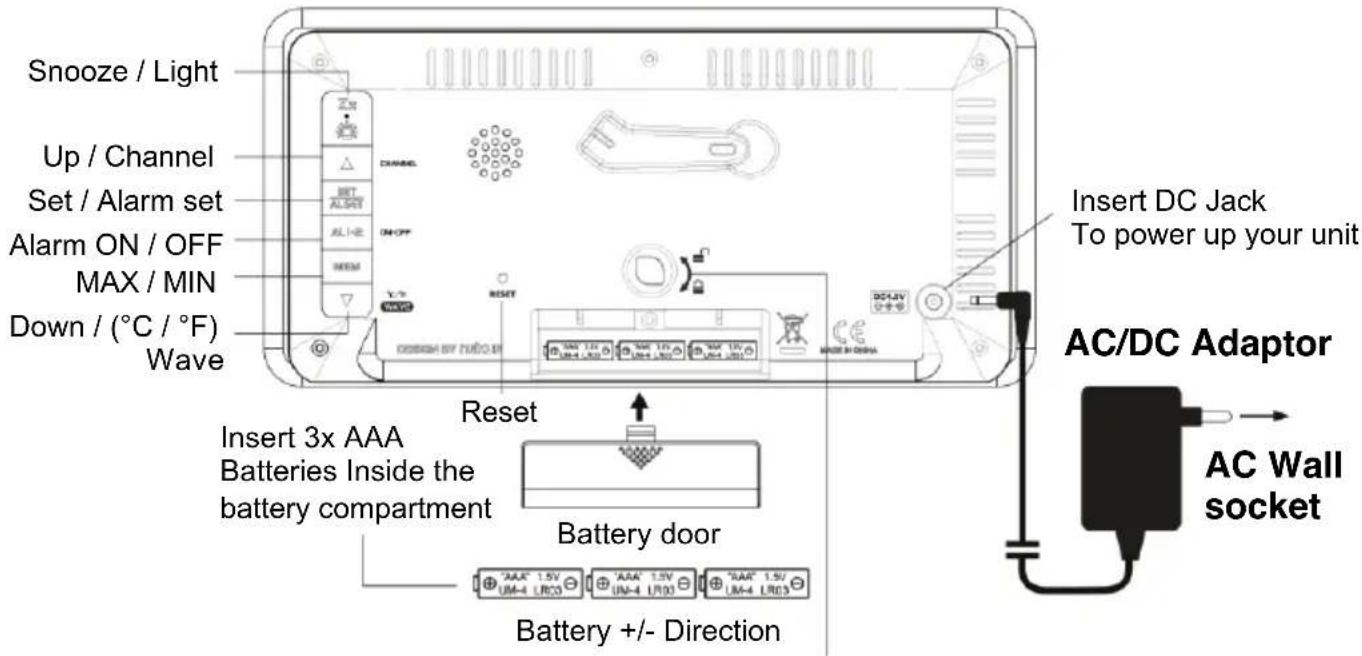

Back view

Snooze / Light Up / Channel Set / Alarm set Alarm ON / OFF MAX / MIN Down / (°C / °F) Wave Channel SET ALI-2 NEEM V.9 WAVE Reset Insert 3x AAA Batteries Inside the battery compartment Reset Battery door Battery +/- Direction Insert DC Jack To power up your unit AC/DC Adaptor AC Wall socket

Side view

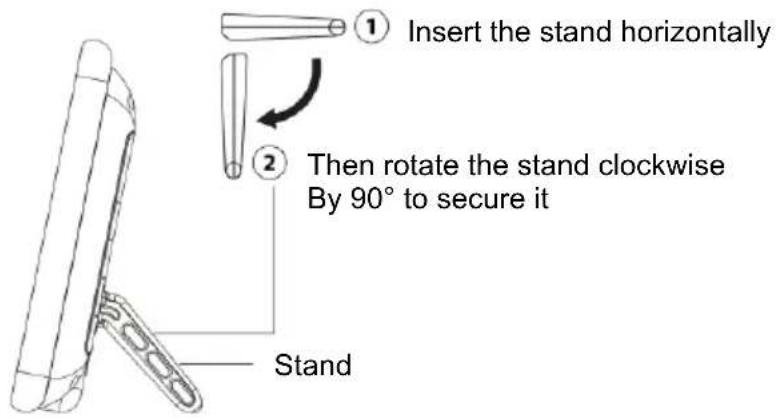

Insert the stand horizontally Then rotate the stand clockwise By 90° to secure it Stand

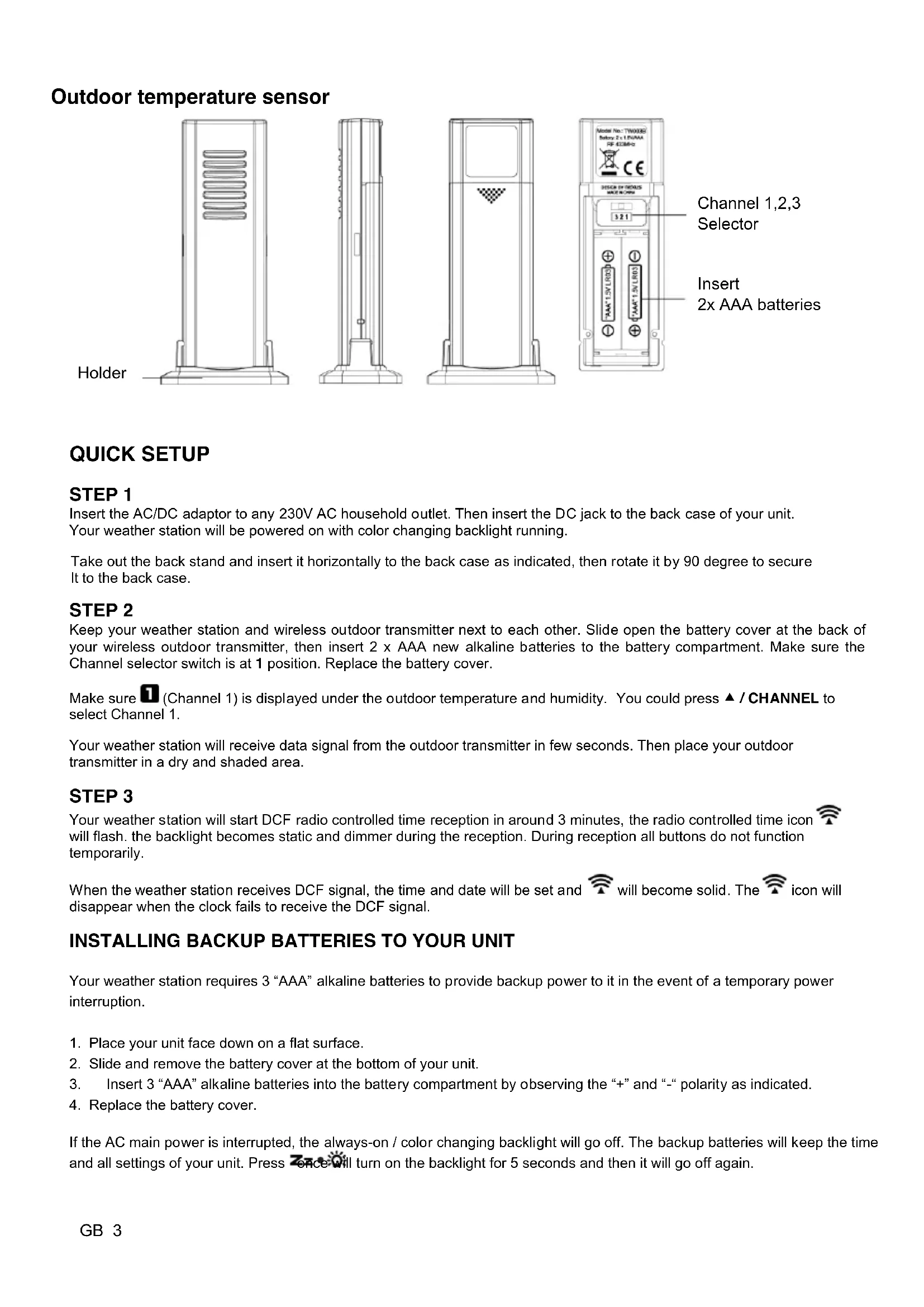

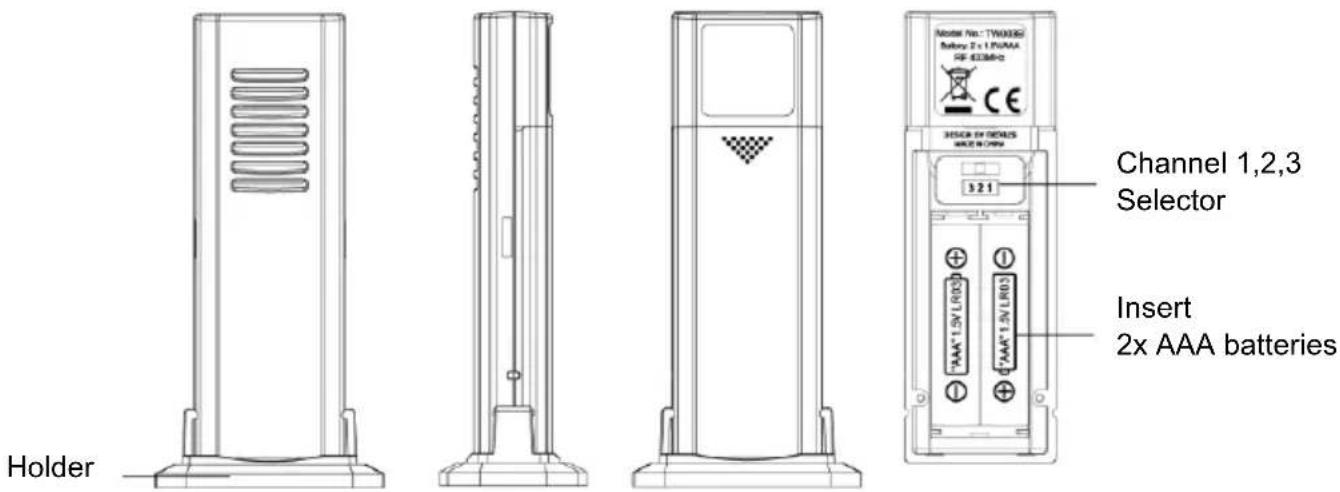

Outdoor temperature sensor

Holder Channel 1,2,3 Selector Insert 2x AAA batteries

QUICK SETUP

STEP 1

Insert the AC/DC adaptor to any 230V AC household outlet. Then insert the DC jack to the back case of your unit. Your weather station will be powered on with color changing backlight running.

Take out the back stand and insert it horizontally to the back case as indicated, then rotate it by 90 degree to secure. It to the back case.

STEP 2

Keep your weather station and wireless outdoor transmitter next to each other. Slide open the battery cover at the back of your wireless outdoor transmitter, then insert 2 x AAA new alkaline batteries to the battery compartment. Make sure the Channel selector switch is at 1 position. Replace the battery cover.

Make sure 1 (Channel 1) is displayed under the outdoor temperature and humidity. You could press ▲ / CHANNEL to select Channel 1.

Your weather station will receive data signal from the outdoor transmitter in few seconds. Then place your outdoor transmitter in a dry and shaded area.

STEP 3

Your weather station will start DCF radio controlled time reception in around 3 minutes, the radio controlled time icon will flash. the backlight becomes static and dimmer during the reception. During reception all buttons do not function temporarily.

When the weather station receives DCF signal, the time and date will be set and will become solid. The icon will disappear when the clock fails to receive the DCF signal.

INSTALLING BACKUP BATTERIES TO YOUR UNIT

Your weather station requires 3 "AAA" alkaline batteries to provide backup power to it in the event of a temporary power interruption.

1. Place your unit face down on a flat surface.
2. Slide and remove the battery cover at the bottom of your unit.
3. Insert 3 "AAA" alkaline batteries into the battery compartment by observing the "+" and "-" polarity as indicated.
4. Replace the battery cover.

If the AC main power is interrupted, the always-on / color changing backlight will go off. The backup batteries will keep the time and all settings of your unit. Press Zonce will turn on the backlight for 5 seconds and then it will go off again.

REMARKS:

Keep in mind that your outdoor transmitter has a 50-meter open air transmission with no obstructions.

Actual transmission range will vary depending on what is in the path of the signal. Each obstruction (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut signal range in half.

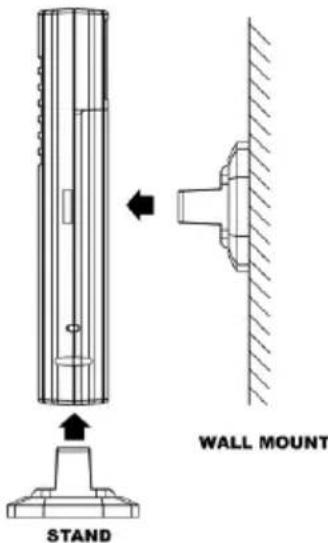

WALL MOUNT STAND

Insert the holder to the bottom of the outdoor transmitter for desktop or insert it to the back of the transmitter for wall mount purpose

DCF SIGNAL RECEPTION AND SIGNAL INDICATOR

After your clock is powered up, it starts to receive DCF signal. The LED flashes.

Weak or no DCF signal

(only ▲ icon flashing)

Receiving strong DCF signal ( icon flashing

Successful Reception ( icon becomes st

Failed Reception ( icon disappear)

AUTOMATIC RECEPTION AND MANUAL RECEPTION

Your clock starts automatic reception everyday at 1:00, 2:00, and 3:00. If it fails to receive the DCF time signal at 3:00, it will start reception at 4:00. If it fails again, it will start reception at 5:00. If it fails again, it will start automatic reception at 1:00 again in the next day.

MANUAL RECEPTION

Simply press and hold / ( C / ^) WAVE, your clock will gives a short beep and starts manual reception. Press and hold / ( C / ^) WAVE to stop DCF reception.

When your weather station is receiving the radio controlled time signal, the backlight becomes static and dimmer. After the radio controlled time reception is completed, It will revert to the preceding color backlight mode.

During RCC reception, all buttons do not function and it does not take temperature measurement. The temperature readings will get stable and become more accurate after your weather station clock is powered up for around 30 minutes

TO SET TIME ZONE, 12/24, TIME, CALENDAR, SNOOZE DURATION

1. Press and hold SET AL SET, the time digits change to "00". Press ▲ or ▼ to set the time zone.

2. 1 : GMT 00 hour (e.g. UK)
   00 : GMT + 1 hour (e.g. Germany)
   01 : GMT + 2 hour (e.g. Finland)

3. Then press SET AL SET again, the time digits change to "24Hr". Press ▲ or ▼ to select "12Hr" time format. When 12Hr time format is selected, PM indicator will be displayed.

4. Then press SET AL SET once again, the hour digits flash. Press ▲ or ▼ button to set the hours. Press and hold ▲ / ▼ will accelerate your setting.

5. Then press SET AL SET once again, the minute digits flash. Press ▲ or ▼ button to set the minutes. Press and hold ▲ / ▼ will accelerate your setting.
6. Then press SET AL SET once again, "Yr" displayed and "2013" digits flash. Press ▲ or ▼ button to set the year.

Yr 20 13

1. Then press SET AL SET once again, month digits flash. Press ▲ or ▼ button to set the month.

2. Then press SET AL SET once again, date digits flash. Press ▲ or ▼ button to set the date.

3. Then press SET AL SET once again, "m", "d", month-date digits flash. Press ▲ or ▼ to select month-date "m" "d" or date-month "d" "m" calendar display.

pm 12:38

1. Then press SET AL SET once again, "SN" and "05". Press ▲ or ▼ button to set the snooze duration from 5 minutes to 60 minutes.

SN 05

1. Press SET to return to normal mode, or it will return to normal mode in around 15 seconds if no further press of any other buttons.

TO SET ALARM 1 AND 2

1. TO SET ALARM 1 : At normal time display, press SET AL SET once, time digits change to alarm time digits "6:00" and "A1". Then press and hold SET AL SET for 2 seconds, the alarm hour digits flash. Press ▲ or ▼ to set the hours of your desired alarm time.

R1 6:00

1. Then press SET AL SET once again, the alarm minute digits flash. Press ▲ or ▼ button to set the minutes of your desired alarm time.

2. Then press SET ALSET once again to complete set-up. If no key is pressed in approximate 15 seconds at any time during set-up, the clock will exit the alarm set-up mode.

3. TO SET ALARM 2: At normal time display, press SET ALSET twice, time digits change to alarm time digits "6:00" and "A2" is displayed. Then repeat the above steps in Alarm 1 setting.

A2 6:00

TO TURN ON OR OFF YOUR DAILY ALARM

1. Press AL1·2 ON·OFF once to turn on Alarm 1 only, 📋 appears on the LCD.
2. Press AL1-2 Al1-2 again to turn on Alarm 2 only, appearance in the LCD.
3. Press AL1·2 ON·OFF once again to turn on both Alarm 1 & 2, both ① and ② appear on the LCD.
4. Press AL1·2 ON·OFF once again to turn off both Alarm 1 & 2, both ① and ② disappear on the LCD.

TO USE SNOOZE ALARM

When time reaches your set alarm time, your weather station will give a beep sound to wake you up. The corresponding or flash.

1. Press Zz • once to stop the alarm temporarily, the corresponding 📄 or 🌐 keeps flashing. The alarm will beep again according to your set snooze duration.
2. When the alarm is sounding, press ON·OFF once, the alarm will stop for the day, or become static, alarm will come on again at the same time next day.

Alarm Duration: 2 minutes

HOW TO USE THE COLOR CHANGING BACKLIGHT

1. When AC/DC adaptor is being used to power on your weather station, the LCD will be illuminated with a color changing backlight.
2. Press Zz button once to stop the color changing backlight and hold it to a specific color. Press once again to resume the color changing backlight.
3. Press and hold Zz • 🌿 button will dim down the brightness of color changing or constant color backlight. Press and hold it again will resume to high brightness of color changing or constant color backlight.

TO DISPLAY TEMPERATURE IN DEGREE °C OR °F

Simply press ▼ (°C/°F) / WAVE once to display temperature in degree °C or degree °F.

WEATHER FORECAST AND PRESSURE TREND INDICATOR

Your weather station has a built-in barometric sensor which measures the change of the air pressure over time. Your weather station takes around 12 hours to gather and average air- pressure readings to provide a weather forecast for next 12 hours.

WEATHER ICONS

There are six possible types of weather icons that will be displayed:

SUNNY		RAINY
SUNNY AND CLOUDY (PARTLY SUNNY)		STORMY
CLOUDY		FROST ALERT	Frost Alert Icon appears when outdoor temperature is below +3°C

AIR PRESSURE TENDENCY INDICATORS

When the arrow appears, the air pressure is increasing, the weather is expected to improve.

When the arrow appears, the air pressure is decreasing, the weather is expected to become worse.

When the arrow appears, the air pressure change is stable.

Remarks: Moving your weather station from one floor of a building to another floor will affect the accuracy of your weather station, which should operate at the same altitude all the time. If you move it to a new location, it will take 12 hours to get stable and accurate again.

Our weather station provides next 12 hours weather forecast. It may not match with the current weather condition outside.

TO READ MAXIMUM-MINUMUM IN-OUT TEMPERATURES AND HUMIDITIES

Press MEM once to view the maximum indoor-outdoor temperatures and humidities records with "MAX" icons appearing on the display. Press again to view the minimum indoor-outdoor temperatures and humidities and the air pressure with "MIN" icons appearing on the display.

When the maximums or minimums are displayed, press and hold the MEM to reset both records and it will start to record the maximums and minimums again.

TO DISPLAY AIR PRESSURE READOUT

When MAX or MIN is not displayed, press and hold MEM until the calendar display shows the air pressure readout in hPa. Press and hold MEM again to revert back to calendar display.

IF YOU LOSE THE OUTDOOR TEMPERATURE AND HUMIDITY

When the outdoor temperature and humidity digits show '---', the wireless transmission is either interrupted or lost. Press and hold the ▲ / CHANNEL button to start searching for the signal from the outdoor transmitter with the flashing.

If you continue to lose the outdoor temperature and humidity display, which could happen in extreme cold weather, try placing the transmitter in a different location until you have smooth transmission of temperature / humidity data.

HOW TO SYNCHRONIZE YOUR WEATHER STATION WITH ANOTHER OUTDOOR TRANSMITTER

1. At the back of your weather station, Press ▲ / CHANNEL once. 📋 icon appears under your outdoor temperature and humidity.
2. Press and hold ▲ / CHANNEL until the 📋 icon blinks, your weather station is searching for the signal of another outdoor transmitter at Channel 2.
3. Slide open the battery door of your second transmitter, slide the switch to the middle position marked with 2, then insert two AAA batteries into the battery compartment by observing the correct +/- polarity. Replace the battery cover.
4. The outdoor temperature and humidity of your second transmitter will appear on the LCD together with icon within few seconds. If the data still does not appear, take out and reinstall batteries to your second transmitter once.
5. To synchronize your weather station with a third outdoor sensor, repeat the same step by choosing ☐ on your weather station and select 3 on the switch on your third transmitter.

AUTO SCROLLING THE OUTDOOR TEMPERATURE AND HUMIDITY OF DIFFERENT TRANSMITTER

Press ▲ / CHANNEL one at a time until the 1 icon flashes with a short beep tone. Then the outdoor temperature and humidity of different outdoor transmitter will be displayed for few seconds alternately with 1, 2, 3 flashing.

To stop the auto scrolling, press ▲ / CHANNEL once to go back to constant display of the temperature and humidity of the transmitter, the i.e. remains static on the display.

LOW BATTERY INDICATION OF YOUR OUTDOOR TRANSMITTER

The 📄 icon will appear to indicate the battery level of your outdoor transmitter is getting low. You may need to replace the batteries of your outdoor transmitter with new ones.

Extreme cold weather (e.g. below 14 °F) will also cause low battery voltage.

TROUBLESHOOTING

In case your weather station clock shows irrelevant information or digits, it may be affected by electrostatic discharge or interferences from other devices. Use a sharp object to press RESET at the back of your weather station. Your unit will be reset to default settings and you need to set the time, calendar and alarm time again.

Problem	Solution
LCD is blank	1. Press RESET on the main unit.2. Replace fresh batteries in your weather station.3. Make sure the AC/DC adaptor is plugged into an working AC outlet properly.4. Make sure the DC jack is plugged in to the weather station properly.
No Outdoor Temperature and Humidity is displayed	1. Press and hold ▲ / CHANNEL on the weather station to search for outdoor temperature signal again.2. Press and hold ▲ / CHANNEL, then take out the batteries and reinstall with new ones to your outdoor transmitter.3. Make sure the correct channel is selected on your weather station (default setting is 1 Channel 1)4. Observe if the Low Battery icon appears on the right of the outdoor temperature. If yes, replace batteries in outdoor transmitter with new alkaline batteries.5. No other interfering sources are being used (such as computer monitors, TV sets, headphones, or speakers) in the path of signal from the outdoor sensor. The signal travels in a straight line, an electrical source near that “line” may cause interference.
Temperature, humidity, or air pressure is incorrect	1. Press RESET on the main unit.2. Make sure your main unit and the outdoor transmitter is away from sources of heat / cold / direct sunlight / rain.

SPECIFICATIONS:

Temperature Range

Indoor +32°F to +122°F (0°C to +50°C) (display shows HH.H / LL.L if out of this range)

Outdoor -58°F to +158°F (-50°C to +70°C) (display shows HH.H / LL.L if out of this range)

Humidity Range

Indoor 20% - 95%

Outdoor 20% - 95%

Temperature Resolution 0.2°F / 0.1°C

RH% Resolution 1%

Temperature & Humidity measure every 30 seconds

Air Pressure Range 850 hPa to 1050 hPa

Alarm Duration 2 minutes

Snooze Duration 5 minutes

Support mural DUNT SUPPORT

Line drawing of a vertical rectangular device with ventilation slots and base (no text or symbols)

Technical line drawing of a vertical cylindrical structure with base and support components (no text or symbols)

Line drawing of a vertical cylindrical structure with a checkered pattern on the top and base (no text or symbols)

Model No.: TW0039 Battery: 2 x 1.2V/AAA RF 43368Hz SINEMA BY FIDEM MODE IN CHINA 32.1 PAA* 1.5V LRD3 PAA* 1.5V LRD3 PAA* 1.5V LRD3
