| Product type | Direct drive turntable |
| Brand | TEAC |
| Model | TN-4D-SE |
| Dimensions (with dust cover closed) | 420 × 117 × 356 mm |
| Dimensions (without dust cover) | 429 × 102 × 356 mm |
| Weight | 8.1 kg |
| Power supply | External AC adapter (GPH035N-240150) |
| Power consumption (operation) | ≤ 2.0 W |
| Power consumption (standby) | ≤ 0.5 W |
| Rotation speeds | 33 1/3 rpm and 45 rpm |
| Arm type | Static balanced S-shaped tonearm |
| Included cartridge | Sumiko Oyster (MM) |
| Recommended tracking force | 2.3 g (range 1.5-2.5 g) |
| Built-in phono preamp | Yes, switchable ON/THRU |
| Audio outputs | RCA (with ground wire) |
| Wow and flutter | ≤ 0.1% (typical) |
| Signal-to-noise ratio | ≥ 67 dB (A-weighted, 20 kHz filter) |
| Included accessories | Felt mat, 45 rpm adapter, counterweight, cartridge holder, RCA audio cable, dust cover with hinges |
| Maintenance | Clean with a soft dry cloth; use disc and stylus cleaner |
| Safety | Unplug before cleaning; do not expose to water; use only the supplied adapter |
Frequently Asked Questions - TN4Dse TEAC
User questions about TN4Dse TEAC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Turntable in PDF format for free! Find your manual TN4Dse - TEAC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TN4Dse by TEAC.
USER MANUAL TN4Dse TEAC
https://teac.jp/jp/signup
レコードの取り扱い
レコードの持ち方


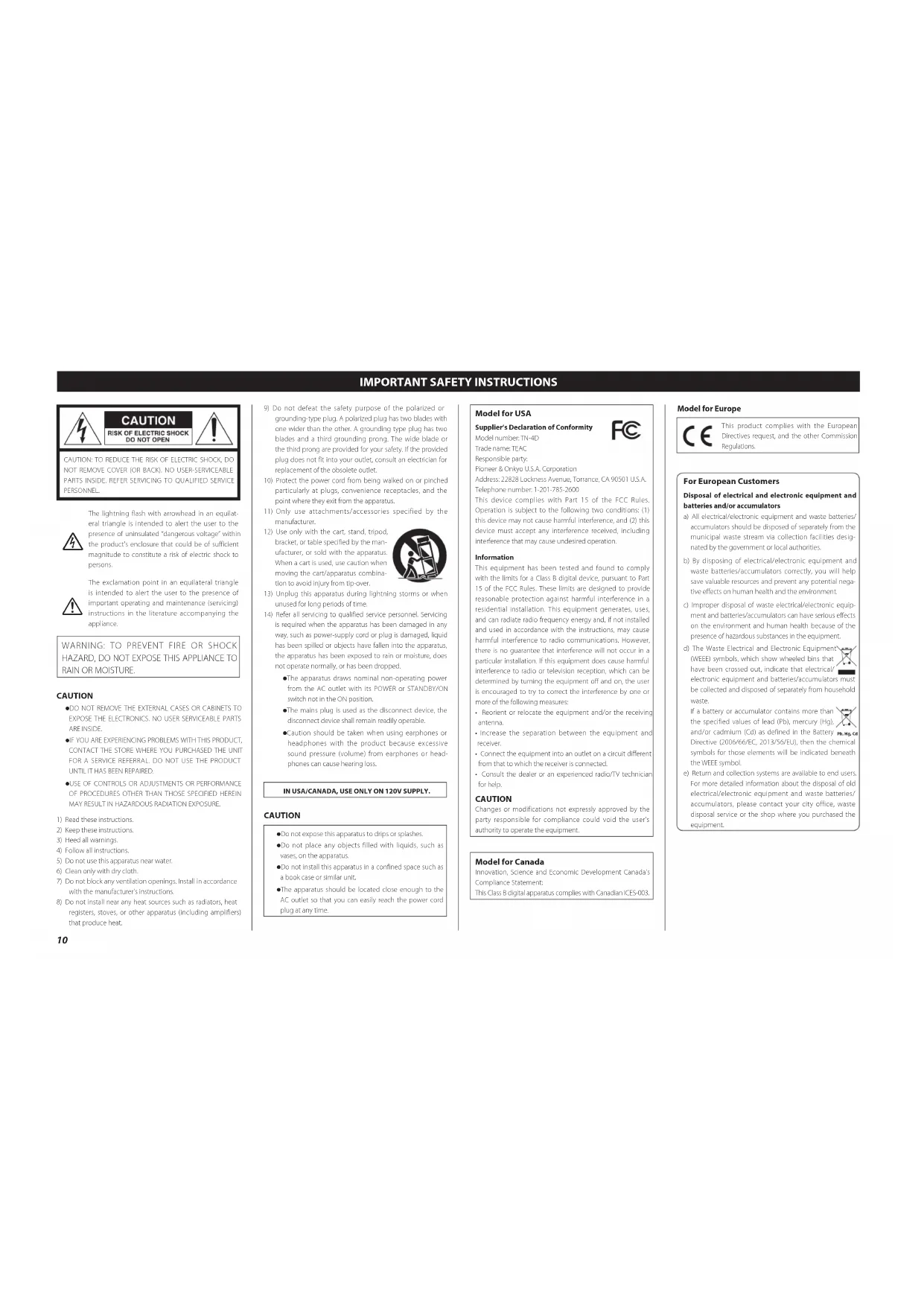

52.8 ± 0.5mmIMPORTANT SAFETY INSTRUCTIONS
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC STOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INS DL, INT'L SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead in an coullaleral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that could be of sufficient magnitude to constitute a risk of electric shock to observers.
The exclamation point in an eculateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
●DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
- IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE RETERRAL. DO NOT USE THE PRODUCT UNILITITAS OBLIN REPAIRD.
●US- OF CONTROLS OR ADJUST MENS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED - HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
2) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
d) Do not insta near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
(3) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding wrong. The wide blade on the ship promg are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacture.
1.2) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/separatus combination to avoid injury from tip over.
13) Unplug this appearance during lightning storms or when unused for long periods of time.
(14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug's de-megated, liquid has been applied or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
●The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDAY/ON switch not in the ON position.
●The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.
IN USA/CANADA, USE ONLY ON 120V SUPPLY.
CAUTION
- Do not expose this apparatus to dripe or splashes.
- Do not place any objects filled with liquids, such as vases, on the apparatus.
- Do not install this apparatus in a confined space such as a book case or similar unit.
- The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
Model for USA
Supplier's Declaration of Conformity
Model number: N-4D
trade name: ILAC
responsible party:
Pioneer & Onkyo U.S.A. Corporation
Address: 22828 Lockness Avenue, Torrance, CA 90501 U.S.A. Telephone number: 1 20 785 2600
This device complies with Part 15 of the TCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received. Including interference that may cause undesired operation.
Information
This equipment has been tested and found to comply with the limits for a Class II digital device, pursuant to Part 15 of the ICC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can rotate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Excellent or release the equipment and/or the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver's connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Model for Canada
Innovation, Science and Economic Development Canada's Compliance Statement
This Class 2 digital apparatus complies with Canadian ICES-003.
Model for Europe
This product complies with the European Directives request, and the other Commission Regulations.
For European Customers
Disposal of electrical and electronic equipment and batteries and/or accumulators
a) All electrical/electronic equipment, and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEC) symbols, which show wheeled bins that have been crossed out, indicates that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.
If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Po, Hg, Co Directive (2006/66/LC, 2013/56/LU); then the chemical symbols for those elements will be indicated beneath the WLL symbol.
a) Return and collection systems are available to end users for more detailed information about the disposal of electrical/electronic equipment, and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.
Table of contents
Thank you for choosing IT AC
Read this manual carefully to get the best performance from this unit.
After reading it, keep it in a safe place for future reference.
IMPORTANT SAFETY INSTRUCTIONS....10
Before use....11
Handling records....1
Preparing the record player....12
Connections....13
Dust cover....14
Names and functions of parts 14
Basic operation....14
Notes about record styluses....15
Changing the cartridge 15
Troubleshooting....16
Specifications....17
Company names and product names in this document are the trademarks or registered trademarks of their respective owners.
Before use
Included items
Check to be sure the box includes a the supplied accessories shown below. Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.
Fcl. mol x 1
45 RPM adapter x
Counterweight × 1
Headshell x
Sumiko MM type stereo cartridge (Oyster) preinstalled
Platter x 1
Dust cover x 1
Dust cover hinges × 2
RCA audio cable with grounding terminal x 1
AC adapter(GPIC35W-740150)×1
Owner's manual (this document, including warranty) × 1
- The warranty for the United States and Canada is on the back cover. See page 66 for warranty provisions. See page 67 for information about, the warranty in Europe and other countries or areas.
Precautions for use
- Do not place anything on the dust cover. Objects on the cover might cause noise due to vibrations or tail off, especially during playback.
- Avoid placing the unit in direct sunlight, close to a source of heat or in other similar conduction. Do not place the unit on top of an amplifier or other equipment that might generate heat that exceeds the operating temperature range of this unit. Being so could cause discoloration, deformation or malfunction.
- As the unit could become warm during operation, always leave sufficient space around it for ventilation. When installing this unit, leave a little space (at least 20 cm (8')) between it and other devices and walls to allow good heat dissipation.
When placing it in a rack, for example, leave at least 35 cm (13.3/12), open above it and 10 cm (7) open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.
- DO NOT MOVE THE UNIT DURING PLAYBACK. During playback, the record rotates. Do not lift or move the unit during payback. Doing so may damage the record: the stylus, the cartridge or the unit.
●Always remove the record before relocating or moving this unit. Moving the unit with a record on the platter could damage the record, the sty us and the cartridge or could cause a malfunction.
- The voltage supplied to the unit should match the voltage as printed on the rear panel, if you are in any doubt regarding this matter, consult an electric an.
Maintenance
If the surface of the unit gets dirty, wipe it with a soft cloth or use diluted millo liquid soap. Allow the surface of the unit to dry completely before using.
- Do not use chemical cleaning cloths, thinner or similar substances as they could damage the surface of the unit.
CAUTION
For safety, disconnect the power cord from the socket before cleaning.
Using the TEAC International Site
You can download updates for this unit from the UAC International Site:
Click Language at the top right of the page and select the desired country or region to access a page in the corresponding language.
Handling records
Holding records
When holding a record or removing it from its sleeve, avoid touching the grooves by holding the record by its label and edge with one hand or by holding it by its edge with both hands.
Cleaning
●Hingerprints and dust on a record can cause noise and the sound to step, as well as damage the record itself and the stylus. Use a commercially available record cleaner to clean records. Do not use thinner or anything other than a record cleaner. Such chemicals could harm the surface of the record. ●When using a record cleaner, was the surface of the record in a circular motion, following the grooves.
Precautions for use
- Do not leave records in places that are exposed to direct sunlight or are very hot or very humid. Leaving a record in such a condition for a long time could result in warping, mole growth or other damages.
- Do not stack multiple records or place heavy objects on top of them. Do not leave records at an angle for long amounts of time, either. Doing so could result in warping or other damage.
- Do not allow hard objects to directly touch the audio grooves. Doing so could cause scratches.
- After you find an playing a record, always put it back into its sleeve for storage - leaving a record unprotected could result in warping or scratching.
●Do not use cracked records.
Preparing the record player
Keep the unit in standby while setting it up (E on page 13).
1 Cushions are attached to the tonearm for use during transportation. Remove them in the directions of the arrows.
Place it on a flat surface so that the record can be accurately traced.
3 Install the platter.
Align the platter with the center shaft and install it. - Place the large side of the hole down.
Place the induced felt met on the platter before use.
5 Install the counterweight.
Place the counterweight over the end of the tonsarm, and press it gently as you turn it right to attach it
- When the counterweight can be moved toward the bearing, installation is complete.
Insert the headshell on the end of the longarm and turn the nut to secure it in place.
Balancing the tonearm and adjusting the tracking force
2 Move the tonearm clasp to the right to release the tonearm.
3 Raise the tonearm lifter lever and shift the tonearm to the left slightly.
4 Lower the tonearm lifter lever.
5 Turn the counterweight and adjust so that the tonearm is level.
- Remove the protective cap from the cartridge stylus before adjusting.
●He careful not to let the cartridge stylus touch the unit.
6 Return the tonearm to its original position, and use the clasp to lock it.
7 Turn the tracking force adjustment ring so that the center line aligns with 0 on the scale.
- Only turn the ring. Be careful not to let the counterweight turn.
8 Turn the counterweight so that the tracking force adjustment ring scale matches the tracking force specified for the cartridge.
- The tracking force of the included cartridge is 2.3 g. So, turn it to 2.3 on the counterweight scale when using the included cartridge.
9 Adjust the anti-skating dial.
Start with it set at 2.3 and adjust it during record playback (page 14) to the position where the left and right volumes are balanced
ATTENTION
Depending on the condition of a record, the left-right volume balance could become uneven and skipping could occur.
In such cases, try making the following adjustments.
If the sound jumps backward (stylus skips backward) Slightly lower the anti-skating dial setting.
If the sound jumps forward (stylus skips forward) Slightly increase the and skating diet setting.

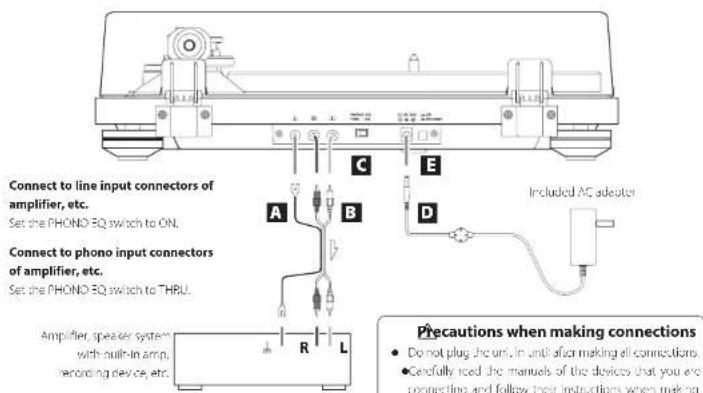

Connections
Use the grounding wire of the included RCA audio cable to connect this connector to the grounding terminal of the amplifier, for example.
●This is NOT an electrical safety ground.
If noise from speakers is conspicuous
It connecting the grounding wire of the audio cable to the grounding terminal of this unit does not reduce noise, disconnect the grounding wire and check the sound again. Use the method (connected/discernacted) that has the least noise.
B Analog audio output connectors (L/R)
These output analog audio signals. The PHONO EQ switch setting changes the type of output signal.
Use the included audio cable (or commercially-available ones) to connect other equipment to the output connectors of this unit.
C PHONO EQ (audio output setting) switch
ON
Signals that have been amplified by the built-in socializer amp arc output from the analog audio output connectors (1A).
THRU
The NC or MM cartridge signal is output directly through the analog audio output connectors (L/R).
Connect to a device with phone inputs, such as a phone equalization preamp-fer or an amplifier with phone input connectors.
- When shipped new from the factory, this is set to ON.
CAUTION
When set to ON, if connected to the PLONO inputs of an amplifier, for example, the output from speakers and headphones will be very loud, which could damage equipment or harm hearing.
D DC input connector
After completing all other connections, concert the included AC adapter to this connector.
Confirm that the power plug of the AC adapter is plugged into a power outlet.
- Do not use any AC adapter other than the one included.
- The included AC adapter has plugs that can be changed. Attach the plug that suits the region where it is being used.
He sure to connect the power cord to an AC outlet that supplies the correct voltage. Connection to an outlet that supplies incorrect voltage could cause fire or electric shock.
Hold the power plug when plugging it into an outlet or unplugging it. Never pull or yank on the power cord.
Unplug the power cord from the outlet when you are not planning to use the unit for an extended period of time.
E STANDBY/ON button
Press the STANDBY/ON button to join the unit on or put it in standby.
Dust cover
Attaching the dust cover
2 Align the tops of the hinges with the dust cover hinge holders and insert them.
- Close the dust cover during playback. Since doing this prevents skipping caused by unintended contact and blocks external sound pressure, it makes noise less likely to occur.
- Do not open or close it when a record is playing. Doing so could, for example, cause the stylus to skip.
- Keep it closed whenever possible to keep dust out.
Removing the dust cover
I hold both edges of the dust cover and lift, it slowly to remove it along with the hinges from the unit. Then, remove the hinges from the dust cover.
Opening and closing the dust cover
Opening
Halo the front edge of the dust cover and gently lift it open completely until it stops.
The dust cover will stay open in this post on.
Closing
Gently lower the dust cover until it is closed.
careful not to pinch your fingers, for example, when opening and closing the dust cover.
Names and functions of parts
Platter
Place records centered on the player.
Counterweight
Tracking force adjustment ring
Anti-skating dial
Tonearm lifter lever
Use to raise and lower the forearm.
We recommend using the concern lifter lever to avoid damaging records and styluses, because it is safer and more certain than using a finger to do so.
Tonearm holder
This is a rest for the tonsarm. Move the clasp to the right to release the tonsarm before playing a record.
Tonearm
Rotation speed setting knob
Select the rotation space indicated on the record to be played. Rotation will stop when this is set to 0.
Headshell
This is a universal type that allows the cartridge to be changed easily.
Basic operation
Playing records
- Remove the protective zoo from the cartridge styus before using the turnable:
Press the STANDBY/ON button on the back of the unit to turn it on.
Open the dust cover slowly.
Be careful not to pinch your hand, for example, when opening and closing the dust cover.
Place a record on the platter.
When playing a 45 RPM large-hole single record, use the included adapter.
4 Select the rotation speed indicated on the record.
The rotation speed can be set to 33°/3 or 45 RPM.
5 Move the tonearm clasp to the right to release the tonearm.
6 Raise the tonearm lifter lever.
This raises the tonearm later, keeping the tonearm up, so the stylus will not contact the record even if the tonearm is moved over it.
- You can also manually move the tonearm to above the record without raising the tonearm lifter over and then slowly lower the tonearm to start playback.
7 Move the tonearm to the track where you want to start playback.
8 Lower the tonearm lifter lever.
The tonearm lowers slowly until the stylus touches the record and playback begins.
- Close the dust cover during playback. Since doing this prevents skipping caused by unintended contact and blocks external sound pressure, it makes noise less likely to occur.
Do not place anything on the dust cover.
ATTENTION
- During playback, do not touch the concern or the record. Doing so could damage the stylus tip and cause scratches on the record.
- Do not forcibly stop patter rotation during playback. Since this product is not a turntable designed for DJs (direct drive), doing something like this could cause malfunction.
During record playback, feedback could occur if the volume is too loud. If this happens, over the volume of the amplifier.
When playback finishes
1 Raise the tonearm lifter lever to separate the stylus from the record, and return the tonearm to its original position.
Notes about record styluses
- If the stylus becomes bent (damaged), it will no longer be able to accurately trace the groove. Since a bent stylus could also damage records and cause malfunction, handle styluses carefully.
●Always use a commercially available stylus cleaner to clear a stylus. Use of anything other than a stylus cleaner could damage the stylus.
Replacing the stylus
If the tip of the stylus becomes worn, not or y will it worsen the sound quality. It could also damage records. After about 300 hours of playback time, replace the stylus with one that we specify.
Please use a Sumiko Oyster replacement style.
- Follow the replacement instructions in the manual of the replacement style.
ATTENTION
- Since loud noises could suddenly occur, put the unit into standby before changing the stylus.
- Be careful, not to hurt your hand or the equipment.
- Be careful not to allow small children to accidentally swallow styluses.
- Be aware that bent styluses, for example, that result from insu Ticient customer caution or an outside cause are not covered by the warranty.
Changing the cartridge
to change the cartridge, first remove the headshell from the tonearm.
●A Sumiko Cyster MM type cartridge is installed in the unit.
- When using an Oyster, a ways remove the cartridge stylus before detaching the cartridge itself from the head shell and before attaching the cartridge to the head shell.
Pull the stylus knob down at a slight angle from the front of the cartridge to remove the cartridge stylus. Be careful not to touch the cantilever or stylus itself ^4 .
2 Loosen the screws and remove the cartridge.
3 Attach the new cartridge and tighten the screws.
See the Illustration below for the position of the screws when attached.
● The signals and colors of the shell leads are shown below.
| Signal Color | |
| Left channel + White | |
| Left channel - Blue | |
| Right channel + Red | |
| Right channel - Green |
5 Balance the tonearm and adjust the tracking force.
Follow the procedures in "Balancing the forearm and adjusting the tracking force" on page 12.
Precautions when changing the cartridge
The weight of cartridges that can be used with this unit is limited. See "Toncarin" on page 17. Also check the acceptable cartridge weight (with the included head shell) shown on the same page when charging the head shell.
Using MC cartridges
The equalizer amplifier built into this unit is for MM cartridges. It does not support MC cartridges.
To use an MC cartridge, connect this unit to a chemo equalizer amplifier that supports MC cartridges or an amplifier with an MC chemo input connector, for example. Then, set this unit's PHONO FQ (audio output) setting switch to IHRU.
Troubleshooting
you experience a problem with this unit, please check the following items before requesting service. Something other than this unit could also be the cause of the problem. Please also check that the connected devices are also being used properly. It still does not operate correctly, contact, or retailer where you purchased the unit.
No power.
→ Confirm that the AC adapter is plugged into an outlet. Then press the STANDOYON button to turn the unit, on (pages 13 and 14).
The platter will not rotate.
→Press the STANDBY/ON button to turn the unit on (pages 13 and 14).
Adjust the rotation speed setting knco to the rotation speed indicated on the record (page 14).
The platter rotation speed is not right.
→Confirm that the rotation speed scaling knob is set to 33 and then it rotates about 100 times in 3 minutes.
The tonearm does not go down even when the tonearm lifter lever is lowered.
→Balance the tonearm and readjust the tracking force (page 12).
Sound is odd or breaks up.
→Check the connectors connected to the amplifier, and set the PHONO FQ (audio output) setting switch (page 13).
The pitch is wrong.
→Select the rotation speed indicated on the record (page 14).
There is no sound.
When connecting this unit's energy audio output connectors to the audio input connectors of an amplifier or other equipment, set the PIONO EQ (audio output setting) switch to ON (page 13).
Playback is not possible; there is noise.
Remove the protective cap from the cartridge style as before using the sumtable.
→Reconnect RCA audio cables.
→Fingerprints and dust on a record can cause noise and the sound to skip. Use a commercially-available record cleaner to clean records (page 11).
→Clean the stylus (page 15)
If the stylus is worn-out, replace it (page 15). The need for stylus replacement depends on use conditions, but we recommend replacement after about 300 hours of use.
→ Place the unit as far away as possible from IVs, microwave evors and other devices that emit cleuromagnetic waves.
→Plug JRC AC adapter into a different outlet.
Noise occurs when a record is playing.
→ Noise could occur if the tracking force is higher than cartridge's specified value. Readjust the tracking force so that it is the specified value (page 12).
The sound is skipping.
→ vibrations will cause skipping. Place this unit in a stable location.
→Clean the record.
→Do not use scratched records.
→Balance the tonearm and readjust the tracking force (page 12). The stylus and sound might skip if the tracking force is lower than the cartridge's specified value.
→If the stylus's bent, replace it.
Specifications
Platter
| Drive system | Direct drive |
| Motor | DC motor |
| Rotation speed | 33 1/3 rpm, 45 rpm |
| Wave and flutter | 0.1% or less (typ.) |
| 5% ratio | 5/18 or higher (A-weighted, 20kl z LPI) |
| Platter | Aluminum die-cast |
| 30cm (12" diameter |
Tonearm
| Tonearm type | 3.5 c balanced S-shaped tonearm |
| Effective tonearm length | 223 mm |
| Tracking force variation range | 0-5 g |
| Acceptable cartridge weight | 7.0-13 g |
| 14-18 g | |
| (with the included headshell) |
Cartridge
| Type | MM |
| Output voltage | 4.0 mV (1 kHz) |
| Tracking force | 1.5-2.5 g (2.3 g recommended) |
| Cartridge weight | 5.3 g |
| Included head-shell weight | |
10 g (including screws, nuts and wires)
●The need for stylus replacement depends on use conditions.
but we recommend replacement after about 300 hours of
USE.
●Replacement stylus mode: Sumko Cyster replacement stylus
Output voltage
| PIONO LO THRU | 40 mV (1 kHz) |
| PIONO LO ON | 224 mV (-1 dB) |
| Output connectors | KΩ |
General
| AC adapter power | |
| Input | AC 100 V AC 240 V, 50/60 Hz |
| Output | DC 24 V, 1500 mA |
| Power consumption | |
| Standby | 0.5 W or less |
| On (3, 4) | 2.0 W or less |
| Weight | 6.1 kg (13 1/2 lb) |
| Operating temperature range | 5°C to 35°C |
| Dimensions (W × H × D) including protrusions) | |
| When the dust cover is closed | |
| 20 × 117 × 356 mm ( 16.5/8" × 4.5/8" × 14.1/8" ) | |
| When the dust cover is open | |
| 420 × 381 × 402 mm ( 16.5/8" × 15" × 15.7/8" ) | |
| When the dust cover is removed | |
| 20 × 102 × 356 mm ( 16.5/8" × 4.1/8" × 14.1/8" ) | |
●Performance data is specified at 20°C
Included items
| Felt max × 1 |
| 43 RPM adaptor × 1 |
| Countercwight × 1 |
| Ileadshell × 1 |
| Sumiko M/M type stereo cartridge (Oyster) pre-rolled |
| Platter × 1 |
| Dust cover × 1 |
| Dust cover hinges × 2 |
| RCA audio cable with grounding terminal × 1 |
| AC adaptor (GP036W 240150) × 1 |
| Owner's manual (the document, including warranty) × 1 |
| ●The warranty for the United States and Canada is on the back cover. See page 66 for warranty provisions. See page 67 for information about the warranty in Europe and other countries or areas. |
- Specifications and appearance are subject to change without notice
●Weight and dimensions are approximate.
- Illustrations in this owner's manual might differ slightly from production models.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTATION : POUR HÉDOURE LE RÉSQUE D'ÉLECTROCCIÓN, NE RETIREZ PAS LE CAPOT IOU L'ARRIERE, AUCUNE PIÈCE INTERNE N'EST REPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE REPARATION À UN SERVICE APRES VENTE QUALIFIÉ.
Avantification....19
5 Installez le contrepoids.
Technical line drawing of a mechanical or electronic component with mounting flanges and a central control panel (no text or symbols)natural_image
Technical line drawing of a mechanical component with no visible text or symbols52.8±0.5mm
Entire CA 100V CA 240 V,50/60
Sorfc CC 24 V, 1500 mA
Dimensions (L × H × P) (saillies incluses)
Tape United principal Beta wafertext_image
52.8 ± 0.5 mmtext_image
Technical diagram showing a mechanical component with an arrow indicating rotation or adjustment, alongside its schematic view.Plartenfeller. Aluminium-Druckguss
30 cm Durchmesser
Tonarm
(inclusive systemträger)
Tonabnehmersystem
[YP....MNI]
PHCNO FQ THRU....10 mV (1 kHz)
PHONO EQ ON....224 mV (-13 dBV)
Anschlüsse....Circh
Allgemein
Copperchlo anticolored Unite primitive CemleraPHO-FO-ON....224 mV (-13 dB/s)
Specifications....57
Vóór gebruik
Technical diagram showing a mechanical component with an arrow indicating rotation or adjustment, alongside its cross-sectional view.text_image
52.8 ± 0.5 mmtext_image
Dynat for Transport Dynat for Transportnatural_image
Technical diagram showing a mechanical device with a dial indicator and its cross-sectional view (no text or labels)text_image
Technical diagram showing a mechanical component with an arrow indicating rotation or adjustment, alongside its cross-sectional view.text_image
52.8 ± 0.5 mm4 Anslut skalkopplingens styrterminal till patronen.
Warranty provisions (United States and Canada only)
Length of Warranty
The parts and labor warranty will be effective for one (1) year from the date of the original purchase for products not used for commercial purposes. For products used commercially, the warranty is ninety (90) days for magnetic heads and optic pickups, one (1) year for all other parts and ninety (90) days for labor.
Who Is Covered Under This Warranty
This warranty is valid only in the United States or Canada, dependents upon the country in which original purchase was made, and enforceable only by the origin purchaser within the country in which the purchase was made.
This warranty is not valid if the product was purchased through an unauthorized dealer.
What Is Not Covered Under This Warranty
●Damage to or deterioration of the external cabinet.
- Damage resulting from accident, misuse, abuse, or neglect - Damage resulting from failure to follow instructions contained in the products owners' manual or otherwise provided with the product.
●Damage occurring during shipment of the product (Claims must be present to the carrier).
●Damage resulting from the repair or attempted repair by anyone other than TEAC or an authorized TEAC service station.
- Damage resulting from modification or attempted modification of product not authorized by TEAC.
●Damage resulting from causes other than product defects, including lack of technical skills, competence, or experience of the user;
●Damage to any unit that has been altered or which the serial number has been defaced, modified or removed.
What TEAC Will Pay For
ILAC will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is covered in the next section.
How To Obtain Warranty Service
Your unit must be serviced by an authorized TEAC service station within the country in which the product was purchased. If you are unable to locate an authorized service station in your area, please contact TEAC at the applicable address shown at the end of this warranty statement. PLEASE DO NOT RETURN YOUR UNIT TO TEAC WITHOUT OUR PRIOR AUTHORIZATION. You must pay shipping charges if it is necessary to ship a product for service. However, if the necessary repairs are covered by warranty, we will pay the return shipping charges to any destination within the country in which the product was purchased. Whenever warranty service is required, you must present the original dated series receipt or other proof indicating the purchase place and date, as proof of warranty coverage.
LIMITATION OF IMPLIED WARRANTIES
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARL LIMITED DURATION TO THE LING TO THIS WARRANTY.
EXCLUSION OF DAMAGES
TEACS LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO RELPAIR OF PLACLMINI OF ITIL PRODUCTION AT ILACS OR ION TEAC SHALL NOT BE LIABLE FOR DAMAGE BASED UPON INCOMILINANCE, LOSS OF USE OF ITIL PRODUCT, INTERRUPID OPERATION, COMMERCIAL LOSS OR LOST PROFITS, OR ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHERWISE.
SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSQUINIAL DAMAGES, SO THE ARCHITIMILITIES AND EXCLUSION'S MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND MAY VARY FROM SOME OF THE RIGHTS PROVIDED BY LAW. THESE RIGHTS MAY VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.
In countries/regions other than the USA, Canada, Europe and Japan
This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province. If you have a warranty claim or request, please contact the dealer where you bought the product.
This product has a serial number located on the rear panel. Please write it here and retain this for your records.
Model name: TN-4D-SE Serial number
0821 MA-3350A
