Product type	LED Christmas Village
Brand	Livarno Lux
Model / IAN	379254_2101
Variants	379254-21-A (Child with snow globe), -B (Ice skaters), -C (Santa Claus with gifts), -D (House with tree)
Power supply	3 alkaline LR6/AA batteries (1.5 V), included
Operating voltage	4.5 V DC
Total power	0.4 W (models A, D) / 0.29 W (models B, C)
LED type	4 or 5 long-life LEDs, colored light, non-replaceable
Functions	LED lighting, movement, 8 Christmas melodies, 6h/18h timer
Timer	24-hour cycle: 6 hours of operation, 18 hours automatic shutdown
Switch	3 positions: OFF, ON1 (light + movement + timer), ON2 (light + movement + music)
Protection type	IP20 (dry indoor only)
Protection class	III (safety extra-low voltage)
Use	Indoor, decoration only (not for room lighting)
Maintenance	Cleaning with a feather duster, do not use chemical cleaners, do not immerse
Safety	Do not use near liquids, do not cover, do not modify, keep out of reach of children under 14 years
Batteries	Alkaline LR6/AA, do not recharge, observe polarity, remove if not used for extended periods
Replaceable LEDs	No, if defective, the product must be discarded
Warranty	3 years from date of purchase (subject to conditions)
Delivery contents	1 Christmas village, 3 alkaline batteries, instruction manual

Frequently Asked Questions - IAN 379254 Livarno Lux

How to replace the batteries?

Turn off the product, open the battery compartment cover by pressing the arrow and sliding downward. Remove the used batteries and insert 3 new alkaline LR6/AA batteries respecting polarity. Close the cover.

How to activate the timer?

Set the switch to the ON1 position. The product turns on with lighting and movement, then automatically turns off after 6 hours and turns on again after 18 hours.

Why does the music not work?

Music is only active in ON2 mode. Check that the switch is on ON2. Make sure the speaker under the product is not blocked.

Can I select a specific melody?

No, the 8 Christmas melodies play in a continuous loop and cannot be individually selected.

What to do if the LEDs are dim or the music quieter?

This indicates that the batteries are almost depleted. Replace the 3 alkaline LR6/AA batteries with new ones.

Can the product be used outdoors?

No, the product is designed only for dry indoor use (IP20). Do not expose it to moisture or rain.

How to clean the Christmas village?

Remove the batteries before cleaning. Use a feather duster or gently blow to remove dust. Do not use cleaning products and do not immerse in water.

What to do if a moving part is stuck?

Before operation, remove any objects that could obstruct movement. If the blockage persists, turn off the product and remove the batteries, then carefully clear the obstacle.

Are the LEDs replaceable?

No, the LEDs are integrated and cannot be replaced. If an LED is defective, the product must be disposed of according to environmental regulations.

How to dispose of the product at end of life?

The product must not be disposed of with household waste. Take it to a collection point for electronic waste. Used batteries must be removed and recycled separately.

USER MANUAL IAN 379254 Livarno Lux

ANIMATED CHRISTMAS SCENE

WITH LEDS & MUSIC

VILLAGE DE NOËL À LED

ANIMATED CHRISTMAS SCENE

WITH LEDS & MUSIC

INSTRUCTION MANUAL

FR BE

VILLAGE DE NOËL À LED

MODE D'EMPLOI

①

Netge

LED-KERSTDORP

GEBRUIKSAANWUZING

PL

WIOSKA BOŻONARODZENIOWA

Z OSWIETLENIEM LED

2 OSWIELENIEM LED INSTRUKCIA OBSLIGI

INSTRUKELA OBSOLED

CZ

VÁNOČNÍ LED VESNIČKA

NÁVOD K POUŽITÍ

6M

SK

LED VIANOCNA DEDINKA

NÁVOD NA OBSLUHU

ES

(2)

PUEBLO NAVIDENO CON

LEDES

INSTRUCCIONES DE USO

DK

LED WIFE LANDS BY

LED JULELANDSBY

BEIJENINGSVEJLEDNING

8

IAN 379254_2101IAN 379254_2101

DEATCH

Before reading, please avoid the illustration page and locate yourself with all device functions. The illustration numbers appear in the corresponding position within the fact

FR DE

GB/IE Animated Christmas Scene with LEDs & Music

Instruction manual 12

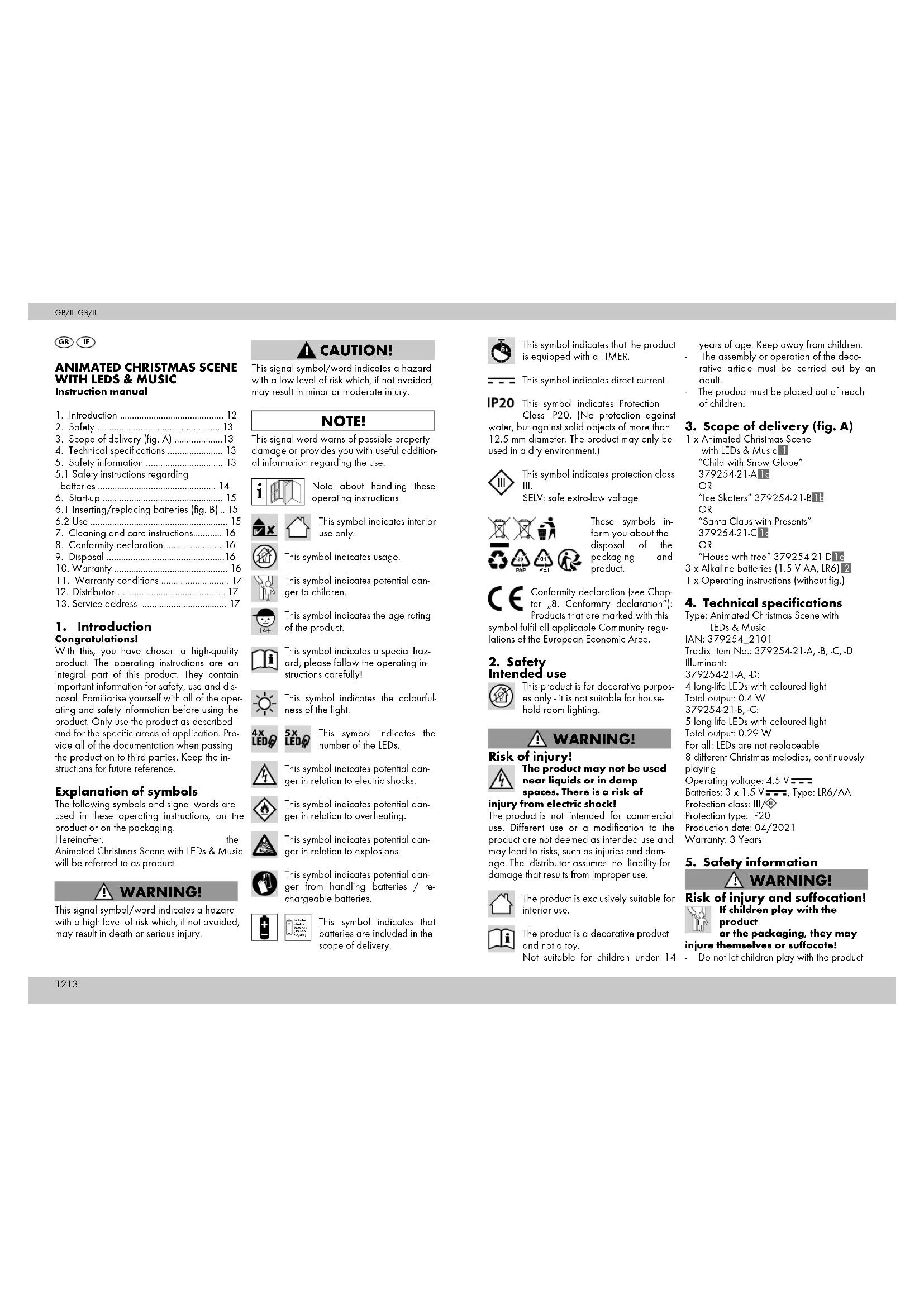

ANIMATED CHRISTMAS SCENE WITH LEDS & MUSIC

Instruction manual

1. Introduction 12
2. Safety 13
3. Scope of delivery (fig. A) 13
4. Technical specifications 13
5. Safety information 13
   5.1 Safety instructions regarding

batteries 14
6. Start-up 15
6.1 Inserting/replacing batteries (fig. B) .. 15
6.2 Use 15
7. Cleaning and care instructions..... 16
8. Conformity declaration.... 16
9. Disposal 16
10. Warranty 16
11. Warranty conditions 17
12. Distributor.... 17
13. Service address 17

1. Introduction

Congratulations!

With this, you have chosen a high-quality product. The operating instructions are an integral part of this product. They contain important information for safety, use and disposal. Familiarise yourself with all of the operating and safety information before using the product. Only use the product as described and for the specific areas of application. Provide all of the documentation when passing the product on to third parties. Keep the instructions for future reference.

Explanation of symbols

The following symbols and signal words are used in these operating instructions, on the product or on the packaging.

Hereinafter,

the

Animated Christmas Scene with LEDs & Music will be referred to as product.

WARNING!

This signal symbol/word indicates a hazard with a high level of risk which, if not avoided, may result in death or serious injury.

CAUTION!

This signal symbol/word indicates a hazard with a low level of risk which, if not avoided, may result in minor or moderate injury.

NOTE!

This signal word warns of possible property damage or provides you with useful additional information regarding the use.

Note about handling these operating instructions

This symbol indicates interior use only.

This symbol indicates usage.

This symbol indicates potential danger to children.

This symbol indicates the age rating of the product.

This symbol indicates a special hazard, please follow the operating instructions carefully!

This symbol indicates the colourfulness of the light.

5x LED This symbol indicates the number of the LEDs.

This symbol indicates potential danger in relation to electric shocks.

This symbol indicates potential danger in relation to overheating.

This symbol indicates potential danger in relation to explosions.

This symbol indicates potential danger from handling batteries / rechargeable batteries.

This symbol indicates that batteries are included in the scope of delivery.

This symbol indicates that the product is equipped with a TIMER.

This symbol indicates direct current.

IP20

This symbol indicates Protection

Class IP20. (No protection against water, but against solid objects of more than 12.5 mm diameter. The product may only be used in a dry environment.)

This symbol indicates protection class III.

SELV: safe extra-low voltage

These symbols inform you about the disposal of the packaging and product.

Conformity declaration (see Chapter "8. Conformity declaration"): Products that are marked with this

symbol fulfil all applicable Community regulations of the European Economic Area.

2. Safety

Intended use

This product is for decorative purposes only - it is not suitable for household room lighting.

! WARNING!

Risk of injury!

The product may not be used near liquids or in damp spaces. There is a risk of

injury from electric shock!

The product is not intended for commercial use. Different use or a modification to the product are not deemed as intended use and may lead to risks, such as injuries and damage. The distributor assumes no liability for damage that results from improper use.

The product is exclusively suitable for interior use.

The product is a decorative product and not a toy.

Not suitable for children under 14

years of age. Keep away from children.

• The assembly or operation of the decorative article must be carried out by an adult.
• The product must be placed out of reach of children.

3. Scope of delivery (fig. A)

1 x Animated Christmas Scene

with LEDs & Music 1

"Child with Snow Globe"

379254-21-A

OR

"Ice Skaters" 379254-21-B

OR

"Santa Claus with Presents"

379254-21-C

OR

"House with tree" 379254-21-D

3 x Alkaline batteries (1.5 V AA, LR6) 2
1 x Operating instructions (without fig.)

4. Technical specifications

Type: Animated Christmas Scene with

LEDs & Music

IAN: 379254_2101

Tradix Item No.: 379254-21-A,-B,-C,-D

Illuminant:

379254-21-A,-D:

4 long-life LEDs with coloured light

Total output: 0.4 W

379254-21-B,-C:

5 long-life LEDs with coloured light

Total output: 0.29 W

For all: LEDs are not replaceable

8 different Christmas melodies, continuously

playing

Operating voltage: 4.5 V

Batteries: 3 x 1.5 V=---, Type: LR6/AA

Protection class: III/

Protection type: IP20

Production date: 04/2021

Warranty: 3 Years

5. Safety information

! WARNING!

Risk of injury and suffocation!

If children play with the

product

or the packaging, they may injure themselves or suffocate!

Do not let children play with the product

or the packaging.

• Supervise children who are close to the product.
• Keep the product and the packaging out of reach of children.

! WARNING!

Risk of injury!

Not suitable for children under the age of 14! There is a risk of injury!

- Children from the age of 14, as well as people with impaired physical, sensory or mental capabilities or a lack of experience and knowledge, be supervised when using the prod-and/or be instructed regarding the use of the product and understand resulting dangers.

- Maintenance and/or cleaning of the product is not allowed to be performed by children.

Observe national regulations!

- Observe the applicable national requirements and regulations for the use and disposal of the product.

! WARNING!

Risk of injury!

Do not use in an explosive environment! There is a risk of injury!

- The product is not allowed to be used in an explosive (Ex) environment. The product is not approved for an environment, in which flammable liquids, gases or dust are present.

! WARNING!

Risk of injury!

A defective product is not allowed to be used! There is a risk of injury!

- Do not use the product in the case of malfunctions, damage or defects. If you determine a defect on the product, remove the batteries from the device and have the product inspected and repaired, if necessary, before putting it into operation again. - The LEDs are not replaceable. If the LEDs

are defective, the product must be disposed of.

- Significant danger can occur for the user in the case of improper repairs.

! WARNING!

Risk of injury!

The product is not allowed to be manipulated! There is a risk of injury from electric

shock!

• The casing must not be opened and the product must not be manipulated/modified under any circumstances. Manipulations/modifications can cause danger to life from electric shock. Manipulations/modifications are prohibited for approval reasons (CE).
• The product must not be covered up during use.

5.1 Safety instructions regarding batteries

! WARNING!

Fatal danger!

Batteries must not be swallowed! There is a risk of fatal injuries!

• Batteries may be fatal if swallowed, so this article and its batteries must be stored out of the reach of small children.
• Swallowing can lead to chemical burns, soft tissue perforations and death. Serious internal chemical burns can already occur within 2 hours of ingestion.
• If a battery has been swallowed, please consult a doctor without delay!
• Keep the batteries out of the reach of children.

! WARNING!

Fire and explosion hazard!

- Never recharge non-rechargeable batteries, do not short-circuit and/or open them. This may result in overheating, risk of fire or bursting. - Keep the product away from heat sources and direct sunlight, the bat-

teries may explode if overheated. There is a risk of injury.

! WARNING!

Risk of injury!

Do not touch leaked batteries with bare hands! There is a risk of injury!

• Leaked or damaged batteries may cause chemical burns if they come into contact with skin. Do not touch leaked batteries with bare hands; therefore ensure that you wear appropriate protective gloves in this case!
• Only use type LR6/AA batteries from the same manufacturer.
• Insert the batteries into the designated battery compartment with the correct polarity.
• Do not use combinations of old and new batteries or rechargeable batteries.
• Store batteries in a dry and cool, not damp, place.
• Never throw batteries into fire.
• Do not short-circuit batteries.
• Disposable batteries also lose part of their energy during storage.
• Remove the batteries if the device is not in use.
• Discharged batteries must be immediately removed in order to avoid battery leakage and thus damage to the device.
• Empty batteries or used rechargeable batters must be disposed of properly.
• Store disposable batteries separately from discharged batteries, in order to avoid mix-ups.

CAUTION!

Danger of overheating!

Remove packaging prior to use.

6. Start-up

1. Remove all packaging materials.
2. Check whether all parts are available and undamaged.
   If this is not the case, notify the specified service address.

6.1 Inserting/replacing batteries (fig. B)

Before using the unit for the first time OR when the LEDs become dim, the music quieter or the moving parts slower, the alkaline batteries (1.5 V AA, LR6) 2 must be inserted

OR replaced.

For this, proceed as follows:

1. Switch the product 1 off (see "6.2. Use").

2. Carefully unlock the battery cover 4 from the battery compartment 5 by pressing the arrow and sliding the battery cover 4 downwards.

3. Carefully flip open the battery compartment cover 4.

NOTE!

Be careful not to lose the battery compartment cover, as it has the nameplate on it. The nameplate is an important part of the product.

1. Remove any depleted batteries from the battery compartment 5.

2. Insert the 3 supplied alkaline batteries (1.5 V AA, LR6) 2 OR 3 new LR6/AA batteries into the battery compartment 5 with the correct polarity.

3. Afterwards, close the battery compartment 5.

The product 1 is now ready to use.

Setting up the product

Set up the product 1 in an appropriate place.

NOTE!

• The surface should be even, so that the product 1 cannot fall over. The place should have sufficient free space around the product 1.
• Place a protective blanket underneath the product 1. Sensitive surfaces could become scratched by the product 1.

6.2 Use

Switching on/off and activating moving parts, music and timer (fig. C)

You can switch the following modes with the switch 6 on the back of the product 1 :

ON1: Light + Motion + Timer

OFF: switched off

ON2: Light + Motion + Music

Timer function

The product 1 is equipped with a timer function. When the "ON1" mode is selected, the

timer function is turned on. If the timer function is switched on, the product 1 will switch off automatically after 6 hours. After another 18 hours, the product 1 will automatically switch back on. As long as the switch 6 is left in the "ON1" position, this daily rhythm will be repeated.

NOTE!

• The product 1 has 8 Christmas melodies. If the "ON2" mode is selected, these 8 Christmas melodies are played back one after the other in a continuous loop.
• No selection of Christmas melodies can be made.
• The loudspeaker 7 (fig. B) is located on the underside of the product 1. Therefore, do not place the product 1 on a surface that is too soft. The sound will otherwise be too muffled.

NOTE!

The timer function works without the music. This means that after 18 hours, the light and motion function the objects will be activated, but the music will not be started.

NOTE!

Risk of material damage

• Ensure that the moving parts 3 (fig. A) of the product 1 are not restricted or impeded in their range of movement. There is a risk of material damage.
• Remove any objects in the movement radii before start-up.

7. Cleaning and care instructions

CAUTION!

Risk of injury!

Before cleaning, you must remove the batteries from the battery compartment. There

is a risk of electric shock!

• clean only with a feather duster
• contaminants may be blown away
• do not use any strong detergents and/or chemicals
• do not immerse in water

- store in a cool, dry place and protected from UV light

8. Conformity declaration

CE This device complies with the fundamental requirements and other relevant regulations of the European Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The complete original conformity declaration is available from the importer.

9. Disposal

Disposal of the packaging

The packaging and operating instructions are made of 100 % environmentally friendly materials, which you may dis-

pose of at local recycling centres.

Disposal of the product

The product may not be disposed of with normal household waste. Please find out about disposal options for the product from your local authority or town administration.

Disposal of the battery / rechargea-

ble batterie

• Defective or used rechargeable batteries have to be recycled in accordance with Directive 2006/66/EC and its amendments.
• Batteries and disposable batteries are not permitted to be disposed of with household waste. They contain harmful heavy metals. Marking: Pb (= lead), Hg (= mercury), Cd (= cadmium). You are legally obligated to return used batteries and rechargeable batteries. After use, you can either return batteries to our point of sale or in the direct vicinity (e.g. with a retailer or in municipal collection centres) free of charge. Batteries and rechargeable batteries are marked with a crossed-out waste bin.

10. Warranty

Warranty from TRÄDIX GmbH & Co. KG Dear customer, the warranty on this product is 3 years from the purchase date. In the event of defects in this product, you are entitled to exercise your statutory rights against the seller of the product. These statutory rights are not limited by our warranty described in the following.

11. Warranty conditions

The warranty begins on the date of purchase. Please keep the original receipt. This document is required as verification of the purchase.

If a material or manufacturing defect arises within three years from the purchase date of this product, the product will be repaired or replaced, as per our choice, at no charge to you. This warranty service requires the submission of the purchase receipt and the defective product within the three-year period and a short written description of the defect and when it arose.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. The warranty period does not restart with the repair or replacement of the product.

Guarantee period and statutory claims for defects

The guarantee period will not be extended by the warranty. This also applies to replaced and repaired parts. Damage and defects which may possibly already exist upon purchase must be reported immediately after unpacking. After the guarantee period has expired, required repairs shall be subject to a charge.

Scope of guarantee

The device has been carefully produced under strict quality guidelines and conscientiously inspected prior to delivery. The guarantee service applies to material or manufacturing faults. This guarantee does not extend to product parts, which are exposed to normal wear and tear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, battery packs or which are made of glass.

This guarantee shall lapse, if the product is damages, not used properly or maintained properly. For proper use of the product, all of the instructions in the operating instructions must be precisely complied with. Purposes and actions, which are dissuaded from or warned about in the operating instructions must be avoided.

The product is only intended for private and not commercial use. In the case of abusive and improper handling, use of force and with interventions, which are not performed by our authorised service branch, the guarantee shall lapse.

Processing in the case of a guarantee claim.

To ensure quick processing of your concern, please follow the instructions below:

- Please have the till receipt and article number available (e.g. IAN 379254_2101) as proof of the purchase.

- You can find the article number on the rating plate on the product, as an engraving on the product, the title place of your instructions (bottom left) or the sticker on the back or underside of the product.

- If malfunctions or other defects occur, first contact the service department below by telephone or e-mail.

- You can then send a product that has been recorded as being defective, including the proof of purchase (till receipt) and stating what the defect is and when it occurred, postage-free to the service address provided to you.

On www.lidl-service.com, you can download these an many other manuals, product videos and installation software.

With this QR code, you can directly reach the Lidl Service website (www.lidl-service.com) and can open your operating instructions be entering the article number (IAN) 379254_2101.

12. Distributor

Tradix-nr: 379254-21-A,-B,-C,-D

Lyskilde:

379254-21-A,-D:

4 langvarige LEDer med farverigt lys

Samlet effekt: 0,4 W

379254-21-B,-C:

5 langvarige LEDer med farverigt lys

Samlet effekt: 0,29 W
