USER MANUAL HS 12.0 B2 SILVERCREST
HAND-HELD CAR VACUUM CLEANER /
AUTO-HANDSTAUBSAUGER/
ASPIRATEUR À MAIN POUR VOITURE HS 12.0 B2
GB IE
HAND-HELD CAR VACUUM CLEANER
Operating instructions
FR BE
ASPIRATEUR À MAIN POUR VOITURE
Mode d'emploi
CZ
RUCNI VYSAVAC DO AUTA
Návod k obslúze
SK
RUCNY VYSAVAC DO AUTA
Návod na obsluhu
DK
HÄNDSTØVSUGERT TIL BILEN
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
Fitting and removing attachments 4
Switching On/Off 4
Servicing and cleaning 4
Disposal 5

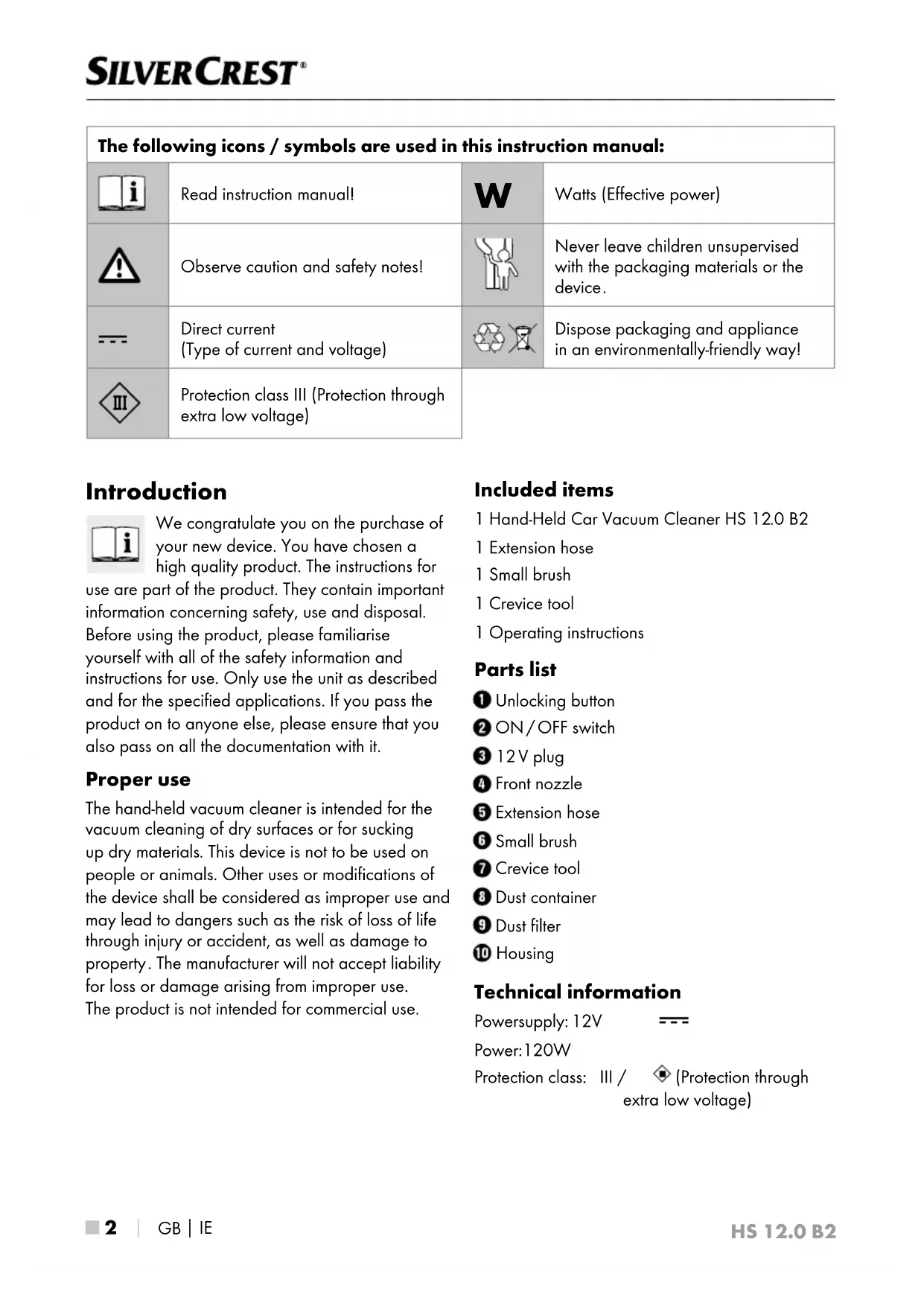

| The following icons / symbols are used in this instruction manual: | |||
| i | Read instruction manual! | W | Watts (Effective power) |
| ! | Observe caution and safety notes! | Never leave children unsupervised with the packaging materials or the device. | |
| - | Direct current (Type of current and voltage) | Dispose packaging and appliance in an environmentally-friendly way! | |
| III | Protection class III (Protection through extra low voltage) | ||
Introduction
We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for
use are part of the product. They contain important information concerning safety, use and disposal.
Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Proper use
The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on people or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use.
The product is not intended for commercial use.
Included items
1 Hand-Held Car Vacuum Cleaner HS 12.0 B2
1 Extension hose
1 Small brush
1 Crevice tool
1 Operating instructions
Parts list
Unlocking button
ON/OFF switch
3 12V plug
4 Front nozzle
Extension hose
6 Small brush
7 Crevice tool
Dust container
Dust filter
10 Housing
Technical information
Powersupply: 12V
Power:120W
Protection class:
III/
(Protection through
extra low voltage)
Safety
Safety advice
This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and instructions will help you to avoid risk to life, accidents and damage to property. Therefore you must read carefully through the following information concerning safety and proper use.
■RISK OF LOSS OF LIFE AND ACCIDENT TO
INFANTS AND CHILDREN!
Never leave children unsupervised with the packaging materials or the device. There is a risk of suffocation and loss of life from electric shock. Children often underestimate the dangers associated with electrical devices Always keep children away from the device.
This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks
Children should not be allowed to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.
- Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12 V socket. Keep the lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock.
Damage to the device, mains lead or plug presents a risk of loss of life from electric shock. Frequently check the condition of the device, mains lead and plug.
Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately.
WARNING!
- Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist
When not in use always ensure that electrical devices are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical devices are dangerous when they are used by inexperienced people.
The appliance should only be supplied with SELV (safety extra-low voltage) according to the labelling on the appliance.
If the connecting cable or plug of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
Operation
Before first use
Take all the parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmentally friendly manner.
Fully unwind the lead attached to the 12 V
NOTE
Always make sure that the dust filter is installed before you use the device.
Fitting and removing attachments
Extension hose 5:
Insert the smaller end of the extension hose snugly into the front nozzle 4
Insert the desired attachment, snugly into the extension hose
Small brush 6:
This accessory has hard bristles and is very suitable for initially loosening and then vacuuming up stubborn dirt, e.g. from the upholstery or footwell.
Insert the small brus snugly into the front nozzle
Crevice tool
Use this attachment to get into narrow, difficult-to-access places.
Insert the crevice too snugly into the front nozzle
Removing attachments:
Simply pull the attachment off the front nozzle or the extension hose
Switching On/Off
Insert the 12 V plug into the 12 V socket / cigarette lighter socket of the vehicle.
To switch the device on, press the ON/OFF switch 2 forwards into the I position.
To switch the device off, press the ON/OFF switch 2 back into the 0 position.
Pull the 12 V plug out of the 12 V socket after use.
NOTE
If you going to vacuum for a long period, we recommend that you carry out the cleaning with the engine running.
Servicing and cleaning
The device requires no maintenance.
CAUTION
Before you clean the device itself, pull the 12V plug out of the 12V socket, otherwise there is a risk of electric shock
Clean all the housing with a soft, dry cloth. Never use liquids or cleaning agents, as they may damage the device.
For the best possible performance, you should empty the dust container immediately after use and when the suction power drops.
Press the unlocking button 1 and take the dust container 8 out of the housing . 10
Take out the dust filter. You will be able to clean the dust filter better if you detach it from the end seal. To do this, hold the end seal firmly and twist the filter off carefully anticlockwise (bayonet fitting). Rinse out the dust filter thoroughly in cold water and allow both parts (filter and end seal) to dry completely. Attach the filter back on to the end seal.
Empty the dust contains completely.
Carefully replace the dust filter back into the dust container Never use the vacuum cleaner without the dust filter place.
Attach the dust contains carefully back on to the housing and ensure the two parts engage.
CAUTION
The front nozzle must be free and unobstructed at all times. Blockages can lead to overheating and damage to the motor.
Disposal
The packaging is composed of environmentally-friendly materials that can be disposed of at a local recycling centre.
Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics; 20-22: Paper and cardboard; 80-98: Composites.
Do not dispose of electrical devices with the household rubbish!
In accordance with European Directive 2012 / 19 / EU, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
The product is recyclable, subject to extended producer responsibility and is collected separately.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN) 378247_2110 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 378247_2110.
Service
GB
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE
Servicelreland
Tel.: 1800 101010
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN378247_2110
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
