DCB090 - Battery charger DEWALT - Free user manual and instructions
Find the device manual for free DCB090 DEWALT in PDF.
| Product Type | USB Adapter for Battery Charging |
| Brand | DeWALT |
| Model | DCB090 |
| Supply Voltage | 230 V AC |
| USB Output Current | 1.5 A (total) |
| Number of USB Ports | 2 (Type A) |
| Compatible Battery Types | Li-Ion 10.8 V, 14.4 V and 18 V (DCB series) |
| Weight | 0.090 kg |
| Battery Charge Indicator | 3-level LED indicator (0-50%, 50-75%, 75-100%) |
| Electronic Protection | Against overcharge, overheating and deep discharge |
| Double Insulation | Yes (Class II) |
| Intended Use | Powering and charging USB devices from DeWalt battery packs |
| Maintenance | Clean with a damp cloth and mild soap; do not use solvents |
| Repairability | Contains no user-serviceable parts; contact an authorized service center |
| Warranty | 1 year (parts and labor) + 30-day satisfaction guarantee |
| Charging Temperature | Between 4°C and 40°C |
Frequently Asked Questions - DCB090 DEWALT
User questions about DCB090 DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Battery charger in PDF format for free! Find your manual DCB090 - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DCB090 by DEWALT.
USER MANUAL DCB090 DEWALT
English (original instructions)
Francais (traduction de la notice d'instructions originale) 58
Norsk (oversatt fra de originale instruktionene) 78
Suomi (kännetty alkuperäsesta käytöchjeesta) 96
Svenska (oversatt fran de ursprungliga Instruktionema) 113
Figure 1
Figure 2
DANSK
USB BATTERIOPLADNINGSADAPTER DCB090
Tillykke!
Bety ter risiko for brand.
ADVARSEL: Du bar lese betjeningsvejlechningen for at reducere risikoen for personskader.
ADVARSE! Laes alle sikkerhedsadvansler og alle instruktioner. Manglende overholdelse af advansler og instruktioner kan medfare elektrisk stod, brand og/eller alvorlig personskade.
GEM ALLE ADVARSLER OG INSTRUKTIONER FOR FREMTIDIG REFERENCE
Sikkerhedsadvarsler for USB batteriopladningsadapter
The DCB105 charger accepts 10,8 V, 14,4 V and 18 V Li-ion (DCB121, DCB123, DCB125, DCB140, DCB141, DCB142, DCB143, DCB180, DCB181, DCB182 and DCB183) battery packs.
This charger requires no adjustment and is designed to be as easy as possible to operate.
Problem lechingsnet.
Ladevorgang [Abb. (figure) 2]

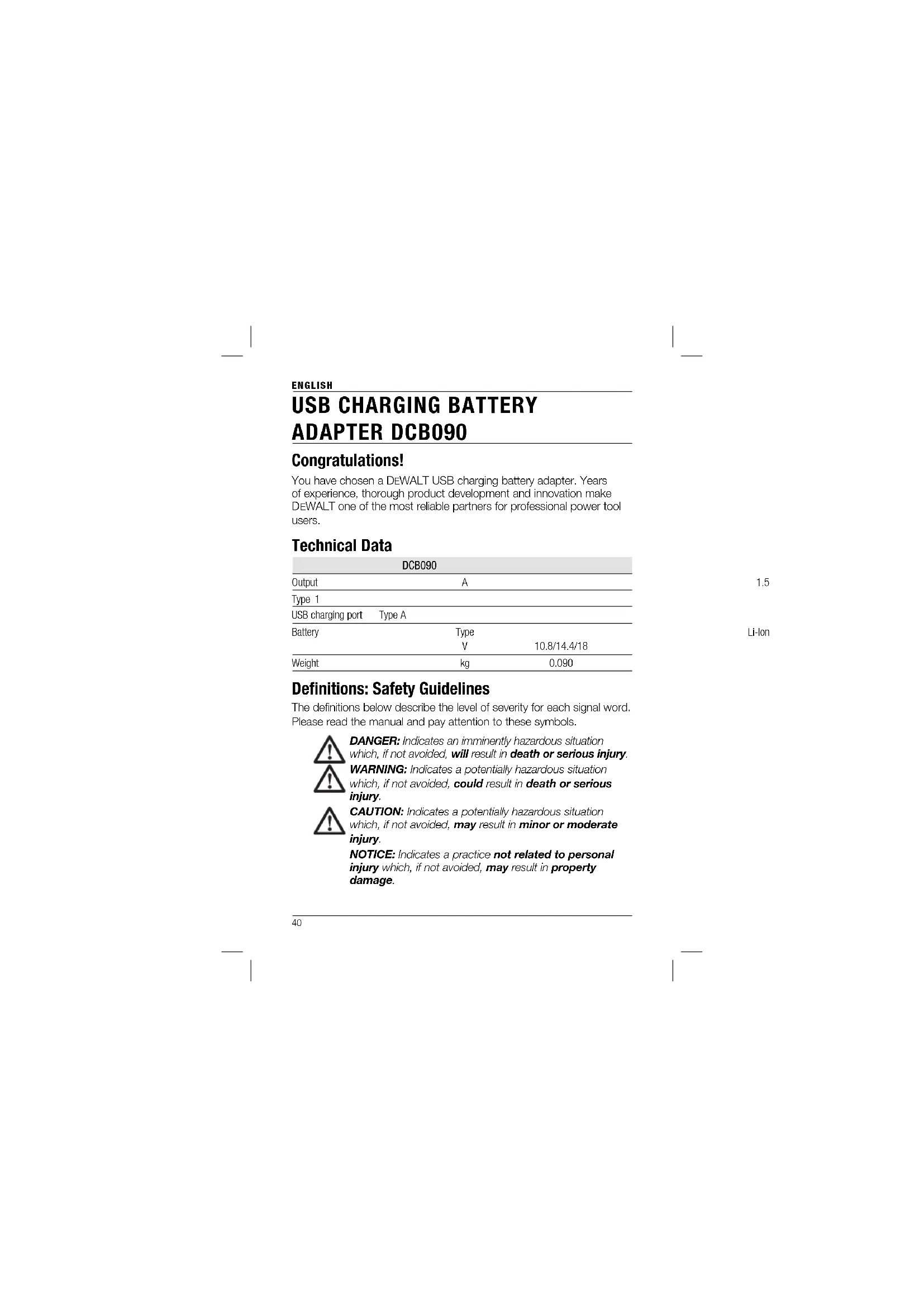

You have chosen a DEWALT USB charging battery adapter. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.
Technical Data
| DCB090 | ||
| Output | A | |
| Type 1 | ||
| USB charging port Type A | ||
| Battery | Type V | 10.8/14.4/18 |
| Weight | kg | 0.090 |
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
ENGLISH
WARNING: To reduce the risk of injury, read the instruction manual.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
USB Charging Battery Adapter SafetyWarnings
WARNING: This manual contains important safety and operating instructions for this DCB090 USB charging battery adapter. Before using the DCB090 USB charging battery adapter, read this manual and all labels on the DCB090 USB charging battery adapter, battery pack, charger and product(s) using the charging battery adapter.
- Before using the DCB090 USB charging battery adapter, read all instructions and cautionary markings on the DCB090 USB charging battery adapter, battery pack and product using the battery pack.
- Shock hazard. Do not allow any liquid to get inside the DCB090 USB charging battery adapter. Electric shock may result.
- Burn hazard. To reduce the risk of injury, use only DEWALT 10.8 V, 14.4 and 18 V lithium ion battery packs with the DCB090 USB charging battery adapter. Do not attempt to use it on any other battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.
ENGLISH
- This DCB090 USB charging battery adapter is not intended for any uses other than supplying power/charging small USB electronics. Any other uses may result in risk of fire, electric shock or electrocution.
- Do not expose the DCB090 USB charging battery adapter to rain or snow.
- When operating the DCB090 USB charging battery adapter outdoors, always provide a dry location.
- Do not operate the DCB090 USB charging battery adapter if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorised DEWALT repair agent.
- Do not disassemble the DCB090 USB charging battery adapter, there are no user serviceable parts.
Important Safety Instructions for All Battery Chargers
- Before using the charger, read all instructions and cautionary markings on the charger, battery pack, and product using the battery pack.
WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may result.
CAUTION: Burn hazard. To reduce the risk of injury, charge only DelWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage. Do not recharge non-rechargeable batteries.
CAUTION: Children should be supervised to ensure that they do not play with the appliance.
NOTICE: Under certain conditions, with the charger plugged in to the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger
ENGLISH
cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.
- DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution. - Do not expose charger to rain or snow.
- Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
- Make sure that cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
- When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- Do not block the ventilation slots on the charger. The ventilation slots are located on the top and sides of the charger. Place the charger in a position away from any heat source.
- Do not operate the charger with damaged cord or plug - have them replaced immediately.
- Do not operate charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorised service centre.
- Do not disassemble the charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
ENGLISH
- In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard.
- Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
NEVER attempt to connect 2 chargers together. - The charger is designed to operate on standard 230 V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.
SAVE THESE INSTRUCTIONS
Chargers
The DCB105 charger accepts 10.8 V, 14.4 V and 18 V Li-Ion (DCB121, DCB123, DCB125, DCB140, DCB141, DCB142, DCB143, DCB180, DCB181, DCB182 and DCB183) battery packs.
This charger requires no adjustment and is designed to be as easy as possible to operate.
Charging Procedure (fi g. 2)
- Plug the charger (f) into an appropriate 230 V outlet before inserting the battery pack.
- Insert the battery pack (a) into the charger, making sure the pack is fully seated in the charger. The red (charging) light will blink continuously indicating that the charging process has started.
- The completion of charge will be indicated by the red light remaining ON continuously. The pack is fully charged and may be used at this time or left in the charger.
NOTE: To ensure maximum performance and life of Li-Ion batteries, fully charge the pack before first use.
Charging Process
Refer to the table below for the state of charge of the battery pack.
ENGLISH
State of charge
| charging | — | — | — | — |
| fully charged | ||||
| hot/cold pack delay | —● | —● | —● | —● |
This charger will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light or by displaying problem pack or charger blink pattern.
NOTE: This could also mean a problem with a charger.
If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre.
Hot/Cold Pack Delay
When the charger detects a battery that is too hot or too cold, it automatically starts a hot/cold pack delay, suspending charging until the battery has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery life.
XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery against overloading, overheating or deep discharge.
The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the Li-Ion battery on the charger until it is fully charged.
A cold battery pack will charge at about half the rate of a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery warms.
ENGLISH
Important Safety Instructions for All Battery Packs
When ordering replacement battery packs, be sure to include the catalog number and voltage.
The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow the charging procedures outlined.
READ ALL INSTRUCTIONS
- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
- Never force the battery pack into charger. Do not modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury.
- Charge the battery packs only in designated DEWALT chargers.
DO NOT splash or immerse in water or other liquids. - Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40^ (105°F) (such as outside sheds or metal buildings in summer).
- For best results, make sure the battery pack is fully charged before use.
WARNING: Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert it into the charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to the service centre for recycling.
ENGLISH
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (Li-lon)
- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.
- If battery contents come into contact with the skin, immediately wash the area with mild soap and water. If the battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
- Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.
Battery Pack
STORAGE RECOMMENDATIONS
- The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.
NOTE: Li-ion battery packs should be fully charged when stored.
- For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.
NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:
ENGLISH
Read instruction manual before use.
Battery charging.
Battery charged.
Hot/cold pack delay.
Problem pack or charger.
Problem powerline.
Do not probe with conductive objects.
Do not charge damaged battery packs.
Use only with DEWALT battery packs. Others may burst causing personal injury and damage.
Do not expose to water.
Have defective cords replaced immediately.
Charge only between 4^ and 40^ .
Discard the battery pack with due care for the environment.
ENGLISH
Do not incinerate the battery pack.
Lion Charges Li-Ion battery packs.
See Technical Data for charging time.
Only for indoor use.
Package Contents
The package contains:
1 USB charging battery adapter
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included with N-models.
- Check for damage to the charger, parts or accessories which may have occurred during transport.
- Take the time to thoroughly read and understand this manual prior to operation.
DATE CODE POSITION (FIG.1)
The Date Code (e), which also includes the year of manufacture, is printed into the underside of the housing.
Example:
2013 XX XX
Year of Manufacture

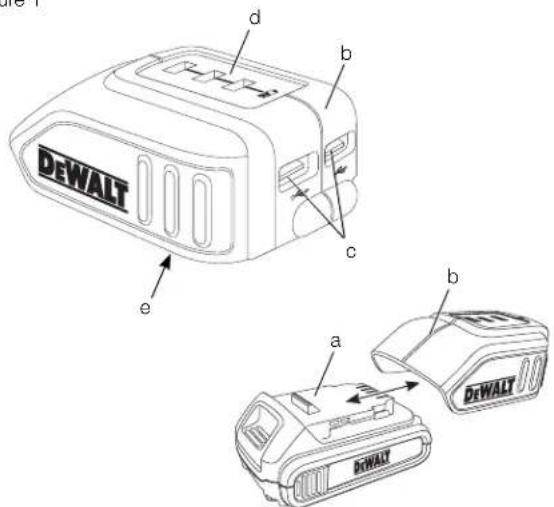

Description (fi g. 1)
WARNING: Never modify the DCB090 USB charging battery adapter or any part of it. Damage or personal injury could result.
ENGLISH
a. Battery pack
b. USB Charging battery adapter
c. USB charging port
d. Fuel gauge
e. Date code
INTENDED USE
The DCBO90 USB charging battery adapter is equipped with two USB Type A charging ports and is designed to charge or supply power to USB compatible devices with the use of DEWALT 10.8 V, 14.4 and 18 V lithium ion battery packs.
DO NOT use under wet conditions or in presence of flammable liquids or gases.
This USB charging battery adapter is a professional tools.
DO NOT let children come into contact with the charger. Supervision is required when inexperienced operators use this charger.
- This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities, or for lack of experience and/or for want of knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone to play with this product.
Electrical Safety
NOTE: The following electrical safety warnings refer to the battery pack and charger, they do not apply to the USB charging battery adapter.
Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.
Your DEWALT charger is double insulated in accordance with EN 60335; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.
ENGLISH
Mains Plug Replacement (U.K. & Ireland Only)
If a new mains plug needs to be fitted:
- Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.
WARNING: No connection is to be made to the earth terminal.
Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.
Using an Extension Cable
An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm^2 ; the maximum length is 30m .
When using a cable reel, always unwind the cable completely.
OPERATION
Installing and Removing the Battery Pack (fi g. 1, 2)
NOTE: Make sure your battery pack is fully charged.
IMPORTANT: To avoid battery charge depletion, remove the battery pack from the DCB090 USB charging battery adapter when not in use.
TO INSTALL BATTERY PACK
Slide the battery pack (a) into the DCB090 USB charging battery adapter (b) until the battery pack is firmly seated.
WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals.
ENGLISH
TO REMOVE THE BATTERY PACK
Grasp battery pack firmly and pull from the DCB090 USB charging battery adapter. Insert battery into the charger as described in the charger section of this manual.
FUEL GAUGE
When the battery is inserted into the DCBO90 USB power source, the LED will flash briefly, then the number of lights will illuminate for ten seconds based on the state of charge of the battery pack.
The fuel gauge (d) is an indication of approximate levels of charge remaining in the battery pack according to the following indicators:
USB Charging Ports (Fig. 1)
The DCB090 USB charging battery adapter (b) is equipped with two USB Type A charging ports (c). The DCB090 USB charging battery adapter delivers 1.5 amps total current.
NOTE: Do not plug in devices that exceed the output ratings on the charging battery adapter's label. Doing so will shorten the charging battery adapter's useful life.
Insert a USB plug into one of the charging ports (c) to supply power or charge your device.
MAINTENANCE
Your DEWALT charger has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.
The USB charging battery adapter, charger and battery pack are not serviceable. There are no serviceable parts inside.
ENGLISH
- Do not attempt to repair the USB charging battery adapter, charger or battery pack. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by an authorised DEWALT repair agent.
Lubrication
The USB charging battery adapter, charger and battery pack require no lubrication.
Cleaning
WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the charger. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the charger; never immerse any part of the tool into a liquid.
CHARGER CLEANING INSTRUCTIONS
WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.
ENGLISH
Optional Accessories
WARNING: Since accessories, other than those offered by DEWALT have not been tested with this product, use of such accessories with this charger could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.
Consult your dealer for further information on the appropriate accessories.
Protecting the Environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local DeWALT office at the address indicated in this manual. Alternatively, a list of authorised DeWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
Rechargeable Battery Pack
This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:
- Run the battery pack down completely, then remove it from the tool.
- Li-ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.
ENGLISH
GUARANTEE
DEFWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
30 DAY NO RISK SATISFACTION GUARANTEE
If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.
- ONE YEAR FREE SERVICE CONTRACT
If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, you are entitled to one service free of charge. It will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.
ONE YEAR FULL WARRANTY
If your DeWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DeWALT guarantees to replace all defective parts free of charge or - at our discretion - replace the unit free of charge provided that:
The product has not been misused;
The product has been subject to fair wear and tear
- Repairs have not been attempted by unauthorised persons;
Proof of purchase is produced;
The product is returned complete with all original components.
If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com.
FRANÇAIS
ADAPTATEUR USB POUR RECHARGE DE BATTERIE DCB090
Felicitations!
Suspension de charge.
