USER MANUAL Prio 30.3069.01 TFA

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any conse- quences resulting from them.

• Please pay particular attention to the safety notices!

• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Wireless thermometer (base station)

3. Range of application and all the benefits of your new instru-

• Outdoor temperature over wireless outdoor transmitter (max. 100 m)

• Indication of indoor temperature and humidity

• Outdoor temperature alarm

• Radio-controlled clock with date and weekday

• Alarm with snooze function

• This product should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited. Caution! Risk of injury!

• Keep these devices and the batteries out of reach of children.

• Small parts can be swallowed by children (under three years old).

• Batteries contain harmful acids and may be hazardous if swal- lowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking.

• Never use a combination of old and new batteries together, nor batteries of different types.

• Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor. Important information on product safety!

• Do not expose the devices to extreme temperatures, vibrations or shocks.

• The outdoor transmitter is splashproof, but not watertight. When placed outdoors, choose a dry place for the transmitter. PRIO – Wireless Thermometer

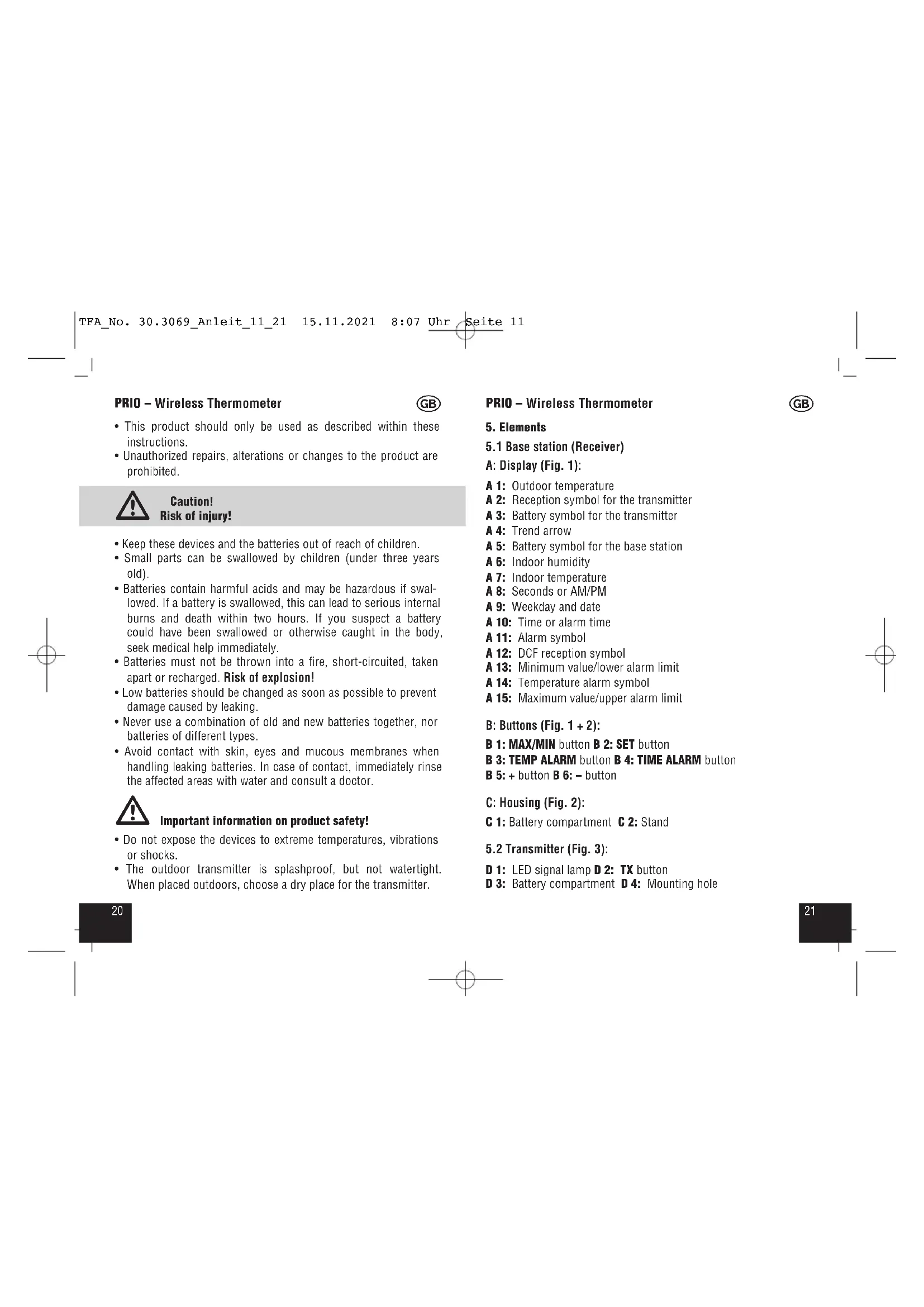

5.1 Base station (Receiver)

A: Display (Fig. 1): A 1: Outdoor temperature A 2: Reception symbol for the transmitter A 3: Battery symbol for the transmitter A 4: Trend arrow A 5: Battery symbol for the base station A 6: Indoor humidity A 7: Indoor temperature A 8: Seconds or AM/PM A 9: Weekday and date A 10: Time or alarm time A 11: Alarm symbol A 12: DCF reception symbol A 13: Minimum value/lower alarm limit A 14: Temperature alarm symbol A 15: Maximum value/upper alarm limit B: Buttons (Fig. 1 + 2): B 1: MAX/MIN button B 2: SET button B 3: TEMP ALARM button B 4: TIME ALARM button B 5: + button B 6: – button C: Housing (Fig. 2): C 1: Battery compartment C 2: Stand

• Place the instruments on a table at a distance of about 1.5 meters from each other. Avoid being close to possible sources of interference such as electronic devices and radio equipment.

• Open the battery compartment of the outdoor transmitter.

• Insert two new AA 1.5 V batteries, polarity as illustrated.

• The LED signal lamp flashes.

• Close the battery compartment.

• Open the battery compartment at the back of the base station.

• Insert two new AA 1,5 V batteries into the battery compartment. Make sure the polarities are correct.

• The device will alert you with a beep and all segments will be displayed for a short moment.

• Close the battery compartment.

6.2 Reception of outdoor transmitter

• After inserting the batteries, the transmitter will automatically transmit the temperature. The reception symbol will be flashing on the display.

• If the reception of the outdoor temperature fails, “- -” remains on the display. Check the batteries and try it again. Check if there is any source of interference.

• You can also start the initialization manually. Hold the MAX/MIN button on the base station for three seconds.

• “- -” appears on the outdoor temperature display and the recep- tion symbol flashes. The base station will scan the outdoor tem- perature.

• Press the TX button in the transmitter's battery compartment. The transmission of the outdoor data takes place immediately and a successful reception will be confirmed by a beep tone. PRIO – Wireless Thermometer

6.3 Reception of the DCF frequency signal

• After the reception of the outdoor values, the clock will now scan the DCF frequency signal and the DCF symbol flashes on the display.

• When the time code is successfully received after 3-10 minutes, the radio-controlled time, the date and the DCF symbol will be shown steadily on the display.

• If reception fails, the clock will then try to receive the signal every 2 hours again.

• After successful reception, DCF radio reception takes place daily at 1:00, 2:00, 3:00, 4:00 and 5:00 in the morning.

• You can also activate the DCF reception manually. Press the SET button. The clock will now scan the DCF frequency signal and the DCF symbol flashes.

• If the clock cannot detect the DCF-signal (e.g. due to interfer- ence, transmitting distance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock. (see: Manual settings).

6.4 Radio-controlled time reception

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Brunswick), Germany. It has a time devia- tion of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the fre- quency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, con- verts it and always shows the exact time. The adjustment to Day- light Saving Time (summer/winter time) is automatic. The recep- tion quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. TFA_No. 30.3069_Anleit_11_21 15.11.2021 8:07 Uhr Seite 122524 PRIO – Wireless Thermometer

Therefore, please note the following steps:

• The recommended distance to any interfering sources like com- puter screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

• The device will automatically quit the setting mode if no button is pressed for 20 seconds.

• Press and hold the + or – button in setting mode for fast mode.

• Press and hold the SET button in normal mode for three seconds to enter the setting mode.

• DEU (default) flashes on the display.

• Press the + or – button to set the day-of-the week language: GER- MAN (DEU), SPANISH (ESP), FRENCH (FRA) or ENGLISH (ENG).

• If you select English, the display will now appear in English.

• Press the SET button again to do the settings in the following sequence: the button tone (BEEP ON - default), DCF reception (DCF ON - default), the time zone (UTC 0 - default), the 12 or 24 hours system (24 Hr - default), the hours, the minutes, the year, the month, the date, the month/day sequence D/M or M/D (D/M - default) and the temperature unit °C or °F (TEMP °C - default). Press the + or – button to adjust it.

• Confirm the settings with the SET button.

• If the DCF reception is activated (DCF ON), the manually set time will be overwritten by the DCF time when the signal is received successfully. PRIO – Wireless Thermometer

• Press the + or – button to activate (BEEP ON) or deactivate (BEEP OFF) the key tone in setting mode.

• Confirm the setting with the SET button.

• By default, the DCF reception is activated (DCF ON) and after successful reception of the DCF signal no manual time setting is necessary.

• Press the + or – button in setting mode if you want to deactivate the DCF reception (DCF OFF).

• Confirm the setting with the SET button.

• The DCF reception symbol disappears.

7.1.3 Time zone setting

• In the setting mode, press the + or – button to make the time zone correction (-12/+12).

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

• Confirm the setting with the SET button.

7.1.4 24- or 12-hour system setting

• You can choose between the 12- or 24-hour system in setting mode.

• Press + or – button.

• In the 12-HR system AM (before noon) or PM (after noon) appears on the display instead of the seconds.

• Confirm the setting with the SET button.

• You can now see the maximum value for the outdoor tempera- ture since the start-up or the last reset with time and date of recording.

• Press the MAX/MIN button again. The minimum outdoor tem- perature value appears. Repeat the process for the indoor val- ues.

• Press the MAX/MIN button again to return to normal mode.

• The device will automatically quit the MAX/MIN mode if no but- ton is pressed for 10 seconds.

• To clear the recorded maximum or minimum readings manually, press and hold the – button for three seconds while the maxi- mum or minimum values are displayed.

• Press and hold the TIME ALARM button for three seconds to enter the setting mode. The alarm symbol and ALM ON appear on the display.

• The hour digits flash.

• Press the + or – button to set the desired time.

• Confirm the setting with the TIME ALARM button.

• Set the minutes in the same way.

• Confirm the setting with the TIME ALARM button.

• The current time and the alarm symbol appear on the display.

• The alarm is activated.

• The last adjusted alarm time appears for 2 seconds on the dis- play.

• The alarm symbol and ALM ON appears on the display, if the alarm is activated.

• ALM OFF appears on the display, if the alarm is deactivated.

• Wait some seconds until the display returns to normal mode to confirm the setting.

• When the alarm is activated, the alarm starts to ring when the set alarm time is reached.

• Press any button (except TIME ALARM ) and the alarm will stop.

• If the alarm is not stopped manually, the alarm tone automati- cally turns off after two minutes and will be reactivated at the same set time on the following day.

• The alarm symbol remains on the display.

• When the alarm rings, press the TIME ALARM button and the snooze function is activated.

• The alarm will be interrupted for 10 minutes. The alarm symbol flashes on the display and the time display counts down until the next alarm.

7.5 Outdoor temperature alarm

• Press and hold TEMP ALARM button in normal mode.

• MAX and the temperature alarm symbol appear. OFF flashes.

• Press the + or – button to activate the function.

• 60°C (default) or the last adjusted upper outdoor temperature limit appears and ON flashes on the display.

• Confirm with the TEMP ALARM button.

• Press the + or – button to set the desired upper limit while the indication flashes.

• Confirm the setting with the TEMP ALARM button.

• MIN and the temperature alarm symbol appear. OFF flashes.

• -40°C (default) or the last adjusted lower outdoor temperature limit appears and ON flashes on the display.

• Confirm the setting with the TEMP ALARM button.

• Press the + or – button to set the desired lower limit while the indication flashes.

• Confirm with the TEMP ALARM button.

• Press the TEMP ALARM button in normal mode, to activate or deactivate the corresponding alarm function. The respective symbol will appear or disappear on the display.

• In the event of an alarm, the corresponding symbol will be flash- ing and an alarm tone will sound.

• Stop the alarm tone with any button.

8. Positioning and mounting of the base station and the trans-

• Place the base station in any room of the house. Make sure to avoid the vicinity of any source of interference such as comput- er screens, TV sets or solid metal objects.

• The transmitter can be wall mounted (mounting hole at the back). When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measure- ment and continuous humidity damages the electronic compo- nents needlessly.

• Once the desired location is chosen, check whether the data transfer from the transmitter to the base station is possible (transmission range of up to 100 m in open areas). Within solid walls, especially ones with metal parts, the transmission range can be reduced considerably.

• If necessary, choose another position for the transmitter and/or base station. PRIO – Wireless Thermometer

9. Care and maintenance

• Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the devices for a long period of time.

• Store the devices in a dry place.

9.1 Battery replacement

• Change the batteries of the outdoor transmitter, when the bat- tery symbol appears on the display of the outdoor temperature.

• Change the batteries of the base station, when the battery sym- bol appears on the indoor temperature display.

• Please note: When the batteries are changed, the contact between the outdoor transmitter and the base station must be restored – so always restart both devices or start a manual transmitter search.

10. Trouble shooting

Problem Solution No indication ➜ Ensure the batteries' polarities are on the base station correct ➜ Change the batteries No transmitter reception ➜ No outdoor transmitter is installed Display “- -” ➜ Check the outdoor transmitter's batteries (do not use rechargeable batteries!) ➜ Manual search for the transmitter (according to the manual) ➜ Restart the outdoor transmitter and the base station according to the manual TFA_No. 30.3069_Anleit_11_21 15.11.2021 8:07 Uhr Seite 153130 PRIO – Wireless Thermometer

➜ Choose another place for the trans- mitter and/or the base station ➜ Reduce the distance between the transmitter and the base station ➜ Check if there is any source of inter- ference Incorrect indication ➜ Change the batteries If your device fails to work despite these measures, contact the retailer where you purchased the product.

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up. Disposal of the electrical device Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary house- hold waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Observe the current regulations in place! PRIO – Wireless Thermometer

Disposal of the batteries Never dispose of empty batteries and rechargeable batte- ries with ordinary household waste. They contain pollu- tants which, if improperly disposed of, can harm the en- vironment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Outdoor transmitter Housing dimension 40 x 21 x 130 mm Weight 47 g (device only) No part of this manual may be reproduced without written consent of TFA Dost- mann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 30.3069 is in com- pliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG Zum Ottersberg 12, 97877 Wertheim, Germany 11/21 PRIO – Thermomètre radio-piloté
