Product type	Radio-controlled wall clock
Brand	TECHNOLINE
Model	WS 8017
Main power supply	AC adapter HX075-0500600-AG-001 (DC 5V)
Backup power supply	2 LR6 AA batteries (Mignon)
Radio reception	DCF77, automatic synchronization
Calendar	Perpetual until year 2099
Weekday display	7 languages: French, English, German, Italian, Spanish, Dutch, Danish
Time format	12/24 hours
Number of alarms	2 with adjustable repetition (M-F, S-S, or both)
Alarm snooze	Adjustable from 5 to 60 minutes, or disabled
Temperature	Display in °C or °F, range -9.9°C to +50°C (14°F to 122°F)
Humidity	Display 20% RH to 95% RH
Backlight	Touch on battery (8 seconds), permanent on mains with brightness adjustment (4 levels + off)
Low battery indicator	Icon displayed
Usage	Indoor only
Compliance	Directive 2014/53/EU and RoHS 2011/65/EC
Cleaning	Dry cloth, avoid moisture and solvents

Frequently Asked Questions - WS 8017 TECHNOLINE

How to set the time manually if the radio signal is not received?

Press and hold the SET button for 2 seconds. Set first the key tone (ON/OFF), then time zone, hours, minutes, year, month, day and language using the UP and DOWN buttons. Confirm each setting with SET.

How to activate or deactivate an alarm?

Press the ALARM button to display alarm 1 or 2, then press UP to activate (icon displayed) or deactivate (icon disappears).

How to change the weekday language?

During manual time setting, after setting the day, the language selection option appears. Use UP or DOWN to choose among: English, German, French, Italian, Spanish, Dutch and Danish. Confirm with SET.

What to do if the clock does not receive the DCF radio signal?

Place the clock near a window, away from metal surfaces and electronic devices. Press WAVE to manually start the search. If reception fails after 7 minutes, try again at the next full hour. You can also deactivate RCC mode by holding WAVE until 'RCC OFF' appears.

How to switch between Celsius and Fahrenheit?

Briefly press the °C/°F button to toggle between the two temperature display units.

How to use the Snooze function?

When the alarm sounds, press the SNOOZE button (touch sensor). The alarm stops and reactivates after the set delay (5 to 60 minutes). To exit snooze mode, press any button or hold SNOOZE for more than 2 seconds.

What does the antenna icon on the screen mean?

The flashing icon indicates that the clock is searching for the DCF signal. If it stays lit continuously, reception is successful. If it disappears, synchronization has failed.

How to replace the backup batteries?

Open the battery compartment cover at the back, remove the old batteries and insert two new LR6 AA batteries respecting polarity (+/-). Close the cover.

How to reset the clock in case of malfunction?

Remove the batteries and unplug the AC adapter. Wait a few seconds, then reinsert the batteries respecting polarity. Default settings will be restored and you will need to reconfigure the clock.

What to do if the display is abnormal or frozen?

This may be due to electrostatic disturbances. Reset the clock by removing the batteries and unplugging the adapter. If the problem persists, move the clock away from sources of interference (TVs, computers) and try again.

USER MANUAL WS 8017 TECHNOLINE

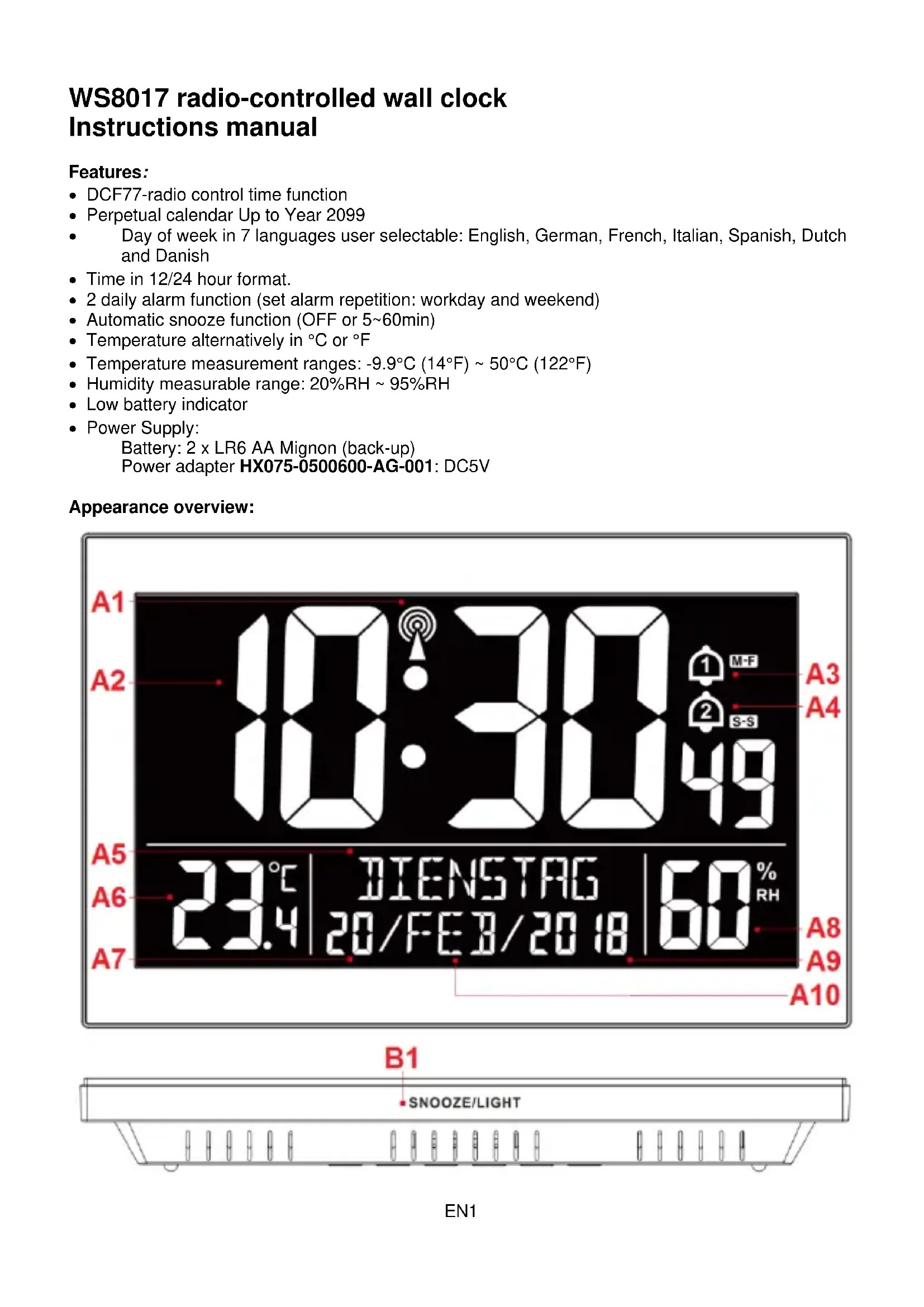

WS8017 radio-controlled wall clock Instructions manual

Features:

• DCF77-radio control time function
  Perpetual calendar Up to Year 2099
  Day of week in 7 languages user selectable: English, German, French, Italian, Spanish, Dutch and Danish
• Time in 12/24 hour format.
• 2 daily alarm function (set alarm repetition: workday and weekend)
  Automatic snooze function (OFF or 5~60min)
  Temperature alternatively in ^ C or ^
• Temperature measurement ranges: -9.9^ ( 14^ ) 50^ ( 122^ )
• Humidity measurable range: 20% RH 95% RH
• Low battery indicator
  Power Supply:

Battery: 2 x LR6 AA Mignon (back-up)

Power adapter HX075-0500600-AG-001: DC5V

Appearance overview:

B2 B3 B4B8B5B6 B7

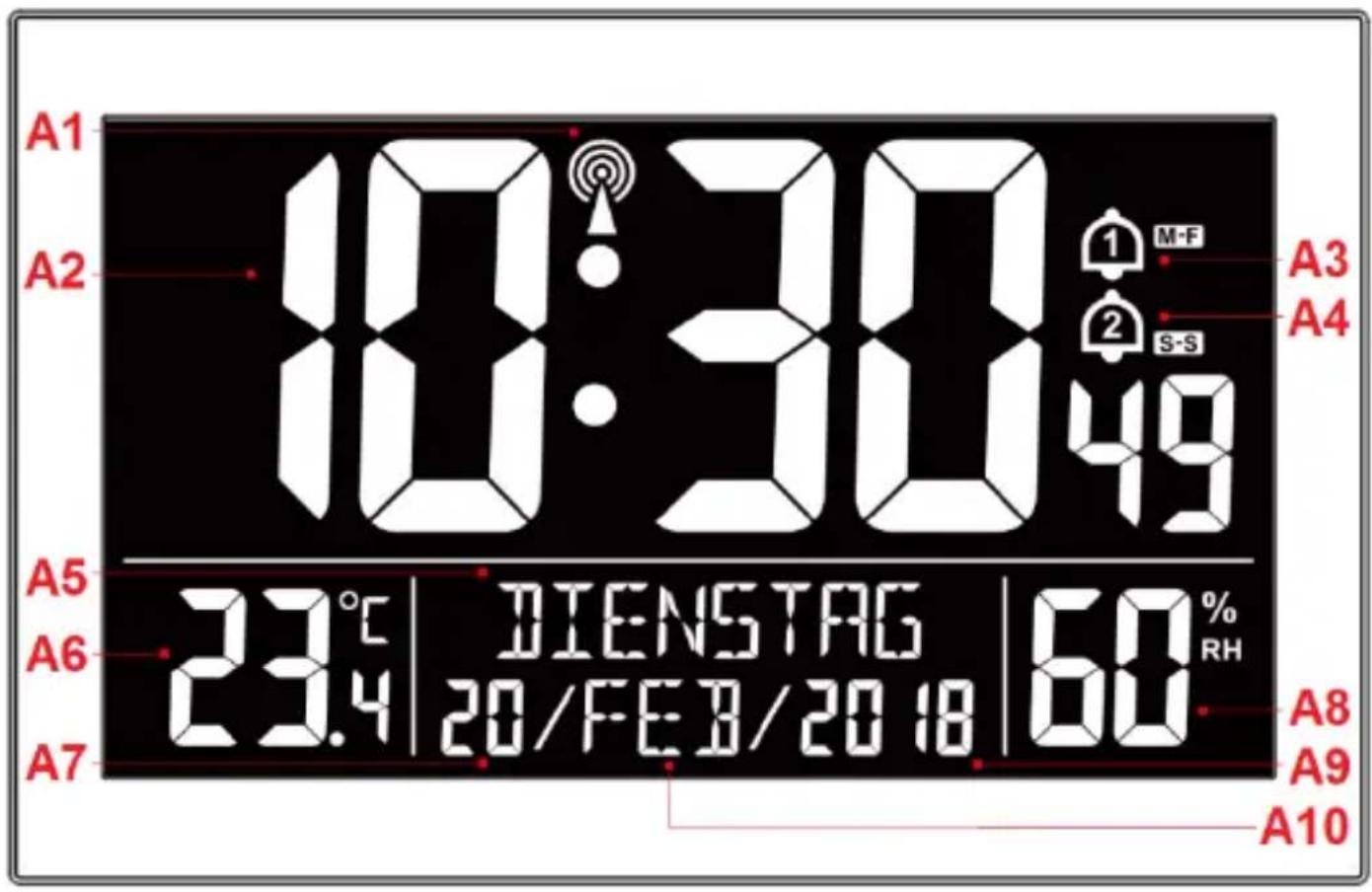

Part A - Positive LCD

A1: RCC icon

A2: Time

A3: Alarm1 icon

A4: Alarm2 icon

A5: Weekday

A6: Temperature

A7: Date

A8: Humidity

A9:Year

A10: Month

Part B - Buttons and Framework

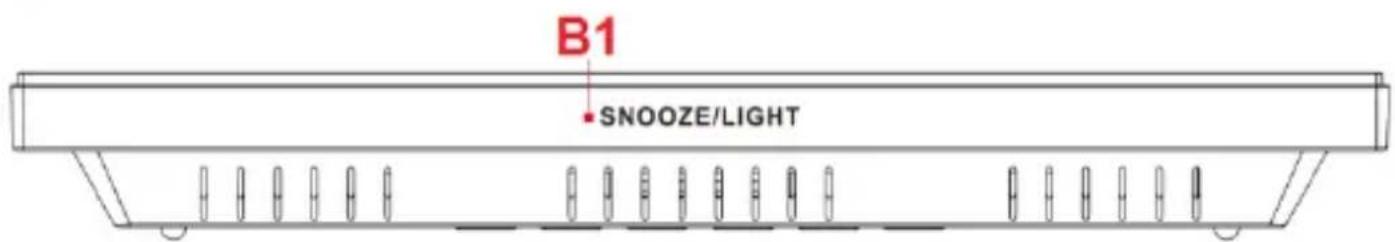

B1: "SNOOZE/LIGHT" touch sensor

B2: "SET/

button

B3: "Alarm" button

B4:“UP” button

B5:“DOWN” button

B6: “°C/°F” button

B7:“WAVE” button

B8: Hanging hole

B9: Support frame

B10: Battery compartment

B11:Power supply socket

Initial operation

• Use the power adapter to connect the clock with an household power socket.
  All the icon on the LCD display will briefly light up for 3 seconds, you will hear a beep tone and the clock begins the search for the radio signal.

Inserting back-up batteries (optional)

• Open the battery compartment cover on the backside of the clock.
  Insert 2 x AA batteries observing correct polarity [ “+” and “-” marks]
• Close the battery compartment cover again.

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
  near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Reception of the radio signal:

The clock automatically starts the DCF signal search after 7 minutes of any restart or changing of new fresh batteries. The radio mast icon starts to flash.
At 1:00/2:00 / 3:00 am, the clock automatically carries out the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full one hour. This procedure is repeated automatically up to total 5 times.
To manually start DCF signal reception, press the "WAVE" button once. If no signals received within 7 minutes, then the DCF signal search stops (the radio mast icon disappears) and start again at the next full one hour.
To stop searching radio signal, press the "WAVE" button once.

Notes:

• A flashing radio mast icon indicates that the DCF signal reception has started
• A continuously displayed radio mast icon indicates that the DCF signal was received successfully
  We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors
• Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
• During the DCF radio receive mode, only the "WAVE" button function, other button operation have no function. If you want to carry out other functions of operation, please press "WAVE" button to exit the DCF radio receive mode.

Selecting RCC mode on/off:

• Hold the "WAVE" button until the beep tone sounds and "RCC OFF" is shortly displayed on the LCD. The clock is now no longer using radio-controlled function.
• Hold the "WAVE" button again until the beep tone sounds and "RCC ON" is shortly displayed on the LCD. The clock is using radio-controlled function again.

12-hour or 24-hour time display setting:

Press the "DOWN" button to change the time displayed in 12-hour or 24-hour display.

Manual time setting:

• Press and hold down the "SET/” button for 2 seconds, the button BEEP sound settings: ON or OFF is displayed. Press the "UP" or "DOWN" button to set BEEP in ON or OFF.

• Press "SET/ to confirm your setting, the time zone starts to flash. Press the "UP" or "DOWN" button to set a correct time zone (-2 to +2). For example, select "0" for Germany or "-1" for the United Kingdom.

• Press "SET/” to confirm your setting, the hour display starts to flash. Press the "UP" or "DOWN" button to set the correct hour.
• Press "SET/” to confirm your setting, the minute displays starts to flash. Press the "UP" or "DOWN" button to set the correct minute.
• Press "SET/” to confirm your setting, the year display 2018 starts to flash. Press the "UP" or "DOWN" button to set the correct year.
• Press "SET/” button to confirm your setting, the month display starts to flash. Press the "UP" or "DOWN" button to set the correct month.
• Press "SET/ " button to confirm your setting, the date display starts to flash. Press the "UP" or "DOWN" button to set the correct date.
• Press "SET/ " button to confirm your setting, the language selection starts to flash. Press the "UP" or "DOWN" button to select a language.
• Press "SET/ to confirm your setting and to end the setting procedures, enter the clock mode.

Notes:

After 20 seconds without pressing any button, the clock switches automatically from set mode to normal time mode.
- The value of seconds is automatically reset to 00 if the value of minutes is changed.
In the set time, you can hold the "UP" and "DOWN" button to quickly change the setting of the value
- Explanation of the Time Zone display: If you are in a country in which the clock still receives the DCF signal, but in which the actual local time is different, then you can use the time zone adjustment to adjust your clock to the local time.
- If, for example, the local time in the country where you are now is in one hour behind of German time, then set the Time zone display to -01. This clock is now DCF controlled, but is showing a time one hour behind.
There are 7 languages: English, German, French, Italian, Spanish, Dutch and Danish

Week language display

Language	Sunday	Monday	Tuesday	Wednesday
English	SUNDAY	MONDAY	TUESDAY	WENDESDAY
German	SONNTAG	MONTAG	DIENSTAG	MITTWOCH
French	DIMANCHE	LUNDI	MARDI	MERCREEDI
Italian	DOMENICA	LUNEDI	MARTEDI	MERCOLEDI
Spanish	DOMINGO	LUNES	MARTES	MIERCOLES
Dutch	ZONDAG	MAANDAG	DINS dag	WOENSDAG
Danish	SONDAG	MONDAG	TIRSDAG	ONSDAG

Language	Thursday	Friday	Saturday
English	THURSDAY	FRIDAY	SATURDAY
German	DONNERSTAG	FREITAG	SAMSTAG
French	JEUDI	VENDREDI	SAMEDI
Italian	GIOVEDI	VENERDI	SABATO
Spanish	JUEVES	VIRNES	SABADO
Dutch	DONDERDAG	VRIJDAG	ZATERDAG
Danish	TORSDAG	FREDAG	LORDAG

Month code display

Language	January	February	March	April	May	June	July
English	JAN	FEB	MAR	APR	MAY	JUN	JUL
German	JAN	FEB	MAR	APR	MAI	JUN	JUL
French	JAN	FEV	MAR	AVR	MAI	JUI	JUL
Italian	GEN	FEB	MAR	APR	MAG	GIU	JUG
Spanish	ENE	FEB	MAR	ABR	MAY	JUN	JUL
Dutch	JAN	FEB	MAA	APR	MEI	JUN	JUL
Danish	JAN	FEB	MAR	APR	MAJ	JUN	JUL

Language	August	September	October	November	December
English	AUG	SEP	OCT	NOV	DEC
German	AUG	SEP	OKT	NOV	DEZ
French	AOU	SEP	OCT	NOV	DEC
Italian	AGO	SET	OTT	NOV	DIC
Spanish	AGO	SEP	OCT	NOV	DIC
Dutch	AUG	SEP	OKT	NOV	DEC
Danish	AUG	SEP	OKT	NOV	DEC

Setting the daily alarms:

• Press and hold down "ALARM" button more than 3 seconds until Alarm 1 Time hour display of the Alarm 1 time starts to flash. Press the "UP" or "DOWN" button to set the required hour.
• Press "ALARM" button to confirm your setting, the minute display of the Alarm 1 time starts to flash. Press the "UP" or "DOWN" button to set the required minute.

• Press "ALARM" button to confirm your setting, the repeat icon "M-F" of the Alarm 1 time starts to flash. Press the "UP" or "DOWN" button to set the alarm repeat in "M-F" or "S-S" or "M-F" and "S-S". "M-F" is for alarm from monday to friday, while "S-S" is for alarm from saturday to sunday.

• Press "ALARM" button to confirm your setting, the snooze time of the Alarm1 starts to flash. Press the "UP" or "DOWN" button to set the minute of snooze you need.

• Press "ALARM" button to confirm your setting, the hour display of the Alarm 2 time starts to flash. Press the "UP" or "DOWN" button to set the required hour.
• Press "ALARM" button to confirm your setting, the minute display of the Alarm 2 time starts to flash. Press the "UP" or "DOWN" button to set the required minute.
• Press "ALARM" button to confirm your setting, the repeat icon "S-S" of the Alarm 2 time starts to flash. Press the "UP" or "DOWN" button to set the alarm repeat in "M-F" or "S-S" or "M-F" and "S-S".
• Press "ALARM" button to confirm your setting, the snooze time of the Alarm2 starts to flash. Press the "UP" or "DOWN" button to set the minute of snooze you need.
  Press "ALARM" button to confirm your setting and to end the setting procedure.

Notes:

• After 20 seconds without pressing any button the clock switches automatically from setting mode to Normal clock mode.
  The alarm is repeatedly set to M-F, the alarm function will be activated from Monday to Friday, the Saturday and Sunday will be invalid. The alarm is repeatedly set to S-S, and the alarm function will be activated on Saturday and Sunday, and will expire from Monday to Friday. When the alarm is repeatedly set to display both M-F and S-S, the alarm function will be activated throughout the week.
  The snooze time setting range: 5 60MIN OFF-there is no snooze function when set to OFF. Snooze time unit is minutes.

Activate or deactivate the alarm

• Press "ALARM" button can switch the display ALARM1 time or ALARM2 time, in the alarm1 or alarm2 display mode, press the "UP" button to turn the alarm on or off.
  The alarm 1 or alarm 2 turn on, the " ① " or " ② "icon is displayed, the alarm 1 or alarm 2 function is open, The repeat of alarm icon at the same time is also displayed.
  The alarm 1 or alarm 2 turn off, the" 1" or " 2"icon disappears, the alarm 1 or alarm 2 function is close.

Notes:

The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
- Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Stop the alarm signal

During the alarm sound, press any button to stop the alarm.

Snoopze function:

• When the time is up to the alarm, touch "SNOOZE", the alarm signal stops, and enter the SNOOZE mode. After the snooze time is counted, the alarm will ring again.
  In snooze mode, press any button buttons or touch "SNOOZE" and hold for more than 2 seconds to exit the snooze mode.

Notes:

When the snooze function is set to OFF, when the time is up to the alarm, touch the "SNOOZE" character position does not have this snooze function.

Temperature & Humidity Detection:

• Temperature measuring range: -9.9^ (+14^) +50^ (+122^), LL ^ C(F) will displayed if value lower than -9.9^ (+14^), HH ^ C(F) will displayed if value higher than +50^ (+122^).
• Humidity measuring range: 20% RH 95% RH , 19% RH will displayed if value lower than 20% RH , 96% RH will displayed if value higher than 95% RH .

°C or °F temperature display

The temperature is displayed either in ^ C or ^ F . Briefly pressing the "oC/oF" button allows you to switch between ^ C or ^ F .

Backlight

If the product is powered by batteries, press the "SNOOZE/LIGHT" button. Backlight lit 8 seconds.
- When the power supply of the product is inserted into the power supply adapter, the battery will automatically disconnect the power supply, and the backlight will always be bright. Press the "SET/” button to adjust the brightness of the backlight, you can adjust the 4 state: 3 different brightness backlight and deactivate the backlight. When the backlight brightness is not at the maximum brightness, press the "SNOOZE/LIGHT" button and backlight turns to maximum brightness of 8 seconds.

Note:

During the reception of the time radio wave signal, the backlight will be automatically closed to prevent the interference of the radio wave.

Low battery:

When the low voltage icon " is displayed, you need to replace the battery.

Trouble shooting

If your clock displays irrelevant time or does not function properly, which maybe caused by electrostatic discharge or other interference, slide open the battery cover, take out the batteries and reinstall them by observing the correct + / - polarity. Your unit will be reset to default settings and you need to set it again.

Hereby, Technotrade declares that this product WS 8017 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665080178

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Install batteries correctly by matching the polarities (+/-) .
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points.

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
