Product type	Weather station with wireless outdoor sensor
Brand	TECHNOLINE
Model	WS 9065
Power supply (station)	2 LR06 (AA) batteries or AC adapter 5V/1.2A
Outdoor sensor power	2 LR06 (AA) batteries
Display	LCD with color backlight (8 colors + cycle mode)
Time reception	DCF (radio-controlled), automatic synchronization
Alarm function	Yes, with adjustable snooze (1 to 60 min)
Weather forecast	Symbols for the next 8 hours (sunny, cloudy, rainy, snowy, etc.)
Indoor temperature	-9.9°C to 50°C (14.2°F to 122°F)
Outdoor temperature	-25°C to 50°C (-13°F to 122°F)
Indoor/outdoor humidity	20%RH to 95%RH
Min/max recording	Temperature and humidity, with reset
Frost alert	Yes, between -1°C and +2.9°C
Wireless outdoor sensor	3 channels, frequency 433.92 MHz, range 60 m in open area
USB charging port	5V/1A for portable devices
Backlight	Timed on batteries (8s), adjustable on mains power
Low battery indicator	Yes for station and sensor
Wall mount	Yes, for station and sensor
Operation	Indoor only
Maintenance	Clean with a soft, dry cloth; do not use abrasive cleaners
Safety	Use alkaline batteries; observe polarity; do not expose to water or fire
Manual	111 pages, downloadable PDF

Frequently Asked Questions - WS 9065 TECHNOLINE

How to set the time manually?

To set the time manually, press and hold the mode button for 2 seconds. The temperature unit flashes. Use + and - to select °C or °F, then press mode to go to the next setting (12/24h, time zone, hours, minutes, weather forecast). Confirm each step with mode. No action for 20 seconds saves the settings.

What to do if the clock does not synchronize with the DCF signal?

If the radio antenna icon disappears, synchronization has failed. The station automatically retries every hour up to 5 attempts. For a manual attempt, press and hold the Wave button for 2 seconds. Ensure the station is at least 2.5 m away from electrical devices and near a window. Avoid concrete walls. If necessary, disable USB charging as it interferes.

How to change the outdoor sensor batteries?

Open the battery compartment cover of the sensor (mark T4). Insert 2 LR06 (AA) batteries observing polarity (+/-). Close the cover. The sensor automatically transmits the signal. Check that the station displays the outdoor temperature. If not, press and hold the CH button on the station for 3 seconds to force reception.

How to enable/disable the alarm?

To enable the alarm, set the AL switch to on; the bell icon appears. To disable, set it to off. To set the alarm time, press mode to view the alarm time, then press and hold mode for 2 seconds until the hours flash. Set with +/- and confirm with mode. The snooze duration is adjustable from 1 to 60 minutes.

How to use the USB charging function?

Connect a portable device (smartphone, etc.) to the USB port on the back of the station. The output provides 5V 1A. Note that during DCF signal reception, USB charging and backlight are automatically disabled to avoid interference.

How to interpret the weather forecast symbols?

The station displays symbols based on barometric pressure changes for the next 8 hours. The symbols are: sunny, partly cloudy, cloudy, rainy, heavy rain, snowy. These forecasts may differ from actual conditions. You can adjust them manually during time setting.

What does the frost alert icon mean?

The frost alert icon flashes when the outdoor temperature is between -1°C and +2.9°C. This indicates a risk of frost. Monitor your plants or pipes. The icon turns off outside this range.

How to display maximum/minimum temperatures?

Press the MEM button once to display the recorded maximum temperature/humidity. Press again to display the minimum. 'MAX' or 'MIN' appears on the screen. To clear these values, press and hold MEM for 3 seconds.

How to change the backlight color?

Press the rainbow button to cycle through the 8 available colors: white, red, orange, yellow, green, cyan, blue, and purple. When operating on mains power, you can also adjust the brightness with the - button. The cycle button enables a gradual color change.

What to do if the station no longer displays outdoor temperature?

If the screen displays '--.-', the station does not receive the sensor signal. First check the outdoor sensor batteries. Then press and hold the CH button on the station for 3 seconds to force reception. The RF icon flashes. If the problem persists, move the sensor closer to the station (max range 60 m) and avoid obstacles. Reset the sensor by pressing the RESET button (T5).

USER MANUAL WS 9065 TECHNOLINE

T1 OPEN T2 T3 T4 T5

▶ DCF radio controlled time function
▶ Time in 12 or 24 hour format
▶ Alarm function
▶ Snooze function (OFF or 1\~60min)
▶ Low battery indicator
▶ USB socket for mobile device charging(5V1A)
▶ Temperature in °C or °F format
▶ Humidity: Indoor & Outdoor measurement range: 20%RH \~ 95%RH
▶ Temperature:

— Indoor temperature measurement ranges:

-9.9°C (14.2°F) \~ 50°C (122°F)

— Outdoor temperature measurement ranges:

-25^ (-13^) 50^ (122^)

— Outdoor thermometer ice alert

▶ Maximum /minimum value record of temperature and humidity
▶ Wireless Outdoor Sensor:

— Wall Mount or Table Stand

— 3 Channel selectable

— 433.92MHz RF transmitting frequency

— 60 meter transmission range in an open area

▶ Weather forecasting function

▶ Power Supply:

Weather Station:

Battery: 2 x LR06 AA

Adapter: 5V1.2A

Remote Sensor:

Battery:2 x LR06 AA

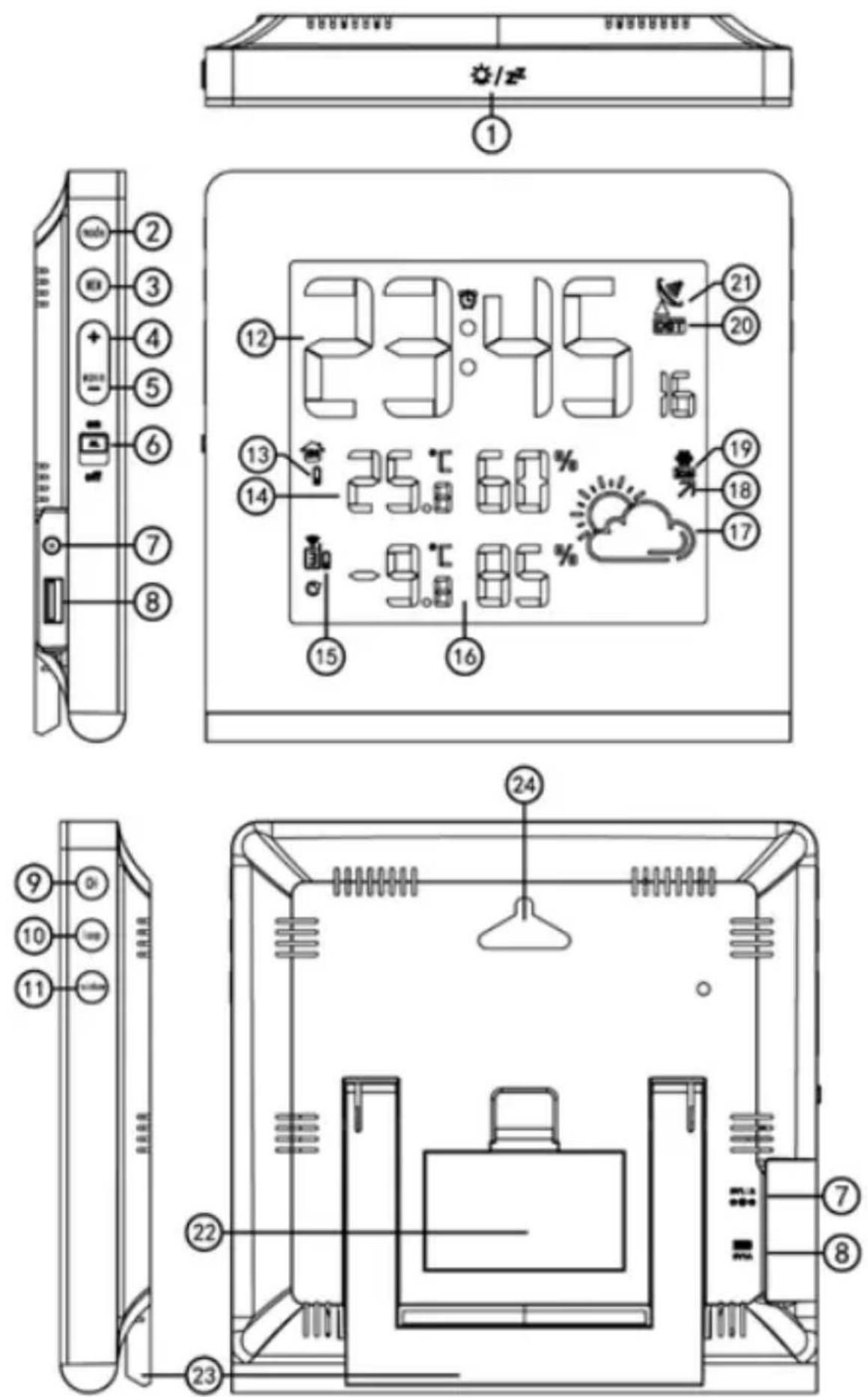

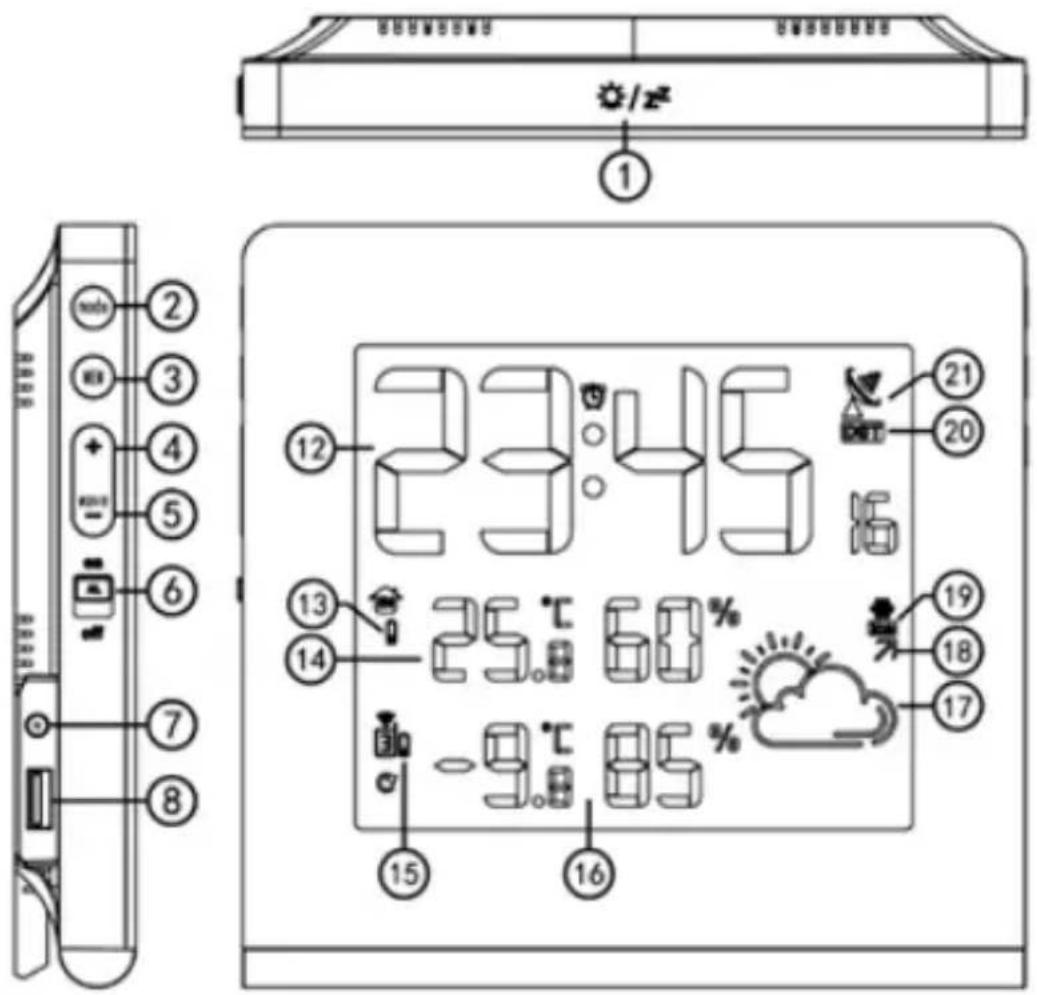

Appearance description: Station

1 : "Light/snooze" touch button
2 : ““mode” button
3 : "MEM" button
4 : “+” button
5 : “-/Wave” button
6 : Alarm ON/OFF switch
7 : Adapter input socket
8 : USB socket
9 : “CH” button
10 : "loop" button
11 : "rainbow" button
12 : time
13 : Weather station low battery indicator
14 : Indoor temperature and humidity
15 : Remote sensor low battery indicator
16 : Outdoor temperature and humidity
17: Weather forecast symbol
18: Barometric pressure trend display
19: Ice alert icon
20: Time DST icon
21: Radio Controlled Icon

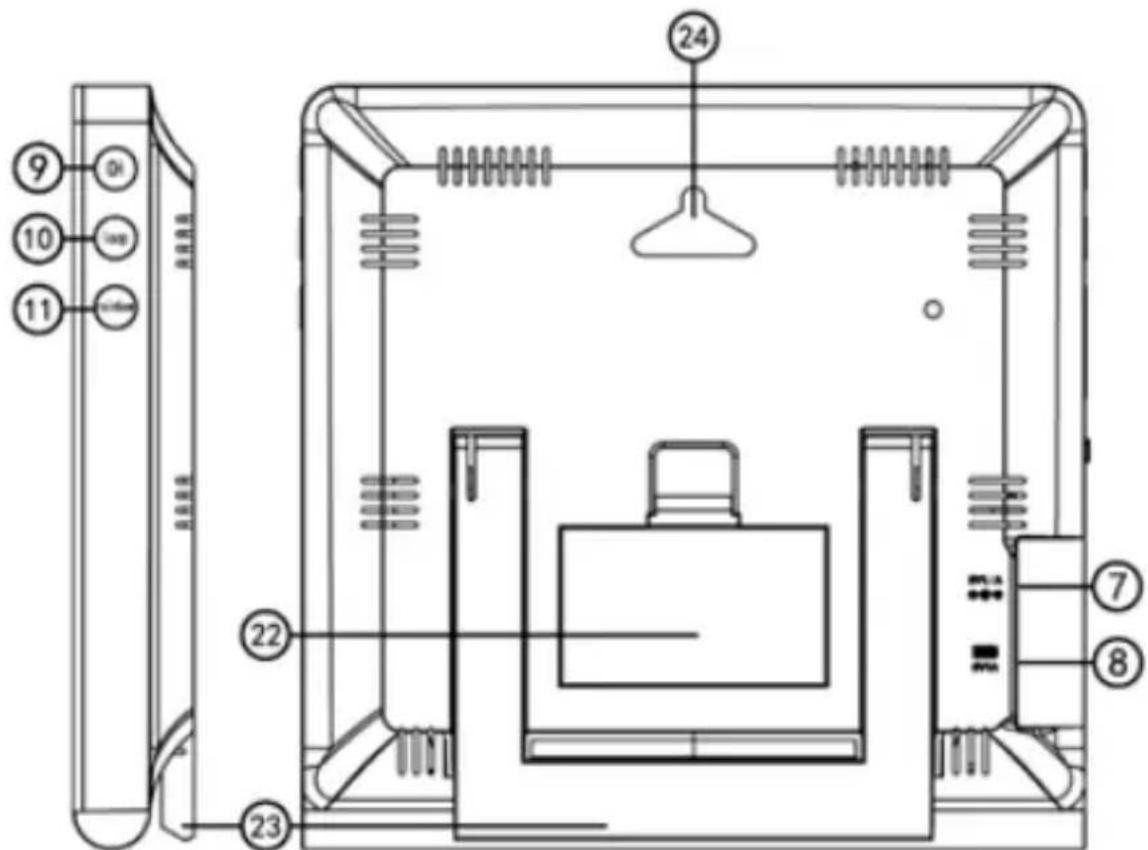

22: Battery compartment cover
23: Stand
24: Wall mounting hole

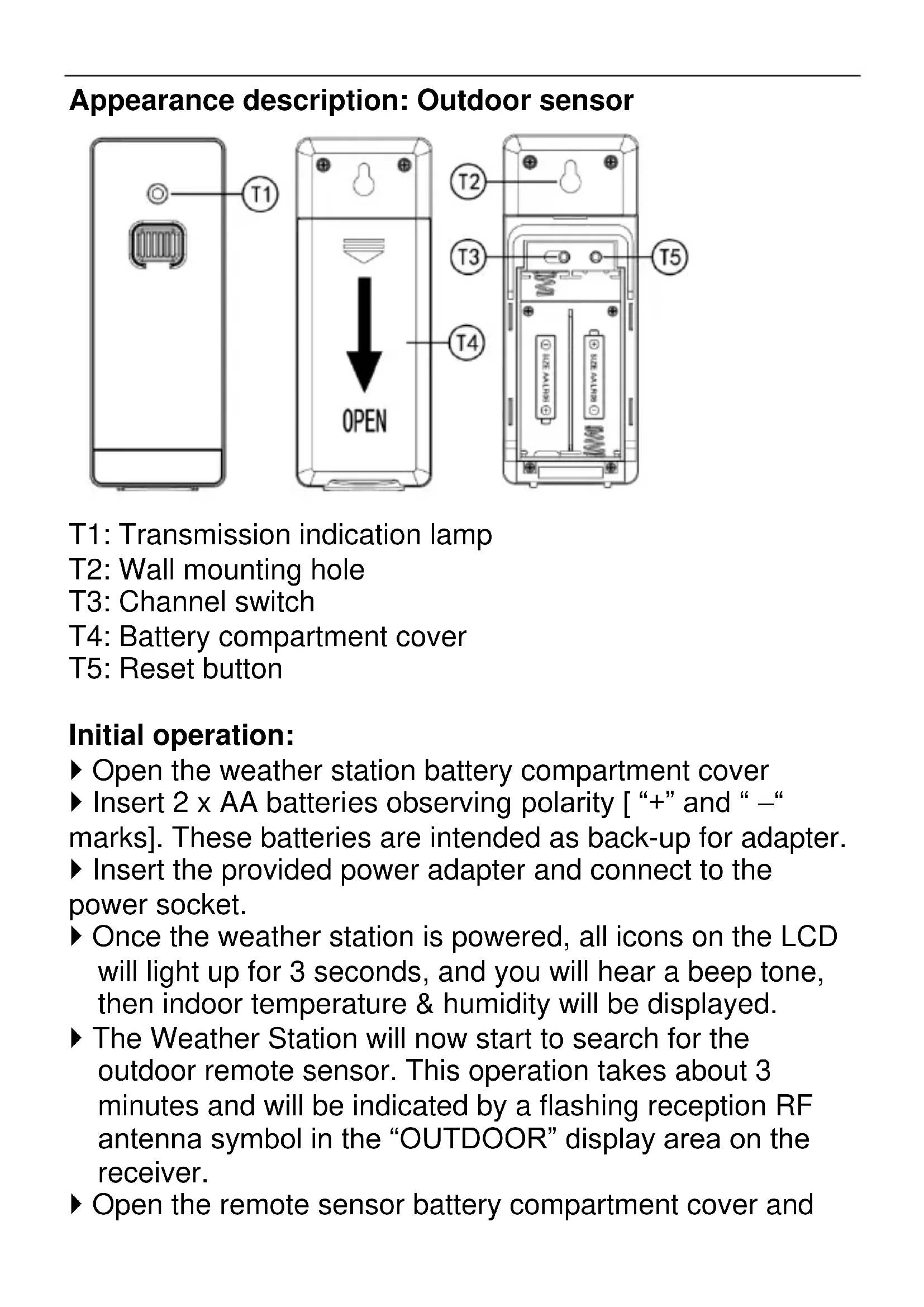

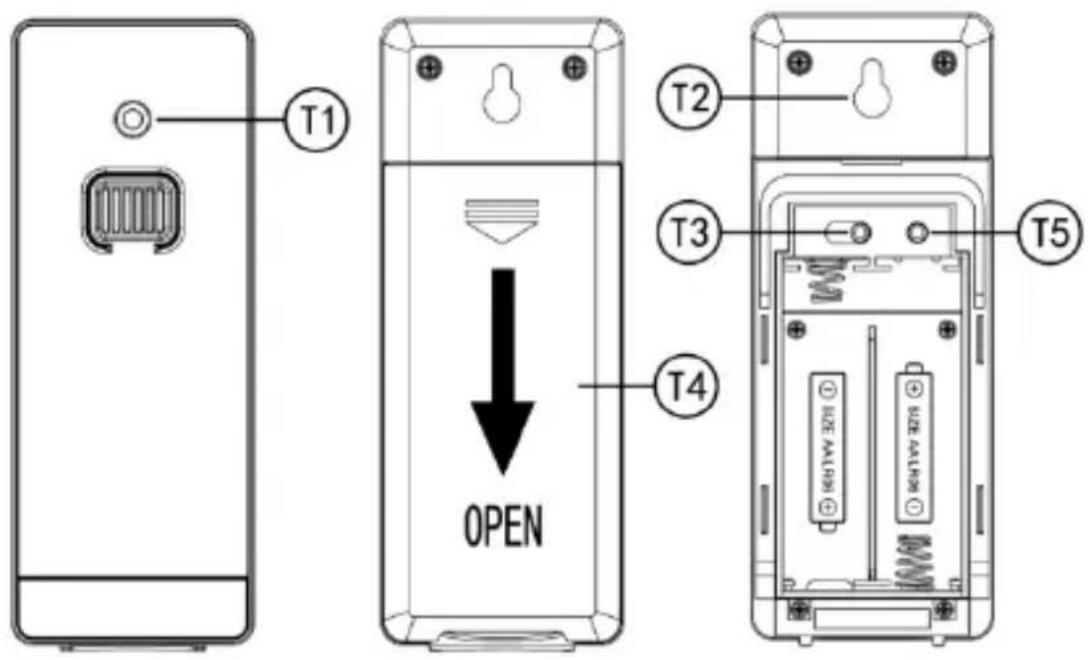

Appearance description: Outdoor sensor

T1 OPEN T2 T3 T4 T5

T1: Transmission indication lamp
T2: Wall mounting hole
T3: Channel switch
T4: Battery compartment cover
T5: Reset button

Initial operation:

• Open the weather station battery compartment cover
• Insert 2 x AA batteries observing polarity [ “+” and “ -” marks]. These batteries are intended as back-up for adapter.
  ▶ Insert the provided power adapter and connect to the power socket.
  ▶ Once the weather station is powered, all icons on the LCD will light up for 3 seconds, and you will hear a beep tone, then indoor temperature & humidity will be displayed.
  The Weather Station will now start to search for the outdoor remote sensor. This operation takes about 3 minutes and will be indicated by a flashing reception RF antenna symbol in the “OUTDOOR” display area on the receiver.
  ▶ Open the remote sensor battery compartment cover and

insert 2 x AA batteries observing polarity [ “+” and “-” marks]

▶ After receiver has received the outdoor remote sensor, it will enter the radio controlled time reception mode.

Reception of the Radio signal:

The clock will automatically search the DCF signal after 3 minutes of any restart or changing of new fresh batteries. The radio mast icon starts to flash.
▶ At 1:00 /2:00 / 3:00 AM, the clock automatically carries out the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the clock will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to total 5 times.
▶ To start manual DCF signal reception, press and hold the "Wave" button for two seconds. If no signals received within 7 minutes, then the DCF signal search stops (the radio mast icon disappears) and start again at the next full one hour.
▶ During DCF reception, to stop searching radio signal, press the “Wave” button once.

Please note:

▶ A flashing radio mast icon indicates that the DCF signal reception has started
▶ A continuously displayed radio mast icon indicates that the DCF signal was received successfully
▶ We recommend a minimum distance of 2.5 meters (8.2Feet) to all sources of interference, such as televisions or computer monitors or switching power adapter.
▶ When receiving the DCF radio wave, it will automatically turn off the USB charging and backlight.

▶ Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
During the RC receive mode, only the "Light/snooze" and "Wave" buttons have a function, other buttons are not functional. If you want to use other functions, please press "Wave" button to exit the DCF reception mode.

Manual time setting:

▶ Press and hold the “mode” button for 2 seconds, the temperature unit starts to flash. Press the “+” and “-” buttons to set the temperature unit to °C or °F.
▶ Press the “mode” button to confirm your setting, 12/24HR start to flash. Press the “+” and “-” buttons to set 12 or 24 hour mode.
▶ Press the “mode” button to confirm your setting, the time zone starts to flash, Press the “+” and “-” buttons set a time zone (-12 to +12).
▶ Press the “mode” button to confirm your setting, the hour display starts to flash. Press the “+” and “-” buttons to set the hour.
▶ Press the “mode” button to confirm your setting, the minute display starts to flash. Press the “+” and “-” buttons to set the minute.
▶ Press the “mode” button to confirm your setting, the weather forecast starts to flash. Press the “+” and “-” buttons to select the current weather.
▶ Press the “mode” button to confirm your setting and to end the setting procedures, the clock automatically returns to the normal time mode.

Please note:

▶ If there is no valid operation within 20 seconds, the clock automatically returns to the normal time mode.

Alarm setting

▶ Push the “AL” switch to the "on" position, the LCD displays the “icon. At the same time issued BI-BI sound (Except for RC), the alarm function is ON. Push the “AL” switch to the "off" position, the “icon will disappears from the display, the alarm function is OFF.

▶ Press the “mode” button once and the LCD displays alarm time. Press and hold the “mode” button for 2 seconds until hour of the alarm time starts to flash. Press the “+” and “-” buttons to set the hour.

▶ Press the “mode” button to confirm your setting, The Minute of the Alarm time starts to flash. Press the “+” and “-” buttons to set the minute.

▶ Press the “mode” button to confirm your setting, the snooze time starts to flash. Press the “+” and “-” buttons to set the snooze duration from 1-60 minutes.

▶ Press the “mode” button to confirm your setting and to end the setting procedure.

Please note:

▶ If there is no valid operation within 20 seconds, the clock automatically returns to the normal time mode.
The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
▶ Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Switching off the alarm signal

- When the alarm is ringing, press any button except the "Light/snooze" button to stop the alarm signal. It is not necessary to reactivate the alarm. It will ring again this time next day.

Snooze function

When the alarm is ringing, touch the “Light/snooze” button the alarm mode will to get to SNOOZE mode. The alarm signal sounds again after the set snooze duration.

RF Transmission Procedure

▶ The weather station automatically starts receiving transmission from outdoor thermo sensor for outdoor temperature & humidity after batteries inserted.

▶ The remote sensor will automatically transmit temperature and humidity signal to the weather station after batteries inserted.

If the weather station failed to receive transmission from outdoor sensor (“- -.-” display on the LCD), press and hold the “CH” button for 3 seconds to receive transmission manually. RF icon flashes on the LCD, The weather station starts to receive the remote sensor.

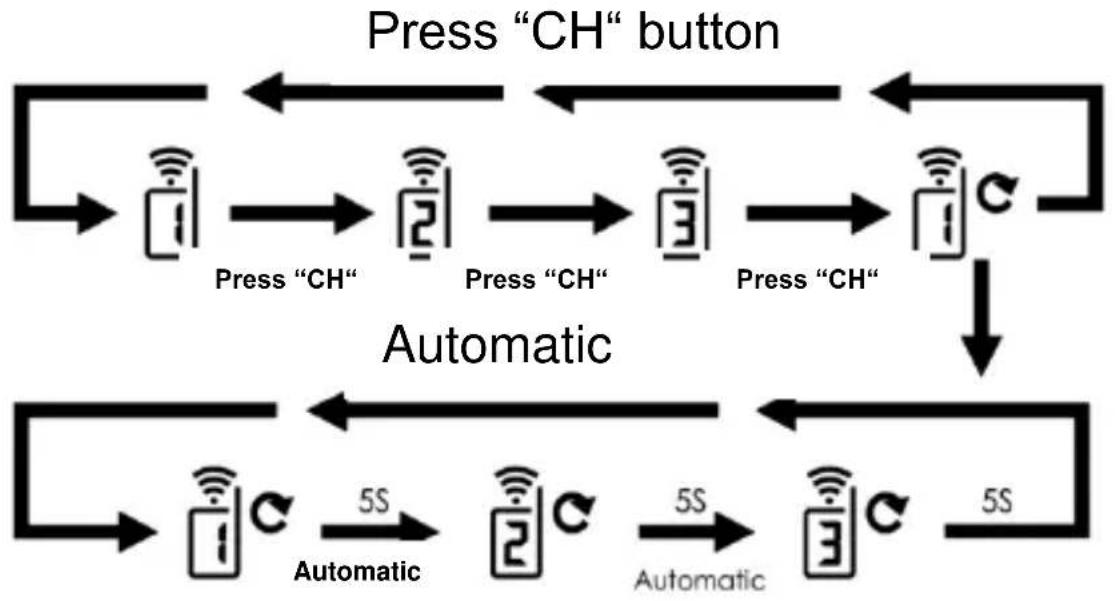

If the weather station receives 2 or 3 transmitters signals, press the “CH” button to select CH2, CH3 data or cyclic display. The channel switch on the back of the transmitter must be set to a number that fits the desired channel.

Maximum/minimum values

▶Press the “MEM” button once, the LCD will display maximum value of temperature/humidity. The LCD will display the minimum value of temperature/humidity if press once “MEM” button again after the maximum value is displayed.

▶ At the same time, there are “MAX” or “MIN” displayed on the LCD.
The temperature/humidity maximum/minimum value can be reset by pressing and holding the “MEM” button for 3 seconds.

Please note:

▶ If the temperature reading is below the measuring ranges, LL.L will be displayed. If the temperature reading is above the measuring ranges, HH.H will be displayed.

Ice alert

The ice alert symbol appears and flashing when the outdoor temperature at -1^ to +2.9^ or +30.2^ to +37.2^ .

Weather forecasting function

The weather forecast is calculated from evaluation of fluctuations in the barometric pressure and may deviate from the actual weather conditions.
▶ The weather station displays the following weather symbols:

Sunny
Slightly cloudy
Cloudy
Rainy
Heavy rain
Snowy

The weather symbols indicate the probable weather over the next 8 hours and not the current weather.

Background lighting

▶ In battery powered mode, touch the “Light/snooze” button and the backlight illuminates for 8 seconds.

▶ Press the “rainbow” button to set different backlight colors, Change one color every time you press it, there are 8 kinds: white, red, orange, yellow, green, cyan, blue and purple.
▶ In adapter powered mode, press the “-” button to adjust the brightness of the backlight, press the “rainbow” button to set different backlight colors.
▶ Press the “loop” button, the backlight color will evolve slowly, when evolving to your favorite color, press “loop” button again to stay in this color.

USB Charging Function :

▶ The USB socket on the back of the main device provides DC 5V 1A output power for handheld mobile device charging.

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
  • inside moving vehicles
  Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and

environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

Description : Station

23:45 21 20 25.68% -9.85% 19 18 17 16 15 14 13 12 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑩ SOS REF + - SOS SOS SOS SOS

Technical diagram of a device interior with numbered components and labeled parts

1: Touche tactile «rétroéclairage/rappel d'alarme»

2: Touche « MODE »

3: Touche «MEM»

4: Touche « + »

5: Touche «-/Wave»

6: Commutateur Activer/Désactiver l'alarme

T1 OPEN T2 T3 T4 T5

Technical diagram of a device interior with numbered components and labeled parts

T1 OPEN T2 T3 T4 T5

T1 OPEN T2 T3 T4 T5

T1 OPEN T2 T3 T4 T5

T1 OPEN T2 T3 T4 T5

Technical diagram of a device interior with numbered components and labeled parts

T1 OPEN T2 T3 T4 T5
