MSZEF42VGKS - Air Conditioning MITSUBISHI - Free user manual and instructions

Brand	Mitsubishi
Model	MSZEF42VGKS
Product type	Split air conditioner
Power supply	~ / N, 230 V, 50 Hz
Cooling capacity	4.2 kW
Heating capacity	5.4 kW
Power consumption (cooling)	1.200 kW
Power consumption (heating)	1.455 kW
Refrigerant	R32, 0.74 kg
Indoor unit weight	11.5 kg
Outdoor unit weight	35 kg
Indoor sound level (cooling)	42/36/29/23/19 dB(A) (Very high/Quiet)
Indoor sound level (heating)	45/37/29/24/21 dB(A) (Very high/Quiet)
Outdoor sound level	49 dB(A)
Main functions	Cooling, heating, ventilation, dehumidification, ECO mode, weekly timer, i-saving, built-in Wi-Fi
Maintenance	Filter cleaning every 2 weeks; ionized silver air purifying filter every 3 months, annual replacement
Safety	Residual current circuit breaker, refrigerant leak protection, automatic shut-off in case of malfunction
Spare parts	Air filter (MAC-2370FT-B), air purifying filter (MAC-2370FT-E)
General information	Built-in Wi-Fi interface, MELCloud compatibility, max pressure 4.17 MPa

Frequently Asked Questions - MSZEF42VGKS MITSUBISHI

How to install the air conditioner?

Installation must be carried out by an authorized dealer. Never attempt to install the unit yourself. A dedicated electrical circuit and proper grounding are mandatory.

What to do if the air conditioner does not cool?

First check the air filters: if they are dirty, clean them. Make sure the set temperature is lower than the room temperature. If the problem persists, turn off the power and contact a professional.

How often to clean the filters?

The air filter should be cleaned every 2 weeks. The ionized silver air purifying filter is cleaned every 3 months and replaced annually (ref. MAC-2370FT-B).

How to use the Wi-Fi function?

The built-in Wi-Fi interface (type VGK) allows you to control the air conditioner via MELCloud. Connect the interface to your router following the provided setup guide. Visit www.melcloud.com for more information.

What does the flashing of the operation indicator mean?

Flashing indicates a malfunction. Immediately stop the air conditioner, disconnect the power, and contact your authorized dealer. Do not attempt to repair it yourself.

How to set the weekly timer?

Press the WEEKLY button on the remote control to enter setting mode. Use the navigation buttons to select the desired day, time, and temperature. Confirm with SET. Activate the timer by pressing WEEKLY again.

What refrigerant does this unit use?

This unit uses refrigerant R32, with a charge of 0.74 kg. R32 is flammable. In case of leakage, ventilate the room and contact a professional.

How to replace the remote control batteries?

Open the battery compartment at the back of the remote control. Replace used batteries with new ones of the same type (AAA). Do not mix old and new batteries. Observe polarity.

What to do in case of water leakage from the indoor unit?

Immediately stop the air conditioner and turn off the power. A leak may be due to a dirty filter or a clogged drain. Contact an authorized dealer for inspection and repair.

How to activate ECO mode?

Press the ECONO COOL button on the remote control. The microprocessor automatically adjusts the temperature and airflow direction to reduce energy consumption while maintaining comfort.

USER MANUAL MSZEF42VGKS MITSUBISHI

SPLIT-TYPE AIR CONDITIONERS

INDOOR UNIT

MSZ-EF18VGW	MSZ-EF22VGW	MSZ-EF25VGW	MSZ-EF35VGW	MSZ-EF42VGW	MSZ-EF50VGW
MSZ-EF18VGB	MSZ-EF22VGB	MSZ-EF25VGB	MSZ-EF35VGB	MSZ-EF42VGB	MSZ-EF50VGB
MSZ-EF18VGS	MSZ-EF22VGS	MSZ-EF25VGS	MSZ-EF35VGS	MSZ-EF42VGS	MSZ-EF50VGS
MSZ-EF18VGKW	MSZ-EF22VGKW	MSZ-EF25VGKW	MSZ-EF35VGKW	MSZ-EF42VGKW	MSZ-EF50VGKW
MSZ-EF18VGKB	MSZ-EF22VGKB	MSZ-EF25VGKB	MSZ-EF35VGKB	MSZ-EF42VGKB	MSZ-EF50VGKB
MSZ-EF18VGKS	MSZ-EF22VGKS	MSZ-EF25VGKS	MSZ-EF35VGKS	MSZ-EF42VGKS	MSZ-EF50VGKS

OPERATING INSTRUCTIONS

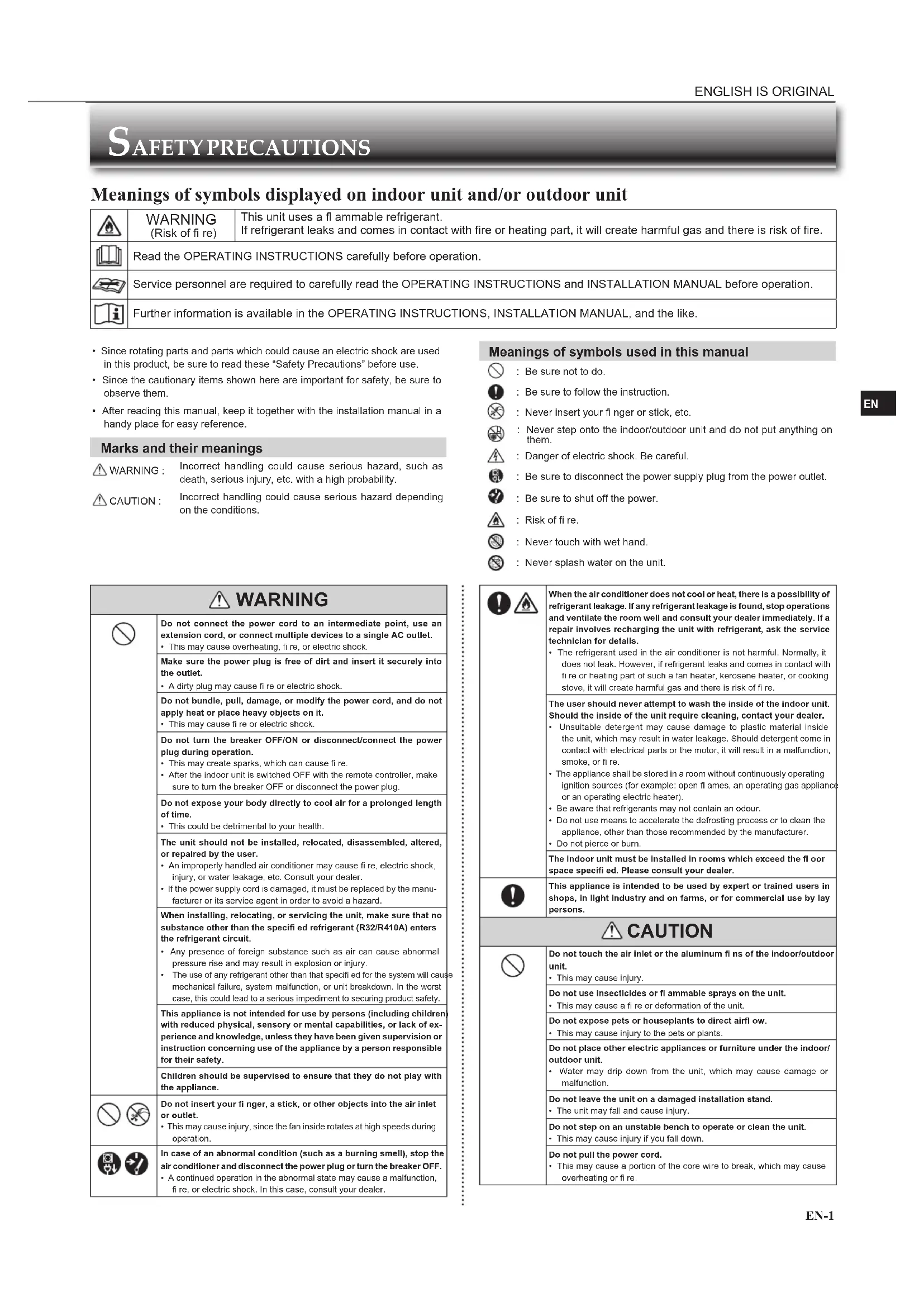

Meanings of symbols displayed on indoor unit and/or outdoor unit

WARNING (Risk of fire)	This unit uses a flammable refrigerant. If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
Read the OPERATING INSTRUCTIONS carefully before operation.
Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.
Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.

• Since rotating parts and parts which could cause an electric shock are used in this product, be sure to read these "Safety Precautions" before use.
• Since the cautionary items shown here are important for safety, be sure to observe them.
  After reading this manual, keep it together with the installation manual in a handy place for easy reference.

Marks and their meanings

WARNING:

Incorrect handling could cause serious hazard, such as death, serious injury, etc. with a high probability.

CAUTION:

Incorrect handling could cause serious hazard depending on the conditions.

WARNING
	Do not connect the power cord to an intermediate point, use an extension cord, or connect multiple devices to a single AC outlet. ·This may cause overhearing, fire, or electric shock.
	Make sure the power plug is free of dirt and insert it securely into the outlet. ·A dirty plug may cause fire or electric shock.
	Do not bundle, pull, damage, or modify the power cord, and do not apply heat or place heavy objects on it. ·This may cause fire or electric shock.
	Do not turn the breaker OFF/ON or disconnect/connect the power plug during operation. ·This may create sparks, which can cause fire. ·After the indoor unit is switched OFF with the remote controller, make sure to turn the breaker OFF or disconnect the power plug.
	Do not expose your body directly to cool air for a prolonged length of time. ·This could be detrimental to your health.
	The unit should not be installed, relocated, disassembled, altered, or repaired by the user. ·An improperly handled air conditioner may cause fire, electric shock, injury, or water leakage, etc. Consult your dealer. ·If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
	When installing, relocating, or servicing the unit, make sure that no substance other than the specified ed refrigerant (R32/R410A) enters the refrigerant circuit. ·Any presence of foreign substance such as air can cause abnormal pressure rise and may result in explosion or injury. ·The use of any refrigerant other than that specified ed for the system will cause mechanical failure, system malfunction, or unit breakdown. In the worst case, this could lead to a serious impediment to securing product safety.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or Instruction concerning use of the appliance by a person responsible for their safety.
	Children should be supervised to ensure that they do not play with the appliance.
	Do not insert your fnger, a stick, or other objects into the air inlet or outlet. ·This may cause injury, since the fan inside rotates at high speeds during operation.
	In case of an abnormal condition (such as a burning smell), stop the air conditioner and disconnect the power plug or turn the breaker OFF. ·A continued operation in the abnormal state may cause a malfunction, fire, or electric shock. In this case, consult your dealer.

Meanings of symbols used in this manual

:Be sure not to do.
: Be sure to follow the instruction.
: Never insert your finger or stick, etc.
: Never step onto the indoor/outdoor unit and do not put anything on them.
A :Danger of electric shock.Be careful.
: Be sure to disconnect the power supply plug from the power outlet.
: Be sure to shut off the power.
A : Risk of fire.
: Never touch with wet hand.
: Never splash water on the unit.

When the air conditioner does not cool or heat, there is a possibility of refrigerant leakage. If any refrigerant leakage is found, stop operations and ventilate the room well and consult your dealer immediately. If a repair involves recharging the unit with refrigerant, ask the service technician for details. · The refrigerant used in the air conditioner is not harmful. Normally, it does not leak. However, if refrigerant leaks and comes in contact with fl re or heating part of such a fan heater, kerosene heater, or cooking stove, it will create harmful gas and there is risk of fl re.

The user should never attempt to wash the inside of the Indoor unit. Should the inside of the unit require cleaning, contact your dealer. · Unsuitable detergent may cause damage to plastic material inside the unit, which may result in water leakage. Should detergent come in contact with electrical parts or the motor, it will result in a malfunction, smoke, or fi re. · The appliance shall be stored in a room without continuously operating ignition sources (for example: open fl ames, an operating gas appliance or an operating electric heater). · Be aware that refrigerants may not contain an odour. · Do not use means to accelerate the defrosting process or to clean the appliance, other than those recommended by the manufacturer. · Do not pierce or burn.

The Indoor unit must be Installed in rooms which exceed the fl oor space speci ed. Please consult your dealer.

This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

CAUTION

Do not touch the air inlet or the aluminum fins of the indoor/outdoor unit. · This may cause injury.

Do not use insecticides or fl ammable sprays on the unit. · This may cause a fi re or deformation of the unit.

Do not expose pets or houseplants to direct airflow. · This may cause injury to the pets or plants.

Do not place other electric appliances or furniture under the Indoor/outdoor unit. · Water may drip down from the unit, which may cause damage or malfunction.

Do not leave the unit on a damaged installation stand. · The unit may fall and cause injury.

Do not step on an unstable bench to operate or clean the unit. · This may cause injury if you fall down.

Do not pull the power cord. · This may cause a portion of the core wire to break, which may cause overheating or fi re.

SAFETYPRECAUTIONS

Do not charge or disassemble the batteries, and do not throw them into a fire. - This may cause the batteries to leak, or cause a fire or explosion.

Do not operate the unit for more than 4 hours at high humidity (80% RH or more) and/or with windows or outside door left open. - This may cause the water condensation in the air conditioner, which may drip down, wetting or damaging the furniture. - The water condensation in the air conditioner may contribute to growth of fungi, such as mold.

Do not use the unit for special purposes, such as storing food, raising animals, growing plants, or preserving precision devices or art objects. - This may cause deterioration of quality, or harm to animals and plants.

Do not expose combustion appliances to direct airflow. - This may cause incomplete combustion.

Never put batteries in your mouth for any reason to avoid accidental ingestion. - Battery ingestion may cause choking and/or poisoning.

Before cleaning the unit, switch it OFF and disconnect the power plug or turn the breaker OFF. - This may cause injury, since the fan inside rotates at high speeds during operation.

When the unit will be unused for a long time, disconnect the power plug or turn the breaker OFF. - The unit may accumulate dirt, which may cause overheating or fire.

Replace all batteries of the remote controller with new ones of the same type. - Using an old battery together with a new one may cause overheating, leakage, or explosion.

If the battery fluid comes in contact with your skin or clothes, wash them thoroughly with clean water. - If the battery fluid comes in contact with your eyes, wash them thorough with clean water and immediately seek medical attention.

Ensure that the area is well-ventilated when the unit is operated together with a combustion appliance. - Inadequate ventilation may cause oxygen starvation.

Turn the breaker OFF when you hear thunder and there is a possibility of a lightning strike. - The unit may be damaged if lightning strikes.

After the air conditioner is used for several seasons, perform inspection and maintenance in addition to normal cleaning. - Dirt or dust in the unit may create an unpleasant odor, contribute to growth of fungi, such as mold, or clog the drain passage, and cause water to leak from the indoor unit. Consult your dealer for inspection and maintenance, which require specialized knowledge and skills.

Do not operate switches with wet hands. - This may cause electric shock.

Do not clean the air conditioner with water or place an object that contains water, such as a flower vase, on it. - This may cause fire or electric shock.

Do not step on or place any object on the outdoor unit. - This may cause injury if you or the object falls down.

IMPORTANT

Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.

Before starting the operation, ensure that the horizontal vanes are in the closed position. If operation starts when the horizontal vanes are in the open position, they may not return to the correct position.

For installation

WARNING
	Consult your dealer for installing the air conditioner. ·It should not be installed by the user since installation requires special-ized knowledge and skills. An improperly installed air conditioner may cause water leakage, fl re, or electric shock.
	Provide a dedicated power supply for the air conditioner. ·A non-dedicated power supply may cause overheating or fl re.
	Do not install the unit where fl ammable gas could leak. ·If gas leaks and accumulates around the outdoor unit, it may cause an explosion.
	Earth the unit correctly. ·Do not connect the earth wire to a gas pipe, water pipe, lightning rod, or a telephone earth wire. Improper earthing may cause electric shock.
CAUTION
	Install an earth leakage breaker depending on the installation location of the air conditioner (such as highly humid areas). ·If an earth leakage breaker is not installed, it may cause electric shock.
	Ensure that the drain water is properly drained. ·If the drain passage is improper, water may drip down from the Indoor/outdoor unit, wetting and damaging the furniture.
In case of an abnormal condition Immediately stop operating the air conditioner and consult your dealer.

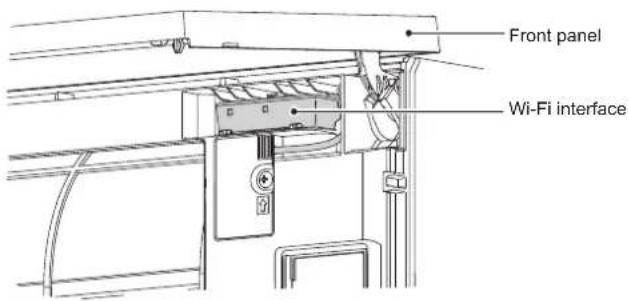

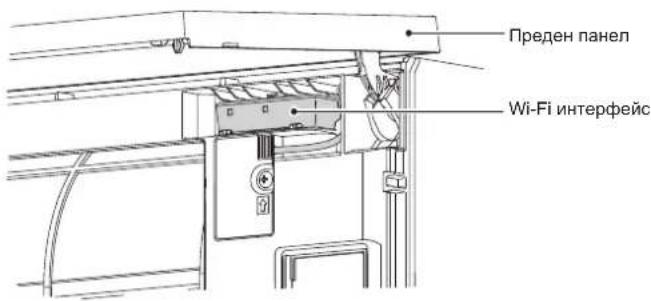

For Wi-Fi interface

WARNING (Improper handling may have serious consequences, including serious injury or death.)
	This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi-sion or Instruction concerning use of the appliance in a safe way and understand the hazards involved.
	Children shall not play with the appliance. Cleaning and user mainte-nance shall not be made by children without supervision.
	Do not use the Wi-Fi interface nearby the medical electrical equipment or people who have a medical device such as a cardiac pacemaker or an implantable cardioverter-defi brillator. • It can cause an accident due to malfunctions of the medical equipment or device.
	Do not install the Wi-Fi interface nearby the automatic control devices such as automatic doors or fi re alarms. • It can cause accidents due to malfunctions.
	Do not touch the Wi-Fi interface with wet hands. • It can cause damage to the device, electric shock, or fi re.
	Do not splash water on the Wi-Fi interface or use it in a bathroom. • It can cause damage to the device, electric shock, or fi re.
	When the Wi-Fi interface is dropped, or the holder or cable is damaged, disconnect the power supply plug or turn the breaker OFF. • It may cause fi re or electric shock. In this case, consult your dealer.
CAUTION (Improper handling may have consequences, including injury or damage to building.)
	Do not step on unstable stepp stool to set up or clean the Wi-Fi interface. • It may cause injury if you fall down.
	Do not use the Wi-Fi Interface nearby other wireless devices, micro- waves, cordless phones, or facsimiles. • It can cause malfunctions.

DISPOSAL

Fig. 1

To dispose of this product, consult your dealer.

Note:

This symbol mark is for EU countries only. This symbol mark is according to the directive 2012/19/ EU Article 14 Information for users and Annex IX, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

If a chemical symbol is printed beneath the symbol (Fig. 1), this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:

Hg: mercury (0.0005%) Cd: cadmium (0.002%) Pb: lead (0.004%) In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators.

Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

NAME OF EACH PART

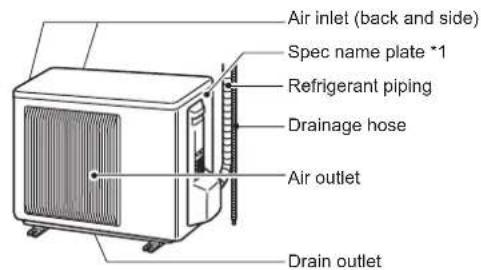

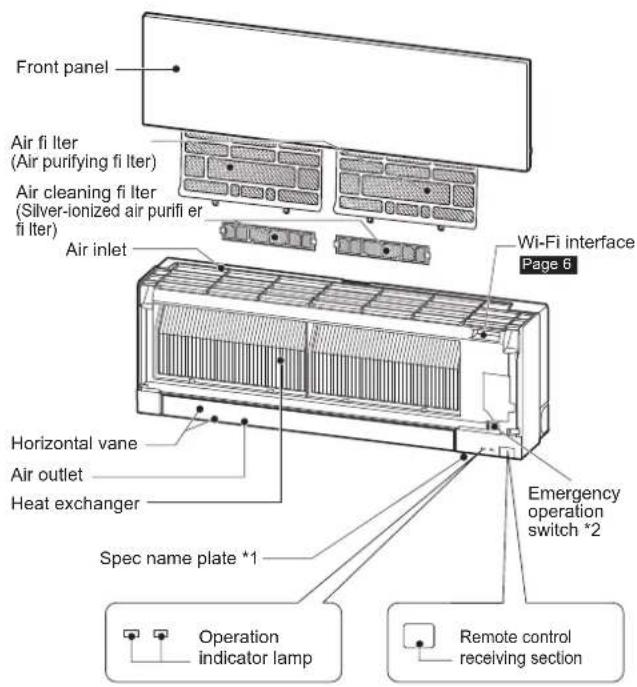

Indoor unit Outdoor unit

Outdoor units may be different in appearance.
*1 The manufacturing year and month are indicated on the spec name plate.

*2 When the remote controller cannot be used...

Emergency operation can be activated by pressing the emergency operation switch (E.O. SW) on the indoor unit.

Each time the E.O. SW is pressed, the operation changes in the following order:

Set temperature: 24^
Fan speed : Medium
Horizontal vane : Auto

PREPARATIONBEFOREOPERATION

Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.

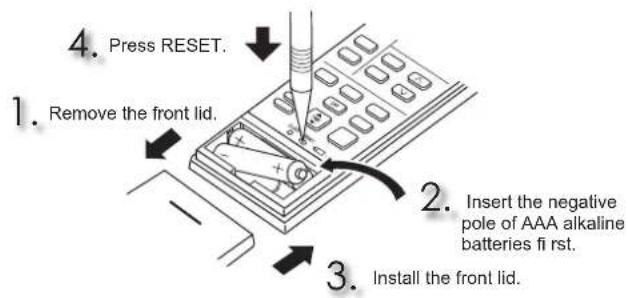

Installing the remote controller batteries

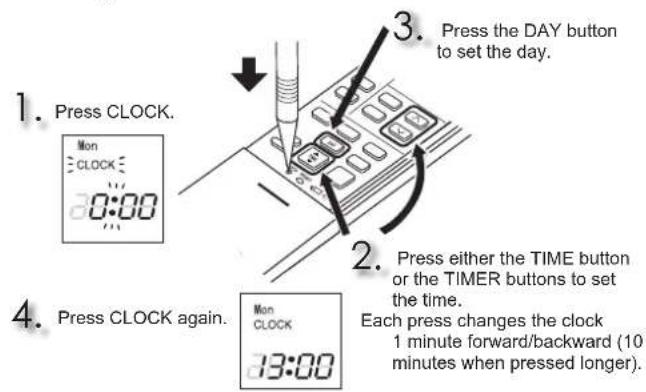

Setting current time

PREPARATIONBEFOREOPERATION

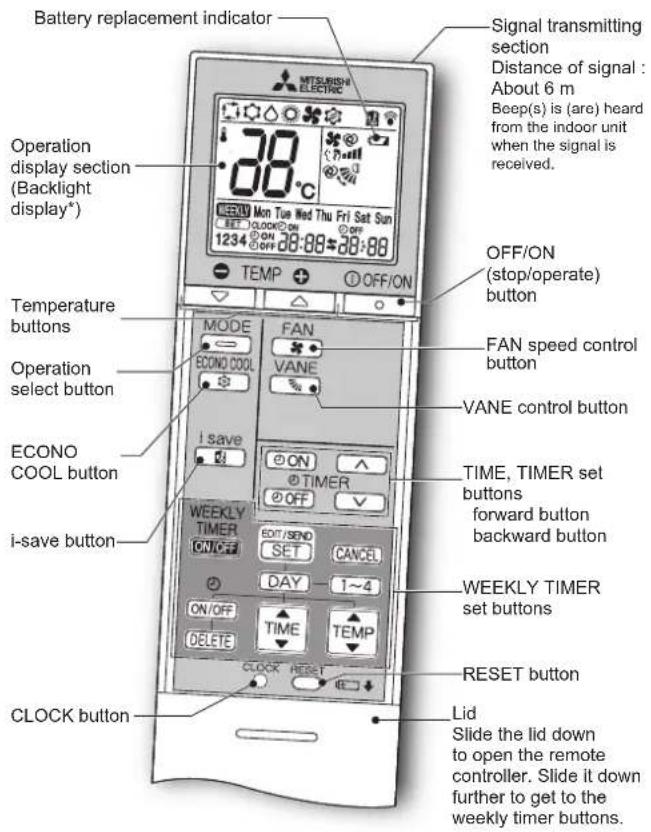

Remote controller

* The backlight turns on when using the remote controller.
The backlight goes off if the remote controller is not used for a while.

Only use the remote controller provided with the unit.
Do not use other remote controllers.
If 2 or more indoor units are installed in proximity to one another, an indoor unit that is not intended to be operated may respond to the remote controller.

TIME, TIMER set button

Change the time forward/backward ON (ON timer) : The unit turns ON at the set time. OFF (OFF timer) : The unit turns OFF at the set time.

Press (forward) and (backward) to set the time of timer.

WEEKLY TIMER set buttons

Press Enter the weekly timer setting mode.

Press DAY and to Select setting day and number.

Press ON/OFF and to set ON/OFF, time, and temperature.

Press SET to complete and transmit the weekly timer setting.

PRESS WEEKLY TIMER TO turn the weekly timer ON. ( WEEKLY lights.)

Press WEEKLY again to turn the weekly timer OFF. ( WEEKLY goes out.)

OFF/ON (stop/operate) button

Operation select button

Temperature buttons

Each press raises or lowers the temperature by 1^

FAN speed control button

Up-down airflow control button

Left-right airflow direction

Move the vertical vane manually before starting operation.

i-saving button

A simplified set back function enables to recall the preferred (preset) setting with a single push of the save button. Press the button again and you can go back to the previous setting in an instance.

ECONO COOL button

The set temperature and the airflow direction are automatically changed by the microprocessor.

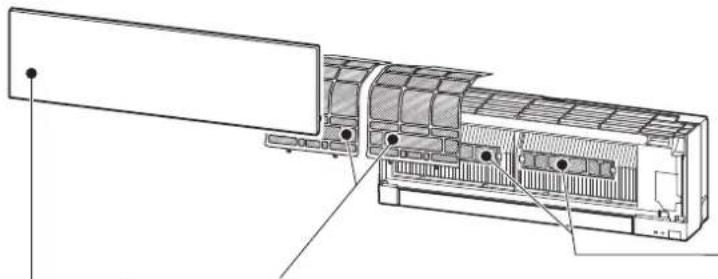

Instructions:

• Switch off the power supply or turn off the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.
• Do not use benzine, thinner, polishing powder, or insecticide.
• Use only diluted mild detergents.

• Do not use a scrubbing brush, a hard sponge, or the like.

• Do not soak or rinse the horizontal vane.

• Do not use water hotter than 50^ .

• Do not expose parts to direct sunlight, heat, or fire to dry.
• Do not apply excessive force on the fan as it may cause cracks or breakage.

Air fi lter (Air purifying fi lter)

• Remove dirt by a vacuum cleaner, or rinse with water.
  After washing with water, dry it well in shade.

Front panel

Air cleaning fi lter (Silver-ionized air purifi er fi lter)

Every 3 months:

• Remove dirt by a vacuum cleaner.
  When dirt cannot be removed by vacuum cleaning:
  Soak the filter and its frame in lukewarm water before rinsing it.
  After washing, dry it well in shade. Install all tabs of the air filter.

Every year:

• Replace it with a new air cleaning
  fi lter for best performance
• Parts Number

Pull to remove from the air filter

1. Lift the front panel until a "click" is heard.
2. Close the front panel securely and press the positions indicated by the arrows.

3. Clean the front panel without detaching it from the unit.

4. Wipe with a soft dry cloth. A dedicated soft dry cloth is only provided with MSZ-EF**VGB type.

5. Use the dedicated SOFT DRY CLOTH. Parts Number

6. Do not soak the front panel in water.

7. Clean the fl iters regularly for best performance and to reduce power consumption.

8. Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.

9. The surface of the indoor unit is easily scratched, so never rub or hit the unit with something hard. Also, when installing or removing the front panel, handle it with care to prevent scratches on it.

10. Do not use abrasive cleaner to prevent scratches on the surface of the Indoor unit.
11. It is very easy to get fingerprints on the surface of the indoor unit. When fingerprints are noticeable, gently wipe them off with a soft dry cloth.
12. When using a commercially available chemical impregnated cloth, follow its instructions.
13. Do not leave the front panel open for a prolonged time.

This information is based on REGULATION (EU) No 528/2012

MODEL NAME

Treated Article (Parts name)

Active Substances (CAS No.)

Property

Instruction for Use (Safe handling information)

MSZ-EF18/22/25/35/42/50VGW

MSZ-EF18/22/25/35/42/50VGB

MSZ-EF18/22/25/35/42/50VGS

MSZ-EF18/22/25/35/42/50VGKW

MSZ-EF18/22/25/35/42/50VGKB

MSZ-EF18/22/25/35/42/50VGKS

FILTER

Silver zinc zeolite (130328-20-0) Silver sodium hydrogen zirconium phosphate (265647-11-8) 2-octyl-2H-isothiazol-3-one (OIT) (26530-20-1)

Antibacterial Antimold

• Use this product in line with the instruction manual indications and for the intended purpose only.
• Do not put into mouth. Keep away from children.

MAC-2370FT-E FILTER Silver zinc zeolite (130328-20-0) Antibacterial

• Use this product in line with the instruction manual indications and for the intended purpose only.
• Do not put into mouth. Keep away from children.

Wi-Fi INTERFACE SETTING UP (VGK type only)

This Wi-Fi interface, communicates the status information and controls the commands from the MELCloud by connecting to the indoor unit.

Note:

• Set up a connection between the Wi-Fi interface and the Router. Refer to the SETUP MANUAL and SETUP QUICK REFERENCE GUIDE provided with the unit.
• For SETUP MANUAL, please go to the website below.
  http://www.melcloud.com/Support
  For MELCloud User Manual, please go to the website below. http://www.melcloud.com/Support

SPECIFICATIONS

Model	Set name		— MSZ-EF25VG(H) MSZ-EF35VG(H) MSZ-EF42VG MSZ-EF50VG
	Indoor		MSZ-EF18VG(K)(W/B/S)MSZ-EF22VG(K)(W/B/S)		MSZ-EF25VG(K)(W/B/S)		MSZ-EF35VG(K)(W/B/S)	MSZ-EF42VG(K)(W/B/S)	MSZ-EF50VG(K)(W/B/S)
	Outdoor		—		MUZ-EF25VG(H)		MUZ-EF35VG(H)	MUZ-EF42VG	MUZ-EF50VG
Function			Cooling	Heating	Cooling	Heating	Cooling	Heating	Cooling	Heating	Cooling
Power supply			~/N, 230 V, 50 Hz
Capacity		kW	—	—	2.5	3.2	3.5	4.0	4.2	5.4	5.0
Input		kW	—	—	0.54	0.700	0.910	0.950	1.200	1.455	1.540
Weight	Indoor	kg	11.5
	Outdoor	kg	—		31		34		35		40
Refrigerant filling capacity (R32)		kg	—		0.62		0.74		0.74		1.05
IP code	Indoor		IP 20
	Outdoor		—		IP 24
Permissible excessive operating pressure	LP ps	MPa	—		2.77
	HP ps	MPa	4.17
Noise level (SPL)	Indoor(Super High/High/Med./Low/Silent)	dB(A)	42/36/29/23/19	45/37/29/24/21	42/36/29/23/19	45/37/29/24/21	42/36/30/24/21	46/38/30/24/21	43/39/35/31/28	48/41/35/30/28	43/40/36/33/30
	Outdoor	dB(A)	—		47	48	49	50	50	51	52

Indoor specification for multi connection REGULATION (EU) 2016/2281

Model	Indoor			MSZ-EF18 VG(K) (W/B/S)	MSZ-EF22VG(K) (W/B/S)	MSZ-EF25VG(K) (W/B/S)	MSZ-EF35VG(K) (W/B/S)	MSZ-EF42VG(K) (W/B/S)	MSZ-EF50 VG(K) (W/B/S)
Capacity	Cooling	Sensible	kW	1.72	2.04	2.30	2.80	3.02	3.55
		Latent	kW	0.08	0.16	0.20	0.70	1.18	1.45
	Heating		kW	2.10	2.50	2.90	4.00	4.80	5.70
Input			kW	0.027	0.027	0.027	0.031	0.031	0.034
Noise level (Sound power level)	Super High/High/Med./ Low/Silent		dB(A)	60/54/47/41/39	60/54/47/41/39	60/54/47/41/39	60/54/47/42/39	60/57/53/49/46	60/57/53/50/47

Guaranteed operating range

		Indoor	Outdoor
			MUZ-EF25/35/42/50VG	MUZ-EF25/35VGH
Cooling	Upper limit	32°C DB	46°C DB	46°C DB
		23°C WB	-	-
	Lower limit	21°C DB	-10°C DB	-10°C DB
		15°C WB	-	-
Heating	Upper limit	27°C DB	24°C DB	24°C DB
		-	18°C WB	18°C WB
	Lower limit	20°C DB	-15°C DB	-20°C DB
		-	-16°C WB	-21°C WB

DB: Dry Bulb
WB: Wet Bulb

Note:

1. Rating condition

Cooling - Indoor: 27^ DB, 19^ WB

Outdoor: 35^ DB

Heating—Indoor: 20^ C DB

Outdoor: 7^ DB, 6^ WB

1. EF18/22 have no specific cations for single combination. These indoor models are only for multi system air conditioner.

As for the specific cations of multi system, please confirm your dealer and/or refer to the catalogue.

Wi-Fi interface

Model	MAC-577IF2-E
Input Voltage	DC12.7 V (from indoor unit)
Power consumption	MAX. 2 W
Size H×W×D (mm)	73.5×41.5×18.5
Weight (g)	46 (including cable)
Transmitter power level (MAX.) 20 dBm @IEEE 802.11b
RF channel	1ch ~ 13ch (2412~2472 MHz)
Radio protocol	IEEE 802.11b/g/n (20)
Encryption	AES
Authentication	WPA2-PSK
Software Version	XX.00

For Declaration of Conformity, please go to the website below.
http://www.melcloud.com/Support

WHEN YOU THINK THAT TROUBLE HAS OCCURRED

In the following cases, stop using the air conditioner and consult your dealer.

• When water leaks or drips from the indoor unit.
• When the operation indicator lamp blinks
• When the breaker trips frequently.
• The remote control signal is not received in a room where an electronic ON/OFF type fluorescent lamp (inverter-type fluorescent lamp, etc.) is used.
  Operation of the air conditioner interferes with radio or TV reception. An amplifier may be required for the affected device.
• When an abnormal sound is heard.
• When any refrigerant leakage is found.

VORSICHTSMASSNAHMEN

Touche Arret/Marche (OFF/ON)

(AUTO) (COOL) (DRY) (HEAT) (FAN)

Temperatuurtoetsen

(AUTO) (Stil) (Laag) (Medium) (Hoog) (Superhoog)

http://www.melcloud.com/Support

OPLOSSEN VAN PROBLEMEN

Calefaction Interior: 20^

Exterior: 7^ DB, 6^ WB

βaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaII
ApiuocEgaptnauw

MAC-2370FT-E

TpaBnEto yia va to apalpeTe aTo ro pIpto aepa

Σημαντικό

Kaapige Taikka Ta qiaIpa yia baiotn ano0on kai peiwn ts katavawos pupatos.
Ta bpwika qipatpa npokalouv ouptukwn vepou oTo eowtrepiko tou kaiiatotikou, no onoi ta ouaaale otny avantuunmuhtaw, otws nouxla. r' auto ouanvtetai va kathetaierte ta qipatpa aepa kae 2 eBdoape6.

AUTEC OI TIInpoopopiec 8aaiocovtai oTov KANONIIMO (EE) Ap. 528/2012

http://www.melcloud.com/Support

OTAN NOMIZETE OTI YIIAP-XEIKAIIOIO IPOBAHMA

Ttnapakatwepinnwoeic,biakoyte n aeitoupyia tou kaipatiotikou kai oumbouauteite tov avtippoomegaoac.

• Otav utrappel diappon vepou ano Tnv eoTepikn pova
• Otav aαβoβηνει η ενδεικτίκλuxvia λειούργιας.
• Otav o biakontnT nEpteouxva
  To nua Tou nIeipioTnpou Dev lauavetai ae xuo otou xpnaotoeiata nIeptovikos aatttnpac oepoiou turou ON/OFF (aunmpac oepoiou ou me euaynnanaTt, knt.).
  H AIEOTUPOYIA TOU KAIJATOTIKO TPOKAeI TapeuBOeC ttn paiooWvki n TneotTTKAn. MTIOpei va ataTeiTa EykaTcTaon EvoxTuvi Tn oukeur TTOU INPedaETAI.
• OtavakouyetaevacauvntoTOxOc
• Otav diattiotawetai tuxov diappon yuktiokou.

PRECAUÇOES DE SEGURANÇA

Significado dos símbolos presentados naunities interior e/ouunities exterior

DESIGNACAO DAS PEÇAS

Garanteret operationsomrade

http://www.melcloud.com/Support

NÄR DU TROR ATT DET HAR UPPSTÄTT PROBLEMV

BcKaHOHaTnCKaHe NOBnJaBA NnN NoHnKaBA TempePaTa c 1^

Bytoh 3a ynpablenHeCKOpocTtHa BeHTnlaToPA

Bytoh 3a perynpahe Ha Bb3dyuHnna notok rope-dony

PerynipaHe Ha B3dyuHnI NOtOK HAnBaHO-HaJrCHO

IpemecTepeHOBepTKKaHATAaMaEaIpeINBKnIOBaHeHa paOteH peKIM.

Bytoh 3a fynK- zna i save

OnpocHeHa yHKUa 3a Bb3ctAHOBBaHe Ha npedno- nHTAHTE npedBapInTeHNO 3aJaDeEHn HAcTPOKn MOKe Da 6bJe AKTNBpuHa C eJHO HAtNcKaHe Ha 6yToHa save. Pnp NOBTOPHo HAtNcKaHe Ha 6yToHa ue Ce BbPheTe KbM npeduHHTe HAcTPOKn

Byton 3aФункцECONOCOOL

3aadaenata TemnepaTpy Nocokata Ha Bb3dyHnnoTOK ce npomeHr ATOMaTHNO OT MKNpOpoecopa.

IOUHCTBAHE

Hnctpykuu:

• Ppei n oocTbaHe n3KnIOyTe 3axpaHbAHeTo nn npeKbcBaay.
  BHHMABaTe Da He DOKOCBaTe MetaHHTe Yactn CpIe.
  He n3noJ3BaIe 6eH3nH, pa3peiTEn, nonnpaunpax nnHnHnCEKTHU.
  3a nouHCTBaHe n3non3BaIte cAmO cna6n, pa3peHEn npenapatn
  He n3noJ3BaIe a6pa3nBHa YeTka, TBbpa r6a nn noo6eH npEMeT.

He hakcBaTe H He 3nnakBaTe XOpnOHTaHata NaMeHa
He n3non3BaIe Boga no-tonna ot 50^
- PnN 3cyuabaHe He 3naraHte YactMe HA Bb3eIcTBnETo Ha npka CbHHeBa CBETnHa, TOnnHa nnnnMbK.
He ynpaxhbaTe TBpIe rOJHM HATNCK Bbpxy BeHTnlaTopa, TbKATO TOBa MoKe Da DoBeDe Do HanyKBaHe Nm CuynBaHe.

Bb3dyuHnJITbP (ΦnJITbp 3a npceHCTBaHe Ha Bb3dYxa)

ToHCTBaIte Ha BcEKN 2 cedmua
- OTeTaHete 3aMbpcBaHeTo c npaxOcMyKaUka NnN N3MmTec BOda.
CneIIMMBAHe c BOa nOcCyWeTe DoBpe Ha CraHka.

PpeHnHeJ

1. NobdHHe TnpdHa naHEn, DOKaTo ce ue npakBaHe.
   2.3aTbOpTe npEHH naHEn cTa6nHIO n HATNCHeMeCTATA, 06o3HaueHN CbC CTpeKN.
2. NocTepeHnnaHn, 6e3 da ro cBaIaTe OT TAnOTo.

3a6bpuerte meka n cyxa kbpna.CneuHaMeKa, cyxa Kbpna ce npedocabra camo c TIN MSZ-EF**VGB.
- 3n0n3BaIte cneuaIaHata MEKA, CYXA KbPNA. Homep Ha qact MAC-1001CL-E
He notanrntne npednnaHn BbB Boda.

BaxHo

• NobbpxHocTtHa BbTpewHOTo TnO Ce HAppackBa JneHo, Taka Ye HNKORA He TbpKaHte Hc YudpAHTe TnOto C TbBpnpedMe. CbTo TaKa, npNocTabaHe mNn PmepMaXBe Ha NpeDnna NaHen, DpbXte ro BHMMATEHNO, 3a Da npDeOTbPaTHe HAppackBaHe.
  He n3n0an3BaTe a6paBHNbNoOpNTBaUmpnpePaT, 3a da nppeDToBpaTMe HApackBAHe NaOBbPxHocTt Ha BbTpewHOTo TIAO.
  NoobpXHOCTHa HbTpeHOTo Tnlo NcHooctabat OTneauTbum O npctn. Korato OTneauTbunte O npctn ca 3a6eNkMn, n Hs6bpwete BNmuTeNO C MeKa u Cyxa Kpbna.
• PnH 3nON3BaHe Na XmNueckMmNperHmpan NnAT OT TbproB cKaT A MpeK, CnEBAnte NnHTpyKuINMe MY.
  He octabrae Te peadnnaen OTbopen 3 npodjnxntenepnpoD O T BpeMe.

ΦHJTbp 3a IIpeuHCTBaHe Ha Bb3dYxa (ΦHJTbp cbc cpe6bprn HOnn 3a IIpeuHcTBAHe Ha Bb3dYxa)

Ha BCEKN 3 Meceua:

• OTepaHete 3aMbpcBaHaHcTo C npaxOcMyKaUka.

Korato 3ambpcahaHTo He MoKe da 6bde oTcpaHeo C npaXocMykaUkA:

Haknche Te nntbpa npamkata My B XnaKa Boga, npen da ro n3nnakhete.
CneH3MmBaHe ro noCywete do6pe Ha cHka. MoHTnpaTe BCnKHa TabeJIHK Ha pntbpa.

BcKa rOuHa:

3aMeHETe C HOB qnITb3a npeHCTBaHe Ha Bb3Dyxa 3a no-do6pa pa60ta.
HomepHaact MAC-2370FT-E

N3dbpnaIte,3a da npemaxheTeOT Bb3dyuHnHnФnTbp

BaxHo

• NocCTBaTepeoBHO qnntpnte,3a da npedctabT Hau-do6paTa cnpon3bOaTeHNOCTMaHaMaAInTe KOc CymauaTaHa eHeprHa.
  MpbcHNTe pHTnBODTdo KOHNHe3 B KINMaTHKa, KoTo DOpPnHaac 3a pa3BnHTeTO Ha Tb6NcK, KaTo MyXbI. 3aToBa c npenopb4ba pHTnTe Da ce NoYnCTBaT Ha BCEKn 2 CepMNt.

Ta3n INHOpMaunCe OCHOBaHa PEPNAEMT (EC) No 528/2012

ИМЕ HA MODEЛ

Третенians artnikuyи (Имe Ha chstn)

Актуни субтained (CAS №)

Свобъо

Инстусяз улочьп (Инфорmaцья за бezoinachoю бораве) (Инфорmaцья за бezoinachoю) (Инфорmaцья за beshotpeб) (Инфорmaцья за beshotpeб) (Инфорmaцья за beshotpeб) (Инфорmaцья за beshotpeб) (Инфорmaцья за beshotpeб) (Инфорmaцья за beshotpeб) (Инфорmaцья за beshotpeб) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И线上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И在网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И online) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И上网) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И ONLINE) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И ONLINE) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И在网上) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И-online) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И Online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И网上) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И ONLINE) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И ONLINE) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И Online) (И online) (Иonline) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (Иonline) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (Иonline) (Иonline) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (Иonline) (И online) (Иonline) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И Online) (И online) (И Online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (Иonline) (Иonline) (ИOnline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (ИOnline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (И在线) (И在线) (И在线) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (И online) (Иonline) (Иonline) (Иonline) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И在线) (И online) (И online) (И online) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (И在线) (И在线) (И在线) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иonline) (Иineon) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас]) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)) (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (Пас)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ ( ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/ (ПаС)/

HACTPOIBAHE HA Wi-Fi INHTEPFENCA (camo OT TNI VGK)

To3n Wi-Fi INTEppeic npedaba HΦopMaia 3a cbctoHneTO ynpabNBA KOMaHnTe OT MELCloud ue3 cBb3BaHe KbM BbTpew-HOTO TReI.

3a6enexka:

HactpoTe Bp3ka Mexky Wi-Fi nHTepfmcn pytepa. BxKTe PbKOBOCTBOTO 3A HACTPOINKA u SETUP QUICK REFERENCE GUIDE (KPA-TbK CnPABOCHIK 3A HACTPOINKA), npedocTaben 3aeHc cyctpoCTBOTO.
- 3a P'bKOBOJCTBOTO 3A HACTPOIMKA nocete te ye6caeta no-dony. http://www.melcloud.com/Support
3a pkoBocDtBOTo 3a notpe6ntenHa MELCloud nocetete ye6caTn no-dony.

http://www.melcloud.com/Support

TEXHINUECKXAPAKTEPNCIKN

Моden	Име на komплекта —MSZ-EF25VG(H) MSZ-EF35VG(H) MSZ-EF42VG MSZ-EF50VG
	Вътrepoно тяло		MSZ-EF18VG(K)(W/B/S)MSZ-EF22VG(K)(W/B/S)		MSZ-EF25VG(K)(W/B/S)		MSZ-EF35VG(K)(W/B/S)	MSZ-EF42VG(K)(W/B/S)	MSZ-EF50VG(K)(W/B/S)
	Външо тяло		—		MUZ-EF25VG(H)		MUZ-EF35VG(H)	MUZ-EF42VG	MUZ-EF50VG
Фунreichia			Охлajдане	Отолени	Охлajданe	Отолени	Охлajданe	Отолени	Охлajданe	Отолени
Зхранванe			-/N, 230 V, 50 Hz
Мошист		kW	—	—	2,5	3,2	3,5	4,0	4,2	5,4
Вхожда мошист		kW	—	—	0,54	0,700	0,910	0,950	1,200	1,455
Терло	Вътrepoно	kg	11,5
	Външно	kg	—		31		34		35	40
Колочько xладиен arent (R32)		kg	—		0,62		0,74		0,74	1,05
IP кд	Вътrepoно		IP 20
	Външно		—		IP 24
Дорустима работно наляганe	LP ps	MPa	—		2,77
	HP ps	MPa	4,17
Шуm (SPL)	Вър. (MH. Виск/ Виск/Cр./Hиськ/Tих)	dB(A)	42/36/29/ 23/19	45/37/29/ 24/21	42/36/29/ 23/19	45/37/29/ 24/21	42/36/30/ 24/21	46/38/30/ 24/21	43/39/35/ 31/28	48/41/35/ 30/28
	Въшно	dB(A)	—		47	48	49	50	50	52

CneunpkaaHa BbtpseHOTnpocTpaHCTBO 3a Cbpb3BaHe Ha MyItnCnJNT CnCTEm PEJIAMEHT (EC) 2016/2281

Moden	Въtrightorioю			MSZ-EF18VG(K) (W/B/S)	MSZ-EF22VG(K) (W/B/S)	MSZ-EF25VG(K) (W/B/S)	MSZ-EF35VG(K) (W/B/S)	MSZ-EF42VG(K) (W/B/S)	MSZ-EF50VG(K) (W/B/S)
Мошноct	Олajк-дане	За осяаема толпina	KW	1,72	2,04	2,30	2,80	3,02	3,55
		За скрита толпina	KW	0,08	0,16	0,20	0,70	1,18	1,45
	Отолени		kW	2,10	2,50	2,90	4,00	4,80	5,70
Вхоча мошноct			KW	0,027	0,027	0,027	0,031	0,031	0,034
Шум (Нимо на звекова-та мошноct)	MH. Виск/Виск/Cр./Ниськ/Tиx		dB(A)	60/54/47/41/39	60/54/47/41/39	60/54/47/41/39	60/54/47/42/39	60/57/53/49/46	60/57/53/50/47

Fapantnpa pa6oTeH dnaana3OH

		Въtrightorio	Въединения
			MUZ-EF25/35/42/50VG	MUZ-EF25/35VGH
Охлaxдане	Горна грашица	32°C DB23°C WB	46°C DB-	46°C DB-
	Долна грашица	21°C DB15°C WB	-10°C DB-	-10°C DB-
Отоление	Горна грашица	27°C DB-	24°C DB18°C WB	24°C DB18°C WB
	Долна грашица	20°C DB-	-15°C DB-16°C WB	-20°C DB-21°C WB

DB: Cyx 6aONH
WB:MoKbp6aONH

3a6eJekka:

1.EKcnnoaatauOHnnapameTpN

Oxnaxdahe-BbtpeuHc:27°C DB,19°C WB BbHNo:35°C DB

OTONJIHME BtpeuHO: 20^ DB BbHuO: 7^ DB, 6^ WB

2.EF18/22HMA HAKKBA CNEHINPHKAUIN 3A eDHHUHa KOMBHAUN. BtpeuHHTe MOEJI Na cAmO 3a MyTTNCCTEMHN KJIMATNUH INCHTANAUH.

OTHOCHO CNEUΦNKAUNTE 3a MyTNNCCTMa ce CBpbXeTe CTbproBaCa W/INn pnerneJaTe Katanora.

Wi-Fi nHTepdenc

Моden	MAC-577IF2-E
Вхобно наразожения	DC 12,7 V (ot въtrightorio тяло)
Консуmpлaria мошноct	MAKC. 2 W
Размeperи B × Φ × Π (mm)	73,5 × 41,5 × 18,5
Терло (g)	46 (вклочтелно кабеля)
Нимо на мошноct на п的对象аюп ( (MAKC.)	20 dBm @IEEE 802.11b
РадиочьостOTEN канал	1 канал - 13 канал (2412 ~ 2472 MHz)
Радионротокол	IEEE 802.11b/g/n (20)
Шифраване	AES
Удостоваяне	WPA2-PSK
Версан на соктуера	XX.00

3a DeKnapauNtA 3a CbOTBeTCTBnE nocTeTe ye6caIta no-dony. http://www.melcloud.com/Support

PIMBb3HNKHAI IPOEIAEM

B cneHnTe cnuyan cnpe Ta n3nonBaTe KInMaTnKa n ce KOhcytnpaTe CbC CBOIINp.

Korato Teue nn Kan e Boda ot BbtpewHOTO TIO.
Korato Mura pa60THaTnHmKaTOp.
Korato npekbcaayt ce 3aedctba yecTo.
Bb3MOXHO e cHnAHTb H aNCTaHUNOHOTy npAbaHne da He ce npedaba B nOmeHene, KbTeTo cHnON3Ba eNEKtpoHa hNoyeOpceHTHa lamna c ON/OFF npEeKcBvA (MHBeptOPHa fNoyeOpceHTHa lamna andp).
Pa60tata Ha KNIMATKIA Moze da npceHHa pa6oTata Ha padio HnTeneBn3IOHNn pnpEMHHu. Moze da ce hANOxN 3nON3BaHTo Ha ycINbaten 3a CbOTBETHn PNpEMHHK.
- PnHaJIyHc HHeO6uHae3ByK.
Korato 6bnde oTKPNT Teu Ha xnaDInneH areHT.

ZALECENIA BEZPIECZENSTWA

OFF/ON (stopp/drift)-knapp

Driftsvalgknapp

Temperaturkninger

Oppyarming - Inne: 20^ DB

Ute: 7^ DB, 6^ WB

1. EF18/22 har ingen spesifi kasjoner for enkeltkombasjasoner. Disse innendorsmodellene er kun for klimaanlegg med fl ere enheter.

HA UGY VELI, HOGY VALAMI MEGHIBÁSODOTT

http://www.melcloud.com/Support

http://www.melcloud.com/Support

SPECIFICATII

Model	Setare denumire		—		MSZ-EF25VG(H)		MSZ-EF35VG(H)		MSZ-EF42VG		MSZ-EF50VG
	Interior		MSZ-EF18VG(K)(W/B/S)MSZ-EF22VG(K)(W/B/S)		MSZ-EF25VG(K)(W/B/S)		MSZ-EF35VG(K)(W/B/S)		MSZ-EF42VG(K)(W/B/S)		MSZ-EF50VG(K)(W/B/S)
	Exterior		—		MUZ-EF25VG(H)		MUZ-EF35VG(H)		MUZ-EF42VG		MUZ-EF50VG
Funcție			Răcire	Încâlzire	Răcire	Încâlzire	Răcire	Încâlzire	Răcire	Încâlzire	Răcire	Încâlzire
Alimentare electrică			~/N, 230 V, 50 Hz
Capacitate		kW	—	—	2,5	3,2	3,5	4,0	4,2	5,4	5,0	5,8
Intrare		kW	—	—	0,54	0,700	0,910	0,950	1,200	1,455	1,540	1,560
Greunate	Interior	kg	11,5
	Exterior	kg	—		31		34		35		40
Capacitatea de umplere cu agent frigorific (R32)		kg	—		0,62		0,74		0,74		1,05
Codul IP	Interior		IP 20
	Exterior		—		IP 24
Presiunea excessivă de funçionalare permisă	LP ps	MPa	—		2,77
	HP ps	MPa	4,17
Nivelul de zgomo(SPL)	Interior (Super inat/Încâl/Mediú/Scâzut/Silentjos)	dB(A)	42/36/29/23/19	45/37/29/24/21	42/36/29/23/19	45/37/29/24/21	42/36/30/24/21	46/38/30/24/21	43/39/35/31/28	48/41/35/30/28	43/40/36/33/30	49/43/37/33/30
	Exterior	dB(A)	—		47	48	49	50	50	51	52	52

Specifications refer to the interioare for the conexiuni multiple REGULAMENT (UE) 2016/2281

Model	Interior			MSZ-EF18VG(K) (W/B/S)	MSZ-EF22VG(K) (W/B/S)	MSZ-EF25VG(K) (W/B/S)	MSZ-EF35VG(K) (W/B/S)	MSZ-EF42VG(K) (W/B/S)	MSZ-EF50VG(K) (W/B/S)
Capacitate	Räcire	Sensibilität	kW	1,72	2,04	2,30	2,80	3,02	3,55
		Latentät	kW	0,08	0,16	0,20	0,70	1,18	1,45
	Inçâlzire		kW	2,10	2,50	2,90	4,00	4,80	5,70
Intrare			kW	0,027	0,027	0,027	0,031	0,031	0,034
Nivelul de zgomot (Nivel de putere acustica)	Super inalt/Inalt/Mediu/Scâzut/Silentşos		dB(A)	60/54/47/41/39	60/54/47/41/39	60/54/47/41/39	60/54/47/42/39	60/57/53/49/46	60/57/53/50/47

Intervalul de fonctionarea garantat

		Interior	Exterior
			MUZ-EF25/35/42/50VG	MUZ-EF25/35VGH
Räcire	Limita supe-rioarã	32 °C DB	46 °C DB	46 °C DB
		23 °C WB	—	—
	Limita inferi-oarã	21 °C DB	-10 °C DB	-10 °C DB
		15 °C WB	—	—
Încâlzière	Limita supe-rioarã	27 °C DB	24 °C DB	24 °C DB
		—	18 °C WB	18 °C WB
	Limita inferi-oarã	20 °C DB	-15 °C DB	-20 °C DB
		—	-16 °C WB	-21 °C WB

DB: Termometru uscat WB: Termometru umed

Notă:

1. Conditie nominala

Racire Interior: 27°C DB, 19°C WB

Exterior: 35^ DB

Incalzire Interior: 20^ DB

http://www.melcloud.com/Support

JARODAS AIZDOMAS, KA RADUŠAS PROBLEMAS

Talak noraditajos gadijumos partrauclet Izmantot galsa kondcionetaju un szainieties ar izplatitaju.

http://www.melcloud.com/Support

SPECIFIKACIJOS

Modelis	Nustatyti pavadinimä		—MSZ-EF25VG(H) MSZ-EF35VG(H) MSZ-EF42VG MSZ-EF50VG
	Vidinis		MSZ-EF18VG(K)(W/B/S)MSZ-EF22VG(K)(W/B/S)	MSZ-EF25VG(K)(W/B/S)	MSZ-EF35VG(K)(W/B/S)	MSZ-EF42VG(K)(W/B/S)	MSZ-EF50VG			SZ-EF50VG(K)(W/B/S)
	Išorinis —MUZ-EF25VG(H) MUZ-EF35VG(H) MUZ-EF42VG MUZ-EF50VG
Funkcija			Vesinimas	Sildymas	Vesinimas	Sildymas	Vesinimas	Sildymas	Vesinimas	Sildymas	Vesinimas
Maltinimas			~/N, 230 V, 50 Hz
Galia		kW	—	—	2,5	3,2	3,5	4,0	4,2	5,4	5,0
Jveslis		kW	—	—	0,54	0,700	0,910	0,950	1,200	1,455	1,540
Svoris	Vidinis	kg	11,5
	Išorinis	kg	—		31		34		35		40
Šaltnešio užpildymo türis (R32)		kg	—		0,62		0,74		0,74		1,05
IP kodas	Vidinis		IP 20
	Išorinis		—		IP 24
Leistinasis didžiausias veikimo slegis	ŽS ps	MPa	—		2,77
	AS ps	MPa	4,17
Triukšmo lygis(SPL)	Viduje (Labai aukštas/Aukštas/Vidutinis/Zemas/Tylus)	dB(A)	42/36/29/23/19	45/37/29/24/21	42/36/29/23/19	45/37/29/24/21	42/36/30/24/21	46/38/30/24/21	43/39/35/31/28	48/41/35/30/28	43/40/36/33/30
	Išorinis	dB(A)	—		47	48	49	50	50	51	52

Vidaus specifikacija jungiant kelis jrenginius REGLAMENTAS (ES) 2016/2281

Modelis	Vidinis			MSZ-EF18VG(K) (W/B/S)	MSZ-EF22VG(K) (W/B/S)	MSZ-EF25VG(K) (W/B/S)	MSZ-EF35VG(K) (W/B/S)	MSZ-EF42VG(K) (W/B/S)	MSZ-EF50VG(K) (W/B/S)
Galia	Vesinimas	Juntamojo	kW	1,72	2,04	2,30	2,80	3,02	3,55
		Slaptojo	kW	0,08	0,16	0,20	0,70	1,18	1,45
	Sildymas		kW	2,10	2,50	2,90	4,00	4,80	5,70
Ivestis			kW	0,027	0,027	0,027	0,031	0,031	0,034
Triukšmo lygis (Garso galios lygis)	Labai aukstas/Aukstas/ Vidutinis/Zemas/Tylus		dB(A)	60/54/47/41/39	60/54/47/41/39	60/54/47/41/39	60/54/47/42/39	60/57/53/49/46	60/57/53/50/47

http://www.melcloud.com/Support

KADA MISLITE DA JE DOSLO DO PROBLEMA

Indoor unit model name
Indoor unit serial number
Outdoor unit model name
Outdoor unit serial number
Wi-Fi interface MAC address (MAC)
Wi-Fi interface serial number (ID)
Wi-Fi interface SSID (SSID)
Wi-Fi interface KEY (KEY)
System commissioning date
Wi-Fi interface installation date

Installer contact details

Name
Telephone number

MEMO

Name of Importer:

Mitsubishi Electric Europe B.V.

Capronilaan 46, 1119 NS, Schiphol Rijk, The Netherlands

French Branch

25, Boulevard des Bouvets, 92741 Nanterre Cedex, France

German Branch

Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany

Belgian Branch

Autobaan 2, 8210 Loppe, Belgium

Irish Branch

Westgate Business Park, Ballymount, Dublin 24, Ireland

Italian Branch

Travellers Lane, Hatfield, Herts., AL10 8XB, England, U.K.

Polish Branch

K Krakowska 50, PL-32-083 Balice, Poland

MITSUBISHI ELECTRIC TURKEY ELEKTRIK ÜRUNLERI A.S

Serifali Mah. Kale Sok. No:41 34775 Ümraniye, Istanbul/Turkey

EC DECLARATION OF CONFORMITY

DEKLARACJA ZGODNOSCI WE

CE-ERKLAERING OM SAMSVAR

EY-VAATIMUSTENMUKAISUUSVAKUUTUS

ES PROHLASENIO SHODE

VYHLASENIE O ZHODE ES

EK MEGFELELOSEGI NYILATKOZAT

IZJAVA O SKLADNOSTI ES

DECLARATIE DE CONFORMITATE CE

EU VASTAVUSDEKLARATSIOON

EK ATBILSTIBAS DEKLARACJ

EB ATITIKTIES DEKLARACIJA

EC IZJAVA O SUKLADNOSTI

EZ IZJAVA O USAGLASENOSTI

DEKJIAPALUNCAOTBETCTBNAHOPMAMEC

DEKIIAPALIIBIINOBIDHOCTIHOPMAMEC

MITSUBISHI ELECTRIC CONSUMER PRODUCTS (THAILAND) CO., LTD

700/406 MOO 7, TAMBON DON HUA ROH, AMPHUR MUANG, CHONBURI 20000, THAILAND

hereby declares under its sole responsibility that the air conditioners and heat pumps described below for use in residential, commercial and light-industrial environments:

MSZ-EF25VGW/MUZ-EF25VGH, MSZ-EF25VGB/MUZ-EF25VG, MSZ-EF25VGB/MUZ-EF25VGH, MSZ-EF25VGS/MUZ-EF25VG, MSZ-EF25VGS/MUZ-EF25VGH

MSZ-EF35VGW/MUZ-EF35VG, MSZ-EF35VGW/MUZ-EF35VGH, MSZ-EF35VGB/MUZ-EF35VG, MSZ-EF35VGB/MUZ-EF35VGH, MSZ-EF35VGS/MUZ-EF35VG,

MSZ-EF35VGS/MUZ-EF35VGH, MSZ-EF42VGW/MUZ-EF42VG, MSZ-EF42VGB/MUZ-EF42VG, MSZ-EF42VGS/MUZ-EF42VG, MSZ-EF50VGW/MUZ-EF50VG

MSZ-EF50VGB/MUZ-EF50VG, MSZ-EF50VGS/MUZ-EF50VG

Note: Its serial number is on the nameplate of the product.

2006/42/EC: Machinery Directive

2014/30/EU: Electromagnetic Compatibility Directive

2011/65/EU, (EU) 2015/863 and (EU) 2017/2102: RoHS Directive

Issued: 2 December, 2019 Akira HIDAKA

THAILAND Manager, Quality Assurance Department

EC DECLARATION OF CONFORMITY

DEKLARACJA ZGODNOSCI WE

CE-ERKLAERING OM SAMSVAR

EY-VAATIMUSTENMUKAISUUSVAKUUTUS

ES PROHLASENIO SHODE

VYHLASENIEO ZHODE ES

EK MEGFELELOSEGINYILATKOZAT

IZJAVA O SKLADNOSTI ES

DECLARATIE DE CONFORMITATE CE

EU VASTAVUSDEKLARATSIOON

EKATBILSTIBASDEKLARACJA

EB ATITIKTIES DEKLARACIJA

EC IZJAVA O SUKLADNOSTI

EZ IZJAVA O USAGLASENOSTI

DEKJIAPALINCOOTBETCTBNAHOPMAMEC

DEKNAPALIIBIOHOCTHOPMAMEC

MITSUBISHI ELECTRIC CONSUMER PRODUCTS (THAILAND) CO., LTD

700/406 MOO 7, TAMBON DON HUA ROH, AMPHUR MUANG, CHONBURI 20000, THAILAND

hereby declares under its sole responsibility that the air conditioners and heat pumps described below for use in residential, commercial and light-industrial environments:

e dei i t e t d t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t 0

buchreven:

Note: Its serial number is on the nameplate of the product.

2006/42/EC: Machinery Directive

2011/65/EU, (EU) 2015/863 and (EU) 2017/2102: RoHS Directive

Issued: 2 December, 2019 Akira HIDAKA

THAILAND Manager, Quality Assurance Department

MITSUBISHI ELECTRIC CORPORATION
