TWS ANC HXEP925 - Earplug JAM - Free user manual and instructions

Product Type	Wireless in-ear headphones with active noise cancellation (ANC)
Brand	JAM
Model	TWS ANC HXEP925
Earbud dimensions (approx.)	2.5 x 2.0 x 2.5 cm (each)
Charging case dimensions (approx.)	6.0 x 4.0 x 2.5 cm
Earbud weight (approx.)	5 g (each)
Charging case weight (approx.)	40 g
Earbud power	Built-in rechargeable lithium-ion battery, charges via contacts in the case
Case power	Built-in rechargeable lithium-ion battery, charges via USB-C port
Earbud charging time	Approximately 2 hours
Case charging time	Not specified in the manual, estimated 2-3 hours
Earbud battery life (alone)	Up to 7 hours (without ANC)
Total battery life with case	Up to 28 hours (without ANC), up to 24 hours (with ANC)
Main features	Active noise cancellation (ANC), touch controls (play/pause, next/previous, volume, calls, voice assistant), Bluetooth connection, mono or stereo use
Bluetooth version	Not specified, estimated Bluetooth 5.0
Bluetooth range	Approximately 10 meters (standard estimate)
Maintenance and cleaning	Clean with a soft, dry cloth. Do not immerse in water. Keep charging contacts clean.
Safety	Do not use at high volume for extended periods to avoid hearing damage. Keep out of reach of children. Do not expose to excessive heat.
Spare parts and repairability	Built-in battery not user replaceable. 4 sizes of gel ear tips included. Limited warranty of one year (US/Canada) or two years (UK/Europe).
Box contents	Earbuds (pair), charging case, USB-C cable, 4 sizes of gel ear tips, quick start guide, welcome card, legal card

Frequently Asked Questions - TWS ANC HXEP925 JAM

How to turn on and connect the JAM TWS ANC earbuds?

Take the earbuds out of the case, they turn on automatically. Otherwise, press for 4 seconds on the touch sensor of each earbud. To connect to your phone, enable Bluetooth and select "JAM TWS ANC". The LEDs flash blue and red during pairing, then solid blue once connected.

How to activate Active Noise Cancellation (ANC)?

When both earbuds are in use, tap three times on the touch sensor of the right earbud. You will hear a single tone to confirm activation. To deactivate, tap three times again (two tones). Note that ANC does not work in mono mode (single earbud).

What is the battery life of the earbuds and how long to charge them?

The earbuds provide up to 7 hours of playback without ANC. With the charging case, you get up to 28 hours without ANC and 24 hours with ANC. Charging the earbuds takes approximately 2 hours. The case charges via USB-C in about 2-3 hours.

Can I use a single earbud at a time?

Yes, you can use the right or left earbud independently. In mono mode, ANC is disabled. To pair a single earbud, take it out of the case and select "JAM TWS ANC" in Bluetooth settings.

How to skip to the next or previous track?

With both earbuds, tap twice on the touch sensor of the right earbud for the next track, and twice on the left earbud for the previous track. In mono mode, tap twice on the earbud in use for the next track (previous not available).

Are the earbuds water-resistant?

The manual does not mention any waterproof certification. It is advised not to immerse the earbuds or case in water. Avoid exposure to rain or excessive sweat. Clean with a dry cloth.

How to reset the earbuds and forget previous Bluetooth devices?

Remove the earbuds from the case, then tap 5 times quickly on the touch sensor of each earbud. You will hear a tone and the left earbud will flash red and blue. Then, forget "JAM TWS ANC" in your device's Bluetooth settings.

What to do if an earbud won't connect or charge?

Make sure the earbuds are properly aligned on the contacts of the case. If the red light does not turn on, adjust their position. If the problem persists, try resetting the earbuds (tap 5 times). Also check that the case is charged.

How to activate the voice assistant?

With both earbuds, tap three times on the touch sensor of the left earbud. In mono mode, tap three times on the earbud in use. Your phone's voice assistant (Siri, Google Assistant) should then activate.

What is the product warranty?

JAM offers a limited one-year warranty for the US and Canada, and a two-year warranty for the UK and Europe, from the date of purchase. It covers defects in materials and workmanship, but not damage caused by misuse.

USER MANUAL TWS ANC HXEP925 JAM

Line drawing of two identical 300-pin earbuds with circular buttons (no text or symbols)

B

Simple line drawing of a battery with a lid and internal components (no text or symbols)

C

D

E

F

G

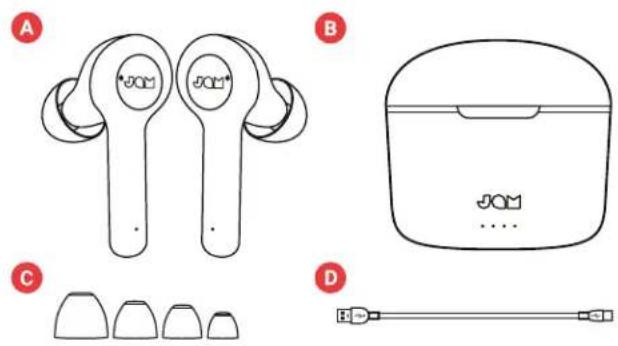

A - ANC Earbuds

B - Charging case

C - 4 sizes of ear gels (small, medium, large, x-large)

D - USB-C charging cable

E - Quick Start Guide

F - Welcome card

G - Legal card

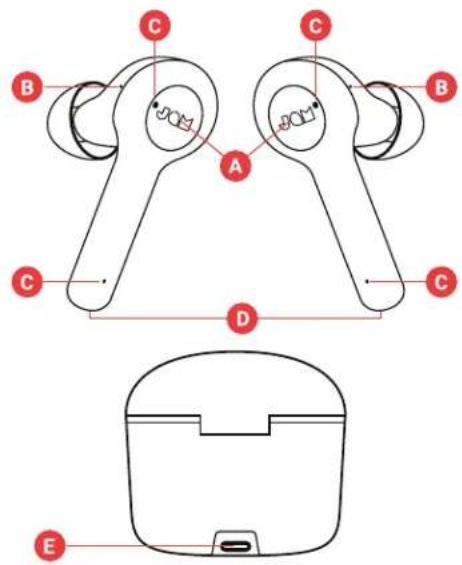

CONTROLS

A - Touch controls (Power on/off / Play / Pause / Forward / Backward / ANC on / ANC off / Voice assistant)

B - Earbud status light

C -Microphones (there are two on each earbud)

D - Earbud charging contacts

E - USB-C charging port - for charging the portable case

SET UP

Line drawing of a JAM brand electric shaver with two earbuds and a handle (no text or symbols)

To charge your earbuds, place them into the portable case. The red LEDs on the earbuds show that they are charging. If the red LEDs do not appear when placed in the case, adjust the earbuds to make sure they are in line with the charging contacts. When fully charged, the LEDs will shut off. It will take approximately 2 hours to charge.

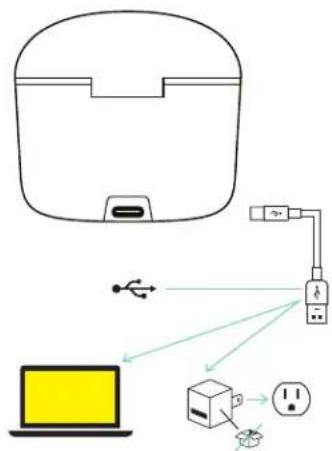

CHARGING YOUR PORTABLE CASE

Plug the small end of the USB cable into the USB-C port located on the back of the case. The LEDs on the case will flash white while charging. When the portable case is fully charged, the four LED lights will remain on. Once the USB cord is unplugged, the lights will turn off.

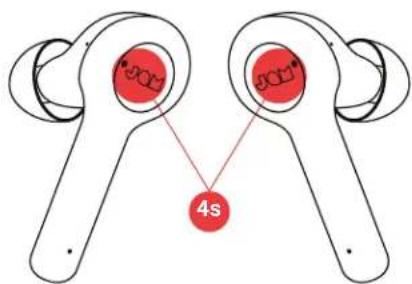

CONNECT BOTH EARBUDS


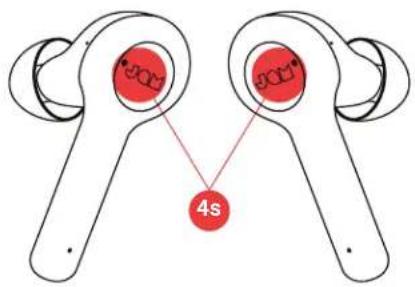

Your earbuds will automatically turn on when taken out of the portable charging case. If you need to turn them on manually, you can press and hold the touch sensor for 4 seconds on both earbuds.

Two identical hand-pipe devices with circular earbuds and buttons, no text or symbols visible

STEP 2 - CONNECTING THE EARBUDS TO EACH OTHER

When you take the earbuds out of their case, they will automatically sync to each other. The LED lights on the left earbud will flash blue and red alternatively. You will also hear a series of tones. Your earbuds are now in pairing mode and searching for a Bluetooth® device to connect to.

STEP 3 - CONNECTING TO A DEVICE

Enable Bluetooth® on your device. From the Bluetooth menu, select "JAM TWS ANC". When the device and TWS ANC are connected, you will hear a tone and the LEDs on the earbuds will slow flash blue. This means the pairing is complete.

To disconnect from all connected devices and reset pairing, remove both earbuds from the charging case to power them on (or power them on manually). Then, tap the touch sensor on either earbud quickly 5 times. You will hear the pairing tone and the LEDs on the left earbud will flash red and blue. This means they are disconnected and ready to pair to a Bluetooth device.

STEP 4 - USING ANC

When the JAM TWS ANC Earbuds are powered on, the ANC is turned off. To turn on the ANC, tap the touch sensor on the right earbud three times. You will hear a single tone; which means the ANC is activated. To turn off the ANC, tap the touch sensor on the right earbud three times again. You will hear two tones which means the ANC is deactivated.

NOTE: The ANC feature cannot be utilized when only using one earbud.

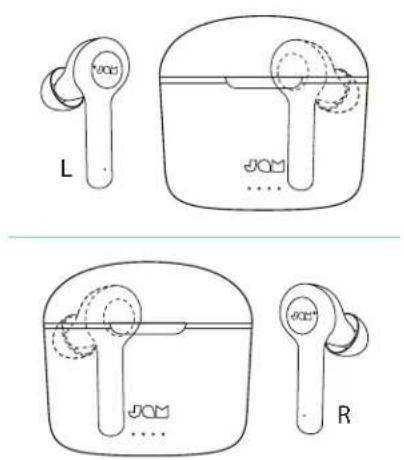

CONNECT 1 EARBUD

Use the left or the right earbud independently. This is a great option if you want to hear your surroundings as well as your music.

STEP 1 - TURNING ON THE EARBUD

Your earbud will automatically turn on when taken out of the portable charging case. If you need to turn it on manually, you can press and hold the touch sensor for 4 seconds on the earbud.

STEP 2 - PAIRING MODE

Once a single earbud is taken out of the case or manually turned on, it should enter into pairing mode. The LED will flash red and blue and you will hear a series of tones. This will indicate your earbud is in pairing mode. If it does not enter pairing mode automatically, place the earbud back in the charging case for 2 seconds and then remove it again to enter pairing mode.

Bluetooth®

Devices

JAM TWS ANC

To turn off your earbuds, place your earbuds back in case or press and hold the touch sensors on both earbuds for 4 seconds.

STEP 3 - CONNECTING TO A DEVICE

Enable Bluetooth on your device. From the Bluetooth menu, select "JAM TWS ANC". When the device and JAM TWS ANC are connected, you will hear a tone and LED will slow flash blue. This means the pairing is complete.

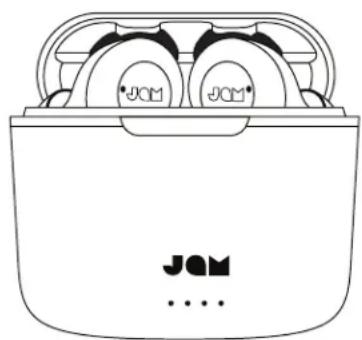

USING YOUR PORTABLE CHARGING CASE

With a full charge, the portable charging case will give your earbuds 18–21 extra hours providing you up to 28 hours total of listening time with Bluetooth only, or up to 24 hours with ANC and Bluetooth.

Line drawing of a Jamaica coffee maker with two cups and a handle (no text or symbols)

LED INDICATORS BASIC FUNCTIONS

EARBUDS IN CHARGING CASE

Solid red Charging
LED off Charging complete

PORTABLE CHARGING CASE

Flashing white Charging
4 White LEDs on Charging complete

EARBUDS IN USE

Flashing red and blue alternatively	Earbuds are in sync with each other and in pairing mode
Slow flash blue	Earbuds are paired with device

EARBUDS IN MONO USE

Flashing red and blue alternatively	Earbud is in pairing mode and searching for a device
Slow flash blue Earbud is paired	with device

TROUBLESHOOTING

1. Remove the earbuds from the charging case.
2. Quickly tap the touch sensor on both earbuds 5 times. This will disconnect them from your device. Place them back in the charging case.

3. Forget the JAM TWS ANC earbuds on your Bluetooth® device. Please view the device instruction manual for instructions on how to forget a device.

4. Turn off Bluetooth on your device.

5. Remove both earbuds from the charging case.

6. Earbuds will automatically go into pairing mode once they are taken out of the case. The LEDs on the left earbud will flash red and blue alternatively.

7. Turn on Bluetooth on your device.

8. Pair to "JAM TWS ANC".

9. Earbuds not disconnecting from your device? The TWS ANC Earbuds may automatically connect to your device if put in a charging case that has no battery left. For the best experience, periodically charge the case to ensure it always has battery life.

MUSIC

Play/Pause	Press either touch sensor button once.
Forward track	If using both earbuds, tap the touch sensor twice on the right earbud. If using one earbud, tap the touch sensor twice of the earbud in use.
Back track	If using both earbuds, tap the touch sensor twice on the left earbud. Note that back track does not function when using only one earbud.

CALLS

Pick up a call Tap either touch sensor once
Decline a call	Press and hold either touch sensor for 2 seconds
End a call Tap either touch sensor twice
Take a second incoming call Tap either touch sensor once
Decline a second incoming call	Press and hold either touch sensor for 2 seconds
Swap between 2 calls	Press and hold either touch sensor for 2 seconds

OTHER

Activate voice assistant	If using both earbuds, tap the touch sensor on the left earbud 3 times. If using one earbud, tap the touch sensor 3 times on the earbud in use.
Turn off earbuds	Press and hold touch sensor for 4 seconds.
Clear all Bluetooth connections	Remove earbuds from case. Tap the touch sensor on either earbud quickly 5 times. You will hear the pairing tone and the LEDs on the left earbud will flash red and blue. The earbuds are now ready to pair.
ANC on	If using both earbuds, tap the touch sensor on the right earbud 3 times (you will hear a single tone).
ANC off	If using both earbuds, tap the touch sensor on the right earbud 3 times (you will hear two tones).NOTE: ANC does not work when only using one earbud.

LEGAL INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

FCC Warning:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC Caution:

This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

ISEDC RF Exposure Statement:

The device is in compliance with RF exposure guidelines; users can obtain Canadian information on RF exposure and compliance.

1-YEAR LIMITED WARRANTY - US & CANADA

WARRANTY - US & CANADA

JAM warrants this product free from defect in material and workmanship for a period of 1 year from the date of purchase. This warranty does not cover damage caused by misuse or abuse, accident, the attachment of any unauthorized accessory, alteration to the product, or any other conditions whatsoever that are beyond the control of JAM.

For detailed Warranty instructions and information, visit: www.jamaudio.com/customer-support/warranty-1yr. To obtain warranty service on your JAM product, contact a Consumer Relations representative by the telephone number or email address for your country of residence. Please make sure to have the model number of the product available.

For service in the USA

Email:

8:30am-7:00pm EST Monday-Friday

For service in Canada

Email:

[e-mail]

Tel: [phone]

8:30am-5:00pm EST Monday-Friday

WARRANTY - UK & EUROPE

JAM warrants this product free from defect in material and workmanship for a period of 2 years from the date of purchase. This warranty does not cover damage caused by misuse or abuse, accident, the attachment of any unauthorised accessory, alteration to the product, or any other conditions whatsoever that are beyond the control of JAM. Distributed in the EU by FKA Brands Ltd, Somerhill Business Park, Tonbridge, TN11 0GP, UK. Tel: [phone] Email: [e-mail].

WARRANTY - AUSTRALIA

(1-YEAR LIMITED WARRANTY)

We or Us means HoMedics Australia Pty Ltd ACN 31 103 985 717 and our contact details are set out at the end of this warranty; You means the purchaser or the original end-user of the Goods. You may be a domestic user or a professional user; Supplier means the authorized distributor or retailer of the Goods that sold you the Goods in Australia and New Zealand; and Goods means the product or equipment which was accompanied by this warranty and purchased in Australia and New Zealand.

For Australia:

Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled, subject to the provisions of the Australian Consumer Law, to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled, subject to the provisions of the Australian Consumer Law, to have the Goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This is not a complete statement of your legal rights as a consumer.

For New Zealand:

Our Goods come with guarantees that cannot be excluded under the Consumer Guarantees Act 1993. This guarantee applies in addition to the conditions and guarantees implied by that legislation.

The Warranty

JAM sells its products with the intent that they are free of defects in manufacture and workmanship under normal use and service. In the unlikely event that your JAM product proves to be faulty within 1 year from the date of purchase due to workmanship or materials only, we will replace it at our own expense, subject to the terms and conditions of this guarantee. The warranty period is limited to 3 months from the date of purchase for products used commercially/professionally.

Terms and Conditions:

In addition to the rights and remedies that you have under the Australian Consumer Law, Consumer Guarantees Act of New Zealand or any other applicable law and without excluding such rights and remedies warranty against defects:

1. The Goods are designed to withstand the rigors of normal household use and are manufactured to the highest standards using the highest quality components. Whilst unlikely, if during the first 12 months (3 months commercial use) from their date of purchase from the Supplier (Warranty Period), the Goods prove defective by reason of improper workmanship or materials and none of your statutory rights or remedies apply, we will replace the Goods, subject to the terms and conditions of this warranty.

2. We do not have to replace the Goods under this Additional Warranty if the Goods have been damaged due to misuse or

abuse, accident, the attachment of any unauthorised accessory, alteration to the product, improper installation, unauthorised repairs or modifications, improper use of electrical/power supply, loss of power, malfunction, or damage of an operating part from failure to provide manufacturer's recommended maintenance, transportation damage, theft, neglect, vandalism, environmental conditions, or any other conditions whatsoever that are beyond the control of JAM.

1. This Warranty does not extend to the purchase of used, repaired, or secondhand products, or to products not imported or supplied by HoMedics Australia Pty Ltd, including but not limited to those sold on offshore internet auction sites.
2. This Warranty extends only to consumers and does not extend to Suppliers.
3. Even when we do not have to replace the Goods, we may decide to do so anyway. In some cases, we may decide to substitute the Goods with a similar alternative product of our choosing. All such decisions are at our absolute discretion.
4. All such replaced or substituted Goods continue to receive the benefit of this Additional Warranty for the time remaining on the original Warranty Period (or 3 months, whichever is the longest).
5. This Additional Warranty does not cover items damaged by normal wear and tear, including but not limited to chips, scratches, abrasions, discolouration, and other minor defects, where the damage has negligible effect on the operation or performance of the Goods.
6. This Additional Warranty is limited to replacement or substitution only. As faras the law permits, we will not be liable for any loss or damage caused to property or persons arising from any cause whatsoever, and shall have no liability for any incidental, consequential, or special damages.
7. This warranty is only valid and enforceable in Australia and New Zealand.

Making a Claim:

In order to claim under this Warranty, you must return the Goods to the Supplier (place of purchase) for replacement. If this is not possible, please contact our Consumer Relations department by email ([e-mail]) or at the address below.

- All returned Goods must be accompanied by satisfactory proof of purchase that clearly indicates the name and address of the Supplier, the date and place of purchase, and identifies the product. It is best to provide an original, legible, and unmodified receipt or sales invoice.

- You must bear any expense for return of the Goods or otherwise associated with making your claim under this Additional Warranty.

Distributed in Australia by HOMEDICS AUSTRALIA PTY LTD, 14 Kingsley Close, Rowville, Victoria 3178. Distributed in New Zealand by Phoenix Distribution NZ Ltd, 7B Orbit Drive, Albany / North Shore 0757, Auckland, New Zealand.

For service in Australia

Email:

[e-mail]

Tel: [phone]

8:30am-5:00pm AEST Monday-Friday

www.jam-audio.com.au

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

WARNING: Do not place speakers too close to ears. May cause damage to ear drums, especially in young children.

• Use this product only for its intended purpose as described in this manual. Do not use attachments not recommended by JAM
• JAM is not liable for any damage caused to smartphones, iPod/MP3 players, or any other devices.

• Do not place or store this product where it can fall or be dropped into a tub or sink without shutting waterproof doors.

• Do not place or drop into water or any other liquid without shutting waterproof doors.
  • Not for use by children. THIS IS NOT A TOY.

• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surface. Do not place on surface wet from water or cleaning solvents if waterproof doors are open.

WARNING:

This product has an internal, non-

replaceable lithium battery. Please dispose in accordance with your local, state, province, and country guidelines. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire, or the like.

BATTERY REPLACEMENT

Your speaker includes a rechargeable battery designed to last the lifetime of the product. In the unlikely event that you should require a replacement battery, please contact Consumer Relations, which will supply details of the warranty and out-of-warranty replacement battery service. This product contains small parts that may present a choking hazard for young children.

CAUTION: All servicing of this product must be performed by authorized JAM Audio service personnel only. For complete user guide and to register your product, visit www.JAMaudio.com (USA), canada.jamaudio.com (Canada), or uk.jamaudio.com/instructionbooks (UK).

To prevent possible hearing damage, do not listen at high volume for long periods.

WEEE EXPLANATION

This marking indicates that this product should not be disposed with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

BATTERY DIRECTIVE

This symbol indicates that batteries must not be disposed

of in the domestic waste as they contain substances that can be damaging to the environment and health. Please dispose of batteries in designated collection points.

Hereby, FKA Brands Ltd, declares that this radio device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity can be obtained from uk.JAMaudio.com/DoC.

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm

Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

Two identical wireless earbuds with circular buttons and a red circle labeled 'A' in the top-left corner (no text or symbols on the devices themselves)

Line drawing of a simple electric cooker with a logo and internal components (no text or symbols)

Simple line drawing of a battery casing with a label 'E' pointing to the bottom (no text or symbols on the diagram itself)

Line drawing of a Jamaica coffee maker with two cups and a tray (no text or symbols)

CHARGE DE L'ÉTUI PORTABLE

Two identical hand-pipe devices with circular buttons and 'JOM' symbols on their heads (no text or labels)

ÉTAPE 3 - CONNEXION À UN APPAREIL

ÉTAPE 3 - CONNEXION À UN APPAREIL

Line drawing of a JAM brand electric shaver with two wheels and a handle (no text or symbols)

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm

Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

Simple line drawing of a battery casing with a small plug and label 'E' (no text or symbols on the diagram itself)

Line drawing of a Jamaica coffee maker with two cups and a handle (no text or symbols)

CÓMO CARGAR SUS AUDÍFONOS

CÓMO CARGAR SU ESTUCHE PORTÁTIL

CÓMO CONECTAR AMBOS AUDÍFONOS

PASO 1 - CÓMO ENCENDER LOS AUDÍFONOS

Two identical hand-pipe devices with circular buttons and 'JCM' branding on the front (no text or symbols on devices)

PASO 2 - CÓMO CONECTAR LOS AUDÍFONOS ENTRE SÍ

PASO 3 - CÓMO CONECTARSE A UN DISPOSITIVO

PASO 4 - CÓMO USAR LA ANC

Two identical hand-pipe devices with circular earbuds and a red circle containing a small symbol (no text or labels)

PASO 2 - MODO DE ACOPLAMIENTO

PASO 3 - CÓMO CONECTARSE A UN DISPOSITIVO

Line drawing of a JAM water heater with two circular buttons and handles (no text or symbols)

INDICADORES LED

AUDÍFONOS EN ESTUCHE DE CARGA

Luz roja permanente Carga
LED apagado Carga completa

ESTUCHE PORTÁTIL DE CARGA

Luz blanca parpadeante Carga
4 LED blancos encendidos Carga completa

AUDÍFONOS EN USO

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm

Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

Gebrauchsanleitung

INHALT BEDIENELEMENTE

Line drawing of two identical wireless earbuds with circular buttons and a red circle labeled 'A' in the top-left corner (no text or symbols on the devices themselves)

Line drawing of a simple electric cooker with a logo and internal components (no text or symbols)

A - ANC Ohrhörer

B - Ladebehälter

C - Ohr-Gelpolster in 4 Größen (S, M, L, XL)

D - USB-C Ladekabel

E - Kurzanleitung

Line drawing of a Jamaica coffee maker with two cups and a tray (no text or symbols)

LADEN IHRER OHRHÖRER

LADEN IHRES TRAGBAREN BEHÄLTERS

Two identical line drawings of a handheld device with circular ports and small circular elements, no text or symbols present.

Line drawing of a JAM brand blender with two circular buttons and a handle (no text or symbols)

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm

Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

Handleiding

INHOUD BEDIENING

Two identical wireless earbuds with circular buttons and a red circle labeled 'A' in the top-left corner (no text or symbols on the devices themselves)

Line drawing of a simple electric heater with a logo and 'B' label (no text or symbols on the device itself)

A - ANC-oordopjes

B - Oplader

C - 4 maten oordopjes (small, medium, large, x-large)

Line drawing of a Jamaica coffee maker with two Jamaica coffee cups and a tray (no text or symbols)

OPLADEN VAN UW OORDOPJES

OPLADEN VAN UW DRAAGBARE OPLADER

Two identical hand-pipe devices with circular buttons and small icons, no text or symbols present

STAP 2 - DE OORDOPJES MET ELKAAR VERBINDEN

STAP 3 - VERBINDEN MET EEN APPARAAT

Two identical abstract mechanical components with circular cutouts, connected by a red circle labeled 'of' (no text or symbols on components)

STAP 3 - VERBINDEN MET EEN APPARAAT

Line drawing of a JAM water heater with two circular buttons and a handle (no text or symbols)

LED-INDICATOREN BASISFUNCTIONS

Oordopjes in de oplader

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm

Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

Two identical wireless earbuds with circular buttons and a red circle labeled 'A' in the top-left corner (no text or symbols on the devices themselves)

Line drawing of a simple electric cooker with a logo and internal components (no text or symbols)

Simple line drawing of a battery casing with a label 'E' pointing to its side (no text or symbols on the diagram itself)

Line drawing of a JAM-branded electric guitar body with no text or symbols

CARICA DEGLI AURICOLARI

CARICA DELLA SCATOLA PORTATILE

FASE 1 - ACCENSIONE DEGLI AURICOLARI

Two identical hand-pipe devices with circular buttons and 'JCM' symbols on the handles (no text or labels)

FASE 2 - CONNESSIONE DI UN AURICOLARE ALL'ALTRO

FASE 3 - CONNESSIONE A UN DISPOSITIVO

Two identical hand-pipe devices with circular earbuds and a red circle containing a small symbol (no text or labels)

FASE 3 - CONNESSIONE A UN DISPOSITIVO

Line drawing of a JAM electric guitar body with two wheels and a handle (no text or symbols)

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

지침서

내용물 조작부

E

F

G

A-ANC 이어폰

B-충전 케이스

Line drawing of a JAM brand electric shaver with two wheels and a handle (no text or symbols)

이어폰 충전

휴대용 케이스 충전

1단계-이어폰 켜기

Two identical hand-pipe devices with circular buttons and 'JQ1' symbols on the handles (no text or labels)

2단계-이어폰 상호 연결

3단계-기기에연결

Line drawing of two wireless earbuds with labeled ports (no text or symbols)

Line drawing of two wireless earbuds with a dotted outline and 'JCM' logo, no text or symbols present

2단계-페어링 모드

3단계-기기에연결

Line drawing of a Jamaica coffee maker with two cups and a handle (no text or symbols)

LED 표시등 기본 기능

충전 케이스에 있는 이어폰

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved.

IB-HXEP925

TWS ANC

HX-EP925

使用說明

目錄 控制

A

Two identical stylized earbuds with circular logo designs, no text or symbols present

B

Simple line drawing of a rice cooker with no text or symbols

C

D

E

F

G

A-ANC（消噪）耳機

B-充電盒

Line drawing of a Jamaica coffee maker with two cups and a handle (no text or symbols)

為耳機充電

為隨身盒充電

Two identical hand-pipe devices with circular buttons and small icons, no text or symbols present

第2步 - 連接左右耳機

第三步 — 與設備進行連接

第三步 — 與設備進行連接

Line drawing of a Jamaica coffee maker with two cups and a handle (no text or symbols)

LED 指示燈 基本功能

耳機在充電盒裡

© 2021 HMDX. All rights reserved. JAM is a registered trademark of HMDX. HMDX is a registered trademark of FKA Distributing Co. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by HMDX is under license.

Operating frequency band: 2402 - 2480MHz

HX-EP925: Maximum radio-frequency power transmitted left earbud: 4.95 dBm

Maximum radio-frequency power transmitted right earbud: 3.98 dBm

Distributed by HMDX.

3000 N Pontiac Trail

Commerce Township, MI 48390

All rights reserved

IB-HXEP925
