USER MANUAL LK5010 QLIMA

m = 311 ;

image 1 image 2 image 3

CONDITIONS DE GARANTIE

Congratulations with the purchase of your air cooler. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your air cooler. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your air cooler.

Yours sincerely,

PVG Holding B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

• Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.
  The air cooler is designed for indoor use.
• After unpacking, check the appliance for any damages. When in doubt, do not use the appliance, but contact customer service at your local dealer's. Keep the packaging materials (plastic bags, etc.) away from children, as they may cause hazardous situations to children.
• No modifications to the safety system are allowed.
• This product is constructed in conformity with relevant texts in the EN 60335 standard

Warnings

• Read the Directions for Use before using the air cooler. The safety of this product is guaranteed only by its correct usage in accordance with these instructions, therefore it is recommended that they are retained for future reference.
• Only use the device for its intended purpose. Other usage may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc.
• Install the product only if it complies with local regulations, laws and standards;
• Make sure that the available voltage does not exceed the voltage stated in the

specifications of this manual.

• Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
• The appliance is suitable for mains voltages ranging from 220-240V.
  Always make sure that you actually see the appliance when you want to switch it on. Never use things like a timer, programmer or any other device (including Internet apps) that switches on the appliance automatically as this may cause fire!
• Install the product according to the instructions as described in the installation section of the directions for use;
• This product is manufactured according to CE safety standards. Nevertheless, as with any other device, care must be taken;
• RISK OF FIRE Never use the product in places where inflammable and/or harmful Gases, products or fumes may be present (e.g. exhaust Gases, paint fumes, curtains, paper, clothes);
• Do not use any extension cords or multi-socket adapters.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If the supply cord is damaged, it shall be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  Children should be supervised to ensure

that they do not play with the appliance.

• The device must not be located immediately below a socket outlet.
• Do not use this product in the immediate surroundings of a bath, a shower or a swimming pool.
• The guard of this unit is intended to prevent direct access to moving parts and must be in place when the unit is in use.
• Disconnect the power plug before dismantling, assembling or before cleaning.
  Make sure the air cooler is on a dry and even surface.
• Do not insert objects into the openings of the device.
• The guard does not give full protection for young children and infirm persons.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
  Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- Switch off the appliance when it is unattended.
- Do not cover or obstruct the product when in use.
- Disconnect from mains during installation and cleaning.
- Do not use the unit if the ambient temperature is above 40^ .
- When using electrical appliances, always adhere to basic safety precautions to prevent the risk of fire, electric shocks and physical injury. Even more attention and care is required when using electrical appliances incorporating a container of water: should the water overflow, immediately unplug the adaptor from the outlet, check that the electrical parts of the unit are not wet, and if they are, dry them thoroughly and carefully. If in doubt consult a qualified professional.
- Do not leave the appliance exposed to the weather (sun, rain, etc).
- Please read the details of water filling, cleaning and maintenance at the back.
- The water should be replaced every 3-4 days, even if it has not been used. If the fan has not been used for long periods, remove the water from the tank and the base of the humidifier.
- Care should be taken when using the appliance due to the emission of hot water vapour.
- Unplug the appliance during filling and cleaning.

If you fail to consult and/or follow up the rules, instructions and explanation, the warranty will no longer be valid, and the manufacturer will no longer deal with any damage to the appliance and/or your environment under the warranty.

OPERATION GUIDE

Place the air cooler on a level ground and follow the steps below:

picture 1 picture 2 picture 3

• Turn off the Cooler function before cleaning; Do not take out the water pump when it is running to avoid damaging the parts;

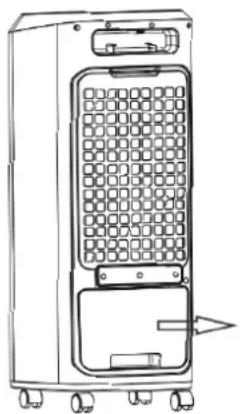

• Pull out the water tank as indicated in Picture 1

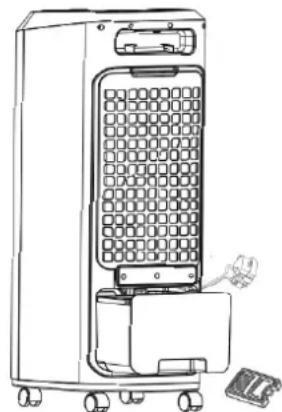

• Lift the water pump when the water tank is pulled out, and remove the tank completely as indicated in Picture 2.
• Take the water tank to pour in water or clean;

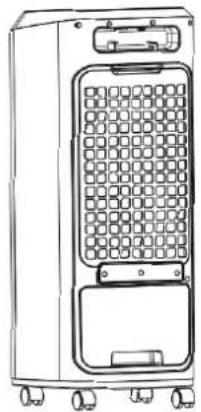

• Put the water tank back into the product about a quarter of the way in, then fix the pump frame. Finally push the tank into the back of the product as indicated in Picture 3

Note: This product comes with two ice boxes. For better cooling effect, refrigerate them before they are in used, and put one of them into the water tank under "COOLER" function.

Do not open the ice box to avoid eating.

Pay attention that the tank water level does not exceed the "MAX" indicator scale when pouring in water. The total water level of the water tank should not be lower than "MIN" indicator scale when using the COOLER function.

BRIEF INSTRUCTION OF FUNCTIONS

1. Refrigeration and cooling: An evaporator conforming to international environmental protection standards is adopted with advanced cooling technology of humidity and evaporation by medium- water,which evaporates quickly to cool the air passing through the evaporator in a short time. In hot and arid regions, the temperature drop in the wind zone is up to 6 12^. Even in the humid regions, the temperature drop in the wind zone is still up to 3 5^.
2. Filtering: This unit can filter out the harmful tiny substances such as dust, fibers, smoke, and etc. from the air output. Filtered clean air will bring you to a feeling in neighborhood to a forest or seaside.
3. Damping: This unit has obvious effect of damping in a dry area or season. This function can keep the indoor space in necessary humidify.
4. Selection of Air Flows: 3 speeds of air flow are provided on the unit to meet your need.
5. Selection of Air Types: Three types of air flow can be selected to meet your need. The types to be selected are: normal, natural wind and sleep mode.
6. Selection of Directions of Air Flows: This unit can blow under automatic swing in range of continuous 120 degrees.

FUNCTIONS OF ALL BUTTONS

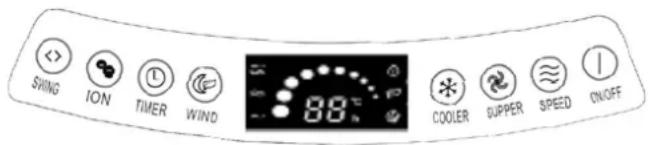

display panel

Remote control
(battery: 1 pc CR 2032)

control panel

Function Instruction

Cooling function: using distributed spray technology, with a powerful water pump to let water pass through the water curtain, and through an ice pad cooling down the air, so as to reduce the temperature and humidification.

Negative ion function: the negative ion is formed to manufacture reactive oxygen for sterilization of fresh air.

E-Cooling function: A special semiconductor material forms the thermocouple to produce the Peltier effect, which is a new type of refrigeration method. It keeps cooling the water automatically in the tank to reduce the water temperature.

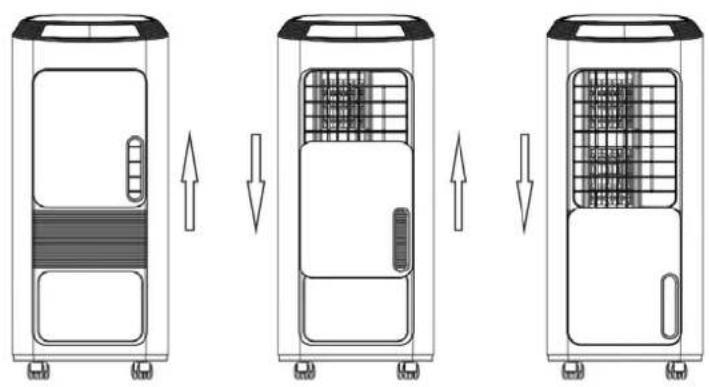

Sliding door design: modern design of sliding door when the unit is switched on or off.

Function Operation

• Ensure the unit is in the (OFF) position before plugging into the mains power socket.
• Place the unit on a firm level surface.
• Avoid overloading the circuit by not plugging other high wattage products into the same mains power socket

Plug into the mains power socket, the power indicator lights up, the Device is on power, and shows the temperature.

ON/OFF		Press this button to turn on the unit at low speed, and display the temperature. The door of the unit slides down to the bottom automatically. Press it again to turn off the unit. The door of the unit slides up till completely closing.
SPEED		Press this button to switch the unit between LOW - MID - HI ≈ Speed, in normal mode.
SUPER		Press this button to turn to the max wind air. Press it again to turn to original wind setting.
COOLER		When the unit is running by this function, the pump and the E-cooling system is working at the same time. The water is pumping from the water tank and flowing through the electronic refrigeration cooling system (Called Semiconductor), and going inside to the water curtain to achieve the effect of cooling. Press this button again to turn off the function. ** For much better cooling effect, ice box or ice is recommended to be put in the water tank. Caution: there is water shortage warning, if the water is not enough, the COOLER function will automatically stop, and 3 beeps will be heard, and the display of the cooler will be blink.
WIND Press to select Norm		al Mode, Natural Breeze Mode or Sleep Mode (as indicated on the Display). NORMAL Mode: The unit operates at the speed selected with "ON/ OFF" button. NATURAL BREEZE Mode: Fan speed varies automatically to simulate a breeze*. SLEEP Mode: Fan speed varies automatically for use during sleep*.
TIMER		When the unit is in use, you can set the Timer to turn off the unit after the specified time. Press this button repeatedly to increase the Timer setting in 1 hour increments (up to a maximum of 9 hours) as indicated on the display. After 5 seconds, the Timer starts. Once the Timer has run out, the unit will turn off.
ION		Press this button to turn the lonizer feature on/off (the unit must be operating for Ionizing to work). When the ioniser is turned on, it will assist in the purification of the room air.
SWING		Press this button to start Fan Oscillation with left and right direction. Press it again to stop Oscillation.

CLEANING AND MAINTENANCE

1. Unplug the unit before cleaning.
2. Clean the cooling master when it is visibly dirty or every month (depending on the condition of the surroundings).
3. Dry the honeycomb after using to avoid mildew; Replace and clean the water regularly to keep water clean. Use a dry cloth to absorb the remaining water inside the tank, and dry it with a piece of soft cloth;
4. Clean the water tank, filter mesh every two weeks.
5. Clean the unit and honeycomb two weeks one time as following steps:
6. Pack this unit properly and store it in a cool dry place if it is not used for a long period.

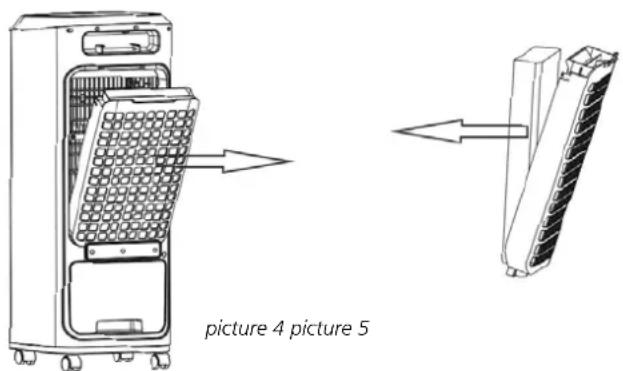

1. Take out the rear net first as indicated in the arrow direction, picture 4.
2. Take out the water curtain as shown in the arrow direction, picture 5.
3. Clean the water tank at the same together with the rear net and water curtain.

Caution:

• Use the clean water for cleaning;
• Because of the high voltage in the unit, the main power plug must be unplugged during cleaning.
• Any part of control panel must not be stained with water.

MAINTAINENCE

Have your product repaired by a qualified person

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

Contact the store which you bought the product for after sale services if any.

CAUTION

1. Use normal power supply.
2. Do not place objects on the top of the unit. Do not cover the air outlet when in use and obstructed of front and back in one meter.
3. After filling with water, do not tilt or collide the unit, when you need to move the unit, push the side surface slowly so as to avoid water splashing out. Do not overturn the unit in service to prevent accident (F.4).
4. The body of the unit may not be placed in area with extremely high or low temperature. In hot summer, the water in its water tank is liable to deterioration with odor and should be changed frequently. In winter, at room temperature lower than 0 degree, it is necessary to remove the water and clean with dry towel to avoid frost.
5. In cleaning the outer surface of the unit, wet cloth (or with some detergent) should be used. Do not use any corrosive cleaner or solvent for this purpose. Rinsing with water is absolutely not allowed. (F.5)
6. If packed for storage or transportation, please drain the water and make the unit working a few minutes, after totally dry then pack it, in order to avoid the peculiar smell.
7. Don't keep the plug connecting when long time no using the unit, it will be damaged.
8. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
9. The unit has strong humidity effect, please shut this function in the airtight environment.
10. Filling water when it is in the low water level.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning se of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.

MAIN TECHNICAL DATA
Model No. LK 5010
Rated Voltage 220V – 240V~
Rated Frequency 50Hz
Power Input 200 W
Protection Class II
Water Tank Capacity 10000 ml

TROUBLESHOOTING

Problem Cause Solution
No air flow 1. Power is not connected.2. Power is not turned ON.3. Body damaged.	1. Plug the power cable properly.2. Press the power key to start.3. Return to Service Center.
Fail to shutdown the Fan 1.	Stop key has not been pressed yet.2. Body damaged.	1. Press key Start/Stop.2. Return to Service Center.
Abnormal sound from Product body	1. Foreign article inside the body.2. Loose air wheel.3. Motor defect.	1. Remove rear cover and strainer, remove foreign articles.2. Return to Service Center.3. Return to Service Center.
No damping	1. Defective pump or motor.	1. Return to Service Center.
Air flow direction can not be controlled	1. Defective front synchronization motor.	1. Return to Service Center.

GUARANTEE CONDITIONS

The appliance is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral and/or consequential damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as filters, batteries, lamps and heating elements are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to it.

6. The guarantee is invalid for damage caused by neglect and/or by actions that deviate from those in this instruction booklet.

7. Transportation costs and the risks involved during the transportation of the appliance or components of the appliance shall always be for the account of the purchaser

8. Damage caused by not using suitable spare parts is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the appliance to your dealer for repairs if these instructions do not provide a solution.

www.qlima.com

ENVIRONMENTAL PROTECTION

Never dispose of non-biodegradable products in the environment, but dispose of them in accordance with current national legislation.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.
