USER MANUAL IAN 302477 Livarno Lux

Operation and Safety Notes

NL BE

SOLAR-LICHTBAND

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IEOperation and Safety NotesPage 11

List of pictograms used

Introduction

Intended use Page 12
Scope of delivery.. Page 12
Parts Description.. Page 13
Technical Data 13

Safety

Safety instructions.. Page 13
Safety instructions for batteries/rechargeable batteries

Start-up Page 15

Installing the LED tape light.. Page 15
Switching the LED strip on/off.. Page 15
Cutting the LED strip light. Page 15

Maintenance and cleaning.. Page 15

Disposal

Information

Warranty. Page 16
Declaration of conformity. Page 16
Manufacturer/Service

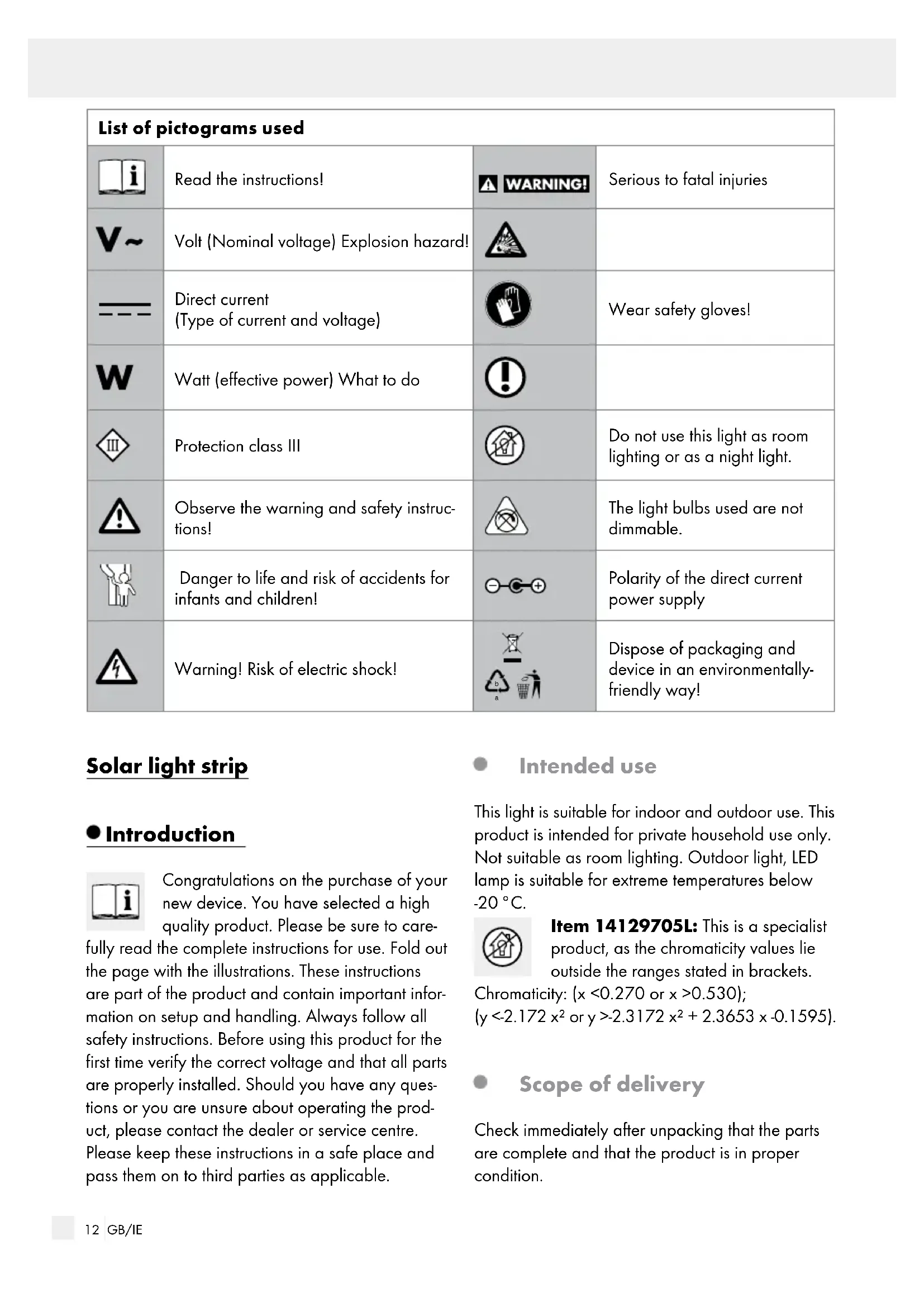

List of pictograms used
i	Read the instructions!	WARNING	Serious to fatal injuries
V~	Volt (Nominal voltage) Explosion hazard!
- - -	Direct current (Type of current and voltage)		Wear safety gloves!
W	Watt (effective power) What to do
III	Protection class III		Do not use this light as room lighting or as a night light.
!	Observe the warning and safety instruc-tions!		The light bulbs used are not dimmable.
	Danger to life and risk of accidents for infants and children!		Polarity of the direct current power supply
4	Warning! Risk of electric shock!		Dispose of packaging and device in an environmentally-friendly way!

Solar light strip

Introduction

Congratulations on the purchase of your new device. You have selected a high quality product. Please be sure to care

fully read the complete instructions for use. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable.

- Intended use

This light is suitable for indoor and outdoor use. This product is intended for private household use only. Not suitable as room lighting. Outdoor light, LED lamp is suitable for extreme temperatures below -20^

Item 14129705L: This is a specialist product, as the chromaticity values lie outside the ranges stated in brackets.

Chromaticity: x < 0.270 or x > 0.530 y < - 2.172x^2 or y > - 2.3172x^2 + 2.3653x - 0.1595

Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 Solar light strip, Model 14129705L and 14129805L with twilight sensor
1 Solar panel
4 Silicone rings

Tube

Groundstake

1 Adhesive strip
1 Instructions for use

Parts Description

Solar panel
2 Plug-in connector
3 LED strip
4 Tube
5 Ground stake
6 Locking screw
7 Power switch (ON/OFF)
MODE button
Silicone rings
[10] Adhesive strip

Technical Data

Item no.: 14129705L and 14129805L

Operating voltage: 1.2V = = LED85mW

Rechargeable

Battery: NI-MH AA 1000 mA

Bulbs: 90 coloured LEDs

(14129705L) LEDs are not

replaceable

180 white LEDs (14129805L)

LEDs are not replaceable

Length: 3m

Solar Panel: IP44

LED strip: IP65

Output current

solar panel: 15-25 mA

Safety

Safety instructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety instructions!

WARNING!

This rope light must not be used without all gaskets being in place.

DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard.

Children often underestimate dangers. Please always keep the product out of the reach of children. This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

ATTENTION!

Do not look into the LED from up close whilst in use.
Do not look at the LED with an optical instrument (e.g. magnifier).
Do not operate the tape light whilst rolled up or in the packaging.
Never connect the LED tape with other LED tapes.
The LEDs are non-replaceable.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.

Avoid the risk of fatal injury due to electric shock

Check the LED tape light for damage before every use. Never use the LED tape light if any damage is detected.

WARNING!

In the case of damage, repairs or other problems related to the LED strip, please contact the service centre or a qualified electrician.

Never open any of the components of the elec
trical equipment or insert any objects into them.
This poses a risk of fatal injury due to electric shock.
Protect the product from sharp edges, mechanical loads and hot surfaces.
Do not secure with sharp staples or nails.
Never touch the plug or the LED strip with wet hands.
To prevent hazards, a damaged lead must be replaced by the manufacturer or a professional.
When installing on outdoor flooring, protect the supply cable from damage (passing over, etc.).

Prevent fire and injury hazards

This product does not contain any parts which can be serviced by the user. The LEDs cannot be replaced.

Safety instructions for batteries/rechargeable batteries

DANGER TO LIFE!

Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
This product features a built-in rechargeable battery which cannot be replaced by the user.

Safe working

Do not leave the LED tape light or packaging material lying about carelessly. The packaging material presents a suffocation hazard and there is a danger to life due to strangulation.
Install the light so that it is protected from dirt and excessive heating.
Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED tape light if you are having difficulty concentrating or do not feel well.
Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED tape light itself.

- Start-up

- Installing the LED tape light

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.

Choose a suitable installation area (window etc.). Remove the protective foil from the reverse side of the LED strip 3. Ensure when removing the protective film that you do not peel away the adhesive tape too. Stick the LED strip 3 with the adhesive strip onto the installation area and press it on firmly.
Alternatively, secure the LED strip using the hangers (silicone rings 9).
Mount the solar panel to the tube 4 and the ground stake 5. Ensure during assembly that the solar panel 1 is connected flush with the tube 4. Mount the plug-in connector 2.
Push the solar panel 1 with the earth stake 5 into the ground.
Loosen the locking screw 6.
Adjust the solar panel 1 to the desired position.
- Re-tighten the locking screw [6]. Your light is now ready to use.

- Switching the LED strip on / off

Note: The LED strip is only switchable when the light has been switched on by the twilight sensor.

Press the power switch (ON/OFF) 7 on the solar panel 1 to switch on the LED strip 3.
You can choose between 7 different effects or permanent lighting by pressing the MODE button on the solar panel.
The solar module takes approx. 3-4 hours to charge. When fully charged, the lighting time is 10-12 hours.
The solar panel contains a twilight sensor which automatically switches the light on and off again.
Press the power switch (ON/OFF) 7 to switch off the LED strip 3.

Cutting the LED strip light

The LED strip light can be cut to size as required.

WARNING! DANGER TO LIFE DUE TO ELECTRICSHOCK!

Disconnect the light from the power source before working on the LED strip light 3.

Separate the LED strip 3 from the solar cell.
Determine the desired length for the LED strip light 3.

Note:Make sure you cut the LED strip light 3 at the correct point (see III.B).

Cut the LED strip light 3 with a pair of scissors.
Be sure to cover the open end of the LED strip light 3 with the adhesive strip 10 before using the light (see Ill. C).

- Maintenance and cleaning

WARNING! DANGER TO LIFE FROM ELECTRIC SHOCK!

Disconnect the light from the power supply through the solar panel 1 before performing any work on the LED strip 3.

Disconnect the plug-in connector 2 to do so.

Do not use solvents, petrol or similar substances, as they would damage the light.
Use a dry, lint-free cloth to clean the LED tap light 3.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Defective or used batteries must be recycled in accordance with Directive 2006/66/EC. Return batteries and / or the device to the recycling facilities provided.

Information

Warranty

This product has a warranty of 36 months from the date of purchase. The appliance has been carefully produced under strict quality control. During the warranty period we will repair any defects in material or manufacture free of charge. If defects are detected during the warranty period, please send the product to the service address listed, specifying the following item number: 14129705L/14129805L.

Wear parts (such as bulbs) and damage caused by improper handling, failure to observe the operating instructions or unauthorised manipulation are excluded from the warranty. Providing warranty services does not extend or renew the warranty period.

Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. Conformity

has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer/Service

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Pile: NI-MH AA 1000 mA
