EX 1200 Plus - Water pump TETRA - Free user manual and instructions

Product type	Aquarium water pump
Brand	Tetra
Model	EX 1200 Plus
Power supply	230 V AC, 50 Hz
Power consumption	19.5 W
Flow rate (empty)	1300 l/h
Flow rate (in operation)	810 l/h
Filtration volume	12 liters
Number of filter baskets	4
Hose inner diameter	16 mm
Power cord length	1.65 m
Dimensions (L × W × H)	211.6 × 211.6 × 412 mm
Weight	Approx. 4 kg (estimated)
Permissible water temperature	+4 °C to +35 °C
Maximum delivery head	1.5 m (distance between filter and water level)
Included filter media	Tetra FF synthetic wadding, Tetra CF activated carbon, Tetra BF biological foam, Tetra BB bioballs, Tetra CR ceramic noodles
Compatible water types	Freshwater and saltwater
Prefilter maintenance	Clean with warm water when clogged
Replacement of synthetic wadding	Every month
Replacement of activated carbon	Every 2 to 4 weeks
Rotor cleaning	With warm water if flow reduces
Warranty	3 years from date of purchase
Intended use	Indoor, private use, external aquarium filter
Safety	Never run dry, disconnect before maintenance, use only genuine parts

Frequently Asked Questions - EX 1200 Plus TETRA

How to install the Tetra EX 1200 Plus filter?

Install the filter outside the aquarium, at a distance from the water level between 80 and 150 cm. Mount the inlet and outlet pipes, connect the hoses, then prime the filter by pressing the priming button rapidly until water flows.

Why is the water flow reduced?

Check that the hoses are not kinked or twisted, that the intake strainer is not clogged, and that the filter media are not dirty. Clean or replace the media if necessary.

How often should I change the filter media?

Tetra FF synthetic wadding should be changed every month, Tetra CF activated carbon every 2 to 4 weeks. Tetra BF biological foam and Tetra BB bioballs are cleaned every 6 to 12 months depending on dirtiness.

How to clean the filter rotor?

Unplug the device, remove the filter head, unscrew the rotor cover, take out the rotor and clean it with hot tap water. Reassemble everything in the 'lock closed' position.

What to do if the motor does not start?

Check the power supply. If the rotor is blocked or missing, clean or replace it. Ensure the rotor shaft is not broken.

Water leaks from the filter head, what to do?

Check that the locking clips are properly closed, that the head gasket is correctly positioned and clean. Clean the contact surfaces and replace the gasket if damaged.

Can I use the filter in saltwater?

Yes, the Tetra EX 1200 Plus is designed for use in freshwater and saltwater.

How to prime the filter correctly?

Open the stop valves fully, press the priming button rapidly several times until water is visible in the outlet hose, then plug in the filter.

The filter makes an unusual noise, why?

This may be due to trapped air (gently shake the filter), a clogged prefilter (clean it), or poorly connected hoses (check the connections). Lubricate the O-rings with petroleum jelly if necessary.

What is the difference between the EX Plus models?

The EX 400, 600, 800, and 1200 Plus models differ in flow rate, filtration volume, and aquarium capacity. The EX 1200 Plus is suitable for aquariums from 200 to 500 liters with a flow rate of 810 l/h in operation.

USER MANUAL EX 1200 Plus TETRA

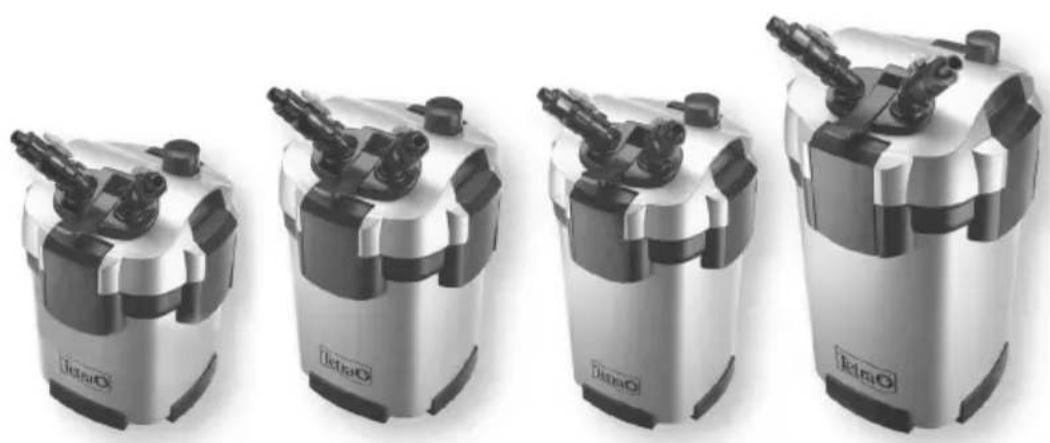

EX 400 Plus, EX 600 Plus, EX 800 Plus, EX 1200 Plus

EN Instruction manual

Read this instruction manual carefully and familiarise yourself with the filter.

Keep this instruction manual in a safe place. It is an integral part of the product.

Observe your duty of supervision

• The fter can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the filter in a safe way and they understand the hazards involved.
• Do not allow children to play with the filter.
• Do not allow children to carry out cleaning and user maintenance without close supervision.

Prevent electric shock

not use the appliance if it has a damaged cord or housing.
- Only connect the appliance to a correctly installed power socket.
- Protect the plug and socket from moisture.
- Always disconnect all appliances in the aquarium from the power supply before reaching into the water.
- Switch off and disconnect plugs from the power supply in the following situations:
- Always disconnect the appliance from the power supply before carrying out cleaning or maintenance measures.
- Never make any changes to the appliance.
- Never open the motor head.

Prevent damage to property

• Do not allow the pump of the filter to run dry.
• Route cables and hoses such that they are protected and cannot cause a tripping hazard.

Observe symbols and information

Warnings

WARNING

Wards of a hazardous situation, which could lead to death or severe injuries if not avoided.

• Measures for preventing the hazard are specified here.

NOTE

Indicates a situation, which could lead to malfunctions or damage to property if not avoided.
- Measures for preventing the hazard are specified here.

Additional information

Reference to a figure, e.g. Fig. A.

Reference to another section.

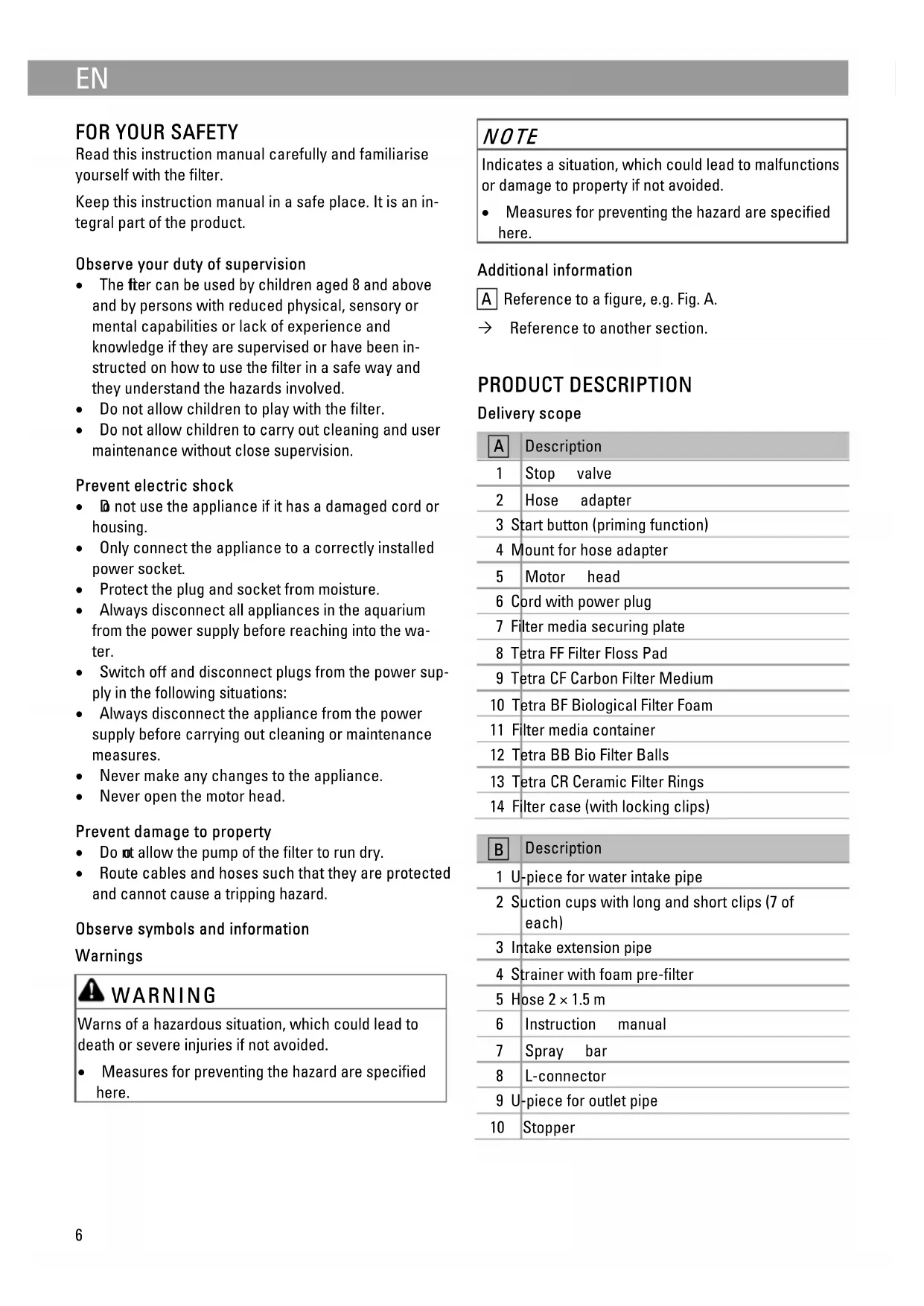

PRODUCT DESCRIPTION

Delivery scope

A	Description
1	Stop valve
2	Hose adapter
3	Start button (priming function)
4	Mount for hose adapter
5	Motor head
6	Cord with power plug
7	Filter media securing plate
8	Tetra FF Filter Floss Pad
9	Tetra CF Carbon Filter Medium
10	Tetra BF Biological Filter Foam
11	Filter media container
12	Tetra BB Bio Filter Balls
13	Tetra CR Ceramic Filter Rings
14	Filter case (with locking clips)

B	Description
1 U-piece for water intake pipe
2 Suction cups with long and short clips (7 of each)
3 Intake extension pipe
4 Strainer with foam pre-filter
5 Hose 2 × 1.5 m
6 Instruction manual
7 Spray bar
8 L-connector
9 U-piece for outlet pipe
10 Stopper

Intended use

EX 400 Plus, EX 600 Plus, EX 800 Plus, EX 1200 Plus may only be used as specified in the following:

• For cleaning aquarium water.
• For operation with freshwater or saltwater.
  Operation under observance of the technical data.

The following restrictions apply to the appliance:

• Only operate with water at a temperature of +4^ ... +35^ .
• Only install the appliance outside of the aquarium. Never place it into the water.
• Only use indoors.
• Only use for aquaristic purposes in the home (not for commercial use).

ACCESSING THE FILTER

Removing the hose adapter

The hose adapter is removed before taking off the motor head.

Prerequisite:

• The plug is disconnected from the power supply.
• Both stop valves are closed.

How to proceed:

C

1. Hinge up the cover on the hose adapter.
2. Hinge up the locking lever and turn it as far as it goes into the position "lock open".
3. Pull the hose adapter off the motor head.

Fitting the hose adapter

How to proceed:

D

1. Hinge up the cover on the hose adapter.
2. Turn the locking lever into the position "lock open".
3. Fit the hose adapter into the intended recess and press it into the motor head as far as it goes.
4. Turn the locking lever into the position "lock closed" as far as it goes and hinge down.
5. Hinge down the cover.

Removing the motor head

The motor head is removed for cleaning and maintenance, and for changing the filter media.

Prerequisite:

• The hose adapter has been removed. ( Removing the hose adapter)

How to proceed:

E

1. Lift and release all four locking clips on the filter case.
2. Hinge down the locking clips.
3. Remove the motor head.

Fitting the motor head

How to proceed:

F

1. Align the motor head such that the pipe is positioned over the opening of the filter media securing plate.
2. Fit the motor head onto the filter case and fasten with the four locking clips.
3. Fit the hose adapter. ( Fitting the hose adapter)

INSTALLATION AND CONNECTION

Prepare the filter media

Some of the filter media is packaged on delivery. It has to be removed from the packaging and rinsed.

Prerequisites:

• The motor head has been removed. ( Removing the motor head)

How to proceed:

A

1. Remove the filter media securing plate, all filter media containers and filter media from the filter case.
2. Unpack the filter media, dispose of the packaging in an environmentally friendly manner.
3. Thoroughly rinse all the filter media with warm tap water.

Filling the filter case with filter media

The filter case has to be filled with the filter media in the correct order.

Prerequisite:

• The motor head has been removed. ( Removing the motor head)
• The filter media is prepared. ( Prepare the filter media)

How to proceed:

AG

1. Place the filter media securing plate, filter media containers and filter media into the filter case in the correct order.
   Align the filter media securing plate and filter media containers such that the arrows point in the same direction as the arrow on the filter case.
2. Close the filter ( Fitting the motor head).

Connecting the hose to the hose adapter

The procedure is identical for the inlet IN and outlet OUT.

How to proceed:

H

1. Fit the stop valve onto the hose adapter connection and turn the nut clockwise by hand.
2. Fit the hose onto the hose connection socket.
3. Turn the union nut for securing the hose counterclockwise.

Fitting the intake pipe and outlet pipe

How to proceed:

B1

1. Assemble the intake pipe as shown and fasten it with the suction cups vertically to the inside wall of the aquarium,
2. Assemble the outlet pipe as shown and fasten it with the suction cups horizontally above the surface of the water to the inside wall of the aquarium, - Shorten the outlet pipe if necessary.
3. Connect the hose from the inlet IN of the filter to the intake pipe.
4. Connect the hose from the outlet OUT of the filter to the outlet pipe.

NOTE

Kinks or twists in the hose impair the function of the filter.

• Route the hose without kinks and twists.
• Shorten the hose if necessary.

Positioning the filter

J

Position the filter at the specified distance from the level of the water in the aquarium to avoid malfunctions of the filter.

Filter Distance A
EX 400 Plus 40 ... 150 cm
EX 600 Plus 50 ... 150 cm
EX 800 Plus 60 ... 150 cm
EX 1200 Plus 80 ... 150 cm

START-UP

#

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

• Only connect the plug to a correctly installed power socket.
• Never connect the plug to the power socket if the filter, hoses, cord or plug are damaged.

NOTE

The pump must never run dry. The pump will be destroyed.

Regularly check the water level and circulation in the filter and in the aquarium.

NOTE

Risk of water damage due to leaking hoses.

• Immediately check all hoses and connections for leaks after starting up the filter.
  If there are any leaks, immediately disconnect the plug and close the stop valves.
• Do not start up the filter again until all leaks have been eliminated.
• Check for leaks again when the filter has been operating for approx. 30 minutes.

How to proceed:

1. Completely open the stop valves at the inlet IN and outlet OUT.
2. Press the start button several times in quick succession until the filter starts filling with water.

3. Wait until water is visible in the hose to the outlet pipe.

4. Connect the plug of the filter to the power socket.

5. The pump in the motor head will switch on automatically.

6. Set the flow rate.

7. Set the desired flow rate with the stop valve at the inlet IN.

8. The stop valve at the outlet OUT remains completely open.

CLEANING AND MAINTENANCE

WARNING

Dangerous electrical voltage!

Death or severe injury from electrocution.

• Switch off the appliance, disconnect the power plug and secure the appliance from being switched on again before starting any work.
  After completing all work, restore all prerequisites for start-up.

Maintenance intervals

Components	Inspection	Cleaning	Replacement
Tetra FF Filter Floss Pad – –	Monthly
Tetra CF Carbon Filter Me-dium	– – Every 2 to 4 weeks
Tetra BB Bio Filter Balls Every 12 months In the event of an obstruc-tion due to extreme soiling			If the dirt on the surface cannot be removed by rins-ing
Tetra BF Biological Filter Foam	Every 6 months When dirt is visible on in-spection		Every 12 months
Tetra CR Ceramic Filter Rings	Every 12 months In the event of an obstruc-tion due to extreme soiling		If the dirt on the surface cannot be removed by rins-ing
Impeller – If the motor is not working	or the water flow is reduced		-

Cleaning/replacing the filter media

• Do not use cleaning agents or chemical solutions.
• If there are several foam filters, clean or replace the foam filters at different times. This saves enough useful bacteria to ensure good biological filtration of the water.

NOTE

Normal tap water destroys the bacteria colonies in the filter media. This will impair the cleaning effect.
- Only use water from the aquarium for cleaning the filter media.

Prerequisite:

• The motor head has been removed. ( Removing the motor head)

How to proceed:

1. Remo ve all filter media from the filter case.
2. Carefully clean the filter balls, foam filters and ceramic filter rings with water from the aquarium.
3. Change the filter media according to the change intervals.

Cleaning/replacing the impeller

Prerequisite:

• The motor head has been removed. ( Removing the motor head)

How to proceed:

K

1. Turn the cover cap counter-clockwise into the position "open" and remove.

2. Clean the cover cap and impeller with warm tap water.

3. Replace damaged parts.

4. Assemble the parts in the reverse order.

5. Turn the cover cap clockwise into the position "close".

Cleaning/replacing the motor head seal

Prerequisite:

• The motor head has been removed. ( Removing the motor head)

How to proceed:

L

1. Remove the motor head seal and clean with warm tap water.
2. Replace the motor head seal if damaged.
3. Fit the motor head seal.
4. Ensure that the motor head seal fits tightly to the motor head all the way round.

Cleaning the foam pre-filter

The foam pre-filter has to be cleaned if it is heavily soiled.

How to proceed:

M

1. Pull the foam pre-filter from the strainer and wash with clear, warm water.

STORAGE

How to proceed:

1. Disconnect the power plug.
2. Empty the water from the filter, clean the filter and filter media. ( Cleaning and maintenance)
3. Store the filter in a dry place.

DISPOSAL

NOTE

Incorrect disposal causes damage to the environment.

• Dispose of the packaging materials in an environmentally friendly way in accordance with the applicable legal regulations.
• Render the filter unusable beforehand by cutting the cord and dispose of the filter via the return system provided for this purpose.

TROUBLESHOOTING

Malfunction Possible cause Remedy
The motor head cannot be fastened to the filter case.	The arrows on the filter media container and on the filter case are not all pointing in the same direction. The filter media contai-ners are incorrectly fitted.	Fit the filter media containers correctly.
	Too much filter media has been put into the filter media containers.	Remove excess filter media.
Water leakage from the motor head.	The locking clips are not properly closed. Close the locking clips properly.
	Dirt or foreign bodies are located on the fil-ter case or motor head seal.	Clean all points where the motor head seal and filter case make contact.
	The motor head seal is incorrectly fitted, damaged or missing.	Correctly insert the motor head seal or replace.
	The edge of the motor head is damaged. Replace the motor head.
	The hose adapter is incorrectly fitted. Fit the hose adapter correctly.
The motor is not work-ing.	The power supply is interrupted. Establish the power supply.
	The impeller shaft is broken. Replace the impeller.
	The impeller is missing or is blocked by for-eign bodies.	Fit the impeller or clean.
Reduced water flow. The	The hose adapter is heavily soiled. Remove the hose adapter and clean with warm water.
	The hoses are restricting the water flow. Eliminate any kinks or twists in the hoses.
	Excessive dirt build-up in the hoses. Rinse out the hoses, intake pipe and outlet pipe with tap water at high pressure.
	Strainer clogged. Remove all foreign bodies and dirt.
	Filter media clogged. Clean the filter media with water from the aquarium.
	The filter media is contained in nets. Do not use filter media in nets or nylons as the filter will become clogged.
	The filter media containers have not been correctly filled with filter media. Fill the filter media containers correctly.
	Excessive dirt build-up on the Tetra FF Fil-ter Floss Pad. Replace the Tetra FF Filter Floss Pad.
	Dirt in the impeller case. Clean the impeller with warm water.
	The water is not circulating. Position the outlet pipe above the level of the water and press the start button.
	Filter media/spare parts other than those supplied by the manufacturer have been used. Only use original parts from Tetra.
Air trapped in the filter.	Insufficient distance between the filter and the water level in the aquarium.	Position the top edge of the filter head at least 10 cm below the level of the water.
	Filter media clogged. Clean the filter media.
	Air entering through the intake pipe.	·Route a hose between the intake pipe and fil-ter below the level of the water in the aquar-ium. ·Renew the O-ring on the intake pipe.
The filter does not start up correctly.	Filter media insufficiently cleaned. Clean the filter media.
	The filter media is contained in nets. Do not use filter media in nets or nylons as the filter will become clogged.
Unusual noises emitted when the filter starts up.	Air is entering through the hose connec-tion.	Connect the hoses properly.
	Air trapped in the filter. Carefully shake the filter to allow the air to es-cape.
Unusual noises emitted from the filter during operation	Foam pre-filter clogged. Clean the foam pre-filter.
	Insufficient flow rate Open the stop valves to increase the flow rate.
	Insufficient lubrication of the O-rings. Apply a generous amount of commercially available lubricant such as Vaseline to the O-rings.
	Uneven water circulation due to insuffi-cient intake of water.	Disconnect and reconnect the power plug to start up the filter again.
	Insufficient distance between the filter and the water level in the aquarium.	Position the top edge of the filter head at least 10 cm below the level of the water.
	Air trapped in the filter. Carefully shake the filter to allow the air to es-CAPE.
	There is a sound of air being emitted from the outlet pipe about every 10 seconds.	Air released by aquatic plants during photosyn-thesis and by bacteria causes the formation of air bubbles, which cause this sound. No mea-sures necessary.
	The start button is pressed. Never press the start button when the filter is operating. Ensure that no objects accidentally press against the start button.

TECHNICAL DATA

Description EX 400 Plus EX 600 Plus EX 800 Plus		EX 1200 Plus
Rated voltage V AC 230
Rated frequency Hz 50
Power consumption W 5.5 7.5 10.5 19.5
Flow rate during operation without filter media and hose		I/h	450	630	790 1300
Flow rate during operation I/h 320 360		430 810
Suitable tank size I			10-80	60-120	100-300
Filter capacity		I	3.2 5.7 6.6 12.0
Number of filter media containers			2	3	4
Hose internal diameter		mm	12	12	16
Dimensions	Length	mm	211.6	211.6	211.6
	Width	mm	211.6	211.6	211.6
	Height	mm	314.0	364.0	412.0
Length of the connection cord		m	1.65

GUARANTEE

Tetra gives a three year guarantee from the date of purchase. Please keep proof of purchase. The guarantee does not cover improper use, normal wear and tear or modifications to the appliance. In the event of a complaint please contact your local retailer or Tetra GmbH, Tetra Technik Service Center, Postfach 1580, D-49304 Melle, Germany.

ZU IHRER SICHERHEIT

Satt pa slangadaptern

Gorsahar:

D

OPSTILLING OG TILSLUTNING

IJIaHROBbI aIaIaTeP HxHcHMaTb Do CHaTnra roJIOBbI cNbTpA.

063aTeNbHoe ycNoBne:

CeteBOI Ka6eIb HxHIO BbIHyt N3 pO3eTKN.
- 06a 3anophbx kpaHa dOJKNbI 6bITb 3aKpbTbI.

PocledoBateIbHOCtB DeIcTbn:

4.ПоднЯТь ВВерх Крblшку На Шангов amanTepe.
5.ПОДнЯТБ ВЕРХ 6LOKИРаTOPHYO pyKoRTKY I NOВЕРHyTbdo yNopa B NOLOXKeHne "3amOK OTKpbITb".
6. ⅢaHroBbI aDantep ChrTb c rOJOBbl fNJIbTpA.

YctaHOBntb wlaHroBbni aanTep

PocneObaTeIbHOCtB DeIcTbn:

1.NoHrB BBePx KpbIshky Ha IlaHroBOM aanTepe.
2.6IOKupaTopHyO pyKoTky NOBepHyTb B NOLOKeHne "3aMOK OTKpbTb".
3.ⅢaHroBbI aanTeP BCTaBnTb B npedyCMOTpeHHbI
Hr Hrno 33 n Do ynpa BdaBnTb B roIOBy
HnbTpA.
4.BloKnpaToPHyIO pyKOaTKy NOBepHyTb Do yNopa B nOLOXeHne "3amOK OTKpbITb" N ONyCTNTb BHn3.
5.0nyctntb Kpbilky.

CHaTb rOIOBy QnIbTpTa

TOnOByΦnIbTpca CHMaIOrДЯ npOMbIBKn,ДЯ peMOHTa nДЯ 3aMeHbI ΦnIbTpYIOUeero HANOHNHTeJIa.

063aTeIbHoe ycIOBHe:

• ΜλαHROBbI aДaNTep dOJIkeH 6bITb yKe cHrT. (→ ChrTb υλaHROBbI aДaNTep)

PocneIOBATEbHOCtB DeIcTbn:

1.Bce YeTbipe 3axnMhBie KInncbHa KOpnyce fNtbpota NotaHyTb BBepx,HTo6blnxOTcoeHNHtB.
2.3axmHbIe KJIINcBi OTKnHyTb BHN3.
3. Chrtb roJIOBy fHnIbTpa.

YcTaHOBntb roIOby HnIbTp

PocneIOBATEbHcTb DeIcTbn:

1. TOLOBY ΦιNBtpa BbIPOBHЯrTaK, YTO6bI Tpy6Ka BOUJIa B npOyncHoe OTBepCTne 3aUnTHoN CEKN.
2. TOnOBy fNtpa NoCTaBnTb Ha Kopnyc fNtpa 3aKpeNTb YeTbIpBm 3axmHbIM KInncamn.
3. YctaHOBntb IlaHRObIa aanTepe. ( YCTaHOBntb IlaHRObIa anTepe)

PA3MEUeHNEIPOdkJIIOUeHNE

IoprotobtbHbtpyioue HanoHHTeH

B o6bem nocTaBn BXoJr T HeCKOJIbKO fNJIbTpyUOuNX HanoHInTeIe.Npeed nCNoJIb3OBAHNEM IN HJXHO BblHyTb N3 YNAKOBKN IN PpOMblTb.

063aTeIbHoe ycIobne:

• TOnOBAΦnIbTpapDolJHHa6bITb yXe ChrTa. ( CHaT_B roNoByΦnIbTppa)

PocleIOBATEIbHOCtBJeCTBn:

HnIbtpyioi HanoHInTeB NOuCTNb/3aMeHHTb

3aPpeaetcNcNoIb3OBAbTbHcTtAe cpeCTBa HxMnueckne pactBopnteH.
- Pn HAnuHn HeckoBKnx FInbTpUOux HanoJHnteJe Hx HyXHO YnCTnTb Nn 3aMeHrTb No oupeDn co CdBnFOM NO BpeMeH. TaKm O6pa30mNoIe3HbIe 6akTePnn 6ydyT coXpAHeHbl, yTo o6ecNeHT XopoWyIO 6nOLOrNueckyIO ONUCTKy BObl.

YKA3AHNE

O6bHnA BODOpOBoHnA B0a pa3pyuaeT 6aKTepe
aIbHyIO KylbTypy BΦnlbTrpyUoXn HanoJIHnTeJax.
To yMeHbWaet OOnuOuN n

PocleDoBaTeIbHOCtB DeIcTbn:
