USER MANUAL PFSH 3 A2 PARKSIDE
DE AT CH
FORSTSCHUTZHELM
Translation of the original instructions
NL BE
BOSBOUWHELM
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
FR BE
Einleitung....2
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Semi Uguzlu
General safety instructions 9
Adjustments 10
Adjusting the head strap, fig. A 10
Adjusting the ear protectors, fig. B - D: 10
Adjusting the visor, fig. E 10
Maintenance, cleaning, storage and transportation....11
Durability 11
Disposal....11
Service....11
Importer 11
EU Declaration of Conformity 12
FORESTRY SAFETY HELMET PFSH 3 A2
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
The forestry safety helmet protects its wearer from head injuries caused by falling or flying objects and impact from stationary objects.
The ear protectors guard the wearer against noise.
WARNING!
The size of this helmet-ear muffs combination is "large".
▶ Helmet-ear muffs combinations (compliant with EN 352-3) are offered in the sizes "medium", "small" and "large". "Medium" size helmet-ear muffs combinations fit the vast majority of users. "Large" helmet-ear muffs combinations are intended for users for whom "medium" size helmet-ear muffs combinations are not suitable.
Any other usage or modification of the forestry safety helmet is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The forestry safety helmet is not intended for commercial use.
Features
① Helmet
② Visor (with bracket)
③ Ear protectors
4 Head strap adjuster
⑤ Ear protector adjuster
6 Head strap
Package contents
1 helmet with an adjustable head strap and sweat-band, ear protectors and a visor with bracket
1 set of operating instructions
Technical data
Head circumference: 54-63 cm
Size ear protectors: L (large)
Weight ear protectors: approx. 240 g
Total weight: approx. 700 g
Materials ear protection:
Bracket for hearing protection: POM
Sealing cushion: PVC
Damping values of the ear protectors:
| Frequency (Hz) 6 | 3 125 | 250 500 | ||
| Mean Mf (dB) 1 | .0 8.8 | 14.0 | 25.7 | |
| Standard deviation Sf (dB) | 3.9 3 | .4 3.7 | 5.6 | |
| Assumed Protection Value/ APV (db) | 7.1 5 | .4 10.3 | 20.1 |
| Frequency (Hz) | 1000 | 2000 | 4000 | 8000 |
| Mean Mf (dB) 27.1 | 35.0 | 33.2 | 33.8 | |
| Standard deviation Sf (dB) | 2.9 | 4.0 | 5.1 | 5.0 |
| Assumed Protection Value/ APV (db) | 24.1 | 31.1 | 28.1 | 28.8 |
| H-value (high level) | M-value (medium level) | L-value (low level) | SNR value (single number rating) |
| 29 dB 21 | dB 12 dB 23 | 3 dB |
Explanation of the symbols used on the helmet:

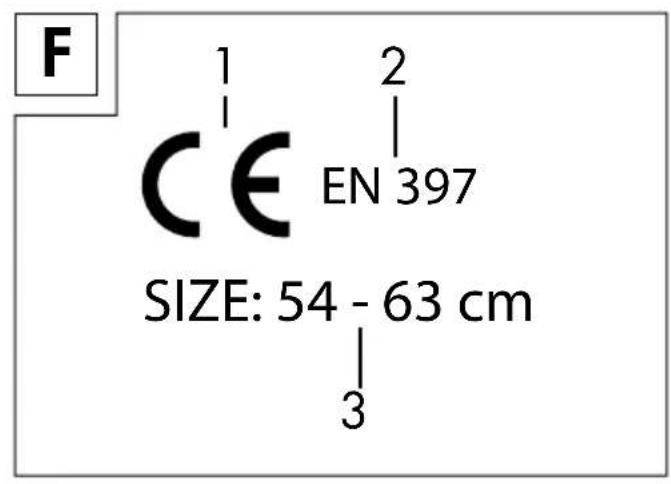

Figure F:
1.) CE marking
2.) Applied standard
3.) Helmet size

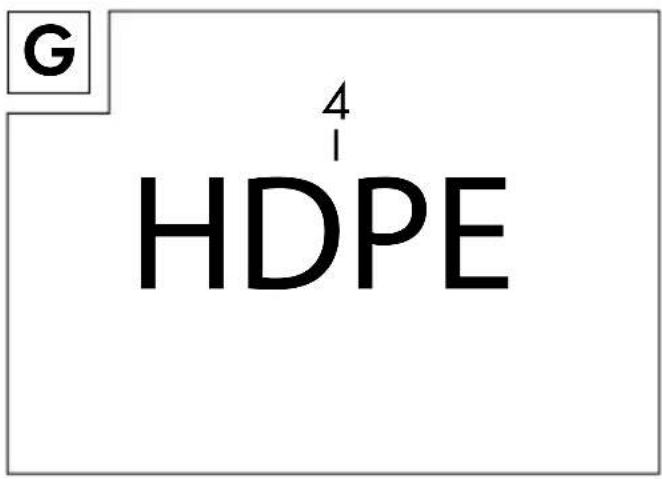

Figure G:
4.) Material

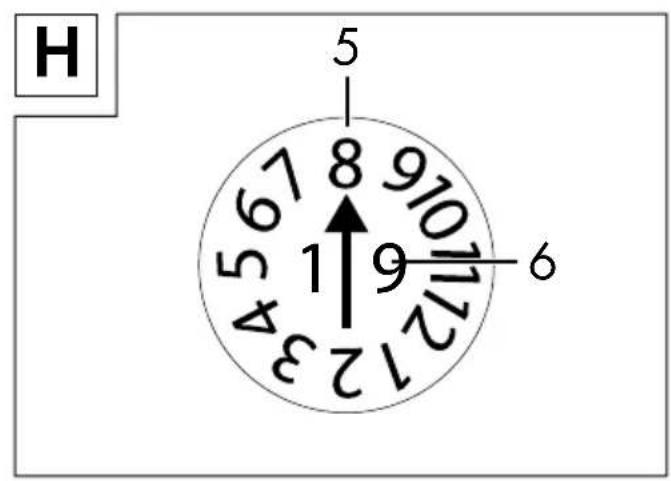

Figure H:
5.) Month of manufacture
6.) Year of manufacture (e.g. 2019)
Explanation of symbols on the visor:

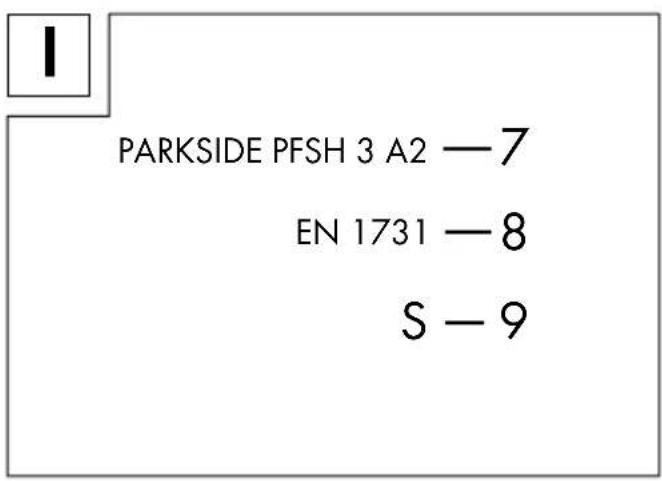

Figure I:
7.) Manufacturer type
8.) Applied standard
9.) Symbol for increased strength
Applied standards:
The helmet has been examined as per:
EN 397: 2012+A1: 2012
The ear protectors have been audited as per:
EN 352-3: 2002
The visor has been audited as per:
EN 1731: 2006
Identification number, name and address of the inspection body:
2754 ALIENOR CERTIFICATION
eralsafety instructions
WARNING!
▶ Read all safety warnings and all instructions.
Save all warnings and instructions for future reference.
Please pay close attention to the following information and safety instructions to ensure the best possible protection and comfort.
■ Whenever you use the helmet, first check that all components are properly attached, adjusted and serviced.
■ Always use the helmet with the correct settings to ensure the required protection.
■ The helmet cannot guarantee complete protection against injury. It does not replace adherence to safe work procedures.
■ Never modify the structure or varnish of the helmet.
The helmet must not come into contact with liquids containing solvents or alcohol. These substances can damage the plastic.
■ Knocks or other impacts can cause imperceptible impact damage to the helmet, such as hairline cracks. This compromises the protection afforded by the helmet, especially in emergencies. Replace the helmet if it has been subject to extreme stresses.
Examine the helmet for damage (cracks, tears) before every use. Only use the helmet and accessories if they are in a flawless condition.
■ Do not modify the helmet as this could compromise its protective effect.
■ Please adhere to all instructions and tips regarding assembly, adjustments and maintenance of the ear protectors.
■ The ear protectors are intended to protect your ears in noisy areas.
■ They should be worn for as long as the noise persists.
■ The pads of the ear protectors will show signs of wear over time. Examine them for tears or loose spots after each use.
■ Do not clean the ear protectors with chemicals or substances that are harmful to the wearer.
■ Certain chemical substances can damage this product. Detailed information is available from the manufacturer.
Ear muffs and especially their foam padding can wear down over time. Examine them regularly for tears, loose spots and other signs of wear.
■ Covering the foam pads with hygiene covers can compromise the acoustics of the ear muffs.
WARNING!
▶ Failure to comply with the safety instructions provided for the ear protectors can seriously compromise their protective effect.
■ Always flip down the visor when wearing the helmet.
■ It protects you from flying objects.
The visor does not offer protection from splashing liquids (including liquid metals), hot objects, electricity and infrared/UV rays.
- Do not use the visor in environments with a predictable risk from hard or sharp flying objects.
■ Wood shavings and their resin can damage the visor and impair its transparency.
WARNING!
The visor is tested for increased mechanical strength and corresponds to mechanical strength class "S".
Adjustments
Adjusting the head strap, fig. A
- Turn the head strap adjust to adjust the head strap to fit your head.
◆ The headband should fit your head snugly when you put on the helmet.
♦ Tighten the headband by turning the head strap adjuster 4 clockwise.
- Loosen the headband by turning the head strap adjuster 4 anticlockwise.
■ The helmet must sit firmly on your head without exerting uncomfortable pressure.
CAUTION!
▶ Always make sure that the helmet is adjusted correctly when using it.

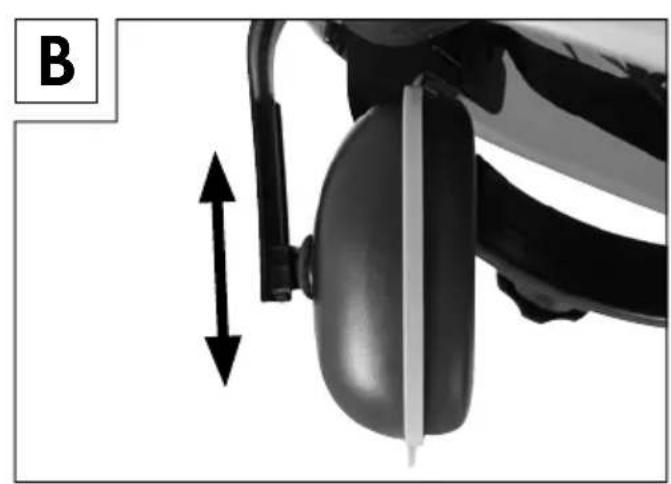

Adjusting the ear protectors, fig. B - D:
You can adjust the height and position of the ear protectors 3
♦ Push down the bracket of the ear protector 3 to lock the ear protectors 3 into your ears.
◆ Slide the ear protector 3 up or down to set them to the required height (see fig. B).

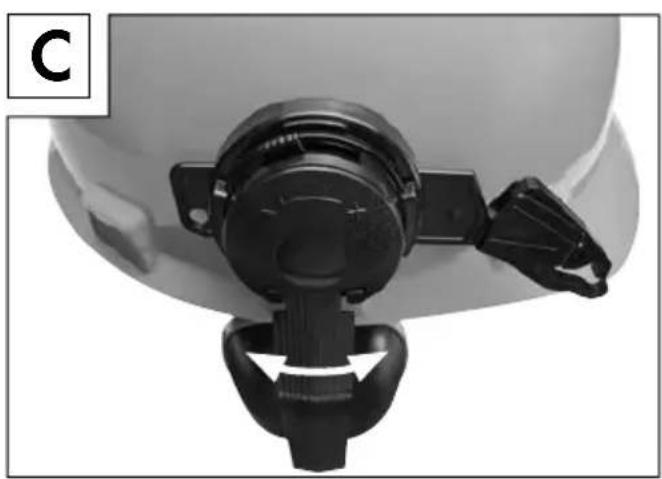

- Turn the ear protector ^3 to set them to the required position (see fig. C).
- Flipping the ear protector ^3 outwards makes it easier to put them on or take them off. If this causes the tension to decrease, retighten the ear protectors while they are folded in by using the ear protector adjuster ^5

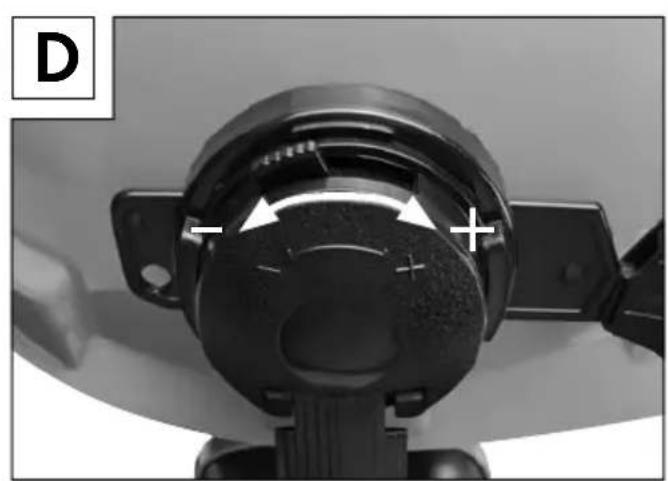

◆ Slide the ear protector adjusts towards the "+" to increase the tension (see fig. D).
- Slide the ear protector adjuste⑤ towards the “-” to decrease the tension (see fig. D).

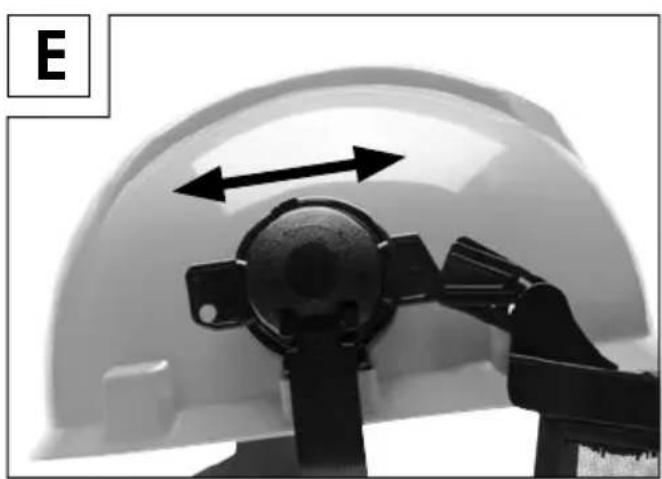

Adjusting the visor, fig. E
You can adjust the distance between the visor ② and your face by moving the visor manually (see fig. E).
Alternatively, you can flip the visor 2 all the way up.
Maintenance, cleaning, storage and transportation
- Examine the components for damage and signs of wear before each use.
■ Always clean the helmet after finishing your work.
■ Use a moistened cloth to clean the helmet, ear protectors and visor. Never use petrol, solvents or cleansers which can damage plastic.
■ To disinfect the helmet and ear protectors, use only cleaning agents that do not contain solvents or aggressive substances.
■ Store the helmet, ear protectors and visor in a clean, dry environment away from UV rays.
■ The helmet can be transported in the box in which it was sold.
Durability
■ The materials used for the helmet age naturally. Only use the helmet for a maximum period of 5 years.
Please refer to the fold-out page (fig. H) for the date of manufacture. The same symbol is imprinted into the helmet.
Disposal
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of
packaging materials that are no longer needed in accordance with applicable local regulations.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material
components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1-7: Plastics,
20–22: Paper and cardboard,
80-98: Composites.
PFSH 3 A2
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 313241_1904
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
EU Declaration of Conformity
We, KOMPERNASS HANDELS GMBH, documents officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:
Directive for personal protective equipment: (EU) 2016/425
Directive on general product safety: 2001/95/EC
Applied harmonised standards:
EN 397: 2012+A1: 2012
EN 352-3: 2002
EN 1731:2006
Type designation: Forestry safety helmet PFSH 3 A2
Year of manufacture: 08 - 2019
Serial number: IAN 313241_1904
The notified body ALIENOR CERTIFICATION, identification number 2754 has carried out the EU type examination (module B) and issued the EU type examination certificate N°2754/3315/158/11/19/1011.
Bochum, 29.07.2019
Semi Uguzlu
- Quality Manager -
The manufacturer bears full responsibility for the issuance of this conformity declaration.
We reserve the right to make technical changes in the context of further product development.
