USER MANUAL PRM 1300 A1 PARKSIDE

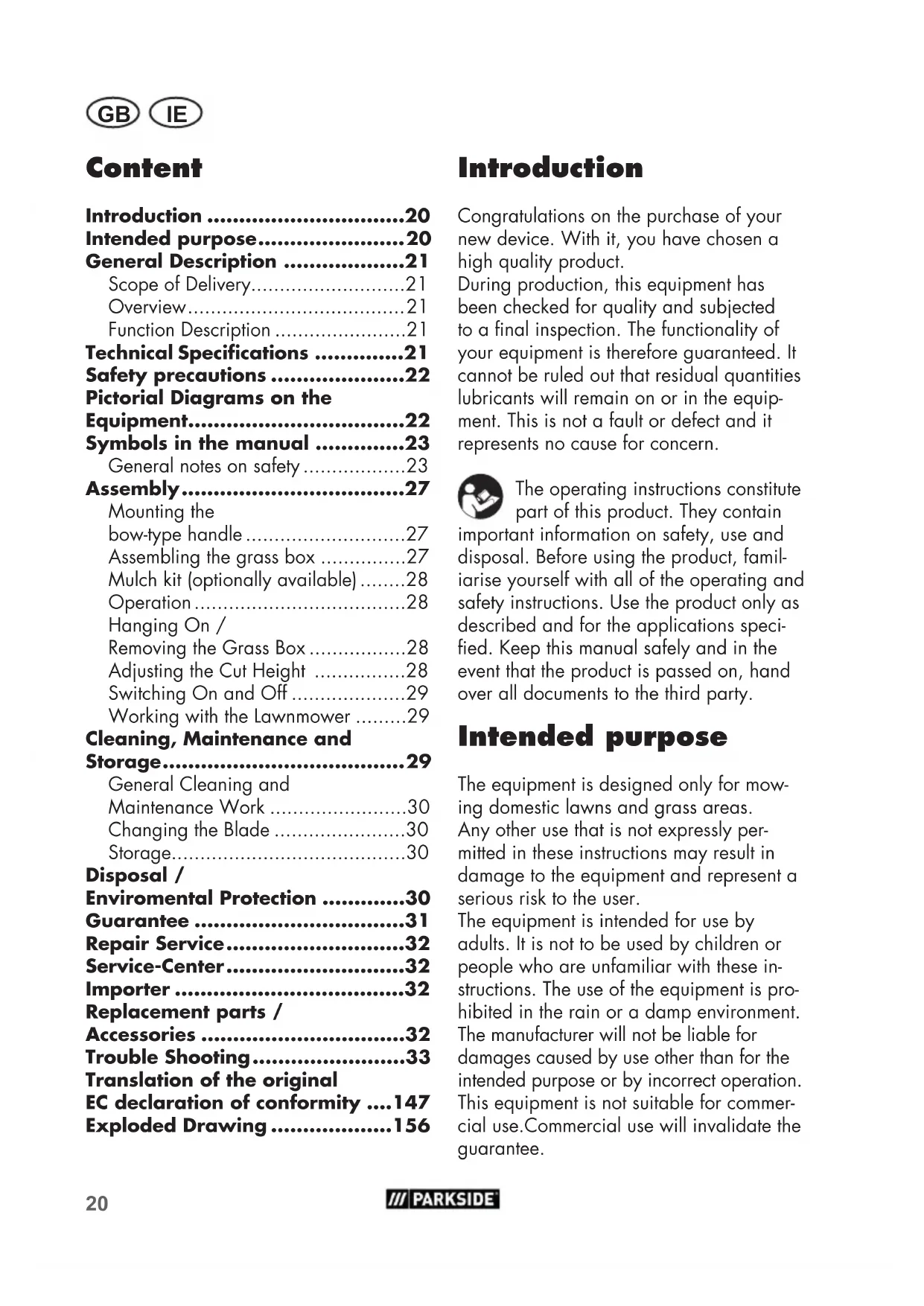

20 Level gauge 21 Wheel axle 22 Mulch kit 23 Carrying handleFunction DescriptionThe electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is equipped with a high performance electric motor, robust plastic housing, safety switch, collision guard, and grass box. Addition-ally, the equipment is height adjustable to three levels and has smooth-running wheels. For the function of the operating parts, please refer to the descriptions below. Technical Specications Electric Lawnmower ..PRM 1300 A1Motor input power .....................1300 WMains voltage ..................230 V~, 50 HzIdling speed ........................... 3500min Blade width ................................. 32 cmCut height ................... 20 / 40 / 60 mmProtection class ................................ Protection type ............................... IP 24Weight ........................... approx. 8.7 kgLawn box volume ............................. 30 l Sound pressure specication

measured ........ 90.0 dB(A); K = 1.85 dB guaranteed ..............................92 dB(A)Vibration on the handle

General Description Scope of DeliveryCarefully remove the equipment from the packaging and check whether the follow-ing parts are complete:- Lawnmower and curved handle with connection cable- 2 lower bars- Lawn box (in three parts)- 2 screws to attach the bar- 2 wing nuts and screws for attaching the curved handle- 2 holders to attach the connection cable - Instruction Manual The mulch kit is not included in delivery.Overview

1 Curved handle 2 Wing nuts 3 Lower bar 4 Grass box 5 Wheels 6 Lawnmower housing 7 Collision guard 8 Cable holder 9 Power plug, curved handle 10 Release button 11 Cable strain relief 12 Start lever

14 Screws for curved handle

15 Handle 16 upper part of grass box22 IEGB The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protect- ing the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be consid- ered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle). The noise and vibration values have been determined in accordance with the standards and regulations specied in the declaration of conformity. Safety precautions This section covers the basic safety regulations when working with the electric lawnmower. Pictorial Diagrams on the Equipment Caution! Read the operating instruc- tions carefully. Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass. Risk of injury from parts be- ing thrown up. Keep nearby people away from the mower. Caution – sharp cutting blade! Keep feet and hands away. Risk of injury! Switch off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged. Danger of damaged power cable. Keep the power cable away from the cutting blade! Caution! The lawnmower blade continues to run after switching off. Wear eye and ear protection. Noise level specication L

in dB. Protection class II (Double insulation) Do not dispose of electri- cal equipment in domestic waste.

Cutting circle Starting - press the re- lease button & pull the start lever23 IEGB Preparation:

• Read the operating instructions carefully. Familiarise yourself with the controls and how to use the machine correctly.

• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.

• Do not use the equipment when people and particularly children or pets are nearby.

• The operator or user is respon- sible for accidents, injuries to other people or damage to the property of others.

• Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.

• Wear suitable work clothing such as stable shoes with non- slip soles and robust, long trou- sers. Do not use the equipment when barefoot or when wear- ing open sandals.

• Before use, always perform a visual inspection to check whether the cutting blades, fastening bolts and the whole cutting unit are worn out or damaged. Damaged or worn cutting blades and fastening bolts must only be replaced as a set to prevent imbalance. Worn or damaged information signs must be replaced.

• Take care with equipment that has several cutting tools, as the move-

Scale cutting height Level gauge on grass catcher: Flap open: grass catcher empty Flap closed: grass catcher full Symbols in the manual Wear gloves when handling the blade. Pull out the mains plug. General notes on safety IMPORTANT

REFERRAL. Information on the safe use of elec- tric lawnmowers This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the fol- lowing safety information must be observed and users must familiarise themselves with all operating parts. CAUTION: In this way you avoid accidents and injuries:24 IEGB ment of one blade may result in the rotation of the other blades.

• Use only spare parts and ac- cessories supplied and recom- mended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.

• Avoid wearing loose clothing or clothing with hanging cords or belts.

• Worn or damaged information signs must be replaced.

• Use only authorised power cables of type H05RN-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross sec- tion must be at least 2.5 mm

Always completely unroll cable drums before use. Check the cable for damage

• Switch off the equipment and dis- connect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manu- facturer, the customer services of the same, or a qualied person, in order to avoid hazards.

• Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.

• Prior to use, always check the connecting cable and extension cable for signs of damage or wear and tear. If the cable gets damaged during use, it must be disconnected from the supply network immediately.

CONNECTED. Do not use the machine, if the cable is worn or damaged. CAUTION! The following states how damage to the appliance and possible inju- ry to people can be avoided: In this way you avoid dama- ge to the appliance and pos- sible injury to people. Working with the Equipment: Do not place feet or hands near or under rotating parts when working. Risk of injury! Observe the noise protection and local regulations. The use of the equipment may be restricted or prohibited on certain days (e.g. Sundays and public holidays), at cer- tain times of day (lunchtimes, nighttimes) or in certain ar- eas (e.g. health resorts, hos- pitals etc.).

• Switch on the motor accord- ing to the instructions and only when your feet are at a safe distance from the cutting tools.

• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting. If possible, do not use the appli- ance on wet grass.

• Do not work with the equipment when tired, lacking concentra-25 IEGB Caution! Danger! The blade continues to run after switch- ing off. There is a risk of injury.

• The equipment is not to be lifted or transported while the motor is running. Switch off the equip- ment if it has to be tilted in tran- sit, when crossing surfaces other than grass, and when the equip- ment is being transported to and from the surfaces to be mowed.

• Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.

• Do not leave the equipment un- attended in the workplace.

• Do not work with equipment that is damaged, incomplete, or has been modied without the authorisation of the manufac- turer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deection and/or grass collection devices.

• Do not overload the equipment. Work only within the speci- ed power range and do not change the regulator settings on the motor. Do not use low-pow- ered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.

• Do not use the equipment near inammable liquids or gases. Non-observance will result in a risk of re or explosion.

• Do not lift or carry the equip- ment when the motor is running. tion or under the inuence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.

• When working, ensure a rm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.

• Run the equipment only at a walking pace. Take particular care when turning the equip- ment around, pulling it towards you or going backwards.

• Switch on the equipment carefully and in accordance with the direc- tions in these instructions. Ensure sufcient distance between feet and the rotating blades.

• Do not tilt the equipment when starting other than if it is neces- sary to do so when starting up in long grass. In this event, tilt it only as far as absolutely neces- sary and lift it only on the side facing away from the user In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before return- ing the equipment to the ground.

• Never use the lawnmower with damaged protective equipment or protective grating or without installed protective equipment, e.g. deector plates and/or grass collection equipment. Keep away from the ejection hole at all times.26 IEGB

• Switch off the equipment and disconnect the plug. Make sure that all moving parts have come to a complete stop: - Whenever you leave the ma- chine, - Before cleaning the ejection hole or removing blockages, - When the equipment is out of use, - Before checking, cleaning or working on the equipment, - If the power cable is dam- aged or frayed, - when a foreign object has been hit. Check for damage to the lawnmower and carry out the necessary repairs be- fore switching on again and working with the lawnmower. - If the lawnmower starts to vi- brate abnormally, an immedi- ate check must be carried out. - search for signs of damage; - perform any necessary re- pairs to damaged parts; - make sure that all nuts, bolts and screws are prop- erly tightened.

• Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejec- tion hole during sickle mowing.

• Do not run the engine if you are facing the chute. Maintenance and Storage:

• Ensure that all nuts, bolts and screws are tightened rmly and the equipment is in safe work- ing condition.

• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specied in these instructions is to be carried out only by customer service centres that we have authorised.

• Keep the equipment in a dry location and out of reach of children.

• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate bet- ter and safer work. Follow the maintenance instructions.

• Wear protective gloves when changing the cutting device.

• Regularly check the grass col- lection device for wear and strains. For safety reasons, re- place worn or damaged parts. When adjusting the blades, take particular care to avoid n- gers being trapped between the rotating blades and xed parts of the machine.

• Check that only replacement tools authorised by the manu- facturer are used.

• When servicing the cutting bla- de on it that even if the voltage source is switched off, the cut- ting blade can be moved.

• Allow the motor to cool before storing the equipment in a con- ned space.

• Be aware that when using machines with several cutting blades, moving one cutting bla- de can lead to the other blades rotating.

• Replace worn or damaged parts in the interests of safety. Use only original spare parts and accessories.27 IEGB

2. Fasten the lower bars (3) using the enclosed screws for fastening the handlebar (13).

3. Fix the curved handle (1) using the enclosed screws (14) and the wing nuts (2) on the lower bar (3). There are two possible posi-tions. 4. Clip the cable holder ( 8) into the bar (3) and to the curved handle (1) and thus x the cable. When both wing nuts are loosened, the curved handle can be folded down for storing the equipment. Ensure that the power cable is not caught.

Assembling the grassbox Wear protective gloves when mounting the grass collection box in order to avoid injury.1. Connect the two pieces of the gras box (4). 2. Connect the handle (15) in one of the two pieces of the gras box (16). The arrow markings on the handle (15) and at the top of the grass grass (16) show the alignment of the handle (15). Do not work with the lawn mower without impact protection. There is a risk of injury. We recommend using the grass collection box whenever you mow without the mulch kit. Otherwise the mowing result may be signicantly impaired. CAUTION! The following states how to avoid accidents and injuries due to electric shock: Electrical Safety:

• Ensure that the mains voltage matches the specications on the rating plate.

• Only connect the device to a socket with a residual current device (RCD) with a rated re- sidual current of no more than 30 mA.

• Avoid bodily contact with earthed parts (e.g. metal fenc- es, metal posts).

• To x on the power cable, use the cable suspension intended for the purpose.

• Keep the power cable away from the cutting tool when work- ing. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable be- hind the operator.

• Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges. Assembly Disconnect the plug before any work on the equipment. There is a risk of injury.Mounting the bow-typehandle

1. Insert the lower bar (3) into the slot on the lawnmower housing (6). Compare with the gure

IEGB Mulch kit (optionally available) The mulch kit can be bought separately, see “Spare parts/accessories”. Inserting the mulch kit1. Remove the grass collection box, if used.2. Lift the impact protection.3. Place the mulch kit (22) upright with the lower edge on the mower. 4. Push the mulch kit (22) by its lower edge and then by its upper edge into the ejector opening.5. Fold the impact protection (7) over the mulch kit (22). Removing the mulch kit6. Grasp the mulch kit (22).7. Pull the upper edge of the mulch kit (22) out of the machine rst.8. Remove the mulch kit. Operation

Hanging On / Removing the Grass Box 1. To hang on the grass box (4), lift the collision guard (7) and hang on the grass box. Fold the collision guard (7) onto the grass box (4). It holds the grass box in the correct position.2. To remove the grass box (4), lift the col-lision guard (7) and detach the grass box. Fold the collision guard (7) back onto the mower housing (6). The level gauge ( 20) is located on the side of the grass box (4). The ll level indi-cator shows the ll level of the grass collec-tion box when the lawnmower is running. Flap (

20) open: grass box (4) empty Flap (

20) closed: grass box (4) full

Adjusting the Cut Height Switch off the equipment, discon-nect the plug and wait for the blade to stop. There is a risk of injury.The electric lawnmower can be adjusted to the following cutting heights with three po-sition changes of the front and rear axles:60 mm - Tall cutting height40 mm - Medium cutting height20 mm - Short cutting heightAdjust the axles one by one. The same cutting height must be set for the front and rear axles in order to achieve an accurate result.

1. Place the lawnmower on its side. 2. Grasp the wheel axle on both sides. 3. Pull evenly on the axle and let it snap into the desired position.The correct height is around 20 – 40 mm for a decorative lawn and around 40 – 60 mm for a used lawn. A higher cut height should be se-lected for the rst cut of the season. Observe the noise protection and local regulations.29 IEGB Switching On and Off

1. Connect the power plug of the exten-

sion cord to the power plug (

2. To relieve the strain, form a loop with

the end of the power cable and hang this into the strain relief (11). See the de- tailed image in Figure

3. Connect the equipment to the power

4. Before switching on, ensure that the

equipment is not in contact with any objects.

5. To switch on, press the release button

(10) on the handgrip. Hold down the release button and press the start lever (12). You can now let go of the release button (10).

6. To switch off, release the start lever (12).

After switching off the equipment, the blade continues to turn for sev- eral seconds. Do not touch the mov- ing blade. There is a risk of injury. Working with the Lawnmower Regular mowing encourages increased foli- ation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn. The rst cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

• Start mowing near the socket and work away from the socket.

• Always keep the extension cable be- hind you and when you turn, move it to the side that has already been mowed.

• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.

• Adjust the cut height so the equipment is not overloaded. Otherwise, the mo- tor may be damaged.

• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.

• The carrying handle (

used to transport the electric lawnmow- er.

• Clean the equipment after each use, as described in the chapter on “Cleaning, Maintenance and Storage”. Switch off the equipment after work and in order to transport it, discon- nect the plug and wait until the blade stops. There is a risk of injury. Cleaning, Maintenance and Storage Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts. Wear gloves when handling the blade. Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops. There is a risk of injury.30 IEGB General Cleaning and Maintenance Work Do not hose down the lawnmower with water.

• Always keep the equipment clean. To clean, use a brush or cloth but no de- tergent or solvent.

• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.

• Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting rmly.

• Check the covers and protective de- vices for damage and check that they are sitting correctly. Replace them if necessary.

Changing the Blade If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is dam- aged or showing signs of imbalance, it must be replaced (see chapter on “Spare Parts”).

1. Turn the equipment over.

2. Use sturdy gloves and hold the blade

(18) rmly. Turn the blade screw (17) anticlockwise off of the motor spindle (19) using a screw.

3. Install the new blade (18) in the reverse

order. Ensure that the blade (18) is positioned correctly and the screw (17) tightened rmly. The Groove of the blade (18) must be planned with the surveys of the motor spindle (19). Storage

• Keep the equipment dry and out of reach of children. Loosen the wing nuts (2) and fold down the handle bar (1) so the equipment takes up less space. Ensure that the cable is not caught.

• Allow the motor to cool before storing the equipment in a conned space.

• Do not cover the equipment with nylon bags as moisture could build up. We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non- original parts or by use other than for the intended purpose. Disposal / Enviromental Protection Be environmentally friendly. Return the tool, accessories and packaging to a recy- cling centre when you have nished with them. Machines do not belong with do- mestic waste.

• Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

• Throw cut grass in the dustbin, but run it to the composting or distribute it as a mulch layer under shrubs and trees.

• The device may not be disposed with domestic waste or bulky waste. You nd out about collection point or pi- cking up dates via your local authority or your local waste disposal company.31 IEGB Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defec- tive equipment and proof of purchase to be presented within the three-year period with a brief written description of what consti- tutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. Blade or blade bolt) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper han- dling, use of force, or interventions not under- taken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item num- ber (IAN 352227_2007) ready as proof of purchase for all enquiries.

• Please nd the item number on the rating plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to32 IEGB use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and en- sure adequate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 352227_2007 Importer Please note that the following address is not a service address. Please initially con- tact the service centre specied above. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany www.grizzlytools-service.eu Replacement parts / Accessories Spare parts and accessories can be obtained at www.grizzlytools-service.eu If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 32). Position instruction manual Description Order No.

Spare blade (manufacturer's designation: GD6MBX.00.06

Mulch kit 9109704933 IEGB Trouble Shooting Problem Possible Cause Fault Fixing Equipment does not start Power is off Check the socket, cable, wire and plug and have any repairs carried out by an electrician Defective on/off switch

12) Repair by customer services Worn carbon brushes Defective motor Grass too long Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar (

1). Motor stops Blockage by foreign object Remove the foreign bject Result unsatisfactory or motor labours Cut height too low Set a higher cut height Blade

Have the blade sharpened or replace it Blade area blocked Clean the equipment Blade assembled incorrectly Install the blade correctly Blade fails to turn Blade blocked by grass Remove the grass Blade screw

17)loose Tighten the blade screw Strange noises, rattling or vibrations Blade screw

Tighten the blade screw Blade damaged Replace the blade34

Translation of the original EC declaration of conformity We hereby conrm that the Electric Lawnmover model PRM 1300 A1 Serial number 000001 - 505000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2000/14/EC • 2005/88/EC 2011/65/EU* • (EU) 2015/863 In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: EN 60335-1:2012/A13:2017 • EN 60335-2-77:2010 • EN IEC 63000:2018 EN 55014-1:2017 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62233:2008 We conrm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: guaranteed: 92 dB(A) measured: 90.0 dB(A) Compliance evaluation process carried out in accordance with Appendix VI / 2000/14/EC Registered Ofce: NB 0036, TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München, Germany This declaration of conformity is issued under the sole responsibility of the manufacturer: Christian Frank Documentation Representative Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim / 30.10.2020 Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.148
