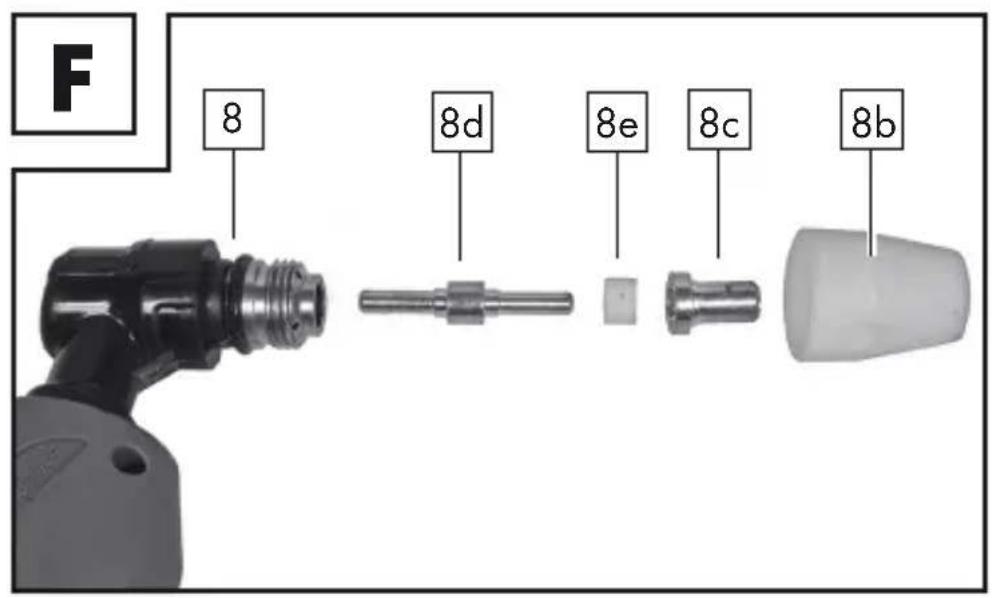

F 8 8d 8e 8c 8b

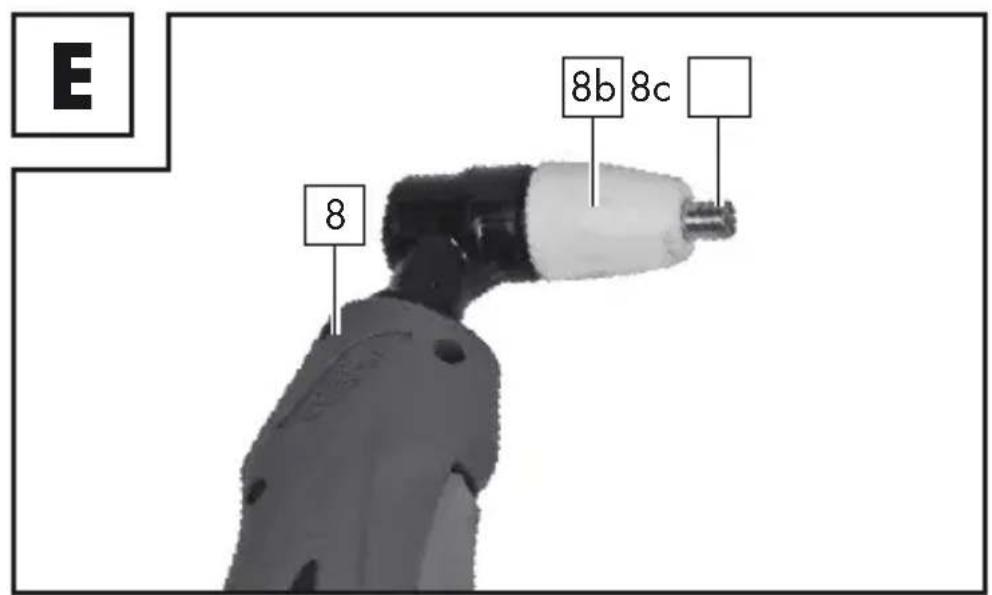

E 8 8b 8c 8

Plasma Cutter Nozzle and Electrode Set PDES 4 A1

- Introduction

Congratulations! You have purchased one of our high-quality products. The operating instructions form part of this product.

They contain important information on safety, usage and disposal. Please familiarise yourself with all operating and safety instructions before using the product. Use the product only as described and only for the specific applications as stated. Please retain the operating instructions properly and ensure that you hand over all documentation when passing the product onto someone else.

This product must be set up or used only by people who have been trained to do so.

Any use that differs to the intended use as stated above is prohibited and potentially dangerous.

Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the guarantee.

KEEP OUT OF THE REACH OF CHILDREN!

- Intendeduse

The plasma cutter nozzle and electrode set is a spare part and wear part set, suitable for Parkside plasma cutters of types PPS 40 A1 and PPS 40 B2.

The parts in this set must be fitted and used in accordance with the operating instructions for the main device. Use on any device which is not given here is not permitted.

- Package contents

4 Copper alloy torch sleeves
2 Copper alloy electrodes
2 Ceramic diffusers
2 Ceramic nozzle clamping sleeves
1 set of operating instructions

- Parts description

PLEASE NOTE!

▶ After unpacking the product, please check that all of the package contents are present and that the accessory is in perfect condition. Do not use the accessory if it is defective.

NOTE:

In order to be able to identify the individual parts more easily, the numbering used in the figures is identical to the Parkside plasma cutters of types PPS 40 A1 and PPS 40 B2.

8 Plasma torch
8b Nozzle clamping sleeve
8c Torch sleeve
8d Electrode
8e Diffuser

- Technical specifications

Torch sleeve 1.6 x ∅ 1.1 cm

Electrode 3.9 x ∅ 0.8 cm

Diffuser 0.6 x ∅ 0.85 cm

Nozzle clamping sleeve 2.98 x ∅ 2.3 cm

- Safety instructions

It is essential that you observe the safety instructions of your plasma cutter! It is essential that before use, you read the operating instructions for your plasma cutter as well as these operating instructions in full.

Check the components for damage before fitting into the plasma cutter.

Damaged components must not be used. It is essential that you disconnect the plasma cutter from the mains before fitting the spare parts and observe all safety instructions in the operating instructions of your plasma cutter.

- Installing the spare parts

The consumable parts contained in this set are the electrode 8d, diffuser 8e and the torch sleeve 8c. They can be replaced once the nozzle clamping sleeve 8b has been unscrewed.
- The electrode must be replaced if there is a crater of approximately 1.5 mm depth in the centre.

Attention: To unscrew the electrode, do not apply irregular pressure, gradually increase pressure until the thread is released. The new electrode must be screwed into its bracket and blocked but not tightened up to the stop.

The torch sleeve 8c must be placed if the central bore is damaged or if it has expanded in comparison to a drilling of a new nozzle. If the electrode 8d or the torch sleeve 8c are replaced too late, this can result in an overheating of the parts. This can reduce the lift cycle of the diffuser 8e.

Once replaced, make sure the nozzle clamping sleeve 8b is tightened sufficiently.

Attention: The nozzle clamping sleeve 8b must only be screwed on to the plasma torch 8, once it has been equipped with the electrode 8d, diffuser 8e and torch sleeve 8c.

Note: If these parts are missing, device may malfunction and it create a hazard for the operating channel.

• Information about recycling and disposal

Please take the accessories and packaging to your local recycling depot.

- Service

Note:

You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.

With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your Operating Instructions by entering the article number (IAN) 311371_1904.

PDF ONLINE www.lidl-service.com

How to contact us:

GB, IE

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 311371\_1904

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

GERMANY
