SSMN 2 C3 - Massage device SILVERCREST - Free user manual and instructions

Product type	Shiatsu neck massager
Brand	SilverCrest
Model	SSMN 2 C3
Power supply input voltage	100-240 V~, 50/60 Hz
Output voltage	12.0 V
Output current	1.0 A
Rated power	12 W
Max. operating time	15 minutes (automatic shut-off)
Functions	Shiatsu massage (slow/fast rotation/pause), heating
Heating function indicator	Red display and massage head light
Removable cover	Machine washable at 40°C (delicate cycle)
Protection class	II
Power supply	Power supply unit KL-AD-120100 (SMPS)
Warranty	3 years
Package contents	1 massager, 1 power supply unit, 1 instruction manual
Connection	Connection socket on straps
Cleaning	Damp cloth with mild detergent

Frequently Asked Questions - SSMN 2 C3 SILVERCREST

What is the maximum continuous use time?

The device automatically stops after 15 minutes. Do not exceed this time to avoid excessive stimulation.

Can I use the device if I have neck pain?

No, never use the device if you have an injury or pain in the neck. Consult a doctor if necessary.

How to clean the device cover?

The cover is removable and machine washable at 40°C (delicate cycle). Do not bleach, tumble dry, iron, or dry clean.

Can the device be used by children?

Yes, by children 8 years and older under supervision. Children must not play with the device.

What to do if the device does not work?

Check that the power supply is properly plugged in. If the problem persists, contact customer service at the numbers indicated in the manual.

How to activate the heating function?

Press the light and heating function button (5). The display and massage heads light up red.

Is the device suitable for people under medical treatment?

No, the device is not intended for medical use. If in doubt, consult your doctor before use.

How to dispose of the device at the end of its life?

Do not dispose of it with household waste. Take it to an appropriate collection point or contact your local council.

What is the warranty of the device?

The device has a 3-year warranty from the date of purchase. Keep the receipt.

Can I use the device near water?

No, never use the device near water to avoid risk of electric shock. Do not immerse the device in water.

USER MANUAL SSMN 2 C3 SILVERCREST

Black and white photo of a headband with mesh mesh mesh pattern, no visible text or symbols

Back view of a person wearing a black and white belt, standing indoors near a window (no text or symbols visible)

Pregnant woman lying on her side wearing a black bandage, resting her head on her lap (no text or symbols visible)

SHIATSU-NACKEN-MASSAGEGERÄT / SHIATSU NECK MASSAGER / APPAREIL DE MASSAGE SHIATSU POUR NUQUE SSMN 2 C3

DE AT CH

SHIATSU-NACKEN-MASSAGEGERÄT

SHIATSU NECK MASSAGER

Operation and safety notes

NL BE

SHIATSU-NEKMASSAGE-APPARAAT

GB / IE Operation and safety notes Page 12

Intended use......Page 13

Description of parts....Page 14

Technical data....Page 14

Scope of delivery....Page 14

Safety advice......Page 14

Before use......Page 16

Operation Page 16

Warming function....Page 16

Switch off the product....Page 16

Cleaning and care....Page 16

Storage Page 17

Disposal Page 17

Warranty Page 17

Warranty claim procedure......Page 17

Service Page 18

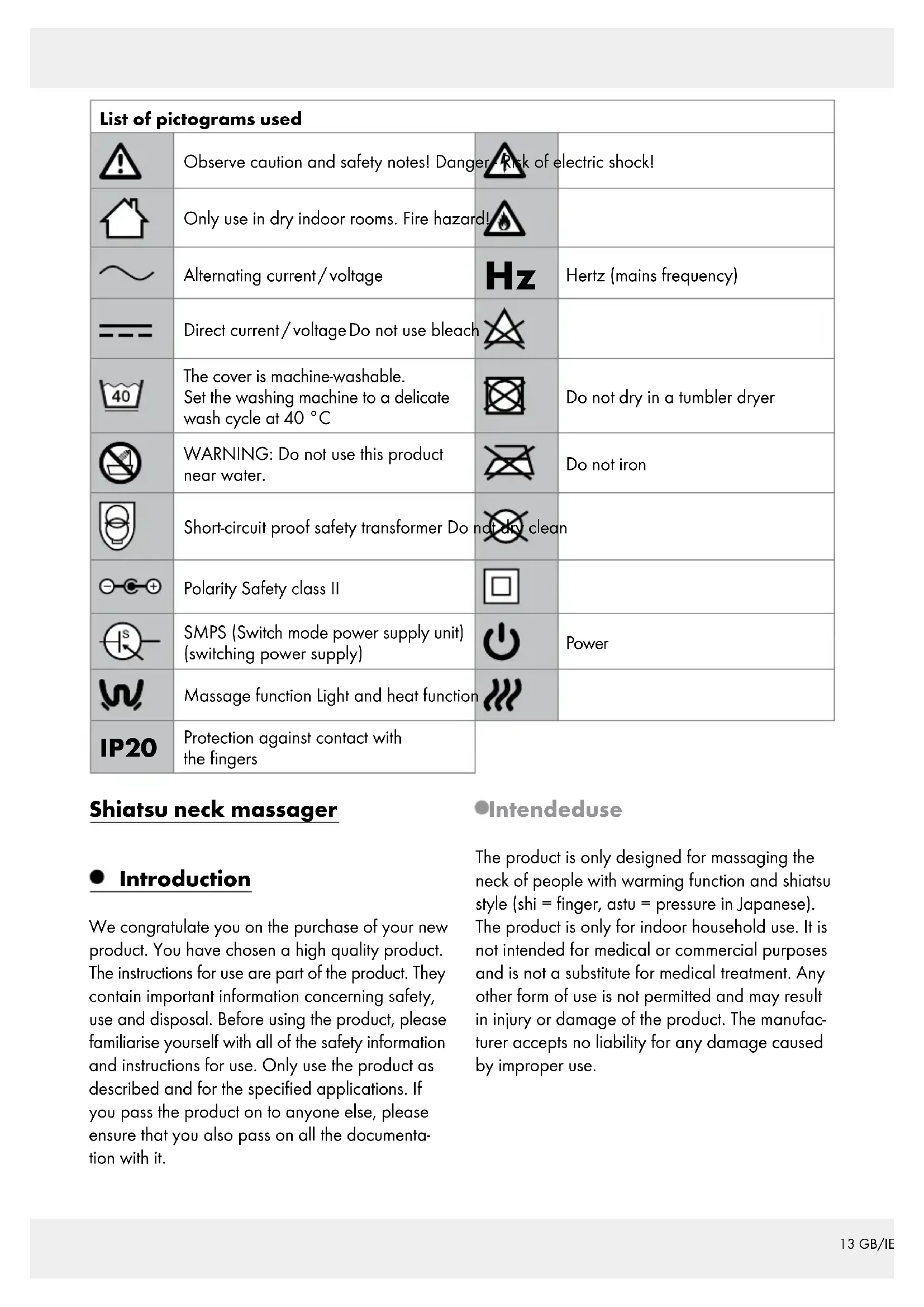

List of pictograms used
	Observe caution and safety notes! Danger-Risk of electric shock!
	Only use in dry indoor rooms. Fire hazard!
	Alternating current/voltage	Hz	Hertz (mains frequency)
	Direct current/voltage Do not use bleach
	The cover is machine-washable.Set the washing machine to a delicate wash cycle at 40 °C		Do not dry in a tumbler dryer
	WARNING: Do not use this product near water.		Do not iron
	Short-circuit proof safety transformer Do not dry clean
	Polarity Safety class II
	SMPS (Switch mode power supply unit)(switching power supply)		Power
	Massage function Light and heat function
	Protection against contact with the fingers

Shiatsu neck massager

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is only designed for massaging the neck of people with warming function and shiatsu style (shi = finger, astu = pressure in Japanese). The product is only for indoor household use. It is not intended for medical or commercial purposes and is not a substitute for medical treatment. Any other form of use is not permitted and may result in injury or damage of the product. The manufacturer accepts no liability for any damage caused by improper use.

• Description of parts

1 Removable cover
2 Massage heads
3 Socket
4 Heat function indicator
5 Light and heat function button
6 Power button
7 Massage button
8 Hand loops

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition. Remove all packaging materials before use.

1 Shiatsu neck massager
1 Mains power adaptor
1 Instruction manual

●Technicaldata

Mains power adapter

Information Value Unit
Manufacturer's name or trade mark, commercial registration number and address:Xiamen Keli Electronics Co.,Ltd91350211737865674JNo.19, XingLin North 3rd Road, Jimei District,Xiamen,Fujian, China
Model identifier KL-AD-120100
Input voltage 100-240 V~
Input AC frequency 50/60 Hz
Output voltage 12.0	V	---
Output current	1.0	A
Output power	12.0	W
Average active efficiency	83.0	%
Efficiency at low load (10%)	78.0	%
No-load power consumption	0.10	W
Protection class	II

Shiatsu neck massager

Input voltage: 12V ===

Rated power: 12W

Polarity:

Duration of use: max. 15 min (automatic shut-off)

Safety advice

Read all safety advices and instructions. Non-observance of the safety advices and instructions may cause electric shock, fire and/or bad injuries.

KEEP ALL SAFETY NOTICES AND INSTRUCTIONS FOR FUTURE REFERENCE!

DANGER TO LIFE

AND RISK OF ACCIDENT FOR INFANTS AND CHIL-

DREN! Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.

⚠ CAUTION! This product is not a toy for children! Children are not aware of the dangers associated with handling electrical products.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children should not clean or perform user maintenance unsupervised.

⚠️ CAUTION! The product has a heated surface. Persons insensitive to heat must be careful when using it.

⚠ WARNING! Avoid the hazard of life by electric shock:

■ Do not insert needles or pointed objects into the product.

■ Never immerse the product into water or any liquid.

■ Never touch the product, or the mains power adaptor with wet hands or use it in very humid environments.

■ Only use the provided mains power adaptor as described in Technical Data section.

■ Make sure that the details on the rating label are in conformity with your mains voltage.

In the event of malfunctions, remove the mains power adaptor from the mains socket.

- Do not open the product or attempt to repair it yourself. Defective products should only be repaired by qualified personal.

■ Always remove the mains power adaptor from the mains socket after each use and before clean the product.

- Keep the power cord away from hot surfaces, sharp edges and mechanical forces.

■ Never let the power cord becomes a trip hazard, that no-one can get tangled in it or tread on it.

- Allow the product to cool down before moving it to a different location.

WARNING! HAZARD OF FIRE! Do not operate

the product close to or below curtains, wall cupboards or other inflammable materials.

- Do not use the product on swollen, burnt, inflamed, diseased or injured regions of the skin and body areas. If in doubt, obtain medical advice before using the product.

■ Never use the product if you have injuries or pain in the neck.

Before use

Note: Remove all packaging material from the product.

Connect the connection plug at the wire of the mains power adaptor to the socket 3 at the inner side of the hand loops 8.
Place the massager around your neck and aligns the massage heads 2 on the side of your neck, use the hand loops 8 to adjust it. The control buttons must be on the left.
Plug the mains power adaptor to the mains power socket.
☐ Ensure the massager heads aligned to your neck.

Operation

To switch on the massager, press the power button 6 to start rotation of massage heads 2 in low speed.
☐ To change the rotation speed of the massage heads 2 use the massage button 7 to toggle between low speed rotation / high speed rotation / pause. To stop the massage function, press the power button 6.

Note: Never use the product for more than 15 minutes. A longer massage may lead to tension caused by overstimulation of the muscles.

Note: If you found yourself painful or uncomfortable, stop the massage immediately.

Warming function

To complement the massage with the warming function, press the light and heat functions button 5 to turn on the heat function. The red heat function indicator 4 and the red light of the massage heads 2 switch on.

- Switch off the product

To switch off the product, press the power button 6, the heat function indicator 4 and the light of the message heads 2 will go off, the massage heads 2 stop rotating. The product switches off automatically after 15 minutes.
☐ To turn off the product completely, disconnect the mains power adaptor from the power supply.

- Cleaning and care

DANG PIONING! LIFE BY ELECTRIC SHOCK!

Disconnect the mains power adaptor from the mains socket and unplug connection plug from the socket 3 before cleaning.

WARNING ■ Never impense the product, or mains power adaptor into water.
■ Ensure the product is completely dry before connecting the mains power adaptor.
- Do not use abrasive, aggressive or chemical cleaning agents to clean the product. It could damage the product.
■ Never allow any liquid to enter the product.
☐ Use a damp lint-free cloth to clean the product. Use a little mild detergent on the cloth if necessary.

To clean the removable cover 1, open the zip on the removable cover 1 completely. Clean the

removable cover 1 in accordance with the cleaning symbols on the label. It is machine-washable. Set the washing machine to a delicate wash cycle at 40 °C.

Note: Failure to observe the following warnings may damage the product.

Do not bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not tumble dry.
Do not iron.
Do not bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not tumble dry.
Do not iron.

Do not dry clean.

Storage

Let the product completely cool down before storage.
Do not place other objects on top of the product.
☐ If the product is not used for a certain period of time, store the product in a clean and dry location.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

• Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided

to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
