Product Type	Massage Device
Model	SIM 13 B2
Brand	SilverCrest
Dimensions (approx.)	25 x 10 x 8 cm
Weight (approx.)	0.6 kg
Power Supply	AC 100-240V, 50/60Hz, or rechargeable battery
Power Consumption	Approx. 20 W
Massage Functions	Shiatsu, kneading, vibration, heat
Intensity Levels	3 adjustable levels
Timer Function	Auto shut-off after 15 minutes
Material	ABS plastic, foam covering
Maintenance	Wipe with damp cloth; do not immerse
Safety Features	Overheating protection, automatic shut-off
Spare Parts Availability	Replacement AC adapter available
Repairability	Not user-serviceable; contact support
General Information	For home use; not a medical device

Frequently Asked Questions - SIM 13 B2 SILVERCREST

What type of massage does the SIM 13 B2 provide?

The SIM 13 B2 offers Shiatsu, kneading, vibration, and heat functions.

Can I use it while it is charging?

No, the device should be used unplugged for cordless operation, or plugged in only when it is off.

How long does the battery last?

The battery life is approximately 45 minutes on a full charge, depending on intensity.

Is the device waterproof?

No, the SIM 13 B2 is not waterproof. Avoid contact with water and clean only with a damp cloth.

Can I use it on any body part?

It is designed for back, neck, shoulders, and limbs. Avoid using on open wounds or swollen areas.

Does it have an automatic shut-off?

Yes, the device features an automatic shut-off after 15 minutes for safety.

What should I do if the device stops working?

Check the power supply and ensure it is fully charged. If issues persist, contact customer support.

How do I clean the massage head?

Remove the cover if detachable and hand wash; otherwise wipe with a mild detergent and damp cloth.

Can I use it while sleeping?

No, do not use the device while sleeping or under the influence of medication that may cause drowsiness.

Where can I find the manual?

The user manual is available for free download as a PDF from the product page or by contacting SilverCrest support.

USER MANUAL SIM 13 B2 SILVERCREST

HAND-HELD INFRARED MASSAGER

Operating instructions

IAN 102535

AT

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB

Operating

instructions

Page

11

⚠️ ATTENTION!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

CONTENT PAGE

Introduction 12

Intended use 12

Items supplied 12

Appliance description 12

Technical data 12

Safety instructions 13

Utilisation 16

Taking into use 16

Unpacking 16

Adjusting the rotatable parts of the massage appliance 16

Equipping the massage head with accessories 16

Usage 17

Switching on 17

Massage 17

Ending usage 17

Switching off 17

Storage 18

Cleaning 18

Non-functionality 18

Disposal 18

Warranty & Service 19

Importer 19

Hand-Held Infrared Massager

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Intended use

This appliance is intended exclusively for the relaxation and stimulation of muscles in the human body by massage. The appliance is intended exclusively for domestic use. Do not use it for commercial purposes!

Items supplied

• Hand-Held Infrared Massager - Roller accessory - Nub accessory - Surface accessory - Shiatsu accessory - Knead-massage accessory - Accessory for exacting massage - Operating instructions

Before taking the appliance into use, check that all items are present and free of visible damage.

Appliance description

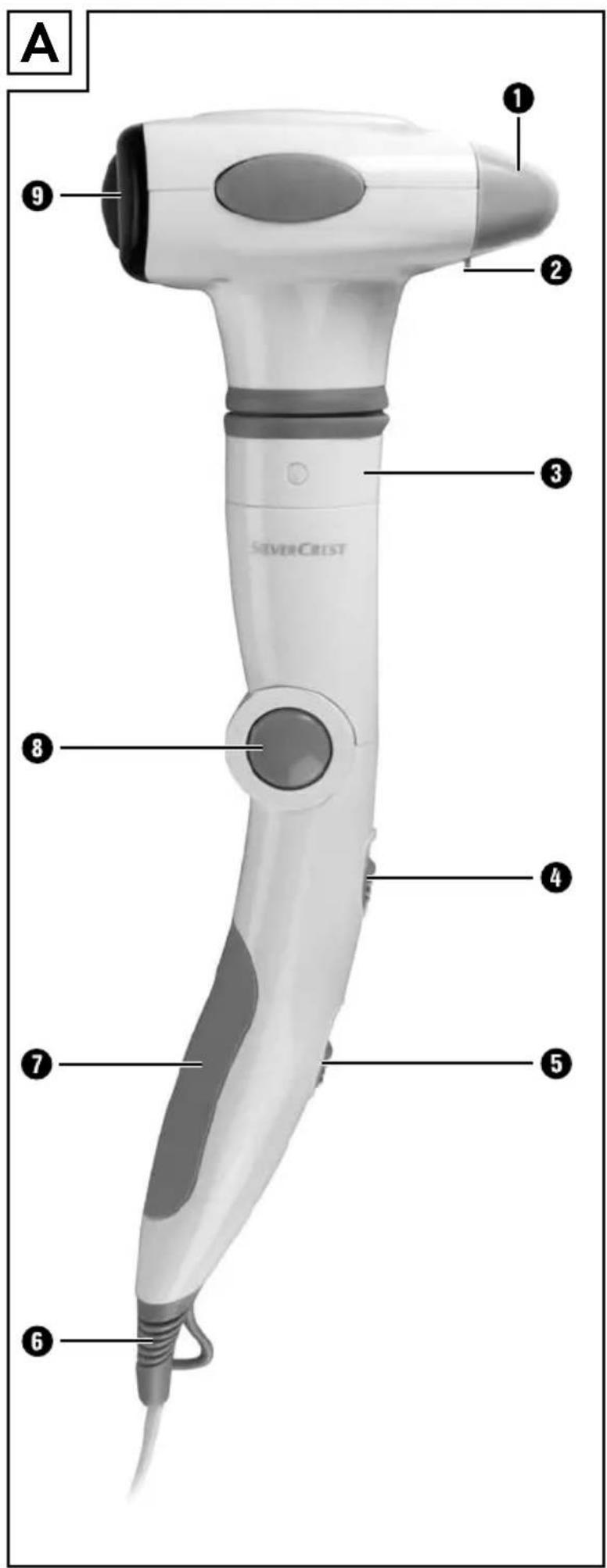

Figure A:

① Massage head with massage accessory ② Grip cavity to release accessory ③ Revolvable ring ④ Switch Infrared ⑤ Switch Massage ⑥ Power cable ⑦ Grip ⑧ Locking button for swing arm ⑨ Infrared lamp

Figure B:

⑩ Roller accessory ⑪ Nub accessory ⑫ Surface accessory ⑬ Shiatsu accessory ⑭ Knead-massage accessory ⑮ Accessory for exacting massage

Technical data

Mains voltage: 220 - 240 V ~ / 50 Hz

Power consumption: 13 W

Protection class: II /

CO Time: 20 Minutes

CO Time

The CO Time (Continuous Operation Time) details how long an appliance can be operated without the motor overheating and becoming damaged. After the appliance has run for this period it must be switched off until the motor has cooled itself down.

⚠️ Danger of electric shock!

• Connect the appliance only to correctly installed and properly earthed power sockets. Ensure that the rating of the local power supply tallies completely with the details given on the rating plate of the appliance.
• Always remove the plug from the wall socket when you attach accessories, in the case of malfunctions, before cleaning the appliance and when it is no longer required for use.
• NEVER submerse the appliance in liquids. Should liquids nonetheless permeate into the appliance housing, immediately remove the plug from the wall socket. Arrange for it to be repaired by a qualified specialist.

Do not use the appliance in the bath, near water-filled baths, swimming pools, or washbasins.

• Never grasp the appliance, power cable, or power plug with wet hands.
• Always remove the power cable from the socket by pulling on the plug, not the cable itself. Do not hold or carry the appliance by the power cable.
• Do not fold or crush the power cable. Ensure that the power cable does not run over sharp edges.
• Always check the power cable and plug before use. To reduce risks in the event of damage to the power cable, arrange for it to be examined and repaired as soon as possible by the manufacturer, by Customer Services, or by a similarly qualified person.
• Do not use the appliance outdoors.

Risk of Fire!

• Do not leave the appliance unattended when in use.
• Avoid the addition of heat from other sources, e.g., from direct sunlight, heating appliances, other devices, etc.!
• Do not use an extension cable. In the event of danger, the plug must be quickly and easily accessible.

⚠️ Risk of personal injuries!

- This appliance may be used by children aged 8 and over and by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

• Children must not play with the device. - Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. - Tell children about the appliance and its potential dangers so that they do not play with it. - Lay the power cable in such a way that no one can tread on or trip over it. - The appliance has hot surfaces. Persons who are insensitive to heat must take care when using the appliance.

⚠️ Medical Warning Note

This Infrared Massage Appliance is intended for personal use and is not a substitute for physiotherapeutic or medicinal treatments.

The appliance may not be used ...

• by people fitted with heart pace-makers
• by people with heart problems or pains of unknown origin
• in the event of feverish colds, varicose veins, thrombosis, phlebitis, jaundice, diabetes, nerve ailments such as sciatica, acute inflammations or during pregnancy.
• on swollen, inflamed or injured body parts.
• for the massage of bones, especially the spine and the skull.
• close to the eyes or other sensitive body parts.
• on small children.

If you are unsure about your current medical condition, obtain advice from your doctor before using the Infrared Massage Appliance.

⚠️ Notices regarding usage

• Use the appliance exclusively for the purposes and usages described in these operating instructions. If you do, it may result in physical injury and/or appliance damage!
• To avoid overheating of the appliance, do not use it for more than 20 minutes continuously. Before re-using it, allow the appliance to cool down for approx. 15 minutes.
• Use the appliance exclusively with the supplied accessories. If you do, it may result in physical injury and/or appliance damage!
• Do not use the appliance on animals. Risk of physical injury!
• Do not use the appliance to fall asleep in bed. There is a risk of suffering burns or causing a fire.

Attention!

The upper surface of the infrared lamp becomes warm when in use. Heat non-sensitive people must therefore handle the appliance with particular caution.

Use

In use, the infrared lamp ⑨ creates warmth and it penetrates into the deeper layers of skin. This has a stimulating effect and is thus effective against tiredness and tensions.

With vibration switched on in the massage head ①, a relaxing and pain relieving effect can be achieved for tired muscles through gentle massage.

Taking into use

Unpacking

• Take the Infrared Massage Appliance and the accessories from the packaging. - Remove all packaging material.

Attention:

Do not permit small children to play with plastic packaging. There is a risk of suffocation!

Adjusting the rotatable parts of the massage appliance

• With the revolvable ring ③ the massage head ① can be turned through a radius of 270°. Thus either the infrared lamp ⑨ or the massage head ① is directed at the body part to be treated. The grip ⑦ can be turned in five levels over a radius of 90°.
• For this, press the locking button on the swing arm ⑧ down and move the grip ⑦.
• Release the locking button ⑧ and turn the grip ⑦ until it engages.

Equipping the massage head with accessories

Select, according to the application requirement, an accessory (10, 11, 12, 13, 14, 15) for the massage:

The roller accessory 10:

Stimulates the blood circulation. Guide the roller accessory back and forth over the whole of the body.

The nub accessory ⑪:

The 21 nubs are suitable for deep massage and large muscle groups.

The surface accessory ⑫:

Use this accessory on the whole body to relieve muscle pain and tensions.

The Shiatsu accessory 13:

The Shiatsu accessory simulates the finger posture of a masseur and is suitable for deep massage.

The knead-massage accessory 14:

This accessory is suitable for kneading simulation and deep massage.

The accessory for exacting massage 15: Use this accessory for the massage of individual muscle groups.

1. Release a possibly fitted accessory from the massage head ①, in that you hold the grip cavity ② and pull it off.

(i) Note:

The roller accessory ⑩ does not have a recessed grip ②. To pull it off, you can take hold of the roller on the sides.

1. Place the accessory (10, 11, 12, 13, 14, 15) of your choice on the massage head ① and pay attention that the round curbs of the massage head ① and the accessory (10, 11, 12, 13, 14, 15) lie one on top of the other.
2. Push the accessory (10, 11, 12, 13, 14, 15) onto °38

the massage head ① then check to make sure that it is firmly fixed.

Usage

- Insert the power plug into a wall power socket.

Switching on

• To switch on the Infrared lamp ⑨ slide the switch Infrared ④ into the position "I".
• Slide the switch Massage ⑤ into the position "l" for normal vibration.
• For a stronger vibration slide the switch Massage ⑤ into the position "II".

ATTENTION!

After an extended heating-up of the infrared lamp ⑨ without bodily contact, the temperature of the lamp can be perceived as unpleasantly high! Always check the temperature of the infrared lamp ⑨ with the tip of a finger before making contact with the body itself. A temperature that is too high can be reduced by switching the infrared lamp ⑨ off for a short period.

Massage

• Hold the Infrared Massage Appliance by the grip ⑦ and, dependant on the application, place the infrared lamp ⑨ or the massage head ① against the skin.
• Guide the infrared lamp ⑨ or the massage head ① in circular or straight movements slowly over the skin.
• Massage without applying undue pressure. • To achieve an optimal effect, try to keep the skin taut. • Always start the massage at the position furthest from the heart and then slowly work towards the heart.

Ending usage

Switching off

• After use, depending on the application, return the switches Infrared ④ and Massage ⑤ back to the position "O". - Remove the plug from the wall power socket.

WARNING!

After use, do not lay the Infrared Massage Appliance down with the infrared lamp ⑨ facing downwards! It could still be hot and there is still a grave risk of fire!

• When laying it down, always ensure there is sufficient safety distance between the massage appliance and inflammable objects such as curtains, tablecloths, etc.
• Remove the accessories (10, 11, 12, 13, 14, 15) from the massage head ① and lay the massage appliance with the flat area of the massage head ① facing downwards.

ATTENTION!

For approx. 15 minutes after the last usage, do not leave the appliance without supervision.

Storage

- Allow the Infrared Massage Appliance to cool sufficiently after the last usage, then store it in a carton or in a cool and dry location.

ATTENTION!

When storing it, do not wrap the power cable around the appliance. The cable could become damaged. Do not hang the appliance up by the cable.

Cleaning

The appliance and the accessories should be cleaned regularly and after each usage.

Danger of electrical shock!

Before cleaning, ALWAYS remove the plug from the wall power socket.

Never submerge the appliance in water. The appliance could be irreparably damaged!

ATTENTION!

Always wait until the infrared lamp ⑨ has cooled down before cleaning the appliance.

Risk of physical injury!

• Clean your Infrared Massage Appliance only with neutral detergents and a moist, soft cloth.
• Clean the accessories (10, 11, 12, 13, 14, 15) in a warm soapy solution.

Before taking the appliance back into use, check to ensure that it and the accessories are completely dry.

Non-functionality

• Do not attempt to dismantle the appliance or to carry out repairs yourself. You could potentially damage the sensitive electronic components. • Repairs to your appliance are to be carried out exclusively by qualified service personnel or by Customer Services!
• No liability will be accepted for damage resulting from improper use and/or the opening of the appliance!
• In the event of a malfunction please make contact with our service partner in your country.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally responsible manner.

Warranty & Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch.

Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 102535

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
