Brand	Vornado
Model	EXO5
Product type	Air circulation fan
Intended use	Air circulation in indoor rooms only
Power supply	230 V~50 Hz AC
Dimensions (with tripod)	Width 8.9 cm, Height 106.7 cm
Weight	Approximately 2.17 kg
Power cord length	2.4 m
Motor	IP-54 certified, dust resistant, long life
Speeds	3 speeds (Low I, Medium II, High III) + off
Control type	Double lever switch
Pivoting head	360° rotation to direct airflow
Mounting options	Removable tripod, clamp, wall mount
Front grille	Removable for cleaning
Non-slip base	Yes (for stability)
Assembly	Tool-free, quick
Maintenance	Clean grille and blade with damp cloth and mild soap; do not put in dishwasher
Motor lubrication	Permanent, no lubrication needed
Warranty	5 year limited manufacturer warranty
WEEE recycling	Do not dispose of with household waste; follow recycling guidelines
Protection class	Class II (double insulation)
Commercial/industrial use	Not designed for commercial or industrial use

Frequently Asked Questions - EXO5 Vornado

How to assemble the EXO5 fan?

The EXO5 can be used with a tripod, clamp, or wall mount. For the tripod, attach the ball joint (B) to the fan head (A), then insert the tripod (F) under the ball joint until tight. For the clamp, do the same. For wall mount, use the keyhole slots on the back and secure with suitable screws (not included).

How to clean the fan grille and blade?

Turn off and unplug the fan. Remove the front grille screws, then wash the grille with a damp cloth and mild dish soap. Do not put the grille in the dishwasher. For the blade, turn it clockwise to loosen, remove it, and wipe with a damp cloth. Do not use solvents or harsh cleaners.

What to do if the fan does not turn on?

First, check that the power cord is properly plugged into a 230 V outlet. Ensure the switch is set to a speed (I, II, or III). If it still doesn't work, try another outlet or contact customer service. Do not use the appliance if damaged.

How to install the fan on the wall?

Place the keyhole slots on the back of the product against the wall. Mark two points 5 feet (152 cm) apart. Drill and insert #10 flat head screws (not included) that can support 4.5 kg. Leave about 0.6 cm of screw protruding. Position the keyhole slots over the screw heads and slide the fan down to secure.

What speed settings are available?

The lever switch offers three speeds: Low (I), Medium (II), and High (III), as well as an off position (O).

Can the fan be used outdoors?

No, the product is designed for indoor use only. Do not expose to weather or moisture.

How to maintain the motor?

The motor is permanently lubricated and requires no additional grease or oil. Simply ensure the air openings are not blocked by dust.

What accessories are included?

The fan comes with a fan head, detachable tripod, clamp, and removable front grille. Wall mounting screws are not included.

The fan is making noise, is that normal?

A slight motor noise is normal at high speed. If abnormal noise or grinding occurs, check that the blade is properly secured and that no foreign objects are obstructing the grille.

How to get a spare part or repair?

Contact an authorized Vornado service center. Use only original spare parts. Unauthorized repairs void the warranty.

USER MANUAL EXO5 Vornado

Close-up of a turbine fan blades with a circular logo featuring the word 'VORNADO' in white, centered on a dark circular background (no other text or symbols visible)

WHOLE ROOM CIRCULATOR OWNER'S GUIDE

we expect this product to be PERFECT

if it's not WE will make it right.

Important Safety Instructions....4 Additional Product Information....18
Features 9 Warranty 19
Controls 10
How to Use 11
Assembly 12
Cleaning 15
Troubleshooting 17

IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING.

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. Please refer to our website for the most current version of our owner's guide.

The following Warning messages are throughout this owners guide:

DANGER

Indicates a hazard with a HIGH level of risk which, if not avoided, will result in death or serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

4 Englen

WARNING

Indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Indicates additional information that will assist in the care of handling of the device.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only. This product is not intended for commercial or industrial uses. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING – When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING

Risk to Children and Other at Risk Groups of People.

This appliance can be used by children aged from
12 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.
This product and its packaging material are not toys and should be kept out of reach of children.

WARNING

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks to people or property.

- Do Not use this product outdoors or directly exposed to weather.

Do Not use this device in tropical humid climates. If the product is brought in from the cold to a warm area (e.g., during transport), condensation can occur within the unit. Let the device reach room temperature, before using it.
Do Not use this product on wet surfaces. Do not use this product in a bathtub, shower or locate product where it may fall into a bathtub, laundry, swimming pool or other water container.
Do Not immerse this product in water or allow water to drip into the motor housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
Do Not position this product too close to draperies or other loose fabrics as they may be drawn into the product, cutting off airflow and damaging the motor.

Do Not carry this product by the cord, or use the cord as a handle as it can damage internal wiring. Do not unplug product by pulling on cord or place the cord under strain. To unplug, grasp the plug, not the power cord.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. To avoid a tripping hazard, safely coil/store the power cord.

Do Not tamper with or modify this product in any way.
Do Not allow the power cord to come in contact with water or wet locations.
Do Not place power cord near heat sources, such as heaters or radiators.

ELECTRICAL CONNECTION: Only a proper 230V-50Hz AC outlet may be used to connect to public power supply.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!

Do Not touch the product with wet or damp hands.
Do Not operate any product with a damaged

cord or plug or after the product malfunctions, has been dropped or damaged in any manner. Discard product, or return to authorized service facility for examination and/or repair in order to avoid a hazard.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Do Not stretch the power cord or put the cord under strain.
Do not insert or allow foreign objects to enter any input or output opening as they may cause risk of electric shock or fire, or damage the product.

Turn off all controls before unplugging. Unplug from wall outlet if not in use for extended periods of time.
Do Not open appliance housing. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center. Only original replacement parts may be used.
For safety reasons, always unplug the unit in the event of a thunderstorm.

WARNING

Risk from Improper Installation. Please take care to follow these guidelines to avoid risks to people or property.

Ensure that wall power outlet is easily accessible so unit can be disconnected during an emergency.
To reduce the risk of fire or electrical shock, do not use this product with any external (solid state) speed control device.
To reduce the risk of fire or electric shock and injury to persons, do not use in a window.

Information Regarding the EC Declaration of Conformity

This product conforms with all relevant and necessary EC directives, including:

• Low Voltage Directive (LVD)
• Electromagnetic Compatibility Directive (EMC)
• Energy Related Product Directive (ErP)
• Restriction of Hazardous Substances Directive (RoHS)
• Registration, Evaluation, Authorisation, and

Restriction of Chemicals (REACH)

The complete Declaration of Conformity is registered and can be obtained from the importer.

PACKAGE RECYCLING: The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

Dispose of all packaging materials in an environmentally responsible manner.

WEEE Recycling

Waste Electrical and Electronic Equipment Disposal: This marking indicates that this product

should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

0 Englen

FEATURES

POWERFUL IP-54 RATED MOTOR Dust proof, long life motor that will endure the rigors of the job site.

TOOL FREE ASSEMBLY

EXTRA LONG 8" (2.4 ml) POWER CORD Amole cord length plus a fully secure wall connection

TOGGLE SWITCH Oversized glove-friendly double toggle switch

WALL MOUNTABLE Wall-mount option for added versatility

NON-SLIP FEET Product will stay where you put it.

Exterior view of a desktop fan with tripod base (no visible text or symbols)

FINGER FRIENDLY DESIGN Resists curious fingers. REMOVABLE GRILL For easy cleaning.

SWIVEL HEAD 350° pivoting head to direct air where needed

COLLAPSIBLE TRIPOD BASE Quick and easy setup, takedown & storage

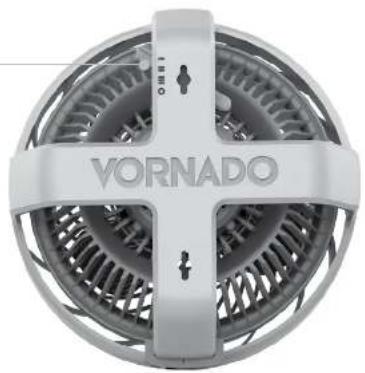

CONTROLS

POWER ON/OFF

Select High (III).

Medium (III), Low (I) fan

speed or power off (O)

Top-down view of a circular fan or vent with 'VORNADO' branding and decorative patterns (no readable text beyond logo)

10 English

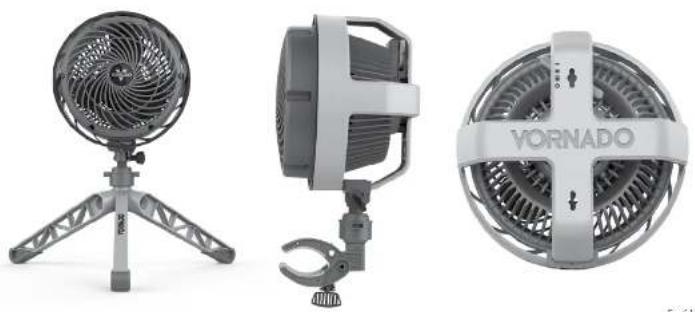

HOW TO USE

The EXOS can be used in one of three different ways.

1. TRIPOD BASE 2. CLAMP 3. WALL MOUNT


English 11

ASSEMBLY

The EXO5 can be used in one of three different ways.

1. Connect the Locking Socket Joint (B) to the EXOS Fan Head (A) at any flat location along the Roll Cage (C). Before proceeding, ensure that the knob is properly tightened and the Locking Socket Joint (B) is fully secured to the Fan Head (A). Do not pinch the power cord between the Locking Socket Joint (B) and the Fan Head (A).
2. To connect the Fan Head/Locking Socket Joint assembly to either the to the Clamp (E) or the Tripod Base (F), simply insert into the under side of the Locking Socket Joint (D) and twist until secured.
3. To remove Clamp (E) or the Tripod Base (F), simply twist until loosened.

12 English

HOW TO USE

TRIPOD BASE ATTACHMENT CLAMP ATTACHMENT

1. After product assembly, position unit on flat and level surface as shown below.
2. To adjust angle of head tilt, simply loosen the connection between the Fan Head (A) and the Tripod Base (B) with a twist, adjust to desired angle and then twist to retighten.

Note: Product should be used with Tripod Base (B) in fully extended position and fully secured to Fan Head (A).

Exterior view of a standard air conditioner fan with labeled parts A and B (no text or symbols on the fan itself)

1. After product assembly, twist the Cam Lock Knob (C) to open the Clamp (D).
2. Position the Clamp (D) over a solid surface up to 2" thick.
3. Twist the Cam Lock Knob (C) to lighten. Take care Clamp (D) is fully engaged on solid surface before releasing.

Note: DO NOT attach to slick or oily surfaces as this may allow product to come loose. Make sure solid surface can support the weigh of the product.

Note: For both attachment options, keep the electrical cord safely routed to avoid being tripped over or pulled. Avoid placing the product where it could be easily bumped.

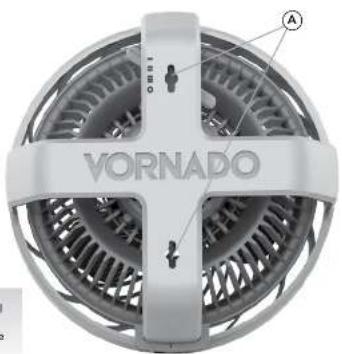

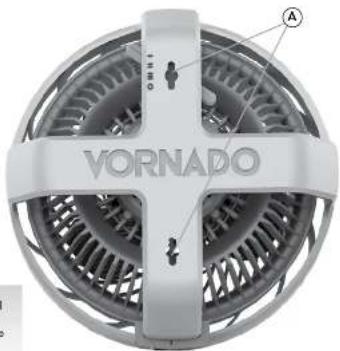

HOW TO USE WALL MOUNT INSTALLATION

1. Locate the Key Holes (A) on the back of the product.
2. Find and mark two circles on the wall where the product will be mounted. The circles need to be 5" apart from center to center.
   NOTE: Is it recommended to mount the EXOS on a solid surface or wall stud. Do NOT hang the product on the ceiling. Use downwall anchors if a stud is not available.
3. Drill 2 #10 panhead screws into the wall (screws not included). Screws should be weight rated for 10 lb vertical load each.
4. Leave about 14 " of each screw exposed.
5. Place the wide portions of the Key Holes over the heads of the 2 screws.
6. Slide the product down until the screws are inside the narrow portion of the key holes and the product is secured to surface.

Note: Hang product from sturdy location using large screws that will support product. Be careful not to hang the product in such a way that it prevents normal fan operation or damages the cord. Keep the electrical cord safely routed to avoid being tripped over or pulled. Avoid placing the product where it could be easily bumped.

14 Englen

CLEANING

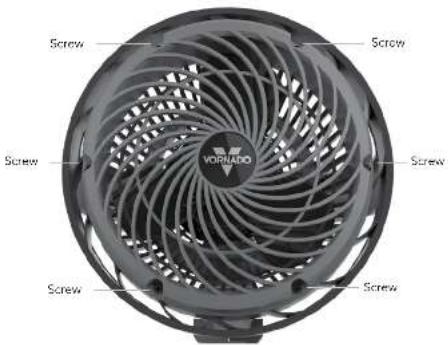

GRILL REMOVAL Screwdriver required.

WARNING: To reduce the risk of electrical shock and injury to persons, ensure that fan is switched off and unplug the circulator before removing grill.

1. Remove the 6 screws located on the front of the grill.
2. Dust or wash the Front Grill with a mild dishwashing soap. Do not place grill in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - align the 6 screw holes and replace all the screws.

Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grill and Air Inlets.

Note: The motor is permanently lubricated and requires no oiling.

English 15

CLEANING

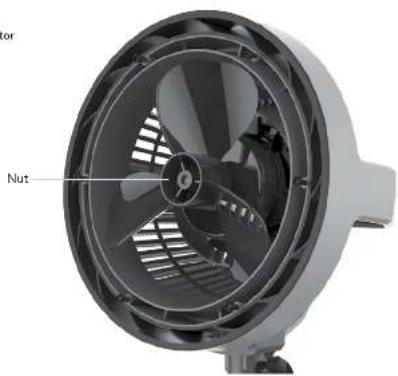

BLADE REMOVAL

WARNING: To reduce the risk of electrical shock and injury to persons, ensure that fan is switched off and unplug the circulator before removing grill.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
2. Wipe the Blade with a damp cloth. If your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blade in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - be certain the flat side of the shaft aligns directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Reinstall washer and nut.

16 English

Cutaway view of a mechanical fan or propeller with labeled parts (no text or symbols beyond 'Nut' and 'for')

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit fails to power on.

Unit is not plugged in. Plug Power Cord into electrical outlet.

Eraura unit fan speed setting is selected.

Unit is damaged or in need of repair. Cause usage and unplug. Contact Consumer Service for assistance

The outlet is worn or damaged. Try another outlet or contact a qualified electrician.

Unit set to a low speed setting. Adjust to a higher speed setting.

Airflow is blocked. Remove obstruction.

Adjust direction of airflow towards the user.

ADDITIONAL PRODUCT INFORMATION

Decoration Symbol Unit Value
Inuit Voltage V220 240
Main Voltage Frequency He 50
Protection Class Class III/IV
Dimensions		Wx11x19 px	73 x 56 x 42"
Weight Approx. (g) 2/12
For Power Input F: Watts (W)		35.83
Maximum I and Low Rate	I	m/min	21.87
Service Value	SV	(mJ/mW)	0.62
Standard Power Consumption	F_in	Watts (W)	0.00
Limited Sound Level	L_in	dB(A)	67.8
Maximum Air Velocity	c	m/s	3.219
Measurement Standard For Service Value	IFC 60870; 1986 root(1997)GB/T 13380 2007
Contact Details For Obtaining Marks Information	Vancouver Air I.C.410 East 13th StreetAndover KS 67902 USA

18 English

LIMITED WARRANTY\*

We expect this product to be perfect. If you're not satisfied with this product, let us know.

\*Limited Warranty and repair terms and conditions

You will make a voluntary for-year manufacturer's warranty from date of purchase on materials and workmanship of the product. This extended manufacturer's warranty is valid for all customers in Europe. The legal warranty claims are unaffected by this additional regulation.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, repair or service of the Product by anyone other than Vornado or an Authorized Service Center, maintaining, improper maintenance, commercial use of the Product, damages which occur in shipment or are tributes to acts of God.

Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences will not be owned by support services or product warranties.

Exclusions are damages through inappropriate use or use of the product

not according to the manual. For example, but not limited to: if the product is exposed to witness, extreme temperatures, environments conditions, corrosion, oxidation, if liquids are soiled over the device, if chemical substances impact the product or through other incidents that are not within the reasonable range of influence of the manufacturer.

Pensquisita for processing in the service department is the submission of a receipt or an invoice.

All technical information, data and instructions for the installation, connection and operation contained in those instructions for use correspond to the latest available information at time of printing.

The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

All company names and product names are trademarks of their respective owners. All rights reserved.

Refer to back cover of owner's guide for the Importer Information and your Authorized Service Center.

Designed and engineered in USA.

© 2018 Toronto Air LLC, Andrew, KS 67002 J.S. Patent pending. Specification subject to change without notice. Toronto is a preferred copy by Schmied, PK 113.

Exterior view of a portable fan with visible blades and tripod base (no text or symbols)

FINGERFREUNDLICHES

DESIGN

Hällneugierige Fingerfern.

ABNEHMBARES GITTER

Ermög ist einfache

Reinigung

SCHWENKKOPF

Der um 360

schwenkbare Kopf

Close-up of a circular fan with visible blades and central branding (no readable text or symbols)

26 Deutsch

Deutsch 27

GEBRAUCHSHINWEISE

Exterior view of a modern office building (no signage)

28 Deutsch

Exterior view of a modern office building (no signage)

Close-up of a circular fan with metallic blades and a central cross, labeled 'VORNADO' (no additional text or symbols visible)

MONTAGE

Deutsch 29

GEBRAUCHSHINWEISE

Top-down view of a three-legged electric fan with labeled parts (A and B), no visible text or symbols on the fan itself.

Note: Hang product from sturdy location using large screws that will support product. Be careful not to hang the product in such a way that it prevents normal fan operation or damages the cord. Keep the electrical cord safely routed to avoid being tripped over or pulled. Avoid placing the product where it could be easily bumped.

Top-down view of a Vornado air vent fan with labeled components (no readable text beyond brand name)

Quubich 31

REINIGUNG

Dar J. Istram wind blockert Hindam's artharan

Exterior view of a portable electric fan with adjustable armrest and tripod base (no text or symbols visible)

CONCEPTION À L'ÉPREUVE DES PETITS DOIGTS

Close-up of a circular mechanical fan with 'VORNADO' branding and mounting holes (no readable text beyond brand name)

44 Français

UTILISATION

46 Français

UTILISATION

ATTACHE AVEC LE TRÉPIED ATTACHEMENT PAR LA PINCE

Exterior view of a three-legged electric fan with labeled parts (A and B), no visible text or symbols on the fan itself.

Top-down view of a Vornado airship fan with labeled components (no text beyond brand name)

48 Français

NETTOYAGE

RETRAIT DE LA GRILLE Tournevis requis.

Close-up of a mechanical fan or propeller with visible blades and central hub (no text or symbols)

DÉPANNAGE

CAUSE POSSIBLE ET SOLUTIONPROBLÈME

Exterior view of a modern office building (no signage)

Top-down view of a circular fan or vent with 'VORNADO' branding and decorative patterns (no readable text beyond logo)

62 Nederlands

GEBRUIK

64 Nederlands

GEBRUIK

STATIEFVOET VASTMONTEREN KLEM VASTMONTEREN

Top-down view of a four-legged electric fan with labeled parts (A and B), no visible text or symbols on the fan itself.

Top-down view of a Vornado air vent fan with labeled components (no text beyond brand name)

REINIGEN

Close-up of a black industrial fan with visible blades and blades, no text or symbols present.

PROBLEMEN VERHELPEN

MOGELIJKE OORZAAK EN OPLOSSINGPROBLEEM

EXTRA PRODUCTINFORMATIE

Beschring	Symbol	Unit	Wände
Innspeening		V 220	203
Nubularnboquans		14 M _50
Beschermingslasse		Class	67
Afrikaugen		Wells (ft.)*	2,8 x 45x42,7
Gewicht Cu (g)			2/12
Veränderung festen	P WaI	[19] 33,33
Maxima verzstandsvobet	I	m ^3 /min ^2	2,17
Servicienwack	SV (m)	Verin/W	0,62
Fünfengewertlich immed by	Pa	Wells(W)	1,00
Geladivausions	L _ss	dB(A)	6,79
Maximal lichenzschuld	e mm	3,219
Mean standard zur serviceande	IPC 60879: 1986 norm (1997)GB/T 13380 2007
Contact information	Versada Air I.C.412 East 13th StreetAndover KS 67902/USA

70 Nederlands

BEPERKTE GARANTIE\*

- Low Voltage Directive (LVD)

- Electromagnetic Compatibility Directive (EMC) - Energy Related Product Directive (ErP)

- Restriction of Hazardous Substances Directive (RoHS)

- Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH)

Exterior view of a desktop fan with tripod-mounted stand (no visible text or symbols)

Top-down view of a circular fan or vent with 'VORNADO' branding and decorative patterns (no readable text beyond logo)

03 Italiano

COME UTILIZZARE

B2 Italiano

COME UTILIZZARE

ATTACCO BASE TREPPIEDE ATTACCO MORSETTO

Close-up of a mechanical fan or propeller with visible blades and internal blades (no text or symbols)

I know that the Philippines USA.

• Low Voltage Directive (LVD)
• Electromagnetic Compatibility Directive (EMC)
• Energy Related Product Directive (ErP)
• Restriction of Hazardous Substances Directive (RoHS)
• Registration, Evaluation, Authorisation, and

Portugues 95

Restriction of Chemicals (REACH)

Exterior view of a desktop fan with visible blades and legs (no text or symbols)

DESIGN AMIGÁVEL

AOS DEDOS

Resiste a

cincisos.

GRELHA REMOVIVEL

Para to limpeza

CABEÇA GIRATÓRIA

Cabeça giratoria de

Close-up of a circular fan with 'VORNADO' branding and decorative patterns (no readable text beyond brand name)

98 Portugues

COMO USAR

Three different electric fan models: a tripod-mounted fan, a flat-screen Vornado propeller, and a circular fan with a cross symbol (no text or labels visible on the devices themselves)

Portugues 99

MONTAGEM

100 Portugal

COMO USAR

Top-down view of a metal-framed air conditioner with labeled parts (A and B), no visible text or symbols on the fan itself.

CAUSA POSSÍVEL E SOLUÇÃO PROBLEMA

Exterior view of a portable fan with visible blades and legs, mounted on a tripod (no text or symbols)

SWIVEL HEAD 350° pivoting head to direct air where needed

Close-up of a circular fan with 'VORNADO' branding and mechanical components (no readable text beyond logo)

116 Español

CÓMO USAR

1. BASE DE TRÍPODE 2. ABRAZADERA


Exterior view of a black and silver electric fan with visible blades and mounting base (no text or symbols)

Exterior view of a mechanical device with clamping bracket (no visible text or symbols)

1. MONTAJE DE PARED


Circular fan with metallic blades and central cross symbol, no visible text or symbols on the fan itself

Lapañol 117

ENSAMBLADO

CÓMO USAR

ADJUNTO DE BASE DE TRÍPODO ADJUNTO DE LA ABRAZADERA

Top-down view of a Vornado air vent with labeled components (no text beyond 'VORNADO')

LIMPIEZA

Close-up of a turbine fan with visible blades and central hub, labeled 'Tomillo' (no other text or symbols)

© 2019 Varado Air LLC Anavaya,

SESTAVENÍ BEZ POLUŽITÍ NÁŘADÍ

Exterior view of a desktop fan with visible blades and legs (no text or symbols)

Close-up of a circular mechanical fan with 'VORNADO' branding and internal blades (no readable text beyond brand name)

134 Ceftina

ZPŮSOB POUŽÍVÁNÍ

136 Ceftina

ZPŮSOB POUŽÍVÁNÍ

PŘIPOJENÍ NA TRÍNOHOU ZÁKLADNU PŘIPOJENÍ NA SVORKU

Exterior view of a standard electric fan with labeled parts (A and B), no visible text or symbols on the fan itself.

Exterior view of a portable fan with visible blades and tripod base (no text or symbols)

FINGERVÄNLIG

DESIGN

Cia Ming, Shingyi, Chen,

VRIDBART HUVUD

Huvudet kan vridas

360° sa att lutten

Close-up of a circular mechanical fan with 'VORNADO' branding and internal blades (no readable text beyond brand name)

152 Siemens

BRUKSANVISNING

15d Svenska

BRUKSANVISNING

FÄSTA TRIPODEN FÄSTA KLÄMMAN

Top-down view of a metal-framed air conditioner with labeled parts A and B (no text or symbols on the fan itself)

Exterior view of a black and gray electric fan with tripod base (no text or symbols visible)

FINGER FRIENDLY DIZAJN Odpolný voči zvedevym prstom. SNÍMATEČNÁ MRIEŽKA Pre lahká čistenia,

Top-down view of a circular fan or vent with 'VORNADO' branding and decorative patterns (no readable text beyond logo)

170 Slovensky

AKO POUŽIŤ

Exterior view of a four-legged electric fan with labeled parts (A and B), no visible text or symbols on the fan itself.

© 2018 Vorrado Air LLC, Andover, KS 6/2002 USA. Francisco patentsora privilata: Special case policy project, see upcemental. Vorrado is exceeded media professional (Vermuda Air Inc.

Skramsky 179

VORNADO®

CL3-0633 R-, V00
