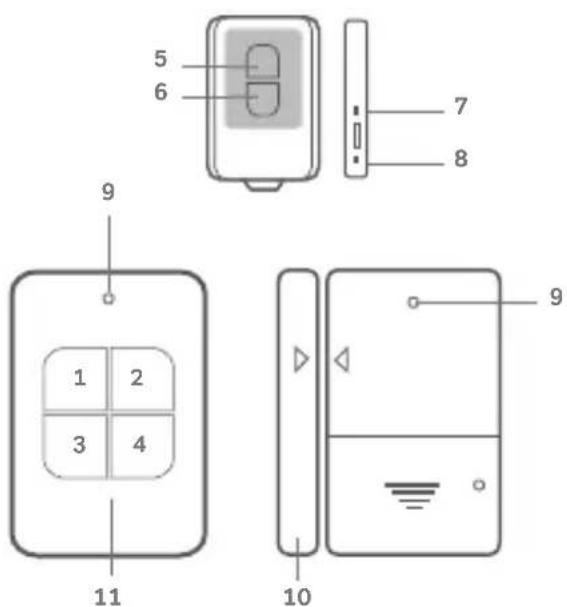

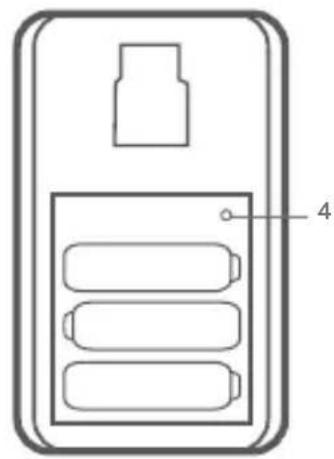

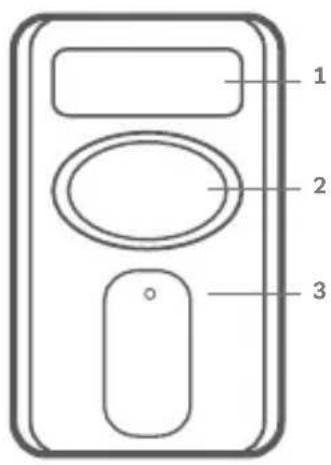

Présentation du produit / Productpresentatie / Presentación del producto / Apresentação do produto / Presentazione del prodotto / Product overview

1 2 3

Diagram of a battery pack with four batteries and a labeled pin (no text or symbols beyond basic labels)

5 6 7 8 9 1 2 3 4 11 10 9

Two identical line drawings of electronic devices or modules, no text or symbols present.

Diagram illustrating three-step digital payment process: card scanning, card usage, and app download with directional arrows

Diagram illustrating three-step UI control sequence: adding sound waves, adjusting a lock, and adding a magnifying glass.

1 2 3 4

Technical diagram showing four different electrical or mechanical components with labeled parts and directional arrows

Two identical line drawings of electronic devices with no text or symbols

1.2. Batterij installatie: Afstandsbediening

Diagram illustrating three-step digital payment process: adding a card, inserting a card into a device, and clicking a button.

Diagram illustrating three-step digital display control: adding a power source, adjusting screen level, and adding a magnifying glass.

1 2 3 4

Technical diagram showing four different electrical or mechanical components with labeled parts and directional arrows

100° 100° -80° -60° -20° 2m 4m 6m 8m

Aanbevolen montagehoogte: maximaal 160 cm en minimaal 30 cm.

• Alarmstroom: ≤ 150mA

• Stand-by stroom: ≤ 3uA

• Alarmstroom: ≤ 25mA

• Deuropeningsmelder:
• Batterij: 1x CR2032 (meegeleverd)
• Stand-by stroom: ≤ 3uA
• Alarmstroom: ≤ 15mA

• Remote keyboard:
• Batterij: 2xAAA 1,5V (niet meegeleverd)
  • Stand-by stroom: ≤ 3uA
  • Alarmstroom: ≤ 15mA

Two identical line drawings of electronic devices or modules, no text or symbols present.

Diagram illustrating three-step digital device operation: inserting a card into a mobile phone, adding a card to a screen, and clicking the button.

Diagram illustrating three-step UI control sequence: adding sensors, adjusting a button, and clicking a magnifying glass.

1 2 3 4

Technical diagram showing three types of electrical switch components with labels and connection points

Two identical line drawings of electronic devices or modules, no text or symbols present.

1 Using a flat screwdriver to separate the two parts of the keyboard.
2. Insert the battery taking care to respect the polarity (+/-)
3. Close the compartment.

Technical diagram showing three different electrical or mechanical components with labeled parts and directional arrows

100° -100° -80° -60° -20° 2m 4m 6m 8 m

4. Modo no controlo remoto

Two identical line drawings of electronic devices with no text or symbols

Diagram illustrating the step-by-step instructions for inserting a device into a digital interface, with labeled steps and directional arrows.

NOTE: A maximum of 32 transmitters can be paired to a main unit.

Technical diagram showing three mechanical or electrical component configurations with labeled parts and directional arrows

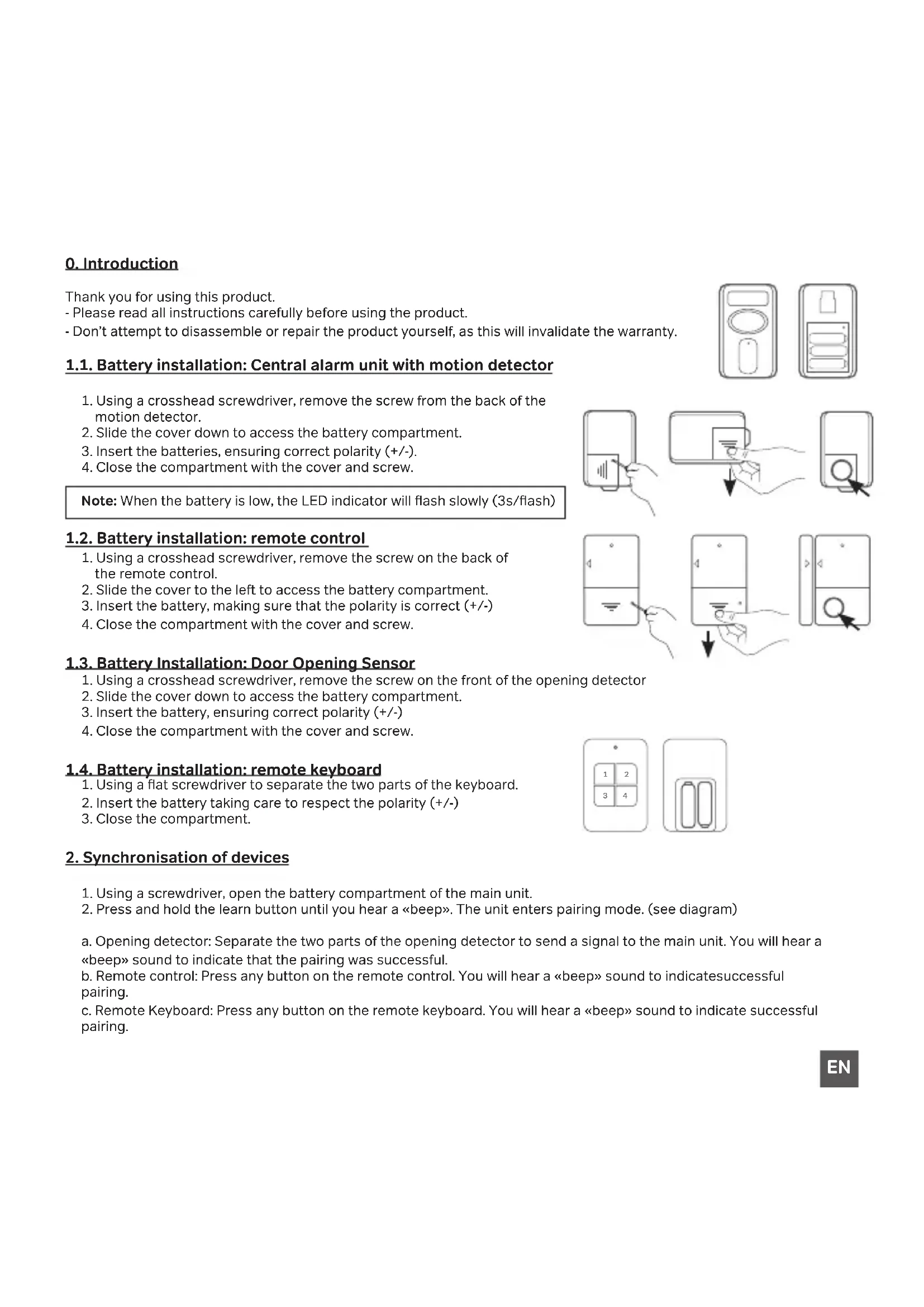

Thank you for using this product.

- Please read all instructions carefully before using the product.

- Don't attempt to disassemble or repair the product yourself, as this will invalidate the warranty.

1.1. Battery installation: Central alarm unit with motion detector

1. Using a crosshead screwdriver, remove the screw from the back of the motion detector.
2. Slide the cover down to access the battery compartment.
3. Insert the batteries, ensuring correct polarity (+/-).
4. Close the compartment with the cover and screw.

Note: When the battery is low, the LED indicator will flash slowly (3s/flash)

1.2. Battery installation: remote control

1. Using a crosshead screwdriver, remove the screw on the back of the remote control.
2. Slide the cover to the left to access the battery compartment.
3. Insert the battery, making sure that the polarity is correct (+/-)
4. Close the compartment with the cover and screw.

Two identical line drawings of electronic devices with no text or symbols

Diagram illustrating three-step digital payment process: card scanning, card usage with download, and app download.

Diagram illustrating three-step steps of a device control panel with labeled buttons and directional arrows

1.3. Battery Installation: Door Opening Sensor

1. Using a crosshead screwdriver, remove the screw on the front of the opening detector
2. Slide the cover down to access the battery compartment.
3. Insert the battery, ensuring correct polarity (+/-)
4. Close the compartment with the cover and screw.

1.4. Battery installation: remote keyboard

1. Using a flat screwdriver to separate the two parts of the keyboard.
2. Insert the battery taking care to respect the polarity (+/-)
3. Close the compartment.

1 2 3 4

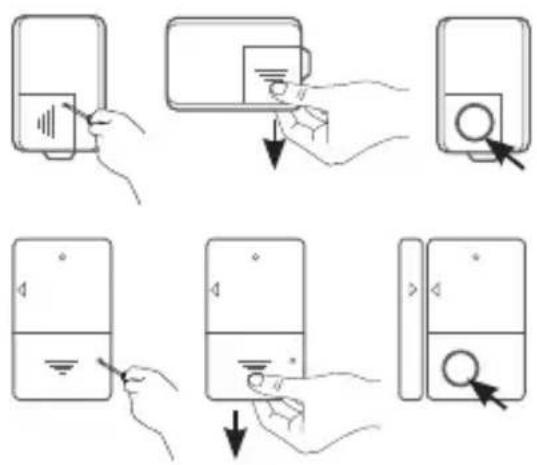

2. Synchronisation of devices

1. Using a screwdriver, open the battery compartment of the main unit.

2. Press and hold the learn button until you hear a «beep». The unit enters pairing mode. (see diagram)
   a. Opening detector: Separate the two parts of the opening detector to send a signal to the main unit. You will hear a «beep» sound to indicate that the pairing was successful.
   b. Remote control: Press any button on the remote control. You will hear a «beep» sound to indicates successful pairing.
   c. Remote Keyboard: Press any button on the remote keyboard. You will hear a «beep» sound to indicate successful pairing.

3. To exit pairing mode, press and hold the learn button for 3 seconds. You will hear a double «beep».

NOTE: A maximum of 32 transmitters can be paired to a main unit.

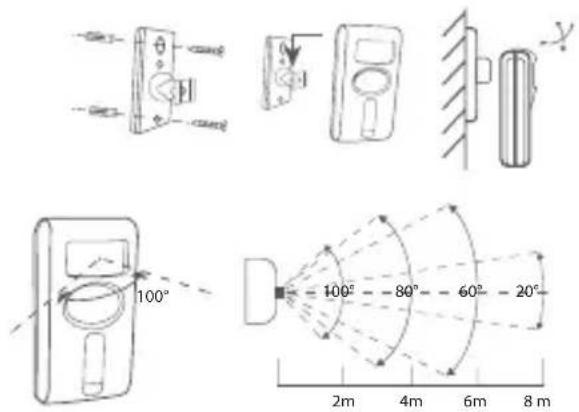

3. Wall installation of the control unit

1. Once you have installed the batteries, choose a location for your motion detector.
2. Fix the bracket to the wall using the supplied dowels and screws.
3. Fit the sensor onto the bracket and then choose the best angle for the sensor to have the best possible field of view.

Recommended installation height:

Maximum 160cm and minimum 30cm.

NOTE: Adjust the installation angle so that it faces downwards.

Technical diagram showing various optical measurement setups with labeled angles and distances

4. Mode on the remote control

The remote control has an «On» button to activate the alarm and an «Off» button to deactivate it. On the side of the remote control there are two inscriptions «HOME» and «AWAY».

a) Home mode: When you select «HOME» mode with the switch, it means that you are at home and don't want to be disturbed. Slide the switch on the remote control marked «HOME» and press the «On» button.
b) AWAY mode: When you select the «AWAY» mode with the switch, it means that you are leaving your home and want to turn off your alarm. Slide the switch on the remote control marked «AWAY» and press the «On» button

NOTE: In «home» mode, all motion detectors are disabled.

5. Setting up the personal code

Once you have placed your batteries, you have 15 seconds to choose a four-digit code. If you have not had time to enter your personal code, the code 1234 will be saved by default. Note: Each time you install batteries, you will need to set up your 4-digit code again.

6. Functionality of the keypad

a) HOME Mode: Enter your 4-digit code, then press the «1» button. You will hear a «beep» to indicate that the alarm will enter «home» mode after 30 seconds.

NOTE: In this case, the motion detection function is disabled. Only the opening detector will trigger an alarm. This mode is also available on the remote control.

b) AWAY mode: Enter your 4-digit code, then press the «2» button. You will hear a «beep» to indicate that the alarm will enter the «Away» mode after 30 seconds.

NOTE: In this case, if someone opens the door or window equipped with the opening detector or enters the field of vision of your motion detector, the alarm will be triggered. This mode is also available on the remote control.

c) Emergency mode: Press buttons 1 and 4 simultaneously in case of emergency. An alarm will sound without time limit to scare off intruders.

7. Reset pairing

In order to reset your entire alarm, remove the batteries from your device. Then press and hold the learning button (see diagram point 1.). When you reinsert the batteries, you will hear two «beeps» indicating that the reset was successful.

8. Problem solving

1. False alarms from the main unit

a) Check that there are no animals near the motion detector.
b) In hot weather, moving shadows may also activate the alarm. Also ensure that the detector is not installed near a radiator or heat source.
c) Check that there are no devices with strong electromagnetic fields near the door/window sensor. Strong electromagnetic fields can cause false alarms.

1. The main unit doesn't receive a signal from the transmitter

a) Check if the pairing between the transmitter and the main unit was successful.
b) If pairing was successful, check the battery voltage of the main unit and transmitter. Low voltage will result in product failure.

1. No alarm sounds after a detection

a) Check if the low battery indicator is flashing (please replace the batteries immediately).
b) If the unit is armed and set to HOME mode and the PIR sensor detects an intrusion, the alarm will not sound. The PIR sensor is disabled in HOME mode. Check if the main unit is installed correctly.

9. Add a device to your existing alarm

We have created a 100% compatible alarm system to meet your needs. Here, we offer accessories that can work alone but also as a kit. This allows you to personalise your alarm and to associate several accessories but also several alarms between them. For example, when a person triggers the opening detector, all your alarms will sound. You can deactivate your alarm using the code units, remote control or the remote keyboard.

More information on our website: https://chacon.com/fr/

Compatible products: 34035, 34036, 34038, 34043, 34044, 34046, 34048

10. Safety advice

• Don't mix new and used batteries.
• Don't mix alkaline, standard (zinc carbon) or rechargeable (ni-cad, ni-mh, etc.) batteries.
• Please use only the type of battery specified in the manual.
• Don't leave used batteries lying around in the unit, as this may damage the unit.
• Incorrect use of the battery may damage nearby objects and result in fire or serious injury.
• Please keep batteries away from children. If you suspect that batteries have been ingested, seek medical attention immediately. Swallowing the battery can lead to serious consequences; internal burns within 2 hours or death.
• Recycle used batteries in accordance with environmental protection practices
• Don't place the unit near a heat source, where it may be exposed to direct sunlight, rain or strong light.
• The unit is not waterproof. Don't expose it to rain or immerse it in water.
• Don't attempt to disassemble or repair the product yourself.
• Please keep this manual in a safe place.
• The reception distance may be affected if a strong interference signal exists in the area of use.

11. Technical specifications

• Can be switched on or off remotely via the controls provided
• Easy to install
• Compatible products: 34035, 34036, 34038, 34043, 34044, 34046, 34048
• Motion detector:
  • Detection distance: 8 m (free field)
  • Detection angle: 100
  • Alarm volume: 100 dB
  • Standby current: ≤ 350uA
  • Alarm current: ≤ 150mA
• Battery: 3x AA 1.5V (not included)

- Remote control:

- Battery: 1x CR2032 (included)

• Standby current: ≤ 3uA

• Alarm current: ≤ 25mA

- Opening detector:

- Battery: 1x CR2032 (included)

• Standby current: ≤ 3uA

• Alarm current: ≤ 15mA

- Remote keyboard:

- Battery: 2xAAA 1,5V (not included)

• Standby current: ≤ 3uA

• Alarm current: ≤ 15mA

- Box content: Motion detector + 1 remote control + remote keyboard + door opening detector + battery (2x) + manual

Support

www.chacon.com/support

EN: For indoor use only
