34048 - Alarm system CHACON - Free user manual and instructions

Product type	Alarm system with motion detector and integrated code keypad
Power supply	3 AAA 1.5 V batteries (not included)
Main functions	Home mode, away mode, emergency mode, motion detection, opening detector
Detection angle	100°
Detection distance	8 m
Alarm volume	100 dB
Alarm duration	30 seconds
Max number of paired transmitters	32
Accessory compatibility	34035, 34036, 34038, 34043, 34044, 34045, 34046
Personal code	4 digits, adjustable, default code 1234
Recommended installation height	30 cm to 160 cm
Box contents	Alarm with motion detector and code keypad, mounting hardware, manual
Maintenance and cleaning	Clean with a soft, dry cloth. Do not immerse in water.
Safety	Do not mix new and used batteries. Do not disassemble. Keep out of reach of children.
General information	Brand: Chacon, Model: 34048. Compliant with directive 2014/53/EU.

Frequently Asked Questions - 34048 CHACON

How to install batteries in the control unit?

Remove the screw on the back of the detector with a Phillips screwdriver, slide the cover down, insert 3 AAA batteries respecting polarity (+/-), then close.

How to program a personal code?

After inserting the batteries, you have 15 seconds to enter a 4-digit code. If you exceed this time, the default code 1234 will be used.

What are the different alarm modes?

Home mode (button 1) disables the motion detector, only the opening detector triggers the alarm. Away mode (button 2) activates both detectors. Emergency mode (buttons 1 and 4 simultaneously) triggers a continuous alarm.

How to pair an accessory to the control unit?

Open the battery compartment of the control unit, press the learn button until you hear a beep. Then, for a remote control, press a button; for an opening detector, separate the two parts; for a motion detector, make a gesture in front of it. You will hear a confirmation beep.

How to reset the alarm pairing?

Remove the batteries from the control unit, then press and hold the learn button. While holding, reinsert the batteries: you will hear two beeps, indicating that the reset was successful.

What to do in case of false alarm?

Check for animals in front of the motion detector, ensure the detector is not near a heat source or radiator, and move electromagnetic devices away from the opening detector.

How many accessories can I pair to the control unit?

You can pair up to 32 transmitters (remote controls, detectors, remote keypads) to a single control unit.

What to do if the alarm does not trigger after detection?

Check that the low battery indicator is not flashing (replace batteries if necessary). If the alarm is in Home mode, the motion detector is disabled; switch to Away mode. Also check the installation of the control unit.

What type of batteries to use?

Use only AAA 1.5 V alkaline batteries. Do not mix new and used batteries, nor different types of batteries.

Where to find the declaration of conformity?

The EU declaration of conformity is available at www.chacon.com/conformity.

USER MANUAL 34048 CHACON

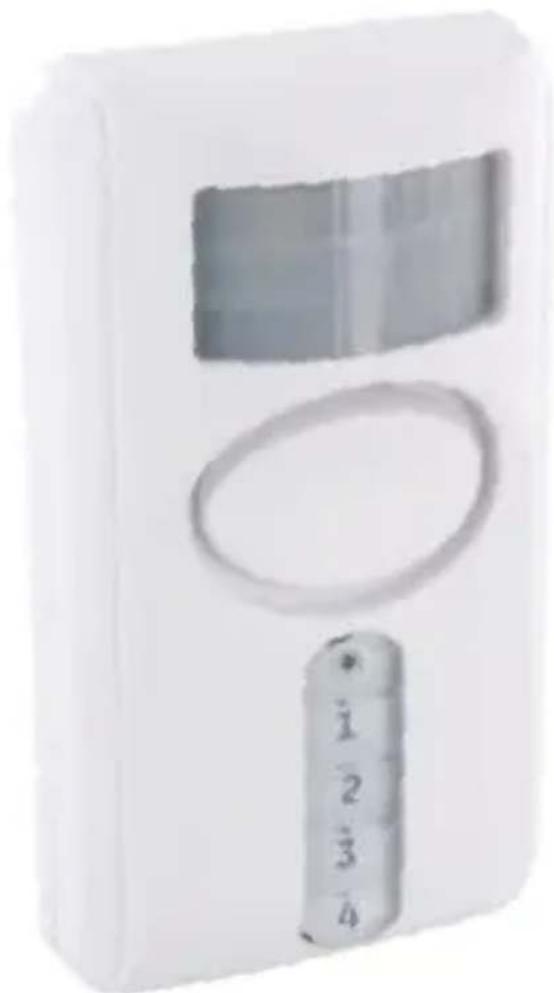

Alarm with motion detector and integrated keypad

Alarme avec détecteur de mouvement et clavier intégré Alarm met bewegingsmelter en geintegreerd toetsenbord
Alarma con detector de mouvement y teclado integrado
Alarme com detector de mouvement e teclado integrado
Allarme con rilevatore di movimento e tastiera integrata

Mode d'emploi / Gebruiksaanwijzing / Manual de uso
Manual de instruções / Istruzioni per l'uso / User manual

1x

1x

FR Enregister la garantie

EN Registering the guarantee

To register your warranty, fill in the online form at www.chacon.com/warranty

Présentation du produit / Productpresentatie / Presentación del producto / Apresentação do produits / Presentazione del prodotto / Product overview

	FR NL ES PT

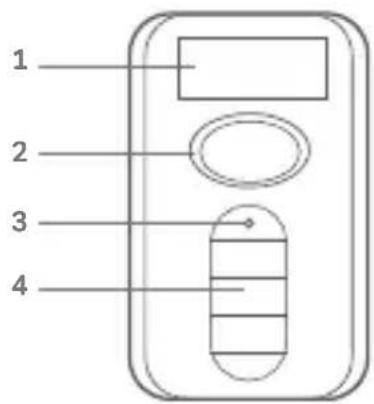

1. Détecteur de mouvement Bewegingsdetector Detector de movimento		gingsdetector Detector de movimento		Detector de movimento
2. Haut-parleur Spreker Altavoz Orador
3. Led clignotant Knipperende LED LED parpadeante LED Intermitente
4. Clavier à code Toetsnbord met code Teclado con número Teclado com número
5. Bouton d'appairage Koppelingsknop Botón de empareja - miento				Botão de emparelha-mentedo

Thank you for using this product.

• Please read all instructions carefully before using the product.
• Do not attempt to disassemble or repair the product yourself, as this will invalidate the warranty.
  This product is compatible with these references: 34035, 34036, 34038, 34043, 34044, 34045, 34046)

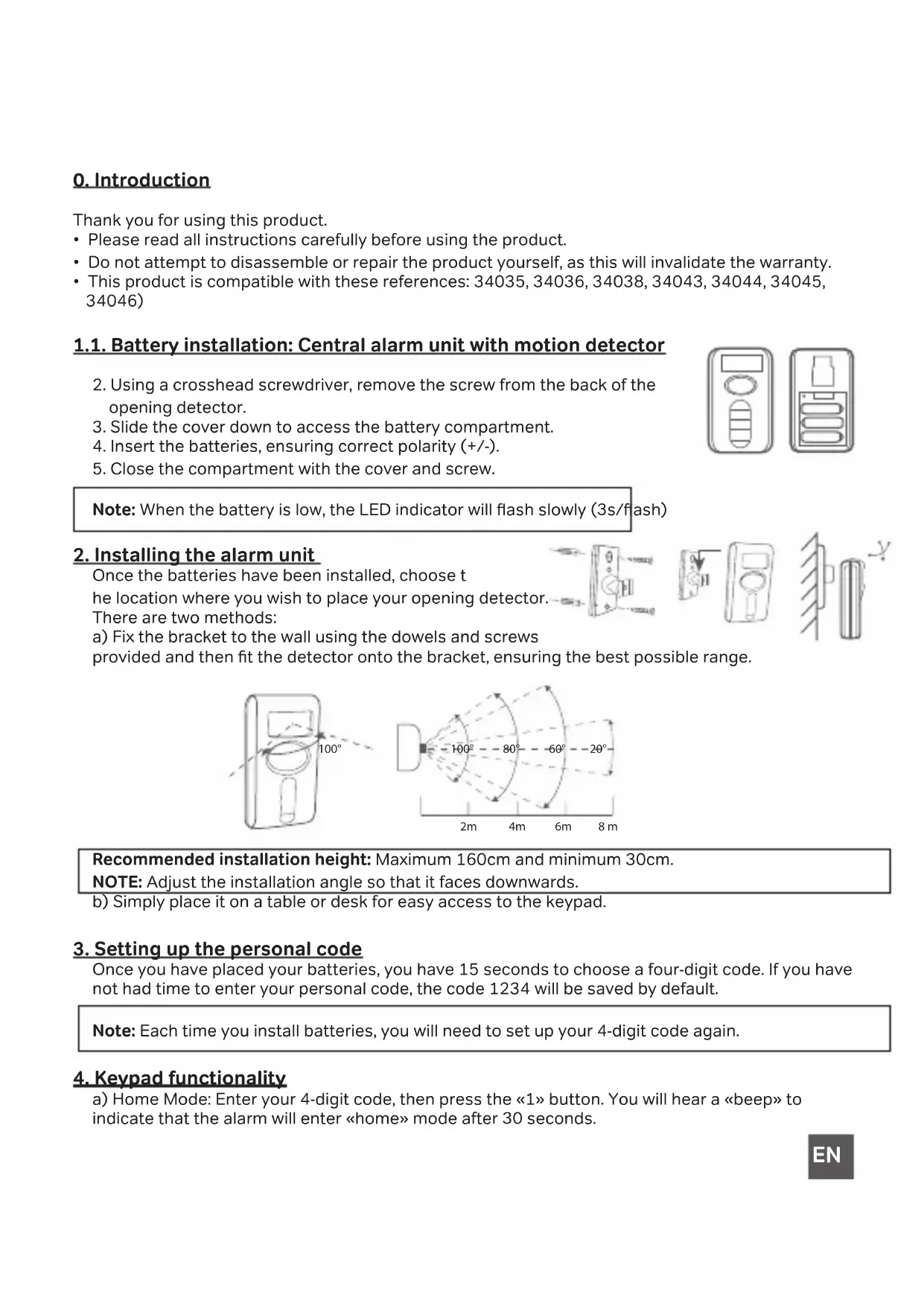

1.1. Battery installation: Central alarm unit with motion detector

1. Using a crosshead screwdriver, remove the screw from the back of the opening detector.
2. Slide the cover down to access the battery compartment.
3. Insert the batteries, ensuring correct polarity (+/-) .
4. Close the compartment with the cover and screw.

Note: When the battery is low, the LED indicator will flash slowly (3s/flash)

2. Installing the alarm unit

Once the batteries have been installed, choose the location where you wish to place your opening detector. There are two methods:

a) Fix the bracket to the wall using the dowels and screws provided and then fit the detector onto the bracket, ensuring the best possible range.

Recommended installation height: Maximum 160cm and minimum 30cm.

NOTE: Adjust the installation angle so that it faces downwards.

b) Simply place it on a table or desk for easy access to the keypad.

3. Setting up the personal code

Once you have placed your batteries, you have 15 seconds to choose a four-digit code. If you have not had time to enter your personal code, the code 1234 will be saved by default.

Note: Each time you install batteries, you will need to set up your 4-digit code again.

4.Keypad functionality

a) Home Mode: Enter your 4-digit code, then press the «1» button. You will hear a «beep» to indicate that the alarm will enter «home» mode after 30 seconds.

NOTE: In this case, the motion detection function is disabled. Only the magnetic door sensor will trigger an alarm.
b) Away mode: Enter your 4-digit code, then press the «2» button. You will hear a «beep» to indicate that the alarm will enter the «Away» mode after 30 seconds.
NOTE: In this case, if someone opens the door or window equipped with the opening detector or enters the field of vision of your motion detector, the alarm will be triggered.
c) Emergency mode: Press buttons 1 and 4 simultaneously in an emergency. An alarm will sound without time limit to scare off intruders.

5. Combining your alarm unit with other accessories

1. Using a screwdriver, open the battery compartment of the main unit.
2. Press and hold the learn button until you hear a «beep». The unit enters pairing mode. (see diagram point 1)

a. Remote control: Press any button on the remote control. You will hear a «beep» sound to indicate that the pairing was successful.
b. Opening detector with or without code: Separate the two parts of the opening sensor to send a signal to the main unit. You will hear a «beep» indicating successful coupling.
c. Motion detector: Wave your hand in front of the motion detector. You will hear a «beep» indicating successful pairing.
d. Remote keypad: Press any button on the remote keypad. You will hear a «beep» indicating successful pairing.
3. To exit pairing mode, press and hold the learn button for 3 seconds. You will hear a double «beep»

NOTE: A maximum of 32 transmitters can be paired to a main unit.

6. Reset pairing

In order to reset your entire alarm, remove the batteries from your device. Then press and hold the learning button of your central unit (see diagram point.1). When you reinsert the batteries, you will hear two «beeps» indicating that the reset was successful.

7. A 100% compatible ecosystem

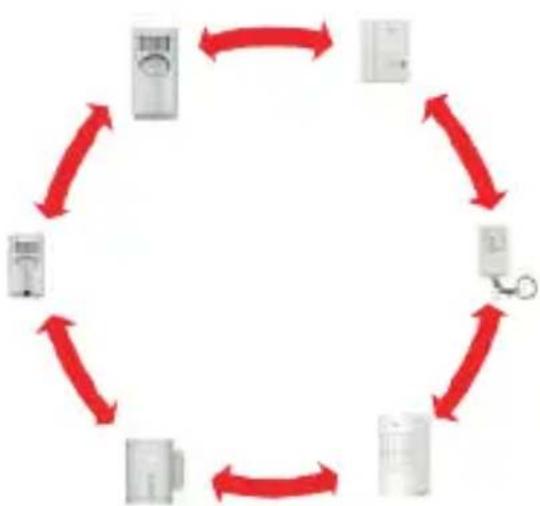

We have created a 100% compatible alarm system to meet your needs. Here, we offer accessories that can work alone but also as a kit. This allows you to personalize your alarm and to associate several accessories but also several alarms between them. For example, when a person triggers the opening detector, all your alarms will sound. You can deactivate your alarm using the code units, remote control or the remote keyboard.

More information on our website: https://chacon.com/fr/

Compatible products: 34035, 34036, 34038, 34043, 34044, 34045, 34046

8. Problem solving

1. False alarms from the main unit

a)Check that there are no animals near the motion detector.
b) In hot weather, moving shadows may also activate the alarm. Also ensure that the detector is not installed near a radiator or heat source.
c) Check that there are no devices with strong electromagnetic fields near the door/window sensor. Strong electromagnetic fields can cause false alarms.

1. The main unit doesn't receive a signal from the transmitter

a) Check if the pairing between the transmitter and the main unit was successful.
b) If pairing was successful, check the battery voltage of the main unit and transmitter. Low voltage will result in product failure.

1. No alarm sounds after a detection

a) Check if the low battery indicator is flashing (please replace the batteries immediately).
b) If the unit is armed and set to HOME mode and the PIR sensor detects an intrusion, the alarm will not sound. The PIR sensor is disabled in HOME mode. Check if the main unit is installed correctly.

9. Safety advice

• Don't mix new and used batteries.
• Don't mix alkaline, standard (zinc carbon) or rechargeable (ni-cad, ni-mh, etc.) batteries.
• Please use only the type of battery specified in the manual.
• Don't leave used batteries lying around in the unit, as this may damage the unit.
• Incorrect use of the battery may damage nearby objects and result in fire or serious injury.
• Please keep batteries away from children. If you suspect that batteries have been ingested, seek medical attention immediately. Swallowing the battery can lead to serious consequences; internal burns within 2 hours or death.
  Recycle used batteries in accordance with environmental protection practices
• Don't place the unit near a heat source, where it may be exposed to direct sunlight, rain or strong light.
• The unit is not waterproof. Don't expose it to rain or immerse it in water.
• Don't attempt to disassemble or repair the product yourself.
• Please keep this manual in a safe place.
  The reception distance may be affected if a strong interference signal exists in the area of use.

10. Technical specifications

• Easy to install
• Can be switched on or off via the keypad on the unit
• Compatible products: 34035, 34036, 34038, 34043, 34044, 34045, 34046
  Alarm time: 30s
  Detection distance: 8m
  Detection angle: 100^
• Alarm volume: 100 dB
• Standby current: ≤ 350uA
• Alarm current: ≤ 150mA
• Battery: 3x AAA 1.5V (not included)
• Box contents: Alarm with motion detector and integrated code + fixing material + manual

Support

www.chacon.com/support

EN

This product must be treated in accordance with European Directive 2002/96/EC with the aim of being recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

CE

FR：

Hereby, Chacon declares that the radio equipment type 34048 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.chacon.com/conformity

v1 210809
