USER MANUAL C 18 HPC 4 0 IPlus FESTOOL

EC-Declaration of Conformity. We declare under our sole responsibility that this product is in conformity with all relevant provisions of the fol- lowing directives including their amendments and complies with the following standards:

Akku/ valid in combination with Bluetooth

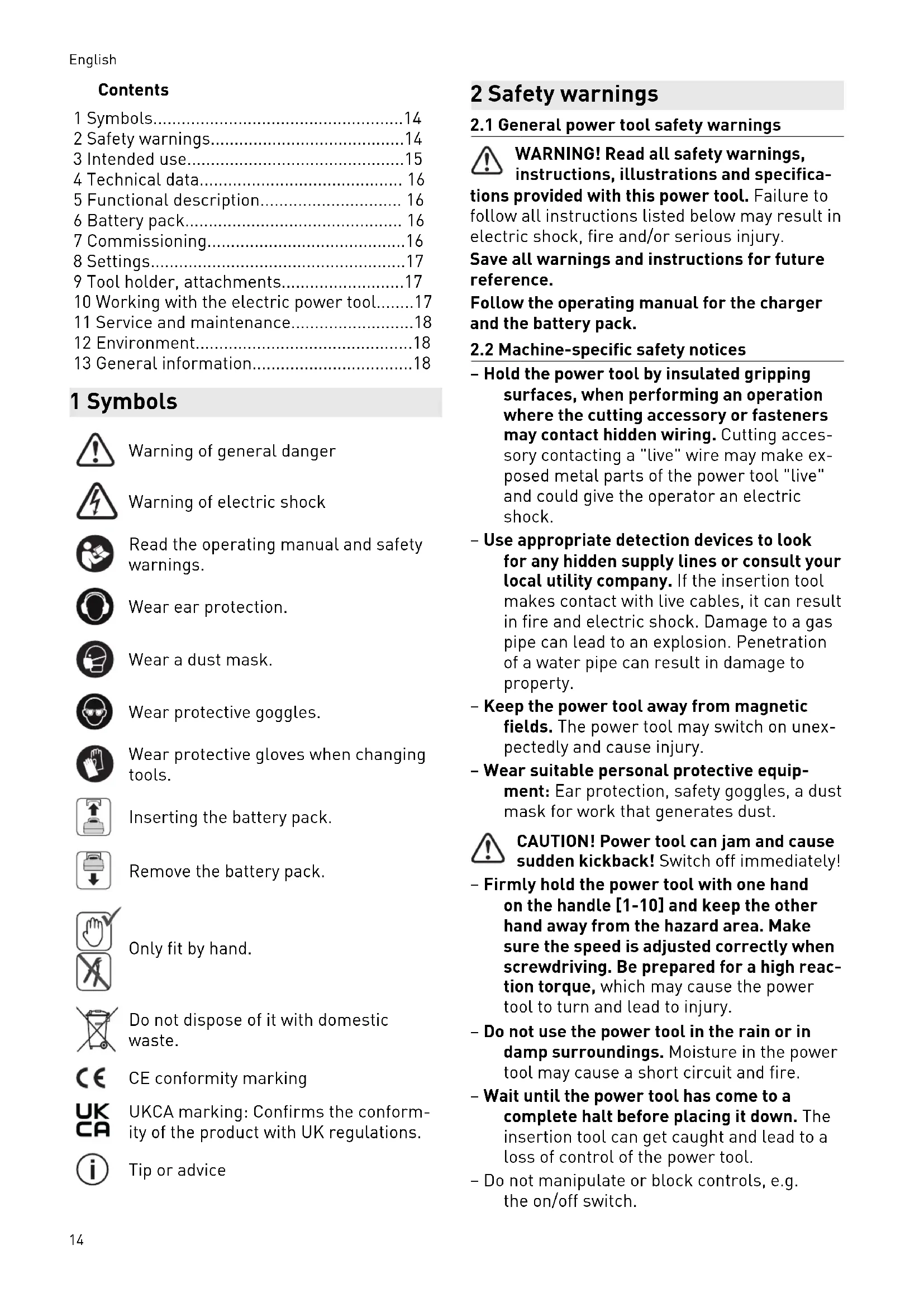

2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifica tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Follow the operating manual for the charger and the battery pack.

2.2 Machine-specific safety notices

– Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting acces sory contacting a "live" wire may make ex posed metal parts of the power tool "live" and could give the operator an electric shock. – Use appropriate detection devices to look for any hidden supply lines or consult your local utility company. If the insertion tool makes contact with live cables, it can result in fire and electric shock. Damage to a gas pipe can lead to an explosion. Penetration of a water pipe can result in damage to property. – Keep the power tool away from magnetic fields. The power tool may switch on unex pectedly and cause injury. – Wear suitable personal protective equip ment: Ear protection, safety goggles, a dust mask for work that generates dust. CAUTION! Power tool can jam and cause sudden kickback! Switch off immediately! – Firmly hold the power tool with one hand on the handle[1-10] and keep the other hand away from the hazard area. Make sure the speed is adjusted correctly when screwdriving. Be prepared for a high reac tion torque, which may cause the power tool to turn and lead to injury. – Do not use the power tool in the rain or in damp surroundings. Moisture in the power tool may cause a short circuit and fire. – Wait until the power tool has come to a complete halt before placing it down. The insertion tool can get caught and lead to a loss of control of the power tool. – Do not manipulate or block controls, e.g. the on/off switch. English 14– Do not use power supply units to operate cordless power tools. Only use the inten ded battery packs. Do not use third-party chargers to charge the battery packs. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents. – Do not use any insertion tools or acces sories that the manufacturer has not spe cially designed or recommended for this power tool. Just because you can attach accessories or insertion tools to your pow er tool does not guarantee that they can be used safely. This may increase the risk of injury, accelerate the wear on the power tool and decrease the quality of the working results. – Depending on the type and use of the ac cessory, particles, the insertion tool or parts of the insertion tool could come loose. This can lead to increased exposure to dust and to unexpected movements. Wear suitable personal protective equip ment. Be prepared for a high reaction tor que, which may cause the power tool to turn and lead to injury.

2.3 Safety instructions when using long

drill bits – Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. – Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. – Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

The levels determined in accordance with EN62841 are typically: Drilling Sound pressure level L

=68dB(A) Sound power level L

=67dB(A) Sound power level L

=75dB(A) Uncertainty K=3dB

CAUTION Noise emissions created while working with the power tool may damage your hearing. ► Always use ear protection. Vibration emission level a

(vector sum for three directions) and uncertainty K measured in accordance with EN62841: Drilling in metal

The specified emission levels (vibration, noise) – are used to compare machines. – They are also used for making prelimina ry estimates regarding vibration and noise load during operation. – They represent the primary applications of the power tool.

CAUTION The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined. ► Assess the actual load during the entire operating cycle. ► Depending on the actual load, suitable pro tective measures must be defined in order to protect the operator. 3 Intended use Cordless drill suitable – for drilling in metal, wood, plastics and similar materials, – for screwing in and tightening screws. – intended for use with BPFestool battery packs of the same voltage class. The user is liable for damage and acci dents caused by improper and non-inten ded use; this also includes damage and wear caused by continuous industrial operation. English 154 Technical data Cordless drill C18Li Motor voltage 18V No-load speed* 1st gear 0-450rpm 1st gear 0-1500rpm Max. torque Soft material (wood) 27Nm Hard material (metal) 45Nm Adjustable torque** 1st gear 0.8-8Nm 2nd gear 0.5-6Nm Chuck clamping range 1.5-13mm Max. drill diameter Wood 40mm Metal 13mm Tool holder in drill spindle 1/4’’ Weight excl. battery pack 1.3kg

• Speed specifications with fully charged bat tery pack. ** The maximum speed is reduced in the lower torque stages (values in clockwise rotation). 5 Functional description [1-1] Torque thumbwheel [1-2] Bit store [1-3] LED light [1-4] Gear switch [1-5] Drilling symbol [1-6] Screwdriving symbol [1-7] Screwdriving/drilling selector switch [1-8] Rotational direction switch [1-9] On/off switch [1-10] Handle [1-11] Belt clip [1-12] Buttons for releasing the battery pack [1-13] Insulated gripping surfaces (grey shaded area) Accessories shown or described are not always included in the scope of delivery. The specified illustrations appear at the begin ning of the Operating Instructions. 6 Battery pack Before using the battery pack, check that the battery interface is clean. Any contamination of the battery interface may impair correct contact and lead to the contacts being damaged. A faulty contact may result in the machine over heating or being damaged. [2A] Remove the battery pack. [2B]

lick Insert the battery pack– until it clicks into place. Further information about the charger and battery pack with capacity indicator can be found in the corresponding operating manual. 7 Commissioning

CAUTION Risk of injury ► Only assemble when the power tool is switched off!

The belt clip allows a shot-term securing of the device in the work clothes. Insert the belt clip on the designated side, right or left, and fix it with the screw[1A].

7.2 Switching on/off[1-9]

Press =ON, release =OFF English 16The speed can be infinitely adjusted, rela tive to the pressure applied to the on/off switch. The LED light[1-3] lights up when the on/off switch[1-9] is pressed. 8 Settings

CAUTION Risk of injury ► Only adjust the settings when the power tool is switched off.

8.1 Changing direction of rotation[1-8]

Only actuate the gear switch with the tool switched off. Otherwise there is a risk of damaging the gear unit.

• Gear switch forwards (digit 1 visible) = 1stgear

• Gear switch to rear (digit 2 visible) = 2ndgear

Adjust the switch so that its marking[1-7] faces the screw symbol[1-6]. Adjust the torque accordingly at the torque wheel[1-1]. Position 1 = low torque Position 25 = high torque An acoustic signal sounds when the preset tor que is reached and the machine then switches off. You must release and press the ON/OFF switch[1-9] again to start the machine.

Adjust the switch[1-7] so that its marking faces the drilling symbol[1-5]. Maximum tor que is set in this position. 9 Tool holder, attachments

WARNING Risk of injury ► Remove the battery pack from the power tool before performing any work on the power tool.

CAUTION Risk of injury from hot and sharp tool. ► Do not use any blunt or faulty tools. ► Wear protective gloves when handling a tool.

9.1 CENTROTEC tool chuck[3]

Quick change of tools with CENTROTEC shaft Only clamp CENTROTEC tools in CEN TROTEC tool chucks.

For clamping drill bits and bits with max. shaft diameter of 13mm. WARNING! Clamp the tool centrally in the chuck.

9.3 Angle attachment[5]

Drilling and screwdriving at right angles to the power tool (available as an accessory depend ing on the model).

9.4 Eccentric adapter [6]

Screwdriving close to edges with bits according to ISO 1173 (available as an accessory depend ing on the model).

9.5 Tool holder in the drill spindle[7]

Bits can be inserted directly into the hexagon socket holder of the drill spindle. 10 Working with the electric power tool

WARNING Risk of injury ► Only position the power tool on the screw when it is switched off. ► Always secure the workpiece in such a manner that it cannot move during ma chining. ► Keep hands away from the rotating tools.

CAUTION Risk of burns The tool holder and tool may become very hot during operation. ► Allow the tool holder and the tool to cool down before attaching the power tool to the belt clip. English 1710.1 Bit store[1-2]

CAUTION Risk of injury from metal cuttings in the bit store. ► Clean the bit store regularly and clear out metal cuttings. Magnetic, for storing bits and bit holders.

10.2 Acoustic warning signals

Acoustic warning signals sound and the ma chine switches off in the following operating states: Battery flat or machine over loaded. – Change the battery. – Place the machine under reduced stress. Machine is overheating. – You must allow the ma chine to cool before using again. LiIon battery pack is faulty or has overheated. – Once the battery pack has cooled, perform a func tional check using the charger. 11 Service and maintenance

WARNING Risk of injury, electric shock ► Always remove the battery pack from the power tool before performing any mainte nance or service work. ► All maintenance and repair work which requires the motor housing to be opened should always be carried out by an author ised service workshop. Customer service and repairs must only be carried out by the manufacturer or service workshops. You must only use original Festool spare parts. Further information: www.festool.co.uk/service Observe the following instructions: ► To ensure constant air circulation, always keep the cooling air openings in the housing clean and free of blockages. ► Do not clean the power tool with com pressed air. ► Keep the contacts on the power tool, charg er and battery pack clean. 12 Environment Do not dispose of electrical devices, used batteries and battery packs in the household waste. Recycle devices, ac cessories and packaging. Observe applicable national regulations. Before disposing of used batteries, battery packs and lamps, separate them from the electrical device without destroying them. This means they can be recycled efficiently. In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used electrical devices must be collected separately and hand ed in for environmentally friendly recycling. Information on the collection points can be viewed at www.festool.com/environment. Information on critical materials: www.festool.co.uk/reach 13 General information Imported into the UK by FestoolUKLtd 1AngloSaxonWay BuryStEdmunds IP309XH GreatBritain
