USER MANUAL F9 DREAME

Dreame Robot Vacuum-Mop F9 User Manual

Read this manual carefully before use, and retain it for future reference.

dreame

Dreame Robot Vacuum-Mop F9 User Manual 01

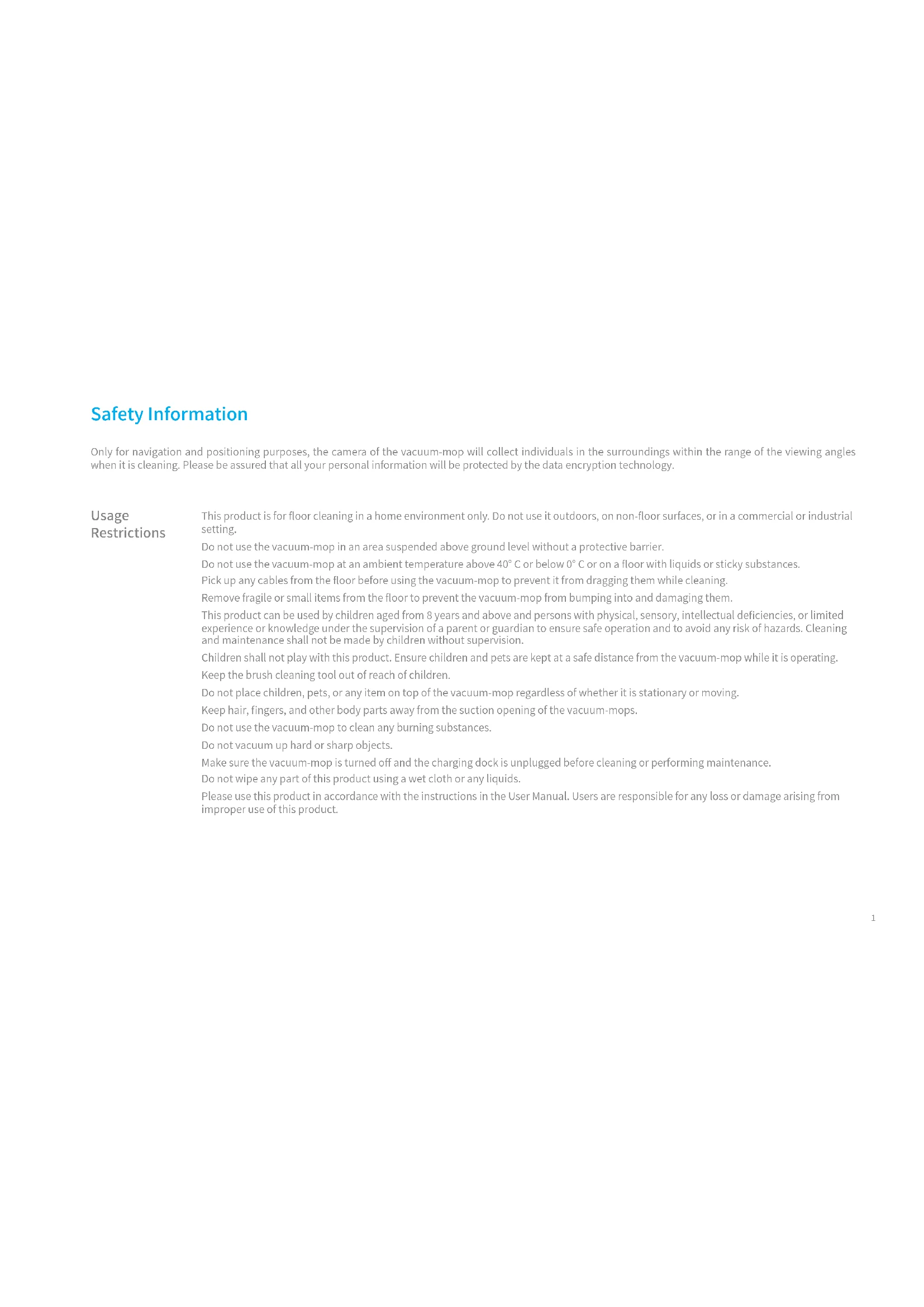

Only for navigation and positioning purposes, the camera of the vacuum-mop will collect individuals in the surroundings within the range of the viewing angles when it is cleaning. Please be assured that all your personal information will be protected by the data encryption technology.

Usage Restrictions

This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.

Do not use the vacuum-mop in an area suspended above ground level without a protective barrier.

Do not use the vacuum-mop at an ambient temperature above 40^ C or below 0^ C or on a floor with liquids or sticky substances.

Pick up any cables from the floor before using the vacuum-mop to prevent it from dragging them while cleaning.

Remove fragile or small items from the floor to prevent the vacuum-mop from bumping into and damaging them.

This product can be used by children aged from 8 years and above and persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risk of hazards. Cleaning and maintenance shall not be made by children without supervision.

Children shall not play with this product. Ensure children and pets are kept at a safe distance from the vacuum-mop while it is operating. Keep the brush cleaning tool out of reach of children.

Do not place children, pets, or any item on top of the vacuum-mop regardless of whether it is stationary or moving.

Keep hair, fingers, and other body parts away from the suction opening of the vacuum-mops.

Do not use the vacuum-mop to clean any burning substances.

Do not vacuum up hard or sharp objects.

Make sure the vacuum-mop is turned off and the charging dock is unplugged before cleaning or performing maintenance.

Do not wipe any part of this product using a wet cloth or any liquids.

Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage arising from improper use of this product.

Safety Information

Batteries and Charging

Do not use any third-party battery, charger, or charging dock. Use only with RCS0 supply unit.

Do not attempt to disassemble, repair, or modify the battery or charging dock on your own.

Do not place the charging dock near a heat source.

Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.

Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.

If the power cord becomes damaged or broken, stop using it immediately and contact after-sales service.

Make sure the vacuum-mop is turned off when being transported and kept in its original packaging if possible.

If the vacuum-mop will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the vacuum-mop at least once every 3 months to avoid over-discharging the battery.

This product contains batteries that can only be replaced by qualified technicians or after-sales service.

Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RVS5-WHO is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.dreame-technology.com

Product Overview

Accessories

Charging Dock

Cleaning Tool

Power Cord

Line drawing of a curved mechanical component with mounting holes (no text or symbols)

Water Tank

Mop Pad

Side Brush

Note: The illustrations in this manual are for reference only, please refer to the actual product for the actual appearance.

Product Overview

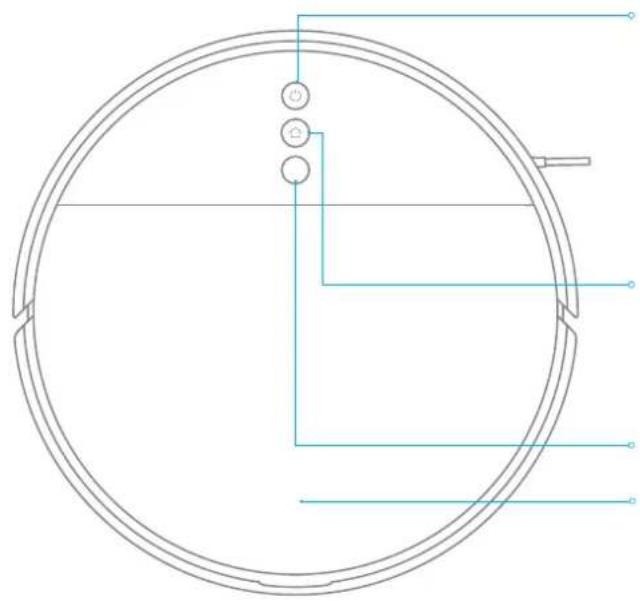

Vacuum-Mop

Pure technical diagram of a circular component with internal connections and no text or symbols

Power/Clean Button

Press and hold for 3 seconds

Press to start cleaning after the vacuum-mop is powered on

Status Indicator

White: Cleaning, or cleanup is completed

Blinking white: Cleaning paused

Blinking blue: Connecting to network

Blinking orange: Error

Spot/Dock Button

Press to send vacuum-mop back to charging dock

Press and hold for 3 seconds to start Spot Clean mode

Note: Press any button to pause while the vacuum-mop is cleaning, returning to dock, or in Spot Clean mode.

Visual Navigation Sensor

Cover latch

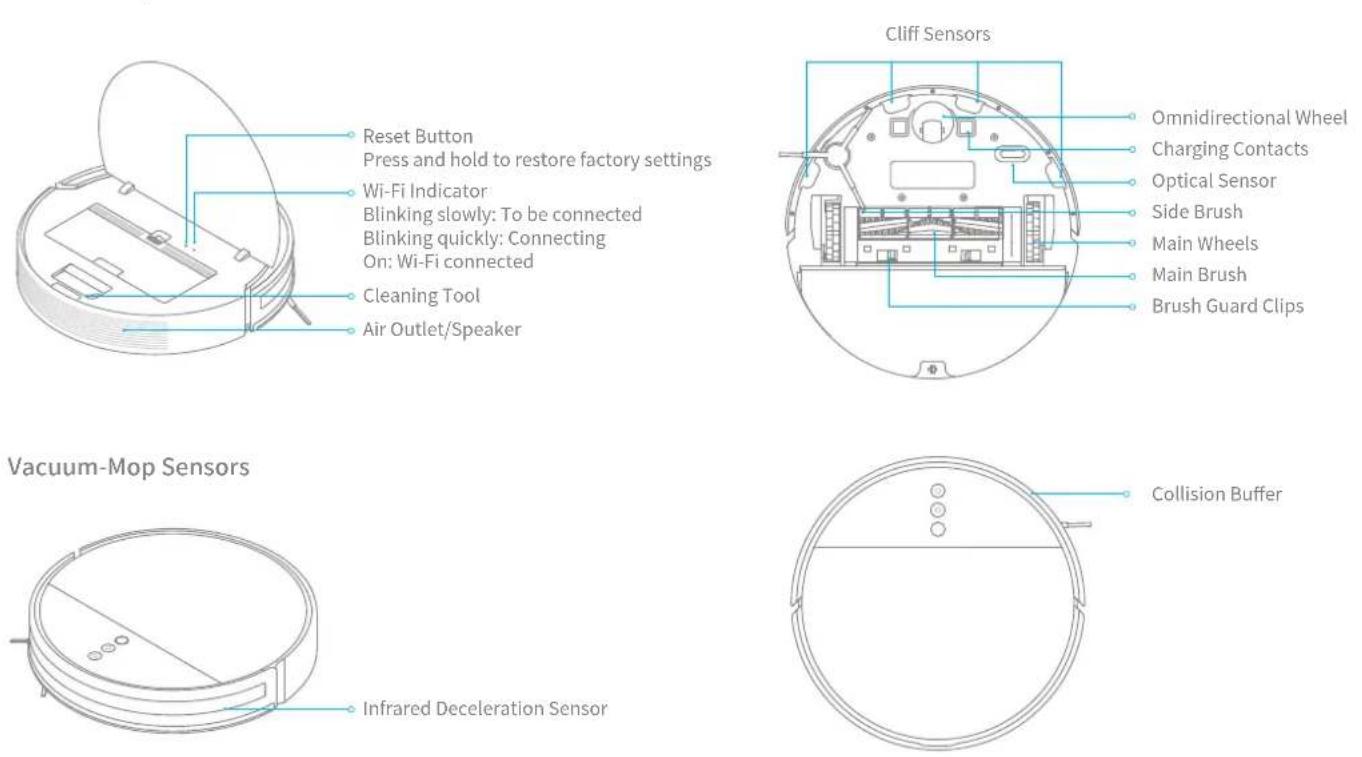

Product Overview

Vacuum-Mop

Reset Button
Press and hold to restore factory settings
Wi-Fi Indicator
Blinking slowly: To be connected
Blinking quickly: Connecting
On: Wi-Fi connected
Cleaning Tool
Air Outlet/Speaker

Product Overview

Dust Bin

Bin Clip Bin Cover Filter

Charging Dock

Signaling Area Charging Contacts Power Port

Mopping Module

Water Tank Water Tank Stopper

Mop Pad Attaching Area

Preparation

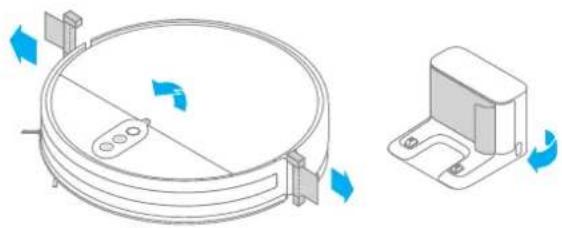

1. Remove the protective film.

Diagram showing a circular device with blue directional arrows and a separate mechanical component with blue rotation arrows (no text or symbols)

1. Install the side brush.

Diagram of a robotic vacuum cleaner with a hand and blue arrow indicating motion (no text or symbols)

1. Place the charging dock on the level ground against wall and connect to a power outlet.

>0.5m >1.5m >0.5m

Note:

• Make sure there is a distance of 0.5 meters or more on either side of the charging dock, and more than 1.5 meters in front of it.
• Tidy up any loose cord which could accidentally move or unplug the charging dock.
• To ensure you can well connect to the vacuum-mop with your phone, make sure the vacuum-mop and charging dock are in the range of Wi-Fi.

• Do not place the charging dock in an area with direct sunlight or where other objects could block its signaling area, as this may hinder the vacuum-mop from returning to the charging dock.

• Place the robot onto the charging dock to recharge.

Battery Level Indicator

White: Battery level is more than 15%

Orange: Battery level is less than 15

more than 15% less than 15% ≥6h

Note:

• Fully charge before first use.
- Don't install the mopping module while charging.

Connecting with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app *.

Scan the QR code to download and install the app.

You will be directed to the connection setup page if the app is installed already.

Or search "Mi Home/Xiaomi Home" in the app store to download and install it.

Open Mi Home / Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device.

Note: The version of the app might have been updated, please follow the instructions based on the current app version.

Reset Wi-Fi

Simultaneously press and hold the buttons ⏻ and ⏱ until you hear a voice saying "Waiting for the network configuration".

Once the Wi-Fi indicator is slowly blinking, the Wi-Fi has been successfully reset.

Line drawing of a hand using a pen to write on a circular device (no text or symbols)

How to Use

1. Turn On/Off

Press and hold the button ⏻ to turn on the vacuum-mop. Once the power indicator turns solid white, the vacuum-mop is in standby mode. To turn off the vacuum-mop, press and hold the button ⏻ while the vacuum-mop is stationary. Turning off the vacuum-mop will end the current cleaning task.

2. Start Cleaning

Upon activation, the vacuum-mop will methodically clean each room in an S-shape pattern, then finish by cleaning along edges and walls to ensure a thorough job. When the vacuum-mop is done cleaning, it will automatically return to the charging dock to recharge.

Note:

• Please fully charge and start from the charging dock before cleaning. Don't move the robot and charging dock when the robot is working.
• If the battery is too low, the robot will automatically return to the dock to charge. It will resume unfinished cleaning tasks after charging to the appropriate power.

3. Cleaning Mode

Four cleaning modes are available in the app: Quiet, Standard, Strong and Turbo. The default mode is Standard.

4. Pausing/Sleep Mode

• Press any button to pause the vacuum-mop during cleaning.
• The vacuum-mop will automatically enter sleep mode after 10 minutes of inactivity, then the power and charging indicators will go off. To wake up the vacuum-mop, press any button.

Note: When the vacuum-mop is paused, placing it onto the charging dock will end the current cleaning task.

5. Spot Clean mode

When the vacuum-mop is in standby mode or paused, press and hold the button for 3 seconds to start Spot Clean mode. In this mode, it will clean a square-shaped area of 1.5 × 1.5 meters directly around the vacuum-mop. When the spot cleaning is done, the vacuum-mop will automatically return to its original location and shut off.

Note: Activating Spot Clean mode will end the current cleaning task of the vacuum-mop.

How to Use

6. Do Not Disturb Mode

Do Not Disturb mode prevents the vacuum-mop from automatically starting cleaning tasks, and the power indicator remains off. You can enable Do Not Disturb or modify its hours in the app.

Note:

• Scheduled cleanups will still be carried out during the DND period.
• The vacuum-mop will continue cleaning after this period ends.

7. Scheduled Cleaning

You can schedule cleaning time in the app.

The vacuum-mop will automatically start cleaning at the designated time and then return to the charging dock to recharge when the cleaning is done.

8. Advanced Function

The app can be used to set up advanced functions such as selected room cleaning, zone cleaning, forbidden area / virtual wall, etc.

Note:

• Map Saving mode switched on before this functions can be used. After completing several cleanups under different lighting conditions, a full map will be created. When starting a cleanup, please open all the doors in your home to ensure the integrity of the map.
• Do not rely on forbidden areas and virtual walls to isolate dangerous areas.
• Moving the robot manually or making significant changes to the home environment may cause the loss of virtual walls.

Select Room Forbidden Area / Virtual Wall

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

How to Use

9. Use the mopping function

It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve better cleaning effect.

① Install the mop pad: Dampen the mop pad and wring out excess water. Slide the pad all the way into the slot of the water tank until it is securely in place.

Illustration showing two hands performing a manual manipulation or tool operation (no text or symbols present)

② Fill the water tank: Open the water tank lid, fill the tank with water, then securely close the lid.

Note: Do not use non-designated detergents or disinfectants.

③ Install the mopping module: Align the mopping module as indicated by the arrow, then slide it into the back of the vacuum until it clicks into place. Press the button 🏠 or use Mi Home/Xiaomi Home app to start cleaning.

Diagram of a circular vacuum cleaner with a side view showing airflow direction (no text or symbols)

Note:

• Only use the mopping module when someone is at home.
  • To prevent the vacuum-mop from entering carpeted areas, objects may be used.
• Use the app to adjust the water flow as required.

④ Press the two side clips inwards and slide the water tank backwards to separate it from the robot.

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Note: When the vacuum-mop is charging or not in use, remove the mopping module, pour out all remaining water in the tank, and clean the mop pad to prevent mildew or lingering odors.

Routine Maintenance

Dust Bin and Filter

1. Open the vacuum-mop cover, then pinch the bin clips to remove the dust bin.

Isometric diagram of a robotic vacuum cleaner inside a circular housing, with no visible text or symbols

1. Open the bin cover as indicated by the diagram.

Simple line drawing of a container with a lid and scattered square particles (no text or symbols)

1. Remove the filter, rinse repeatedly and tap the filter frame to remove as much dirt as possible.

Diagram showing three steps of a device: adding a grid panel, adding a push button, and adding a separate component (no text or symbols present)

Note: Do not attempt to clean the filter with a brush or finger.

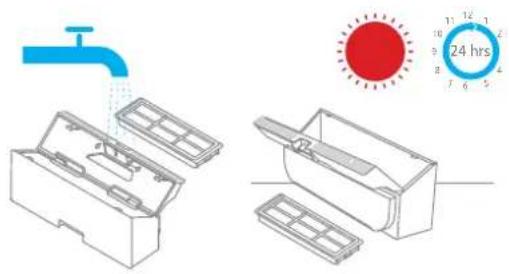

1. Wash the dust bin and filter with water, and then place it aside to dry fully before reinstalling it.

Diagram illustrating a water supply system with labeled components and a 24-hour indicator.

Note:

• Only clean water should be used to clean the filter. Do not use detergent.
• Filter must be fully dry before use (allow at least 24 hours).

Routine Maintenance

Mopping Module

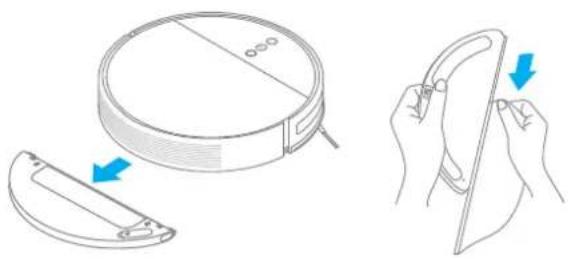

1. Press the side clips of the mopping module inward and pull to remove the module. Pull the mop pad off of the mopping module to remove it.

Illustration showing a vacuum cleaner being cut with a blue arrow, alongside a close-up of hands holding a tool (no text or symbols present)

1. Empty the remaining water in the water tank and keep it dry naturally.

1. Clean and dry the mop pad.

Illustration showing a faucet with raindrops and a 24-hour sun, alongside a cross-section of water with a half-circle shape.

Note:

- Remove the pad from the mopping module before cleaning it, and make sure dirty water does not flow back into the water outlet to avoid clogging.

- Do not press too hard on the mop pad, as this can hinder its performance.

- Pad should be cleaned before each use. It is recommended to change the mop pad every 3 to 6 months.

1. If slow water flow occurs, or the volume is not well-distributed, please clean the air hole in the cover of the water tank.

Routine Maintenance

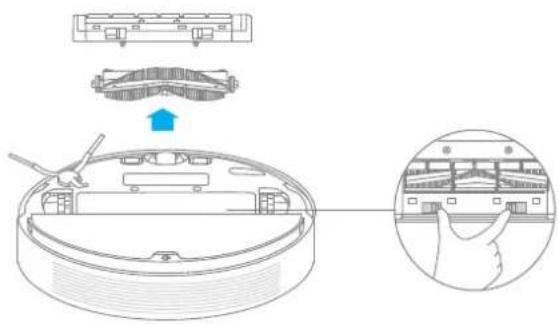

1. Flip the vacuum-mop over and pinch the clips to remove the main brush guard. Lift the main brush out of the vacuum-mop, then clean the brush bearings.

Diagram illustrating a mechanical assembly process with labeled components and a magnified view of the interior layout.

1. Use the included brush cleaning tool to remove any hairs tangled on the brush.

Line drawing of a hand using a tool to interact with a mechanical component (no text or symbols present)

Note: If there is a large amount of hair or hair is tightly entangled, remove it carefully to avoid damage to the main brush.

Side BrushMain Brush

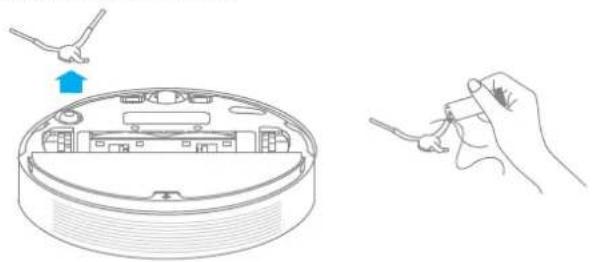

Flip the vacuum-mop over, then gently pull out the side brush as shown in the diagram below to clean it.

Line drawing of a robotic vacuum cleaner with a hand holding a tool, showing internal components and a blue arrow indicating motion (no text or symbols)

Omnidirectional Wheel

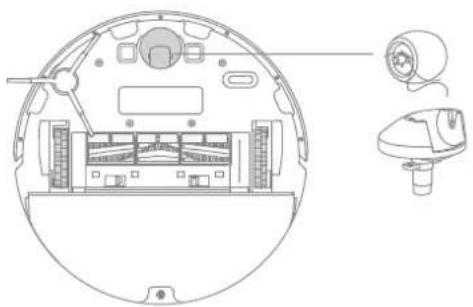

Flip the vacuum-mop over and pull out the omnidirectional wheel. Remove hair, dirt, and other debris from the wheel and axle.

Technical line drawing of a circular device with internal components and external wiring (no text or symbols)

Note: Use tools such as a small screwdriver, etc. to separate the axle and the tire.

Routine Maintenance

Use a soft cloth to clean all sensors in the vacuum-mop, including: Visual Navigation Sensor

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Infrared Deceleration Sensor

Illustration of a hand cleaning a wall with a cloth (no text or symbols)

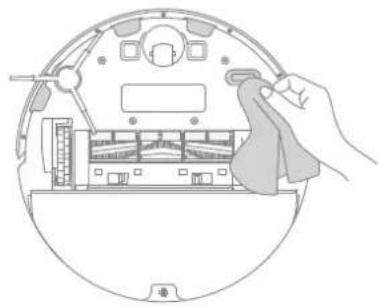

Cliff Sensor and Optical Sensor

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

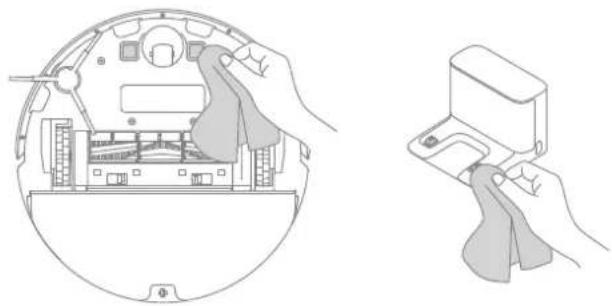

Clean the contacts of the charging dock with a soft cloth.

Illustration showing a hand cleaning the interior of a circular device with a cloth, and another hand holding a cleaning tool (no text or symbols present)

FAQ

Problem Type	Solution
Vacuum-mop does not turn on	Battery level is low. Recharge the vacuum-mop at the charging dock, then try again.The ambient temperature is too low (below 0°C) or too high (above 50°C). The operating temperature of the vacuum-mop is 0°C to 40°C.
Vacuum-mop does not recharge	The charging dock is not receiving power. Please confirm that both ends of the power cord are plugged in correctly.Poor contact, clean the charging contacts of the charging dock and the vacuum-mop.
Vacuum-mop does not return to charging dock	There are too many obstructions around the charging dock. Place the charging dock in a more open area.Please clean the dock's signaling area.
Vacuum-mop is malfunctioning	Turn off the vacuum-mop and then reactivate it.
Vacuum-mop makes a strange noise	A foreign object might be caught in the brush, side brush, or one of the main wheels.Stop the vacuum-mop and remove any debris.
Vacuum-mop no longer cleans efficiently or leaves dust behind	The dust bin is full. Please clean it.The filter is blocked. Please clean it.A foreign object is caught in the brush. Please clean it.
Vacuum-mop cannot connect to Wi-Fi	Wi-Fi signal is weak. Make sure the vacuum-mop is in an area with good Wi-Fi coverage.There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the app, then try reconnecting.

FAQ

Problem Type	Solution
Vacuum-mop does not perform scheduled cleaning.	Vacuum-mop has low battery. Scheduled cleaning will not start unless the vacuum-mop has at least 15% battery left .
Does leaving the vacuum-mop on the charging dock consume power if it's already charged?	Leaving the vacuum-mop on the charging dock after it's fully charged consumes very little electricity and helps maintain optimal battery performance.
Does the vacuum-mop need to be fully charged for 16 hours the first three times it is used?	Lithium batteries do not suffer from memory effects, so it is not necessary to wait 16 hours after fully charging the vacuum-mop before using it.
No water comes out of the mopping module, or only a little bit comes out.	Confirm that the water tank is filled with water, and clean the mop pad if necessary.Make sure the mop pad is installed correctly according to the user manual.
Too much water comes out of the mopping module	Make sure the water tank lid is securely closed.
Vacuum-mop doesn't resume cleaning after charging	Make sure the vacuum-mop is not set to Do Not Disturb mode, which will prevent it from resuming cleaning.The vacuum-mop does not resume cleaning when it is manually recharged or placed onto the charging dock.
Vacuum-mop doesn't return to charging dock after being moved	Moving the vacuum-mop may cause it to re-position itself or re-map its surroundings. If the vacuum-mop is too far from the charging dock, it might not be able to automatically return on its own, in which case you need to manually place the vacuum-mop onto the charging dock.

Specifications

Vacuum-Mop Charging Dock

Model RVS5-WH0
Battery	14.4 V === 5200 mAh(Rated Capacity)
Wireless Connectivity
Rated Voltage	14.4V ===
Rated Power 40W
Operation Frequency 2400-2483.5 MHz
Maximum Output Power	<20 dBm

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

	RCS0Model
Rated Input	100-240 V ~ 50/60 Hz 0.5 A
Rated Output	19.8 V--- 1 AWi-Fi IEEE 802.11b/g/n 2.4 GHz

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Line drawing of a curved mechanical component with mounting holes (no text or symbols)

Pure technical diagram of a circular mechanical component with internal connections and no text or symbols

Technical illustration of a circular device with blue directional arrows indicating rotation, alongside a separate 3D schematic of a mechanical or electrical component (no text or symbols present)

Diagram of a robotic vacuum cleaner with a hand performing a motion capture (no text or symbols)

>0.5m >1.5m >0.5m

Nota:

Line drawing of a hand using a pen to write on a device inside a circular device (no text or symbols)

Modalità d'utilizzo

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

Modalità d'utilizzo

Illustration showing two hands performing a manual manipulation or procedure, with one hand holding a tool and the other holding a curved object (no text or symbols present)

Diagram of a circular vacuum cleaner with a side panel showing airflow direction (no text or symbols)

Nota:

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Isometric diagram of a robotic vacuum cleaner inside a circular housing, with no visible text or symbols

Simple line drawing of a container with a lid and scattered square particles inside (no text or symbols)

Illustration showing a device being placed into a grid panel with an arrow indicating the direction (no text or symbols present)

Diagram illustrating a water supply system with labeled components and a 24-hour indicator showing sun colors.

Nota:

Illustration showing a vacuum cleaner next to a hand holding a tool, with blue arrows indicating the motion direction (no text or symbols present)

Illustration showing a faucet with raindrops and a 24-hour sun, alongside a cross-section of water with a half-circle shape.

Diagram showing a robotic vacuum cleaner with labeled components and a close-up of its internal structure, likely illustrating a mechanical or electrical assembly.

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with hands holding sensors, showing internal components and a blue arrow indicating motion (no text or symbols)

Technical line drawing of a circular device interior with internal components and external wiring (no text or symbols)

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Illustration of a hand cleaning a wall with a cloth (no text or symbols)

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration showing two steps of cleaning a circular device: cleaning the interior and cleaning a handheld device (no text or symbols present)

FAQ

Line drawing of a curved mechanical component with mounting holes (no text or symbols)

Depósito de agua

Mopa

Cepillo lateral

Pure technical diagram of a circular component with internal connections and no text or symbols

Diagram showing a circular device with blue directional arrows and a separate mechanical component with blue rotation arrows (no text or symbols)

Diagram of a robotic vacuum cleaner with a hand performing a motion capture (no text or symbols)

>0.5m >1.5m >0.5m

Nota:

Line drawing of a hand holding a pen inside a circular device with a lid (no text or symbols)

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

Illustration showing two hands performing a manual manipulation or tool operation (no text or symbols present)

Diagram of a vacuum cleaner with a blue arrow indicating rotation, shown in two views (no text or symbols present)

Nota:

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Isometric diagram of a robotic vacuum cleaner inside a circular housing, with no visible text or symbols

Simple line drawing of a container with a lid pouring liquid into it (no text or symbols)

Illustration of a device with a blue arrow indicating transformation, alongside a hand holding a small object (no text or symbols present)

Diagram illustrating a water supply system with labeled components and a 24-hour indicator.

Nota:

Illustration showing a vacuum cleaner next to a hand holding a tool, with blue arrows indicating the motion direction (no text or symbols present)

Illustration showing a faucet with raindrops and a 24-hour sun, alongside a cross-section of water with a half-circle shape.

Diagram illustrating a robotic vacuum cleaner's internal structure and its application to the interior of a building, with an arrow indicating the process.

Line drawing of a hand holding a tool over a mechanical component (no text or symbols)

Illustration of a robotic vacuum cleaner with hands holding a tool, showing internal components and a blue arrow indicating motion (no text or symbols)

Rueda omnidireccional

Technical line drawing of a circular device with internal components and external wiring (no text or symbols)

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Illustration of a hand cleaning a wall with a cloth (no text or symbols)

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration showing a hand cleaning the interior of a circular device with a cloth, and another hand holding a handheld device (no text or symbols present)

Line drawing of a curved mechanical part or bracket (no text or symbols)

Wassertank

Wischer

Seitenbürste

Pure technical diagram of a circular component with internal connections and no text or symbols

Diagram of a circular device with blue directional arrows indicating rotation, alongside a separate mechanical component (no text or symbols)

Diagram of a robotic vacuum cleaner with a hand and blue arrow indicating motion (no text or symbols)

>0.5m >1.5m >0.5m

Hinweis:

Line drawing of a hand holding a pen inside a circular device with a lid (no text or symbols)

Verwendung

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

Verwendung

Illustration showing two hands performing a manual manipulation or cleaning task (no text or symbols present)

Illustration of a robotic vacuum cleaner with a blue arrow indicating rotation (no text or symbols)

Hinweis:

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Diagram of a robotic vacuum cleaner inside a circular housing, showing mechanical components and airflow direction (no text or symbols)

Simple line drawing of a container with a lid and scattered square particles inside (no text or symbols)

Diagram showing a device being processed with a blue arrow, next to a hand holding a partially assembled component (no text or symbols present)

Diagram illustrating a water supply system with labeled components and a 24-hour indicator.

Hinweis:

Illustration showing a vacuum cleaner being cut with a blue arrow, alongside a close-up of hands holding a tool (no text or symbols present)

Illustration showing a faucet with raindrops and a 24-hour sun, alongside a cross-section of a water surface with a scale.

Diagram showing a robotic vacuum cleaner with a close-up view of its internal components, including a handle and a component labeled 'L'.

Line drawing of a hand holding a tool over a mechanical component (no text or symbols)

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Infrarot-Bremssensor

Illustration of a hand cleaning a tiled surface with a cloth (no text or symbols)

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration showing hand cleaning a circular device with cleaning cloth and cleaning tool (no text or symbols)

FAQ

Line drawing of a curved mechanical part or bracket (no text or symbols)

Réservoir d' eau

Serpillière

Brosse latérale

Pure technical diagram of a circular mechanical component with internal features and no text or symbols

Bouton d' alimentation/nettoyage

Serpillière Zone de raccordement

Préparation

1. Enlever le film de protection.

Diagram of a circular device with blue directional arrows indicating rotation, alongside a separate 3D schematic of a mechanical or electrical component (no text or symbols present)

Diagram of a robotic vacuum cleaner with a hand performing a motion capture (no text or symbols)

>0.5m >1.5m >0.5m

Note:

Line drawing of a hand using a pen to write on a device inside a circular device (no text or symbols)

Mode d' utilisation

1. Allumer/éteindre

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

Mode d' utilisation

Illustration showing two hands performing a manual manipulation or tool operation (no text or symbols present)

Diagram of a robotic vacuum cleaner with a side view showing airflow direction (no text or symbols)

Remarque :

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Isometric diagram of a robotic vacuum cleaner with a blue upward arrow indicating motion (no text or symbols)

Simple line drawing of a container with a lid and scattered square objects inside (no text or symbols)

Illustration of a device with a blue arrow indicating transformation from a grid to a handle (no text or symbols present)

Diagram illustrating a water supply system with a faucet, a 24-hour timer, and a separate view of a device with cooling fins.

Remarque :

Illustration showing a vacuum cleaner and its cleaning process with blue arrows indicating steps (no text or symbols)

Illustration showing a blue faucet spraying water and a red sun with '24 hrs' label, alongside a simple diagram of a bowl on water.

Diagram showing a device with a switch and a close-up view of its internal components, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand using a tool to interact with a mechanical component (no text or symbols)

Line drawing of a robotic vacuum cleaner with hands holding probes, showing internal components and a blue arrow indicating motion (no text or symbols)

Technical line drawing of a circular device with internal components and an external sensor or camera module (no text or symbols)

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth (no text or symbols)

Illustration of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration showing hand cleaning a circular device with cleaning cloth and cleaning device (no text or symbols)

FAQ

Line drawing of a curved mechanical part or bracket (no text or symbols)

Резервуар для воды

Pure technical line drawing of a circular mechanical component with no text, numbers, or symbols

Diagram of a circular device with blue directional arrows indicating rotation or movement, alongside a simplified 3D model (no text or symbols)

Diagram of a robotic vacuum cleaner inside a circular housing, showing airflow and component layout (no text or symbols)

>0.5m >1.5m >0.5m

Примечание:

Line drawing of a robotic vacuum cleaner with attached power outlet and cable (no text or symbols)

Примечание:

Line drawing of a hand holding a pen inside a circular device with internal components (no text or symbols)

Инструкция

✓A C ✓B D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

Инструкция

Illustration showing two hands performing a manual manipulation or tool operation (no text or symbols present)

Diagram of a robotic vacuum cleaner with a blue arrow indicating rotation (no text or symbols)

Примечание:

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Diagram of a robotic vacuum cleaner inside a circular housing, showing internal components and airflow direction (no text or symbols)

Simple line drawing of a container with a lid and scattered square particles (no text or symbols)

Illustration of a device with a blue arrow indicating transformation, alongside a hand holding a partially visible component (no text or symbols)

Diagram illustrating a water supply system with labeled components and a 24-hour sun indicator.

Примечание:

Illustration showing a vacuum cleaner next to a hand holding a tool, with blue arrows indicating the motion direction (no text or symbols present)

Illustration showing a faucet with raindrops and a 24-hour sun, alongside a cross-section of water with a half-circle shape.

Diagram showing a device with internal components and a close-up of its interior view, likely illustrating a mechanical or electrical assembly.

Line drawing of a hand holding a tool interacting with a mechanical component (no text or symbols)

Line drawing showing a robotic vacuum cleaner inside a circular housing, with hands adjusting the component (no text or symbols)

Technical line drawing of a circular device with internal components and an external view showing a sensor or camera module (no text or symbols present)

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Illustration of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration of a hand cleaning a tiled surface with a cloth (no text or symbols)

Illustration showing hand cleaning a circular device with cleaning cloth and cleaning tool (no text or symbols)

FAQ

Line drawing of a curved mechanical part or bracket (no text or symbols)

خزان الميئه

لوحة المحسحة

الفرشاه الجاتية

Pure technical diagram of a circular mechanical component with internal connections and mounting holes (no text or symbols)

Simple line drawing of a circular mechanical component with mounting holes and a central horizontal line (no text or symbols)

>0.5m >1.5m >0.5m

Diagram of a circular device with directional arrows indicating rotation or movement (no text or symbols)

ملاحظة:

Line drawing of a robotic vacuum cleaner with attached power outlet and cable (no text or symbols)

Diagram of a robotic vacuum cleaner inside a circular housing, showing airflow direction (no text or symbols)

ملاحظة:

Line drawing of a hand using a pen to open a circular device (no text or symbols)

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle (no text or symbols)

طريقة استخدام

1. وضع عدم الإزعاج

Line drawing of a robotic vacuum cleaner with a blue arrow indicating rotation (no text or symbols)

علاحظة:

Line drawings showing two hands performing a manual manipulation or procedure, with one hand holding a tool and the other holding a curved object (no text or symbols present)

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Diagram showing a device with a blue arrow pointing to a grid-like structure (no text or symbols)

Diagram of a water tap spraying into a rectangular tank (no text or symbols)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

ملاحظة:

Isometric diagram of a robotic vacuum cleaner with a blue upward arrow indicating motion (no text or symbols)

Simple line drawing of a container with liquid and a lid, no text or symbols present

الصيانة الروتينية

1. قَمْ بِنْتَّبِف لَرِيْحَةُ الْمَسْتَحَةُ وَتَجْفِيْهَا!

24 hrs

Illustration showing a robotic vacuum cleaner and its cleaning process with blue arrows indicating motion (no text or symbols)

Line drawing showing a robotic vacuum cleaner inside a circular housing, with hands adjusting the component (no text or symbols)

Technical line drawing of a circular device with internal components and external wiring (no text or symbols)

Diagram showing a robotic device with a handle and a circular inset view of its interior space, labeled in Chinese.

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration of a hand cleaning a circular object with a cloth (no text or symbols)

Diagram of a hand cleaning a circular device with a handle and internal components (no text or symbols)

Line drawing of a hand holding a handheld device with a cloth (no text or symbols)

Illustration of a hand cleaning a wall with a cloth (no text or symbols)

الأستلة الشائعة

Line drawing of a curved mechanical part with mounting holes (no text or symbols)

הכלה

הַרְשׁ

תְרַעָה בְּרַעָה

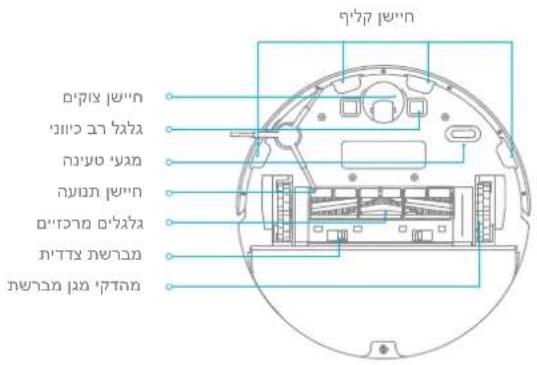

Pure technical diagram of a circular mechanical component with internal connections and mounting holes (no text or symbols)

בַרְשָׁה בַרְשָׁה

הכלה

>0.5m >1.5m >0.5m

Technical illustration of a circular device with blue directional arrows indicating rotation, next to a mechanical component (no text or symbols)

Diagram of a robotic vacuum cleaner inside a circular housing, showing airflow direction (no text or symbols)

Line drawing of a hand using a pen to open a circular device with a lid (no text or symbols)

✓A ✓B C D

Pure geometric diagram with lines and a highlighted rectangle, no text or symbols present

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Diagram of a robotic vacuum cleaner with a blue arrow indicating rotation (no text or symbols)

6. Among cellular activity

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

コアのサ

Diagram showing a device with a blue arrow pointing to a grid-like structure (no text or symbols)

Isometric line drawing of a robotic vacuum cleaner with a blue upward arrow indicating motion (no text or symbols)

Diagram illustrating a water supply system with labeled components and a 24-hour sun indicator.

Simple line drawing of a container with a lid and scattered square objects inside (no text or symbols)

:

Illustration showing a vacuum cleaner being placed on a surface with blue arrows indicating the motion (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a blue handle, shown in two views: one with a hand holding a tool, the other with a hand holding a tool (no text or symbols present)

בְרָה בְּרָה

Technical line drawing of a circular device with internal components and external wiring (no text or symbols)

Diagram showing a robotic vacuum cleaner with labeled components and a close-up of its interior view, including a hand gesture.

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

Illustration of a hand cleaning a circular frame with a cloth and circular objects (no text or symbols)

הכלהה

Diagram of a hand cleaning a circular device with a cloth cover (no text or symbols)

Line drawing of a hand holding a medical device with a cloth (no text or symbols)

Line drawing of a hand cleaning a tiled surface with a cloth (no text or symbols)

תַלְרָה בְּבָא

For further information, please go to www.dreame-technology.com Manufactured by: Dreame Trading (Tianjin) Co., Ltd.

Made in China
