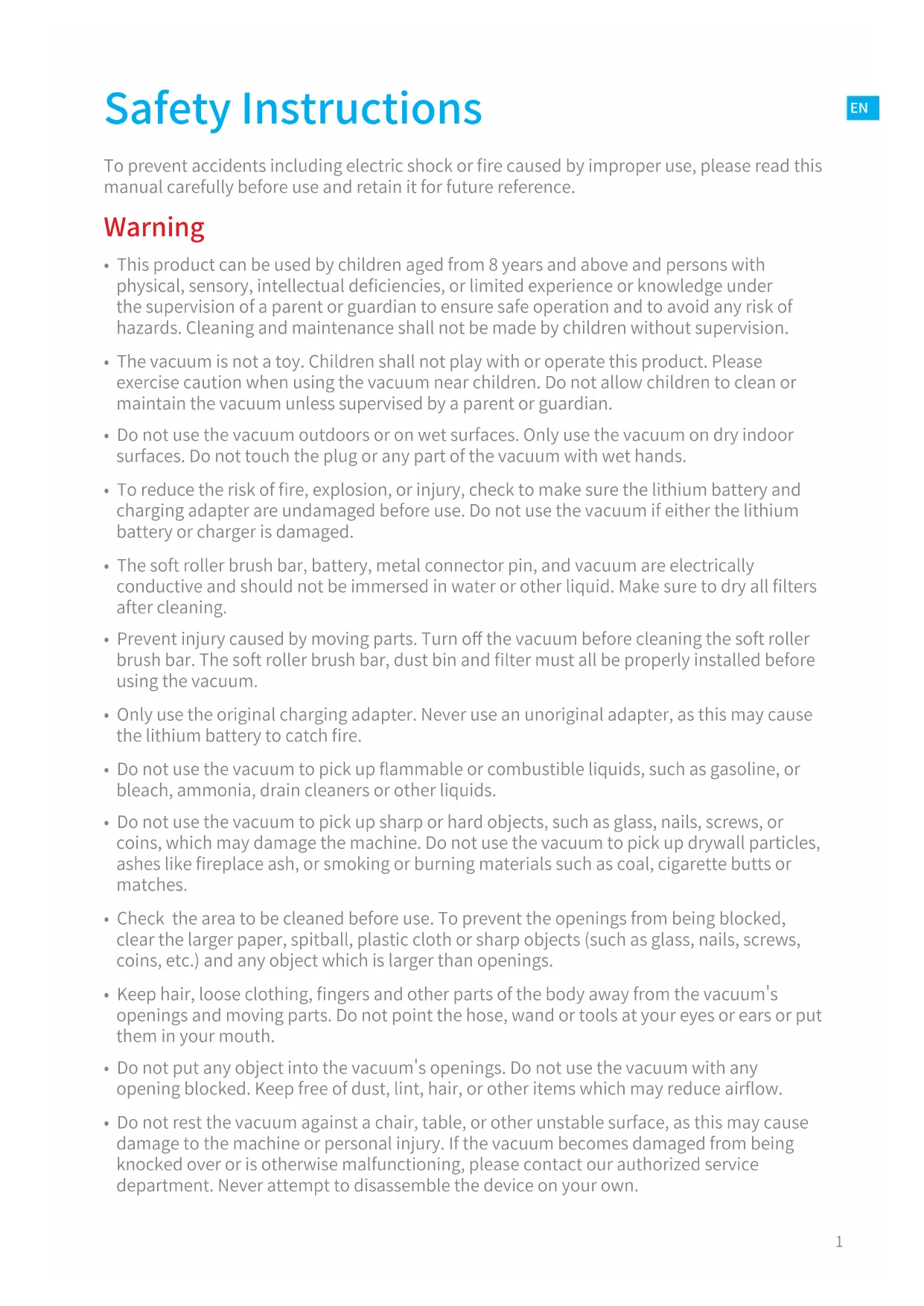

TR1 Warning Safety Instructions To prevent accidents including electric shock or 󽗉re caused by improper use, please read this manual carefully before use and retain it for future reference.

• This product can be used by children aged from 8 years and above and persons with physical, sensory, intellectual de󽗉ciencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risk of hazards. Cleaning and maintenance shall not be made by children without supervision.

• The vacuum is not a toy. Children shall not play with or operate this product. Please exercise caution when using the vacuum near children. Do not allow children to clean or maintain the vacuum unless supervised by a parent or guardian.

• Do not use the vacuum outdoors or on wet surfaces. Only use the vacuum on dry indoor surfaces. Do not touch the plug or any part of the vacuum with wet hands.

• To reduce the risk of 󽗉re, explosion, or injury, check to make sure the lithium battery and charging adapter are undamaged before use. Do not use the vacuum if either the lithium battery or charger is damaged.

• The soft roller brush bar, battery, metal connector pin, and vacuum are electrically conductive and should not be immersed in water or other liquid. Make sure to dry all 󽗉lters after cleaning.

• Prevent injury caused by moving parts. Turn o󽗈 the vacuum before cleaning the soft roller brush bar. The soft roller brush bar, dust bin and 󽗉lter must all be properly installed before using the vacuum.

• Only use the original charging adapter. Never use an unoriginal adapter, as this may cause the lithium battery to catch 󽗉re.

• Do not use the vacuum to pick up 󽗊ammable or combustible liquids, such as gasoline, or bleach, ammonia, drain cleaners or other liquids.

• Do not use the vacuum to pick up sharp or hard objects, such as glass, nails, screws, or coins, which may damage the machine. Do not use the vacuum to pick up drywall particles, ashes like 󽗉replace ash, or smoking or burning materials such as coal, cigarette butts or matches.

• Check the area to be cleaned before use. To prevent the openings from being blocked, clear the larger paper, spitball, plastic cloth or sharp objects (such as glass, nails, screws, coins, etc.) and any object which is larger than openings.

• Keep hair, loose clothing, 󽗉ngers and other parts of the body away from the vacuum's openings and moving parts. Do not point the hose, wand or tools at your eyes or ears or put them in your mouth.

• Do not put any object into the vacuum's openings. Do not use the vacuum with any opening blocked. Keep free of dust, lint, hair, or other items which may reduce air󽗊ow.

• Do not rest the vacuum against a chair, table, or other unstable surface, as this may cause damage to the machine or personal injury. If the vacuum becomes damaged from being knocked over or is otherwise malfunctioning, please contact our authorized service department. Never attempt to disassemble the device on your own. EN2

For detailed e-manual, please go to https://www.dreame-technology.com/pages/user- manuals-and-faqs

• All instructions in the manual for recharging the battery must be strictly followed. Failure to properly charge the battery within the speci󽗉ed temperature range could damage the battery.

• Please be extra careful when using the vacuum to clean stairs.

• Make sure the vacuum is unplugged when not used for extended periods as well as prior to performing any maintenance or repairs.

• Do not install, charge, or use this product outdoors, in bathrooms, or around a pool.

• Fire Hazard Warning: Do not apply any type of fragrance to the vacuum's 󽗉lter. These types of products are known to contain 󽗊ammable chemicals which may cause the vacuum to catch 󽗉re.

• This product is designed for home use only.

• Only use the original charger (Model YLS0251B-E300080). Failing to do so may cause the lithium-ion battery to catch 󽗉re.

• Do not use and store in extremely hot or cold environments (below 0℃ /32° F or above 40℃ /104° F). Please charge the cordless vacuum in temperature above 0℃ /32° F and below 40℃ /104° F.

• Only use the approved battery type (Model P2013A-7S1P-SCA). Failing to do so may cause the lithium-ion battery to catch 󽗉re. We, Dreame Trading (Tianjin) Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: www.dreame- technology.com3 Accessories List Product Overview Note: The illustrations in this manual are indicative only. The actual product may di󽗈er. Soft Roller Brush Bar 2-in-1 Crevice Nozzle Power Adapter Extension Rod Attachment Clip Wall Mount (Including screws ×2, wall plugs ×2) EN4 Component Names Battery Pack Release Button Extension Rod Release Button Extension Rod Display Screen Dust Bin Release Button Charging Port Product Overview Antistatic Contact

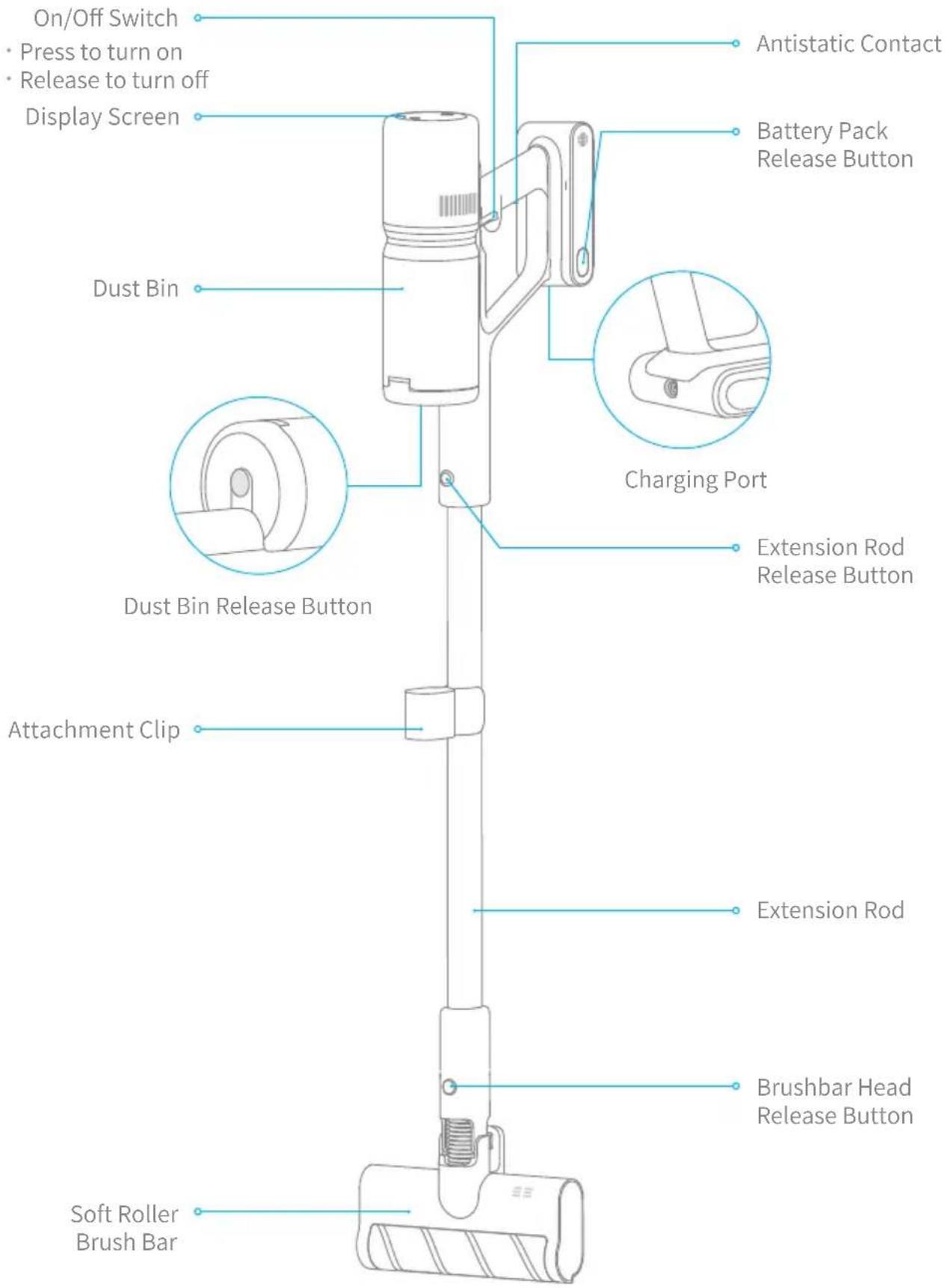

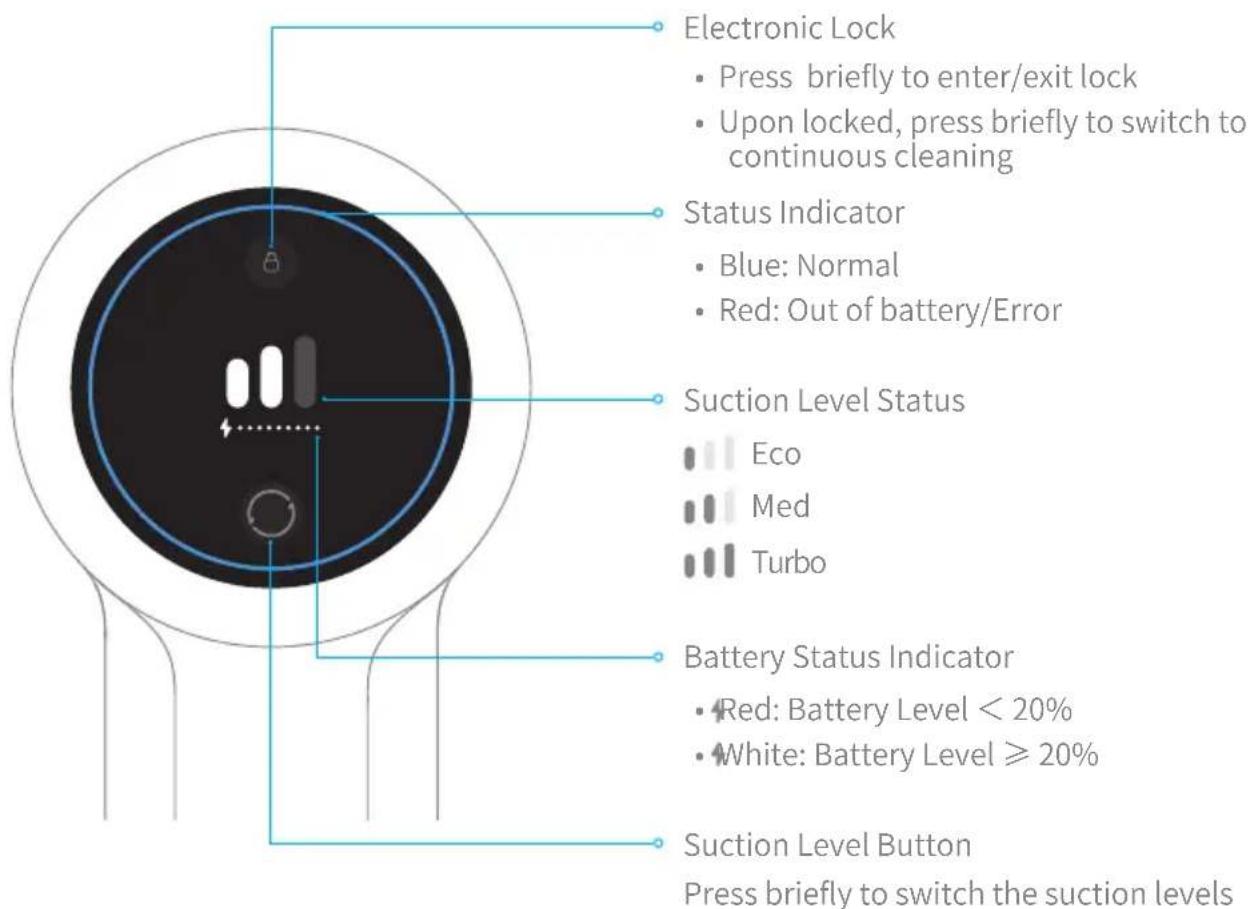

Dust Bin On/O󽗈 Switch Press to turn on Release to turn o󽗈 Attachment Clip Soft Roller Brush Bar Brushbar Head Release Button5 Product Overview Display Screen Note: If the vacuum is not working properly, the screen display will produce an error message. Please refer to the troubleshooting section to 󽗉nd your solution. Electronic Lock

• Press brie󽗊y to enter/exit lock

• Upon locked, press brie󽗊y to switch to continuous cleaning Suction Level Button Press brie󽗊y to switch the suction levels Status Indicator

• Red: Battery Level ＜ 20%

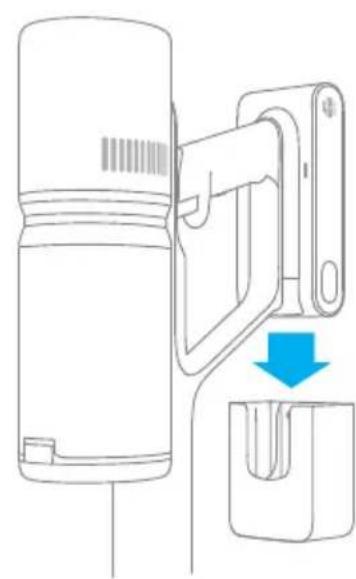

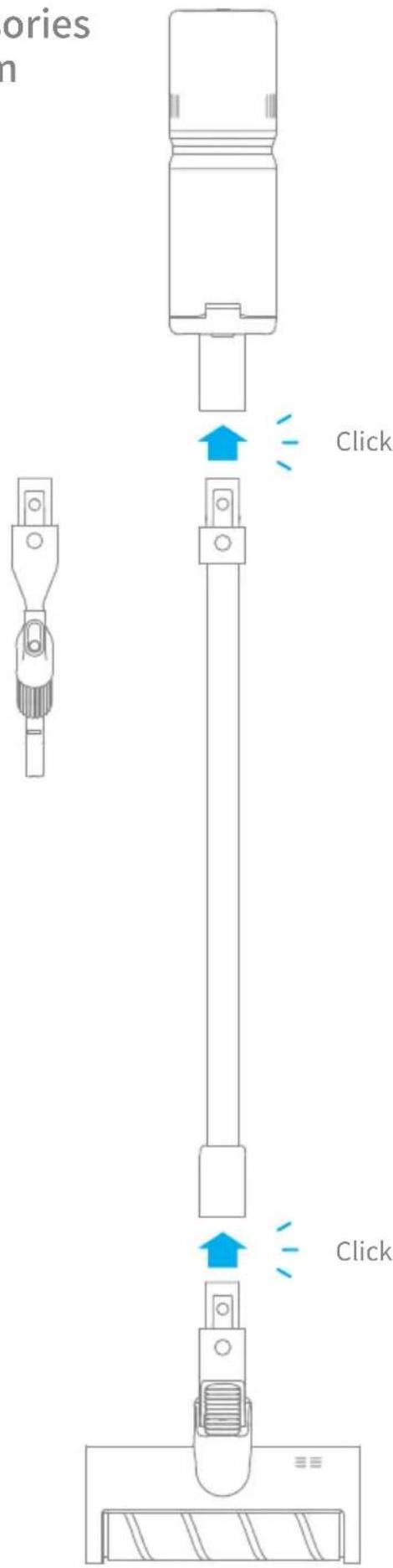

• White: Battery Level ≥ 20% EN6 Installation Vacuum and Accessories Installation Diagram Click Click EN7 Wall Mount Installation Diagram The mount should be installed in a cool, dry place near a power outlet. Make sure the installation area is clear of any pipes such as gas or water lines, and air ducts, electric wires and cables, or drainage lines. Connecting the Charging Adapter to the Wall Mount

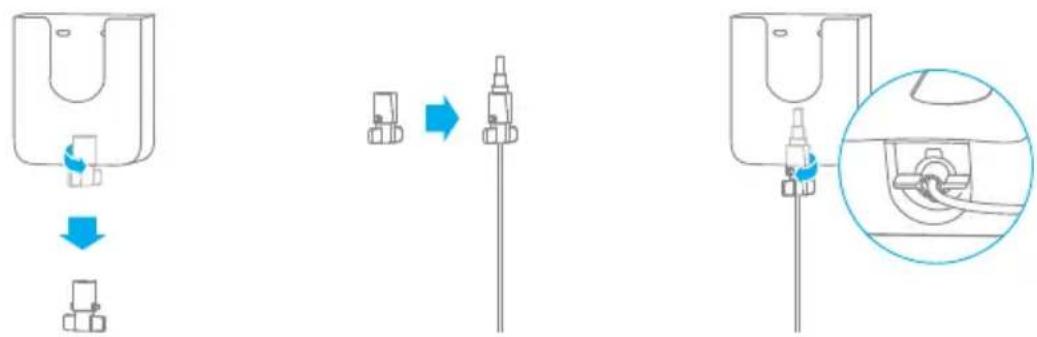

1. Rotate the clip in the bottom of wall mount 90 degrees counterclockwise to remove it

2. Insert the charging adapter cord into the notch on the clip.

3. Rotate the clip 90 degrees clockwise until it clicks into place.

1. Before installation, measure the wall in the height of 100cm above the ground.

2. Mark and drill two 8mm diameter holes into the wall with an electric drill. Insert the wall

plugs into the holes.

3. Align the position holes on the mount with the holes on the wall. Fasten it to the wall

with the included screws. Installation 100cm EN8 Charging Note:

• The vacuum cannot be used while charging.

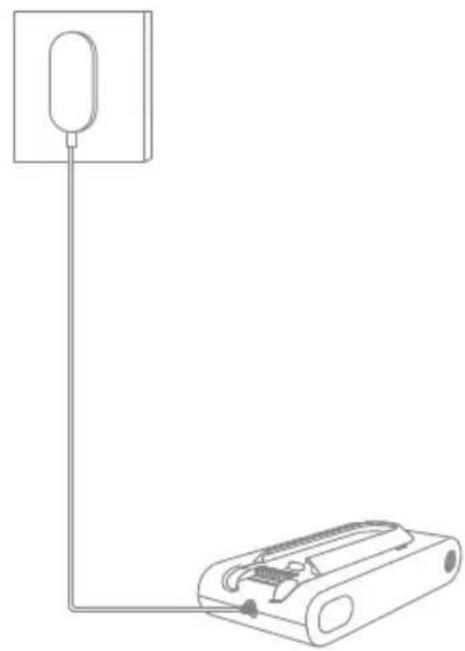

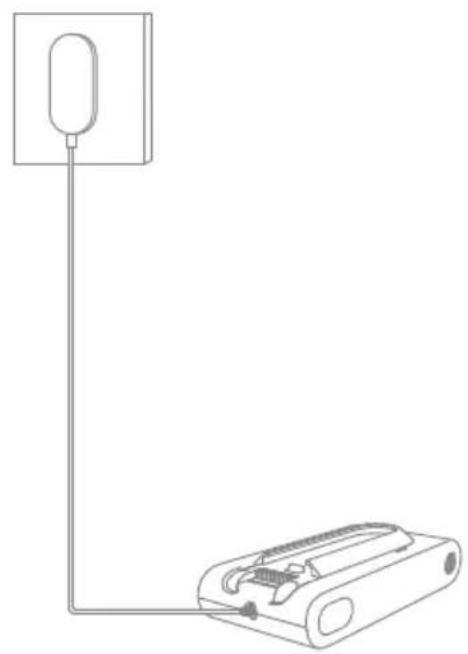

• Fully charge the vacuum before using it for the 󽗉rst time. This will take about 2.5 hours.

• Vacuuming at Turbo mode for a prolonged period will cause the battery to heat up, which increases charging time. Allow the vacuum to cool down for 30 minutes before charging it.

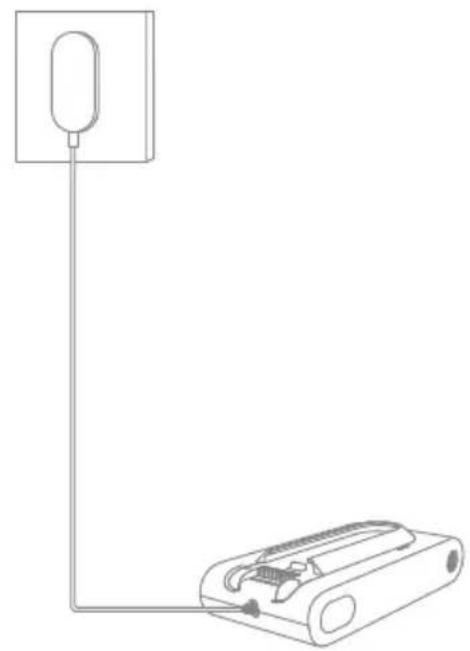

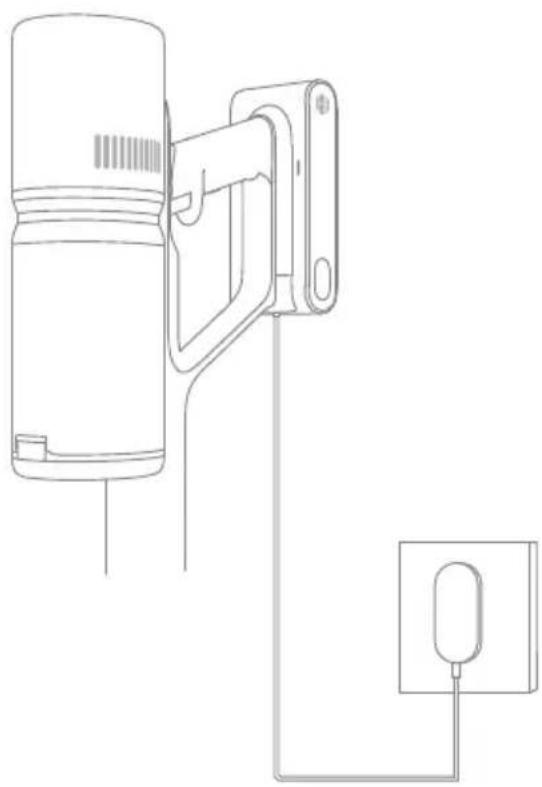

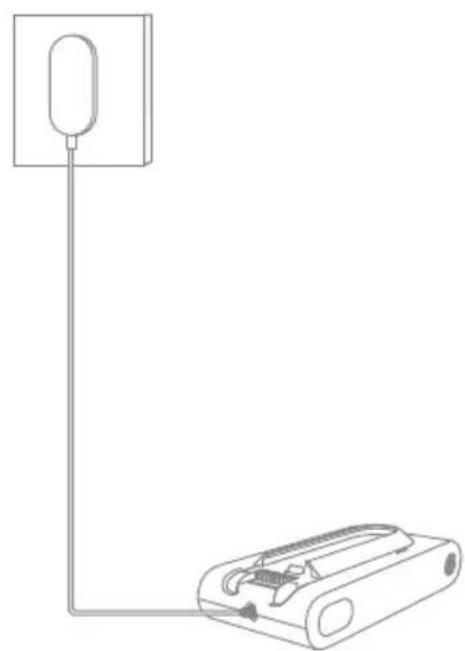

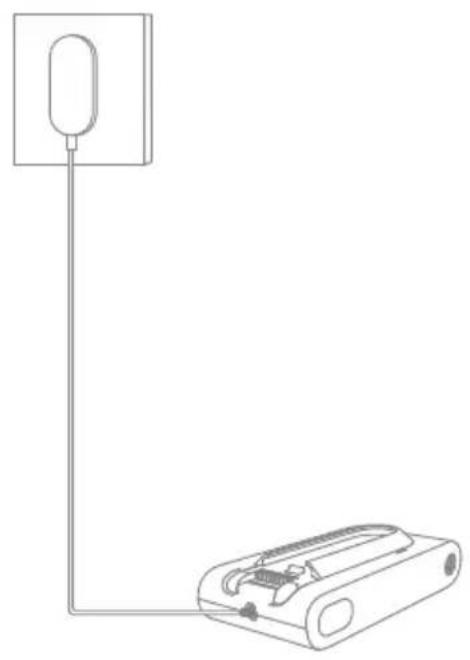

Battery Indicator The battery indicators 󽗊ash and then turn bright constantly in sequence depending on the battery condition. Note: The screen will turn o󽗈 if there is no operation for more than 30 seconds. Display Screen Battery Status Indicator

• Red: Battery Level ＜ 20%

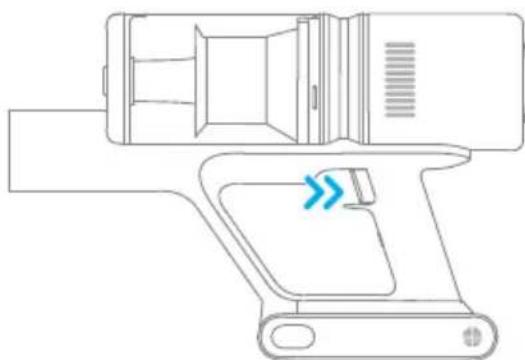

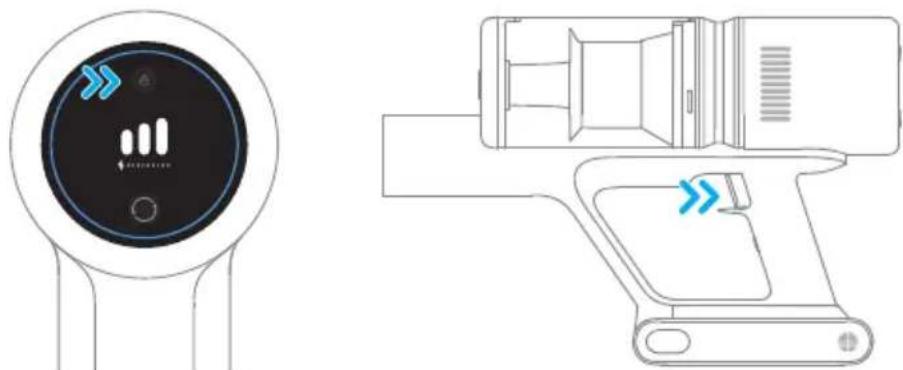

• White: Battery Level ≥ 20% Charging Methods9 How to Use Working Methods Select from two working methods for the vacuum, based on your needs. Method 1: Discontinuous Cleaning Mode Press and hold the on/o󽗈 switch to power it on, and release it to stop immediately. Method 2: Continuous Cleaning Mode (Electronic Lock) Click the button to switch to Continuous Cleaning Mode and the button is on. Then release the on/o󽗈 switch to make the vacuum in Continuous Cleaning Mode. Use the electronic lock to free your 󽗉ngers and avoid 󽗉nger fatigue caused by holding the switch. Notes:

• In this mode, brie󽗊y press the switch to suspend the operation or start again，and the working mode of the vacuum will not change.

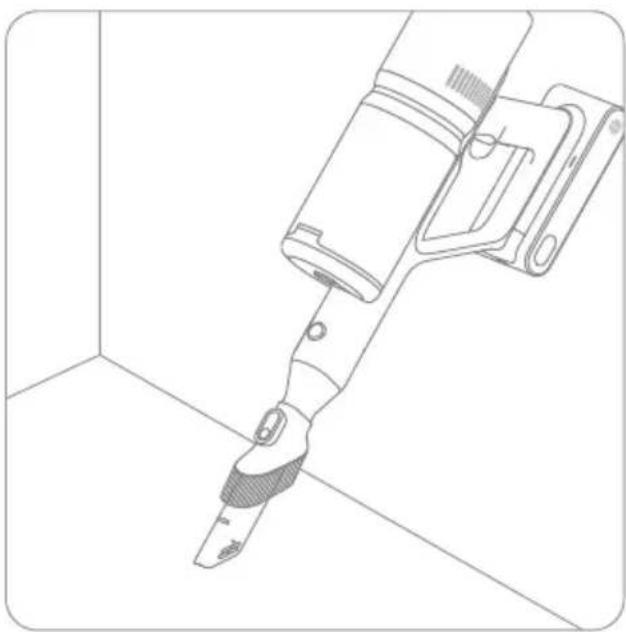

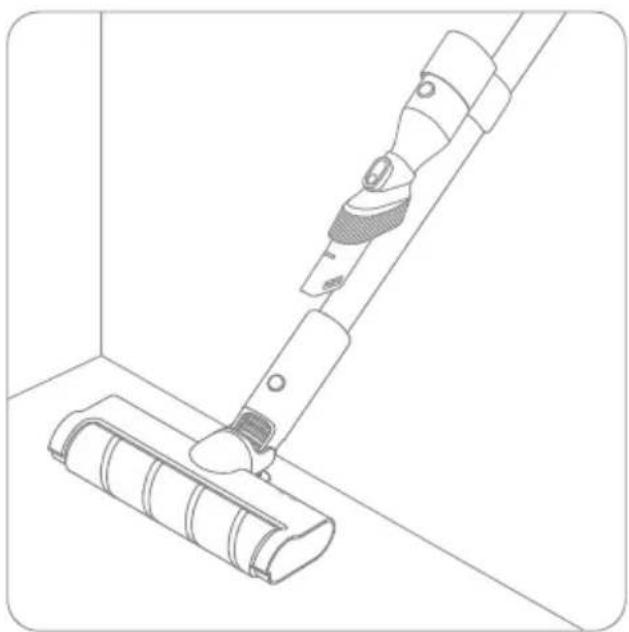

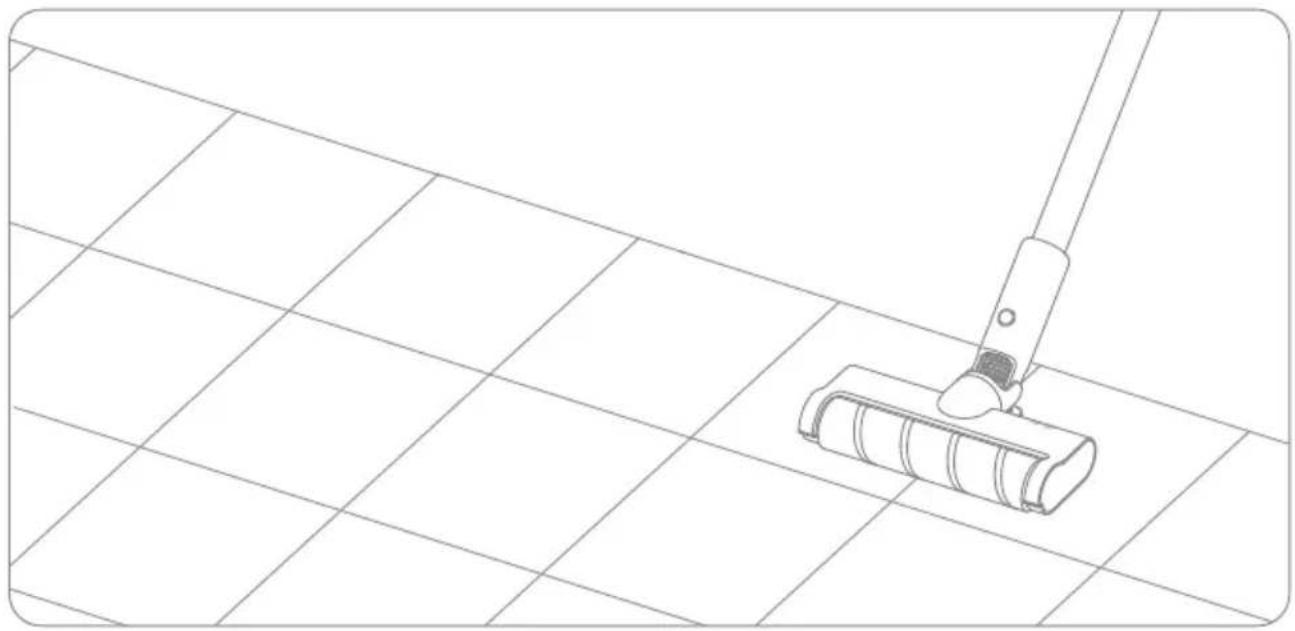

• Click the electronic lock again to quit the Continuous Cleaning Mode. EN10 How to Use Using Di󽗈erent Accessories Soft Roller Brush Bar: Suitable for vacuuming wood, tile, marble, and other hard 󽗊oor surfaces as well as for vacuuming up larger pieces of dirt and debris.

• If any rotating part becomes stuck, the vacuum may shut o󽗈 automatically. Remove any trapped foreign objects, then resume use.

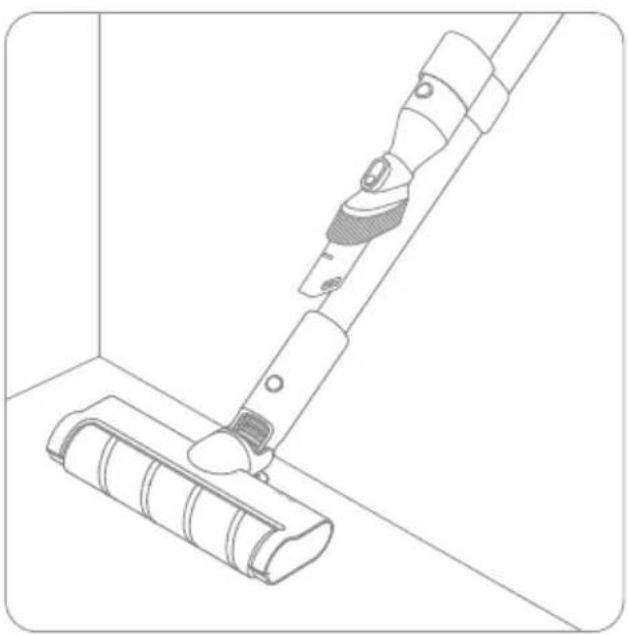

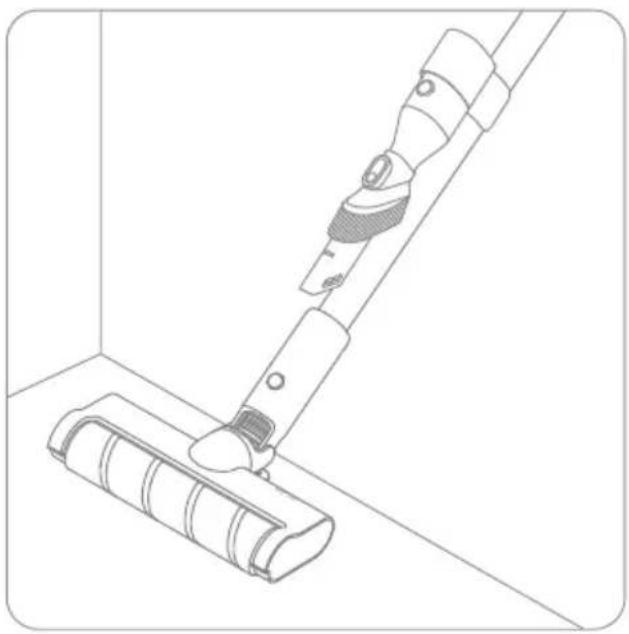

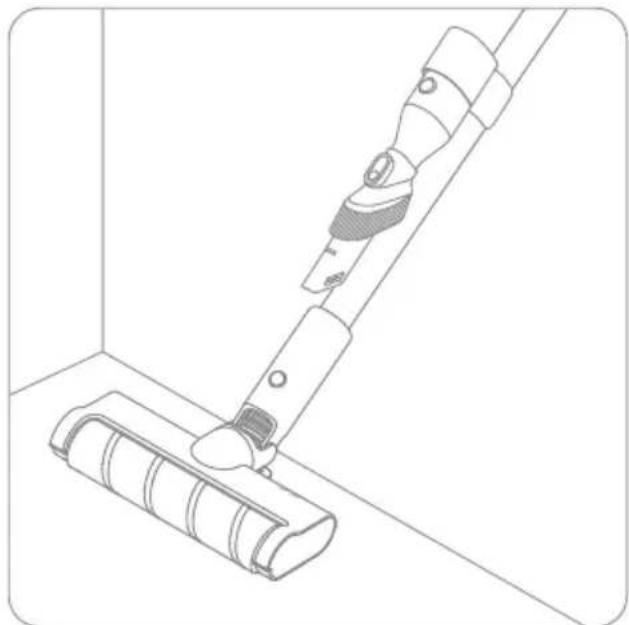

• When the battery becomes overheated, the vacuum will automatically shut o󽗈. Wait until the battery temperature returns to normal, then resume use. 2-in-1 Crevice Nozzle: Suitable for vacuuming cracks, corners of doors and windows, stairs, and other hard-to-reach places. Attachment Clip: The 2-in-1 crevice nozzle can be stored in the attachment clip as shown when not in use.11 Care & Maintenance Tips:

1. Always use genuine parts to keep your warranty from being void.

2. If the vacuum is not used for an extended period, fully charge it, unplug its charger, and

store it in a cool, low-humidity environment away from direct sunlight. To avoid over- discharging the battery, recharge the vacuum at least once every three months. Cleaning the Vacuum Wipe the vacuum with a soft dry cloth.

Cleaning the Dust Bin & Pre-Filter Before cleaning the dust bin, disconnect the adapter and keep the vacuum's power switch in the o󽗈 position.

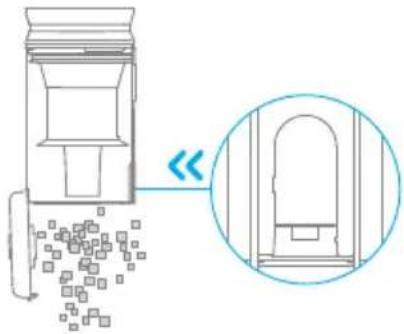

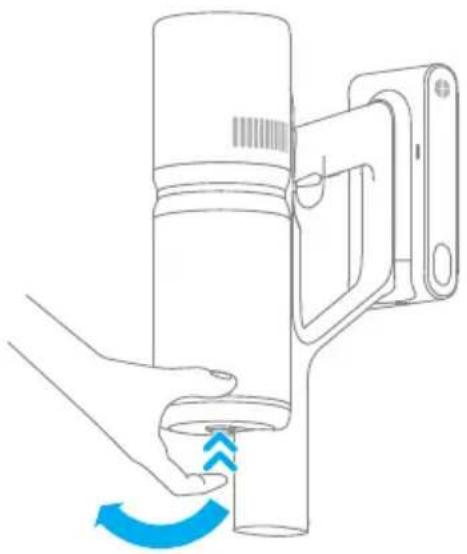

1. Press the dust bin release button and

hold the dust bin to remove form the vacuum in the direction of the arrow .

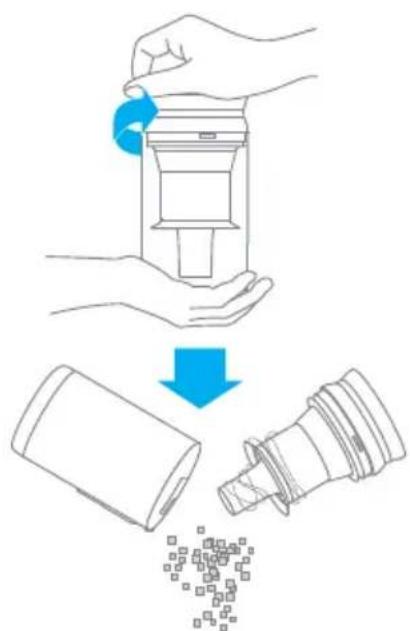

Note: It is recommended to clean the dust bin after use. Method 1: Press the release button on the bottom of the bin. Method 2: Hold the upper cover of dust bin, then remove the cyclone assembly.12

3. Remove the pre-󽗉lter. Rotate the cyclone assembly slightly to remove from the dust

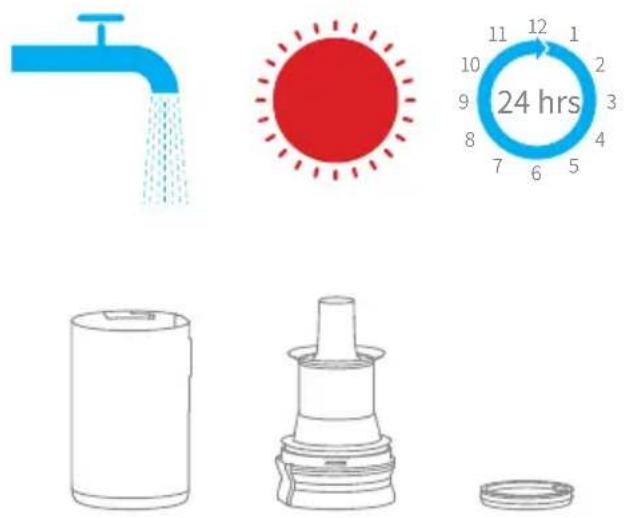

4. Rinse the cyclone assembly, pre-󽗉lter, and dust bin until they are clean. After washing,

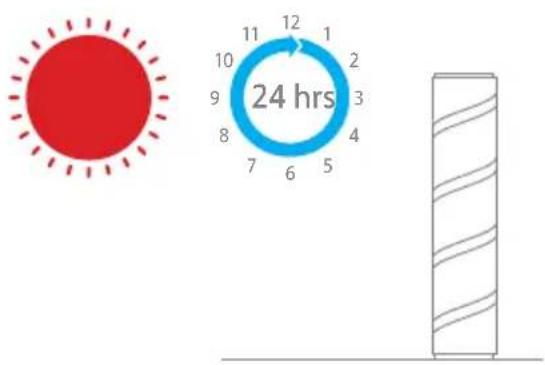

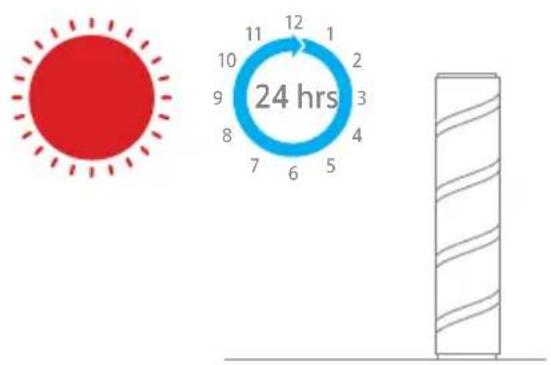

air dry for at least 24 hours . Note:

• It is recommended to clean the dust bin once every month.

• It is recommended to clean the cyclone system and pre-󽗉lter at least once every 3 to 4 months. Pre-Filter Cyclone Assembly Dust Bin

Pre-Filter Cyclone Assembly Dust Bin

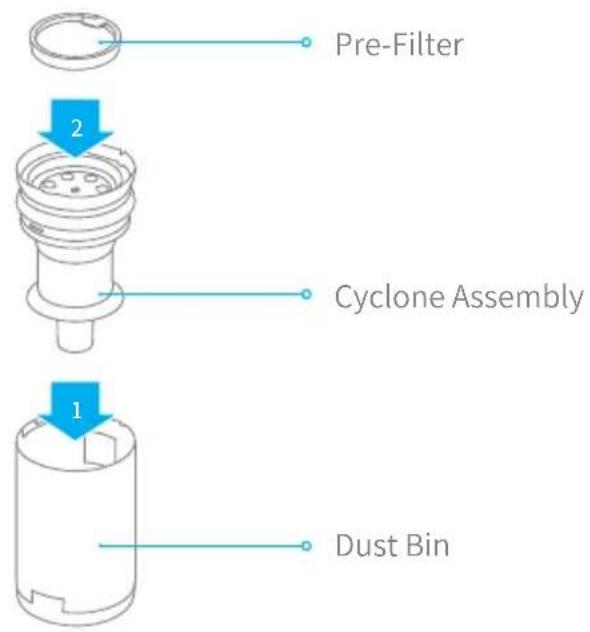

1. Install the cyclone assembly and pre-󽗉lter into the dust bin.

Note: Make sure all 󽗉lters are completely dry before re-installing.

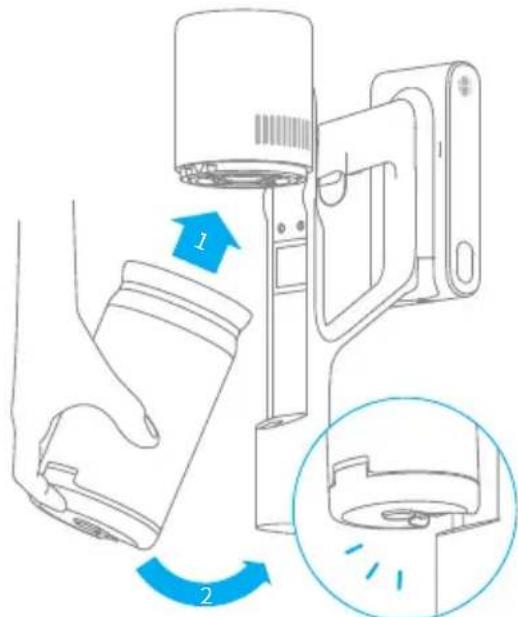

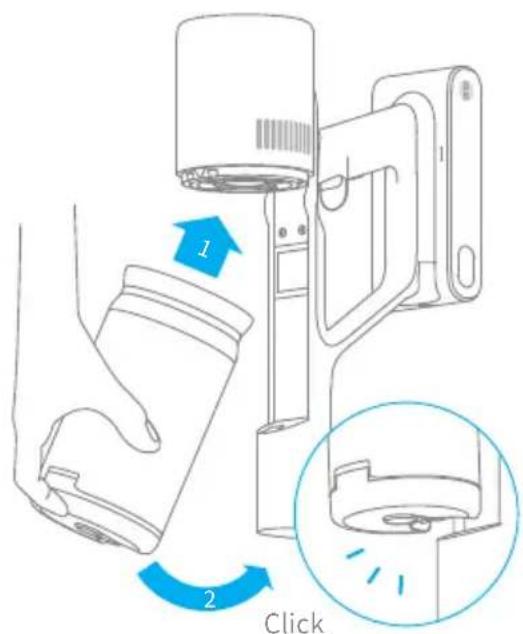

2. Align the slots on the dust bin with the notches on the vacuum. Pull down the dust bin

until you hear a click. Click EN14 Care & Maintenance Cleaning the Filter It is recommended to clean the 󽗉lter once every 4 to 6 months.

1. Remove the dust cup as shown in the

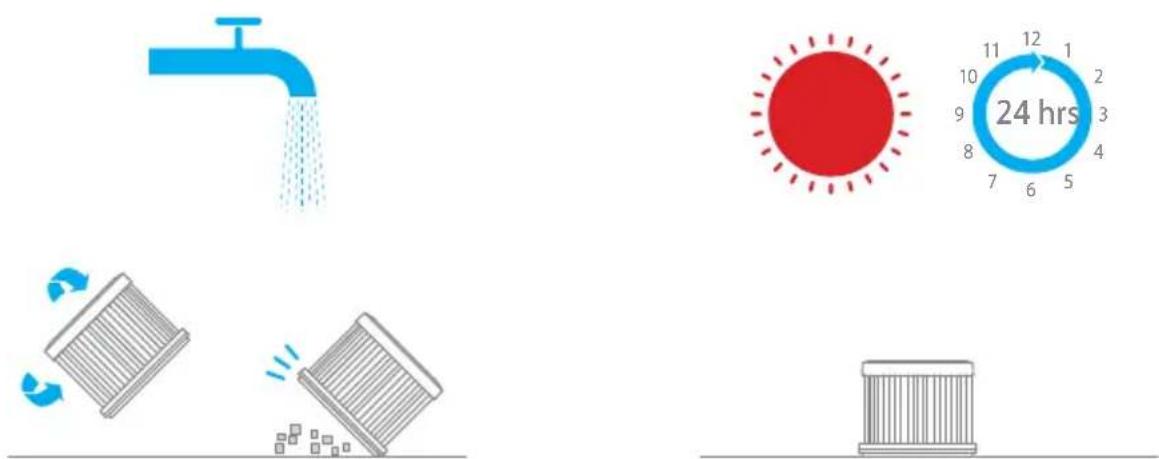

3. Clean the 󽗉lter with clean water. Make

sure you rotate the 󽗉lter 360° to thoroughly and remove all dust caught in the 󽗉lter. Lightly tap the 󽗉lter several times to remove any excess dirt.

2. Remove the 󽗉lter from the vacuum by

pulling it down in the direction shown in the 󽗉gure.

4. Allow the 󽗉lter to air dry for 24 hours.

• Only use clean water to wash the 󽗉lter. Do not use detergent.

• Do not attempt to clean the 󽗉lter with a brush or 󽗉nger. EN15

The vacuum contains a removable rechargeable lithium-ion battery pack which has a limited number of recharge cycles. After extended use, the battery pack may no longer hold a charge. If this happens, it means the battery pack has reached the end of its life cycle and needs to be replaced.

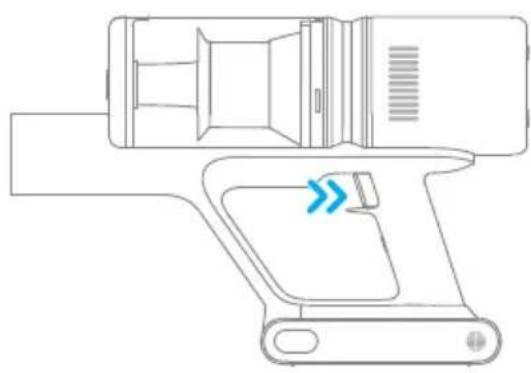

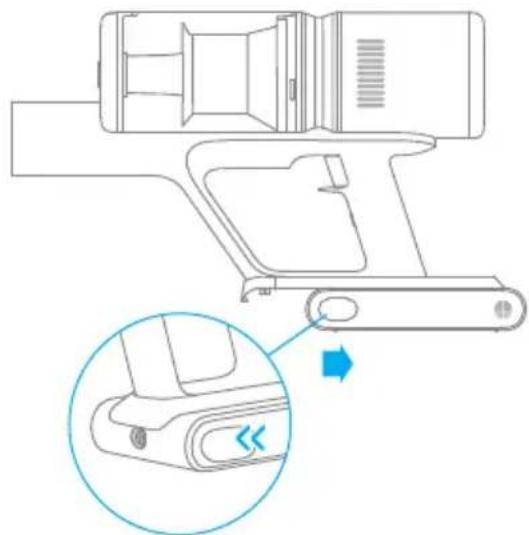

1. Press down the battery pack release button and slide the battery pack to the right, as

illustrated, to remove it.

2. Install the new battery pack.

Care & Maintenance Battery Pack Installing the Filter

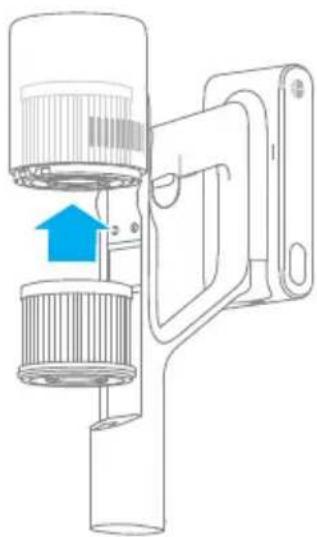

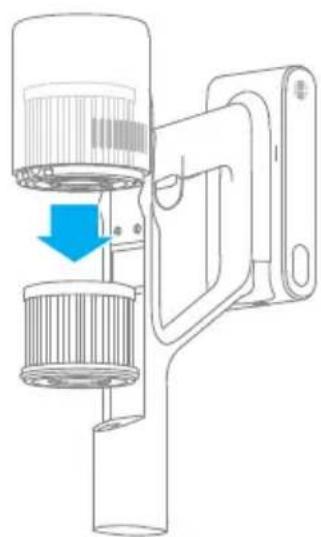

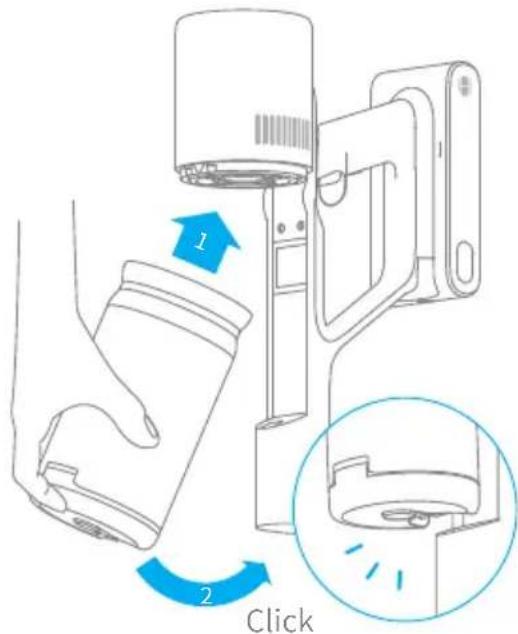

1. Insert the 󽗉lter into the vacuum and

gently press down, as illustrated.

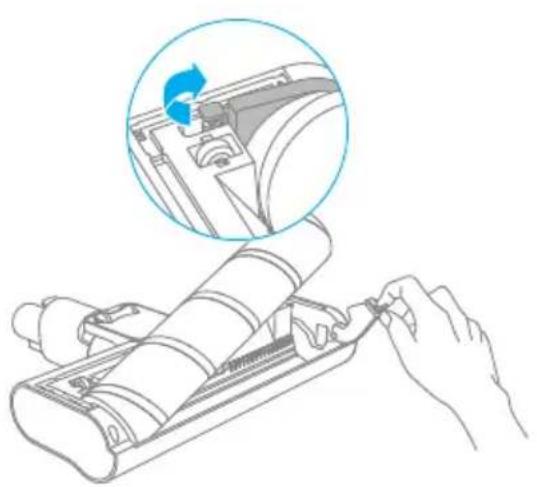

1. Push the brushbar head release button

in the direction of the arrow until the cover of the brushbar head pops to open, then remove the brushbar head by lifting it in the direction indicated. Note: Use small tools to pry the clip away.

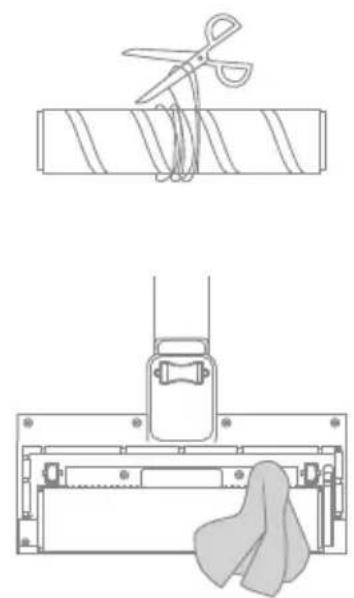

2. Use scissor to cut o󽗈 the hairs and 󽗉bers

that stick on the roller brush. Wipe the dust from the notch and transparent cover with a dry cloth or paper towel.

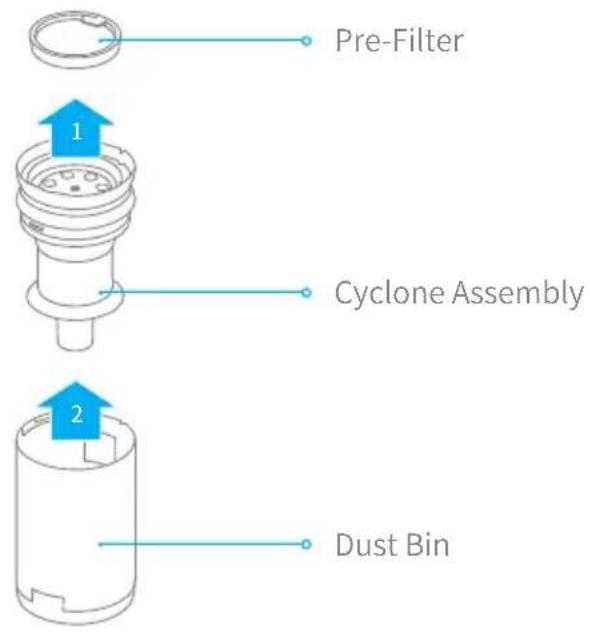

3. Remove the pre-󽗉lter. Rotate the cyclone

assembly slightly to remove from the dust bin.

4. Rinse the cyclone assembly, pre-󽗉lter,

and dust bin until they are clean. After washing, air dry for at least 24 hours . EN17 Speci󽗉cations Vacuum Cleaner Model VPD1 Charging Voltage 30 V Rated Power 350 W Rated Voltage 25.2 V Charging Time Approx. 2.5 hours Nominal Capacity 2000 mAh Soft Roller Brush Bar Model AVB11 Rated Power 40 W Rated Voltage 25,2 V Power Adapter Model YLS0251B-E300080 Input 100-240 V~50/60 Hz

Output 30 V 800 mA Average Active E󽗋ciency

E󽗋ciency at Low Load (10%)

No-load Power Consumption

Rechargeable Lithium-Ion Battery Pack Model P2013A-7S1P-SCA Nominal Capacity 2000 mAh Nominal Voltage 25.2 V Energy 45.36 Wh The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the vacuum, please 󽗉rst remove the battery pack, then discard, or recycle it in accordance with local laws and regulations of the country or region it is used in. EN18 FAQ If the vacuum is not working properly, please refer to the table below. Errors Possible Causes Solutions Vacuum does not work. Vacuum is out of battery or low on power. Fully charge the vacuum, then resume use. Overheat protection mode triggered by a blockage. Clean the suction openings or air duct. Wait until the vacuum cools down, then reactivate it. Suction opening or airway passage is blocked. Clear any blockage from suction opening or air duct. Weak suction force. Dust bin is full and/or 󽗉lter assembly is clogged. Empty the dust bin and clean the 󽗉lter assembly. Attachment is blocked. Clear any blockages in the attachment. Motor makes a strange noise. Main suction opening or extension rod is blocked. Clear any blockage in the main suction opening or extension rod. The battery indicator does not light up when charging. The charger does not plug into the vacuum well. Check whether the charger is properly plugged into the vacuum. The battery is charged and switches to Sleep Mode automatically. The vacuum runs normally. If the problem persists after ruling out the above two possibilities. Please contact the after- sales service department for maintenance. Charging too slow Battery temperature is too low or too high. Wait until the battery's temperature returns normal, then resume use. EN19 Troubleshooting If the vacuum is not working properly, the screen display will show an error message. Please refer to the troubleshooting table to 󽗉nd your solution. Error Icon Possible Causes Solutions Clean the brush Refer to the maintenance guide [Cleaning the Soft Roller Brush Bar] section to clean the 󽗉ber material and hairs wrapped around the roller brush. Air duct blocked Check whether the dust bin, extension rod, and soft roller brush bar are blocked. Error Please contact our after- sales service department for maintenance. Overheating Please wait and continue to use after battery temperature is normal. WEEE Information
