USER MANUAL GECM 3648 Li M EINHELL

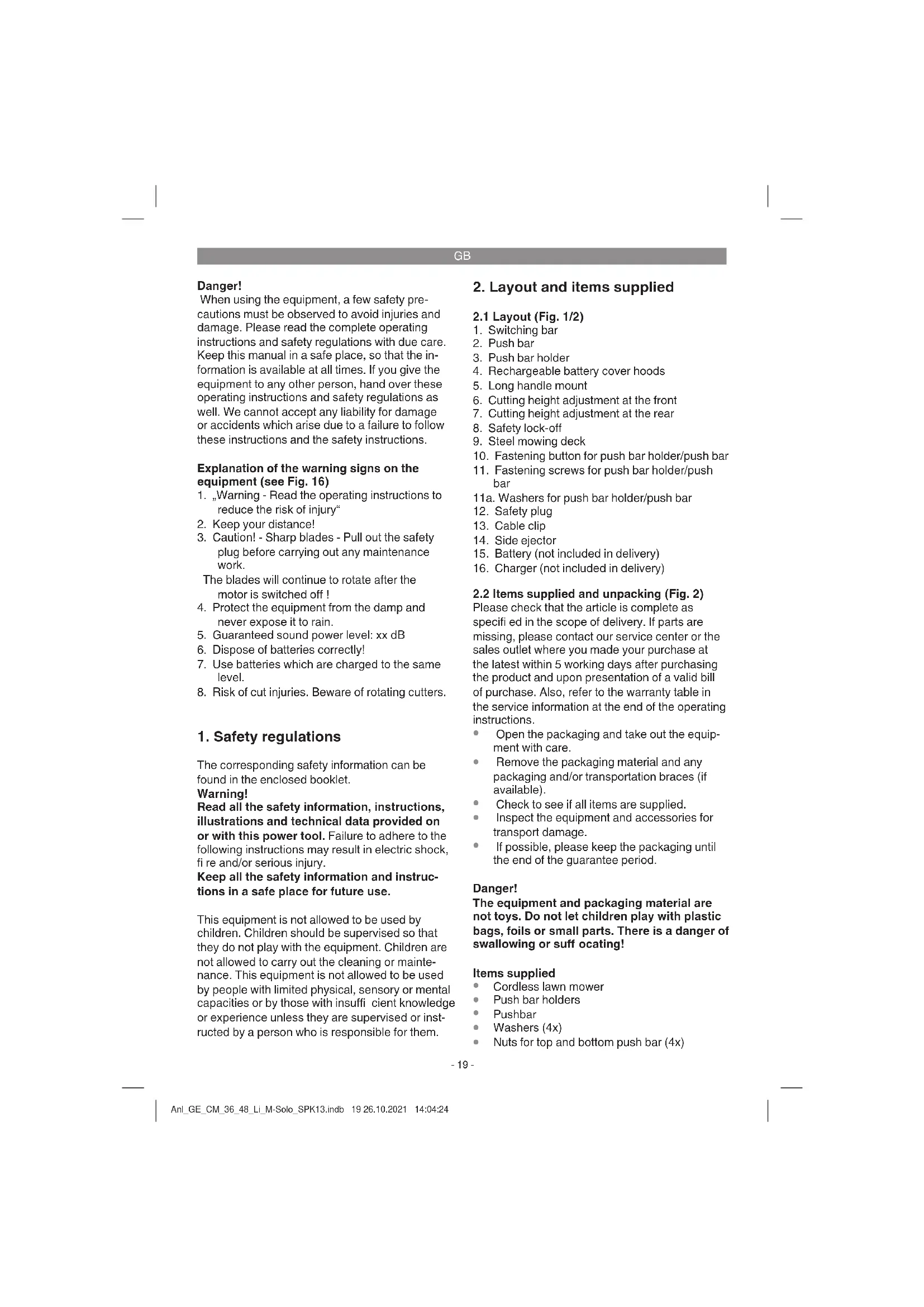

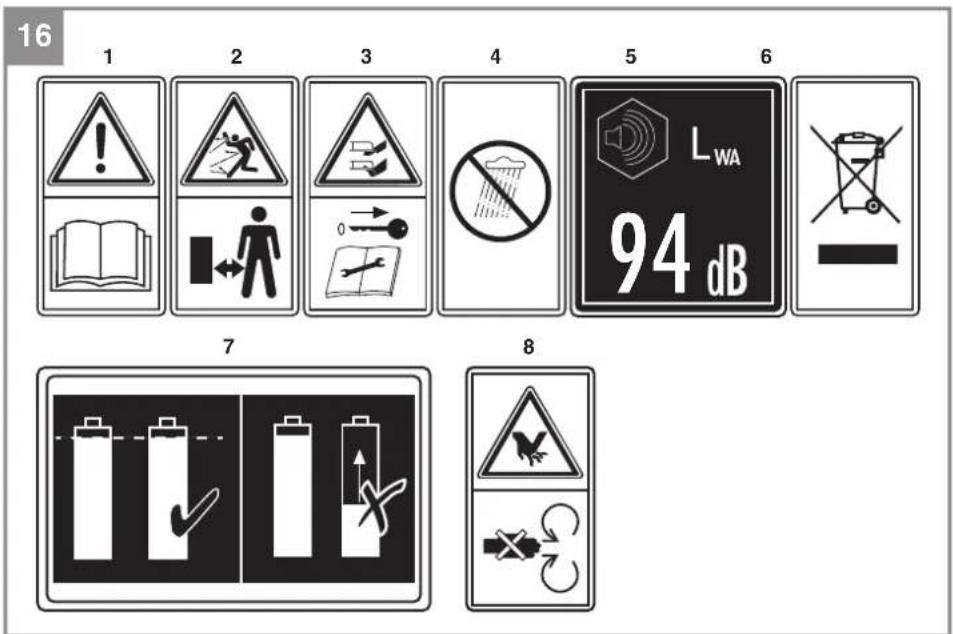

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Explanation of the warning signs on the equipment (see Fig. 16)

1. „Warning - Read the operating instructions to

reduce the risk of injury“

2. Keep your distance!

3. Caution! - Sharp blades - Pull out the safety

plug before carrying out any maintenance work. The blades will continue to rotate after the motor is switched off !

4. Protect the equipment from the damp and

never expose it to rain.

5. Guaranteed sound power level: xx dB

6. Dispose of batteries correctly!

7. Use batteries which are charged to the same

8. Risk of cut injuries. Beware of rotating cutters.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Warning! Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury. Keep all the safety information and instruc- tions in a safe place for future use. This equipment is not allowed to be used by children. Children should be supervised so that they do not play with the equipment. Children are not allowed to carry out the cleaning or mainte- nance. This equipment is not allowed to be used by people with limited physical, sensory or mental capacities or by those with insuffi cient knowledge or experience unless they are supervised or inst- ructed by a person who is responsible for them.

2. Layout and items supplied

4. Rechargeable battery cover hoods

5. Long handle mount

6. Cutting height adjustment at the front

7. Cutting height adjustment at the rear

9. Steel mowing deck

15. Battery (not included in delivery)

16. Charger (not included in delivery)

2.2 Items supplied and unpacking (Fig. 2)

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating! Items supplied

Original operating instructions

The lawn mower is intended for private use, i.e. for use in home and gardening environments. Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the equipment is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applica- tions are excluded. Caution! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vege- tation, planted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawn mower may not be used as a power cultiva- tor to level out high areas such as molehills. For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind, unless they have been expressly per- mitted by the manufacturer. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Cutting height adjustment: ........................ 6-step ............................................................ 30-75 mm Protection type: ........................................... IPX1 Caution! The equipment is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power-X- Change series! The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with the Power-X charger. Sound and vibration values were measured in ac- cordance with the standards EN ISO 3744:1995, ISO 11094:1991, EN ISO 11201:1995 and EN ISO 20643:2005. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear protective gloves. Residual risks Even if you use this electric power tool in accordance with the instructions, certain residual risks cannot be eliminated. The fol- lowing hazards may arise in connection with the equipment‘s construction and layout:

Warning! This equipment generates an electromag- netic fi eld during operation. Under certain circumstances this fi eld may actively or pas- sively impede medical implants. To reduce the risk of serious or fatal injuries, we recom- mend persons with medical implants to con- sult their doctor and the manufacturer of the medical implant prior to using the equipment.

5. Before using the equipment

The lawn mower is delivered partly assembled. The push bar and the side ejector must be fi tted before you use the lawn mower. Follow the ins- tructions step by step and refer to the pictures when assembling. Mounting the push bar (Fig. 2 to 6). Insert the push bar holder (Fig. 2/Item 3) into the long handle mount (5) and secure with the faste- ning screw (Item 11), the washer (Item 11a) and the fastening nut (Item 10) (Fig. 3/4). The top push bar (Fig. 2/Item 2) must be pushed onto the push bar holder and secured with the fastening screws (Item 11), the fastening nuts (Item 10) and the washers (Item 11a) as shown in Fig. 5. Then fasten the cable to the push bar by the cable clips (Item 13). The push bar can be adjusted to 3 diff erent height settings. To adjust the height, undo the fastening nut (Item 10) and move the bar into the required latch (Fig. 5/6). Warning! Always set the identical handle height on both sides.

Use the cable clips to align the cable with the long handle (Fig. 6/Item 13). Adjusting the cutting height Caution! Adjust the cutting height only when the machine has been switched off , the safety plug (12) has been pulled out and the batteries (15) removed. Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged. To prevent any imbalance, replace blunt and/or damaged blades. To carry out this check, fi rst switch off the motor and pull out the safety plug. The cutting height must be adjusted as follows (see Fig. 7a, 7b):

1. Push the lever of the front cutting height ad-

justment (6) outwards.

2. Set the lever of the front cutting height adjust-

ment to the desired cutting height.

3. Release the lever of the front cutting height

adjustment and check that it is securely sea- ted in the lock.

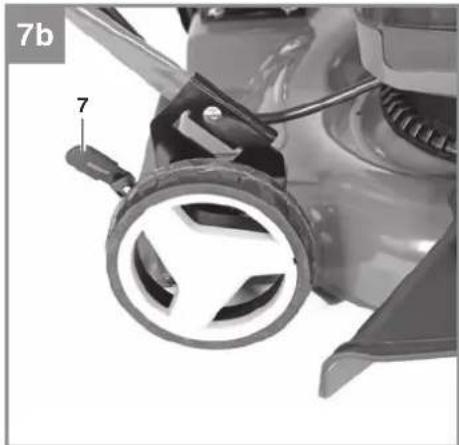

4. Repeat the procedure on the lever of the rear

cutting height adjustment (7).

5. For the best cutting results make sure that

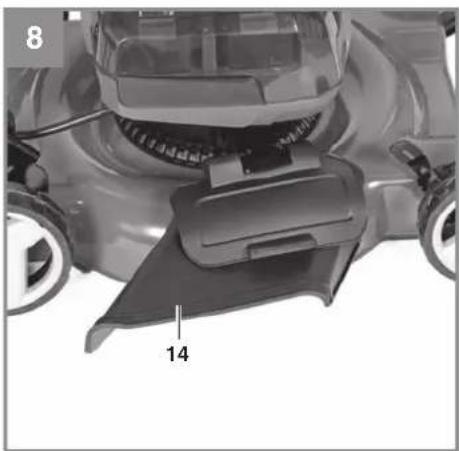

the same cutting height is set at both the front and rear lever. Side ejector (Fig. 8) Hook in the side ejector adapter (14) as shown in Fig. 8. Important! The side ejector must not be used when you want to mow less than 2cm of the grass height in one pass. Use the side ejector when you want to mow more than 2cm of the grass height in one pass. Charging the battery (Fig. 13)

1. Take the battery pack out of the equipment.

Do this by pressing the pushlock button.

2. Check that your mains voltage is the same as

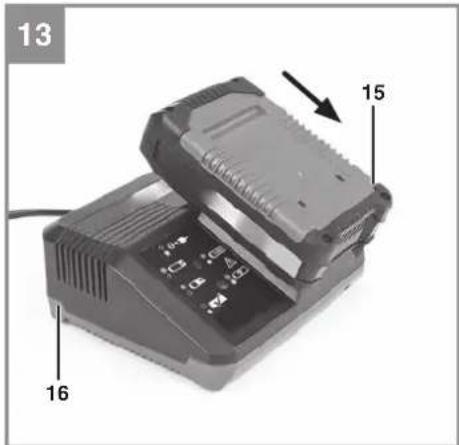

that marked on the rating plate of the battery charger. Insert the power plug of the charger (16) into the socket outlet. The green LED will then begin to fl ash.

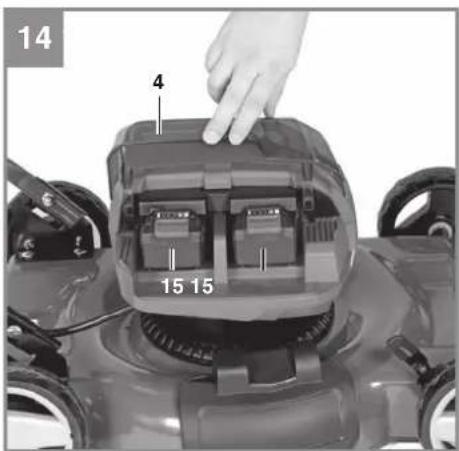

3. Insert the battery pack (15) into the battery

will fi nd a table with an explanation of the LED indicator on the charger. The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check:

whether there is voltage at the socket outlet

whether there is good contact at the charging contacts. If the battery pack still fails to charge, send

and the battery pack to our customer service center. Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 21 26.10.2021 14:04:25GB

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased. When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fi res. To ensure that the battery pack provides long ser- vice, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully di- scharged. This will cause it to develop a defect. Installing the battery (Fig. 14) Open the battery cover (Item 4). Then insert the batteries in the mounts as shown in Fig. 14. For optimum mowing results and battery power performance it is always best to use batteries with the same capacity of 2.5 Ah or higher. There is also the option of using batteries with diff erent capacities in the two battery mounts A and B (Fig.

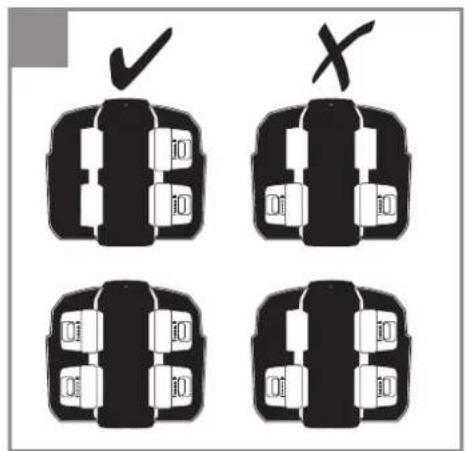

2) which are opposite each other.

Always make sure, however, that you only use batteries of the same capacity in each separate battery bank (Fig.15). For example, you could use 2 x 4.0Ah batteries in one battery bank while using 2 x 3.0Ah batteries in the opposite battery bank. Important! Use only batteries which are charged to the same level. Never combine full and half-full batteries. Al- ways charge the two/all batteries simultaneously. The equipment‘s operating time depends on the battery with the lower charge level. The two/all batteries must always be fully charged before use. Close the battery cover by swinging it down, and make sure that it latches in place correctly. Battery capacity indicator (Fig. 12) Press the button for the battery capacity indicator (Fig. 12/Item A). The battery capacity indicator (Fig. 12/Item B) shows the charge status of the battery using 3 LEDs. All 3 LEDs are lit: The battery is fully charged. 2 or 1 LED(s) are lit: The battery has an adequate remaining charge. 1 LED fl ashes: The battery is empty, recharge the battery. All LEDs blink: The battery temperature is too low. Remove the battery from the equipment, keep it at room tem- perature for one day. If the fault reoccurs, this me- ans that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery. Caution! Do not park the lawn mower in the sun. Batteries which have been inserted could heat up to inad- missible levels.

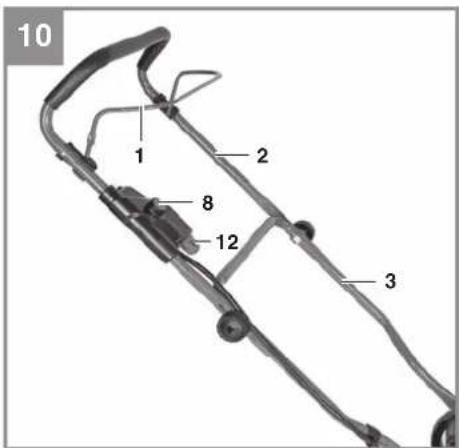

Caution! The lawn mower is equipped with a safety switch to prevent unauthorized use. Directly before st- arting up the lawn mover insert the safety plug (Fig. 9/Item 12) and remove the safety plug again when interrupting or terminating your work. Important! For safety reasons, it is not possible to start the cordless lawn mower if the pitch angle is over ~60°. Caution! To prevent the equipment switching on acciden- tally, the lawn mower is equipped with a safety switch (Fig. 9/Item 8) which must be pressed before the switching bar (Fig. 10/Item 1) can be activated. The lawn mower switches itself off when the switching bar is released. The start time can amount to several seconds (To make it easier to start, tilt the lawn mower slightly at the back). The speed will drop after a few seconds when in idle mode and will rise again after a few second when in working mode. Repeat this process se- veral times so that you are sure that the machine functions properly. Before you perform any repair or maintenance work on the equipment, ensure that the blade is not rotating, that the safety plug (12) is disconnected and that the batteries (15) have been removed. Warning! Never open the chute fl ap when the grass bag has been detached (to be emptied) Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 22 26.10.2021 14:04:25GB

and the engine is still running. A rotating bla- de can cause serious injuries! Always fasten the ejector fl ap carefully. Before you remove them, switch off the motor and pull out the safety plug (12) fi rst. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow along the incline (not up and down). For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the lawn mower. Tripping hazard! Instructions for good mulching results

It is recommended that you overlap the mo- wing swaths.

Only use a sharp blade that is in good condi- tion. This will prevent the grass blades from fraying and the lawn from turning yellow.

Cut off only a small part of the grass height, but cut in frequent intervals.

The side ejector must not be used when you want to mow less than 2cm of the grass height in one pass.

Use the side ejector when you want to mow more than 2cm of the grass height in one pass.

In the case of higher grass use a lower pushing speed and mow to the desired height in several passes.

Try to mow in straight lines for a nice, clean look. The swaths should overlap each other by a few centimeters in order to avoid stripes. How frequently you should mow your lawn is determined primarily by the speed at which the grass grows. In the main growing season (May - June) you will probably need to mow the lawn twice a week, otherwise just once a week. The cutting height should be between 4 - 6 cm and the amount of growth before mowing again should be 4 - 5 cm. Normal grass which has grown to a height of up to 8cm can be mown to the desired height in one go without any problems. If the grass is allowed to grow somewhat longer for whatever reason, do not make the mistake of cutting it back to the normal height in one go. This will harm the lawn. For grass which has grown to over 10 cm in height we therefore recommend that you mow it with the highest cutting height setting fi rst. Important! The cutting height setting has an infl uence on the maximum area that can be mown. Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more diffi cult to start the mower; they decrease the quality of the cut and make it harder for the equipment to bag the grass. Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards. Select the cutting height according to the length of the grass. Make several passes so that no more than 4cm of grass are cut at one time. Switch off the motor, pull the safety plug (12) and remove the batteries (15) before doing any checks on the blade. Keep in mind that the bla- de continues to rotate for a few seconds after the motor has been switched off . Never attempt to manually stop the blade. Regularly check to see if the blade is securely attached, is in good condition and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch off the lawn mower and wait for the blade to come to a complete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged. Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suita- ble tools such as a brush or a hand broom.

7. Cleaning, maintenance and

ordering of spare parts Hazard! Pull out the safety plug and remove all the battery packs (15) before starting any cleaning work (Fig. 9/Item 12).

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure. Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 23 26.10.2021 14:04:25GB

Do not clean the lawn mower with running water, particularly with high-pressure water.

We recommend cleaning the equipment im- mediately each time after use.

Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be ag- gressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment.

For best results, clean the lawn mower with a brush or rag.

Worn out or damaged blades, blade mounts, and bolts should be replaced as a set by an authorized professional in order to keep the equipment in balance.

Ensure that all mounting components (i.e. screws, bolts, nuts etc.) are always tightened so that the equipment can be safely operated at all times.

Replace excessively worn or damaged parts immediately.

In order to ensure that you enjoy the equip- ment for many years to come, all screwed parts, as well as the wheels and axles, should be cleaned and lubricated.

Keeping your lawn mower in good condition not only ensures a long lifespan and high per- formance, but also enables the equipment to thoroughly cut your grass with minimal effort.

The blade is subjected to more wear and tear than any other component. Therefore, routinely check the condition of the blade and make sure that it is tightly fastened. If the blade is completely worn out, it must be im- mediately replaced or ground sharp again. An excessively vibrating mower means that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced.

There are no other parts inside the equipment which require maintenance.

7.3 Replacing the blade

For safety reasons, we recommend having the blade replaced by an authorized professional. Caution! Pull out the safety plug (12) and remove the battery packs (15)! Wear work gloves! Only replace the blade with a genuine Einhell replace- ment blade, as this will ensure top performance and safety under all conditions. Carry out the following steps to change the blade:

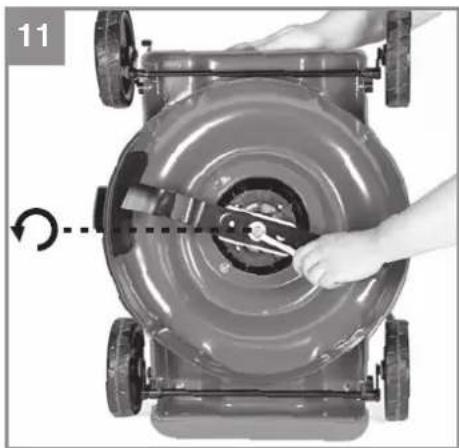

1. Undo the fastening screw (see Fig. 11).

2. Remove the blade and replace with a new

3. When fi tting the blade, make sure it is ins-

talled in the right direction. The blade‘s air va- nes must project into the motor compartment. The dome mounts must be aligned with the punch holes in the blade. .

4. Then retighten the fastening screw. The tigh-

tening torque should be approx. 25 Nm. At the end of the season, perform a general inspection of the lawn mower and remove any grass and dirt which may have accumulated. At the start of each season, ensure that you check the condition of the blade. If repairs are necessary, please contact our customer ser- vice center. Use only genuine spare parts.

7.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com Spare blade Art. No.: 34.054.56

8. Storage and transport

Storage Store the equipment and accessories out of children‘s reach in a dark and dry place at above freezing temperature. The ideal storage tempera- ture is between 5 and 30 °C. Store the machine in its original packaging. Transportation

Switch the machine off and pull out the safety plug before transporting it.

Protect the machine from damage and the strong vibrations that can occur particularly when transporting in vehicles.

Secure the machine against slipping and tipping over Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 24 26.10.2021 14:04:26GB

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces. Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 25 26.10.2021 14:04:26GB

Indicator status Explanations and actions Red LED Green LED Off Flashing Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger On Off Charging The charger is charging the battery pack in quick charge mode. The char- ging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. Off On The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply. Flashing Off Adapted charging The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been used for a very long time. - The battery temperature is outside the ideal range. Action: Wait for the charging to be completed; you can still continue to charge the battery pack. Flashing Flashing Fault Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger. On On Temperature fault The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0° C). Action: Remove the battery pack and keep it at room temperature (approx. 20° C) for one day . Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 26 26.10.2021 14:04:26GB

Fault Possible Cause Remedy Motor does not start a) Motor terminals disconnected b) Machine standing in high grass c) The mower housing is clogged d) Safety plug is not inserted e) Battery is not correctly inserted a) Have it checked by a customer ser- vice workshop b) Start motor on shorter grass or al- ready mowed area; change cutting height if necessary c) Clean housing so that the blade can run freely d) Insert the safety plug (see 6.) e) Remove the battery and reinsert (see 5.) Motor performance drops a) Grass too tall or damp b) The mower housing is clogged c) Blade badly worn d) Battery performance decreasing a) Correct the cutting height b) Clean the housing c) Replace the blade d) Check the battery performance and charge the battery if necessary (see 5.) Unclean cuts a) Blade worn b) Wrong cutting height a) Replace or resharpen the blade b) Correct the cutting depth Important! In order to secure the engine and the batteries, these are equipped with a thermal switch, which switches off when overloaded and automatically switches on again after a coo- ling phase! Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 27 26.10.2021 14:04:27GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes This consignment contains lithium-ion batteries. In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment packa- ge is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fi xed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany. Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 28 26.10.2021 14:04:27GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Battery Consumables* Blade Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 29 26.10.2021 14:04:27GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at:

www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is co- vered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GE_CM_36_48_Li_M-Solo_SPK13.indb 30 26.10.2021 14:04:27F

Annex VI Noise: measured L

= 92 dB (A); guaranteed L

Declaration of conformity Cordless lawn mower GE-CM 36/48 Li M (Einhell) Standards: BS 60335-1; BS 60335-2-77; BS 62233; BS 55014-1; BS 55014-2; BS 62321 Wirral, 2021.10.06 Archive-File/Record: NAPR024463 Article Number: 34.130.54 I.-No.: 21011 Documents registrar: Felix Hofner Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany We, Einhell UK Ltd Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom declare the conformity to UK standards and legislation was assessed for: Simple Pressure Vessels (Safety) Regulation

Electromagnetic Compatibility Regulation Electrical Equipment (Safety) Regulation Measuring Instruments Regulation Radio Equipment Regulation Pressure Equipment (Safety) Regulation Personal Protective Equipment Regulation The Ecodesign for Energy-Related Products and Energy Information Regulation

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation

Noise Emission in the Environment by Equipment for use Outdoors Regulation Noise: measured L

= 92 dB (A); guaranteed L
