USER MANUAL GCPM 46 S HWE EINHELL

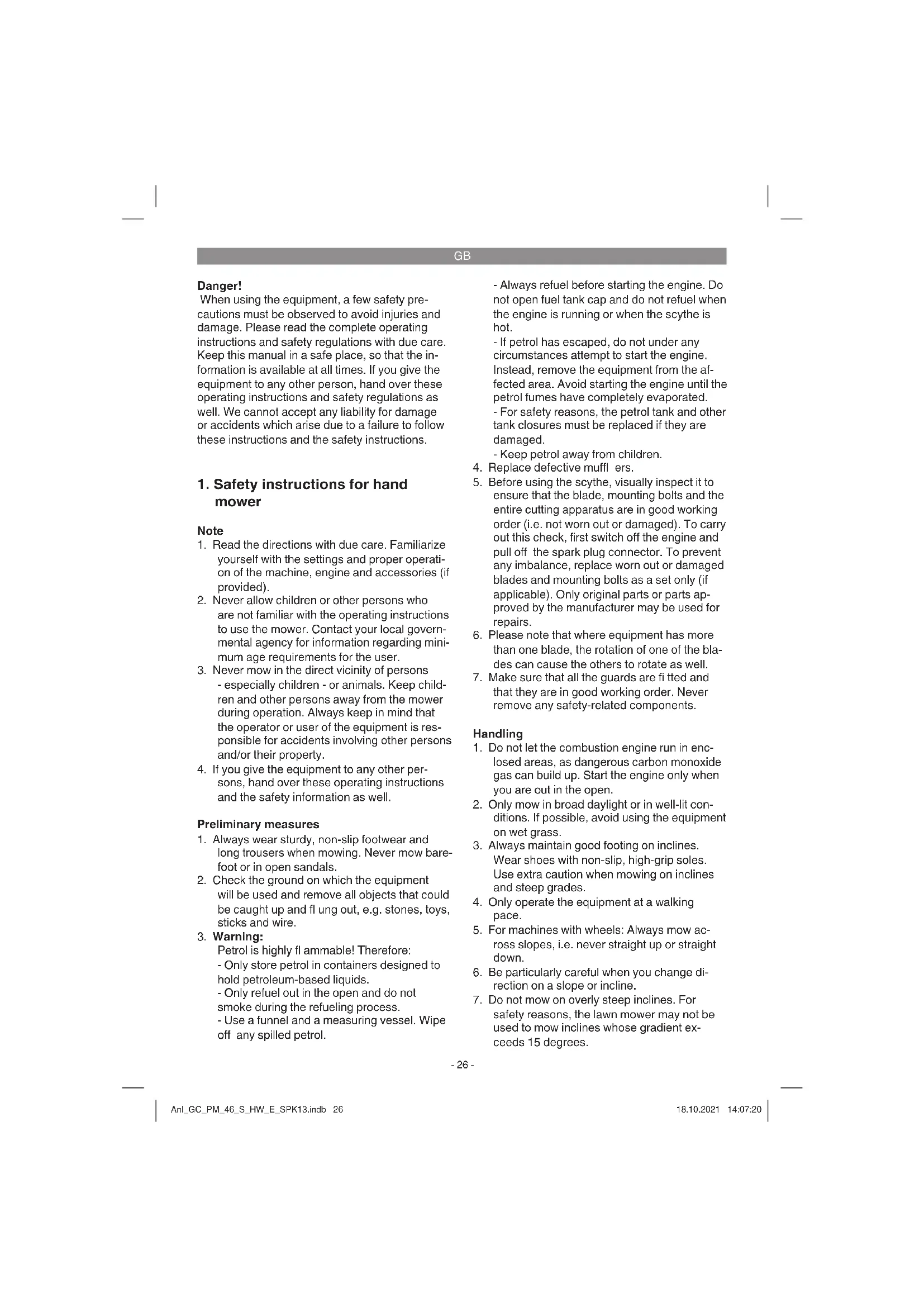

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety instructions for hand

1. Read the directions with due care. Familiarize

yourself with the settings and proper operati- on of the machine, engine and accessories (if provided).

2. Never allow children or other persons who

are not familiar with the operating instructions to use the mower. Contact your local govern- mental agency for information regarding mini- mum age requirements for the user.

3. Never mow in the direct vicinity of persons

- especially children - or animals. Keep child- ren and other persons away from the mower during operation. Always keep in mind that the operator or user of the equipment is res- ponsible for accidents involving other persons and/or their property.

4. If you give the equipment to any other per-

sons, hand over these operating instructions and the safety information as well. Preliminary measures

1. Always wear sturdy, non-slip footwear and

long trousers when mowing. Never mow bare- foot or in open sandals.

2. Check the ground on which the equipment

will be used and remove all objects that could be caught up and fl ung out, e.g. stones, toys, sticks and wire.

Petrol is highly fl ammable! Therefore: - Only store petrol in containers designed to hold petroleum-based liquids. - Only refuel out in the open and do not smoke during the refueling process. - Use a funnel and a measuring vessel. Wipe off any spilled petrol. - Always refuel before starting the engine. Do not open fuel tank cap and do not refuel when the engine is running or when the scythe is hot. - If petrol has escaped, do not under any circumstances attempt to start the engine. Instead, remove the equipment from the af- fected area. Avoid starting the engine until the petrol fumes have completely evaporated. - For safety reasons, the petrol tank and other tank closures must be replaced if they are damaged. - Keep petrol away from children.

ensure that the blade, mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged). To carry out this check, fi rst switch off the engine and pull off the spark plug connector. To prevent any imbalance, replace worn out or damaged blades and mounting bolts as a set only (if applicable). Only original parts or parts ap- proved by the manufacturer may be used for repairs.

6. Please note that where equipment has more

than one blade, the rotation of one of the bla- des can cause the others to rotate as well.

7. Make sure that all the guards are fi tted and

that they are in good working order. Never remove any safety-related components. Handling

1. Do not let the combustion engine run in enc-

losed areas, as dangerous carbon monoxide gas can build up. Start the engine only when you are out in the open.

2. Only mow in broad daylight or in well-lit con-

ditions. If possible, avoid using the equipment on wet grass.

3. Always maintain good footing on inclines.

Wear shoes with non-slip, high-grip soles. Use extra caution when mowing on inclines and steep grades.

4. Only operate the equipment at a walking

5. For machines with wheels: Always mow ac-

ross slopes, i.e. never straight up or straight down.

6. Be particularly careful when you change di-

rection on a slope or incline.

8. Use special caution when backing up and

pulling the lawn mower. Tripping hazard! Al- ways be extra careful when turning the mower around and when pulling it towards you.

9. Ensure that the blade has stopped rotating

whenever the mower has to be tilted, trans- ported over areas other than lawns, or moved from or to the area you want to mow.

10. Never use the lawn mower if the blade or

safety grilles are damaged, or without the attached guards, e.g. defl ectors and/or grass catching devices.

11. Do not adjust or overclock the engine speed

12. Release the engine brake, before you start

13. Start the engine with caution as described in

the manufacturer‘s instructions. Make sure that your feet are far enough away from the mower blade.

14. Do not tilt the lawn mower when you start

the engine unless the mower must be raised slightly in order to start it. In this case, tilt it as little as absolutely necessary and only raise the side opposite to that of the user.

15. Do not start the engine if you are positioned in

16. Never move your hands or feet toward or un-

der any rotating parts. Keep clear of the chute opening at all times.

17. Never lift or carry a lawn mower with the engi-

connector, and make sure that all moving parts have stopped completely: - Before you dislodge any blockages or clogs in the chute. - Before you carry out any checks, cleaning, maintenance or other work on the lawn mo- wer. - If you have struck a foreign object. Examine the mower for signs of damage and carry out any necessary repairs before restar- ting and continuing to work with the mower. If the lawn mower begins to experience excepti- onally strong vibrations, immediately switch it off and check it.

19. Switch off the engine and make sure that all

moving parts have stopped completely: - when you leave the lawn mower - before you refuel.

21. Operating the equipment at excessive speed

may increase the risk of accidents.

22. Carry out adjustment work on the equipment

with care and avoid jamming your fi ngers bet- ween the moving blades and rigid parts of the equipment.

23. Beware of hot parts. A hot engine, exhaust or

drive unit can burn the skin if touched. Do not touch.

24. Always ensure that a safe distance (pro-

vided by the length of the long handles) is maintained between the user and the mower housing.

25. Check the mower, the blade and other parts

if they have struck a foreign object or if the equipment vibrates more than usual.

26. It is prohibited to work when there is a risk of

bad weather or lightning.

27. Never use the lawnmower if you are tired, ill

or under the infl uence of drugs, alcohol or medication.

28. Be particularly carefully when mowing on the

banks of streams, ponds or similar.

29. Pay attention to ensure that you do not run

into or over anything that could damage the mower. The lawn mower could be damaged and/or the machine could infl ict bodily injury.

30. Look out for road traffi c if you are mowing

alongside or near a road. Always keep the grass chute pointed away from the street.

31. Avoid mowing in places where the wheels

have trouble gripping or mowing is unsafe in any other way. Before you move backwards, make sure there are no little children behind you.

32. When mowing thick high grass, select the

highest cutting level and mow at a slower speed. Maintenance and storage

1. Make sure that all nuts, bolts and screws are

tightened securely and that the equipment is in a safe working condition. Tighten all screws which were slackened.

2. Never store the mower (with petrol in the

tank) inside a building in which petrol fumes could come into contact with open fl ames or sparks. Petrol fumes can lead to explosions.

3. Allow the engine to cool before you put the

lawn mower in an enclosed area.

4. In order to avoid fi re hazards, keep the engi-

ne, exhaust and the area around the fuel tank free from grass, leaves and leaking grease (oil). Anl_GC_PM_46_S_HW_E_SPK13.indb 27Anl_GC_PM_46_S_HW_E_SPK13.indb 27 18.10.2021 14:07:2118.10.2021 14:07:21GB

5. Routinely check the grass basket for signs of

wear and impaired functionality.

6. For your own safety, replace worn or dama-

ged parts without delay.

7. Disconnect the spark plug connector to pre-

vent unauthorized use.

8. Remove grass, foliage, grease and oil before

storing the mower. Do not place any objects on top of the mower.

9. If you are not intending to use the mower for

an extended period of time, empty the petrol tank with a petrol extraction pump (available from your DIY store) out in the open.

10. Tell children not to use the mower. It is not a

1.1 Safety information for the charger

Wear safety goggles and gloves when char- ging the battery. The caustic acid presents a high risk of injury.

Do not wear any items of clothing made of synthetic materials so as to avoid spark formation caused by electrostatic discharge when charging the battery.

CAUTION! Explosive gases – avoid flames and sparks

The charger contains components such as the switch and fuse which may generate arcs and sparks. It is essential to ensure that there is good ventilation in the garage or room.

The charger is suitable for maintenance-free 12V batteries only.

Do not charge any “non-rechargeable batte- ries” or defective batteries.

Refer to the instructions supplied by the bat- tery manufacturer.

Disconnect the equipment from the mains supply before you connect or disconnect the battery.

Important. Avoid flames and sparks.

Explosive gas is released during the charging process.

Store the equipment in a dry indoor location only.

Caution! Battery acid is aggressive.

Should any acid splash onto hands or clothing, wash off immediately with soap so- lution. Should any acid splash into your eyes, wash it out immediately with water (for 15 minutes) and seek the advice of a doctor.

Do not charge any non-rechargeable batte- ries.

Refer to the information and instructions pro- vided by the battery manufacturer relating to charging the battery.

Do not charge more than one battery at any one time.

The mains connection lead and the charging cables must be in perfect condition.

Keep children away from the battery and charger.

Important. If you smell an acrid odor of gas, this indicates that there is an acute danger of explosion. Do not switch off the equipment. Do not disconnect the battery from the power supply! Ventilate the room immediately. Have the battery checked by customer service staff.

Do not use the cable for purposes other than that for which it is designed.

Do not carry the charger by its cable and do not use the cable to pull the plug out of the socket. Protect the cable from heat, oil and sharp edges.

Check the equipment for damage.

Unless otherwise stated in the operating inst- ructions, defective or damaged parts must be repaired or replaced by a customer service workshop.

Only ever use the supply voltage specified.

Keep the connectors clean and protect them from corrosion.

Disconnect the equipment from the mains supply before starting any cleaning or mainte- nance work.

Wear acid-resistant gloves and safety gogg- les when connecting and charging the battery.

Important. Do not exceed the charging time. After the end of the charging time pull the plug out of the socket and disconnect the charger from the battery.

1.2 Safety precautions for batteries

1. Make sure at all times that the batteries are

fi tted with the + and – terminals on the bat- teries correctly positioned as shown on the battery.

2. Do not short-circuit the batteries.

3. Do not recharge non-rechargeable batteries.

4. Do not over-discharge the battery.

5. Do not heat batteries.

6. Do not do any welding or soldering directly on

7. Do not disassemble batteries.

8. Do not deform batteries.

9. Do not throw batteries into a fi re.

10. Keep batteries out of the reach of children.

11. Do not allow children to change batteries wit-

12. Do not store batteries near fi re, stoves or

other sources of heat. Do not expose the bat- tery to direct sunlight. Do not use or store it in vehicles in hot weather.

13. Keep unused batteries away from metallic

objects. This could cause the battery to short- circuit and may therefore cause damage to the battery, burns and even the risk of fi re.

14. Take the batteries out of the equipment if the

equipment is not going to be used for some time.

15. NEVER touch batteries which have leaked

unless you have taken suitable precautions for protection. If the fl uid which has leaked should come into contact with your skin, rinse down the aff ected area of skin immediately with running water. Make sure in any event that your eyes and mouth do not come into contact with the fl uid. If this should happen, consult a doctor immediately.

16. Clean the contacts on both the batteries and

the equipment before inserting the batteries. This equipment can be used by children of 8 ye- ars and older and by people with limited physical, sensory or mental capacities or those with no ex- perience and knowledge if they are supervised or have received instruction in how to use the equip- ment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work. Waste disposal Batteries: Only dispose of these items through motor vehicle workshops, special collection points or special waste collection points. Ask your local council. Warning! Before you ever tilt the lawn mower, you must remove the battery fi rst. Battery acid may leak out. Residual risks: Even if you use the equipment in accordance with the instructions, certain residual risks cannot be eliminated. The following hazards may arise in connection with the equipment‘s construction and layout:

2. Health damage caused by hand-arm vibra-

tions if the equipment is used over a longer period or is not properly guided and maintai- ned. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Explanation of the warning signs on the equipment (see Fig. 21)

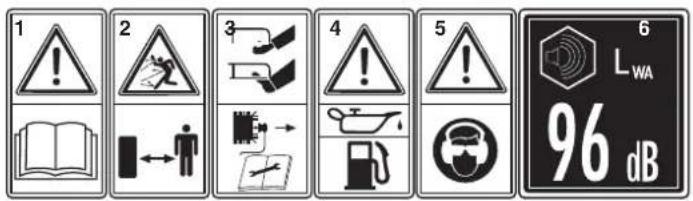

1) Read the operating instructions.

2) Take care of the danger from catapulted

parts. Keep a safe distance.

3) Danger! Sharp blades - Switch off the engine

and pull the spark plug boot before doing any maintenance, repair, cleaning or adjustment work.

4) Fill with oil and fuel before starting the mower.

5) Caution: Wear ear protection and safety gog

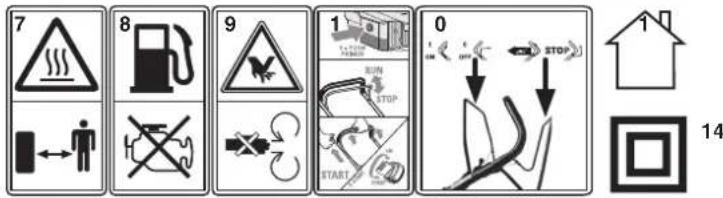

7) Caution! Hot parts. Keep your distance.

8) Fill in fuel only when the engine is switched

9) Risk of cut injuries. Caution: rotating cutters.

13) For use in dry rooms only

2. Layout and items supplied

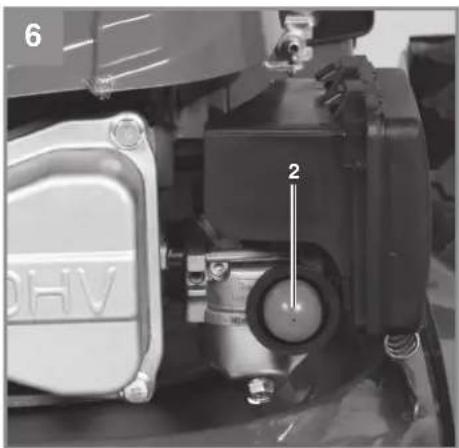

2. Fuel pump (primer)

Please check that the article is complete as spe- cifi ed in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Important The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Maintenance booklet for petrol lawn mower

Safety information on the battery

Original operating instructions

The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. The petrol lawn mower is intended for private use i.e. for use in home and gardening environments. Private use of the lawn mower refers an annual operating time generally not exceeding that of 50 hours, during which time the machine is pri- marily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applica- tions are excluded. The charger is designed for charging mainte- nance-free 12V starter batteries. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or indust- rial businesses or for equivalent purposes. The operating instructions as supplied by the ma- nufacturer must be kept and referred to in order to ensure that the lawn mower is properly used and maintained. The instructions contain valuable information on operating, maintenance and servi- cing conditions. Important. Due to the high risk of bodily injury to the user, the petrol lawn mower must not be used to carry out the following work: Trim bushes, hedges or shrubs, to cut scaling vegetation, plan- ted roofs, or balcony-grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings. Moreover, the lawn mo- wer may not be used as a power cultivator to level out high areas such as molehills. For safety reasons, the lawn mower may not be used as a drive unit for other work tools or toolkits of any kind. Anl_GC_PM_46_S_HW_E_SPK13.indb 30Anl_GC_PM_46_S_HW_E_SPK13.indb 30 18.10.2021 14:07:2118.10.2021 14:07:21GB

Long work periods should be avoided due to the development of high noise and vibration levels. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

5. Before starting the equipment

5.1 Assembling the components

Some parts of the mower come disassembled. For quick and easy assembly, read and follow the instructions below. Important. You will need the following additional tools (not supplied) for assembly, and also for maintenance work:

A flat oil drip tray (for changing the oil)

A 1 liter measuring jug (oil/petrol resistant)

A funnel (suitable for the tank’s petrol filler neck)

Household wipes (to wipe up oil/petrol resi- due; dispose of these at a filling station)

A petrol suction pump (plastic, available from DIY stores)

An oil can with hand pump (available from DIY stores)

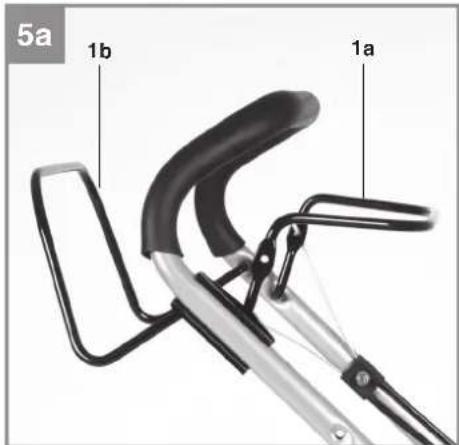

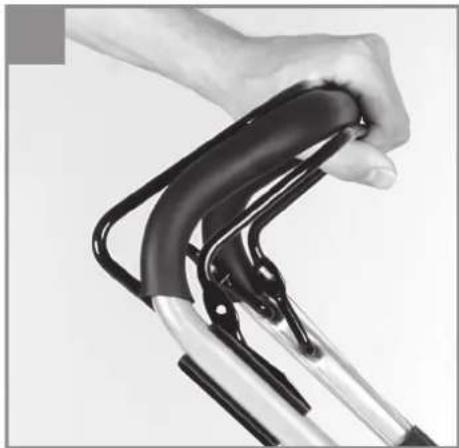

1. Fit the lower and upper push bar (Item. 3) as

shown in Fig. 3a-3b. For fastening choose one of the holes to suit the required height of the push bar. Important! The identical height must be set on both sides.

2. Insert the grip of the starter cord (Item 9a) into

the hook provided for that purpose as shown in Figure 3c.

3. Fasten the cords to the push bar with the sup-

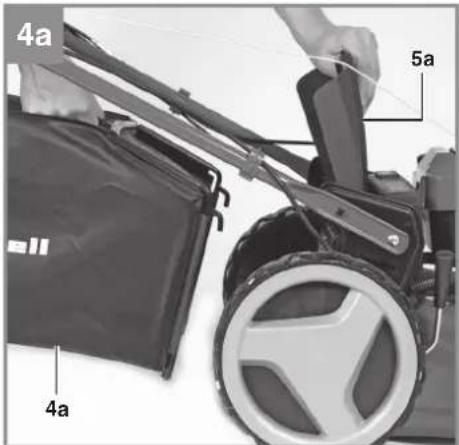

and hook in the grass bag (Item 4a) as shown in Figure 4a.. Important. Whenever you do any work on the battery and when you dispose of the battery, you must observe the safety regulations of the manu- facturer. Warning! The person entrusted with inserting the battery should remove all metal armbands, wrist- watches, rings and similar before starting to insert the battery. There is a risk of burns if any of these objects should come into contact with the battery poles or current-conducting cables. Warning! Check the insulation on the cables and plugs each time before use. If there are any defects in the insulation, the equipment must not be used. Anl_GC_PM_46_S_HW_E_SPK13.indb 31Anl_GC_PM_46_S_HW_E_SPK13.indb 31 18.10.2021 14:07:2218.10.2021 14:07:22GB

Warning! Have repairs carried out only by an au- thorized workshop or by the manufacturer.

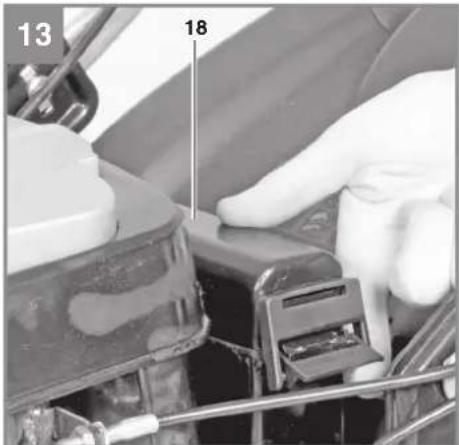

5.2 Inserting and removing the battery

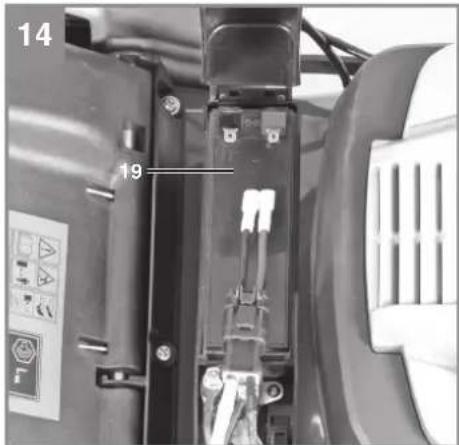

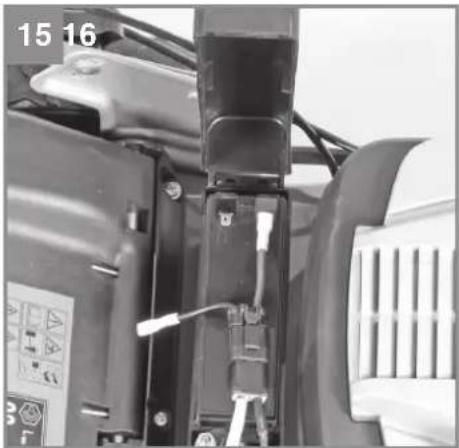

(Fig. 13-16) Important. Use the mower only with a mainte- nance-free 12V battery. Open the battery cover (Fig. 13/Item 18). Place the battery (Item 19) on the base (Fig. 14). First connect the red cable (+) and then the black cable (-) (Fig. 15). Connect the battery plug (Fig. 16/Item 17) to the electrical system plug on the mower (Fig. 16/Item 16). Remove it in reverse order. Important. Do not disconnect the battery from the electrical system during operation as this may destroy the charge electronics.

5.4 Charging the battery with the charger

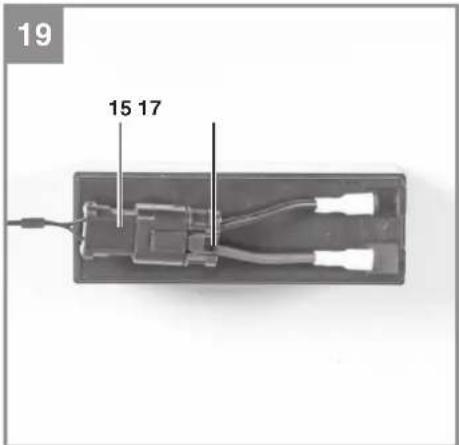

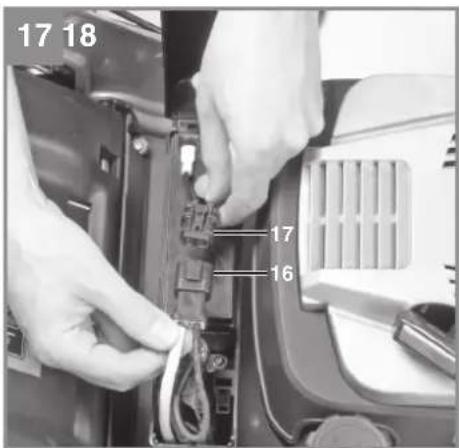

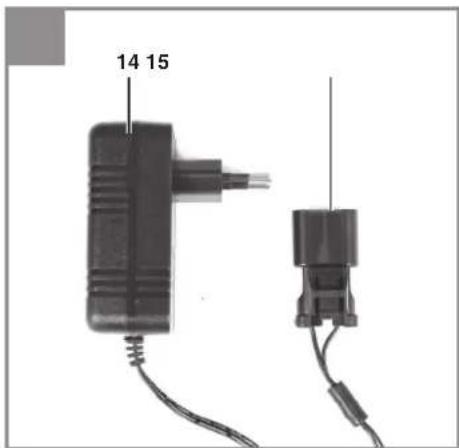

(Fig. 17-19) If the battery has lost its charge, it can be charged up with the charger (supplied) via the household mains system. Disconnect the battery by pulling the battery plug (Item 17) from the electrical sys- tem plug (Item 16). When you charge the battery, refer to the safety regulations supplied by the battery manufacturer. After the battery has been connected to the char- ger by connecting the battery plug (Item 17) and the charging plug (Item 15) to the charger, you can connect the charger to a socket supplying 230V~50Hz. Do not connect it to a socket that supplies any other mains voltage. The red lamp on the charger will indicate that the battery pack is being charged. After 8-9 hours the battery will be fully charged. This will be indicated by the green lamp on the charger. When charging is completed (the green lamp shi- nes), disconnect the charger from the mains pow- er supply. Connect the battery plug to the mower’s electrical system plug and fi t the battery cover. Important. Charging may create dangerous ex- plosive gas and therefore you should avoid spark formation and naked fl ames whilst the battery is charging. Calculating the charging time: The charging time depends on the charge status of the battery. If the battery is fully discharged, the approximate charging time can be calculated using the following formula: Charging time/h = Battery capacity in Ah/Amp. (arithmetic charging current) Example = 4 Ah/0.4 A = 10 h max. A high initial current, approximately equal to the rated current will fl ow in a normally discharged battery. As the charging time increases, the char- ging current will fall.

5.4 Setting the cutting height

Important. Adjust the cutting height only when the engine is switched off and the plug boot has been pulled.

Before you begin to mow, check to ensure that the blade is not blunt and that none of the fasteners are damaged. To prevent any imba- lance, replace blunt and/or damaged blades as a set only (if applicable). To carry out this check, first switch off the engine and pull the spark plug boot.

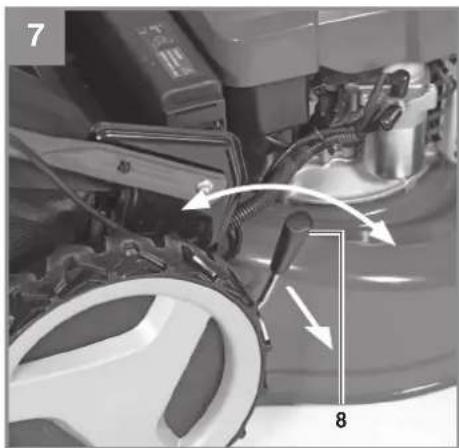

The cutting height is centrally adjusted with the cutting height adjustor lever (Fig. 7/Item 8). Different cutting heights can be selected.

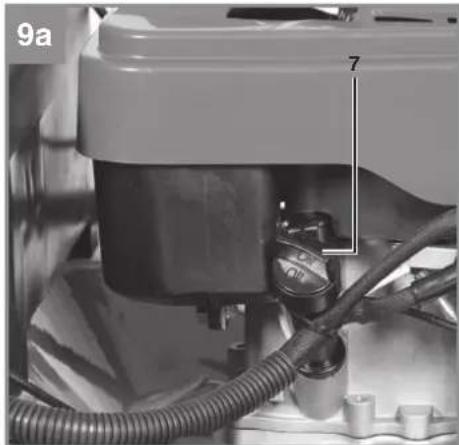

Important. The engine is supplied without oil and petrol. Therefore, be sure to add oil and petrol befo- re starting the engine. The battery is not connected when you take deli- very of the machine. Please connect the battery as described in section 5.2 before you use the machine for the fi rst time. If the machine has not been used for some time, charge the battery fully (section 5.5) before using it again.

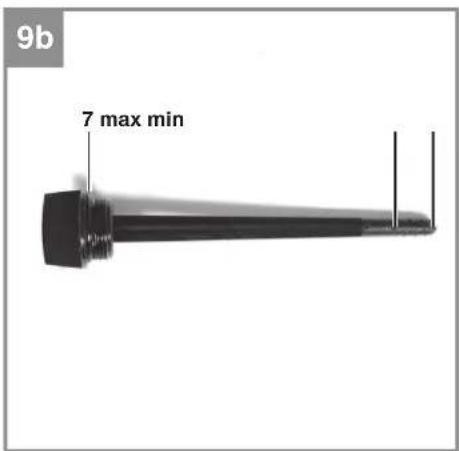

1. Check the oil level (see 7.2.3).

2. Use a funnel and measuring jug to fi ll the tank

with petrol. Make sure that the petrol is clean.

Warning: Never use more than one safety petrol

can. Do not smoke when refueling. Switch off the engine before refueling and allow the engine to cool down for a few minutes.

3. Ensure that the ignition cable is connected to

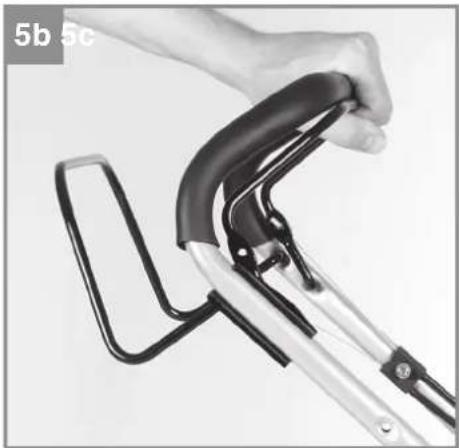

the spark plug. Carrying out a safety test on the engine start/ stop lever The lawn mower comes equipped with an engi- ne start/stop lever (Fig. 5a/Item 1a) in order to prevent it from starting up unintentionally and to ensure that the engine and blade stop quickly in case of danger. The lever must be actuated (Fig. 5b) before the lawn mower is started. When the engine start/stop lever is released, it must return to its initial position (Fig. 5a). Before you start mowing, you should run through this process several times in order to ensure that the lever and actuator cables are working pro- perly. Repeat the test several times after the engine has started up. When the engine start/stop lever is released, the engine must stop within a few se- conds. If not, contact Customer Service.

Danger: The blade begins to rotate as soon as

the engine is started.

6.1 Starting the engine

6.1.1 Starting up with the electric starter

1. Ensure that the ignition cable is connected to

2. Press the fuel pump (primer) (Fig. 6/Item 2)

three times. You can skip this point if the engi- ne has already warmed up.

3. Stand behind the lawn mower. Actuate the

engine start/stop lever (Fig. 5b) with one hand. The other hand must be on the ignition lock.

4. Start the engine by turning the ignition key

in the ignition lock (Fig. 1/Item 22). Once the engine has started, turn the ignition key im- mediately back to its initial position. If you ac- tuate the ignition key again while the engine is running, you will damage the starting system. Important! In cold weather, it may be neces- sary to repeat the starting process several times.

6.1.2 Starting up with the reversing starter

1. Ensure that the ignition cable is connected to

2. Press the fuel pump (primer) (Fig. 6/Item 2)

three times. You can skip this point if the engi- ne has already warmed up.

3. Stand behind the lawn mower. Actuate the

engine start/stop lever (Fig. 5b) with one hand. The other hand must be on the starter handle.

4. Start the engine using the reversing starter

(Fig. 1/Item 9a). To do this, pull out the handle by approx. 10-15 cm (until you feel a resis- tance) and then start the engine with a sharp tug. If the engine does not start, tug the hand- le again. Important! Never allow the actuator cable to snap back. Important! In cold weather, it may be neces- sary to repeat the starting process several times. Drive unit Drive lever/clutch lever (Fig. 5a/Item 1b): If you press this (Fig. 5c) the clutch for the drive will be closed and the lawnmower will start to move with the engine running. Release the drive lever in good time to stop the moving lawnmower. Practice starting and stopping before you use the mower for the fi rst time until you are familiar with controlling the mower. Anl_GC_PM_46_S_HW_E_SPK13.indb 33Anl_GC_PM_46_S_HW_E_SPK13.indb 33 18.10.2021 14:07:2218.10.2021 14:07:22GB

6.2 Tips on mowing properly

Danger! Never open the chute fl ap when the grass bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injuries! Always carefully fasten the chute fl ap and debris bag. Switch off the engine before you remove them. Whenever you need to perform any kind of adjustment, maintenance or repair work, switch off the engine and wait until the blade no longer rotates. Pull off the spark plug con- nector.

1. Make sure that you are properly dressed

when mowing. Wear sturdy footwear; do not wear sandals or tennis shoes.

2. Inspect the blade. Blades, that are bent or

otherwise damaged, must be exchanged for a genuine Einhell replacement blade.

3. Do not fi ll the fuel tank indoors, but rather out

in the open. Use a funnel and a measuring vessel. Wipe off any spilled petrol.

4. Read and follow in the instructions in the

operating manual as well as the information regarding the engine and accessory equip- ment. Store the manual in a place where it can be readily accessed by other users of the equipment.

5. Exhaust gas is dangerous. Only start the en-

gine out in the open.

6. Make sure that all the guards are fi tted and

that they are in good working order.

7. The equipment should only be operated by

persons who are well informed with the way it works and who are in reasonably good physi- cal condition.

8. Mowing wet grass can be dangerous. Mow

the grass when it is as dry as possible.

9. Tell other persons and children to stay away

10. Never mow in conditions of poor visibility.

11. Pick up any loose objects and debris on the

lawn prior to mowing.

6.4 Tips on mowing properly

Important. Never open the chute fl ap when the grass bag has been detached to be emp- tied and the motor is still running. The rota- ting blade can cause serious injuries! Always carefully fasten the chute fl ap and grass basket. Switch off the engine before emptying the grass basket. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines. Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow along the incline (not up and down). For safety reasons, the lawn mower may not be used to mow inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the lawn mower. Tripping hazard!

Only use a sharp blade that is in good condition. This will prevent the grass blades from fraying and the lawn from turning yellow. Try to mow in straight lines for a nice, clean look. The swaths should overlap each other by a few centimeters in order to avoid stripes. Keep the underside of the mower housing clean and remove grass build-up. Deposits not only make it more diffi cult to start the mower; they decrease the quality of the cut and make it harder for the equipment to bag the grass. Always mow along inclines (not up and down). You can prevent the lawn mower from slipping down by holding a position at an angle upwards. Select the cutting height according to the length of the grass. If necessary, mow a number of times so that you never cut more than 4cm of grass in one go. Switch off the engine before doing any checks on the blade. Keep in mind that the blade continues to rotate for a few seconds after the engine has been switched off . Never attempt to manually stop the blade. Regularly check to see if the blade is securely attached, is in good condition Anl_GC_PM_46_S_HW_E_SPK13.indb 34Anl_GC_PM_46_S_HW_E_SPK13.indb 34 18.10.2021 14:07:2218.10.2021 14:07:22GB

and is sharp. If the contrary is the case, sharpen the blade or replace it. In the event that the blade strikes an object, immediately switch off the lawn mower and wait for the blade to come to a com- plete stop. Then inspect the condition of the blade and the blade mount. Replace any parts that are damaged. Tips for proper mowing:

1. Pay attention to ensure that you do not run

into or over anything that could damage the mower. The lawn mower could be damaged and/or the machine could infl ict bodily injury.

2. A hot engine, exhaust or drive unit can burn

the skin if touched. Do not touch these parts.

4. Insuffi cient daylight or an insuffi cient level of

artifi cial light is one reason not to mow.

5. Check the mower, the blade and other parts

if they have struck a foreign object or if the equipment vibrates more than usual.

6. Do not make any adjustments or repairs until

the engine has been switched off . Pull the plug boot.

7. Pay special attention if you are mowing direct-

ly next to a street or are close by one (traffi c). Always keep the grass chute pointed away from the street.

8. Avoid mowing in places where the wheels

have trouble gripping or mowing is unsafe in any other way. Before you back up, ensure that nobody is standing behind you (espe- cially little children, who are more diffi cult to see).

9. When mowing over thick, high grass, select

the highest cutting level and mow at a slower speed. Before you remove any grass or blo- ckages of any kind, switch off the engine and pull the plug boot.

10. Never remove any safety-related parts.

11. Never fi ll the engine with petrol when it is hot

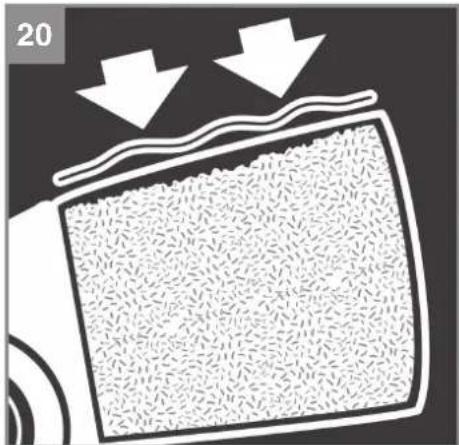

When the debris bag is full, the air throughput will be low and the level indicator (4b) will be up close against the debris bag (Fig. 21). Empty the debris bag and clear out the ejector chute. Danger! Before taking off the debris bag, switch off the engine and wait until the blade has come to a stop. To take off the grass basket, use one hand to lift up the chute fl ap and the other to grab onto the basket carry-handle. Remove the basket (Fig. 4a). For safety reasons, the chute fl ap automatically falls down after removing the grass basket and closes off the rear chute opening. If any grass remains in the opening, it will be easier to restart the engine if you pull the mower back approxi- mately 1m. Do not use your hands or feet to remove clippings in or on the mower housing, but instead use suita- ble tools such as a brush or a hand broom. In order to ensure that the majority of grass clip- pings are picked up, the inside of both the grass bag and especially the air grill must be cleaned after each use. Reattach the grass bag only when the engine is switched off and the blade is stopped. Using one hand, lift up the chute fl ap, while grab- bing onto the basket handle with the other. Hang in the basket from the top.

1. Allow the engine to cool before you put the

lawn mower in an enclosed area.

2. Remove grass, foliage, grease and oil before

storing the mower. Do not place any objects on top of the mower.

3. Before using the mower again, retighten all

nuts and screws. Tighten all screws which were slackened.

4. Also be sure to empty the grass basket.

5. Disconnect the spark plug boot to prevent

6. Ensure that you do not park the mower next

to any source of danger. Petrol fumes can lead to explosions.

7. Only original parts or parts approved by the

manufacturer may be used for repairs (see address on the warranty certifi cate).

8. Empty the petrol tank with a petrol extraction

pump if you are not intending to use the mo- wer for an extended period of time.

9. Tell your children not to use the mower. It is

10. Never place petrol near an ignition source.

Always use a can that is approved to store petrol. Keep petrol away from children.

11. Oil and maintain the equipment.

12. How to switch off the engine:

ne is release the engine start/stop lever (Fig. 5a/Item 1a). Pull the ignition cable from the spark plug boot in order to prevent the engine from restarting. Before you start the engine again, check the cord for the engine brake. Check that the cord is correctly fi tted. If the cord is kinked or damaged, it should be replaced.

7. Cleaning, maintenance, storage,

transport and ordering of spare parts Important: Never work on or touch any current-conducting parts of the ignition system while the engine is running. Pull the spark plug boot from the spark boot before doing any maintenance or assembly work. Never carry out any work on the equipment while the engine is running. Work that is not de- scribed in these operating instructions, should only be carried out by authorized workshops.

The lawn mower should be cleaned thoroughly every time after it has been used. This applies in particular to its underside and the blade mount. Tilt the lawn mower to the rear by pressing down the push bar. Note: Do not tilt the lawn mower by more than 90 degrees. It is easiest to remove dirt and grass immediately after mowing. Dried grass remnants and dirt may impair the mowing operation. Check if the grass ejector chute is free of grass remnants and remove any if necessary. Never clean the mo- wer using a water jet or a high-pressure cleaner. Ensure that no water can get into the interior of the equipment. Do not use aggressive cleaning agents such as cold cleaners or petroleum ether.

Please refer to the supplied petrol service manual for information on the maintenance intervals. Important: Dispose of soiled maintenance mate- rial and media at the appropriate collection point

7.2.1 Axles and wheel hubs

A thin coating of grease should be applied to the axles and wheel hubs once per season. To do so, remove the wheel caps with a screwdri- ver and loosen the fastening screws on the wheels.

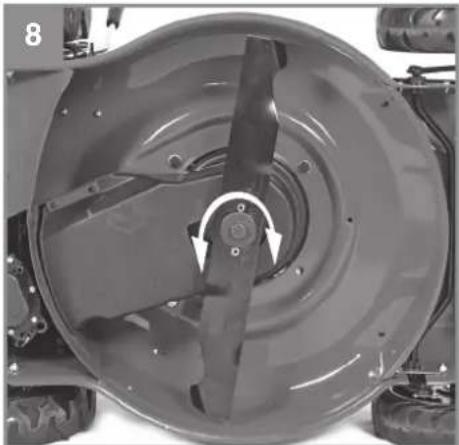

For safety reasons, have all blade sharpening, balancing and mounting work carried out by an authorized service center. To achieve optimal re- sults, we recommend to have the blades checked once a year. Changing the blades (Fig. 8) When changing the cutting unit, be sure to use only genuine replacement parts. The identifi cation mark on the blade must correspond with the num- ber specifi ed in the spare parts list. Never install a blade from a diff erent manufactu- rer. Damaged blades If, in spite of all caution, the blade comes into contact with an obstacle, switch off the engine immediately and pull the spark plug boot. Tilt the mower to the side and check the blade for damage. Damaged or bent blades must be replaced. Never straighten a bent blade. Never work with bent or heavily worn blades as this will result in vibrations, causing further damage to the mower. Important: Risk of injury when working with a da- maged blade. Resharpening the blade The blade edges can be resharpened with a metal fi le. To avoid imbalance, the blade reshar- pening work should only be carried out by an authorized service center.

7.2.3 Oil level check

Important: Never run the engine with no or too little oil. This can cause serious damage to the engine. Checking the oil level Place the lawn mower on a level and straight sur- face. Unscrew the oil dipstick (Fig. 9a/Item 7) by turning it counter-clockwise and wipe the dipstick. Re-insert the dipstick into the fi ller opening as far as it will go but do not screw it in. Pull out the dip- stick, hold it horizontally and read off the oil level. The oil level must be between the two marks min. and max. on the oil dipstick (Fig. 9b). Anl_GC_PM_46_S_HW_E_SPK13.indb 36Anl_GC_PM_46_S_HW_E_SPK13.indb 36 18.10.2021 14:07:2318.10.2021 14:07:23GB

Change the oil The engine oil is best changed at room tempe- rature.

1. Make sure that the debris bag has been re-

2. Empty the petrol tank with a petrol suction

pump and run the engine until the remaining fuel is fully consumed.

3. Place an oil drip tray alongside the mower.

5. The hot oil will fl ow through the open oil fi ller

opening into the oil drip tray.

6. After the old oil has drained out, set the mo-

7. Fill in engine oil up to the top mark on the oil

8. Important! Do not screw in the oil dipstick to

check the oil level – only insert it as far as the thread.

9. Dispose of the used oil in accordance with

applicable regulations.

7.2.4 Care and adjustment of the cable pulls

Oil the cable pulls at regular intervals and check that they move easily.

7.2.5 Maintenance of the air fi lter (Fig. 10)

Soiled air fi lters reduce the engine output by sup- ply too little air to the carburetor. If the air contains a lot of dust, the air fi lter should be checked more frequently. Important: Never clean the air fi lter with petrol or infl ammable solvents. Clean the air fi lter only with compressed air or by tapping it.

7.2.6 Maintenance of the spark plug

Clean the spark plug with a copper wire brush.

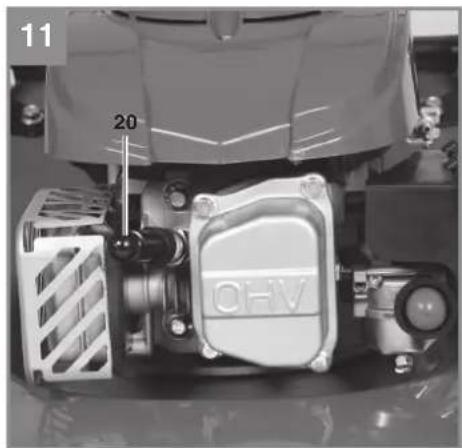

Pull off the spark plug boot (Fig. 11/Item 20) with a twist.

Remove the spark plug using a spark plug wrench.

Assemble in reverse order.

7.2.7 Inspecting the V-belt

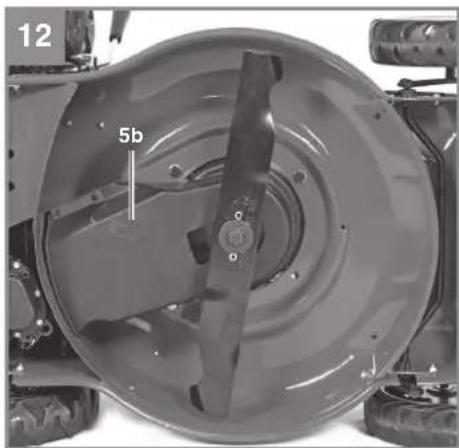

To inspect the V-belt, remove the V-belt cover (Fig. 12/Item 5b) as shown in Figure 12.

After carrying out repair or maintenance work, ensure that all safety parts are installed and in perfect condition. Store potentially hazardous parts out of the reach of other persons and children. Important: In accordance with the German Product Liability Act, we are not liable for any damages if they result from improper repairs to the product or if parts are replaced by items other than genuine parts or parts approved by us. Furthermore, we are not liable for any damages if they result from improper repairs to the product. Arrange for your customer service or an autho- rized workshop to do the work. The same applies to accessory parts.

7.2.9 Operating times

Please observe the regulations concerning lawn mower operating times, which may diff er from town to town.

7.2.10 Maintenance and care of the battery

Ensure that your battery is always fitted secu- rely.

A perfect connection to the cable network of the electrical system must be ensured at all times.

Keep the battery clean and dry.

7.3 Preparing the mower for long-term sto-

Warning: Do not empty the petrol tank in enc-

losed areas, near fi re or when smoking. Petrol fumes can cause explosions and fi re.

1. Drain the petrol tank using a petrol extraction

2. Start the engine and run it until the tank and

fuel line are completely empty and the engine stalls.

3. Change the oil after each season. To do so,

remove the used engine oil when the engine is warm and refi ll new oil.

4. Remove the spark plug from the cylinder

head. Use an oil can to fi ll the cylinder with approx. 20 ml of oil. Slowly pull back the star- ter handle, which will bathe the cylinder wall with oil. Screw the spark plug back in.

5. Clean the cooling fi ns of the cylinder and the

6. Be sure to clean the entire equipment to pro-

7. Store the equipment in a well-ventilated place

8. Remove the battery if you intend to put the

lawn mower into storage for any longer than 3 months. Please read the safety information on the batte- ries (point 3) for information concerning the sto- rage of the battery.

7.4 Preparing the mower for transport

1. Empty the petrol tank (refer to point 7.3/1)

2. Always let the engine run until it has used up

the remainder of petrol in the tank.

3. Empty the engine oil from the warm engine.

4. Remove the spark plug boot from the spark

5. Clean the cooling fi ns of the cylinder and the

6. Unhook the starter cable from the hook (Fig.

3c). Slacken the star nuts and fold down the upper push bar. Make sure that the cables do not get kinked when the bar is pulled up.

7. Wedge a few layers of corrugated cardboard

between the upper and lower push bars and the engine in order to prevent any chafi ng.

7.5 Consumables, wear materials and spare

parts Spare parts, consumables and wear materials such as engine oil, V-belts, spark plugs, air fi lter inserts, petrol fi lters, batteries and blades are not covered by the warranty.

7.6 Ordering replacement parts

Please provide the following information on all orders for spare parts:

Model/type of the equipment

Article number of the equipment

ID number of the equipment

Part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be dispo- sed of as special waste. Ask your dealer or your local council. For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old elec- tric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other me- ans, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes Anl_GC_PM_46_S_HW_E_SPK13.indb 38Anl_GC_PM_46_S_HW_E_SPK13.indb 38 18.10.2021 14:07:2318.10.2021 14:07:23GB

Warning: Switch off the engine and pull out the spark plug boot before making any checks or adjust-

Warning: If, after making an adjustment or repair to the engine, you let it run for a few minutes, remem-

ber that the exhaust and other parts will get hot. Do not touch these parts as they may burn you. Fault Possible cause Remedy The equipment does not operate smoothly and vibra- tes intensively - Bolts loose - Blade attachment is loose - Blade imbalanced - Check bolts - Check blade attachment - Replace blade The engine does not start - Engine start/stop lever is not pressed - Spark plug defective - Fuel tank empty - Press the engine start/stop lever - Replace spark plug - Top up fuel Engine does not run smoothly - Air fi lter dirty - Spark plug dirty - Clean the air fi lter - Clean the spark plug Lawn turns yellow, uneven cut - Blade is not sharp - Cutting height too small - Sharpen blade - Adjust to the proper height Grass chute is not clean - Cutting height too small - Blade is worn - Grass bag is clogged - Set properly - Replace the blade - Empty the grass bag The battery does not charge up - Poor plug contact to the battery - Battery defective - Clean the contacts - Have the battery checked by an expert and replace it if necessary Starter does not turn - Battery discharged - Battery not connected - No plug-in connections - Charge the battery - Connect the battery - Check the plug-in connections Anl_GC_PM_46_S_HW_E_SPK13.indb 39Anl_GC_PM_46_S_HW_E_SPK13.indb 39 18.10.2021 14:07:2418.10.2021 14:07:24GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Air fi lter, Bowden cables, grass basket, tires, drive clutch Consumables* Blades Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_GC_PM_46_S_HW_E_SPK13.indb 40Anl_GC_PM_46_S_HW_E_SPK13.indb 40 18.10.2021 14:07:2418.10.2021 14:07:24GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at:

www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is co- vered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GC_PM_46_S_HW_E_SPK13.indb 41Anl_GC_PM_46_S_HW_E_SPK13.indb 41 18.10.2021 14:07:2418.10.2021 14:07:24F

Corta-relvas a gasolina

1.1 Laaduri ohutusjuhised

Annex VI Noise: measured L

= 94,36 dB (A); guaranteed L
