USER MANUAL HHEM300WT NEDIS

Cordless Floor Cleaner

with self-cleaning function

HHEM300WT

Quick start guide 5

Kurzanleitung 8

Cordless Floor Cleaner

HHEM300WT

For more information see the extended manual online:ned.is/hhem300wt

Intended use

This product is intended to clean dust and liquids off waterproof hard floors such as. PVC, linoleum, tiles and waxed parquet.

This product is not intended to clean water-sensitive floors such as untreated cork floors.

The product is intended for indoor use only.

This product is not intended for professional use.

The product is intended for use in household environments for typical housekeeping functions that may also be used by non-expert users for typical housekeeping functions, such as: shops, offices other similar working environments, farm houses, by clients in hotels, motels and other residential type environments and/or in bed and breakfast type environments.

This product can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Cordless Floor	Cleaner
Article number HHEM300WT
Dimensions (l x w x h) 28 x 17 x 110 cm
Weight 2.6 kg
Input power 220-240 VAC;	50-60 Hz
Output power 18 VDC; 0.6 A
Maximum power 40 W
Noise level 65 dB
Battery capacity 2200 mAh
Charging time 3.5 hours
Run time Up to 1 hour
Clean water reservoir capacity 420 ml
Dirty water reservoir capacity 150 ml
Brush speed 400 rpm

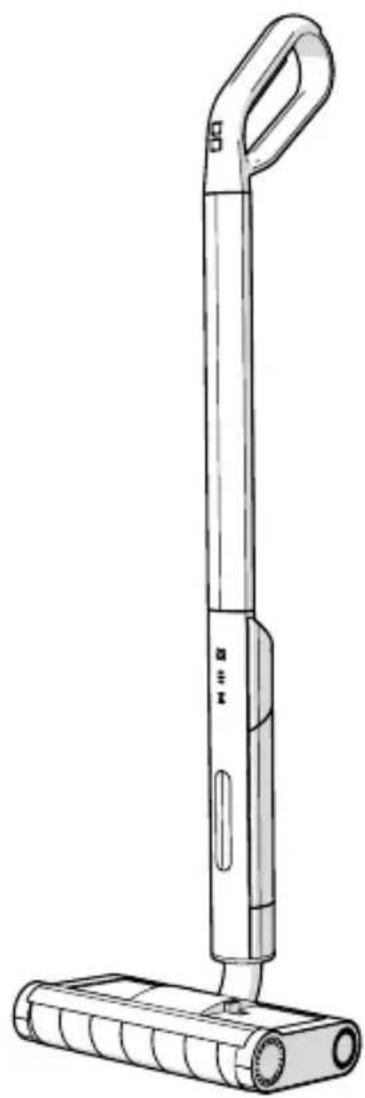

Main parts (image A)

1 Handle
On/off button
3 Water spray button
4 Handle tube
5 Handle unlocking mechanism
6 Body
Water full indicator LED
8 Roller brush locking button
9 Roller brush
10 Water reservoir handle
1 MAXindicator
Water inlet plug

13 Clean water reservoir
14 Lid unlock buttons
15 Lid
16 Dirty water reservoir lid
17 Dirty water reservoir
Self-cleaning button
19 Battery indicator LEDs / Power indicator LED
20 Water spray indicator LED
21 Power adapter
2 Charging port
23 Charging base

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
• Do not leave any packaging material lying around carelessly. These may become dangerous playing material for children.

• Make sure the product is placed on a flat and stable surface.

• Do not drop the product and avoid bumping.

• Do not use the product if it has been dropped, a part is damaged or defective or if it is leaking.
• Keep hair, loose clothing, fingers and all body parts away from openings and moving parts.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Never add solvents, solvent-containing liquids, or undiluted acids (such as detergent, gasoline, paint thinner, and acetone) to the water reservoir. This may damage the product.
• Do not immerse the product in water.
• Do not use in swimming pools containing water.
• Do not fill the water reservoir above the MAX indicator.
  Always use the voltage (A.C. Only) marked on the rating label.
• Switch off and unplug the product when not in use or before maintenance.
• Do not leave the product unattended when the product is connected to the power outlet.
• Keep the product out of reach from children when the product is connected to a power outlet or cooling down.
• Do not plug or unplug the power cable with wet hands.
• Never use a dirty or damp charger, this might cause an electric shock.
• Never cover the charging base, this might cause an electric shock.
• To prevent a possible fire, do not block the air vents.
• Do not use the product near explosive or flammable materials.
• Disconnect the product from the power source before service and when replacing parts.
• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Do not subject cells or batteries to mechanical shock.

• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

• Keep cells and batteries clean and dry.

• Only use the provided charger and charging base.
• The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.
• Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge rechargeable cells or batteries several times to obtain maximum performance.
• Do not unplug the product by pulling on the cable. Always grasp the plug and pull.

Installing the product

Make sure the product is placed on a flat and stable surface.

1. Push the handle tube A 4 into the body A 6. When the parts are successfully assembled, you hear a click.
2. Place the product on the charging base A 23
3. Plug the power adapter A 21 into a power outlet.
4. Plug the other end of A 21 into the charging port A22.

Charge the battery for at least 3.5 hours when you use it for the first time.

1. The battery indicator LED A lights up.
2. Remove from the power outlet after charging.
3. Leave the product on A 23.

Battery indicator LEDs (image B)

The lowest battery indicator LED A19 starts flashing if the battery is empty.

Removing and filling the clean water reservoir (image C)

1. Hold the handle A 1 with one hand, and pull the water reservoir handle A 10 with the other hand to remove the clean water reservoir A 13.

2. Pull out the water inlet plug A 12 and rotate A to one side.

3. Add cold or warm tap water to A 13 via the hole.

4. Do not exceed the MAX indicator A 11.

5.Close 12.
6. Place into A

The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.

Using the product

Test the water resistance of the floor.
This product is intended to clean dust and liquids off waterproof hard floors such as. PVC, linoleum, tiles and waxed parquet.
This product is not intended to clean water-sensitive floors such as untreated cork floors.
Make sure the clean water reservoir A 13 is filled with water and the dirty water reservoir A 17 is installed in the product.
Clean the floor from the inside out to avoid leaving footprints on the freshly wiped floor.
To avoid damaging the floor with a wet roller brush A9, place the product into the charging base A23 when the product is not in use.

1. Clean the floor with a vacuum cleaner to remove dust or loose particles.
2. Take the product out of A 23
3. Press the on/off button A 2 to switch on the product.

The roller brush A9 starts to rotate.

1. Press the water spray button A 3
2. Move the product back and forth until A 9 is fully wet.
3. Clean the floor by moving the product back and forth at the same speed as using a vacuum cleaner.
4. Press to switch off the product.
5. Place the product on A 23.
6. Press the self-cleaning button A 18

A9 starts to rotate.

The self-cleaning function removes the dirty water from A 9.

1. Empty and clean A7. See 'Emptying and cleaning the dirty water reservoir'.
2. Clean A9. See 'Cleaning the roller brush'.

Storage

1. Empty A13 and A17 before storing the product.
2. Dry 9

Do not store A 9 into a closed cabinet.

Store the product in a dry room.

Cleaning & Maintenance

A the product cool down before cleaning it.

Cleaning the roller brush (image D)

Maximum washing temperature 40^

Do not bleach.

Do not tumble dry.

Do not iron.

Do not dry clean.

1. Switch off the product.
2. Empty A13 and A17 to prevent spillage.

3. Place the product on the floor.
   4.Pull the roller brush locking button A 8 backwards and take A 9.

4. Rinse 9 under running water.

5. Make sure the water temperature is not too high to avoid damage to the roller brush bristles.

6. Replace A9.
7. Place the product on A 23

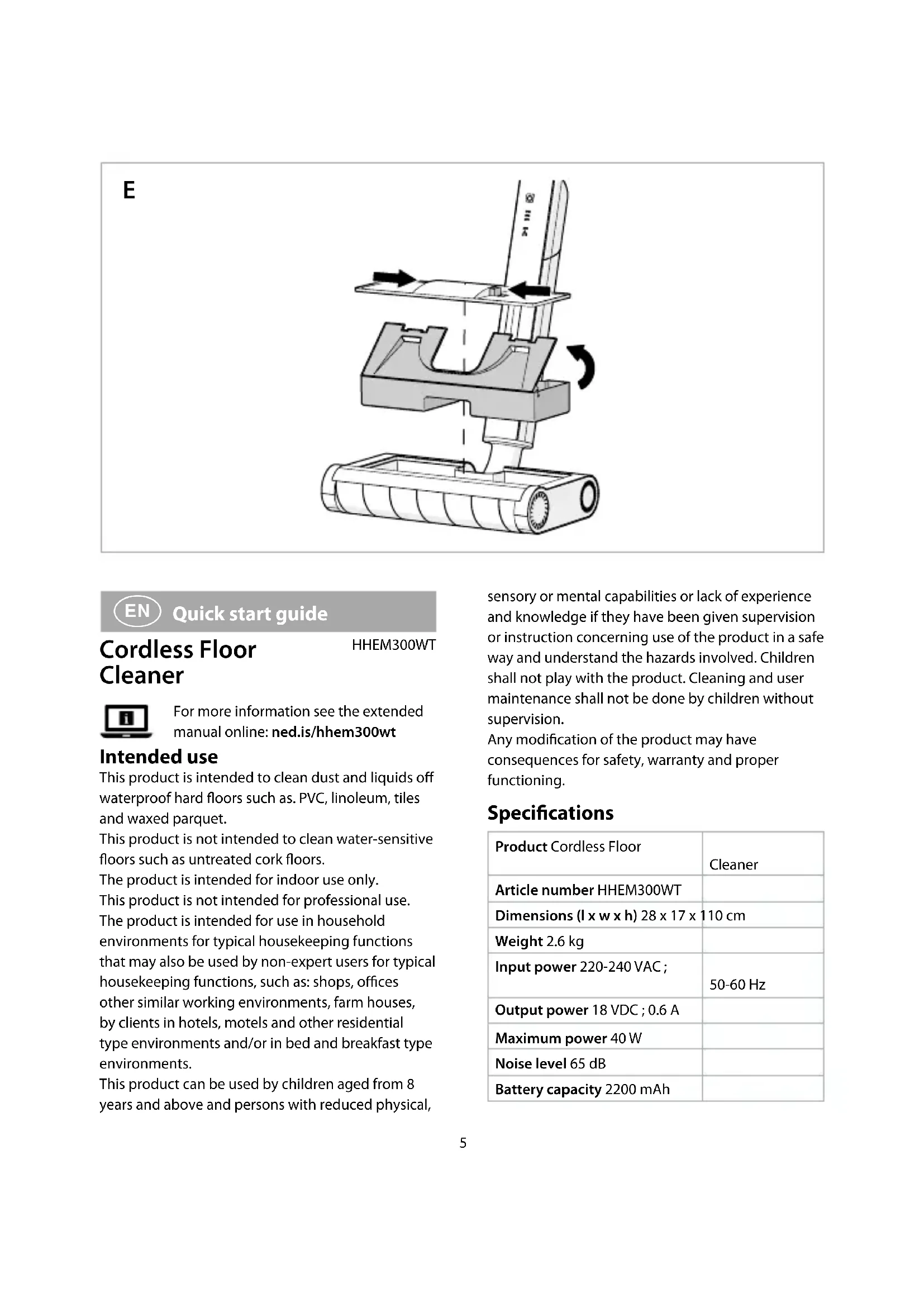

Emptying and cleaning the dirty water reservoir (image E)

1. Place the product on A 23.
2. Press the lid unlock buttons A 14 on both sides and remove the dirty water reservoir lid A 16.
3. Take out of the product.
4. Use the dirty water reservoir lid A 16 to open A 17.
5. Empty
6. Clean with tap water.
7. Replace A17 15.
