USER MANUAL Vento Cordless Eurom

Modern black-and-white photo of a modern office desk fan with a metallic blade and circular headrest (no text or symbols visible)

Vento Cordless Foldable Fan

Art.nr. 384642

Dank

Pure diagram of a cable being twisted with a connector, no text or symbols present

Technical diagram of a fan assembly with numbered parts for identification

Functions

Line drawing of three different types of air purifiers with rotating blades, shown from top to side (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines (no text or numbers present)

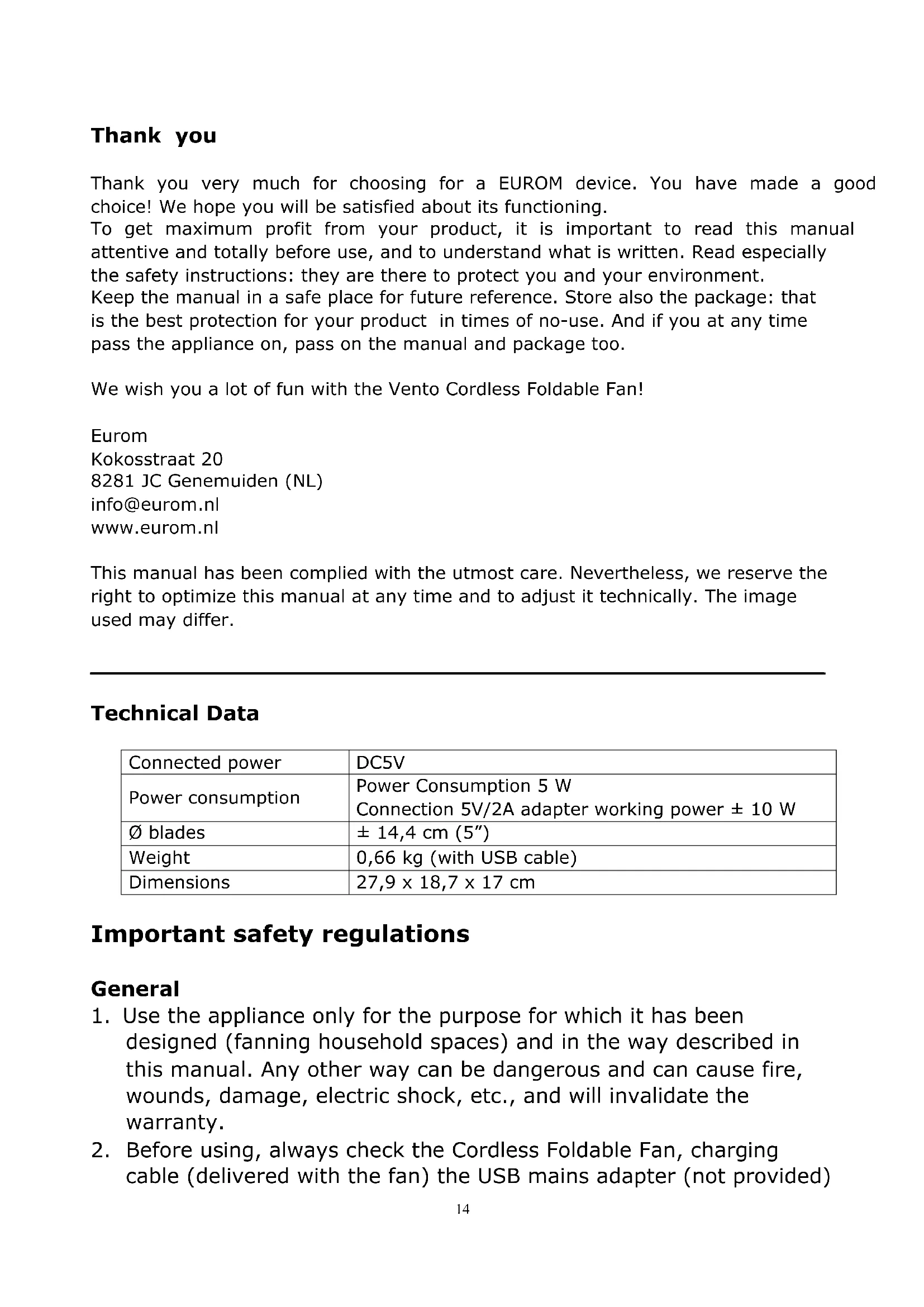

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Vento Cordless Foldable Fan!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Technical Data

Connected power	DC5V
Power consumption	Power Consumption 5 WConnection 5V/2A adapter working power ± 10 W
∅ blades	± 14,4 cm (5")
Weight	0,66 kg (with USB cable)
Dimensions	27,9 x 18,7 x 17 cm

Important safety regulations

General

1. Use the appliance only for the purpose for which it has been designed (fanning household spaces) and in the way described in this manual. Any other way can be dangerous and can cause fire, wounds, damage, electric shock, etc., and will invalidate the warranty.

2. Before using, always check the Cordless Foldable Fan, charging cable (delivered with the fan) the USB mains adapter (not provided)

or the USB car charger (not provided) for damage or wear. Check the charging cable for the correct insulation, cuts, scrapes and the condition of the connectors. Do not operate the appliance if you discern damage, wear, incompleteness of the Cordless Fan, charging cable, the USB mains adapter or the USB car charger, if it is functioning poorly, has fallen or shows malfunction in any other way. Return the entire appliance to your supplier or bring it to a certified electrician for checking and/or repair. Always demand original parts.

1. Electric equipment can be dangerous if it is used incorrectly. Using this product must always be under the supervision of an adult. Never allow children to access the interior of electric products and do not let them handle any cables.
2. When you are not using the appliance, always detach all the connections! To do so, hold the plug in your hand; never pull on the cable!

Warnings related to positioning

1. Use the Cordless Foldable Fan, charging cable and the USB mains adapter or the USB car charger only indoors in a dry location. Exposure to moist or wet circumstances can cause electrocution or material damage.
2. This appliance, including the charging cable, the USB mains adapter or a USB car charger, is not suitable for use in wet or moist areas, such as bathrooms, laundry rooms, etc. Do not place these close to a tap, bathtub, shower, swimming pool, fountain or something similar. Make sure that they can never fall in water and prevent water from penetrating the appliance, charging cable, USB mains adapter or the USB car charger. Should the appliance, charging cable, USB mains adapter or the USB car charger fall in water nevertheless, first remove the plug from the socket (power source)! An internally wet appliance, charging cable, USB mains adapter or the USB car charger can no longer be used, but must be sent to be repaired
3. Never submerge the appliance, charging cable, USB mains adapter or the USB car charger in water or any other liquid and never touch these with wet hands.

4. Do not place the appliance in an open window (due to rain), not on a wet surface and prevent liquid from spilling on it.

5. Do not hang anything over or on the fan and do not use it close to curtains, clothing or other materials that can jam the motor. The result of this can be overheating or fire.

6. Watch out that the fan does not suck up long hair.
7. Keep the suction and blowing grid clean and dust-free and ensure an unobstructed distance of at least 30 cm around the fan.

8. Do not keep or use the appliance, charging cable, USB mains adapter or the USB car charger:

9. In places that can become wet or where they can fall into water

10. In the vicinity of highly flammable, explosive or gaseous substances.

A spark from the switch can set these on fire.

- In the vicinity of acids, alkali, oil or other substances that can cause corrosion

1. Do not expose the Cordless Foldable Fan, charging cable and the USB mains adapter or the USB car charger to sunlight.

2. Do not use the Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger near heat sources.

3. Use the Cordless Foldable Fan only in an upright position, never lying down.

4. Keep the Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger in a dry place and prevent them from coming in contact with water, rain or snow. If they nevertheless come in contact with water, place them in a dry place at room temperature on a soft absorbent towel and let them get completely dry.

5. Do not use the Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger before they are completely moisture free.

6. Keep your Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger away from liquids, such as drinks, etc.

Warnings related to temperature

1. Use and charge the Cordless Foldable Fan in an environment where the temperature is between 0 and 35°C.
2. Store the Cordless Foldable Fan in an environment where the temperature is between -20 and 45°C.
3. If you use or store the Cordless Foldable Fan in an environment where the temperature is below the advised temperature, the

operating time of the Cordless Foldable Fan might be temporarily shorter.

Warnings related to charging

1. The Cordless Foldable Fan is not delivered with a USB adapter. You can charge the internal battery of the Cordless Foldable Fan in three different ways:

- Via 220/240 Volt 50 Hz socket:

Use a USB mains adapter, which is intended for use with a household socket of 220-240 Volt / 50 Hz, output voltage of maximum 5 Volt and a charging capacity of maximum 1 Ampere. Never try to use a USB mains adapter with other voltages. The connection voltage and the frequency, stated on the USB mains adapter (not provided), must correspond with those of the socket that you use and the electrical installation must be equipped with a residual-current circuit breaker of 30mA.

- Via a USB A port (5 Volt):

The battery of the Cordless Foldable Fan can also be charged by attaching the charging cable directly to a USB A port.

- Via a USB car charger (the connection for cigarette lighters):

Use an USB car charger with an output voltage of maximum 5 Volt and a charging capacity of maximum 1 Ampere. Never try to use other USB car chargers.

1. Regardless of which method you select for charging the Cordless Foldable Fan, the connection you use must always be easily accessible so that in case of emergency, you can quickly break the connection.

2. Charge the Cordless Foldable Fan only by using the USB cable that comes with the fan.

3. The USB mains adapter or the USB car charger must comply with the nationally applicable regulations as well as with international and regional safety norms.

4. Connect the USB mains adapter only to a fixed socket. Do not use a junction box / power strip, etc.

5. Do not use the USB mains adapter in combination with extension cords, electrical generators or step-up transformers.

6. Do not use the charging cable to lift the USB mains adapter. When you want to insert the USB mains adapter into the socket or conversely, to pull it out, always grab the plug with your hand; never pull on the charging cable.

7. Never touch the USB mains adapter or the USB car charger with wet hands.

8. Uncoil the charging cable completely before you insert the USB mains adapter or the USB car charger into the socket (or the connection for the cigarette lighter). Never route the charging cable under a carpet, do not cover it with mats, runners and alike, and keep the cable out of walking paths. Make sure that it is not stepped on and that no furniture is placed on it. Do not route the electric cable along sharp corners and after use, do not wind it too tightly. Prevent the charging cable from coming in contact with sharp, hot or moving objects.
9. Make sure that there is enough free space around the USB mains adapter or the USB car charger. Do not use the USB mains adapter or the USB car charger in a place where the air circulation around the USB mains adapter or the USB car charger is obstructed, for example inside of a bookcase.
10. Do not charge the Cordless Foldable Fan for longer than 7 hours to prevent overheating.
11. Do not use or charge the battery if the housing of the Cordless Foldable Fan is damaged or broken.
12. When the Cordless Foldable Fan is switched on or is charged, it is very normal for the underside to become warm. The USB mains adapter or the USB car charger and battery become warm during charging. This is completely normal.
13. Immediately after charging, remove the USB mains adapter or the USB car charger out of the socket (power source).
14. Remove the USB mains adapter or the USB car charger from the socket in the event that:

- The charging cable, USB mains adapter or the USB car charger are frayed or damaged in any way.

- Something spilled on the Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger.

- The Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger is exposed to rain or any other from of excessive moisture.

- The Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger has fallen or has been damaged in any way.

- You suspect that the Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger needs to be repaired.

- You want to clean the Cordless Foldable Fan, charging cable, USB mains adapter or the USB car charger.

Important: You can only fully interrupt the power supply by removing the mains adapter or the USB car charger from the socket (power source).

1. Never try to push a connector into a port if it does not appear to fit. In that case, you are probably using the wrong connector. Make sure that you use the correct connector for the port that you want to use and that you insert it correctly into the port.
2. Before you connect the charging cable (provided with the fan) to the USB mains adapter or the USB car charger, check whether there are no foreign objects in the port of the USB mains adapter or the USB car charger.
3. Never cover the USB mains adapter or the USB car charger; the risk is overheating.

Warnings related to use

1. Switch off the fan immediately if you hear strange noises, smell something or see smoke.
2. Make sure that the fan is standing on a sturdy, even and horizontal surface when using it.
3. Never leave an unsupervised fan in the room.
4. Do not use the fan in temperatures above 35^ C, not close to heaters and not in dusty areas.
5. Never stick any objects whatsoever in the housing openings of the Cordless Foldable Fan. This can cause fire or a dangerous electric shock.
6. Prevent the fan from blowing continuously on small children, patients or people that have difficulties moving to another area.

Warnings related to maintenance

1. The fan has a built-in lithium-ion battery; you may not replace this battery yourself.
2. Do not spray any agents (anti-insect, cleaning or any other agent) on or in the fan; this can cause health problems (especially in children!) or it can damage the components.
3. Always disconnect all connections if the appliance is moved, cleaned or stored.
4. Never try to open the battery. In case of misuse, the battery might emit a liquid. If you come in contact with this unintentionally, rinse the affected area with water. If the liquid comes in contact with

eyes, then rinse with water and seek medical assistance. Liquid from a battery can cause irritation or burns.

1. The Cordless Foldable Fan contains an internal Li-ion battery. This product must be removed in a correct manner, taking environmental considerations into account. Return this product to your local dealer or to the local recycling station where the battery is recycled or disposed of in a correct manner.
2. Never burn the internal batteries of the Cordless Foldable Fan, also not if they are damaged and can no longer be charged. Batteries explode when they are burned.
3. The USB mains adapter (not provided) is a high-voltage part and therefore must never be opened, even if the Cordless Foldable Fan is switched off.

Who is allowed to use the Cordless Foldable Fan?

1. Children under the age of 3 must be kept away from the fan, unless there is constant supervision over them.
2. Children between the ages of 3 and 8 may switch the fan on or off only if the appliance is set up in its normal operating place or is installed and when they are supervised or if they have received instructions about the safe way to use the appliance and have understood the risks involved. Children between the ages of 3 and 8 may not pull out the plug from the socket, are not permitted to regulate or clean the fan or to carry out any user maintenance.
3. This appliance can be used by children over the age of 8 and by people with physical, sensory or mental disabilities or who lack knowledge and experience, if they are supervised or are given instructions on how to use it safely and if they understand the risks involved.
4. Children are not permitted to play with the appliance.
5. Unsupervised children are not permitted to clean the appliance or carry out any maintenance tasks.

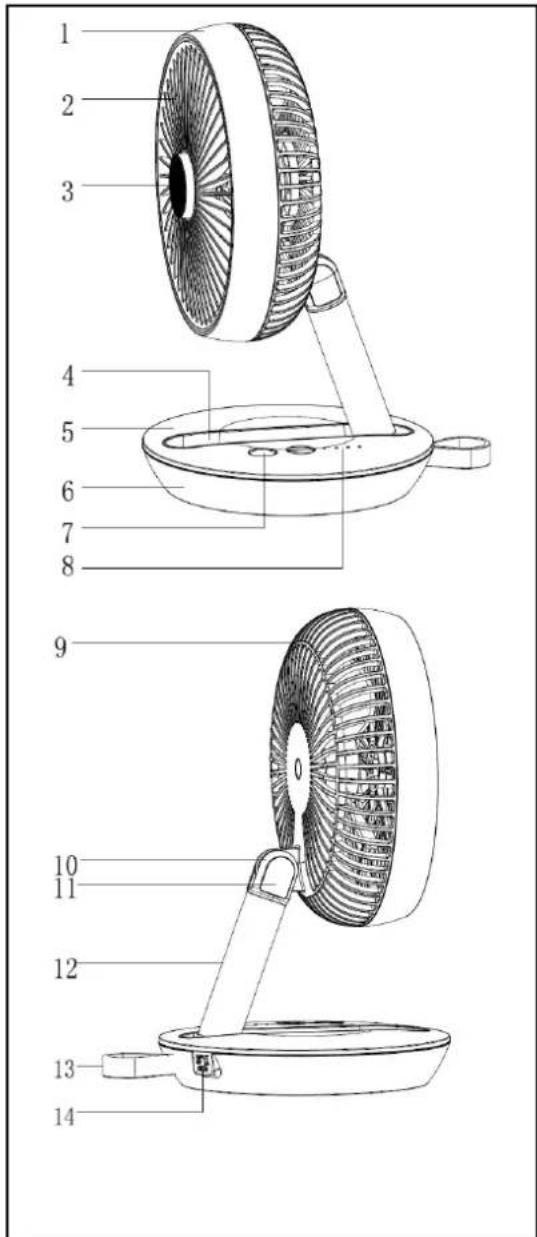

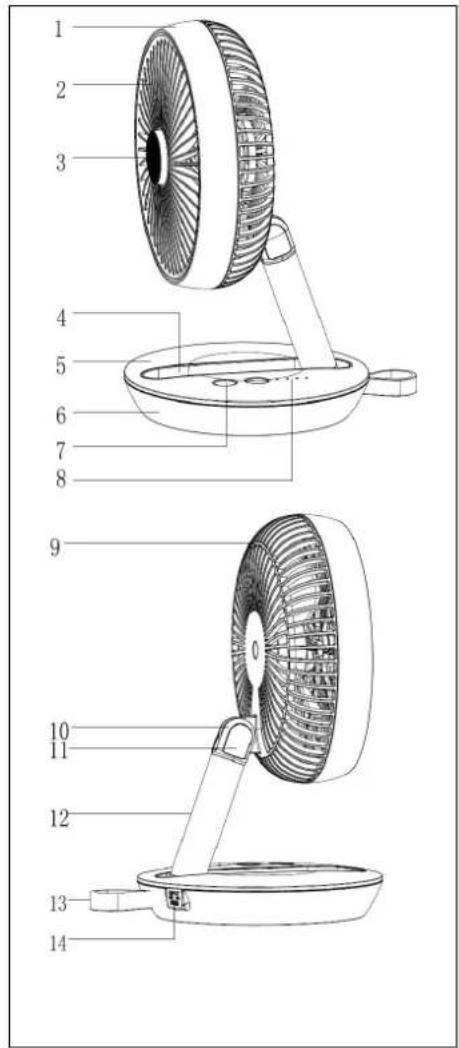

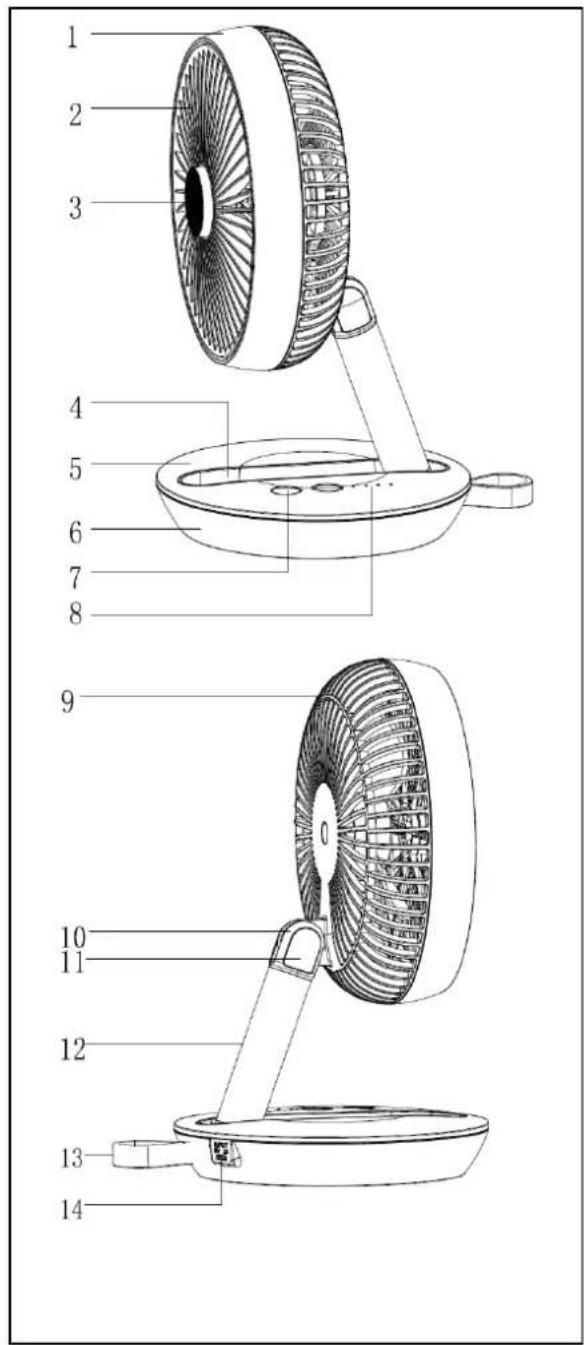

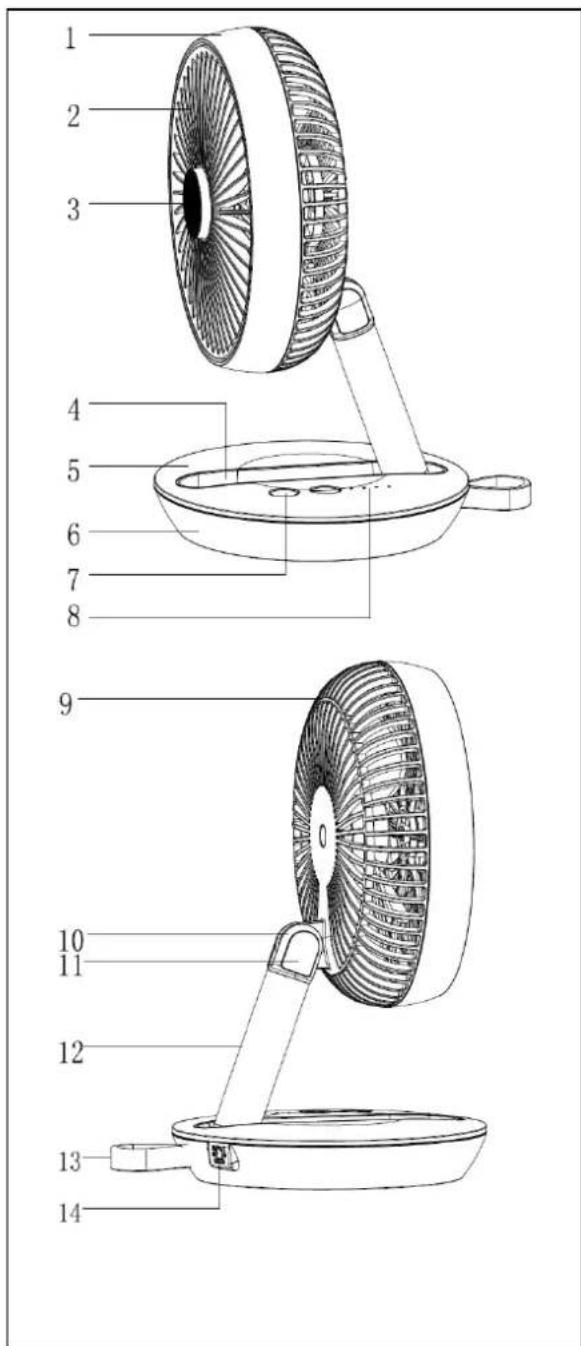

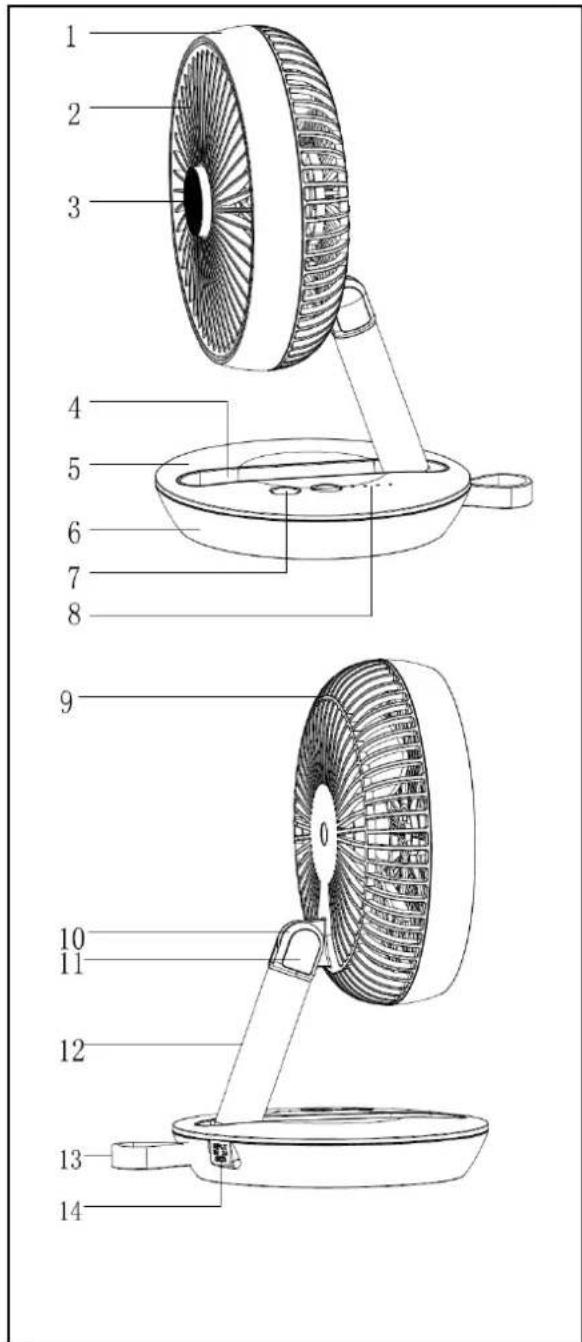

Construction

Fan

1. Decoration ring
2. Protective grille front (rotatable)
3. Knob (rotatable)
4. Catch part foldable stand
5. Top part base
6. Bottom part base
7. On / Off Button
8. Fan speed LED lights
9. Rear protective grille
10. Tilting part
11. Tilt protection
12. Standard
13. Take-away handle
14. USB connection

Supplied USD charging cable

Pure electrical circuit lines without any symbols

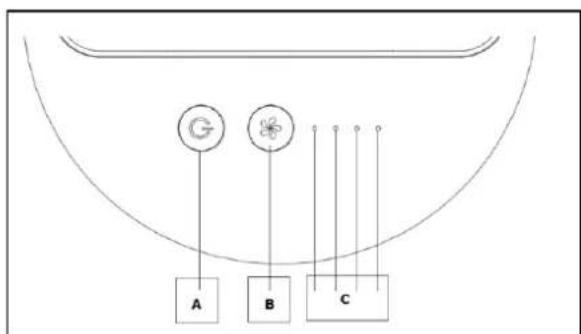

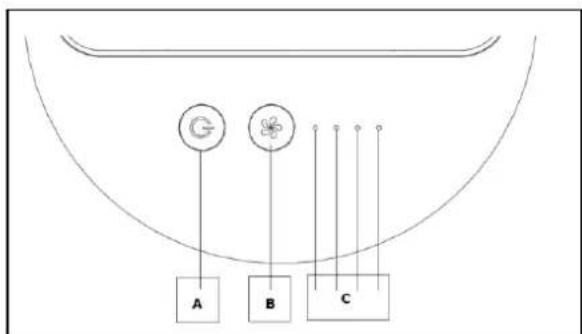

Display and control buttons

A. ON / OFF button
B. Fan speed button
C. LED lights for fan speed/ charging / power

Technical diagram of a fan assembly with numbered parts for identification

Functions

• 4 fan speeds (high, medium, low, quiet)
• Low voltage and charging indicator
• Automatic shutdown at low voltage to protect the battery
- Backlight turns off automatically after 60 seconds if no buttons are touched. Pressing 1 of the buttons switches the lighting back on.
• USB charging, lithium battery with overcharge protection
• 180° Manual rotary knob
- 70° Adjustable stand

Putting into operation and control

- Begin to use the fan only if:

• All the packaging has been removed and it has been placed out of reach of children.
• After you have observed all the safety regulations.
• The fan is placed on a sturdy and even surface.

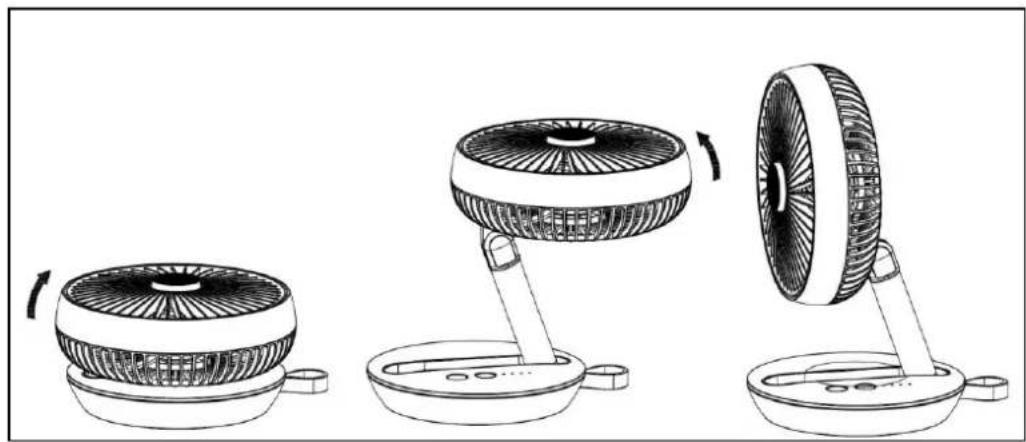

- Set the fan in the correct position.

Line drawing of three different air purifiers with rotating blades, shown from different angles (no text or symbols)

• By turning the knob (3) 0.5 - 1.5 anticlockwise, the slats (2) will start to rotate. Do not turn the knob too often, otherwise the slats will swing loudly and fall out of the unit completely. Turn off the fan completely before closing the knob again.
• The fan is ready for use, in case of insufficient power, use the charging cable supplied with the fan for charging the fan.

Switching on

Press briefly on the On/Off button and the fan will start operating at a quiet fanning speed.

On/Off button	Fan speed	LED lamp 1	LED lamp 2	LED lamp 3	LED lamp 4
Press 1x	Quiet	On	Off	Off	Off
Press 2x	Low	On	On	Off	Off
Press 3x	Medium	On	On	On	Off
Press 4x	High	On	On	On	On

The fan operates with too little battery power

Fan speed	LED lamp 1	LED lamp 2	LED lamp 3	LED lamp 4
Quiet	5x blinking then off	Off	Off	Off
Low	5x blinking then off	5x blinking then off	Off	Off
Medium	5x blinking then off	5x blinking then off	5x blinking then off	Off
High	5x blinking then off	5x blinking then off	5x blinking then off	5x blinking then off

Switching off

Press 3 seconds on the On/Off button and the fan will switch off immediately, regardless of the fan speed.

Charging

1. The Cordless Foldable Fan is delivered without a USB mains adapter. Internal battery of the Cordless Foldable Fan can be charged in three different ways:

- Via 220/240 Volt 50 Hz socket:

Use a USB mains adapter, which is intended for use in a household socket of 220-240 Volt / 50 Hz and an output voltage of maximum 5 Volt to produce a charging capacity of maximum 1 Ampere. Never use a mains adapter with other voltages. The connection voltage and frequency, stated on the USB mains adapter (not provided), must correspond to those in the socket that you use and the electrical installation must be equipped with a residual-current circuit breaker van 30mA.

- Via a USB A port (5 Volt):

The battery of the Cordless Foldable Fan can also be charged by attaching the charging cable directly to a USB A port.

- Via a USB car charger (the connection for cigarette lighters):

Use a USB car charger with an output voltage of maximum 5 Volt and a charging capacity of maximum 1 Ampere. Never try to use other USB car chargers.

1. Insert the charging cable (delivered with fan - USB MICRO B connection) in the charging connection of your Cordless Foldable Fan.

2. Connect the other end of the charging cable (USB A connection) to:

- The USB mains adapter (max. 1 Ampere)

- The USB car charger (max. 1 Ampere)

- The USB A port

4a. Insert the USB mains adapter in the socket (220/240 Volt 50 Hz).

4b. Connect your USB car charger to a DC-cigarette lighter connection.

1. After charging, disconnect all the connections.

If the fan is switched off during charging, the LED lights indicate the charge level. See the table below:

Battery power	LED lamp 1	LED lamp 2	LED lamp 3	LED lamp 4
<25%	Slow blinking	Off	Off	Off
Between 25 and 49%	On	Slow blinking	Off	Off
Between 50 and 74%	On	On	Slow blinking	Off
Between 75 and 99%	On	On	Off	Slow blinking
100%	On	On	On	On

Switch off the fan during charging. If you want to use the fan during charging, then switch the fan to a quiet, low or medium speed. The fan might switch off automatically if you put the fan on a high speed during charging.

Checking the battery power

By pressing the On/Off button 1.5 seconds, you can check the battery power level when the fan is switched off. The number of burning LEDs indicates the level of the remaining power.

Battery power	LED lamp 1	LED lamp 2	LED lamp 3	LED lamp 4
< 25%	On	Off	Off	Off
Between 25 and 50%	On	On	Off	Off
Between 50 and 75%	On	On	On	Off
Between 75 and 100%	On	On	On	Off

If the battery is not sufficiently charged to power the fan and you press the On/Off button, all four LEDs will blink 5 times rapidly and simultaneously and the fan will not turn on. First charge the battery of the fan.

Charge time and operating duration

1. Charging interval: 4 hours using a 5V / 2A adapter.
2. Operating duration: 4 hours at high speed and 15 hours at quiet speed

Cleaning and maintenance

witch off the fan and remove the charging cable from the wall socket when you want to clean it. The fan only requires some general, external maintenance. Dust it regularly with a soft cloth or feather duster or vacuum it clean with a soft vacuum cleaner brush. Make sure that no water ends up on parts other than grate and trays! Never rinse or spray the fan! To prevent damage to, damage to or deformation of the material, never use abrasive, aggressive or corrosive (cleaning) agents. If you want to clear the fan at the end of the season, do so in the original packaging: it offers the best protection. Put it away in a safe, dry, not extremely hot or cold place.

Warning: Repairs must be carried out by trained technicians. This also applies to replacement or repair of the charging cable. Always ask for original parts for repairs. Changes made to the device and improper repairs carried out invalidate the warranty and liability of the supplier, importer and manufacturer.

Removal

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-declaration

See page 75.

Dank

Diagram of a cable and connector assembly with no visible text or symbols

Technical diagram of a fan assembly with numbered parts for identification

Funktionen

Three-step diagram showing a fan device with rotating blades and mounting base, no text or symbols present.

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Pure electrical circuit lines without any symbols

Technical diagram of a fan assembly with numbered parts for identification

Les fonctions

Line drawing of three different types of air purifiers with rotating blades, shown from top to side (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Pure electrical circuit lines without any symbols

Technical diagram of a fan with numbered parts for identification

Funktioner

Line drawing of three different types of air purifiers with rotating blades, shown from top to side (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Pure electrical circuit lines without any symbols

Technical diagram of a fan assembly with numbered parts for identification

Line drawing of three different types of air purifiers with rotating blades, shown from top to side (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

declares the following device in sole responsibility:

Product: Mini Table Fan

Brand name: EUROM

Model: Vento Cordless Foldable Fan

Item number: 384642

Complies with the following harmonization rules:

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 55014-1:2017

EN IEC 61000-3-2:2019

EN 61000-3-3:2013

EN 55014-2:2015

Genemuiden, 05-11-2020

W.J. Bakker, alg. Dir.

akker.

Eurom

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl

051120
