Brand	Eurom
Model	VTW31
Product type	Tower fan
Usage	Indoor only
Dimensions (W x D x H)	28 x 28 x 81 cm
Fan height	81 cm
Base diameter	28 cm
Weight	3 kg
Supply voltage	220-240 V ~ 50 Hz
Power consumption	60 W
Number of speeds	3 (low, medium, high)
Oscillation function	Yes, approx 90°
Timer	Yes, programmable up to 120 minutes
Power on/off	Via rotary switch and timer
Safety grille	Removable for cleaning
Material	Plastic and metal
Included accessories	Base, screws, user manual
Maintenance	Clean with a soft cloth and vacuum cleaner
Storage	In its original packaging, in a dry place
Certifications	CE, RoHS
Number of blades	3 (estimated)

Frequently Asked Questions - VTW31 Eurom

How to assemble the Eurom VTW31 fan?

Assemble the fan by sliding the front and rear feet together, screw the foot onto the body while guiding the cable into the conduit, then place the fan upright. Refer to the images in the manual for more details.

How to set the timer?

The timer allows programming operation up to 120 minutes. Turn the selector clockwise from OFF to the desired number of minutes. The fan automatically turns off when the selector returns to OFF. Do not force the selector counterclockwise from ON to 120 minutes.

How to make the fan oscillate?

Press the pivot button (G) to activate oscillation at approximately 90°. Press again to deactivate.

What speeds are available?

The fan has 3 speeds: low (1), medium (2) and high (3). Select the speed using the power button (F).

Can I use the fan in a bathroom?

No, the fan is designed for indoor use in dry rooms. Do not use it in damp rooms such as bathrooms, laundry rooms or near water.

How to clean the fan?

Always unplug the fan before cleaning. Open the safety grille by unscrewing the small screws and clips. Clean the grille and blades with a slightly damp soft cloth. Use a vacuum cleaner for the motor openings. Dry thoroughly before reassembling.

What to do if the fan does not turn on?

Check that the timer is set to ON or set to a time, that the plug is fully inserted and that the outlet is powered. Check the condition of the cable and plug. If the problem persists, contact a qualified electrician.

Can I leave the fan running unattended?

No, never leave a fan running unattended, especially in a bedroom. Turn off and unplug the appliance when leaving the room.

How to store the fan after the season?

Clean the fan, then store it in its original packaging in a dry place away from heat and cold. The packaging provides the best protection against humidity and dirt.

Where to find the full manual?

The full manual is available for download in PDF format on notice-facile.com. You can also request a translated version by email.

USER MANUAL VTW31 Eurom

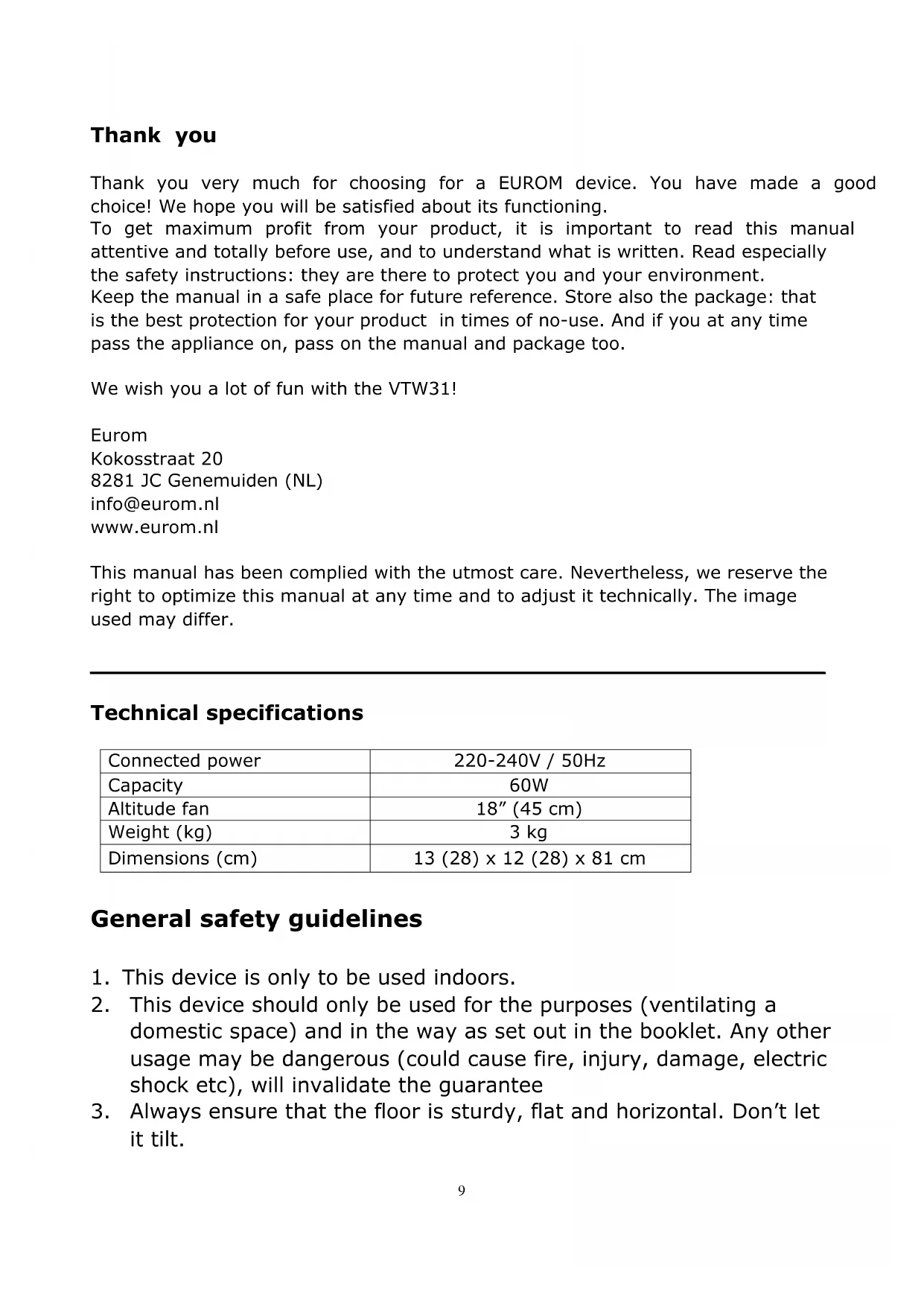

Instruction manual (EN) (page 9)

White horizontal bar magnet with grid pattern and 'EUROM' branding, no visible text or symbols on the device itself.

VTW31

Art.nr. 385625

Dank

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the VTW31!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Technical specifications

Connected power	220-240V / 50Hz
Capacity	60W
Altitude fan	18" (45 cm)
Weight (kg)	3 kg
Dimensions (cm)	13 (28) x 12 (28) x 81 cm

General safety guidelines

1. This device is only to be used indoors.
2. This device should only be used for the purposes (ventilating a domestic space) and in the way as set out in the booklet. Any other usage may be dangerous (could cause fire, injury, damage, electric shock etc), will invalidate the guarantee

3. Always ensure that the floor is sturdy, flat and horizontal. Don't let it tilt.

4. Don't let fall, knock or shake the device. Should this happen accidentally then switch it off, remove the plug from the socket and check for damage.

5. Check fan, plug and cable for damage before use Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts. The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.

6. Before every use, check that the voltage on the socket to be used matches the voltage indicated on the device's specification plate: 220/240V / 50Hz.

7. Avoid the use of extension cables. If unavoidable, use an approved cable with sufficient power. Completely unroll the cable.

8. The electrical cable may never come into contact with sharp, hot or moving objects, must not be wound around the fan and must not be bent or rolled up too tightly.

9. Do not place the fan near, under, or directly opposite a socket and do not place it near an open fire or other heat source.

10. Do not leave a fan operating unsupervised in a room.

11. This device in not suitable for use in wet or damp spaces such as bathrooms and laundry rooms. Do not place the device in the vicinity of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the device itself. If, at any time, the device does fall into water, unplug it immediately! Do not use a device that has a damp interior but have it repaired. Never immerse the device, cord or plug in water and never touch it with wet hands or feet. Do not place the appliance in an open window to avoid rain or on wet surfaces and avoid that no moisture spillage.

12. Never hang things over the device. Ensure that curtains, clothing etc. do not come into the vicinity of the fan.

13. Keep the suction and extraction grill clean and free from dust and make sure that a minimum of 20 cm of free space is left around the fan.

14. Never insert a finger, pen or any other object through the protective grille when the fan is in use!

15. Never spray any products (anti-insect, cleaning agent etc) on or in the fan.

16. Do not store or use the fan:

17. in locations where it could become wet or fall into water;

18. near flammable, explosive or gaseous substances;
19. near acids, alkalis, oil or other corrosive substances.

20. in a very dusty environment

21. Never connect the fan to a timer or dimmer.

22. First turn off the fan and then remove the plug from the socket before moving, cleaning or carrying out maintenance. Do that when the fan is not in use as well. Pull on the plug to remove from the socket, never pull on the cord!
23. Always remove the plug from the socket after use.
24. Close supervision is necessary if the product is used near children or incapacitated persons. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
25. This appliance is not suitable to be operated by children or persons who have physical, sensory and/or mental limitations, or by persons who have no knowledge of, or experience with, this appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
26. Children, disabled persons and pets should be supervised to ensure that they don't play with the appliance.

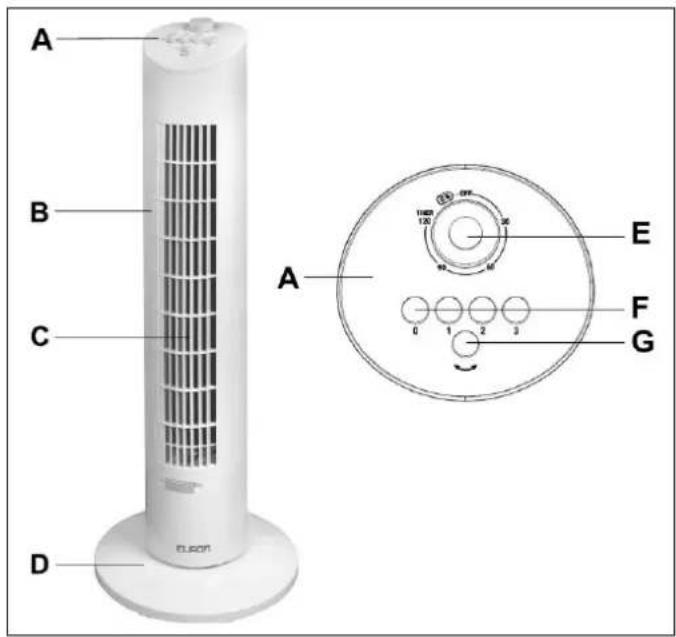

Components diagram

A. Control panel
B. Ventilator housing
C. Output grille
D. Foot
E. Timer
F. Control buttons
G. Oscillating button

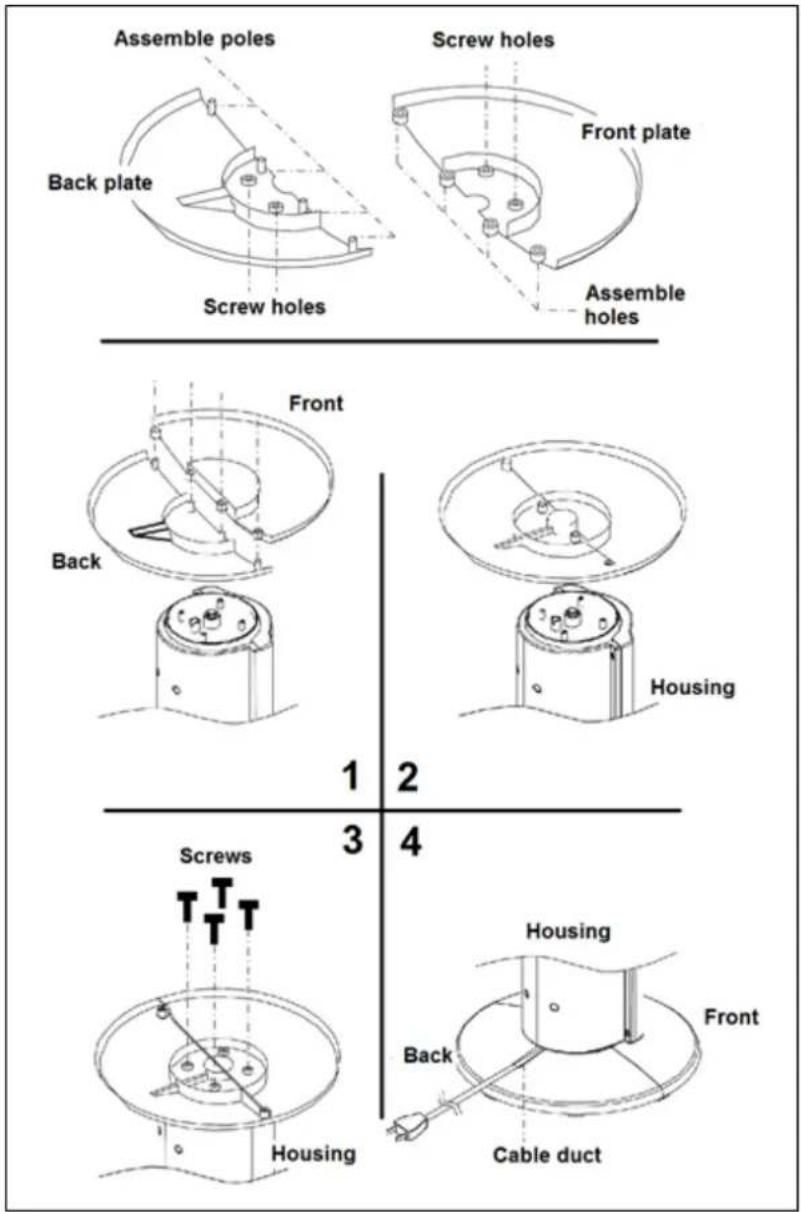

Assembly

• Remove all of the packaging and keep it away from children.
• Slide the front and rear foot together
• Screw the foot on the housing, according to the image
• Route at the same time the cable through the cable duct
  • Finally, set the fan upright.

Operation

Ensure that all of the safety regulations have been obeyed and that the device is upright and stable.

• Make sure that the on/off button (E) is OFF.
• Insert the plug into the socket.
• Turn the timer to 'ON' or set a time
• Use the control buttons (F) to select a speed: 1, 2, 3 = low, medium or high power fan speed. The device will now start operating.
• By pressing the oscillating button (G) the device will start oscillating ± 90^ . Press the button again to turn off this function.
• Press 0 to turn off the device. Turn the timer to "OFF" and remove the plug from the wall socket.

The timer (E) enables you to set how long you want the fan, and possibly also the oscillate function, to work. The fan will continue to operate when the timer is set to ON. If you want to set a specific operating time, first turn the knob clockwise to OFF and then to the required number of minutes (max. 120). The fan and oscillation function will switch off when the knob reaches OFF. You can then turn the knob from OFF to ON again (continuous operation) or select the desired operating time.

Please note: you can turn the knob anti-clockwise to reduce the required number of minutes and from OFF to ON, but never turn the knob anti-clockwise from ON to 120 minutes (or vice versa)! The knob is not intended to turn directly between ON and 120 minutes and forcing it will invalidate the warranty on the timer.

Cleaning and maintenance

Always turn the fan off and take plug out of socket before cleaning or carrying out maintenance work!

Open the safety grille by undoing the small screw and the clamps.

Clean the grille and fan blades with a (slightly humid) soft cloth. Do not use a corrosive or abrasive cleaning agent! Dry everything properly.

Keep the engine housing and the opening free from dust and dirt with a vacuum and/or brush. Do not use any water here!

Further maintenance is not required. Please consult your supplier or an electrician if you have any problems.

Close the safety grille again (including screw) before using the fan.

Store the fan at the end of the season in a safe, dry place that is not subject to extremes of temperature, preferably in its original packaging which is the best protection against dirt and moisture.

Removal

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

In the EU this symbol indicates that this product may be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-Declaration

Herewith declares the signer

Eurom, Kokosstraat 20, 8281 JC Genemuiden, the Netherlands

that the products written below

Tower Fan

known under the brand

EUROM, type VTW31

agrees with the demands of the subjoined standards:

LVD 2014/35/EU

EN 60335-1:2012+A11+A13+A1+A14+A2

EN 60335-2-80:2003+A1+A2

EN 62233:2008

EMC 2014/30/EU

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

RoHS 2011/65/EU&(EU)2015/863

Genemuiden, 20-10-2020

W.J. Bakker, alg. dir.
