Kamin Vento Swing - Fan Eurom - Free user manual and instructions

Product type	Stove fan
Brand	Eurom
Model	Kamin Vento Swing
Dimensions	23 x 11 x 15 cm
Weight	0.65 kg
Blade diameter	16 cm
Starting temperature	65°C
Maximum operating temperature	300°C
Power supply	Thermal (no batteries or mains)
Oscillating function	Yes, intelligent swivel 40°
Mechanism	Thermoelectric module
Usage	On a freestanding stove, flat and horizontal surface
Safety instructions	Do not exceed 300°C; use the handle; do not immerse
Cleaning and maintenance	Slightly damp cloth; no abrasive cleaners; allow to cool before cleaning
Storage	Dry place, protected from extremes, ideally in original packaging
Warranty	Damage from overheating is not covered
Certifications	CE, RoHS

Frequently Asked Questions - Kamin Vento Swing Eurom

How does the Kamin Vento Swing stove fan work?

The fan uses a thermoelectric module that converts the heat from the stove into electricity to turn the blades. It starts automatically at 65°C and operates up to 300°C.

What is the maximum temperature supported by the fan?

The surface temperature must not exceed 300°C. Above that, the fan may be damaged. Use a suitable thermometer to check.

Can I use the fan on any stove?

It is designed for freestanding stoves with a flat and horizontal surface. Do not place it in front of the stove or fireplace to avoid overheating the chassis.

How do I activate the oscillating function?

Push the control button at the back downwards to start oscillation. Pull it about 1 cm to stop. Do not operate it when the fan is hot.

Is the fan noisy?

No, it is designed for quiet operation thanks to its unique design.

How do I clean the fan?

Let it cool down first. Use a slightly damp cloth without abrasive or acidic cleaners. Never immerse the appliance in water.

Can the fan be used unattended?

No, never leave the appliance unattended while in operation. It becomes hot and poses a risk of burns or fire.

What should I do if the fan does not start?

Check the stove temperature: it must be at least 65°C. Make sure the blades are properly attached and the fan is placed correctly on a flat surface.

Can I store the fan after the heating season?

Yes, store it in a dry place protected from extreme temperatures, preferably in its original packaging.

Does the warranty cover damage caused by overheating?

No, the warranty does not cover damage resulting from excessive temperature (above 300°C). Respect the limits.

USER MANUAL Kamin Vento Swing Eurom

Black-and-white photo of a modern outdoor stove with a metallic fan and flame inside, no visible text or symbols.

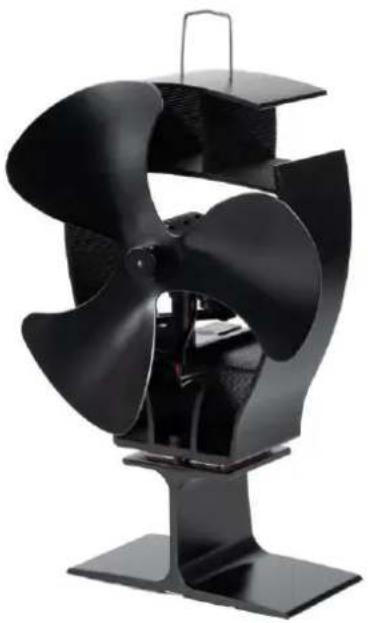

Black industrial fan or propeller device with curved blades mounted on a stand (no visible text or symbols)

Kamin Vento Swing

Art.nr. 365214

Prohibition sign depicting a hand crushing grass under a diagonal line (no text or symbols)

Cross-sectional diagram of a turbine or impeller assembly (no text or labels visible)

Close-up of a mechanical component with no visible text or symbols

Bedoeld gebruik

Line drawing of a portable stove with a chimney and side-mounted door, marked with checkmarks and an 'X' symbol (no text or labels)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand breaking through a circular frame with no text or symbols

Cross-sectional diagram of a mechanical device with numbered component (6), no visible text or symbols

Close-up of a mechanical component with a cylindrical shaft and mounting base (no visible text or symbols)

Verwendungszweck

Line drawing of a portable stove with three directional arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

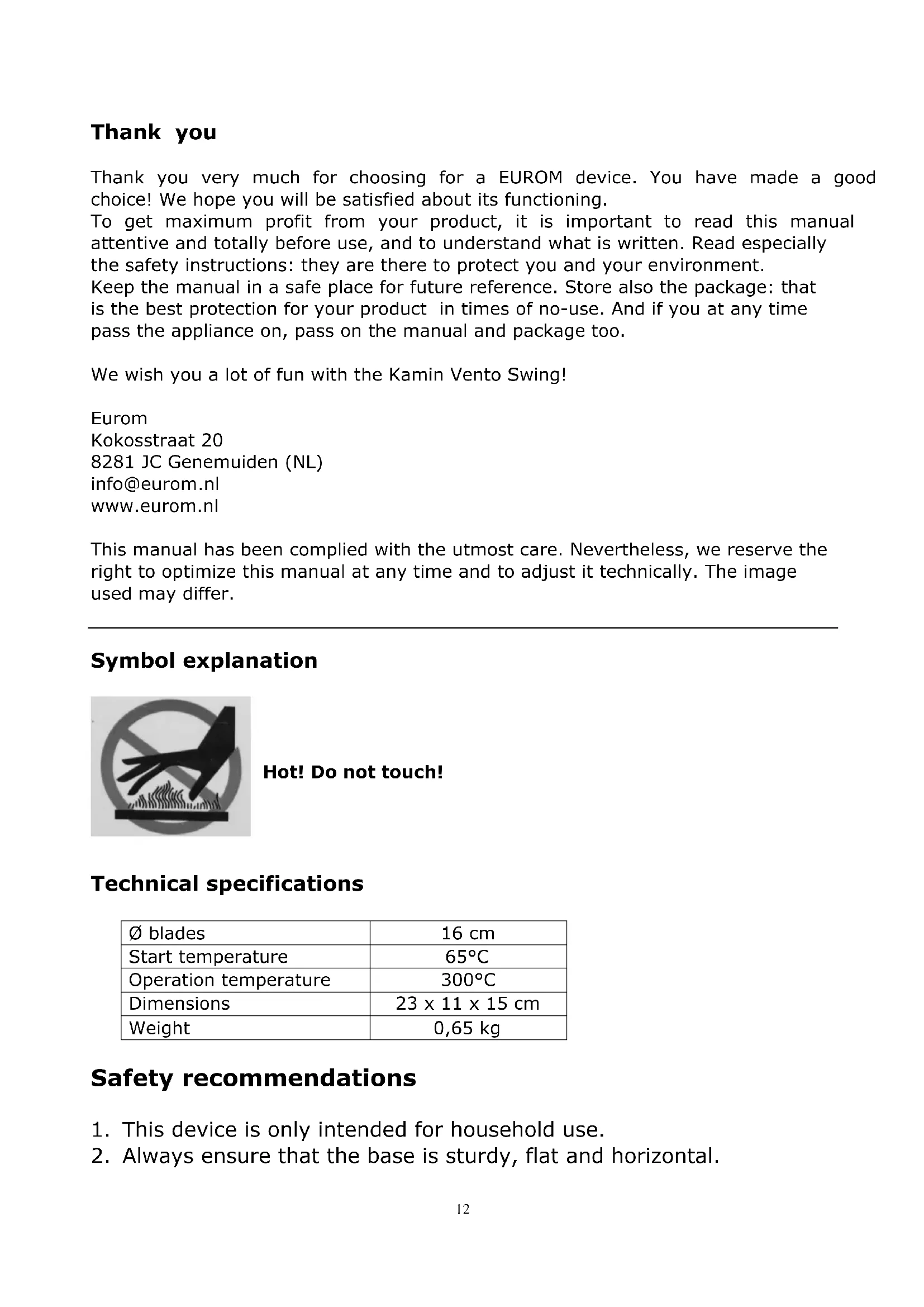

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Kamin Vento Swing!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol explanation

Prohibition sign depicting a hand breaking through a barrier with smoke, enclosed in a circle (no text or symbols)

Hot! Do not touch!

Technical specifications

∅ blades	16 cm
Start temperature	65°C
Operation temperature	300°C
Dimensions	23 x 11 x 15 cm
Weight	0,65 kg

Safety recommendations

1. This device is only intended for household use.

2. Always ensure that the base is sturdy, flat and horizontal.

3. Check to ensure that the fan blades are secured correctly. If necessary, tighten them with an Allen key.

4. Never place the device on an unprotected surface when the feet are hot; it could damage the surface.

5. Check to ensure the handle is upright before placing the device on the heater.

6. The device is not intended to be used by persons (including children) with limited physical, sensual or intellectual capacities, or a lack of experience or knowledge unless under supervision and with the provision of suitable instructions regarding the correct use of the device by a person who is responsible for safety.

7. Keep the device out of the reach of children and monitor closely when it is used by children or when it is near children or pets.

8. This device is not a toy.

9. Never leave a working device unattended.

10. Never try to cool the device down quickly by submerging in water, or similar. This will damage the fan.

11. Do not allow the device to fall as this could damage the printed circuit board or slats.

12. Never put a finger, pen or any other object between the blades of the functioning ventilator!

13. Keep hair, clothing, jewellery and similar items out of the vicinity of the device.

14. Only move the device using the handle.

15. Prevent the device falling or being knocked and do not expose it to draughts, in order to prevent damage.

16. This device works between temperatures of 65^ and 300^ C. Temperatures above 300^ C could damage the device. Use a suitable thermometer to ensure that the temperature above the heater does not exceed 300^ C.

17. The device gets hot when in use and could potentially cause burns. Always use the handle on the device to move it and never touch the foot of the heater fan.

18. The guarantee does not cover damage caused by overheating.

This device should only be used for the purposes and in the manner set out in the instructions. All other uses could present a risk (fire, injury, damage, etc.) and will invalidate the guarantee and no liability will be taken by the supplier.

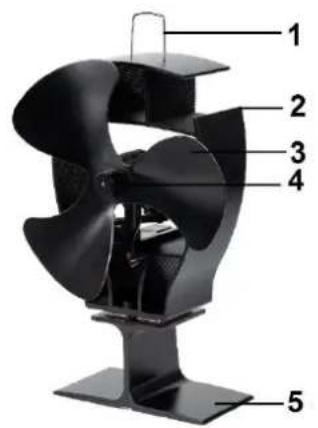

Description and working

1. Handle
2. Cool frame
3. Fan blade
4. Socket screw
5. Base
6. Operating knob - swivel function

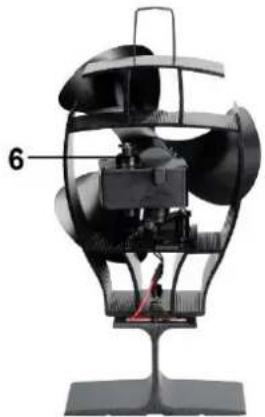

Cutaway diagram of a mechanical device showing internal components and a labeled part (6), no readable text or symbols present.

The heater fan starts to work when the thermo-electric module, which works like a generator to turn on the fan's motor, reaches a minimum temperature of 65^ C . Hot air will begin to circulate around the room. The smart, oscillating function moves the heat from left to right by 40^ . This ensures even and fluid distribution of air throughout the room.

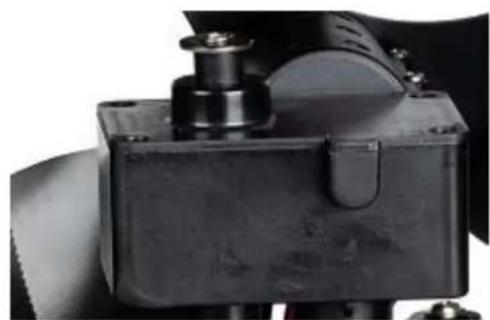

The oscillating function starts as follows: Press the operating knob (6) on the back of the heater fan downwards. When the operating knob is pulled out (approx. 1 cm), the fan will stop oscillating. Make sure you do not use the knob if the heater fan is already in use. (The heater fan will be very hot.)

Close-up of a mechanical component with a cylindrical shaft and mounting base (no visible text or symbols)

Intended use

The heater fan is intended to be used on top of a free-standing heater with a normal surface temperature of 65–300°C, to save fuel and ensure that heat is distributed effectively throughout the room. The heater fan is ideal for rooms with unusual layouts or environments that are particularly cold or damp. The heater fan does not work on mains electricity or batteries; it uses the heat from the heater to activate the fan. The unique design of the fan ensures it is stable and functions quietly. Place the heater fan on top of the heater so that cool air is drawn across the cool frame. Do not place the heater fan in front of the heater or directly in front of the chimney; the cool frame will become too hot. If the surface temperature exceeds 300^ C, place the fan on a part of the heater that is not quite as hot to prevent damaging the device. Use a thermometer that is suitable for very high temperatures. The foot is designed so that it tilts slightly when the temperature gets too high; this ensure there is less contact with the surface. It also prevents the fan being damaged by high temperatures. This works up to a point but it is still important to ensure the temperature limit is not exceeded.

Cleaning and maintenance

• Let the fan cool down before cleaning it or carrying out maintenance.
• Clean the fan with a damp cloth. Do not use any abrasive or corrosive cleaning products that could damage the material. Do not submerge the fan in liquids!
• Let the fan dry out thoroughly before using it again.
• Store the fan at the end of the season in a safe, dry place that is not subject to extremes of temperature, preferably in its original packaging.

Removal

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - declaration

It is hereby declared by Eurom bv., Kokosstraat 20, 8281 JC Genemuiden that the devices below:

Make: EUROM

Model: Kamin Vento Swing

Description: Stove Fan

complies with the EMC guideline and meets the following standards:

EMC 2014/30/EU:

RoHS 2011/65/EU&(EU)2015/863

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:2015

Genemuiden, 06-06-2019

W.J. Bakker, alg. dir.

Remerciements

Prohibition sign showing a hand breaking through a barrier with no text or symbols

CHAUD! Ne touche pas!

Informations techniques

Cross-sectional diagram of a mechanical device with numbered component (6), no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

Utilisation visée

Line drawing of a portable stove with a chimney and three directional arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand breaking through a barrier with smoke, enclosed in a circle (no text or symbols)

HOT! Rör inte!

Tekniska uppgifter

∅ blad	16 cm
Starttemperatur	65°C
Driftstemperatur	300°C
Mått (cm)	23 x 11 x 15 cm
Vikt	0,65 kg

Cutaway diagram of a mechanical device showing internal components and a labeled part (6), no readable text or symbols present.

Close-up of a mechanical component with a cylindrical knob and mounting base (no visible text or symbols)

Avsett bruk

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand holding a cigarette against a circular background (no text or symbols)

HOT! Nedotýkej se!

Technické parametry

Cross-sectional diagram of a mechanical device with numbered component (6), no visible text or symbols

Close-up of a mechanical component with a cylindrical protrusion and mounting base (no visible text or symbols)

Zamýšlené použití

Line drawing of a portable stove with checkmarks and a cross mark on top (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)

Prohibition sign showing a hand breaking through a circular background with no text or symbols

Cross-sectional diagram of a mechanical device with labeled component 6 (no text or symbols beyond label)

Close-up of a mechanical component with no visible text or symbols

Účel použitia

Line drawing of a portable stove with a chimney and side-mounted door, marked with checkmarks and an 'X' symbol (no text or labels)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign depicting a hand holding a tool over grass, enclosed in a circle (no text or symbols)

HOT! Nu atinge!

Detalii tehnice

∅ pale	16 cm
Temperatura de pornire	65°C
Temperatura de functionare	300°C
Dimensiuni	23 x 11 x 15 cm
Greutate	0,65 kg

Cutaway diagram of a mechanical device showing internal components and labeled parts (no text or symbols present)

Close-up of a mechanical component with a metallic knob and mounting base (no visible text or symbols)

Utilizare

Line drawing of a portable stove with a chimney and side-mounted door, marked with checkmarks and an 'X' symbol (no text or labels)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Prohibition sign with diagonal lines and a hand holding a cigarette, no text or symbols present

HOT! Rør ikke!

Tekniske data

Finne	16 cm
Start temperatur	65°C
Driftstemperatur	300°C
Dimension	23 x 11 x 15 cm
Vvægt	0,65 kg

Cutaway diagram of a mechanical device showing internal components and labeled parts (no text or symbols present)

Close-up of a black mechanical component with no visible text or symbols

Tilsigtet brug

Line drawing of a portable stove with doors and a chimney, marked with checkmarks and crosses (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.
