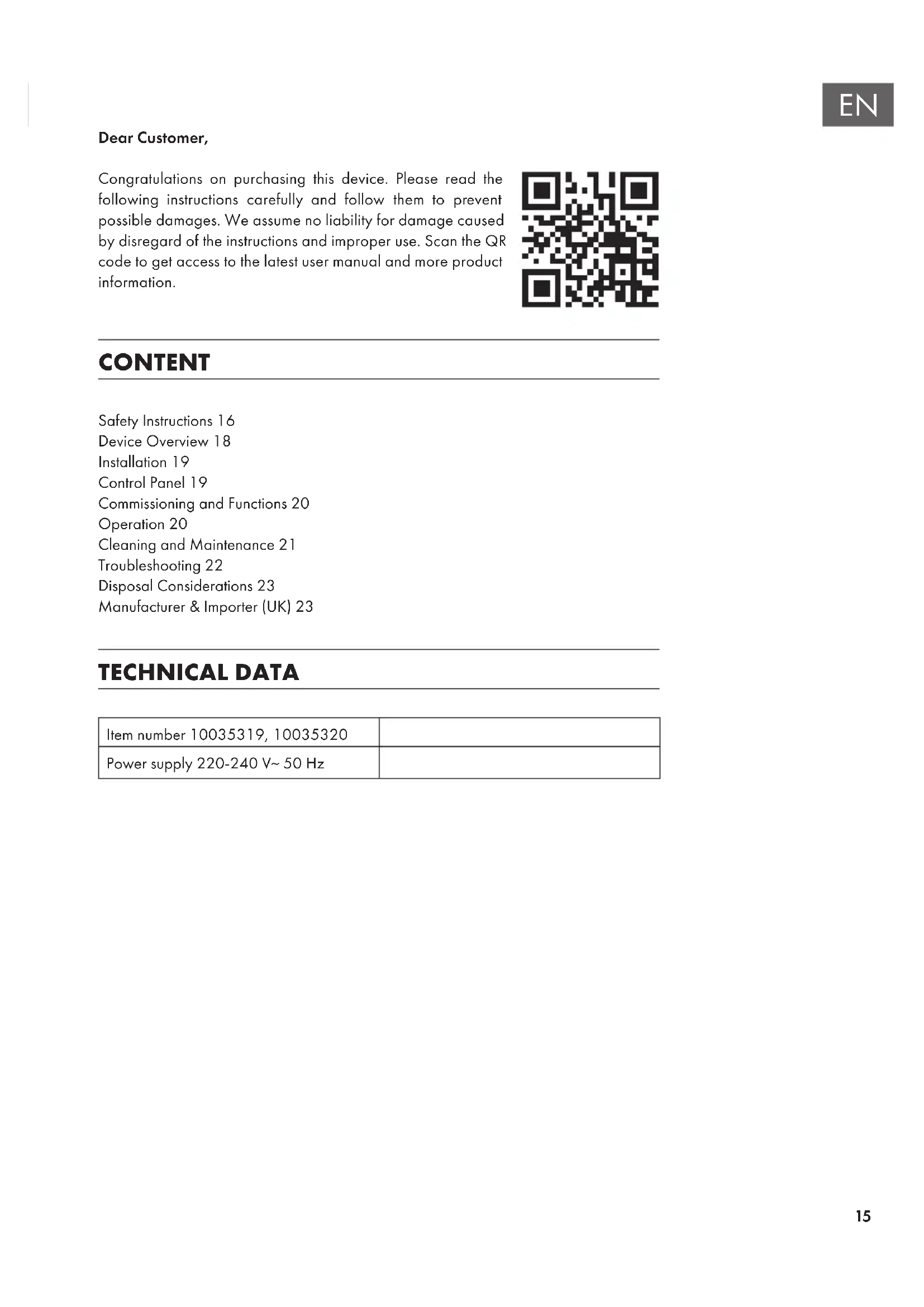

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 16

Device Overview 18

Installation 19

Control Panel 19

Commissioning and Functions 20

Operation 20

Cleaning and Maintenance 21

Troubleshooting 22

Disposal Considerations 23

Manufacturer & Importer (UK) 23

TECHNICAL DATA

Item number 10035319, 10035320
Power supply 220-240 V~50 Hz

SAFETY INSTRUCTIONS

• Check that the mains voltage corresponds to the rating of the appliance before operating.
• Use handles or knobs when moving. Place on a flat stable surface for use. Do not use outdoors.
• Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
• Unplug from socket outlet when not in use.
• To protect against electric shock, do not immerse cord or plug in water or any other liquid.
• The use of accessory attachments not recommended by the appliance manufacturer, may cause injury.
• Do not locate this appliance immediately below a socket outlet.
• Do not allow cord to overhang the counter top where it can be easily pulled by children.
• Do not overfill as this may cause a hazard. Ensure lid is closed when in operation.
• To remove plug from outlet, do not pull on supply cord. Grasp plug firmly and pull to remove.
• Do not use this appliance for anything else other than its intended use. No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling.
• This appliance is for household use only.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• This appliance is not intended to be immersed in water.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Fill with potable water only.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

WARNING

Danger from fire/flammable materials. Please observe the local regulations for the disposal of units with flammable refrigerants and gases.

• Keep ventilation openings in the unit housing free of obstacles.
• Do not damage the refrigerant circuit.
• Do not use any mechanical devices or other means to accelerate the defrosting process or the ice recovery process.
• Do not use other types of electrical appliances inside the ice cube machine.

Special Notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• If the appliance contains a water tank, clean it if it has not been used for 48 hours. Rinse the tank if no water has been removed for 5 days.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fi res. There are fl ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fi re during use, maintenance and disposal.

Features

• Quick ice making
• Prompt when the ice is full and water is insufficient
• Bulletice
• 9 pieces of ice can be made in eight minutes

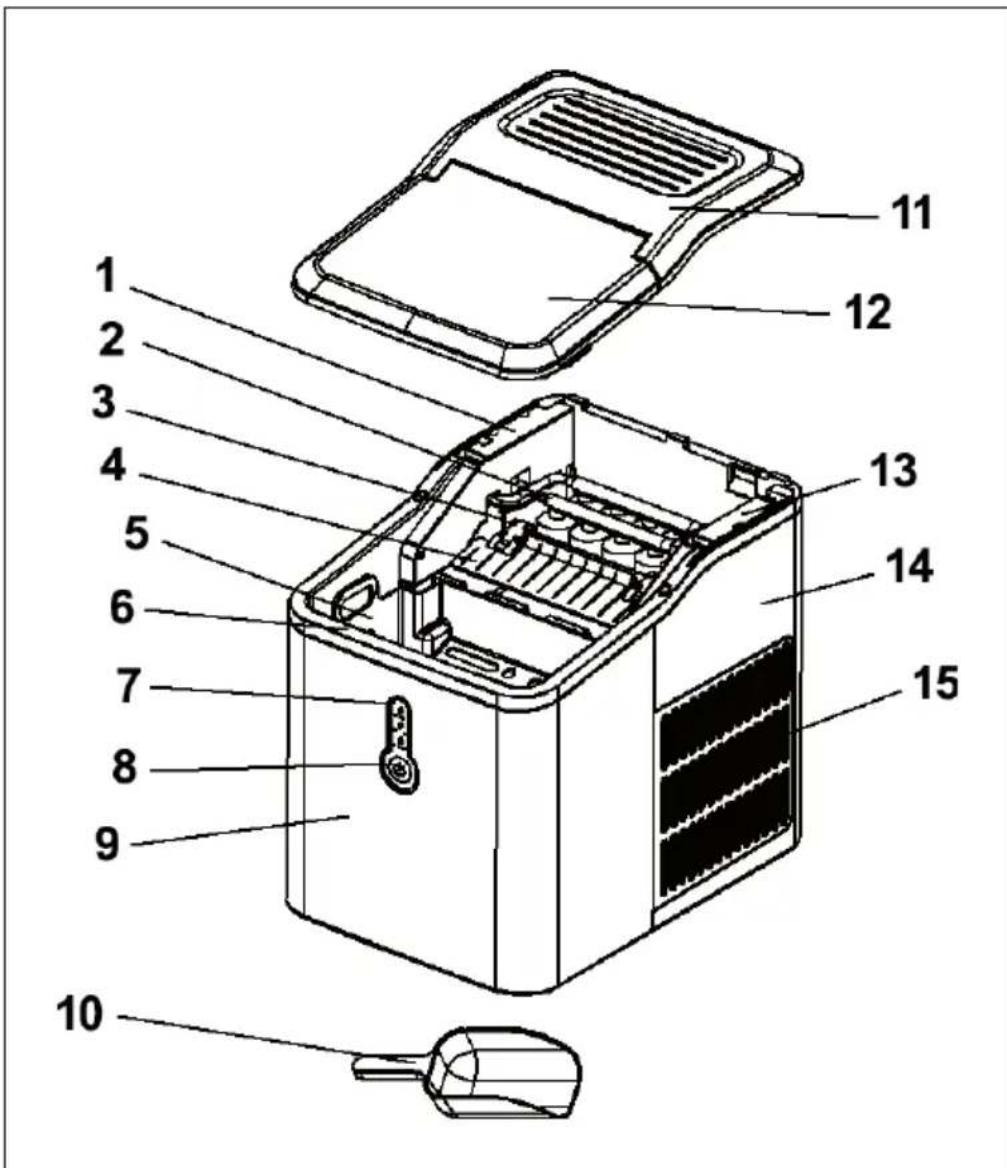

DEVICE OVERVIEW

1	Micro switch support	9	Front housing
2	Evaporator	10	Ice shovel
3	Water tray	11	Top cover
4	Ice shovel board	12	Transparent lid
5	Ice basket	13	Motor mount
6	Water reservoir	14	Back housing
7	Control panel	15	Air vent
8	Buttons

INSTALLATION

1. During transportation, do not tilt the machine more than 45 degrees. Do not reverse the machine. This may damage the compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient ventilation, the distance of the back of ice maker to the wall should be at least 150~mm , it should be away from the oven, radiator or other heat source.
4. Before using the machine for the first time, place the machine and leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.

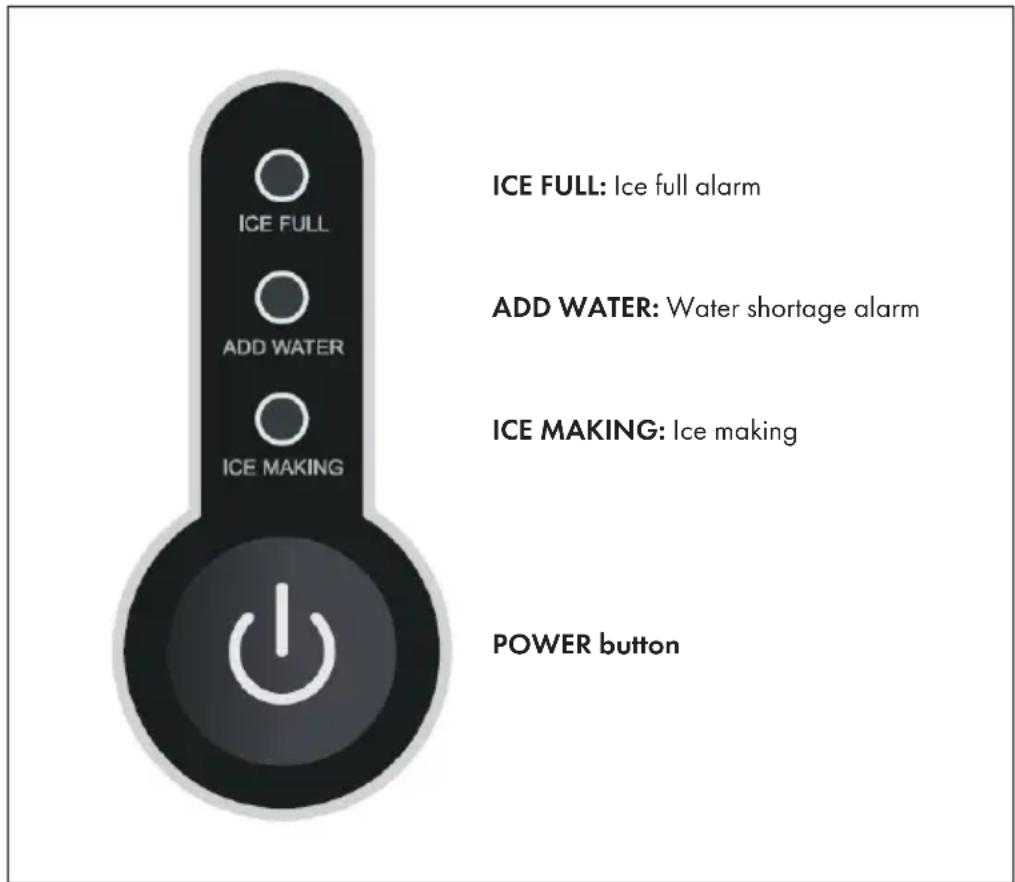

CONTROL PANEL

COMMISSIONING AND FUNCTIONS

Commissioning

1. Insert the mains plug into the socket. The "ICE MAKING" indicator flashes, and the machine will start the deicing function.
2. Press the POWER button, the "ICE MAKING" indicator light is always on and then the ice block will be made automatically. After the ice making is completed, the deicing will be carried out, and then the ice shoveling function will be entered, and so on.

Operating functions

• ADD WATER: water shortage alarm

When the "ADD WATER" light turns red, it means that there is water shortage in the water tank. You need to add water and press the power button to restart the machine.

• ICE FULL: Ice full alarm

When the ice reaches the maximum capacity of the ice storage container, the "ICE FULL" light flashes, and the machine stops. At this time, the ice needs to be poured out. When the ice position is lower than the full sensor position, the machine will restart automatically.

• ICE MAKING: Ice making

When this light is always on, it means that the ice maker is making ice.

OPERATION

Step 1

• Open the lid and take out the basket and add water to the reservoir.

Note: There is a maximum scale MAX in the reservoir. The water should not exceed the MAX position. If the water exceeds the maximum scale MAX, you need to open the bottom drain plug and release the excess water.

• Close the lid again.

Step 2

• Insert the mains plug into the socket and press the power button to start the machine.
• When the ice basket is full, please take out the ice immediately, do not let the ice overflow the ice basket.

Notes on operation

1. The three cycles used for the first time, the ice produced is small and irregular.
2. When the ice basket is full, please take out the ice immediately, do not let the ice overflow the ice basket.

CLEANING AND MAINTENANCE

1. Clean the inner liner, ice collecting tray, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the ice maker. Do not spray ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. If you have not used the appliance for a long time and put it back into operation, the water pump may be filled with air and therefore not be able to pump enough water. In this case, the "ADD WATER" indicator lights up. Press the POWER button to restart the ice cube machine.
4. To ensure the cleanness of ice, please change water for water reservoir at least once one day. If not used for a longer period of time, drain the water and clean the water reservoir.
5. If the compressor takes a strike action for shortage water, full ice basket or interruption of power supply, it will delay for 3 minutes to start up after restarted.
6. Always use fresh water before starting ice production either at initial installation or after a long shut-off period.

TROUBLESHOOTING

1. Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.

2. Please check if the water reservoir is flat when the ice shovel can not remove the ice to the ice basket. If not, please push the ice shovel gently with finger, then press POWER button to restart.

Problem Possible Cause Suggested Solutions
The appliance is exceptionally loud and humming.	The voltage is too low. Stop the appliance and plug it into an outlet that has the specified voltage.
The "ADD WATER" indicator light comes on.	There is too little water in the tank. Add some water until it reaches MAX position.
	The pump is full of air. Press the POWER button to restart the appliance.
Indicator lights on display are not on.	The fuse is broken or the appliance is switched off. Replace the fuse or switch on the appliance.
The ice cubes are too large and stick together.	There is ice from the last run in the water tray. Switch to standby mode and remove the ice.
The appliance is running but does not produce ice.	Problem with the refrigerant. Contact a specialist company for inspection and repair.
	The compressor is broken.
	The fan motor is damaged.
All lights flash simultaneously.	Water tray is blocked by ice cubes. Remove the plug from the socket to take out the ice which is blocking the tray. Then insert the plug back into the socket and press the POWER button, the machine will restart 3 minutes later.
The machine has been working, but the water has been warming.	The solenoid is broken. Have the solenoid replaced. Contact a specialist company.
The ice basket is full, but the "ICE FULL" indicator light does not come on.	The ice full sensor is damaged.
Contact a specialist company.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

Chere cliente, cher client,

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Gentile cliente,

PRODUTTORE IMPORTATORE (UK)

Produtlore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

KLARSTEIN
