USER MANUAL Haze HU400BC WILFA

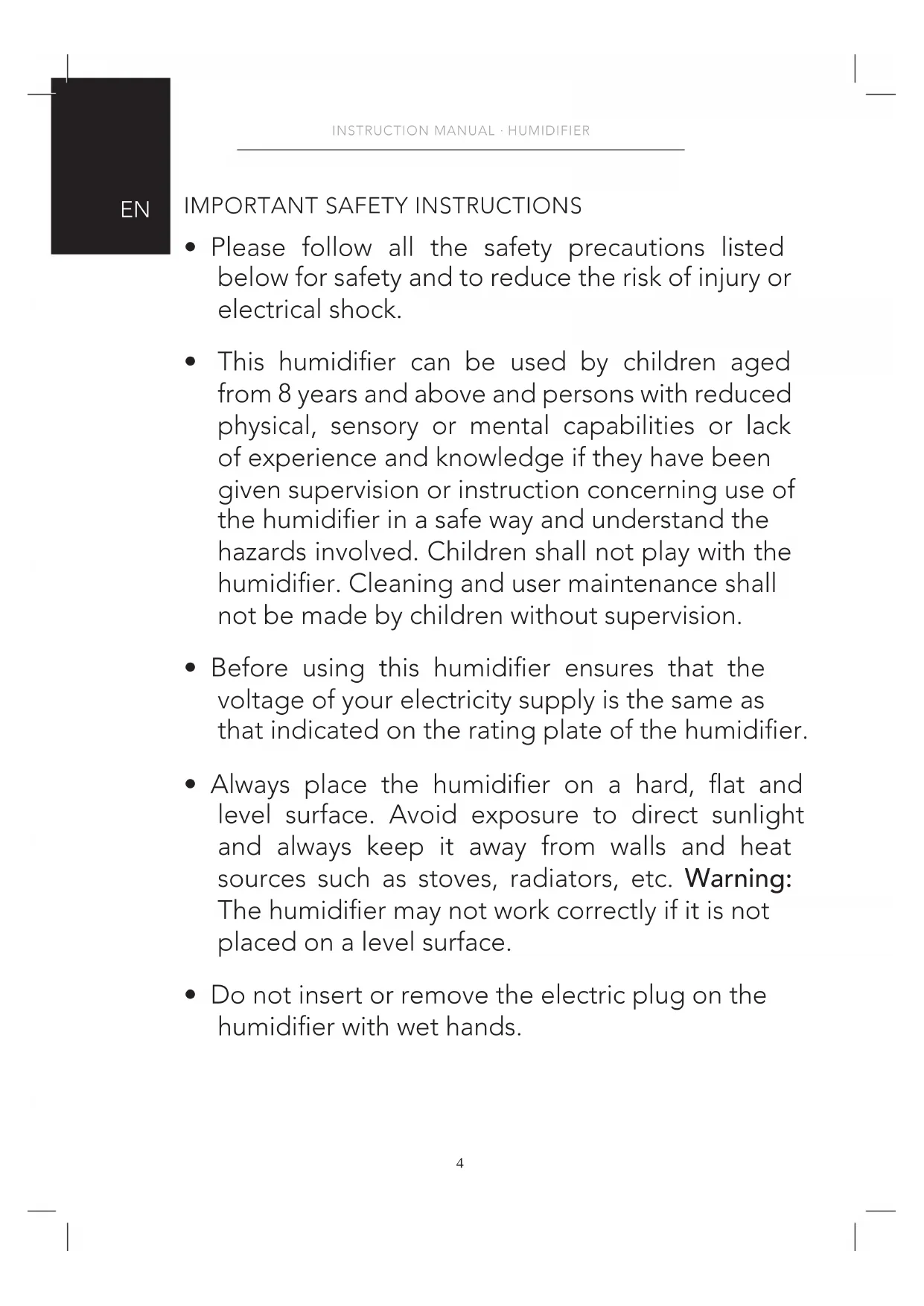

• Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock.

• This humidier can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the humidier in a safe way and understand the hazards involved. Children shall not play with the humidier. Cleaning and user maintenance shall not be made by children without supervision.

• Before using this humidier ensures that the voltage of your electricity supply is the same as that indicated on the rating plate of the humidier.

• Always place the humidier on a hard, at and level surface. Avoid exposure to direct sunlight and always keep it away from walls and heat sources such as stoves, radiators, etc. Warning: The humidier may not work correctly if it is not placed on a level surface.

• Do not insert or remove the electric plug on the humidier with wet hands. EN5

• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualied person in order to avoid a hazard.

• To reduce the risk of electric shock, do not remove screws. The humidier does not contain any user- serviceable parts. Please leave all maintenance work to qualied personnel.

• Fill the tank with fresh, distilled or demineralized water. Do not drop any other liquid into water tank or water basin. Do not run the humidier when there is no water in the tank or the water basin.

• Do not shake the humidier as this might cause the water spill over into the base of humidier.

• Never touch the water or components while the humidier is in operation.

• If there is an unusual smell when it is being used as described in this manual, switch the humidier off, unplug it and have it examined by your dealer.

• Do not pour hot water into the tank, i.e. at a temperature in excess of 40°C.

• Do not immerse the humidier or the mains cable or plug in water or other liquids. EN6

• Never scrape the transducer with a hard tool. The humidier must be cleaned regularly. To do this, refer to the cleaning instructions in this manual.

• If you spill any liquid into the humidier, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

• Disconnect the humidier from the power supply when not in use and before cleaning.

• Ensure that the mains cable does not touch any hot surface and that it does not overhang a table edge.

• Never use this humidier in a room where aerosol products (sprays) are used or in a room or where oxygen is being administered.

• Do not put items of clothing or towels on top of the humidier. If the nozzle is obstructed, this may cause the humidier to malfunction.

• When moving the humidier, lift it by the base and not by the water tank.

• Do not use the humidier if the air in the room is already sufciently humid. EN7

• The ideal relative humidity level for human comfort is in fact between 45% and 65%. Excess humidity shows up in the form of condensation on cold surfaces or cold walls in the room. To measure the room’s humidity correctly, use a hygrometer available in most specialist shops and hypermarkets.

• This product is intended for indoor, non-industrial, non-commercial, household use only.

• Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every 3 days.

• Keep the appliance out of reach of children. Steam and boiling water may cause burns.

• Never leave water in the reservoir when the appliance is not in use.

• Clean the water every three days. EN8

• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

• Do not permit the area around the humidier to become damp or wet. If dampness occurs, turn the output of the humidier down. If the humidier output volume cannot be turned down, use the humidier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

• Unplug the appliance during lling and cleaning.

• Empty and clean the humidier before storage. Clean the humidier before next use.9

• Place the product on rm, at surface.

• The humidier should be placed on at horizontal surface and keep it steady.

• Do not place the product near or close to any heat sourc- es.

• The humidier should be far away from any heat sources, such as stoves or re places. Do not expose the product to direct sunlight.

• Do not place the product near or close to furniture or elec- tric appliances.

• The mist outlet from the humidier should not be directed towards furniture and the electronic appliances, to avoid damage.

• Particles in water, such as calcium, can be part of the va- pour and be deposited on objects in the vicinity.

• It is recommended that the unit be placed on a table or other surface at least 70 cm above the oor level, to ensure that the vapour will be optimally distributed throughout the room.

• Put the humidier in the room 30 minutes before starting it.

• It is recommended to use the humidier when the temperature is under 20°C, and the relative humidity is less than 80%RH.

• Use clear water not over 40°C.

• Check the water basin, make sure it is clear.

• Place the humidier on a at surface. WATER FILTER

• Ceramic balls can soften the hard water.

• Ceramic lter can eliminate the strange smell in the water. AROMA BOX

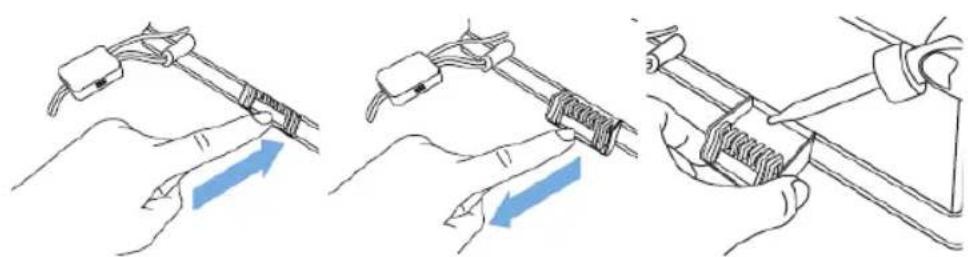

1. Press out aroma box from the base.

2. Use water-soluble aroma oil and drop on to the sponge.

3. Put the aroma box back into humidier, the aroma function will remain on

when the humidier is running.

5. Only drop aroma oil into aroma cotton. Do not drop any liquid except clean

water into water tank or basin.

• Remove the top cover, ll water into the water tank, and put the top cover back on. You can also take the water tank out and ll water directly into the tank, and put the water tank back into the main base.

• Check if the rated voltage meets the input voltage, and plug into the socket. The display will light up and it beeps one time. 1 second later, the display will turn off, and the “on/off” button will turn red, meaning the humidier is in standby mode.

• Touch the “on/off” button, the display will light up, and it will start to work in AUTO mode. The display shows the auto symbol and current humidity. 10 seconds later, the display shows current temperature, and then change into humidity. Current temperature and humidity showing will change once every minute.

• Humidier will decide running humidity based on current temperature as below.

• Constant humidity: touch the HUMIDITY button and you can select the humidity from 30%RM to 75%. Touch the button once and it will increase by 5%RH each time. When it reaches 75%, touch again and the display will show “—” and the humidier will go back to AUTO mode. After setting the preferred humidity, humidier will keep the memory and conrm by ashing 3 seconds. Once the display switches to show current humidity, it means that the setting is nished, “%” will ash on the display. – When setting humidity is 1%RH~9%RH higher than current humidity, mist output speed will run by the lowest (the rst) speed. – When setting humidity is 10%RH~15%RH higher than current humidity, mist output speed will run by the middle (the third) speed. – When setting humidity is 15%RH higher than current humidity, mist output speed will run by the highest (the fth) speed. – When current humidity is higher than setting humidity, humidier will turn into sleep state. Once current humidity is 3%RH lower than setting humidity, humidier will re-work in previous working mode till water shortage. – Mist output speed is adjustable under constant humidity function. Temperature of the air, degrees Celsius ≤19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ≥37 Humidity (%)

• Night mode: Long press the humidity button for 2 seconds to shut down the water tank indicator light and display. Only the red On/off button will show. Press any button to wake up the light and display.

• Timer: There is 12 timer settings: 1-12. Touch the TIMER button and the display will show the timer setting from 1-12 in sequence. For example “1H”. Once you have found your preferred time setting, do not operate it for 3 seconds, the time will stop ashing and the timer is set. The timer shows the rest of the operating time every minute. Press the timer button for 2 seconds to cancel the operation.

• Degerming: Touch the DEGERMING button once to start the heating function. The display shows the heating symbol . Warm mist will come out after 10-15 minutes. Touch the button again to start the plasma function. The plasma symbol will show on the display. Touch the button again to shut down the heating function. Touch the button one more time to shut down the plasma function. Long press the degerming button to tun on/off water tank indicator light.

• Mist output speed: Touch the bar to enter manual mode. Slide from MIN to MAX to select your preferred mist output speed. Sliding from left to right will increase the speed, sliding from MAX to MIN will decrease the speed. The display shows the selected speed from 1-5.

• Auto shut down: If there is not enough water in the water tank to keep the humidier going, the humidier will automatically stop working and stay at standby mode. The water shortage symbol will show on the display. Rell the water tank and press the on/off button to turn the humidier on again. If there is too much water in the basin, the display shows EF, and it will automatically stop working. Pour out some of the excess water and put the water tank back into the main base, switch it on and it will work as normal. EN14

TROUBLESHOOTING Problem Possible reasons Solutions Power lamp is off when switched on. Humidier is not plugged in. Plug the humidier into a powered electrical socket. Power cord is damaged. Immediately discontinue use and contact Customer Support. Humidier is defective or malfunctioning. Press the power button to turn it on. Power lamp is on when switched on, but no mist come out. Humidier is not turned on. Press the power button to turn it on. The target humidity is reached. Increase the target humidity or change mode. Water shortage indicator is on. No water in the tank. Rell the water tank wait at least 1 minute. Water level is low. The water level required has not yet reached the vaporization compartment. Wait at least 1 minute. The water tank isn’t well positioned. Check the positioning of tank on the base. The humidier isn’t on a at surface Check the positioning of the humidier. Humidier produces an unusual smell Humidier is new. Take out water tank, open cover, let it stay 12 hours in cool position. Dirty water or water sitting too long. Clean water tank, ll with clear water. Residual smell from diffusing aroma oil on the aroma cotton. Remove the aroma cotton, rinse it under clean water and allow it to dry. EN15

Humidier makes a loud or unusual sound. Resonant in water tank when water is too low. Fill water into water tank. Humidier is on an unstable surface. Move the humidier to a stable at surface. Water tank is positioned incorrectly. Turn off and unplug the humidier, then align the water tank cover with its respective opening in the inner chamber. Humidier is malfunctioning. Immediately discontinue use and contact Customer Support. The humidication capacity is too low. There is natural or articial air replacement in the room which interfere the increase of %RH. Check if doors and windows are closed. Check if there is no air conditioning working in the room. The air inlet grids, and nozzle could be blocked. Remove any blocking items from the grids and the nozzle. Too much scale in the water basin. Clean transducer. The humidity selected rate is too low. Increase mist output speed. Increase humidity setting rate. Water is too dirty, or water is kept too long in the tank. Clean water tank, change to fresh clear water. EN16

The ambient humidity is too high. Humidier is working in CONTINUOUS MODE. Change the mode. The humidity target is too high. Select a lower %RH target. Room is not well- ventilated. Open a window to ensure proper air ow for your humidier or move the humidier to a more well- ventilated room. Excess water tank has spilled while lling the water tank or replacing the water tank back onto the base. Wipe off excess water from the top and bottom of the base before replacing the water tank. There is condensation in the room. The room temperature is too low. Heat the room up. The mist suddenly stops coming out. Programmed timer period has run out. Turn humidier on. The water shortage indicator is on. Rell water tank. The target humidity level is reached. Turn the humidier off, or select a higher humidity level. Incorrect humidity level is being displayed. Room is larger than the effective range of the humidier. Move the humidier to a room which is with suitable room size. Moisture has built up inside of the humidity sensor. Turn off the humidier and allow the humidity sensor to completely air dry before resuming use. The nozzle is facing the direction of the humidity sensor. Turn the nozzle so that it is facing away from the humidity sensor. Humidity sensor is broken of defective. Contact Customer Support. EN17

Control panel does not work. Hands are too wet when operating control panel. Keep hands dry while operating the control panel. Humidier has malfunctioned. Contact Customer Support. White dust appears around the humidier. Water being used has a high mineral content. Use distilled water with the humidier. If distilled water is not available, use puried or ltered water. Humidier was not properly cleaned after last use. Clean humidier. Mist is coming out from the base. Water tank is not positioned correctly. Turn off and unplug the humidier, then align the water tank cover with its respective opening in the inner chamber. Mist fog coming out from around nozzle. There are apertures between the nozzle and water tank. Reposition the cover and check if the nozzle is well plugged in the cover. The warm mist function does not produce warm mist. The humidier is in warm-up phase. Wait a few minutes till the end of the phase. The mist is too ne to feel the warmth. Increase the speed level. The room temperature is too cold, and the mist may cool down too quickly. Increase the speed level and heat the room up. Display show error code EF. Too much water in water basin. Remove water tank and empty water from the base. Check and clean particles in water outlet of water tank that led to leakage. If no leaks, replace into base. The following is not considered faulty operation: EN18

• If your water is very hard (containing abnormally high levels of minerals) the humidier may produce white dust. This is not a malfunction. The solution would be to clean the lter more often or use softer water.

• If you stand very close to the humidier, you will hear the gurgling sound of water. This is normal.

• The humidier operates very quietly but it is not completely silent. Noise levels less than 35dB(A) is considered normal. MAINTENANCE In case the water is hard, meaning the water contains too much calcium and magnesium, it can cause a “white powder” problem and leave heavy scales on the surface of water basin, transducer, and inner surface of the water tank. Scales on the surface of transducer will let the humidier work improperly. Empty the tank and rell every third day. Before relling, clean it with fresh tap water or cleaning agents if required by the manufacture. Remove any scale, deposits, or lm that has formed on the sides of the tank or on interior surfaces and wipe all surfaces dry. Empty and clean the humidier before storage. Clean the humidier before next use. Use cold boiled water, or distilled water.

• Clean the transducer, water tank and basin every three days.

• Change the water in the water tank more often to keep it fresh.

• Make sure to pour out water from the water tank and dry everything before storage.

HOW TO CLEAN THE TRANSDUCER

• Clean with clean water of citric acid if there is scale in it.

• Brush off the scale from the surface.

• Rinse the transducer with clean water.

HOW TO CLEAN THE BASIN

• Clean the water basin with a soft cloth or use citric acid if there is scale in it.

• If the scale covers the security switch, drop some citric acid on it and let it sit for 2-5 minutes on the scale and clean it with a brush.

• Rinse the water tank with clean water. EN19

• Clean and activate the ceramic ball after using 1000L water. Depending on the water quality. If the ceramic ball is dirty it needs to be cleaned more frequently.

• It can be dipped into vinegar for 5 minutes, then rinse it with water.

• Put the lter under the sun for 4-6 hours to dry, or overnight. EN20

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modied or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Not descaled according to instruction manual

• Overloading of product

• Parts which are normally worn down

• Parts you can expect being replaced regularly (e.g. lter, battery etc.) EN21 AS Wilfa Nydalsveien 24, 0484 Oslo, Norway

For support please visit us at wilfa.com, and see our customer service/support page. Here you will nd frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge. EN22
