USER MANUAL IAN 366331 Livarno Lux

Assembly, operating and safety instructions

LED-BÅND MED LYDSENSOR /

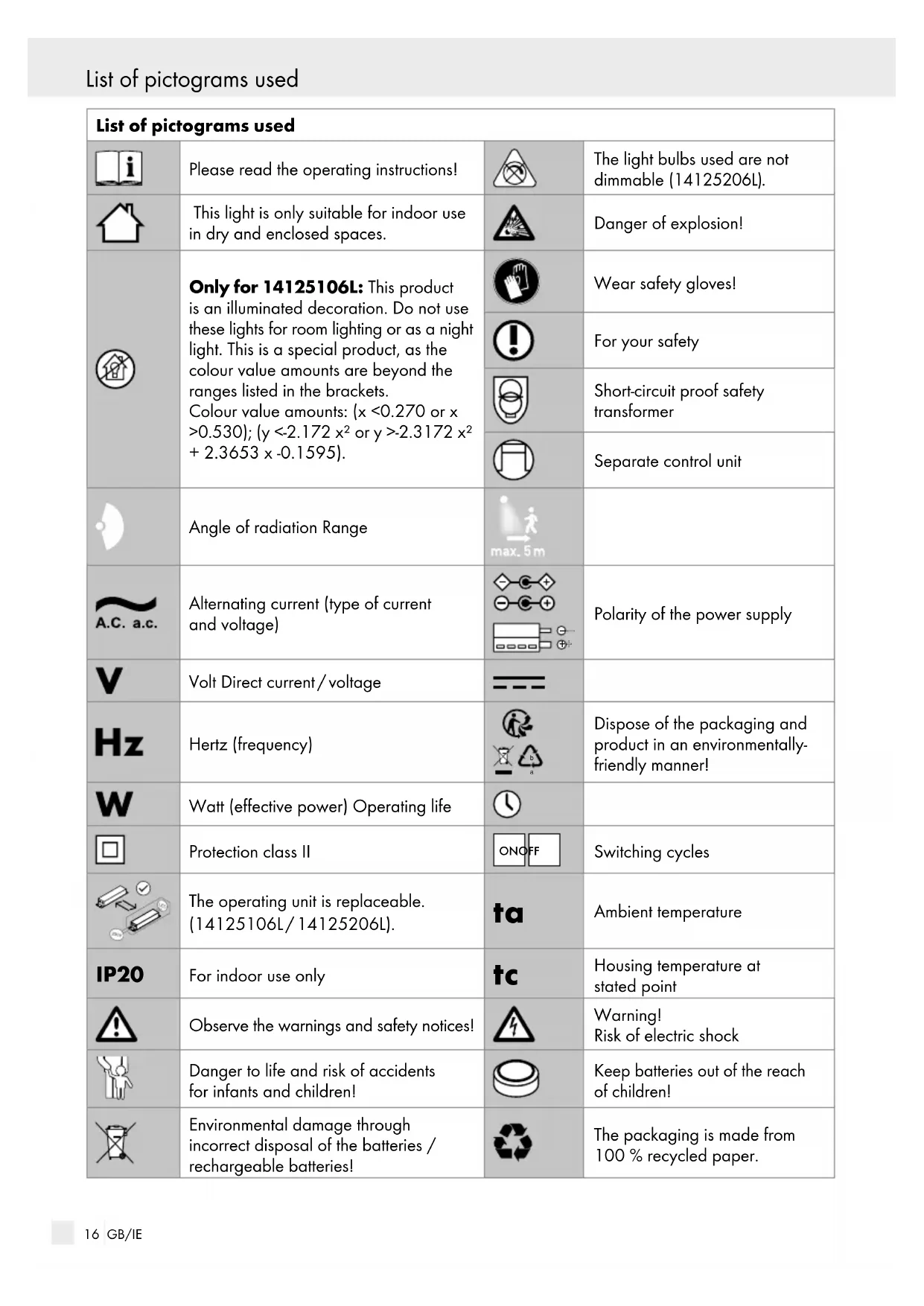

This light is only suitable for indoor use in dry and enclosed spaces. Danger of explosion! Only for 14125106L: This product is an illuminated decoration. Do not use these lights for room lighting or as a night light. This is a special product, as the colour value amounts are beyond the ranges listed in the brackets. Colour value amounts: (x <0.270 or x >0.530); (y <-2.172 x² or y >-2.3172 x² + 2.3653 x -0.1595). Wear safety gloves! For your safety Short-circuit proof safety transformer Separate control unit Angle of radiation Range Alternating current (type of current and voltage) Polarity of the power supply Volt Direct current / voltage Hertz (frequency)

Dispose of the packaging and product in an environmentally- friendly manner! Watt (effective power) Operating life Protection class II ON OFF Switching cycles The operating unit is replaceable. (14125106L / 14125206L).

Housing temperature at stated point Observe the warnings and safety notices! Warning! Risk of electric shock Danger to life and risk of accidents for infants and children! Keep batteries out of the reach of children! Environmental damage through incorrect disposal of the batteries / rechargeable batteries! The packaging is made from 100 % recycled paper. List of pictograms used / Introduction17 GB/IE List of pictograms used List of pictograms used / Introduction List of pictograms used This product's light source can be replaced (14125106L / 14125206L). SELV Safety extra-low voltage 3 m Light strip with music sensor / 3 m Light strip with motion detection Introduction Please be sure to carefully read the com- plete instructions for use. These instructions are part of the product and contain im- portant information on setup and handling. Always follow all safety instructions. Before using this produc

for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, pleas

contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary. Intended use This luminaire is only suitable for indoor use, in dry and enclosed rooms. This product is suitable for indoors and out- door use. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc. This product is intended for normal operation. Only for 14125106L: This product is an illuminated decoration. Do not use these lights for room lighting or as a night light. This is a special produ ct, as the colour value amounts are beyond the ranges listed in the brackets. Colour value amounts: (x <0.270 or x >0.530); (y <-2.172 x² or y >-2.3172 x² + 2.3653 x -0.1595). Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 LED strip, model 14125106L / 14125206L 1 mains adapter 1 music sensor (14125106L) 2 connectors 4 end caps 2 cable holder 1 adhesive strip 2 screws for sensor unit (14125106L) 1 remote control (14125106L) 1 set of instructions for use Parts description

Receiver (14125106L)

Battery compartment (14125106L)

50 / 60 Hz Total capacity: LED / max. 17 W LED strip: Operating voltage: 12 V Performance (LED strip): 14 W Protection category: II / Level of protection: IP20 Mains adapter: Art. no.: HS1201500V Operating voltage: 100–240 V

50 / 60 Hz Total capacity: LED / max. 6 W LED strip: Operating voltage: 12 V Performance (LED strip): 4.5 W Protection category: II / Level of protection: IP20 Mains adapter: Art. no.: HS12001500V Operating voltage: 100–240 V

50 / 60 Hz Output current: 0.5 A Protection category: II / Level of protection: IP20 This product contains illuminants from energy efficiency category F (according to the Directive (EU) 2019/2015) (14125206L). Safety Safety instructions Damage due to failure to comply with these instruc- tions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!

SMALL CHILDREN! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children. This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision. Avoid the risk of fatal injury from electric shock Check the LED strip for damage before every use. Never use the LED strip if any damage is detected. A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of dam- age, repairs or other problems, please contact the service centre or a qualified electrician. The supply cable of this appliance cannot be re- placed. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer. Safety19 GB/IE Introduction / Safety Safety Make sure before use that the available supply voltage corresponds to the required operating voltage of the item (see “Technical data“). Never allow the live power leads and contacts to come into contact with water or other liquids. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Do not use the LED strip if it is covered with objects or is inlaid into a surface. Do not install the lamp on damp or conductive surfaces. This LED strip must not be connected electroni- cally with other LED strips. Do not secure with sharp staples or nails. Always unplug the mains plug from the socket before assembly, disassembly or cleaning. Never catch hold of the mains plug or the LED strip with wet hands. Only use the individual parts supplied, other- wise all warranty claims will become invalid. Do not connect this LED strip to another manufacturer's product. Interconnection shall be made only by the use of the supplied connectors. Any open ends must be sealed-off before use. Do not use the LED strip when covered or crecessed into a surface. Never connect the LED strip to the power sup- ply while it is in the packaging. Lay out the item completely before you connect it to the power supply. Lay out the item completely before you connect it to the power supply. Model 14125106L For some people, this can lead to epileptic seizures or disturbances of consciousness if they are exposed to certain flashes or light effects. Immediately visit a doctor if you experi- ence epileptic symptoms. Prevent fire and injury hazards This product does not contain any parts that can be serviced by the user. The built-in LEDs are not suitable for external dimmers and electronic switches (14125206L). Do not look into the LED from a close distance during operation. Do not look at the LED with an optical instrument (e.g. magnifier). Safe working Install the light so that it is protected from dirt and excessive heating. Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well. Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself. To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket. Safety instructions for batteries / rechargeable batteries

KEEP BATTERIES OUT OF

THE REACH OF CHILDREN! Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may occur within 2 hours of swallowing batteries. Seek immediate medical attention. DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention. DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.20 GB/IE Safety / Initial use Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries. Risk of leakage of batteries / rechargeable batteries Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight. If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous mem- branes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention! WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage. Only use the same type of batteries / recharge- able batteries. Do not mix used and new batteries / rechargeable batteries. Remove batteries / rechargeable batteries if the product will not be used for a longer period. Risk of damage of the product Only use the specified type of battery / rechargeable battery! Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product. Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting! Remove exhausted batteries / rechargeable batteries from the product immediately. Initial use Remove all packaging materials before first use. Never connect the LED strip to the mains power supply while it is in the packaging and rolled up. Note: Ensure that a plug socket is located in close proximity to the installation area. Replacing / Inserting batteries (14125106L) Note: Before first use, pull the insulating strip

out of the battery compartment

If the range of the remote control

reduces, the battery

needs to be replaced. To do this, take the battery compartment out of the remote control

. Remove the old battery

and in- sert a new one. Note: The correct polarity is indicated on the reverse side of the remote control

Slide the battery compartment

back into the remote control

Trimming / connecting the LED tape The LED tape may be trimmed to size or connected.

DANGER TO LIFE BY ELEC-

TRIC SHOCK! Disconnect the lights from the power supply before performing any work on the LED strip

from the socket to do so. Choose the desired LED strip length. Note Ensure that you cut the LED strip at the right place. The cutting point lies exactly between the plus and minus pole and is marked with a black line (14125106L: + 12 V, blue, red, green - ; 14125206L: +, -) (see Fig. C). Shorten the LED strip

using a pair of scissors. Then press both ends of the LED strip

onto the displacement contact of the connector

(see Fig. C). Ensure the correct polarity of the connector when connecting the LED strip

at a time onto the ends of the connector

(see Fig. C). Check the correct positioning. Be sure to cover the open end of the LED tape

with the adhesive strip

if you do not wish to connect the end after trimming the tape (see below Fig. 1–4).

Installing the LED strip Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired. Note: Ensure that a plug socket is located in close proximity to the installation area. Note: Light incidence affects the sensor unit

with the music sensor

by inserting the plug

directly into the socket

, if it has not been pre-installed. Then connect the music sensor

Ensure the correct polarity of the connector when connecting the LED strip

directly with the socket

Choose a suitable installation area. Note (14125206L): Foreign sources of light e.g. street lights interfere with the twilight sensor. Both models: Remove the protective film from the reverse side of the LED strip

with the adhesive strip onto the installation area and press it on firmly (see fig. B). Remove the protective foil

(see Fig. D) from the reverse side of the cable holder

onto the desired position (see Fig. D). Remove the protective film from the reverse side of the music sensor

(14125106L) onto the desired location. Screw down the music sensor

into the cable holder

into the plug socket. Your light is now ready to use. Switching the LED strip on / off 14125106L: Press the ON button on the remote control

to switch on the LED strip

. Press the OFF button on the remote control

, to switch off the LED strip

is only suitable to temporarily switch off the LED strip

from the socket to switch off the LED strip

permanently.22 GB/IE Installing the LED strip / Maintenance and cleaning / Disposal 14125206L (see Fig. E): The LED strip has a daylight sensor / movement sensor

. The motion sensor has a maximum range of max. 5 m. During darkness, the LED strip will automatically turn on when it detects movement in the detection zone. The light turns on for approx. 30 seconds to 10 minutes. The lighting period can be conti- nuously adjusted using the controler

Controlling light effects with the remote control (14125106L) Note: The transmitter for the remote control

is located on the opposite end of the battery com- partment

Ensure there are no obstacles between the remote control

The range of the remote control

: Music programme 1 = slow, flowing colour change with sound induced light reflex

: Music programme 2 = flowing colour change with sound induced light reflex

: Music programme 3 = colour changes only with sound

: Music programme 4 = LED strip will only activate when there's sound. Maintenance and cleaning

ELECTRIC SHOCK! Disconnect the lights from the power supply before performing any work on the LED strip

from the socket to do so. Do not use solvents, benzene or similar subst ances. They could damage the light. Use a dry, lint-free cloth to clean the LED strip

Disposal The packaging is made entirely of recyclable mate- rials, which you may dispose of at local recycling facilities.
