Product type	LED torch
Brand	Livarno Lux
Model	IAN 111047
Available colors	Red, black, blue
Power supply	3 AAA 1.5V batteries (included)
Front lamp	12 LEDs of 0.06W each (non-replaceable)
Side lamp	1 LED of 0.006W (non-replaceable)
Switch	3 positions: front lamp, side lamp, off
Mounting clip	Magnetic, rotatable through 180°
Intended use	Private household use, do not use as room lighting
Warranty	3 years
Cleaning	Soft dry cloth only
Moisture protection	Do not immerse, protect from moisture
Battery safety	Do not recharge, replace all batteries together, observe polarity
Minimum age for use	8 years and older under supervision

Frequently Asked Questions - IAN 111047 Livarno Lux

How to turn on the torch?

Press the switch 6. The first press turns on the front lamp, a second turns off the front and turns on the side lamp, a third turns everything off.

What type of batteries to use?

Use 3 AAA 1.5V batteries. Always replace all batteries at the same time with identical batteries.

How to replace the batteries?

Turn the battery compartment cover 1 to the left to open it. Remove the used batteries, insert new ones respecting polarity (flat side towards the spring). Close by turning to the right.

Is the lamp waterproof?

No, it is not waterproof. Protect it from moisture and never immerse it in water or other liquids.

Is the clip magnetic?

Yes, the mounting clip 3 is magnetic and can rotate approximately 180° relative to the handle. It allows attaching the lamp to a metal surface.

Can I replace the LEDs?

No, the LEDs are not replaceable: front lamp (12 LEDs) and side lamp (1 LED) are integrated.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep your receipt as proof.

How to clean the lamp?

Clean only the exterior with a soft dry cloth. Never use liquids or cleaning products.

Can the lamp be used by children?

Yes, from 8 years old and under supervision. Children should not play with the device.

What to do in case of battery leakage?

Remove the batteries immediately to avoid damaging the device. Avoid any contact with skin, eyes, or mucous membranes. In case of contact, rinse thoroughly with clean water and consult a doctor if necessary.

USER MANUAL IAN 111047 Livarno Lux

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

LIVARNO LUX

not online www.lidl-service.com

LEDTORCH

GB

LEDTORCH

Operation and Safety Notes

SE

LED-FICKLaMpa

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

GB / IE Operation and Safety Notes Page 4

SEBruksanvisningoch

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

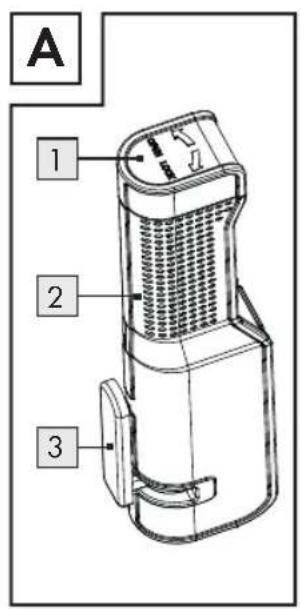

A 1 2 3

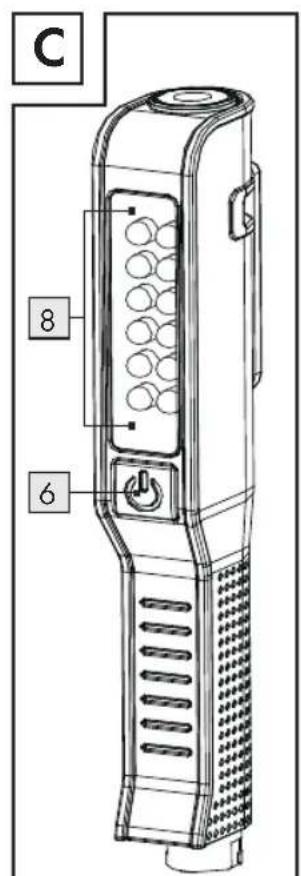

C 8 6

B 7 8 6 5 4 1

Diagram of a battery stack with labeled components and connection points

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

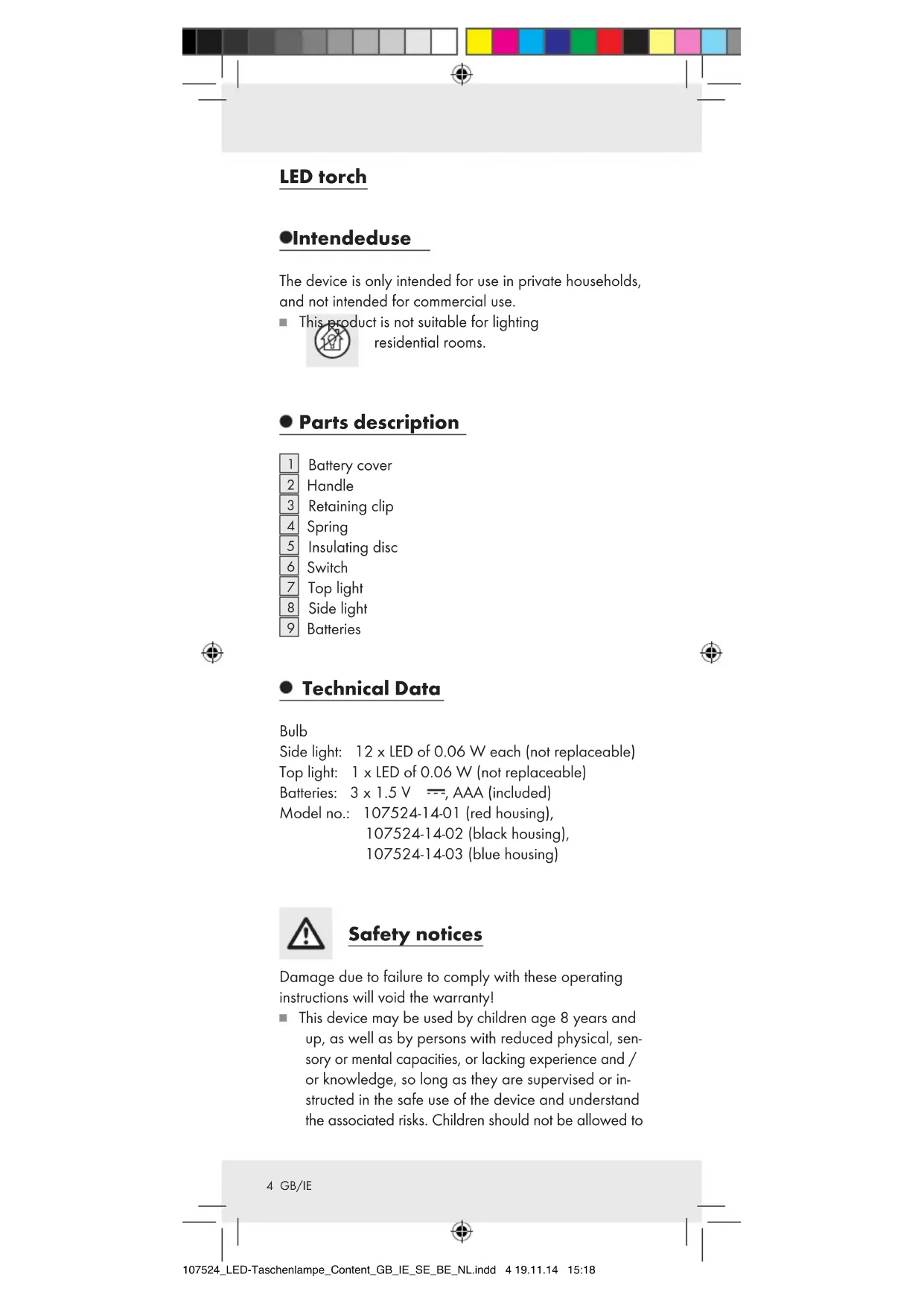

LED torch

Intendeduse

The device is only intended for use in private households, and not intended for commercial use.

This product is not suitable for lighting

residential rooms.

- Parts description

1 Battery cover
2 Handle
3 Retaining clip
4 Spring
5 Insulating disc
6 Switch
7 Top light
8 Side light
9 Batteries

- Technical Data

Bulb

Side light: 12 x LED of 0.06 W each (not replaceable)

Top light: 1 x LED of 0.06 W (not replaceable)

Batteries: 3 × 1.5 V ——, AAA (included)

Model no.: 107524-14-01 (red housing), 107524-14-02 (black housing), 107524-14-03 (blue housing)

Safety notices

Damage due to failure to comply with these operating instructions will void the warranty!

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Children should not be allowed to

4 GB/IE

play with the device. Cleaning and user maintenance should not be performed by children without supervision.

• Do not use the device if it is damaged.
  ■ Protect the device from moisture and damp. Never immerse the device in water or other liquids!

Safetyinstructions for batteries

DANGER TO LIFE! Batteries could be swallowed, which may be life-threatening. If a battery has been swallowed, seek medical help immediately.

■ Remove the batteries from the device if they have not been used for a long period.

CAUTION! EXPLOSION HAZARD! Never recharge the batteries!

If necessary, clean the battery and device contacts before inserting the battery. Immediately remove drained batteries from the device. There is an increased risk of leaks!
- Keep batteries away from children.Do not throw batteries into a fire.Never short-circuit them or take them apart.
If the above instructions are not complied with, the batteries may discharge themselves beyond their end voltage. There is then a danger of leaking.
If the batteries have leaked inside the product, please remove them immediately to prevent product damage!
Do not let the fluid from a leaking battery come into contact with your skin, eyes or mucous membranes. In the event of contact with battery acid, rinse the affected area with plenty of water and / or seek medical attention!
■ Always replace all batteries at the same time and only use the same type of batteries.

- Before use

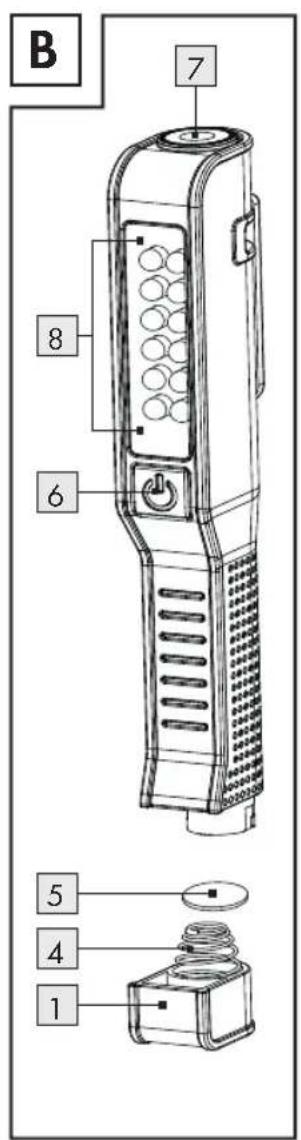

Turn the battery cover slightly to anti-clockwise and remove the battery cover (Fig. B).
□ Remove the insulating disc 5 (Fig. B).
☐ Reattach the battery cover and close it by turning it slightly to clockwise.

Your LED torch is now ready for use.

5 GB/IE

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

- Start-up

The LED torch features 2 light functions which can be activated by repeatedly pressing the switch 6:

☐ Pressing the switch the first time: activates the top light 7.
☐ Pressing the switch a second time: switches off the top light and switches on the side light 8.
☐ Pressing the switch a third time: completely switches off the LED torch.

The LED torch features a retaining clip 3 to fasten it to e.g. the shirt pocket when not in use. The clip is furthermore magnetic, meaning that it can be used to attach the LED torch to a magnetic surface area. The clip can be turned by approx. 180° in relation to the handle 2.

- Inserting / replacing batteries

Turn the battery cover 1 slightly to anti-clockwise and remove the battery cover (Fig. B).

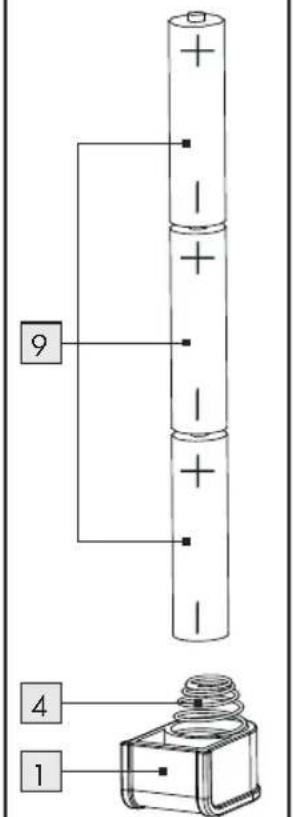

☐ If necessary, remove the old batteries 9 (Fig. C).
☐ Insert the new batteries in the battery compartment. Only use new batteries of the type specified under Technical specifications. Please note the polarity when inserting the batteries. The negative poles of the batteries (flat side) must face toward the spring 4 in the battery cover (Fig. C).
☐ Reattach the battery cover and close it by turning it slightly to clockwise.

- Cleaning and Care

Never use liquids or cleaning agents, as they may damage the device.

Only clean the outside of the device, using a soft, dry cloth.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

Contact your local community or municipal administration for more details on how to dispose your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Please contact your local authority for information on collection points and their opening hours.

Faulty or used rechargeable batteries must be recycled in accordance with Directive 2006/66/EC.

Return the batteries and/or the device to the recycling facilities provided.

Environmental damage due to improper disposal of the rechargeable batteries!

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your municipal collection site.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase.

Please keep the original sales receipt in a safe location.

This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

7 GB/IE

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

8 GB/IE
