USER MANUAL Hot Spot Slimcurve Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: This product is only suitable for well insulated spaces or occasional use.

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 20

Product Data Sheet 21

Installation 23

Device Overview 25

Commissioning and Operation 27

Cleaning and Care 31

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number 10035059, 1	0035060 10035061, 1003	5062
Nominal power 500 W/ 1	000 W 1000 W/ 2000 W
Nominal voltage 220 – 240 V ~ 50 Hz
Dimensions (mm) 460 * 90	* 400 830 * 90 * 400

SAFETYINSTRUCTIONS

• Do not use the appliance until it is securely fixe d as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
• The fi replace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or any swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PRODUCT DATA SHEET

Model identifier(s):	10035059, 10035060
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	1,0	kW manual	heat charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	0,5	kW manual	heat charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	1,0	kW electronic	heat charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption				fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	0,990 kW		Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	0,496 kW single stage	heat output and no room temperature control			no
In standby mode el	s8	0,38	kW Two or more manual stages, no room temperature control			no
				with mecanic thermostat room temperature control		no
				with electronic room temperature control no
				electronic room temperature control plus day timer		no
				electronic room temperature control plus week timer		yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection		no
				room temperature control, with open window detection		yes
				with distance control option		no
				with adaptive start control no
				with working time limitation		no
				with black bulb sensor		no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
Model identifier(s):	10035061, 10035062
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	2,0	kW manual	heat charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	1,0	kW manual	heat charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	2,0	kW electronic	heat charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption				fan assisted heat output N/A
At nominal heat output (fan motor)	eI max	1,890	kW	Type of heat output/room temperature control
At minimum heat output (fan motor)	eI min	0,946	kW single	stage heat output and no room temperature control		no
In standby mode el	SB	0,38	kW Two or more manual stages, no room temperature control			no
				with mechanic thermostat room temperature control		no
				with electronic room temperature control no
				electronic room temperature control plus day timer		no
				electronic room temperature control plus week timer		yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection		no
				room temperature control, with open window detection		yes
				with distance control option no
				with adaptive start control no
				with working time limitation		no
				with black bulb sensor		no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

INSTALLATION

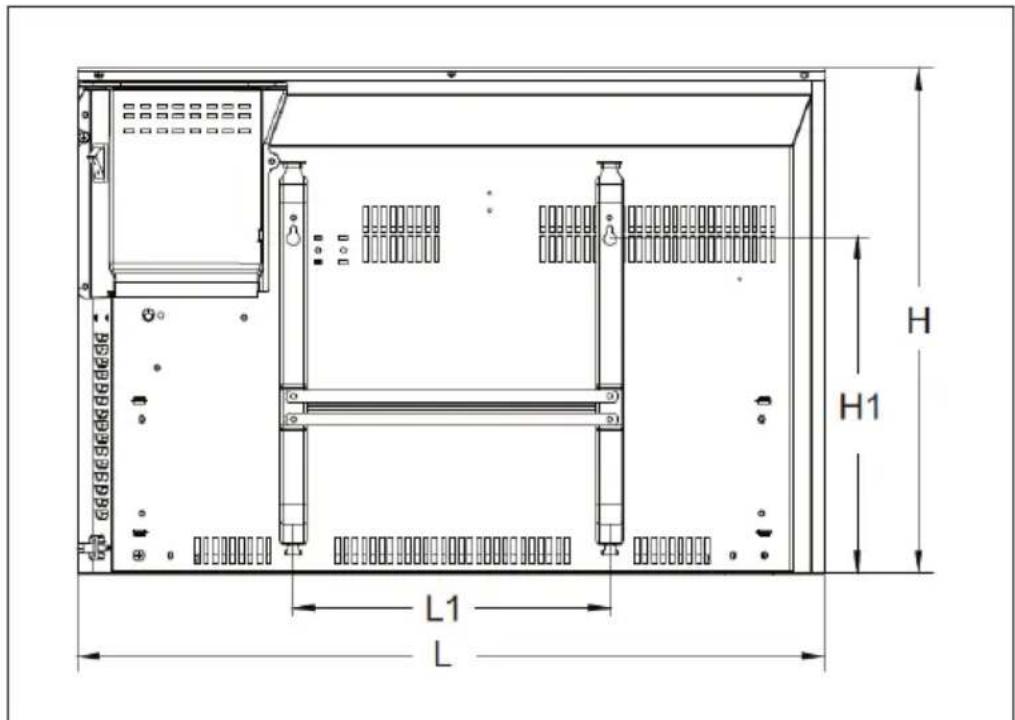

Dimensions

Item Power (W)	L (mm) H (mm)	L1 (mm) H	1 (mm)
10035059	1000/500 4	60 400 155	260
10035060
10035061	2000/1000	830 400 25	0 260
10035062

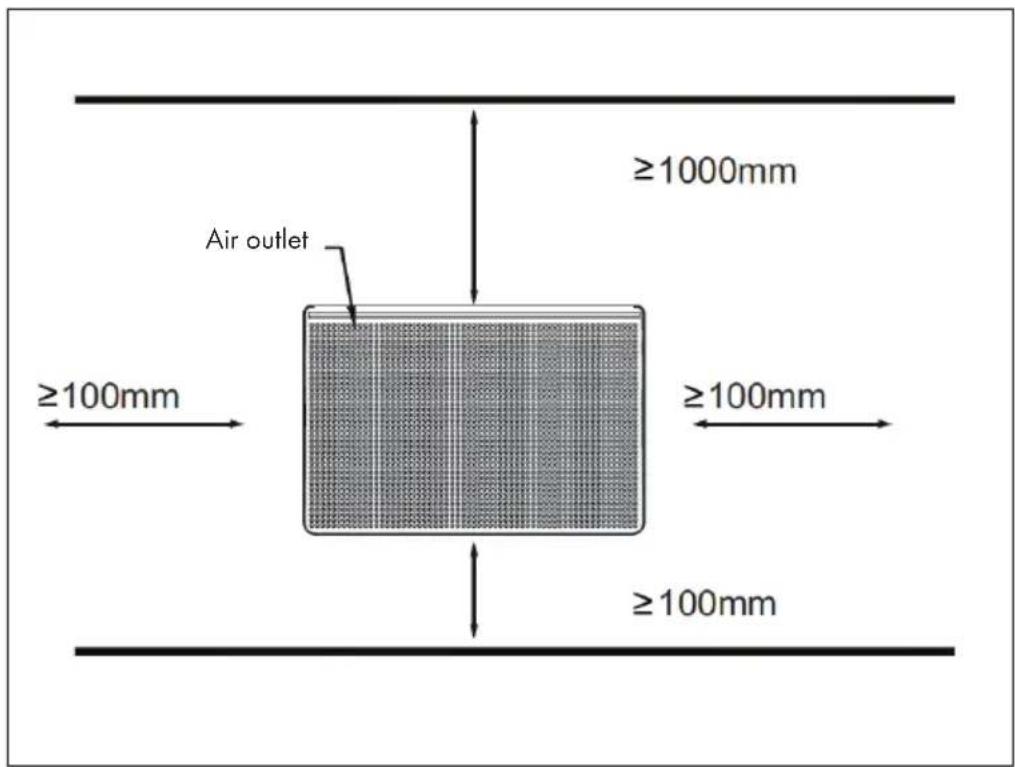

Minimum distances

Note: The minimum distances to the four sides of the heater must be observed.

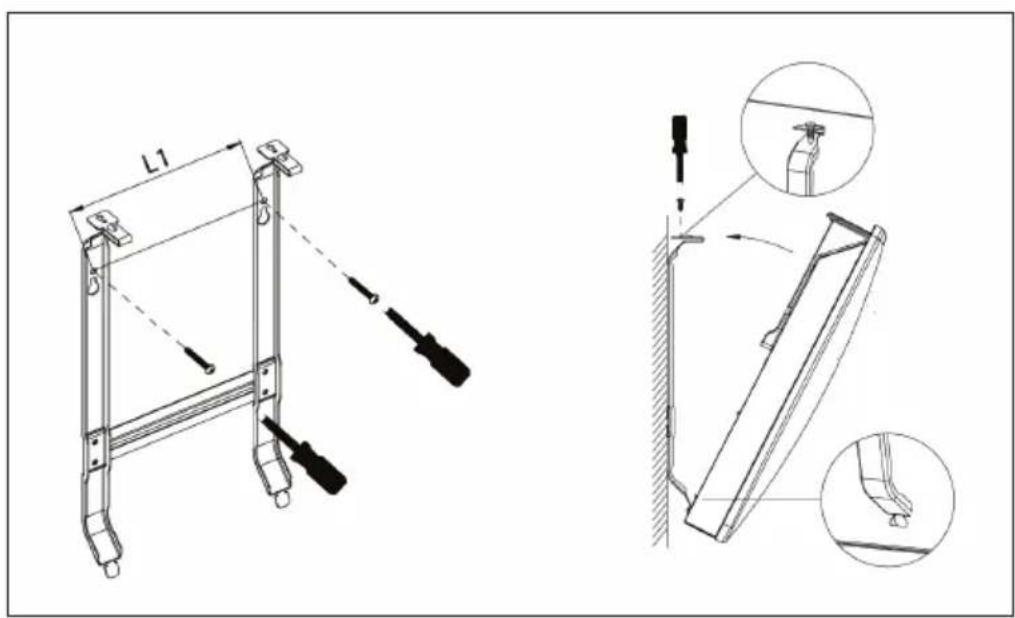

Wall mounting

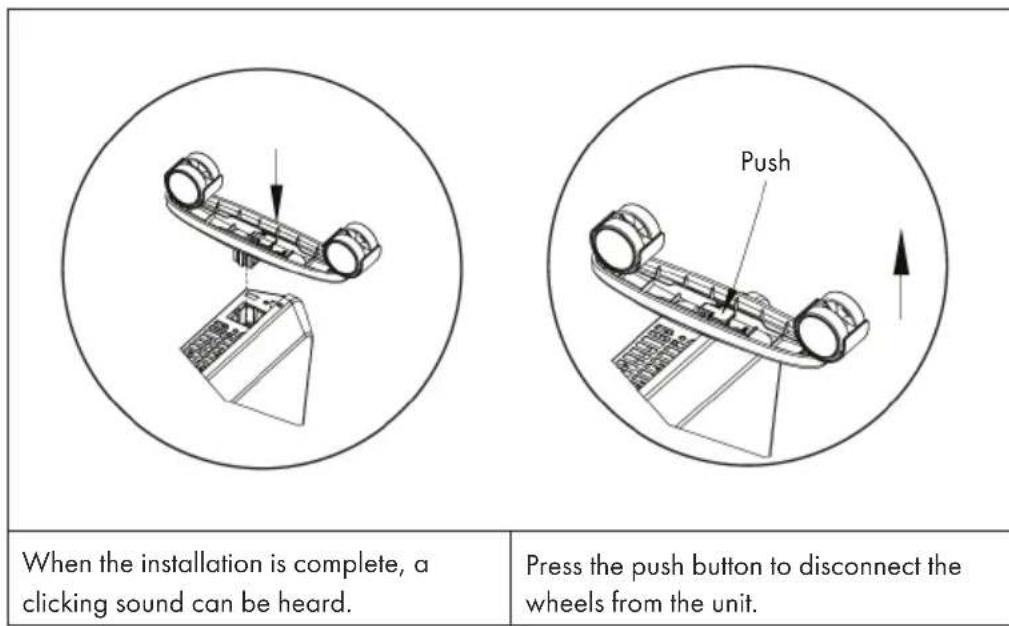

Wheel installation and removal

DEVICE OVERVIEW

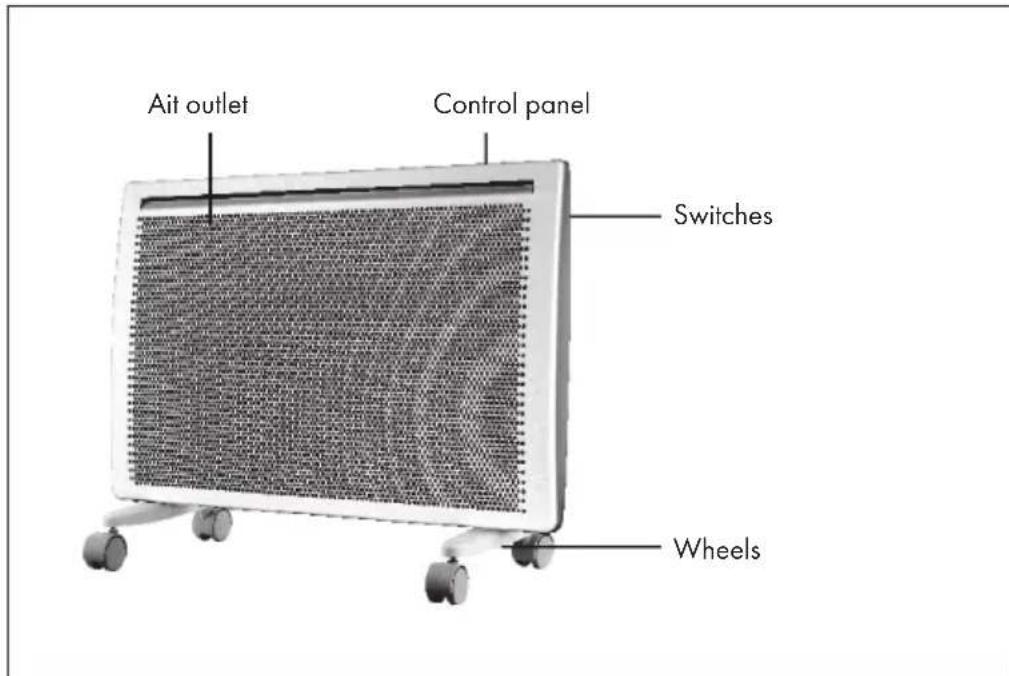

Device

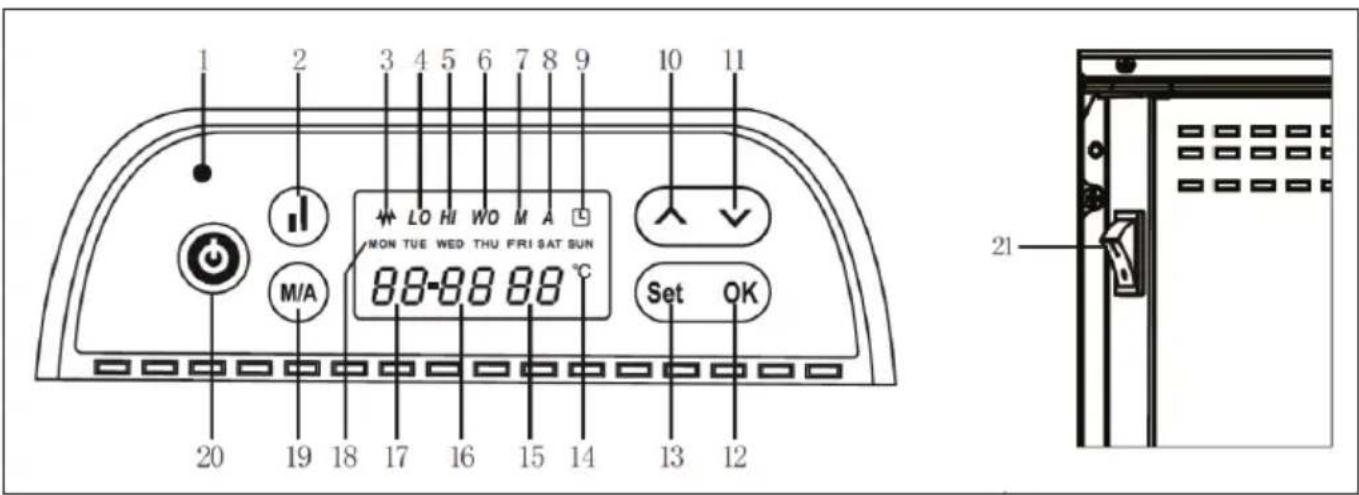

Control panel

1 power display 12 Confirm (OK)
2 Heat output 13 Program setting (Set)
3 Heating indicator 14 Degrees Celsius (°C)
4 Low heat indicator (LO) 15 Temperature display
5 High heat indicator (HI) 16 Minute display
6 Open window display (WO) 17 Hour display
7 Manual mode indicator (M) 18 Day display
8 Automatic mode display (A) 19 Change over key automatic and manual mode
9 Timer display 20 On/Off button
10 Increase 21 Power switch
11 Decrease

COMMISSIONING AND OPERATION

First use

• Carefully remove the device from the packaging. Keep the carton for later storage of the device.
• Make sure that the power switch (21) is in the "0" position before plugging in the device.
• Make sure that the device is installed in accordance with the operating instructions.
• Do not use the same socket for several high-power electrical appliances to avoid overloading the circuit.

Switch on

• As soon as the power plug of the device is plugged into the socket, the red/blue power indicator (1) lights up.
• When you press the on/off button (20), a short beep is heard and the unit is switched on.
• The following settings are displayed on the screen: The day display (18) shows the current day of the week (the default setting is MON), the hour display (17) shows the hours, the minute display (16) shows the minutes and the temperature display (15) shows the current room temperature (the default degree display is ^ C ). When the automatic mode (A) is activated (alarm settings, preset automatic mode), the default setting is 35^ C . If the unit suddenly switches off during use and then switches on again, the last set operating mode is continued.

Setting the time and date

1. Press the OK (12) and SET (13) buttons simultaneously for five seconds when switching on The day of the week indicator (18) flashes.
2. Press the Increase (10) and Decrease (11) buttons to select the date Confirm the entered date by pressing the SET (13) button. The day of the week display (18) stops flashing.
3. The hour display (17) now starts to flash. Press the Increase (10) or Decrease (11) button to select the hour.
4. After pressing the SET button (13), the minute display (16) flashes on the screen and the minutes can be set.
5. Save your settings by pressing the OK button (12) and exit the settings menu.

Temperature adjustment

• The temperature setting is identical in automatic and manual mode. The default temperature unit is ^ C .
• Once the unit is switched on, you can use the Increase (10) and Decrease (11) buttons to set the temperature as soon as the temperature display (15) flashes on the screen.
• If no button is pressed within 10 seconds of the setting being completed, the unit automatically saves the settings and exits the menu.

Manual timer setting

1. Press the Auto/Manual button (19) to select manual mode In manual mode (7), "M" is displayed on the screen.
2. Press the SET button (13) to set the stop time of the unit Select the time using the Increase (10) and Decrease (11) buttons (if the set time is earlier than the current time, the unit will not turn off at this time until the next day).
3. Press the SET button (13) to set the minute at which the machine should stop (if the set time is earlier than the current time, the machine will not be turned off until the next day at that time).
4. Press the OK button (12) to save and exit the menu. The machine will then be switched off at the time you set.

Automatic timer setting

1. Press the Auto/Manual button (19) to select the automatic mode In automatic mode (8), "A" is displayed on the screen.
2. Press the SET button (13) to set the operating time of the timer
3. Press the Increase (10) or Decrease (11) button to select the day of the week.
4. Press the SET button (13) again to set the first operating timer of the day.
5. Press the Increase (10) or Decrease (11) button to set the start time of the heating.
6. Press the SET button (13) again and select the heating stop time with the Increase (10) or Decrease (11) buttons.
7. Press the SET button (13) again to confirm the first heating period The stop time is shown in the day of the week display (18).
8. Repeat the above steps for the other weekdays (if the set start time corresponds to the set stop time, the setting is cancelled).

On/Off

• Press the on/off button (20) to switch the unit on or off. If you turn the unit off while it is in automatic mode, the unit will run according to the default settings.
• If you want the unit to remain off for a long period of time, you must first set the unit to manual mode and then turn it off. If the appliance is outside the operating time you have set, the appliance will be turned off within one second after pressing the power button (20).

Setting the heating power

• Press the heat output button (2) to set the heat output to low or high.
• When the heat output is high, "HI" (5) is displayed on the screen and when the heat output is low, "LO" (4) is displayed on the screen.

Manual mode and automatic mode

• Push the change button (19) to switch between manual and automatic mode.
  In manual mode, the screen displays M'' (7).
• In automatic mode, the screen displays "A" (8).

Reminder function

• Press the on/off button (20) to switch the unit off and on. The last set temperature is reset when the appliance is switched on again.
• Both the manual and automatic modes have the reminder function.
• If the appliance is unexpectedly switched off or there is a power failure, only the power indicator (1) will light up when the power is switched on again and the appliance will remain switched off.
• Press the power button to turn the power back on. The appliance automatically restores the last mode set.

Delete

• Press the OK button (12) for 5 seconds. When a beep is heard, all the timer settings you have made have been cleared.

Open remote display

• As soon as the device detects an open window, it stops heating.

Deactivating the Open Window Display

• Press the on/off button (20) twice to switch the unit off/on. The "WO" indicator light is deactivated in the open window display (6). The unit is in normal operating mode.

Signal tone

Each time you press a button, an acoustic signal is heard. If you press a button continuously, the sound is heard only once.

Parental Lock

• When the unit is switched on, press the Increase (10) and Decrease (11) buttons simultaneously for 3 seconds. The appliance is now locked. The temperature display first shows [ ] and changes automatically after 5 seconds to show the room temperature.
• If any entry is made, . ^ ^ . is displayed for five seconds,an acoustic signal sounds and the room temperature is displayed again.

Deactivating the child lock

1. Switch off the unit with the on/off button (20).
2. The unit is now in standby mode.
3. Press the Increase (10) and Decrease (11) buttons simultaneously for 3 seconds. The child lock is now deactivated and all buttons can be used again.

CLEANING AND CARE

• Turn off the appliance and unplug the power cord from the wall outlet before cleaning the appliance.
• Make sure that the product has cooled down completely before adjustment.
• Wipe the surface of the unit with a damp (not wet) cloth to remove dust and dirt.
• Use a vacuum cleaner to remove dust and lint from the ventilation grilles.
• Make sure that the unit is completely dry before plugging the power plug back into the power outlet.

Storage

Store the device preferably in its original packaging in a dry and cool place.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom
