Product Type	Electric Stapler
Brand	Einhell
Model	TCEN 20 E
Power Supply	220-240 V, 50 Hz
Weight	1.1 kg
Protection Class	II
Stapling Rate	20 stapling strokes/min
Compatible Staple Width	11.4 mm
Compatible Staple Length	6 - 14 mm
Compatible Staple Thickness	0.75 mm
Compatible Nail Length	14 mm
Compatible Nail Thickness	1.16 - 1.27 mm
Sound Pressure Level (LpA)	79.1 dB(A), uncertainty K=3 dB
Sound Power Level (LWA)	90.1 dB(A), uncertainty K=3 dB
Vibration Level (a_n)	2.786 m/s², uncertainty K=1.5 m/s²
Main Functions	Stapling and nailing of textiles, leather, wood
Power Adjustment	Stapling power regulator (adjustable position)
Safety Lock	Trigger lock (position 0/1)
Level Indicator	Magazine fill level indicator
Maintenance and Cleaning	Clean with damp cloth and mild soap; blow with low-pressure compressed air
Wear Parts / Consumables	Staples and nails (specified type)
Repairability	Carbon brushes replaceable by specialist; jammed staples can be removed
Warranty	24 months (conditions: non-professional use)
Storage Temperature	5 °C to 30 °C, dry and frost-free place

Frequently Asked Questions - TCEN 20 E EINHELL

How to insert staples or nails into the stapler?

Press the magazine pusher (4) with thumb and index finger, pull it backward. Fill the magazine with staples or nails, ensuring nails are placed on the left inner side. Then push the pusher until it clicks into place.

How to adjust the stapling power?

Use the stapling power regulator (3) on the device. Set it to the desired intensity according to the length of staples/nails and material resistance. Test on a scrap piece to find the optimal setting.

What to do in case of a jammed staple?

First unplug the stapler from the electrical outlet. Pull the magazine pusher (4) back to the stop. Carefully remove the jammed staple with pliers. Then push the pusher back until it clicks into place.

What types of staples and nails are compatible?

The stapler accepts staples 11.4 mm wide, 6 to 14 mm long, and 0.75 mm thick. For nails, the length is 14 mm and thickness is 1.16 to 1.27 mm.

How to clean the stapler?

Unplug the device before cleaning. Use a damp cloth with a little mild soap. Do not use harsh products. You can also blow low-pressure compressed air to remove dust from ventilation slots.

What safety precautions should I take?

Always wear hearing protection (high noise level) and safety glasses. Before use, check that the trigger lock (2) is in position 'I'. Never use the device without staples in the magazine. Unplug before any adjustment or cleaning.

How to know if the magazine is empty?

The fill level indicator (6) shows the level of staples or nails in the magazine (5). If the level is low, fill the magazine as described in the manual.

What is the maximum stapling rate?

The stapling frequency is 20 strokes per minute in continuous operation. The device heats up during prolonged use; take breaks to allow it to cool down.

How to replace the carbon brushes?

Replacement of carbon brushes must be done only by a qualified electrician. If excessive sparking occurs, have them checked by a professional.

What to do if the device stops working under warranty?

Register the defect on the website www.isc-gmbh.info with a precise description and your proof of purchase. The 24-month warranty covers manufacturing defects for non-professional use. You will receive a repaired or replaced device.

USER MANUAL TCEN 20 E EINHELL

Recycling-Alternative zur Rücksendeaff ordering:

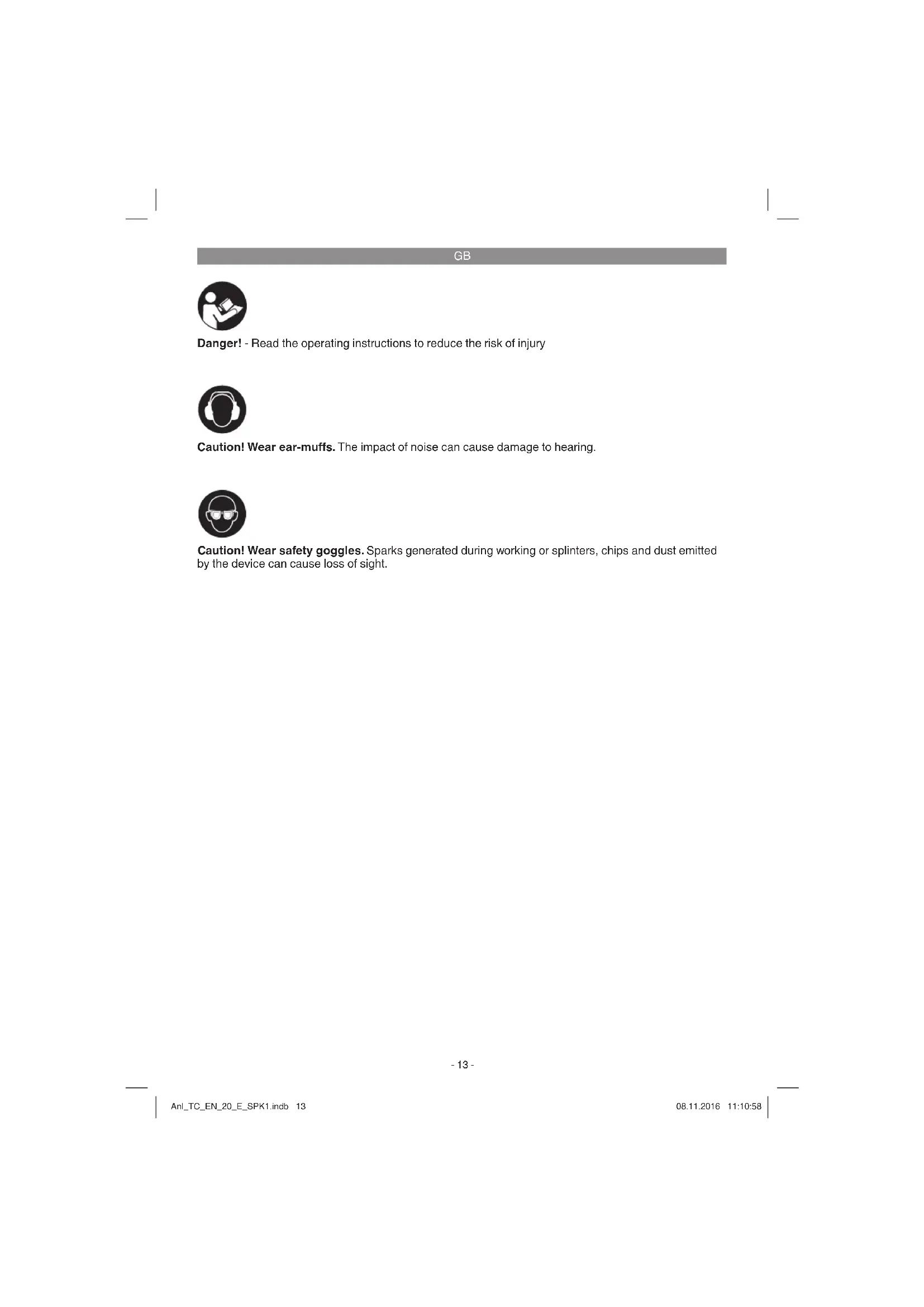

Danger! - Read the operating instructions to reduce the risk of injury

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1 Trigger
2 Trigger catch
3 Stapling force control
4 Magazine slide
5 Magazine
6 Filling level indicator
7 Stapler head

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.

• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Original operating instructions
Safetyinstructions

3. Proper use

The electric stapler is designed for stapling and fastening textiles, leather and wood with the appropriate staples and nails. The electric stapler is designed for temporary operation. It becomes hot if operated continuously. The increasing heat will reduce its performance. When hot, interrupt your work and allow the stapler to cool.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains connection .220-240 V \~ 50 Hz
Shot rate 20 shots/min.
Staple width 11.4 mm
Staple length .6-14 mm
Staple thickness 0.75 mm
Nail length 14 mm
Nail thickness 1.16 - 1.27 mm
Protection class:
Weight: 1.1 kg

GB

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

Lsound pressure level 79,1 dB(A)
uncertainty 3 dB
L_W sound power level 90,1 dB(A)
K_WA uncertainty 3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Vibration emission value a_h = 2.786 m/s^2 K uncertainty = 1.5 m/s²

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
- Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

5.1 Inserting the staples and nails (Fig. 2-4)

• Press the magazine slide (4) together using your thumb and index finger.
  Always pull out the magazine slide towards the rear. (See Fig. 2)
• Fill the magazine with staples or nails as shown in Fig. 3 and 4. With the nails, make sure that these rest against the left inner side (5) of the magazine.
• Then push the magazine slide back in until it snaps noticeably into place.

Important!

It must be possible to move the magazine slide without applying much force. Watch out for jammed staples and nails.

5.2 Filling level indicator (Fig. 1)

The filling level indicator (6) shows you if there are still enough staples or nails in the magazine (5). If necessary, refill the magazine (5) as described above. Avoid operating the trigger (1) if there are no staples or nails in the magazine (5).

GB

6. Operation

Important!

Before starting your work, always check the fi lling level indicator (6) to see if the magazine (5) contains staples or nails and is properly closed with the magazine slide (4).

6.1 Triggering shots (Fig. 1)

The built-in trigger locks prevent the electric stapler from being triggered accidentally.

Triggering is only possible as follows:

• Push the trigger catch (2) into the "l" position.
• Press the head of the electric stapler (7) against the material and operate the trigger (1).

If the electric stapler is no longer in operation - even for short periods - push the trigger catch (2) into the "0" position to prevent unintentional operation.

6.2 Setting the stapling force (Fig. 1)

You can pre-select the stapling force of the electric stapler to suit the length of the staples or nails used and the strength of the material. To do so, set the stapling force control (3) to the desired force. The ideal stapling force is best determined by carrying out a trial on a test piece.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the device immediately each time you have finished using it.
  Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualifi ed electrician. Danger! The carbon brushes should not be replaced by anyone but a qualifi ed electrician.

8.3 Maintenance

There is a risk of staples becoming jammed particularly when the electric stapler is held at any angle when operated.

Danger! Always pull the plug out of the power socket before doing any work on the electric stapler!

Removing jammed staples

Pull the magazine slide (4) to the rear as far as the stop (Fig. 2/3). Carefully remove the jammed staples with a pair of pliers. Push the magazine slide (4) back in until it stops and snaps noticeably into place.

There are no other parts inside the equipment which require maintenance.

GB

8.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

Type of unit
Article number of the unit
ID number of the unit

• Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

Tip! For good results we recommend high-quality accessories from

www.kwb.eu [e-mail]

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 ^ C . Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*
Consumables* Staples
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

GB

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Chere cliente, cher client,

5. Pre puštanja u pigeon

Pre ukljucivanja proverite odgovaraju li podaci na tipskoj ploci podacima o mrezi.

Upozorenje!

Pre Ngo poconete da podesavate uredaj, izvucite utika iz uticnice.

5.1 Ubacivanje spajalica i eksera (slika 2-4)

Palcem i kaziprstom stisnitezasun spremnika (4).
Izvucitezasun spremnika prema nazad (vidisliku 2).
- Napunite pretinac spremnika spajalicama ili ekserima kao sto je prikazano na slici 3 i 4. Kod punjenja eksera pripazite da oni nalegnu na levu unutrasnju stranu spremnika (5).
Zatim ponovo umetnitezasun spremnika takoda se osetno utvrdi.

Napomena!

Zasun spremnika mora se pomerati bez primene velike sile. Pripazite na zaglavljene spajalice i eksere.

5.2 Indikator napunjenosti (sl. 1)

Pomócu indicatora napunjenosti (6) možete videti da li uspremniku (5) ima još dovoljno spajalica ili eksera. To potrebí napunite presmnik je ste je pre opisano. Izbegavate pritiskanje okidača (1) kada nema spajalica ili eksera u presmniku (5).

RS

6. Rukovanje

Napomena!

Pre početka svakog rada proverite pomocu indicatora napunjenosti (6) da li u spremniku (5) imaspajalice ili eksera i da li jezasun spremnika (4) pravilno zatvoren.

6.1 Okidanje (sl. 1)

Ugradeni osiguraci sprečavaju nenamerno okidanje elektrichnog pistolja za zakucavanje.

Stoga okidanje moze da se vrsi samo na sledeci nacin:

Pomerite blokadu okidanja (2) u połozaj, l.
- Pritisnite vrh (7) elektrichnog pistolja za zaku-cavanje na materijal i pritisnite okidač (1).

Ako višne necete da koristite elektrčni pištolj, Čak i na krace vreme, pomerite blokadu okidača (2) u položaj „0" kako biste sprečili nenamerno okidanje.

6.2 Podesavanje udarnseile (sl.1)

Na elektrichnom pistolj za zakucavanje spajalica postoji mogucnost izbora udarne sile, zavisno od duzine korišenih spajalica ili eksera, kao i Čvrstoce materijala. Podesite regulator udarne sile (3) na Željenu jacinu. Idealnu jacinu udarne sile saznacete tako da isprobate zakucavanje spajalica na probni komad.

GB explains the following conformity according to EU directives and norms for the following product

□90/396/EC_2009/142/EC

89/686/EC_96/58/EC

2011/65/EU

X 2006/42/EC

Annex IV

Notified Body:

Notified Body No.: Dr. A.

2000/14/EC_2005/88/EC

Annex V

Annex VI

Subject to change without notice

Archive-File/Record: NAPR010541

Documents registrar: Georg Riedel

Wiesenweg 22, D-94405 Landau/Isar

EH 11/2016 (01)
