USER MANUAL TCCT 3 6 Li EINHELL

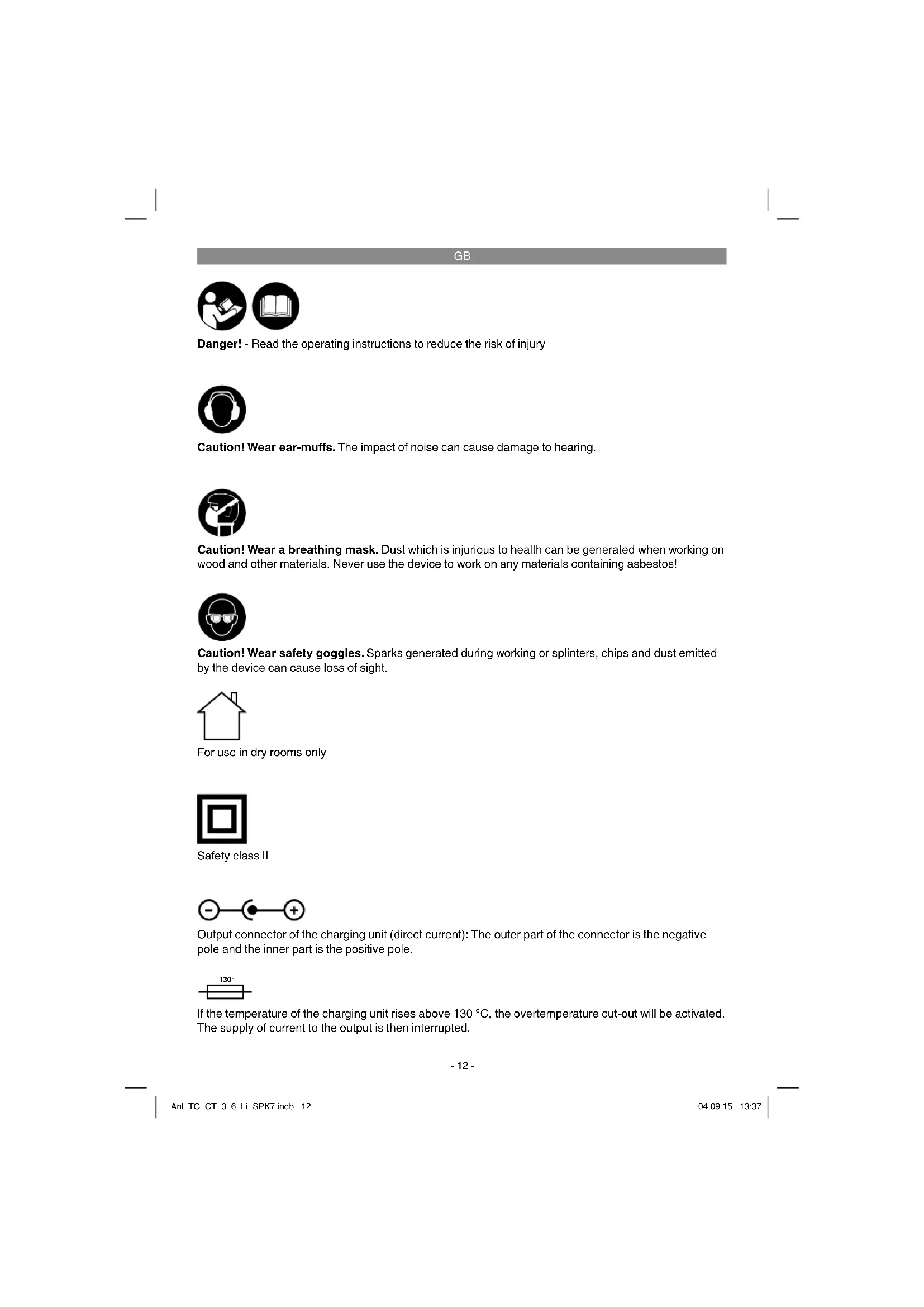

Danger! - Read the operating instructions to reduce the risk of injury Caution! Wear ear-muff s. The impact of noise can cause damage to hearing. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! For use in dry rooms only Safety class II Output connector of the charging unit (direct current): The outer part of the connector is the negative pole and the inner part is the positive pole. 130° If the temperature of the charging unit rises above 130 °C, the overtemperature cut-out will be activated. The supply of current to the output is then interrupted. Anl_TC_CT_3_6_Li_SPK7.indb 12Anl_TC_CT_3_6_Li_SPK7.indb 12 04.09.15 13:3704.09.15 13:37GB

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2. Head of the stapler

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Original operating instructions

The cordless stapler is designed for stapling and fastening textiles, leather and wood with the appropriate staples. The cordless stapler is designed for temporary operation. If operated continuously, the stapler will become hot and the increasing heat will reduce its performance. When hot, interrupt your work and allow the cordless stapler to cool. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

• Charger for TC-CT 3.6 Li Battery charge voltage: p. 5
• V DC Battery charge current: p. 400
• mA Charging unit supply voltage: p. 230
• -240V ~ 50 Hz Charging time: - 5 hours Hazard! Sound and vibration Sound and vibration values were measured in ac- cordance with EN 60745-1 and EN 60745-2-16. p. 3

uncertainty .............................................3 dB Wear ear-muff s. The impact of noise can cause damage to hea- ring. Total vibration values (vector sum of three direc- tions) were determined in accordance with EN 60745-1 and EN 60745-2-16. Vibration emission value a

The specifi ed vibration value was established in accordance with a standardized testing method. It may change according to how the electric equip- ment is used and may exceed the specifi ed value in exceptional circumstances. The specifi ed vibration value can be used to compare the equipment with other electric power tools. The specifi ed vibration value can be used for initi- al assessment of a harmful eff ect. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear protective gloves. Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

3. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

5. Before starting the equipment

Hazard! Charge the battery only with the charging unit supplied.

5.1 Charging the battery (Fig. 2)

The battery is protected from exhaustive dischar- ge. An integrated protective circuit automatically switches off the equipment when the battery is fl at. Note! Do not actuate the On/Off switch any more if the protective circuit has tripped. This may da- mage the battery. Check that your mains voltage is the same as that marked on the rating plate. Plug the battery char- ger (6) in the plug socket and connect the char- ging cable (5) to the charging connection (a). The charging process starts as soon as the charging cable is connected to the charging adapter. The red LED on the indicator (7) indicates that the battery is being charged. When the charging has fi nished, the red LED will go out and the green LED will begin to shine. If the indicator (7) fl ashes red and green alterna- tely, this means that the temperature is too low or high. Keep the tool at room temperature for a day and try again. If the indicator (7) continues to fl ash red and green alternately, the battery is defective. A defec- tive battery is not allowed to be used any more. Anl_TC_CT_3_6_Li_SPK7.indb 14Anl_TC_CT_3_6_Li_SPK7.indb 14 04.09.15 13:3704.09.15 13:37GB

If only the red LED fl ashes, the adapted charging function is active. Reason: Exhaustive discharge. For safety reasons the charging is performed less quickly until the normal charge has been reached. Note! The handle may become a little warm du- ring the charging process. This is normal. If the battery fails to charge, please check

whether there is voltage at the socket outlet

whether there is good contact at the charging contacts of the charging unit If the battery still fails to charge, send

and the battery pack to our customer service center.

Press the magazine slide (3) together using your thumb and index finger.

Pull the magazine slide toward the rear of the cordless stapler and out.

Fill the magazine with staples (b) as shown in Fig. 3.

Then push the magazine slide back in until it snaps noticeably into place. Note! It must be possible to move the magazine slide without applying much force. Watch out for jam- med staples. Filling level indicator The fi lling level indicator (4) shows you if there are still enough staples in the magazine. If necessary, refi ll the magazine as described above. Avoid operating the trigger (1) if there are no stap- les or nails in the magazine.

6.1 Operation (Fig. 3)

Before starting your work, always check the fi lling level indicator (4) to see if the magazine contains staples and is properly closed with the magazine slide (3).

6.2 Triggering (Fig. 1)

The built-in trigger locks prevent the cordless stapler from being triggered accidentally. Triggering is only possible by pressing the head (2) of the cordless stapler against the material and operating the trigger (1).

6.3 Indicator (Fig. 2/Item 7)

The indicator (7) indicates the battery charge le- vel during charging (see section 5.1). In addition, the green LED shines while the stap- les are being stapled. If the LED fl ashes red during operation, the batte- ry is empty. Charge the battery.

7. Cleaning, maintenance and

ordering of spare parts Hazard! Never touch the head of the stapler while car- rying out cleaning and maintenance work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

There is a risk of staples becoming jammed par- ticularly when the cordless stapler is held at any angle when operated. To remove them, pull the magazine slide (3) to- ward the rear of the cordless stapler and out, and carefully remove the jammed staples using sui- table pliers. Push the magazine slide (3) back in until it stops and snaps noticeably into place. There are no other parts inside the equipment which require maintenance. Anl_TC_CT_3_6_Li_SPK7.indb 15Anl_TC_CT_3_6_Li_SPK7.indb 15 04.09.15 13:3704.09.15 13:37GB

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_TC_CT_3_6_Li_SPK7.indb 16Anl_TC_CT_3_6_Li_SPK7.indb 16 04.09.15 13:3704.09.15 13:37GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes This consignment contains lithium-ion batteries. In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment packa- ge is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fi xed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany. Anl_TC_CT_3_6_Li_SPK7.indb 17Anl_TC_CT_3_6_Li_SPK7.indb 17 04.09.15 13:3704.09.15 13:37GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Consumables* Staples Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the manufacturer mentioned

below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_TC_CT_3_6_Li_SPK7.indb 19Anl_TC_CT_3_6_Li_SPK7.indb 19 04.09.15 13:3704.09.15 13:37F
