WHOLE ROOM AIR PURIFIER OWNER'S GUIDE

we expect this product to be PERFECT

if it's not WE will make it right.

Important Safety Instructions....4 Cleaning and Maintenance....17

Product Information 9 Troubleshooting 18

True HEPA Filtration....10 Warranty....19

Control Panel 11

User Tips 13

Filter Replacement....14

Storage....16

Deutsch u. 20 Nordelance u. 16 - Antegelegp. 31 Četana p. 12 Slovenky u. 165 Fremysp. 38 Hv. Iben p. 73 - Spredel p. 109 Svenka p. 145

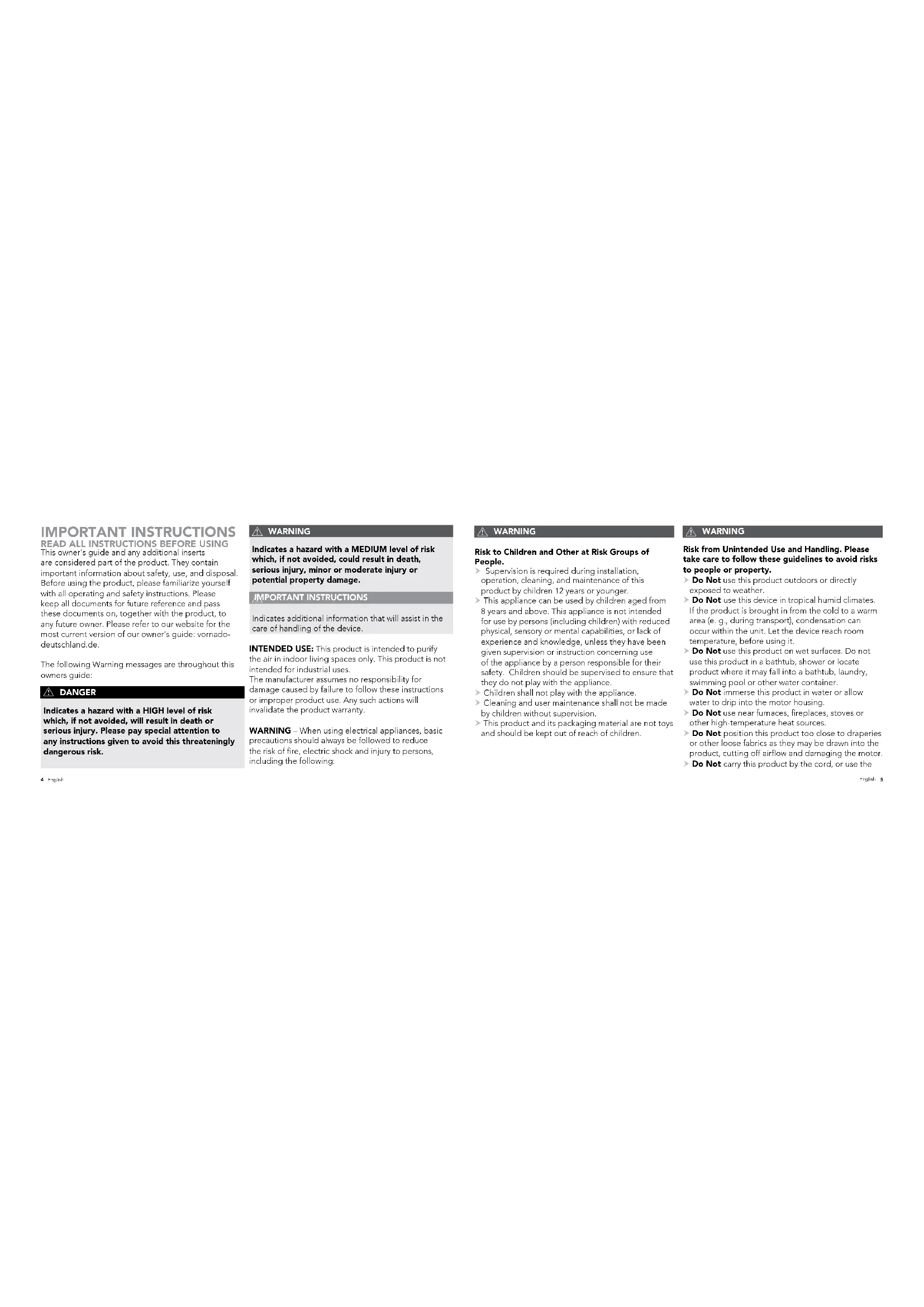

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. Please refer to our website for the most current version of our owner's guide: vornado-deutschland.de.

The following Warning messages are throughout this owners guide:

DANGER

Indicates a hazard with a HIGH level of risk which, if not avoided, will result in death or serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

WARNING

Indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Indicates additional information that will assist in the care of handling of the device.

INTENDED USE: This product is intended to purify the air in indoor living spaces only. This product is not intended for industrial uses. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING – When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING

Risk to Children and Other at Risk Groups of People.

Supervision is required during installation, operation, cleaning, and maintenance of this product by children 12 years or younger.
This appliance can be used by children aged from 8 years and above. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.
This product and its packaging material are not toys and should be kept out of reach of children.

WARNING

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks to people or property.

Do Not use this product outdoors or directly exposed to weather.

Do Not use this device in tropical humid climates. If the product is brought in from the cold to a warm area (e.g., during transport), condensation can occur within the unit. Let the device reach room temperature, before using it.
Do Not use this product on wet surfaces. Do not use this product in a bathtub, shower or locate product where it may fall into a bathtub, laundry, swimming pool or other water container.
Do Not immerse this product in water or allow water to drip into the motor housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
Do Not position this product too close to draperies or other loose fabrics as they may be drawn into the product, cutting off airflow and damaging the motor.
Do Not carry this product by the cord, or use the

cord as a handle as it can damage internal wiring. Do not unplug product by pulling on cord or place the cord under strain. To unplug, grasp the plug, not the power cord.

Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. To avoid a tripping hazard, safely coil/store the power cord.
Do Not tamper with or modify this product in any way.
Do Not allow the power cord to come in contact with water or wet locations.
Do Not place power cord near heat sources, such as heaters or radiators.

ELECTRICAL CONNECTION: Only a proper 230V-50Hz AC outlet may be used to connect to public power supply.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!

Do Not touch the product with wet or damp hands.
Do Not operate any product with a damaged cord or plug or after the product malfunctions, has been dropped or damaged in any manner. Discard product, or return to authorized service facility for examination and/or repair in order to avoid a hazard
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Do Not stretch the power cord or put the cord under strain.
Do Not insert or allow foreign objects to enter any input or output opening as they may cause risk of electric shock or fire, or damage the product.
Turn off all controls before unplugging. Unplug from wall outlet if not in use for extended periods of time.
Do Not open appliance housing. To avoid risk of shock, all service and/ore repairs must be done by

a Vornado Authorized Service Center. Only original replacement parts may be used.
For safety reasons, always unplug the unit in the event of a thunderstorm.

WARNING

Risk from Improper Installation. Please take care to follow these guidelines to avoid risks to people or property.

Ensure that wall power outlet is easily accessible so unit can be disconnected during an emergency.
To reduce the risk of fire or electrical shock, do not use this product with any external (solid state) speed control device.
To reduce the risk of fire or electric shock and injury to persons, do not use in a window.

WARNING: DO NOT USE IN AN EXPLOSIVE ENVIRONMENT

Information Regarding the EC Declaration of Conformity

This product conforms with all relevant and necessary EC directives, including:
• Low Voltage Directive (LVD)
• Electromagnetic Compatibility Directive (EMC)
- Restriction of Hazardous Substances Directive (RoHS)

The complete Declaration of Conformity is registered and can be obtained from the importer.

Dispose of all packaging materials in an environmentally responsible manner.

WEEE Recycling

Waste Electrical and Electronic Equipment Disposal: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled

waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

SAVE THESE INSTRUCTIONS

PRODUCT INFORMATION

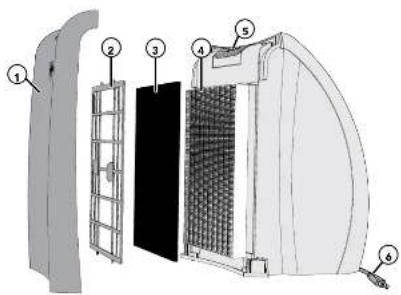

① FRONT PANEL
② PLASTIC SUPPORT FILTER FRAME The frame secures both Carbon and HEPA filters in place
③ CARBON FILTER Captures larger initial particles and colors passing through the unit
④ HEPA 14 FILTER (H14) Captures 99.995% of particles 0.3 microns or larger passing through the unit, allowing only filtered air back into the environment.
⑤ CONTROL PANEL Push button controls for easy and intuitive operation.
6 POWER CORD Convenient 1.8 m cord.

Technical diagram of a device with numbered components, showing front panel, panel, and internal structure.

TRUE HEPA FILTRATION

VORNADO WHOLE ROOM AIR PURIFIERS FEATURE PRECISION TRUE HEPA CALIBRATION

Without properly calibrated airflow, products with a True HEPA Filter will not achieve their full filtration potential. Gaps, poorly sealed filter housings, and excessive air velocity all require the effectiveness of the product. Independent testing laboratory verifies that the precise calibration of a Vomado Air Purifier allows it to perform at True HEPA standards.

2 STAGE FILTRATION

Carbon filtration captures odors and prolongs HPA filter life. HPA 14 filter on captures 99.995% of particles 0.3 microns or larger, to effectively clean large volumes of air.

GENUINE VORNADO FILTERS

Peak performance is only realized when genuine Vornado Carbon and HEPA 14 filters are used. Others may claim to be compatible with Vornado units, but the Vornado Air Purifier is calibrated to achieve a 99.995% capture rate of particles 0.3 microns or larger, only when used with Vornado Filters.

Par+MD1-0050Pa+MD1-0049

CONTROL PANEL

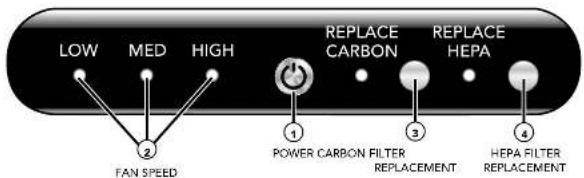

LOW MED HIGH ② FAN SPEED ① ③ ④ POWER CARBON FILTER REPLACEMENT REPLACE HEPA REPLACE CARBON HEPA FILTER REPLACEMENT

CONTROL PANEL

① Power, Function ON and OFF by pressing the Power button.
② Fan Speed, 3 fan speed settings to meet any mood. Select Low, Medium, or High by pressing the Power button until desired speed is illuminated.
Note: Dust and allergens are most airborne when persons and pets are active in the room. For best results, set the unit on a higher speed setting during these times for high demand cleaning and circulation. Set the unit to a lower setting for quieter operation when activity is reduced.
③ Carbon Filter Replacement. Equipped with Replace Carbon filter indicator light to show when it is recommended to change the carbon filter. Please refer to FILTER REPLACEMENT for instructions. This feature is controlled by time of use. The light will illuminate after 4,000 hours of run time has accumulated.
④ HEPA 14 Filter Replacement, Equipped with Replace HEPA filter indicator light to show when it is recommended to change the HEPA filter. Please refer to FILTER REPLACEMENT for instructions. This feature is controlled by time of use. The light will illuminate after 9,000 hours of run time has accumulated.

Note: User environments will differ. The filter replacement time is based on average use situations, if you are using the air cleaner in a more demanding environment, you may need to change your filter more frequently. In loss polluted environments the filter life may extend beyond the notification.

USER TIPS

1. Keep retail carton to store unit when not in use.
2. Use the hand holds on either side of the unit for ea

1. For best results, position the front of the unit (side with logo) towards the center of the room, leaving at least a 15 cm distance away from walls or furniture on every side.

Note: For optimum airflow, air outlet should be unobstructed. Ensure curtains and other terms are far enough away from the unit to not be pulled into the side inlets or interfere with airflow.

FILTER REPLACEMENT

GENUINE VORNADO FILTERS ARE RECOMMENDED

Peak performance is only realized when generic Vornado Carbon and HLEPA filters are used. Others may claim to be compatible with Vornado units, but the Vornado Air Purifier is calibrated to achieve a 99.97% capture rate of particles 0.3 microns or larger, only when used with Vornado Filters.

HOW TO REPLACE YOUR FILTERS

1. Urplug unit

2. Remove Front Panel by lifting up and away from unit

14 Engleh

Note: The Front Panel is held in place by magnets, you will need to lift the Front Panel hard enough to overcome the resistance of the magnets.

1. Remove the Plastic Support Filter Frame by pulling on the center tabs (A). You may need to fix the Plastic Support Filter Frame slightly to release the tabs at the top and bottom.

3D rendering of a curved mechanical component with internal structure and mounting brackets (no text or symbols)

1. Remove and discard used Filters. Simply take hold of the Carbon Filter at any place along the perimeter and remove. To remove the HLEPA Filter, take hold of the tab (figure 1) and pull to release. Replace with genuine Vornado Filters. Place the Filters in the unit and gently press around the perimeter of the Filter to ensure secure placement (Figure 2).

Note: The HEPA Filter must be placed in the unit before the Carbon Filter. See Product Information for a detailed illustration.

Fig. 1 Fig. 2

1. Replace the Plastic Support Filter Frame by securing the bottom 2 tabs into bottom slots (B). Slightly flex the Plastic Support Filter Frame to secure the top 2 tabs into the top slots (A).

Technical diagram of a mechanical component with labeled parts A and B, no readable text or symbols present.

English 15

1. Replace Front Panel by positioning the Panel slightly above the unit and aligning the tabs of the Front Panel with the holes in the unit (A). Gently press the Front Panel down, sliding into the tab slots and allowing the magnets to securely lock the Front Panel in place.

Diagram of a door frame with a black panel and a hanging weight labeled 'A' (no text or symbols present)

SAFETY SHUT-OFF FEATURE

For your protection, the unit is designed to operate only if the Front Panel is in place. Do not attempt to override this safety feature. If, after the Front Panel has been reinstalled, the unit does not operate, remove and reinstall the Front Panel to assure proper placement.

1. To reset the CARBON filter notification press and hold the REPLACE CARBON button for 3 seconds. To reset the HEPA filter notification, press and hold the REPLACE HEPA button for 3 seconds. The light will turn off confirming the indicator is reset.

Press for 3 seconds

Note: Do not operate the Ar Purifier without Vornado Carbon and Vornado HEPAF tors in place.

STORAGE

Follow the steps listed below when you are ready to store your unit. 1. Unplug power cord and bundle loosely.

1. Lift unit with both hands, using hand hords. (Refer to USER TIPS)

2. Cover, or place back in retail carton if available. This will prevent the unit from accumulating dust overtime.

3. Store unit in a cool and dry location

CLEANING AND MAINTENANCE

HOW TO CLEAN

Because large volumes of air pass through your Vornado Air Purifier each day, it will need regular cleaning.

1. Unplug the unit before cleaning.

Note: Do not use gasoline, thinners, solvents or other chemicals for cleaning.

1. Wipe down with a soft, camp cloth. (Figure 1)

2. Dust or vacuum the interior and along the sides. It is recommended to clean the interior when the Filters are changed. (Figure 2)

Illustration showing two stages of a door or cabinet: one with a cloth cleaning the interior, the other holding a tool near a curved door (no text or symbols)

Other Maintenance

The motor is permanently lubricated so it needs no service. No other serviceable parts, other than Filters, are contained within the unit.

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

Unit fails to power on.

Unit is not plugged in. Plug power cord into electrical outlet

Front Panel may not be properly installed. Remove and install the Front Panel to assume proper placement. Refer to FILTER REPLACEMENT

Household circuit breaker / ground fault interrupter has tripped or blow a fuse. Reset circuit breaker / ground fault interrupter, or replace fuse. For assistance, contact a licensed electrician.

Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.

Unit set to a low speed setting. Adjust to a higher speed setting.

Debris build up on filter. Check and replace Filters.

Airflow is blocked. Remove obstruction.

Airflow is weak or slow.

LIMITED WARRANTY\*

We expect this product to be perfect. If you're not satisfied with this product, let us know.

*Limited Warranty and repair terms and conditions

You will replace a voluntary policy in manufacturing's warranty from calls of purchase on materials and workmanship of the product. This extended manufacturer's warranty is valid for all customers in Europe. The legal warranty claims are unaffected by this additional regulation.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will validate the product warranty.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, repair or service of the Product by anyone other than Vornado or an Authorized Service Center, maintaining, improper maintenance, commercial use of the Product, damages which occur in shipment or are obligated to act of God.

Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences will not be assessed by support services or product warranties.

Exclusions are thermopres through inappropriate use or use of the product

not according to the manual. For example, but not limited to: If the product is exposed to breath, extreme temperatures, environments conditions, corrosion, oxidation. If liquids are soiled over the device, if chemical substances impact the product or through other incidents that are not within the reasonable range of influence of the manufacturer.

Pensqualita for processing in the service department is the submission of a receipt or an invoice.

At technical information, date and instructions for the installation, connection and operation contained in these instructions for use correspond to the latest available information at time of printing.

The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

All company names and product names are trademarks of their respective owners. © All rights reserved.

Refer to back cover of owner's guide for the Inspector Information and your Authorized Service Center.

Designed and engineered in USA.

© 2017 Nomadis Ar LLC, Anadom, KS 50000 U.S., Palms, owning Spanish culture study and using a large administration. Nomadis Ar is referenced as by Elomado Air, UK

PRODUKTINFORMATIONEN

Technical diagram of a device with numbered components, showing internal structure and labeled parts.

Quubich 27

3D rendering of a curved mechanical component with internal structure and mounting brackets (no text or symbols)

Illustration of two hand gestures interacting with a grid-patterned panel and a digital display (no text or symbols)

Technical diagram of a mechanical component with labeled parts A and B, no readable text or symbols present.

Deutsch 33

Technical illustration of a door frame with a hanging handle and side view, showing internal structure (no text or symbols)

INFORMATIONS SUR LE PRODUIT

Technical diagram of a device with numbered components, likely an enclosure or storage unit.

VÉRITABLE FILTRATION HEPA

LES PURIFICATEURS D'AIR POUR TOUTE LA PIÈCE DE VORNADO COMPORTENT UNE CALIBRATION DE PRÉCISION POUR VÉRITABLE FILTRE HEPA

LOW MED HIGH 2 VITESSE DU VENTILATEUR 1 ALIMENTATION REMPLACEMENT DU FILTRE AU CHARBON 3 REPLACE CARBON 4 REPLACE HEPA REPLACEMENT DU FILTRE HEPA

46 Français

UTILISATION

REMPLACEMENT DES FILTRES

IL EST RECOMMANDÉ D'UTILISER D'AUTHENTIQUES FILTRES VORNADO

Technical illustration of a mechanical component with two views: top shows a curved structure, bottom shows a rectangular opening (no text or symbols)

Technical illustration of a mechanical component with a side view showing internal structure (no text or symbols)

Fur quin 49

Illustration of two hand gestures interacting with a grid-patterned device (no text or symbols visible)

Fig 1 Fig. 2

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram showing two views of a curved mechanical device with a labeled component (no text or symbols present)

Two-step diagram showing a cleaning or cleaning process: one with a cloth, the other with a tool and curved object (no text or symbols)

CAUSE POSSIBLE ET SOLUTIONPROBLÈME

Technical diagram of a device with numbered components, likely a door or enclosure assembly

ECHTE HEPA-FILTRATIE

VORNADO „WHOLE ROOM“ LUCHTZUVERAARS ZIJN UITGEVOERD MET ECHTE HEPA-KALIBRATIE

LOW MED HIGH ② VENTILATORSNELHEID ① POWER VERVANGING KOOLSTOFFILTER ③ REPLACE CARBON ④ REPLACE HEPA VERVANGING HEPA FILTER

64 Nederlands

BEDIENINGSPANEEEL

Technical illustration of a mechanical component with two views: top view shows curved surfaces, bottom view shows a rectangular opening (no text or symbols)

Technical illustration of a mechanical component with a side view and cross-section view (no text or symbols)

Nemelands 67

Illustration of hands interacting with a device labeled 'GROW TEST' (no text or symbols on the device itself)

60 Nederlands

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram of a mechanical device with a labeled component (A) and directional arrows indicating movement or assembly (no text or symbols present)

VEILIGHEIDSUITSCHAKELING

Technical diagram of a device with numbered components, likely a door or enclosure assembly

Technical illustration of a door frame with two views showing internal structure (no text or symbols)

Technical illustration of a mechanical component with a side view showing internal structure (no text or symbols)

taluru: 05

Illustration of a grid-patterned panel and its screen device, both with hands reaching out (no text or symbols)

Fig 1 Fig. 2

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram showing two views of a door frame with a hanging handle, no text or symbols present

Illustration showing two steps of cleaning a door panel, one with a cloth and the other with a tool (no text or symbols)

Fig 1 Fig.2

Altra manutenzione

• Low Voltage Directive (LVD)
• Electromagnetic Compatibility Directive (EMC)
- Restriction of Hazardous Substances Directive (RoHS)

Technical diagram of a mechanical or electrical enclosure with numbered components for identification.

VERDADEIRA FILTRAGEM HEPA

OS PURIFICADORES DE AR VORNADO CONTAM COM CALIBRAGEM DE PRECISÃO TRUE HEPA

Note: User environments will differ. The filter replacement time is based on average use situations, if you are using the air cleaner in a more demanding environment, you may need to change your filter more frequently. In less polluted environments the filter life may extend beyond the notification.

Portugues 101

DICAS PARA O USUÁRIO

Technical illustration of a door frame with two views showing internal structure (no text or symbols)

Technical illustration of a mechanical component with a side view and cross-section view (no text or symbols)

Portugues 100

Illustration of two hands reaching toward a screen with a grid-patterned panel (no text or symbols)

Figure 1 Figure 2

104 Portugues

1. Recoloque o suporte do fúrc fixando as 2 guias inferiores nos respectivos encaixes (B). Dobre ligamente o suporte para fixar as 2 guias superiores nos respectivos encaixes (A).

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram of a mechanical device with a labeled component (A) and directional arrows indicating movement or assembly (no text or symbols present)

CAUSA POSSÍVEL E SOLUÇÃO PROBLEMA

Technical diagram of a device with numbered components, likely an air duct or enclosure assembly.

Technical illustration of a door frame with an open door and side panel, showing internal components (no text or symbols)

Technical illustration of a mechanical component with a side view showing internal structure (no text or symbols)

Lapelol 121

Illustration of two hands interacting with a grid-patterned panel and a digital display device (no text or symbols visible)

Fig.1 Fig.2

122 Español

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram of a mechanical device with a labeled component (A) and directional arrows indicating motion, no text or symbols present.

Diagram showing two views of a device with a tool interacting with it, labeled Fig. 1 and Fig. 2 (no text or symbols on the devices themselves)

Otro Mantenimiento

Technical diagram of a device with numbered components, likely an enclosure or panel assembly.

FILTRACE TRUE HEPA

ČISTIČE VZDUCHU VORNADO PRO CELOU MÍSTNOST ZAHRNUJÍ PŘESNOU TRUE HEPA KALIBRACI

LOW MED HIGH 2 OTÁČKY VENTILÁTORU 1 POWER VÝMĚNA 3 UHLÍKOVÉHO FILTRU 4 REPLACE CARBON REPLACE HEPA VÝMĚNA HEPA FILTRU

136 Cefina

CONTROL PANEL

Technical illustration of a door frame with two views showing internal structure (no text or symbols)

Technical illustration of a mechanical component with a side view showing internal structure (no text or symbols)

Dostine 139

Illustration of hands interacting with a grid-patterned panel and a digital display (no text or symbols)

100 Certins

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram showing two views of a door frame with a handle, no text or symbols present

FUNKCE BEZPEČNOSTNÍHO VYPNUTÍ

Technical diagram of a device with numbered components, showing internal structure and assembly layout.

ÄKTA HEPA-FILTRERING

VORNADO LUFTRENARE FÖR HELA RUMMET ANVÄNDER SIG AV PRECISION TRUE HEPA-KALIBRERING

LOW MED HIGH FLÄKTHASTIGHET ② REPLACE CARBON ① STROM BYTE AV KOLFILTER BYTE AV HEPA- FILTER ③ REPLACE HEPA

154 Siemens

KONTROLLPANEL

Technical illustration of a mechanical component with two views: top view shows curved surfaces, bottom view shows a rectangular opening (no text or symbols)

Technical illustration of a mechanical component with a side view and cross-section (no text or symbols)

Svcsoba 157

Illustration of two hand gestures interacting with a grid-patterned panel and a digital tablet device (no text or symbols visible)

Bid 1 Bild 2

150 Wensks

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

Diagram of a mechanical device with a curved frame and a hanging component labeled 'A' (no text or symbols present)

SÄKERHETSAVSTÄNGNING

Bid 1 Bid 2

Övrigt underhåll

Technical diagram of a device with numbered components, likely a door or enclosure assembly

TRUE HEPA FILTRÁCIA

ČISTIČKY VZDUCHU CELEJ MIESTNOSTI VORNADO MAJÚ PRESNÚ KALIBRÁCIU TRUE HEPA FILTROV

Technical illustration of a door frame with an open lid and side panel (no text or symbols)

Technical illustration of a mechanical component with a side view and cross-section view (no text or symbols)

Skramby 175

Illustration of hands interacting with a digital tablet device (no text or symbols visible)

Ovážek 1 Obrázak 2

176

3D diagram of a mechanical component with labeled parts A and B, no readable text or symbols present

1. Vymořite predný panel tak, že panel umicatnite mierro nad jednot ku a zarovráte úchytky prednáho pane a s otvormi v jednotes (A). Jemne zatlačte predný panel smerom dole, posžvajte do drážok úchytkak tak, aby magnety bezpačna zaštili predný panel na svojom mieste.

Illustration of two views of a door frame with a handle, showing front and side views (no text or symbols)

FUNKCIA BEZPEČNOSTNÉHO VYPNUTIA

Onset 1 Onset 2

Ostatná údržba
