USER MANUAL ES1010 Concept

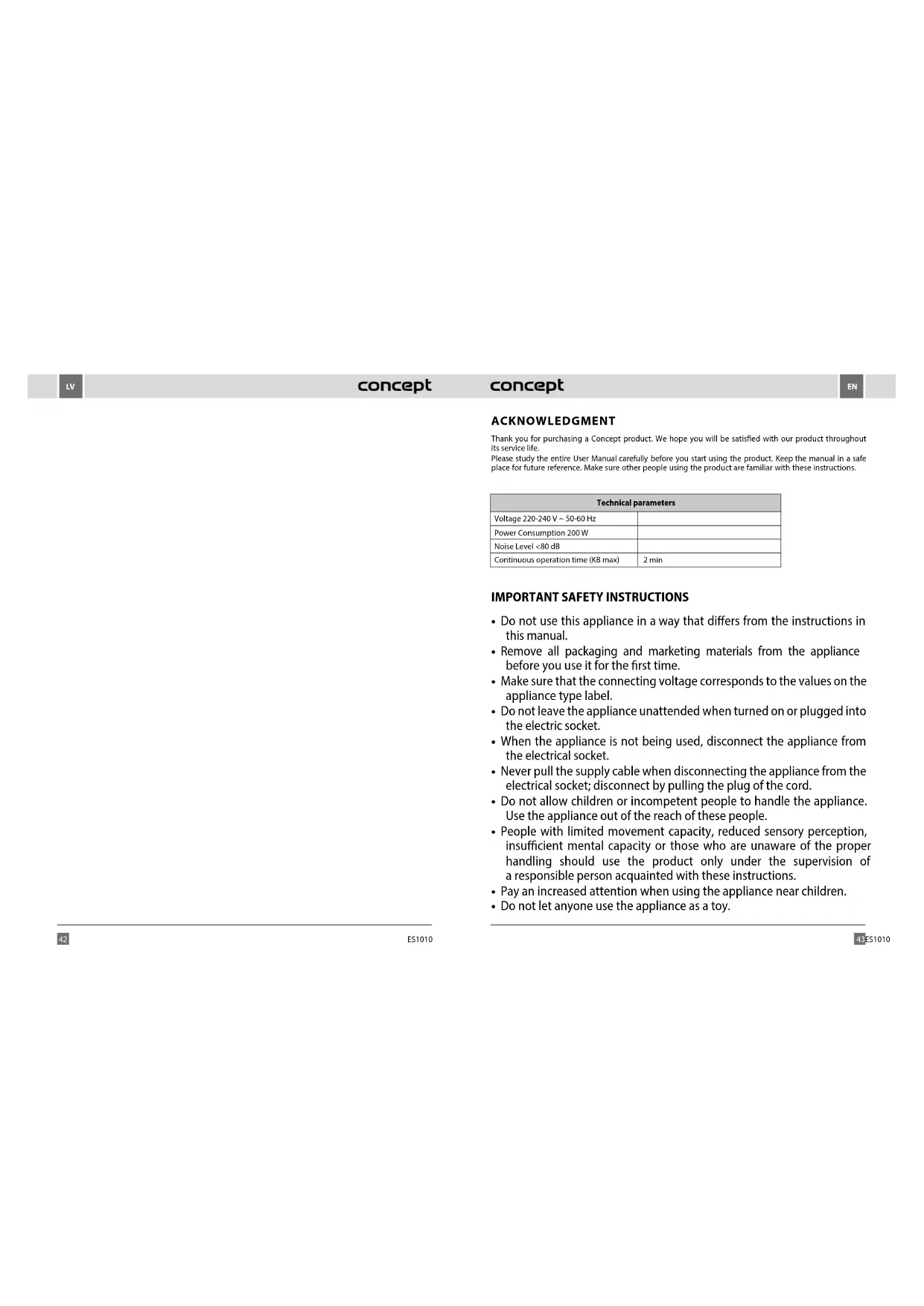

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life. Please study the entire User Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions. Technical parameters Voltage 220-240 V ~ 50-60 Hz Power Consumption 200 W Noise Level <80 dB Continuous operation time (KB max) 2 min

IMPORTANT SAFETY INSTRUCTIONS

• Do not use this appliance in a way that differs from the instructions in this manual.

• Remove all packaging and marketing materials from the appliance before you use it for the first time.

• Make sure that the connecting voltage corresponds to the values on the appliance type label.

• Do not leave the appliance unattended when turned on or plugged into the electric socket.

• When the appliance is not being used, disconnect the appliance from the electrical socket.

• Never pull the supply cable when disconnecting the appliance from the electrical socket; disconnect by pulling the plug of the cord.

• Do not allow children or incompetent people to handle the appliance. Use the appliance out of the reach of these people

• People with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person acquainted with these instructions.

• Pay an increased attention when using the appliance near children.

• Do not let anyone use the appliance as a toy.

• To prevent children from reaching the power cord, make sure it does not hang over the edge of the working area.

• Do not use the appliance outdoors or on wet surfaces as there is a risk of electric shock.

• Do not use any other accessories except those recommended by the manufacturer.

• Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.

• Never pull the power cord or use it to carry the appliance.

• Keep the appliance away from heat sources (such as radiators, ovens, etc.). Protect the appliance from direct sunlight and moisture.

• Do not touch the appliance with moist or wet hands.

• Before fixing any accessories, cleaning or in the case of a defect, turn off the appliance and pull the plug out of the electrical socket.

• The appliance is intended for household use only not for commercial use.

• Do not immerse the supply cable, the plug or the appliance itself into water or any other liquid.

• Regularly check the appliance and the power cable for any damage. Never turn the appliance on if it is damaged.

• Do not touch the moving parts of the appliance during operation. 33ES 1000

• Do not use this appliance in away that diers from the instructions in this manual.

• Remove all packaging and marketing materials from the appliance before you use it for the rst time.

• Make sure that the connecting voltage corresponds to the values on the appliance type label.

• Do not leave the appliance unattended when turned on or plugged into the electric socket.

• When the appliance is not being used, disconnect the appliance from the electrical socket.

• Never pull the supply cable when disconnecting the appliance from the electrical socket; disconnect by pulling the plug of the cord.

• Do not allow children or incompetent people to handle the appliance. Use the appliance out of the reach of these people.

• People with limited movement capacity, reduced sensory perception, insucient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of aresponsible person acquainted with these instructions.

• Pay an increased attention when using the appliance near children.

• Do not let anyone use the appliance as atoy.

• Keep your hair, fingers and clothes out of reach of the moving parts during operation.

• Be careful when handling the extensions, as the blades are very sharp and may cause injury.

• The accessories must not be used in a microwave oven.

• Some parts may keep moving for a while immediately after the motor has been switched off and the power cord has been disconnected from the socket. Wait until the movement stops completely.

• Use the unit solely for food processing.

• The maximum allowed temperature of the processed food is 80 °C. Do not use the beater for very hot food!

• Never repair the appliance by yourself. Contact an authorised service centre.

• Only operate this machine unattended.

• Do not interfere with any safety switches.

• Do not insert anything into the rotating hooks while the machine is working.

• Place the machine on a smooth, flat and stable working surface.

• Do not connect the power cord of the appliance into the electric outlet without having all the necessary accessories installed.

• This appliance can be used by children aged 8 or over and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given instruction in safe use of the appliance and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age. Failure to follow the manufacturer‘s instructions may lead to refusal of warranty repair. PRODUCT PARTS 1 Pusher 2 Lid with a feeding tube 3 Fine slicing disc 4 Coarse slicing disc 5 Julienne noodles disc 6 Coarse shredding disc 7 Fine shredding disc 8 Grater holder 9 French fries disc 10 Disc holder 11 Bowl with a spout 12 Top cover 13 Body with a motor 14 Base

• To prevent children from reaching the power cord, make sure it does not hang over the edge of the working area.

• Do not use the appliance outdoors or on wet surfaces as there is arisk of electric shock.

• Do not use any other accessories except those recommended by the manufacturer.

• Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.

• Never pull the power cord or use it to carry the appliance.

• Keep the appliance away from heat sources (such as radiators, ovens, etc.). Protect the appliance from direct sunlight and moisture.

• Do not touch the appliance with moist or wet hands.

• Before xing any accessories, cleaning or in the case of adefect, turn o the appliance and pull the plug out of the electrical socket.

• The appliance is intended for household use only not for commercial use.

• Do not immerse the supply cable, the plug or the appliance itself into water or any other liquid.

• Regularly check the appliance and the power cable for any damage. Never turn the appliance on if it is damaged.

• Do not touch the moving parts of the appliance during operation.

• Keep your hair, ngers and clothes out of reach of the moving parts during operation.

• Be careful when handling the extensions, as the blades are very sharp and may cause injury.

• The accessories must not be used in amicrowave oven.

• Some parts may keep moving for awhile immediately after the motor has been switched o and the power cord has been disconnected from the socket. Wait until the movement stops completely.

• Use the unit solely for food processing.

• The maximum allowed temperature of the processed food is 80 °C. Do not use the beater for very hot food!

• Never repair the appliance by yourself. Contact an authorised service centre.

• Only operate this machine unattended.

• Do not interfere with any safety switches.

• Do not insert anything into the rotating hooks while the machine is working.

• Place the machine on asmooth, at and stable working surface.

• Do not connect the power cord of the appliance into the electric outlet without having all the necessary accessories installed.

• This appliance can be used by children aged 8 or over and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given instruction in safe use of the appliance and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age. Failure to follow the manufacturer‘s instructions may lead to refusal of warranty repair. 34 ES 1000

• Keep your hair, fingers and clothes out of reach of the moving parts during operation.

• Be careful when handling the extensions, as the blades are very sharp and may cause injury.

• The accessories must not be used in a microwave oven.

• Some parts may keep moving for a while immediately after the motor has been switched off and the power cord has been disconnected from the socket. Wait until the movement stops completely.

• Use the unit solely for food processing.

• The maximum allowed temperature of the processed food is 80 °C. Do not use the beater for very hot food!

• Never repair the appliance by yourself. Contact an authorised service centre.

• Only operate this machine unattended.

• Do not interfere with any safety switches.

• Do not insert anything into the rotating hooks while the machine is working.

• Place the machine on a smooth, flat and stable working surface.

• Do not connect the power cord of the appliance into the electric outlet without having all the necessary accessories installed.

• This appliance can be used by children aged 8 or over and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given instruction in safe use of the appliance and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age. Failure to follow the manufacturer‘s instructions may lead to refusal of warranty repair. PRODUCT PARTS 1 Pusher 2 Lid with a feeding tube 3 Fine slicing disc 4 Coarse slicing disc 5 Julienne noodles disc 6 Coarse shredding disc 7 Fine shredding disc 8 Grater holder 9 French fries disc 10 Disc holder 11 Bowl with a spout 12 Top cover 13 Body with a motor 14 Base

1. Remove all package materials from the appliance.

2. Thoroughly clean the parts that come into contact with food before you use the appliance for the first

time (see chapter “Cleaning”). Preparing for use

1. Let hot ingredients cool down before you process them (max. temperature 80ºC/175ºF).

2. Cut the ingredients into pieces that fit into the feeding tube. Make sure that the pieces are not too big

to prevent them from getting stuck in the tube.

3. Put the appliance on a flat and stable surface.

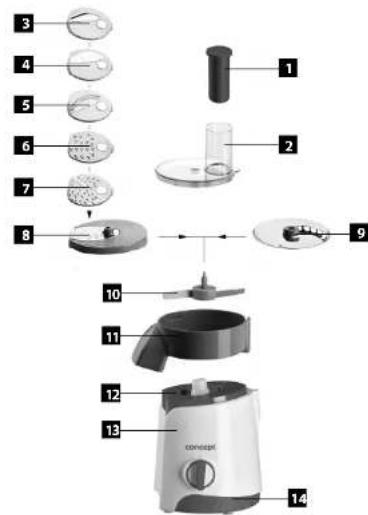

4. Put the bowl with a spout (11) on the body with a motor (13) and turn it clockwise until it clicks.

5. Place the disc holder (10) in the bowl with a spout.

6. Place the disc you want to use on the disc holder (8 or 9).

The cutting edges are very sharp. Do not touch them!

7. Put the lid with a feeding tube (2) on the bowl with a spout. Turn the lid clockwise until it clicks.

8. Put the power cord in the wall socket.

Using the appliance The grater discs are intended for slicking and grating vegetables such as cucumber, carrots, potatoes, leeks and onions and also certain kinds of cheese. The julienne noodles disc (5) is intended for cutting vegetables into thin sticks. The French fries disc is intended for cutting potatoes into fries. Never process hard ingredients like ice cubes with the appliance. The cutting edges are very sharp. Do not touch them!

1. Turn the control knob to position 1.

2. Put the ingredients in the feeding tube.

Precut the ingredients into smaller pieces that fit in the feeding tube. Fill the feeding tube evenly for the best results. If you want to grate cheese like Parmesan, Gouda or Emmental, it should be chilled to a refrigerator temperature.

3. Put the pusher (1) onto the ingredients in the feeding tube and push down lightly.

DO NOT operate the unit continuously for more than 2 minutes. Allow the motor to rest for 5 minutes before using again. After three cycles, allow the unit to cool completely before using again. 35ES 1000

CLEANING AND MAINTENANCE

Never use scourers, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. Note: All parts except the body with a motor (13) can be cleaned in the dishwasher.

1. Switch off and unplug the appliance.

2. Turn the lid with feeding tube (2) anticlockwise and remove it from the bowl with spout (11).

3. Remove the disc (8 or 9) and the disc holder (10) out of the bowl with a spout.

4. Turn the bowl with a spout (11) anticlockwise and remove it from the body with a motor (13).

5. Clean the bowl, pusher, lid with a feeding tube, disc holder and discs using warm water with a washing-

up liquid or in the dishwasher. Clean the discs very carefully. The cutting edges are very sharp!

6. Wipe the body with a motor (13) with a moist cloth.

Danger: Never immerse the body with a motor in water, nor rinse it under the tap. Do not

clean it in the dishwasher either. Caution: If water or other liquids gets between the body (13) and the bowl with a spout, dry the body with a motor (13) thoroughly before next operation.

7. Wipe all parts of the appliance dry with a dry cloth.

1. Switch off and unplug the appliance.

2. Let the appliance cool down.

3. Put the bowl with a spout (11) on the body (13) and turn it clockwise until it clicks.

4. Put the disc holder (10) into the bowl with a spout, put the lid with a feeding tube (2) on the bowl and

turn it clockwise until it clicks.

5. Put the pusher (1) in the feeding tube.

6. Wind the power cord up and fix it on the bottom side of the body with a motor (13).

7. Store the appliance in a safe and dry place, preferably on the working top in your kitchen.
