6. Pressure air connection

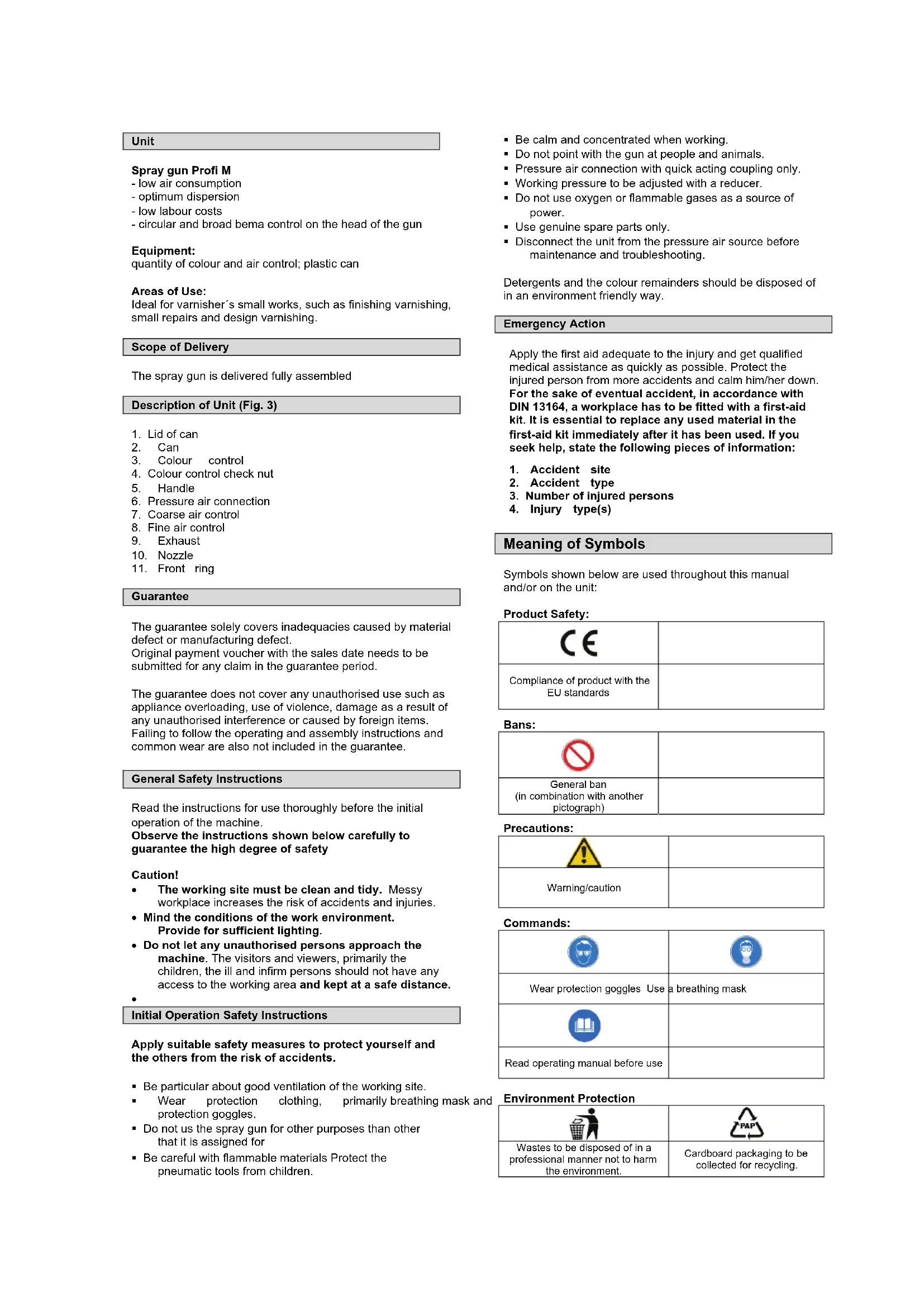

Guarantee The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee. General Safety Instructions Read the instructions for use thoroughly before the initial operation of the machine. Observe the instructions shown below carefully to guarantee the high degree of safety Caution!

• The working site must be clean and tidy. Messy workplace increases the risk of accidents and injuries.

• Mind the conditions of the work environment. Provide for sufficient lighting.

• Do not let any unauthorised persons approach the machine. The visitors and viewers, primarily the children, the ill and infirm persons should not have any access to the working area and kept at a safe distance.

Initial Operation Safety Instructions Apply suitable safety measures to protect yourself and the others from the risk of accidents. Be particular about good ventilation of the working site. Wear protection clothing, primarily breathing mask and protection goggles. Do not us the spray gun for other purposes than other that it is assigned for Be careful with flammable materials Protect the pneumatic tools from children. Be calm and concentrated when working. Do not point with the gun at people and animals. Pressure air connection with quick acting coupling only. Working pressure to be adjusted with a reducer. Do not use oxygen or flammable gases as a source of power. Use genuine spare parts only. Disconnect the unit from the pressure air source before maintenance and troubleshooting. Detergents and the colour remainders should be disposed of in an environment friendly way. Emergency Action Apply the first aid adequate to the injury and get qualified medical assistance as quickly as possible. Protect the injured person from more accidents and calm him/her down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

3. Number of injured persons

Meaning of Symbols Symbols shown below are used throughout this manual and/or on the unit: Product Safety:

Compliance of product with the EU standards

General ban (in combination with another pictograph)

Warning/caution Commands: Wear protection goggles Use a breathing mask

Read operating manual before use Environment Protection

Wastes to be disposed of in a professional manner not to harm the environment. Cardboard packaging to be collected for recycling.Faulty and/or disposed of electrical/electronic appliances to be collected by authorised salvage places.

Unit connection Operating pressure

Weight Assigned Use This spray gun is lightweight pneumatically driven, a varnishing gun for DIY and professional purposes. It is suitable for varnishing mid-sized areas and minor repairs. The paint is sprayed with a stream of air very finely and applied on the article to be sprayed. . The spray application may be adjusted owing to setting of the circular and wide beam. The airhead may be shifted vertically or horizontally when the broad beam is adjusted for larger areas. Residual Hazards and Protective Action Materials and Other Substances Hazard Contact-aspiration When the paint articles are formed in large quantity, lungs may be impaired. Health-hazardous articles emissions may form in result of operation without exhaustion. Always wear a respirator. Ideally, provide for exhaustion. Insufficient local lighting Insufficient local lighting represents considerable safety hazard. Always provide for sufficient lighting when working with the unit. Disposal Disposal instructions are given by pictographs on the unit or packaging. For meaning of individual symbols refer to chapter “Symbols on Unit.“ Operator Requirements The operator shall read the instruction manual carefully before using the unit.

Qualification No special qualification is required for use of the unit except for detailed direction by a professional. Minimum Age Only persons above 16 years of age are allowed to work with the unit. . Exempted from the provision is the use of the juvenile trainees if they work in the course of their professional training with an aim to obtain the skill under trainer supervision. Training Use of the unit requires adequate lesson by a professional or the use of the manual only. Special training is not required. Technical Data Connect threading : ¼ “ Operating pressure : 2 – 4 bar Air consumption : 141 l/min. Can: 100 ml/PVC Nozzle Ø : 0,8 mm Pressure outlet nozzle: 1,4 bar Approximate weight : 0,5 kg Dimensions L x W x H (mm): 110 x 60 x 250 EAN: 4015671 02750 4 Ordering No. 02750 Transportation and Storage

• Clean the unit thoroughly for any longer storage Assembly and Initial Operation The spray gun is fully assembled. Operation Never spray foodstuff or chemicals! The paint can and air hose must be attached to the spray gun firm and tight. The optimum air pressure for varnishing is 3 – 3.5 bar subject to viscosity and the paint process condition (to be found out if necessary) The optimum spray application is at a distance of 15 – 20 cm approximately. Too small distance and too fast or too slow moves make the spray application poor. Tip: Make a test spray on a piece of cardboard before every application. .

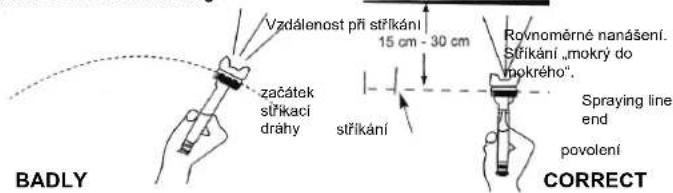

Distance at spraying Spraying line beginning WRONG

1. Too little paint in the can.

2. The gun held aslant.

3. The part with paint blocked.

4. Loosened/damaged nozzle

5. Viscosity too high.

6. Jammed hole in the lid.

Needle sealing or centre core worn. Spray application partial only.

1. Contaminated or damaged airhead.

2. The paint sticks to the nozzle or damaged parts.

Uneven spray application and drops formation.

2. Working pressure too low.

3. Viscosity too high.

Uneven building of material.

1. Working pressure too high

2. Air head and/or nozzle jammed with paint

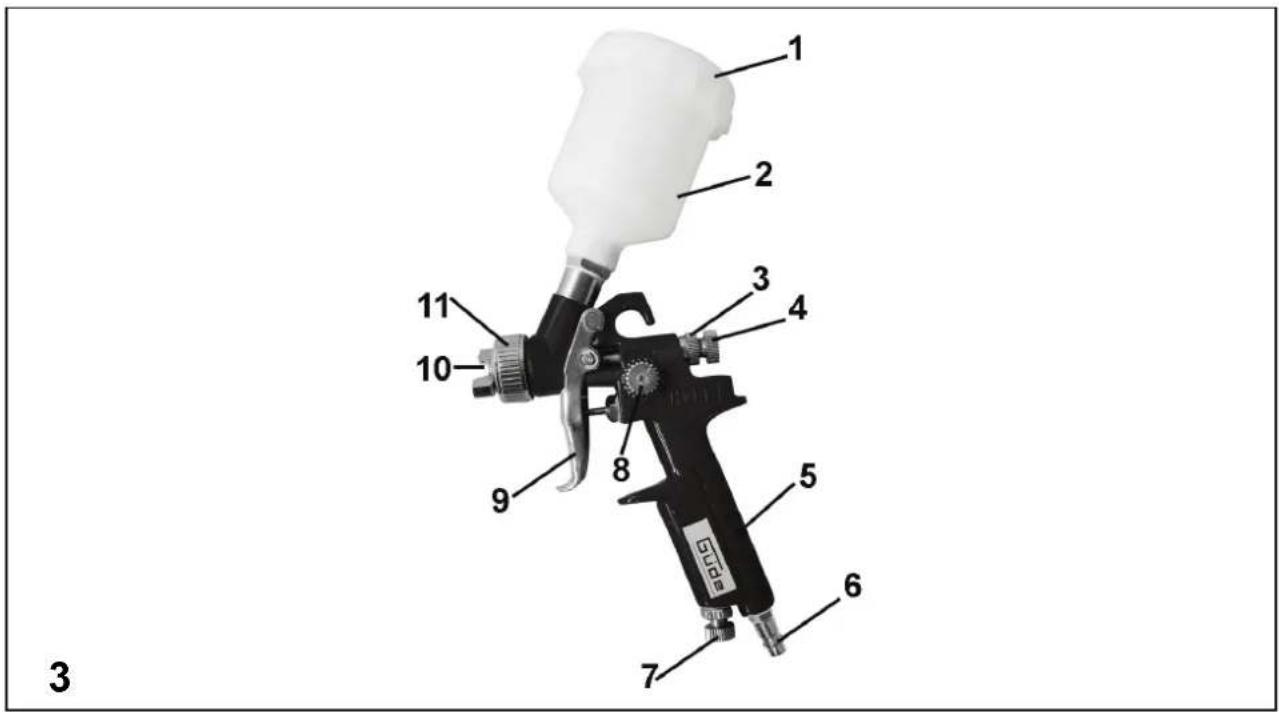

Inspections and servicing After being used, the spray gun must always be cleaned thoroughly. Pour in undiluted solvent to the container and spray with the gun on the cloth or absorbent surface until there is no more remaining paint in the solvent. Clean the gun from the outside with a cloth soaked in the solvent. Before cleaning the gun thoroughly, fully unscrew the paint control lock nut (4) while looking out for the spring. Then, pull out the nozzle needle, unscrew the front ring (11) and remove the nozzle (10) punched head. Unscrew the nozzle using the spanner. Put all the components to a container with undiluted solvent for a few hours. Dry out the components thoroughly and refit the gun. In doing so, proceed in the reverse order than when dismantling. Inspections and Maintenance Safety Instructions Only a unit maintained and cared for regularly may be a satisfactory aid. Lack of maintenance and care may result in unforeseen accidents and injuries.

EU – DECLARATION OF COMPLIANCE

We, GmbH & Co. KG Birkichstraße 6, 74549 Wolpertshausen, Germany herewith declare that the following appliance complies with the appropriate basic safety and health requirements of the EU Directives based on its design and type, as brought into circulation by us. In case of alternation of the machine, not agreed upon by us, this declaration will lose its validity. Machine description: Profi M Article No.: 02750
