Product type	Manual guillotine paper cutter
Brand	Olympia
Model	G 4420
Cutting length	448 mm
Cutting capacity (80 g/m² sheets)	20 sheets
Blade material	Tempered steel (estimated)
Blade guard	Transparent plexiglass, removable
Pressure bar	With finger protection
Locking system	Guillotine lock under the table
Paper guide	Rail with adjustable stop, grids and markings
Guillotine adjustment	Tension screw to compensate for wear
Intended use	Paper, cards, photo paper, laminated sheets
Required work surface	Flat and stable
Cleaning	Slightly damp cloth for surfaces, soft brush for the blade
Maintenance	Do not grease or sharpen the blade
Safety	Keep out of reach of children, remove staples/clips before cutting, do not touch the blade
Approximate dimensions	Approximately 600 x 350 x 150 mm (estimated)
Approximate weight	Approximately 3.5 kg (estimated)

Frequently Asked Questions - G 4420 OLYMPIA

How to install the blade guard?

Unscrew the screws from the pressure bar, remove the protective film, unlock the guillotine, lift it slightly, insert the plexiglass guard from the back (the small tab on the left), align the holes, then screw back without overtightening.

What to do if the guillotine does not stay in the raised position?

The adjustment screw (10) must be tightened. Turn it slowly with a suitable tool until the guillotine stays in place. Test while respecting safety instructions.

What type of paper can I cut with this paper cutter?

This guillotine paper cutter is designed to cut paper, cards, photo paper, and laminated sheets, up to 448 mm in length and 20 sheets of 80 g/m².

How to clean the blade without getting hurt?

Use a soft brush to remove paper residue. Never clean the blade directly with a cloth: the blade is very sharp. Avoid any harsh chemicals.

Can I cut plastic or fabric with this device?

No, proper use is limited to paper, cards, photo paper, and laminated sheets. Any other use is considered non-compliant and dangerous.

How to adjust the paper guide?

Unlock the locking device (7), slide the guide (6) on the rail to the desired position using the grids (5), then lock it.

What to do if the blade becomes dull?

Do not sharpen or grease the blade. If the blade is damaged, the device must no longer be used. Contact customer service or return the device to the store.

How to lock the guillotine after use?

Fully lower the guillotine (1) using the handle (2), then turn the locking device (9) counterclockwise until it is securely fixed.

Is the device delivered with the blade guard installed?

No, the plexiglass guard must be installed before first use. Follow the steps described in the manual: unlock the guillotine, insert the guard from the back and secure it with screws.

What to do in case of malfunction?

Return the device in its original packaging with proof of purchase to the store where you bought it. Do not attempt to repair it yourself.

USER MANUAL G 4420 OLYMPIA

Service-Center Hattingen

Zum Kraftwerk1

45527 Hattingen

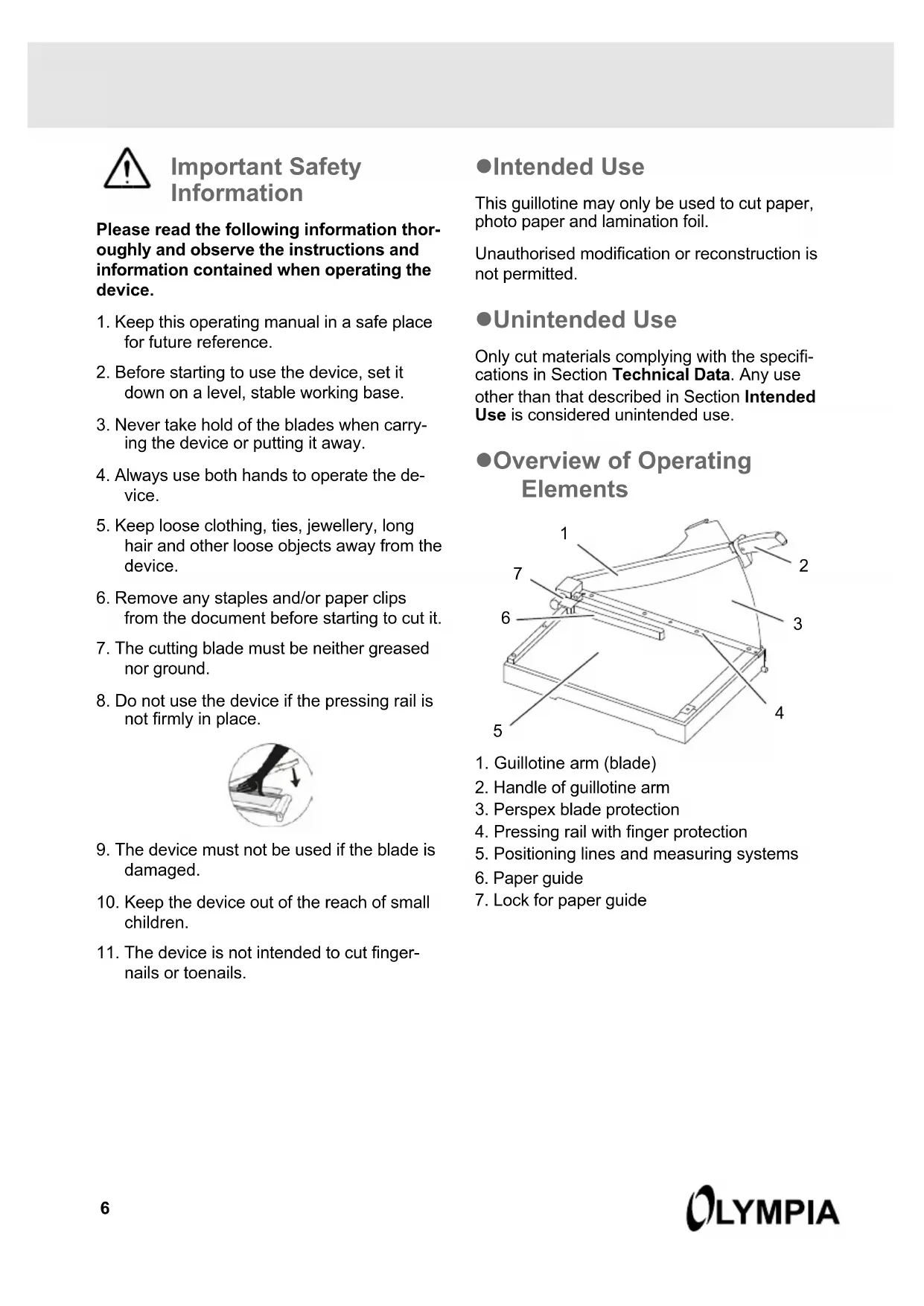

Please read the following information thoroughly and observe the instructions and information contained when operating the device.

1. Keep this operating manual in a safe place for future reference.
2. Before starting to use the device, set it down on a level, stable working base.
3. Never take hold of the blades when carrying the device or putting it away.
4. Always use both hands to operate the device.
5. Keep loose clothing, ties, jewellery, long hair and other loose objects away from the device.
6. Remove any staples and/or paper clips from the document before starting to cut it.
7. The cutting blade must be neither greased nor ground.
8. Do not use the device if the pressing rail is not firmly in place.

1. The device must not be used if the blade is damaged.
2. Keep the device out of the reach of small children.
3. The device is not intended to cut fingernails or toenails.

- Intended Use

This guillotine may only be used to cut paper, photo paper and lamination foil.

Unauthorised modification or reconstruction is not permitted.

- Unintended Use

Only cut materials complying with the specifications in Section Technical Data. Any use other than that described in Section Intended Use is considered unintended use.

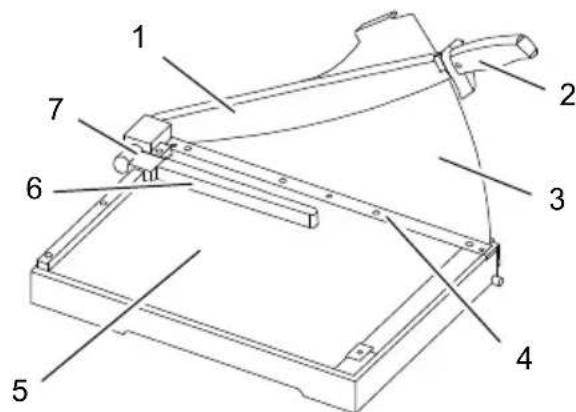

- Overview of Operating Elements

1. Guillotine arm (blade)
2. Handle of quillotine arm
3. Perspex blade protection
4. Pressing rail with finger protection
5. Positioning lines and measuring systems
6. Paper guide
7. Lock for paper guide

Assembling the Blade Protection

Before starting to use the guillotine, assemble the perspex blade protection to protect the user from the sharp guillotine blade.

1. Remove the device carefully from the packaging.
2. Remove the screws (8) from the pressing rail (4).
3. Remove the protective card from the perspex blade protection (3).
4. Unlock the guillotine arm (1) by turning the lock (9) clockwise.
5. Pull the guillotine arm (1) upwards a little. Install the perspex blade protection (3) carefully, from the rear, so that the protection is against the blade.

Note: The handle (2) is provided with a small projection which must be on the left-hand side of the perspex blade protection (3). Move the cover so that the screw holes are in line with the respective thread.

Attention: Property damage! The perspex blade protection (3) could be damaged. Do not tighten the screws too tight.

1. Fix the perspex blade protection (3) in place on the pressing rail (4) with the screws (8).

- Guillotine

1. Remove the device carefully from the packaging.

Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.

1. Before starting to use the device, set it down on a level, stable working base.
   Note: The guillotine arm (1) is locked on the underside of the cutting unit.

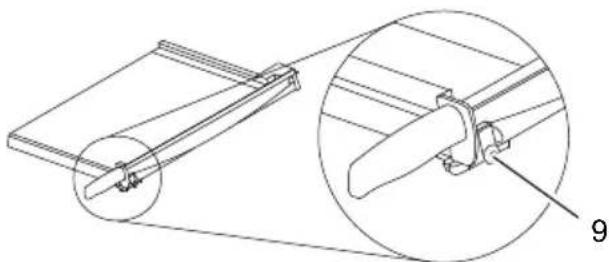

2. Unlock the guillotine arm (1) by turning the lock (9) clockwise.

1. Use the handle (2) to move the guillotine arm (1) upwards.
2. Place the material to be cut in the required position under the pressing rail (4) and press the pressing rail down.
3. Cut the material by moving the guillotine arm (1) down using the handle (2).

Attention: Risk of injury! The guillotine blade is very sharp! Never reach in towards or take hold of the guillotine blade.

Note: After completing the cutting task, the guillotine arm (1) must be locked to the underside of the cutting unit.

1. Use the handle (2) to move the guillotine arm (1) down as far as possible. Lock the guillotine arm by turning the lock (9) anticlockwise.

Paper Guide

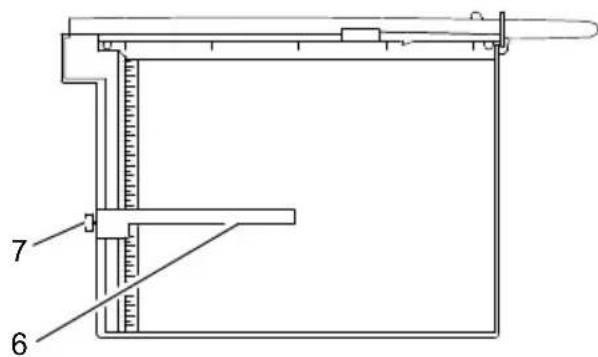

1. Release the lock (7) for the paper guide (6).
2. Slide the paper guide (6) carefully on the rail.

Note: Do not slide the paper guide (6) if the lock (7) has not been released.
3. Position the paper guide (6) with the aid of the measuring units and systems (5).
Note: The paper guide (6) can be adjusted continually in the rail.
4. Lock the paper guide (6). The paper guide serves as a stopper for the material to be cut.

-Technical Data

Cutting length (mm)

G 3640	360
G 4640 460
G 3120 310
G 4420 448
G 4415 448
G 3115 310

Adjusting the Guillotine Arm

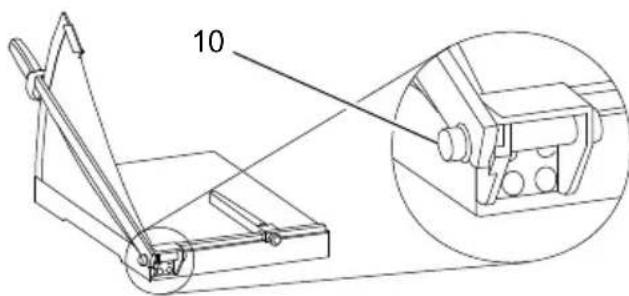

After a period of time in use, the guillotine arm (1) becomes too loose and no longer remains in position of its own accord. The guillotine arm (1) must then be readjusted.

1. Tighten the screw (10) slowly, using an appropriate tool.

Note: Check whether the guillotine arm remains in position, taking the safety information into account. If the guillotine arm is too difficult to move, loosen the screw (10) slowly, using an appropriate tool.

Cutting capacity Sheets (80g / m^2)

G 3640	40
G 4640 40
G 3120 20
G 4420 20
G 4415 15
G 3115 15

- Cleaning the Device

Attention: Risk of injury! The guillotine blade is very sharp! Take the utmost caution when cleaning the guillotine blade!

Clean the outer surfaces of the device with a slightly damp cloth. Clean the blade carefully with a soft brush.

Do not use any aggressive cleaning agents or chemicals to clean the device.

- Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The

symbol indicates that the device must not be disposed of in normal domestic waste! Packaging materials must be disposed of according to local regulations.

Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.
